For those of you who don't know me my name is Mark and I am the man behind "Car Audio Fabrication" on YouTube. I have posted build threads before (like this one: http://www.caraudio.com/forums/car-audio-build-logs-cars-trucks-suvs/559134-video-build-log-fi-bl-rockford-fosgate-focal-knukonceptz-tips-tricks.html#post8197192 ) and if you have ever seen one you know that I love to mix in "How To" Videos throughout the build that describe the process and show each step. This build will be no different! well, it will a little bit because I am going to try to mix in a lot more pictures for your viewing pleasure!

I love to help other car audio enthusiasts young and old, newb and veteran, so if you see something you have a question about ASK! //content.invisioncic.com/y282845/emoticons/smile.gif.1ebc41e1811405b213edfc4622c41e27.gif

The Vehicle:

Chevy Duramax 2500 HD Extended

Cab (Will add pics soon)

The Gear:

Alpine Type R's 6.5" Component Speakers

10" JL Audio W3

Knukonceptz wiring

Wirecare.com wire protection products

Alpine MRP-M500

Alpine MRP-F300

The Install:

Custom Fiberglass Door Pods with Vinyl Wrapped Inserts to accent interior and match sub enclosure

Custom Fiberglass Subwoofer Enclosure (Specs to Follow)

The Goal:

Quality sound that integrates well with the vehicle and requires little to know permanent vehicle modification. (No cutting of panels allowed!)

My Goal:

Teach the readers of this thread as much about the fabrication of the pods and sub enclosure, as well as the install as I can.

Let's begin!

We started with collecting some

of the gear, the ownder of the vehicle wanted to re-use his Alpine Component

Speakers and JL Subwoofer, I talked him into purchasing a MRP-F300 which is the

exact same foot print as the MRP-M500 and will allow for a really clean

install.

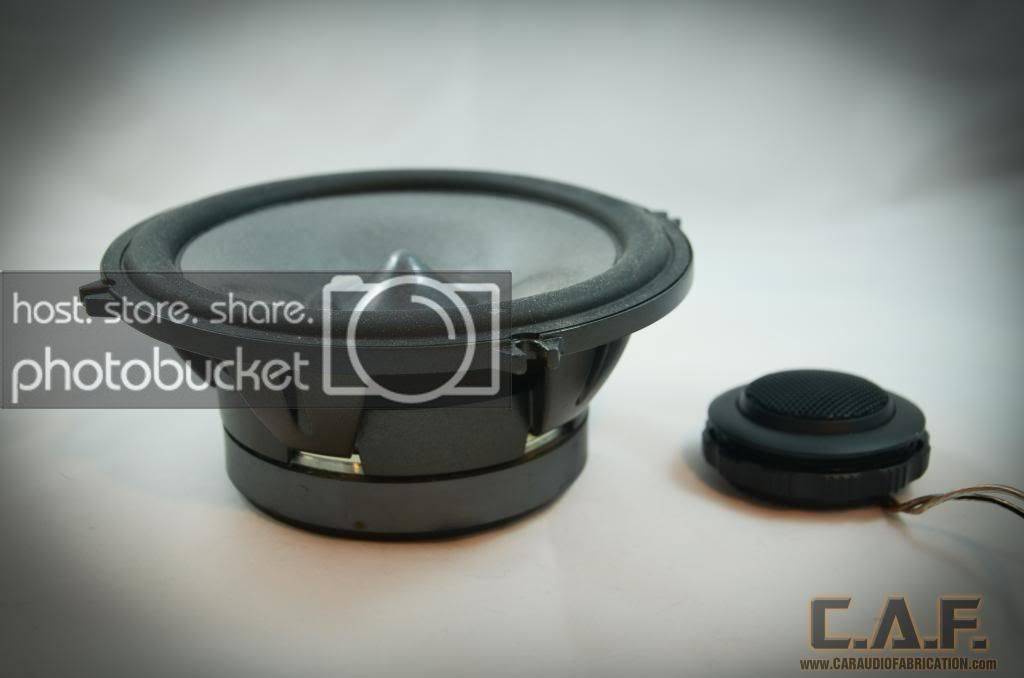

The components:



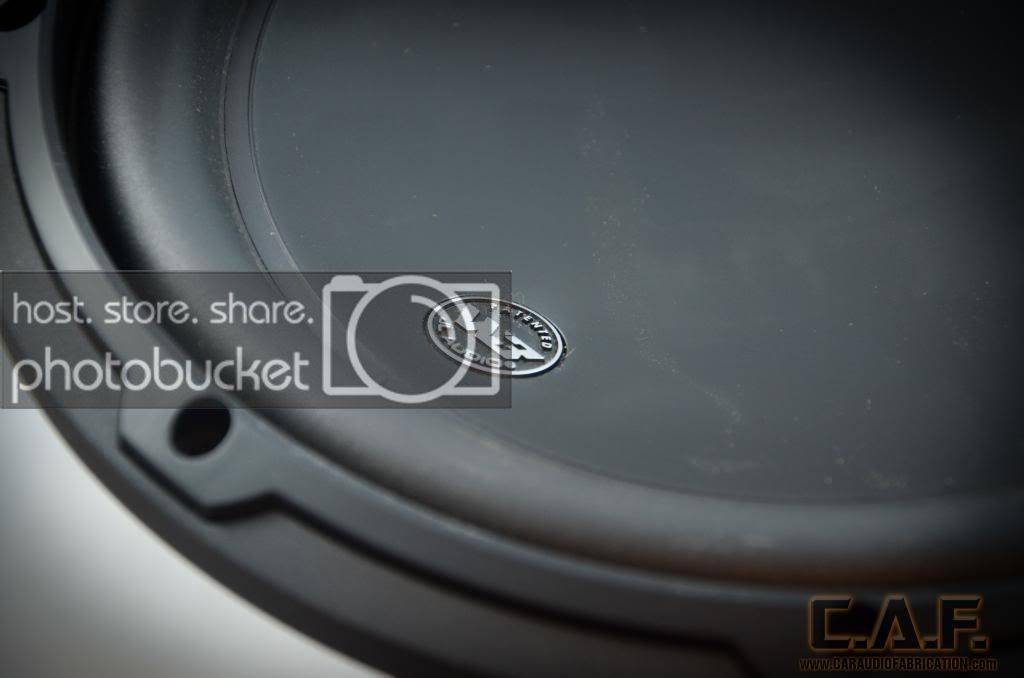

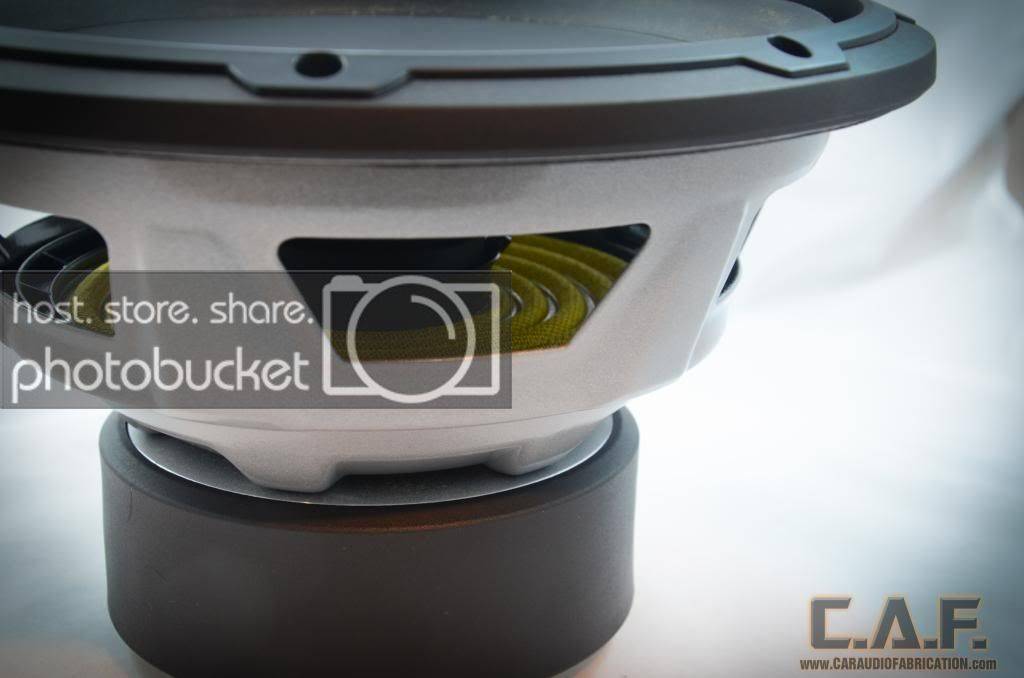

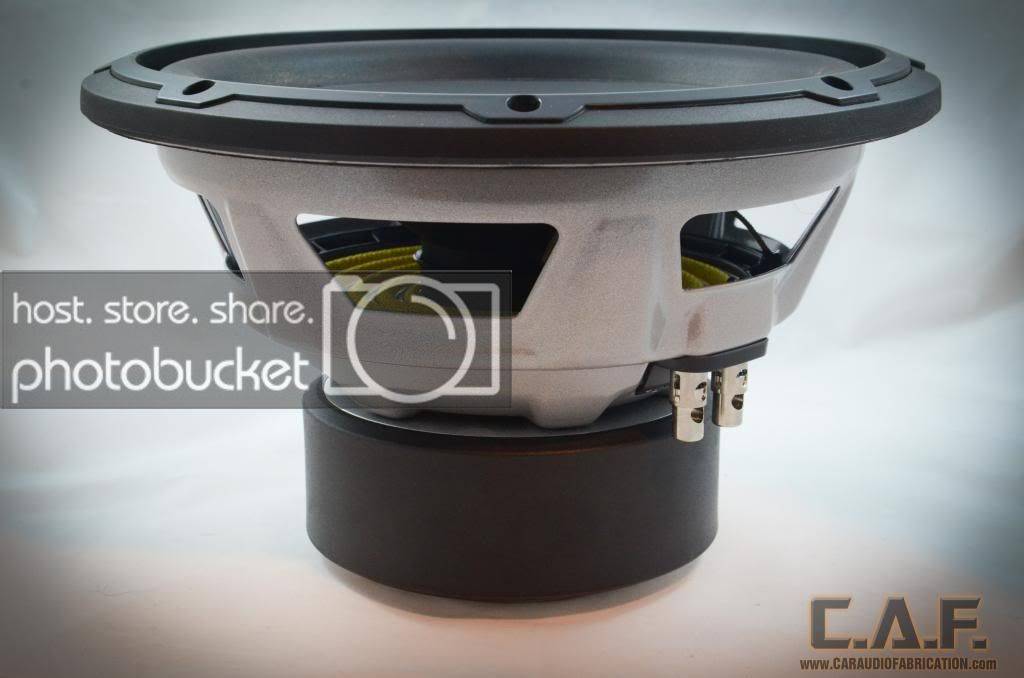

The sub:







The amplifier: (Still need pics

of the 4 channel)



I then determined what was

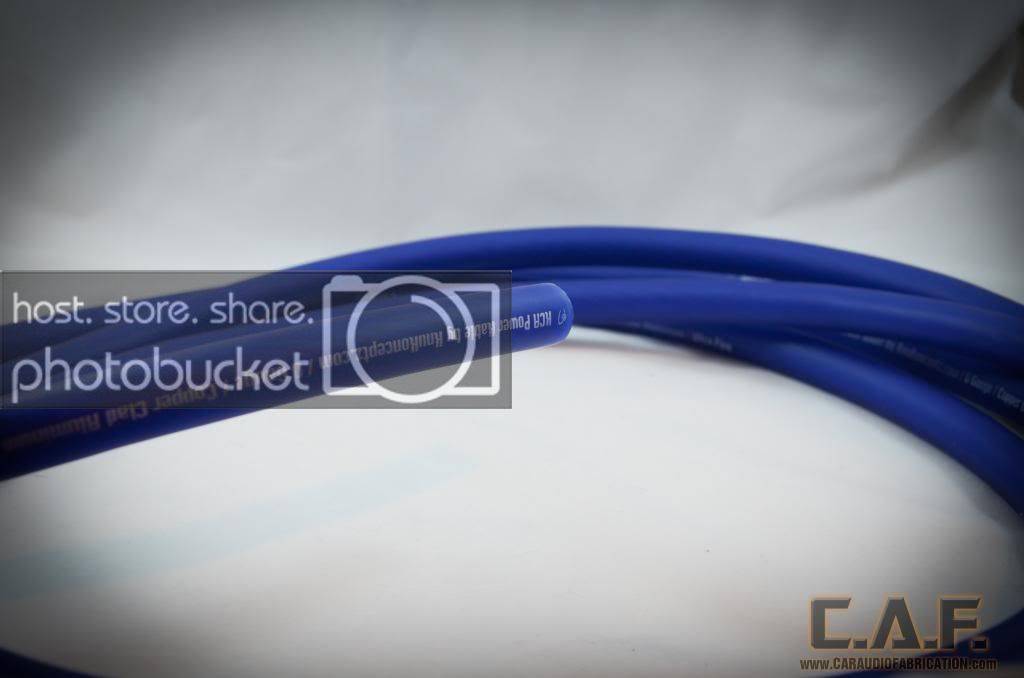

needed wiring wise and put in an order with my friends over at Knukonceptz.com:

Click to read more...



[mklett33 10+ year member]

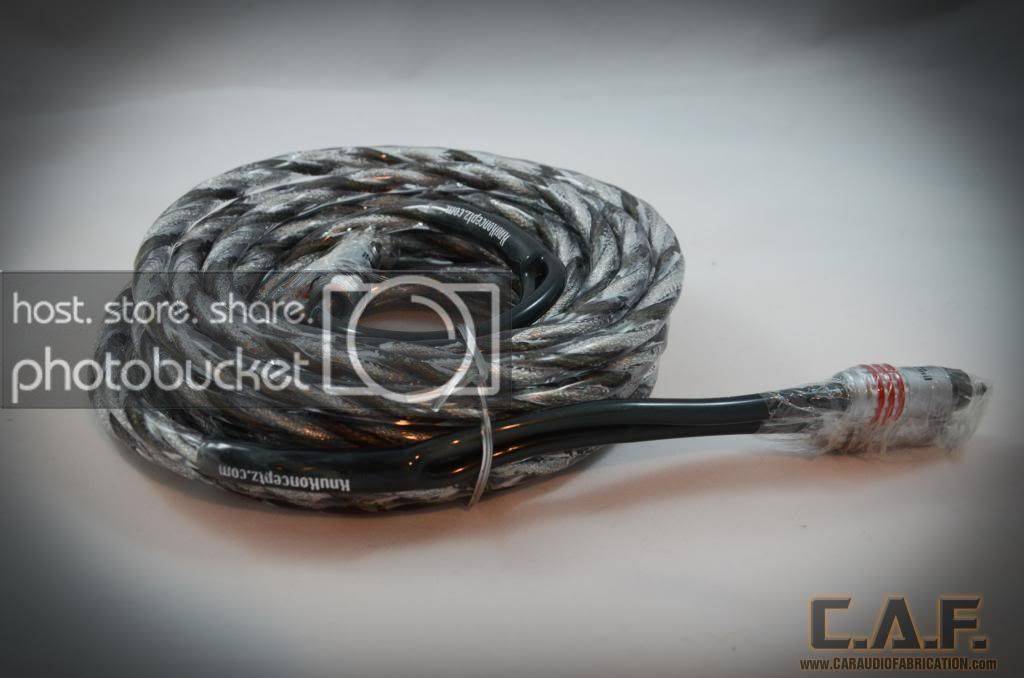

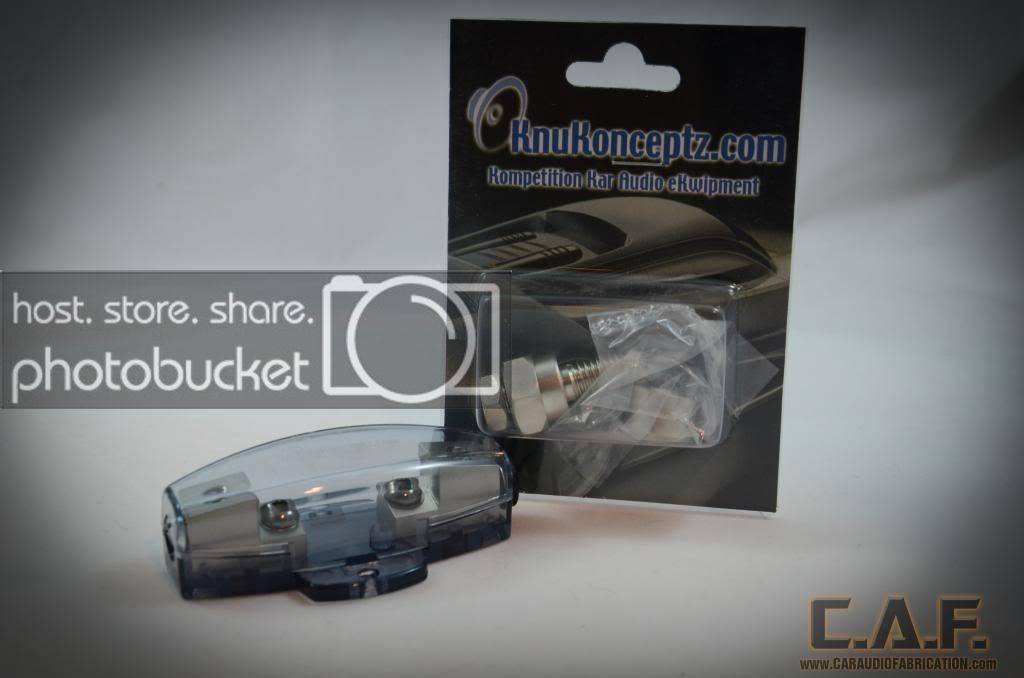

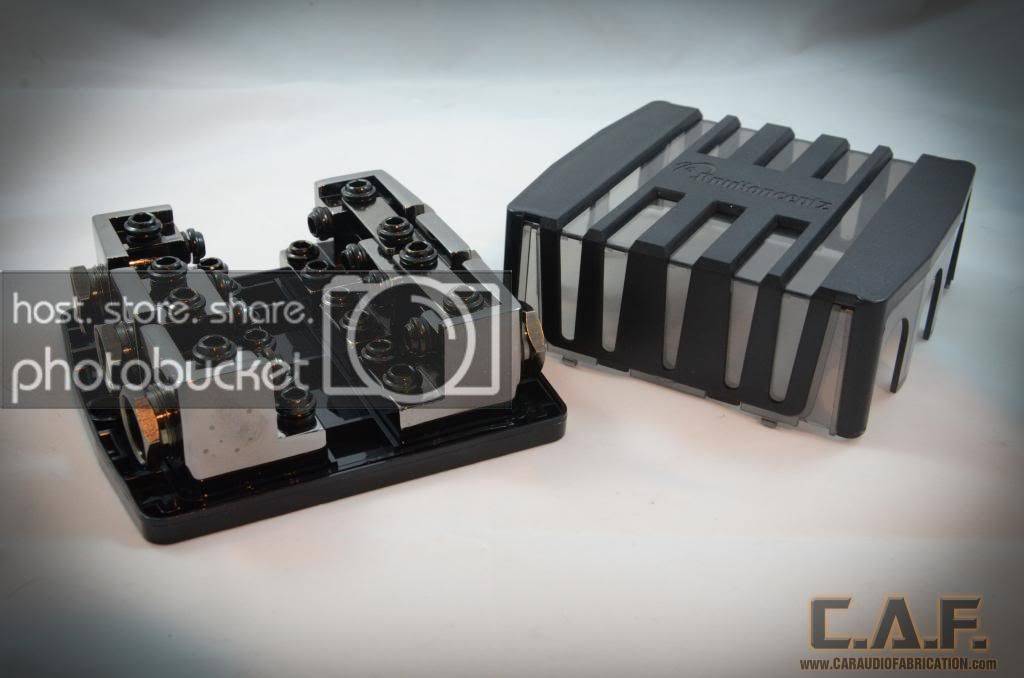

I am very excited to use their

new product the KNF-60, we were one of the first to get a production unit and I

was really impressed with using it in a different build so I decided to get one

for this one as well:



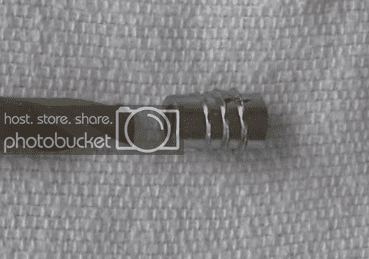

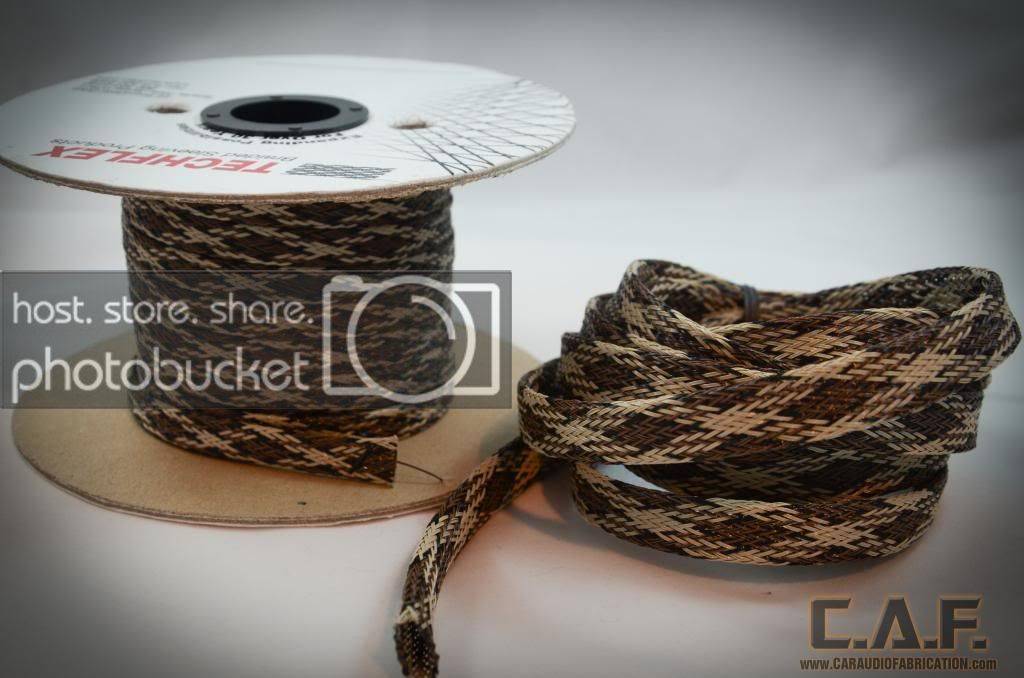

All of the wiring in this build

will be protected by Techflex which I recieved from our show sponsor

WireCare.com . They really have some great products and the "snake"

style techflex will look awesome with the tan and black truck.



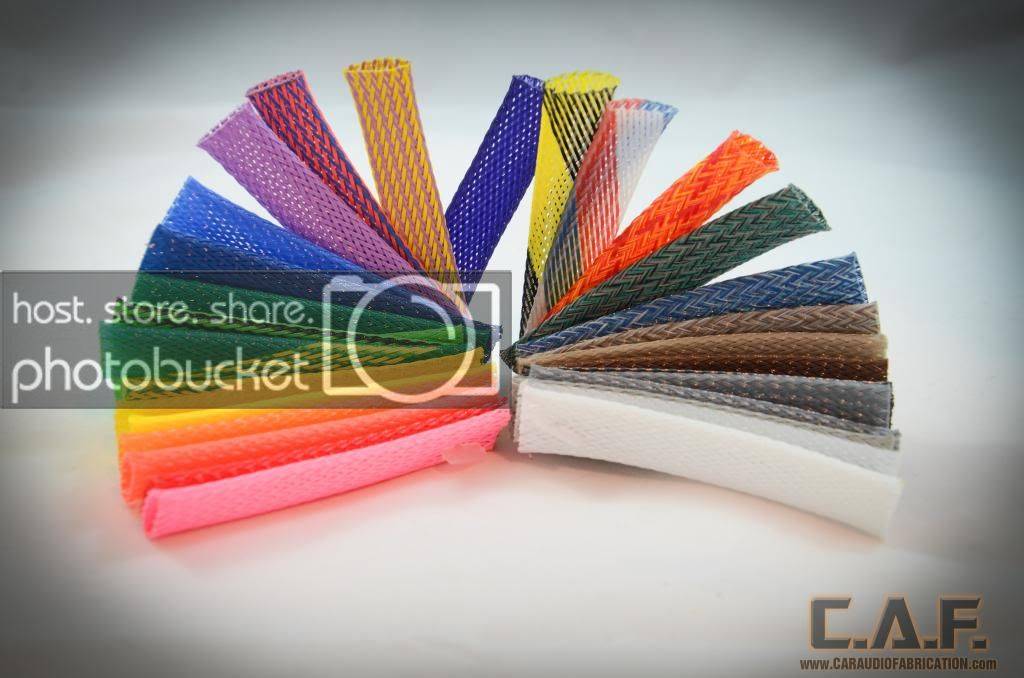

Its crazy how many colors of

this stuff there is!



Now the EXCITING stuff!

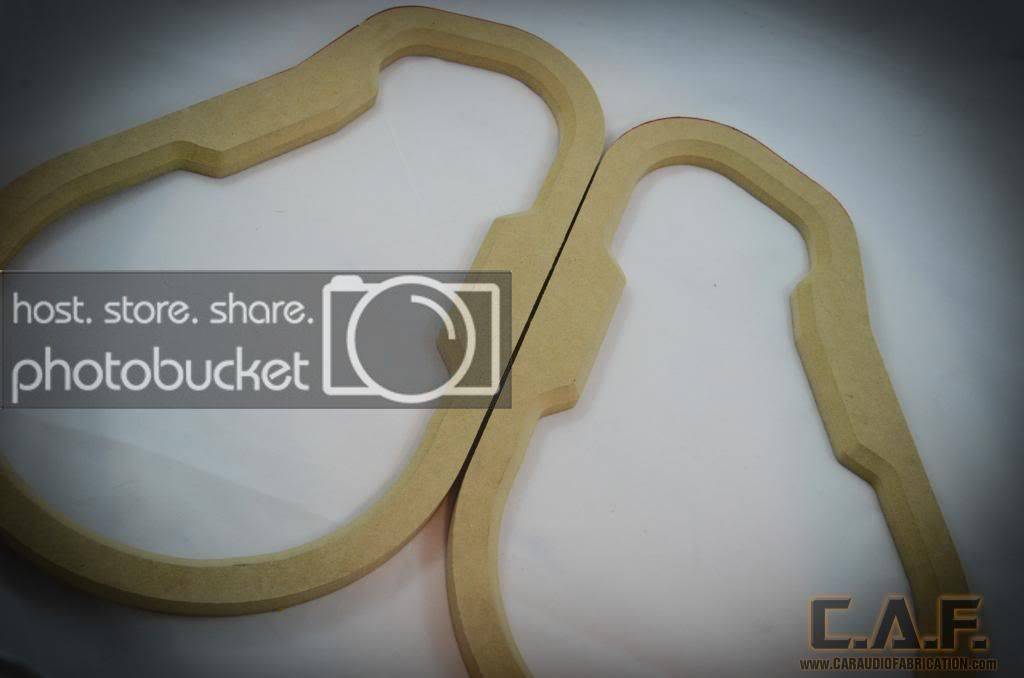

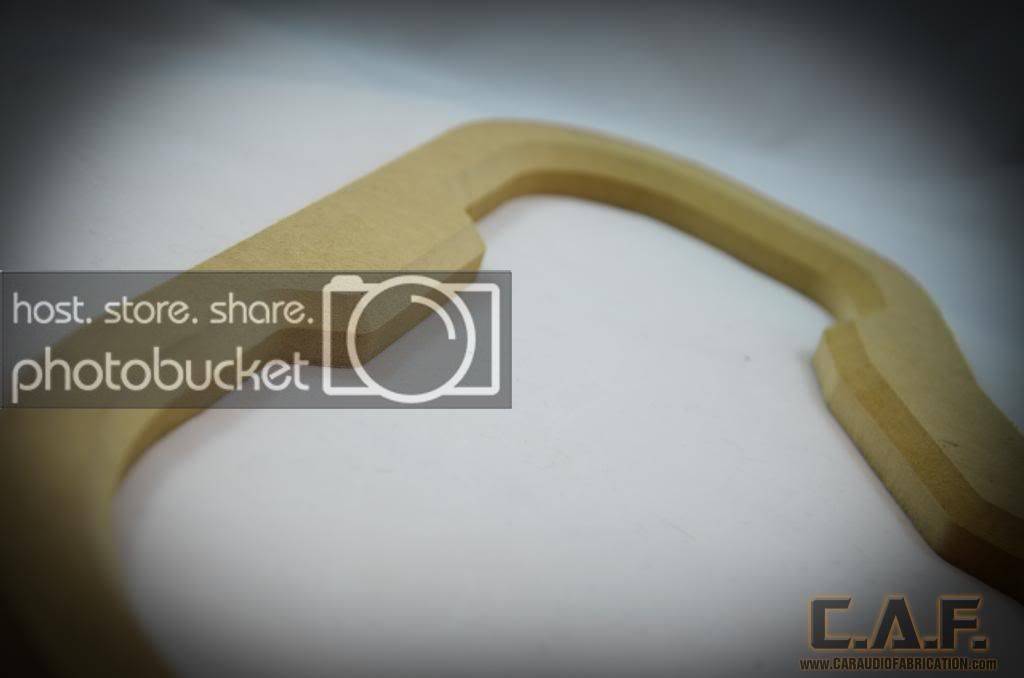

I made these outer insert

templates with a series of router techniques and skills, I discuss them in the

video.





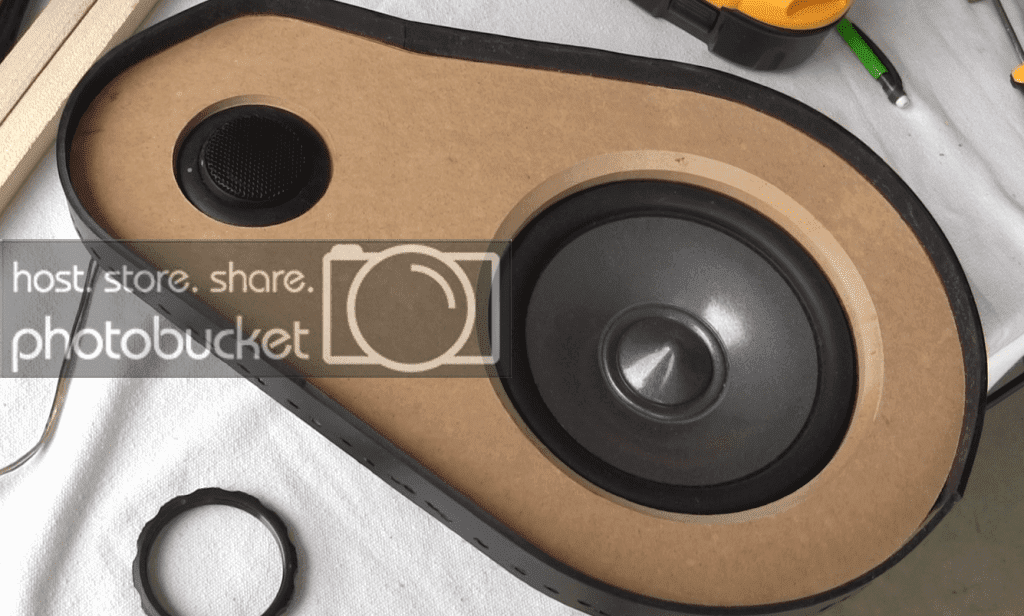

The idea is they will insert

into the pod and can be wrapped with a different material or painted to accent

the install. Here you can see I will mount the woofer from the rear, and the

tweeter is flush mounted:



Finally I added some low temp

plastic around the base template so that the top insert could lay flush. I show

how I do this in the video as well.



For the YouTube video click the

image below this line of text:




^^^ For the YouTube video click

the image above this line of text ^^^

Well thats all for now, let me

know what you think! Add this thread to your book marks and check back often!



[Chaotic_Thought 10+ year member]

What year is the truck?



[mklett33 10+ year member]

Got to do some more work on this build:

In this post I will teach you how to reverse mount speakers and also how to use threaded inserts:

I found the threaded inserts at my local hardware store, I have also seen them at Home Depot, Lowes, and Menards. I really like them as you don't have to be concerned with stripping out the wood if you have to remove the screws to remove the speaker and put it back in. They are very easy to use as I will outline in the video at the bottom of the post:



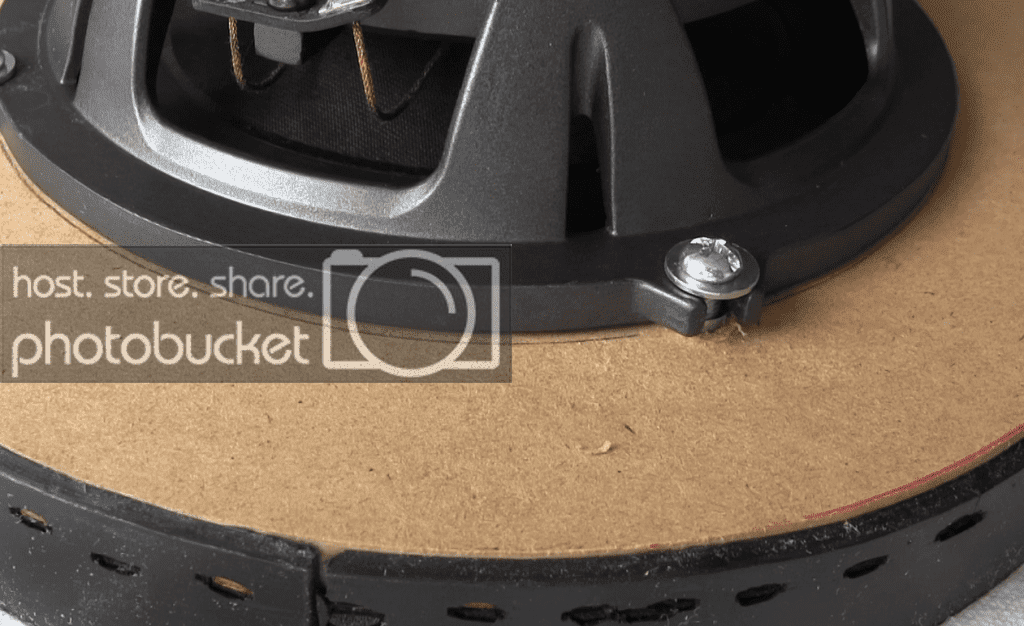

Here is a picture of what they look like once mounted fully, I chose to use a washer as well to have more of a surface for the screw to hold against.



With the reverse mounting I found this configuration to be very appealing to the eye. I really like how you cant see any of the mounting holes, just the outer most part of the surround.



In the video below I outline how to install the threaded inserts, as well as how to reverse mount a speaker. Enjoy!



[2kyukon 10+ year member]

flawless work. would like for you to do some doors for me if interested pm me



[mklett33 10+ year member]

flawless work. would like for you to do some doors for me if interested pm me

Thanks for the offer but I am rather busy as it is.



---------- Post added at 12:19 PM ---------- Previous post was at 12:19 PM ----------



Started molding the shape of the door panels.



[Silver-N-Black 10+ year member]

Looks good man, keep up the good work. I have a 05 avalanche same doors. I went a different rout and use the speaker grill. But want to see how these turn out might be time to make a change.

this is how mine look.



[2kyukon 10+ year member]

Looks good man, keep up the good work. I have a 05 avalanche same doors. I went a different rout and use the speaker grill. But want to see how these turn out might be time to make a change.
this is how mine look.

you guys got lucky i bought a base model silverado and i got the crap door panels



[Silver-N-Black 10+ year member]

you guys got lucky i bought a base model silverado and i got the crap door panels

Even better a better reason why not leave it stock looking//content.invisioncic.com/y282845/emoticons/smile.gif.1ebc41e1811405b213edfc4622c41e27.gif



[mklett33 10+ year member]

Here is step #4 , forming the surface of the door pod. In this video I test out Steve's Sunflash resin.



[mklett33 10+ year member]

Here is step #4 , forming the surface of the door pod. In this video I test out Steve's Sunflash resin.
