Big 3 pics for your enjoyment

[SPL140.2 5,000+ posts]

good job //content.invisioncic.com/y282845/emoticons/biggrin.gif.d71a5d36fcbab170f2364c9f2e3946cb.gif



[mlstrass 5,000+ posts]

Looks like you grounded the battery to the body. It should be grounded to the frame or engine block.

Local auto parts stores will have the HD battery terminals that use nuts/bolts to clamp on the cable. You can just add a longer bolt on one side, so you can add multiple ring terminals.



[bikinpunk 10+ year member]

Looks like you grounded the battery to the body. It should be grounded to the frame or engine block.
Local auto parts stores will have the HD battery terminals that use nuts/bolts to clamp on the cable. You can just add a longer bolt on one side, so you can add multiple ring terminals.

You're probably right. I'll fix that. Thanks.



[Qbenjamin 10+ year member]

What size fuse did you go with ?



[bikinpunk 10+ year member]

I think 200amps.



[coolahan 10+ year member]

Looks like you grounded the battery to the body. It should be grounded to the frame or engine block.
Local auto parts stores will have the HD battery terminals that use nuts/bolts to clamp on the cable. You can just add a longer bolt on one side, so you can add multiple ring terminals.

yup thats what i did.. i got the gold plated ones...

wish i had batterys i would take so many pictures //content.invisioncic.com/y282845/emoticons/frown.gif.a3531fa0534503350665a1e957861287.gif



[Ruffy 10+ year member]

loom isnt for looks ....

agreed. Do it right for safety. If not loom use a good techflex/pexoflex expandable sleeving. Still looks great, but more protection.



[troy_audi0 10+ year member]

Looks like you grounded the battery to the body. It should be grounded to the frame or engine block.

You're probably right. I'll fix that. Thanks.

I did that this week on a Customers car..

Used the Engine Block to the Batt & a Small jump from the Batt to the Body/Frame Bolt

Turned out very nice..

I will get pix he come's in Friday to get the Amp & Subs installed..

peace Troy



[bgdre12 10+ year member]

ok..so it's bad to ground to the body...cuz i notice that ine stock wire is grounded to the frame



[wlmrs 10+ year member]

Looks good!



[NoSq 10+ year member]

The only thing i dont understand is what size to use inline between the alt. and battery. I am going to be using a 4awg. What do you guys think?



[bikinpunk 10+ year member]

Forgot about my post here. I had someone ask me for further pictures so here's a few more, detailed shots:

Here's a couple quick pictures.

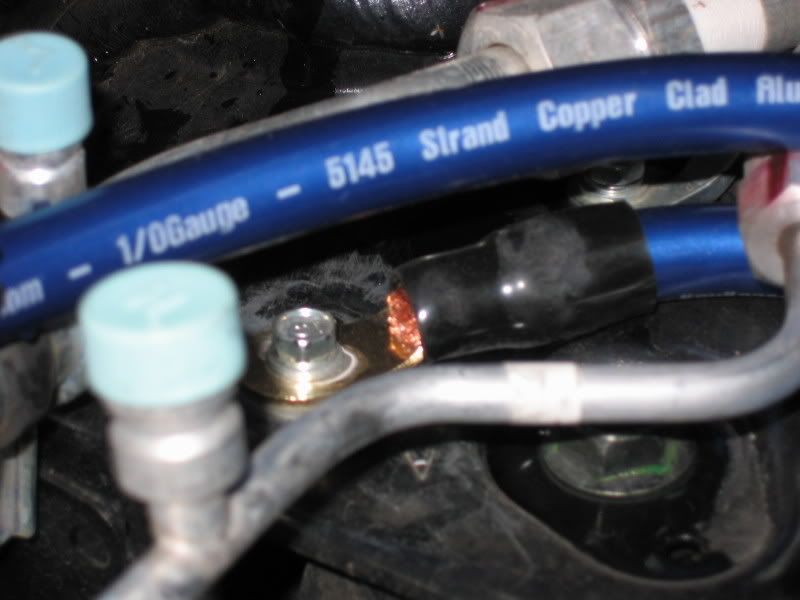

First is engine to ground.

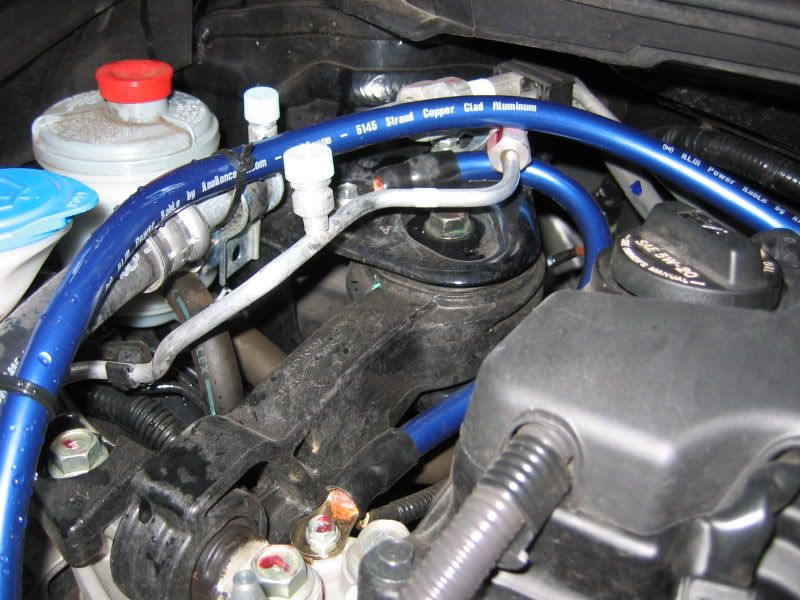

2nd is shot of alternator/engine area.

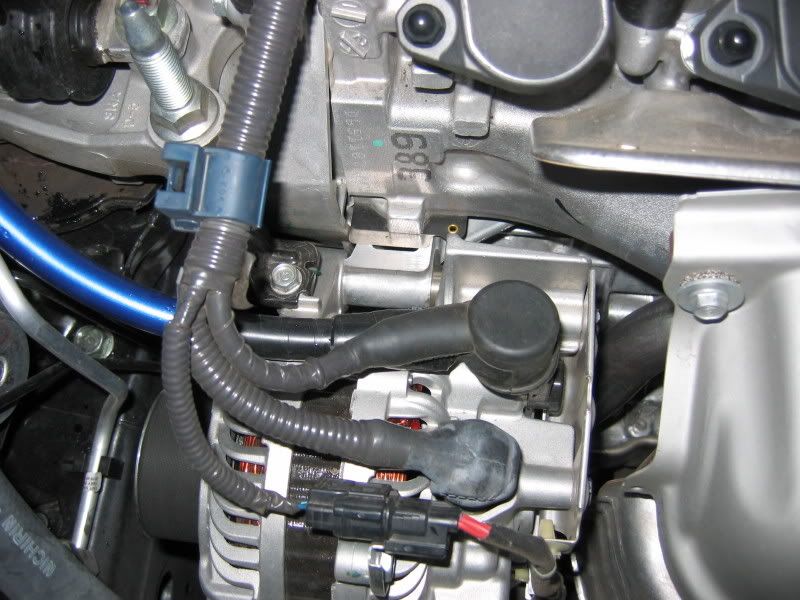

3rd is Alternator (+)

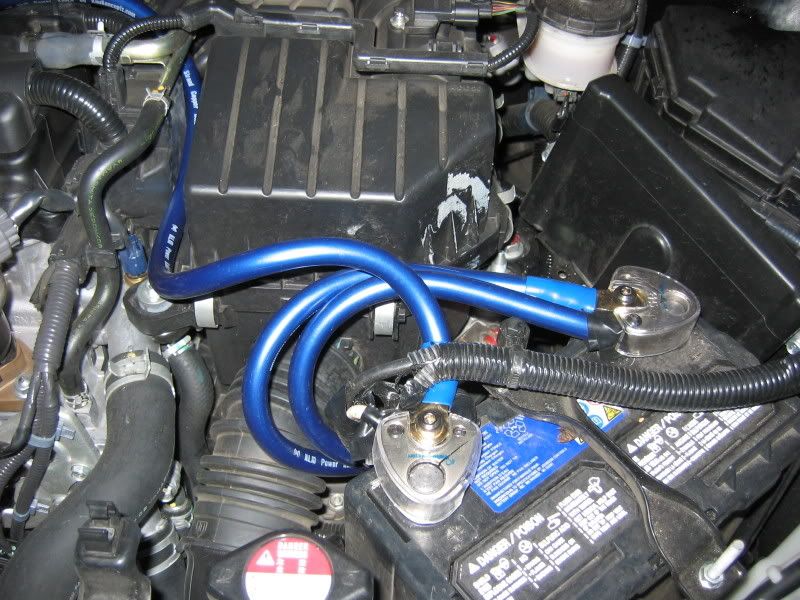

4th is battery terminals. Note I have 2 strands on this run.

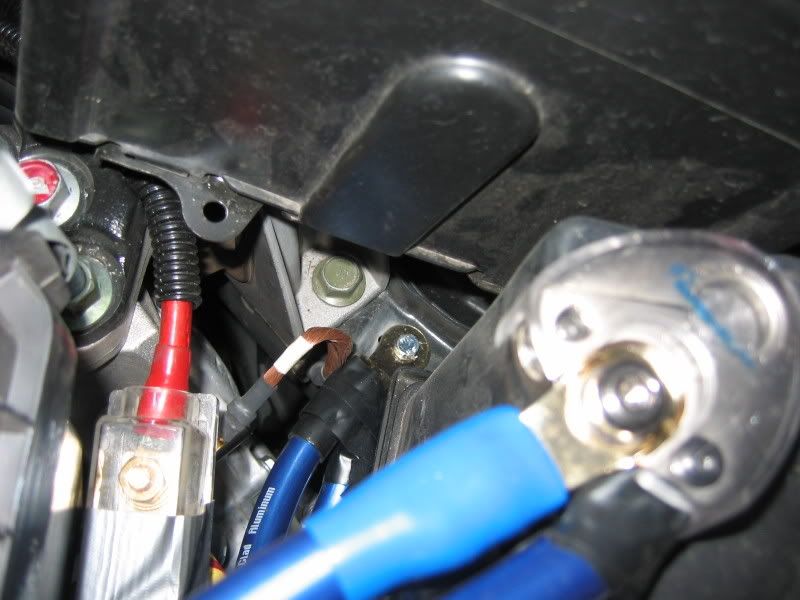

5th is grounding spot on NEG battery to ground

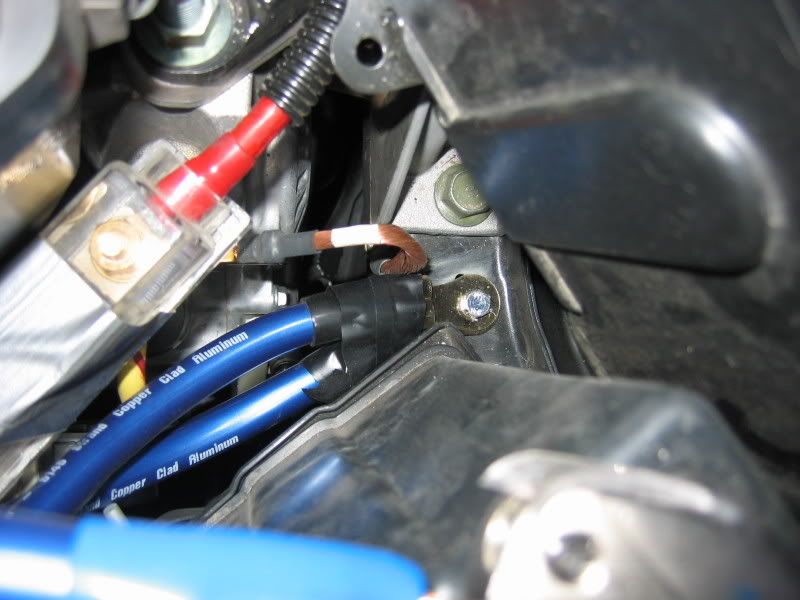

6th is another shot of battery (-) to ground



[SeaKid 10+ year member]

Looks really good man, do your headlights dim at all?

How long did it take you to do?



[NoSq 10+ year member]

The only thing i dont understand is what size to use inline between the alt. and battery. I am going to be using a 4awg. What do you guys think?

What do you guys think?



[dyabolical 10+ year member]

Screw those store bought terminals.

I am all about the custom silver plated copper bus bars i make at work.
