Basic question for wiring amplified subwoofer


droopdog7

CarAudio.com Newbie
Dec 11, 2020
20
1
Fullerton, California
Okay, please forgive me as I am a complete newbie. I picked up this used bazooka bta6100 (very cheap) which is amplified and comes with a wiring harness. As the story goes, just looking for a little extra bass and price too low to pass up.

Anyway, I looked on crutchfield and it says I need the following wiring harness: https://www.crutchfield.com/p_142PA10BX/EFX-PA10BX-Wiring-Kit.html#&gid=1&pid=1

So I don’t know the first thing about these things but I want to connect to my Sony xav-ax5000 HU that has rca ins for sub. My thinking, and please correct me if I’m wrong, is that using the rca cables would allow me to use the digital subwoofer controls built into the HU.

The crutchfield kit appears to show two rca cables with male connectors on both ends. So my super newbie question is how am I supposed to connect those rca cables to the harness? Am I supposed to cut them on one end? Am I missing something because I don’t know much about these things? Thank you?


25477


SlugButter

CarAudio.com Veteran
Nov 5, 2019
880
295
arizona
I only see one rca cable there. It will have 2 male connectors on both ends. Is there only a single rca output for the sub on the back of your sony?


droopdog7

CarAudio.com Newbie
Dec 11, 2020
20
1
Fullerton, California
  • Thread Starter Thread Starter
  • #3
Thanks for responding. As it turns out, it is a singe subwoofer out port. I guess I assumed the two rca ports were for the sub.

Any insight on how it all works?


Buck

[email protected]
Pro Seller
5,000+ posts
10+ year member
May 19, 2008
22,427
761
FL
Thanks for responding. As it turns out, it is a singe subwoofer out port. I guess I assumed the two rca ports were for the sub.

Any insight on how it all works?
What you need to do is find a wiring diagram for that bazooka tube and label what each wire does and go from there.


Buck

[email protected]
Pro Seller
5,000+ posts
10+ year member
May 19, 2008
22,427
761
FL
If that harness is removable, you may see if you can find one where all you need is the RCA inputs and a power + ground + turn on wire. I'm not sure why in the hell you need that many wires just to run a sub amp.


Buck

[email protected]
Pro Seller
5,000+ posts
10+ year member
May 19, 2008
22,427
761
FL
If that harness is removable, you may see if you can find one where all you need is the RCA inputs and a power + ground + turn on wire. I'm not sure why in the hell you need that many wires just to run a sub amp.
Maybe it's meant to just be added onto a factory system. It looks like to me, if I'm seeing it correctly, that all 4 door speaker wire sets may be there. Do you have a pair of white, grey, green and purple wires?


droopdog7

CarAudio.com Newbie
Dec 11, 2020
20
1
Fullerton, California
  • Thread Starter Thread Starter
  • #8
Apologies for not coming back to this post but had some family issues. I’ve done a little more research on connecting the sub and wiring kits and it looks like I’ll need to connect the rca cables (with Y connector), the ground cable, the power cable to batter (with fuse), and the remote on cable (so it turns on and off). Am I missing something?

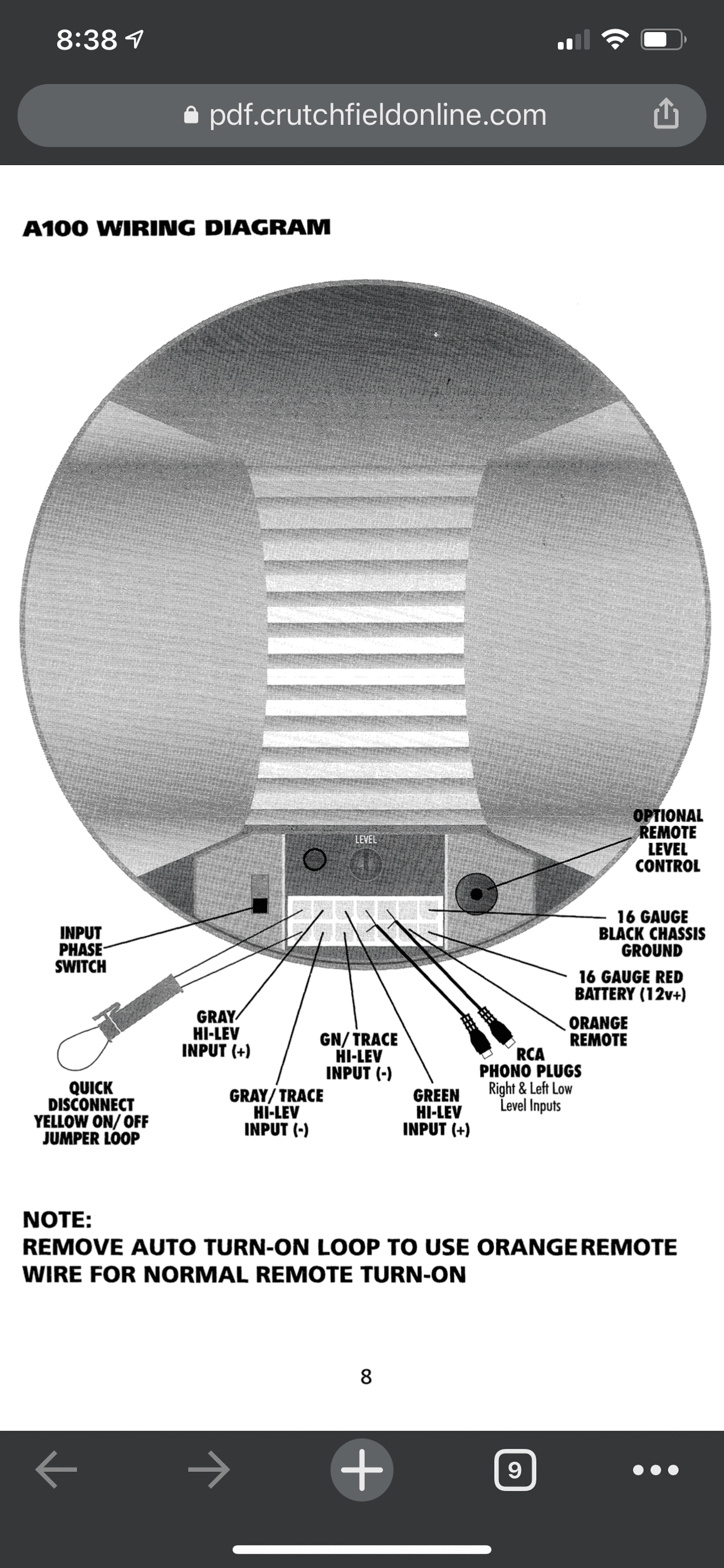

The wire diagram for the sub is below. The rca cables are the most obvious. I see wires that say ground, battery, and remote (orange) so I assume those are for the other connections. And I guess I don’t need the other wires at all? That right? And again, am i missing anything else?

On the head unit side, pretty sure the blue remote was put together with three other blue wires (used a PAC). If this is the case, do I disconnect the blue remote wire from that bundle and connect with the orange remote wire below.

Any help greatly appreciated. Thank you.

25749


Louisiana_CRX

dem shoes......
5,000+ posts
10+ year member
Aug 22, 2006
39,529
475
Piney Hills of Louisiana
You'll need to run a power wire from your battery to the red wire on the bass tube

you'll need to fuse by the battery and inline by the bass tube a blue 15a fuse ..insert fuses last ...

...you'll need to run a small turn on lead from the decks blue amp out wire or blue with white stripe to the orange wire on the tube ...

Then ground the black wire on the Bass tube.
Run rca cable from deck to tube ..and your ready to install fuses .

You dont need grey or green wires from tube they are for factory radios without rca cables.

You can try the phase switch and see what sounds best after installation ..just don't switch while power is on. Its only 2 choices.


Louisiana_CRX

dem shoes......
5,000+ posts
10+ year member
Aug 22, 2006
39,529
475
Piney Hills of Louisiana
After you get it playing you may want to locate the optional dash mount bass level knob..they usually run $30 or less shipped and will give you better control over the tube for different music set the level on the tube in the middle ...to keep from.blowing it
