8" Sub With 4.5" Mounting Depth

[Old_Slapper]

Hey guys.
I'm new to the site, but old to the game.
I have a 2004 F150 crewcab. I have about .75 cubic feet under the rear seat, on the driver's side. I was looking at a shallow 10 in a sealed box, but I know I would get more bass out of an 8" in a ported box. I have been out of the audio world for about 10 years. I am not up to date on what's out there. What are your thoughts on what sub would give me the hardest, but still deep, bass? The sub needs to have a mounting depth of no more than 4.5" and I have 600watts available.

Here is what I have been looking at:

• Skar VD-8
• Kicker L7T-8
• Kicker L7S-8
• DS18 Elite-Z
• Rockville W8K6D4 (I know this brand was known as garbage, but...)

Click to read more...



[Jimi77 5,000+ posts]

Hey guys.
I'm new to the site, but old to the game.
I have a 2004 F150 crewcab. I have about .75 cubic feet under the rear seat, on the driver's side. I was looking at a shallow 10 in a sealed box, but I know I would get more bass out of an 8" in a ported box. I have been out of the audio world for about 10 years. I am not up to date on what's out there. What are your thoughts on what sub would give me the hardest, but still deep, bass? The sub needs to have a mounting depth of no more than 4.5" and I have 600watts available.

Here is what I have been looking at:

• Skar VD-8
• Kicker L7T-8
• Kicker L7S-8
• DS18 Elite-Z
• Rockville W8K6D4 (I know this brand was known as garbage, but...)

Alpine makes a loaded enclosure designed to fit under the rear seats of crew cabs. IIRC it's ported.



[Old_Slapper]

Alpine makes a loaded enclosure designed to fit under the rear seats of crew cabs. IIRC it's ported.

I took a look, and I didn't see any specific boxes for this truck. I did see truck boxes, but those will not fit under the my seat. Am I missing something?



[Jimi77 5,000+ posts]

took a look, and I didn't see any specific boxes for this truck. I did see truck boxes, but those will not fit under the my seat. Am I missing something?

Looks like they don't fit the 2004. Bummer, since that's an easy solution.



[Old_Slapper]

Looks like they don't fit the 2004. Bummer, since that's an easy solution.

Major bummer, but thanks for working on it.



[huberoy123 10+ year member]

Hey guys.
I'm new to the site, but old to the game.
I have a 2004 F150 crewcab. I have about .75 cubic feet under the rear seat, on the driver's side. I was looking at a shallow 10 in a sealed box, but I know I would get more bass out of an 8" in a ported box. I have been out of the audio world for about 10 years. I am not up to date on what's out there. What are your thoughts on what sub would give me the hardest, but still deep, bass? The sub needs to have a mounting depth of no more than 4.5" and I have 600watts available.

Here is what I have been looking at:

• Skar VD-8
• Kicker L7T-8
• Kicker L7S-8
• DS18 Elite-Z
• Rockville W8K6D4 (I know this brand was known as garbage, but...)

If I was in your situation, I would check my local best buy to see if they stocked any of the units that I wanted. Stop past their stereo install bay to test fit it before purchasing.



[Old_Slapper]

If I was in your situation, I would check my local best buy to see if they stocked any of the units that I wanted. Stop past their stereo install bay to test fit it before purchasing.

I will be building the box to get the most out of my space, and to tune it to the sub. I am also not a fan of down fire, so the speaker will be installed facing up and on a little slant.



[HardofWhoring]

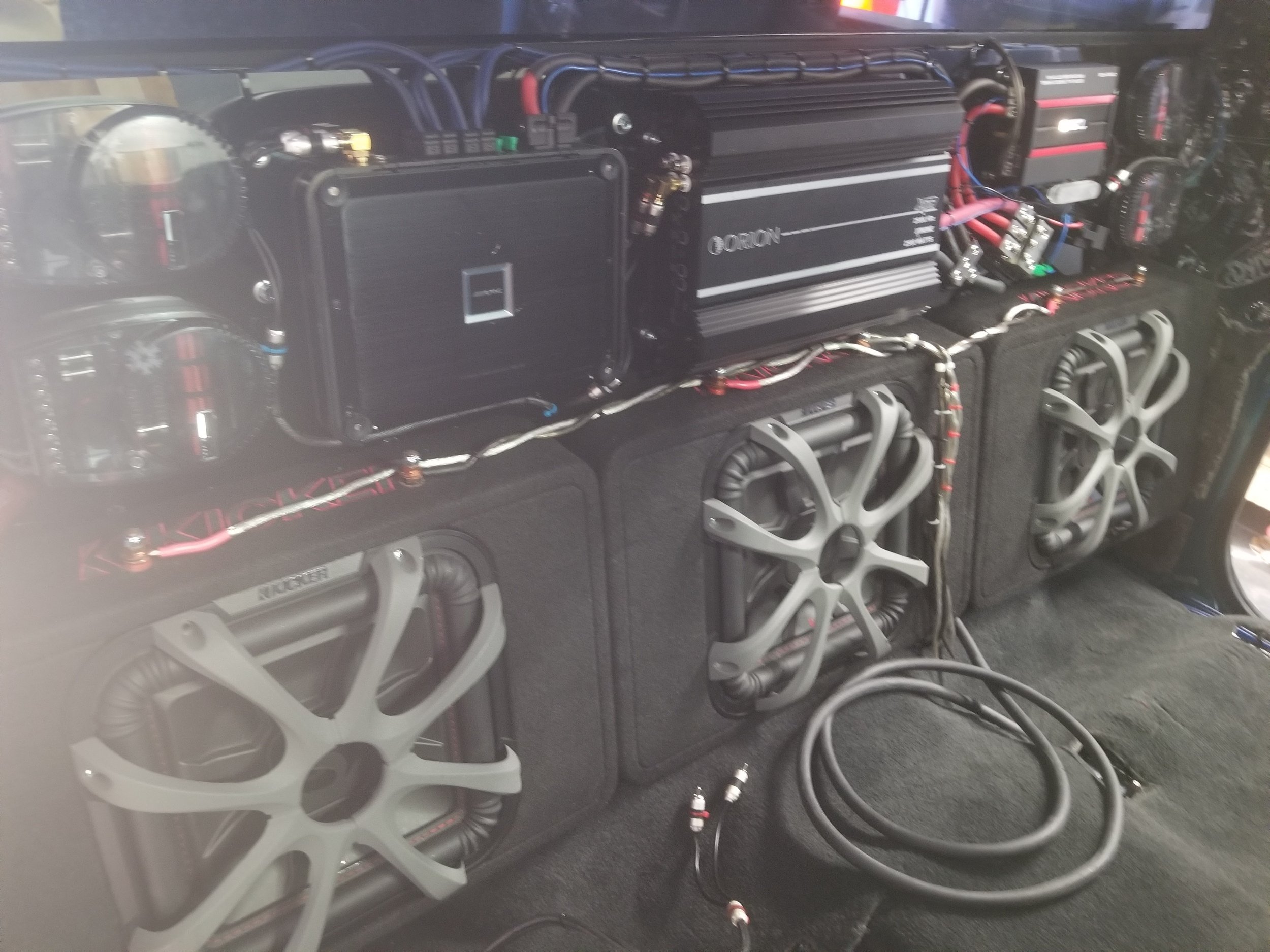

I would stay away from the solobaric kickers. Thats what I have now:

Before these, I was running the Kicker comp RT slim subs

These Solobaric 12" slims are rated at 600w RMS, & 1200w Peak.
The Round kickers were 10" slims rated 500w RMS & 1000w Peak.

The solobarics are slow moving. They just don't pop like the 10s did, and right now the 3 12s are getting 900w each, and the (2) 10s were only getting 500w each. They feel like they are only on 7 cylinders. Just like it's a hair sluggish.

If I could find another one of these discontinued 10" slims, I would rather have 3 10s than 3 12s. I see you want ported enclosures, so that may change things. These are their factory enclosures.


Just to make sure, did you check out the kicker comp RTs?

2021 CompRT Subwoofers

KICKER produces high-performance car audio, vehicle specific solutions, marine audio, home and personal audio, and power sports products since 1973.

www.kicker.com



[Old_Slapper]

I would stay away from the solobaric kickers. Thats what I have now:
View attachment 55141

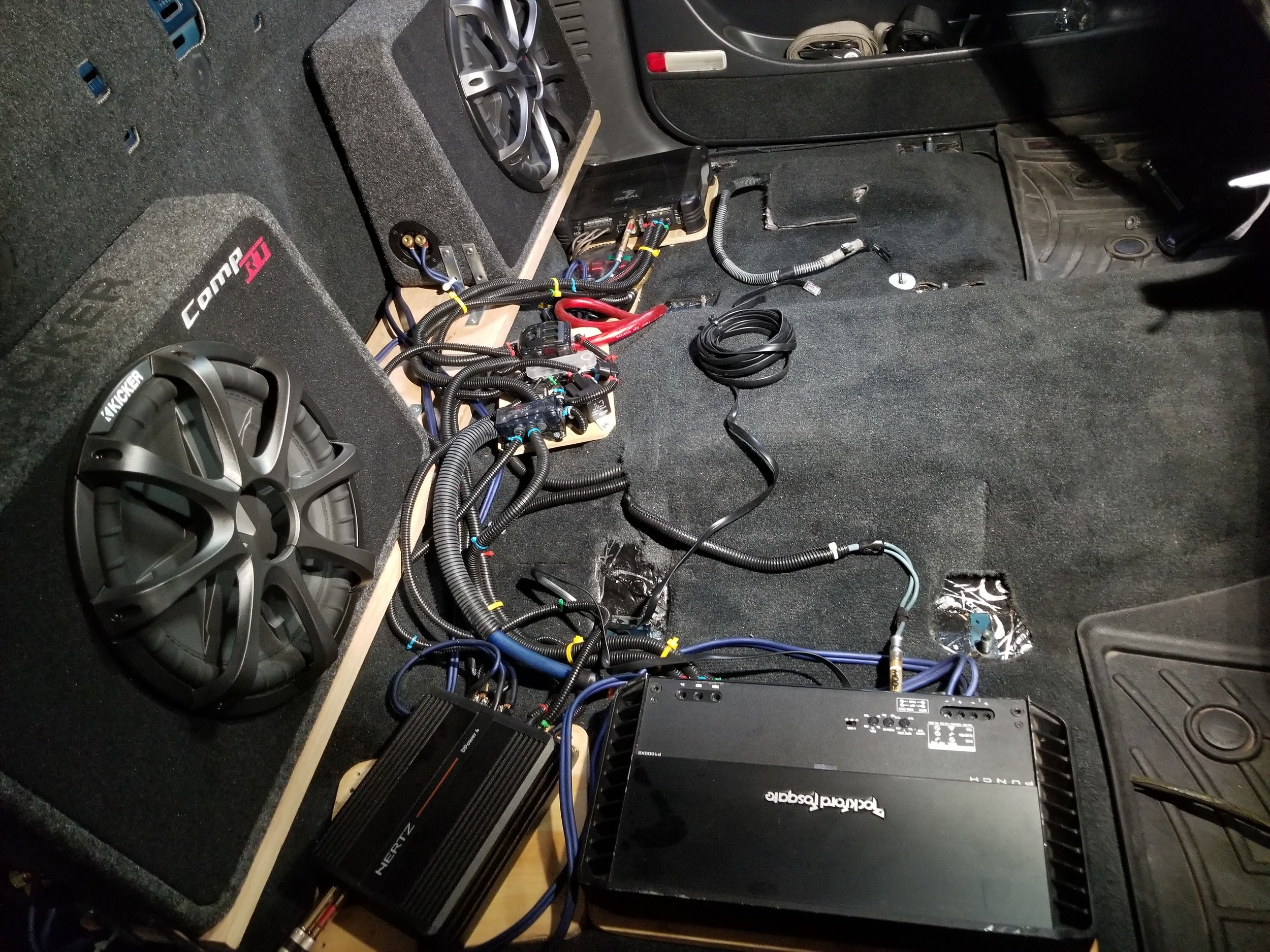

Before these, I was running the Kicker comp RT slim subs

View attachment 55142

These Solobaric 12" slims are rated at 600w RMS, & 1200w Peak.
The Round kickers were 10" slims rated 500w RMS & 1000w Peak.

The solobarics are slow moving. They just don't pop like the 10s did, and right now the 3 12s are getting 900w each, and the (2) 10s were only getting 500w each. They feel like they are only on 7 cylinders. Just like it's a hair sluggish.

If I could find another one of these discontinued 10" slims, I would rather have 3 10s than 3 12s. I see you want ported enclosures, so that may change things. These are their factory enclosures.


Just to make sure, did you check out the kicker comp RTs?

2021 CompRT Subwoofers

KICKER produces high-performance car audio, vehicle specific solutions, marine audio, home and personal audio, and power sports products since 1973.

www.kicker.com

In a sealed enclosure, I was never really impressed with the L7's. Ported is where the shine. However, I know times have changed, so I'm taking all this info to heart. I currently have an L7 that I have had since 2003 or 2004. It doesn't fit in my F150, and I want more beat for my sons Ranger.



[huberoy123 10+ year member]

I will be building the box to get the most out of my space, and to tune it to the sub. I am also not a fan of down fire, so the speaker will be installed facing up and on a little slant.

I also built my trunk mounted box for dual 12s. I also wanted the top firing setup. Good luck with your project.



[Old_Slapper]

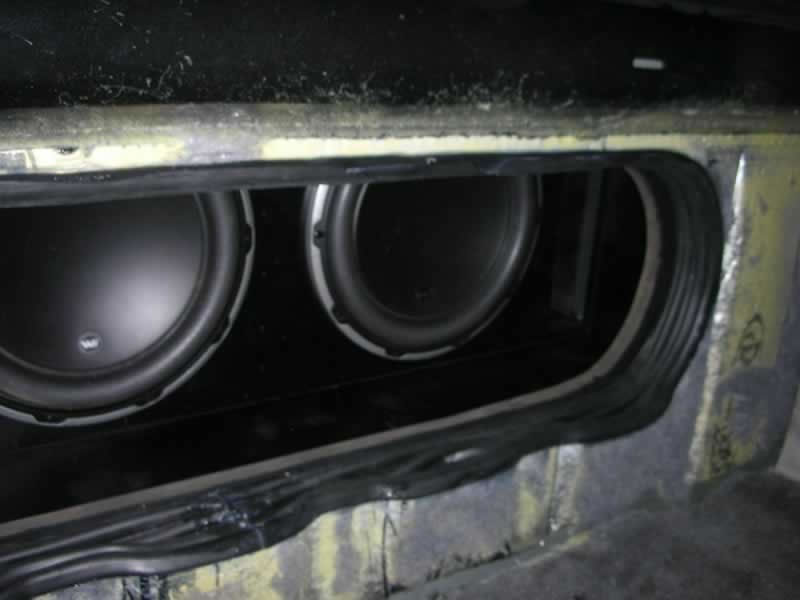

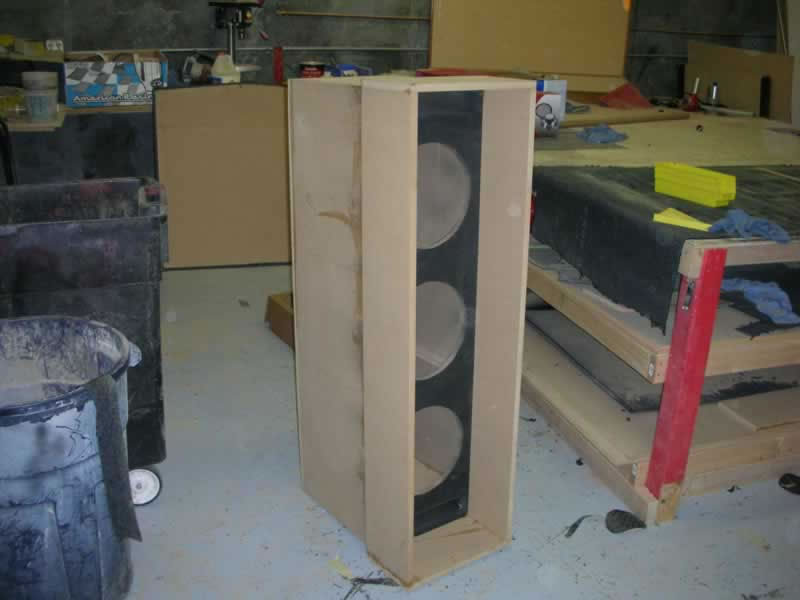

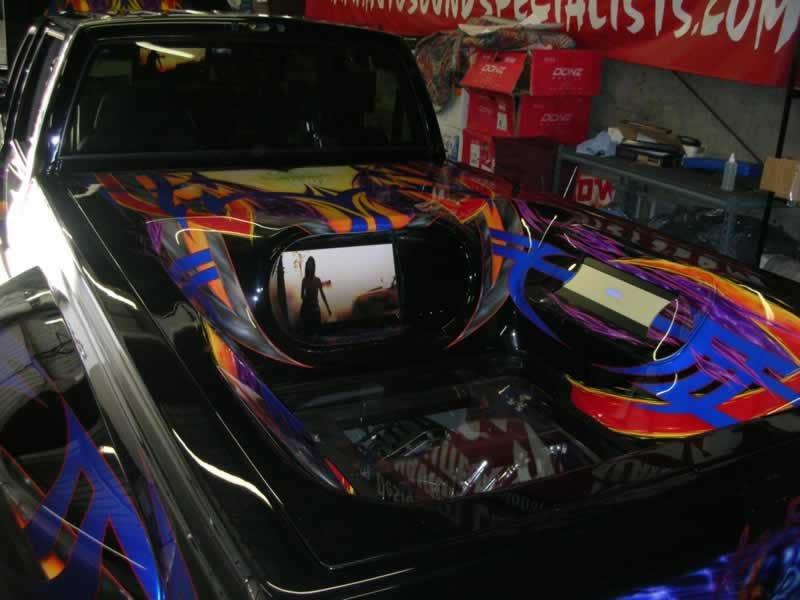

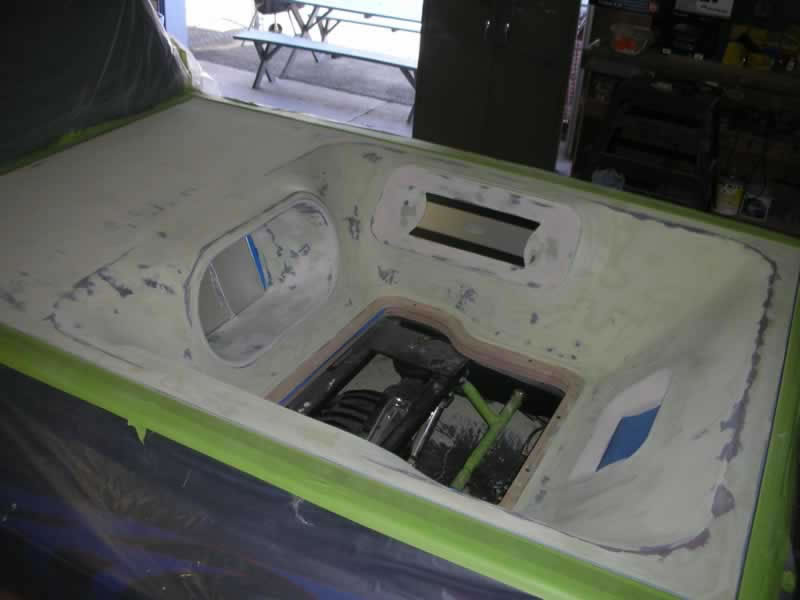

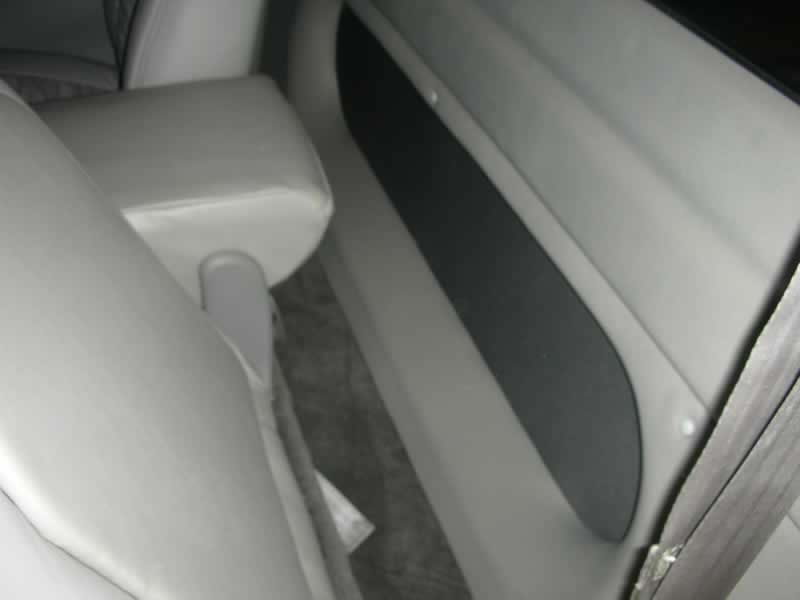

Here is a picture of my last big projects. It was me and 2 other guys working on it. I built a ported enclosure for the 3 JL 12W6's. It slammed so hard. He wanted a sealed box because he wanted it to sound smooth without port noise, so I built him a ported box. He couldn't tell it was ported. I found ways to hide the noise and still get the sealed box sound.



[huberoy123 10+ year member]

The pictures didn't come through. I would love to see them.



[Old_Slapper]



[Old_Slapper]

Can you see my pics now?



[SlugButter]

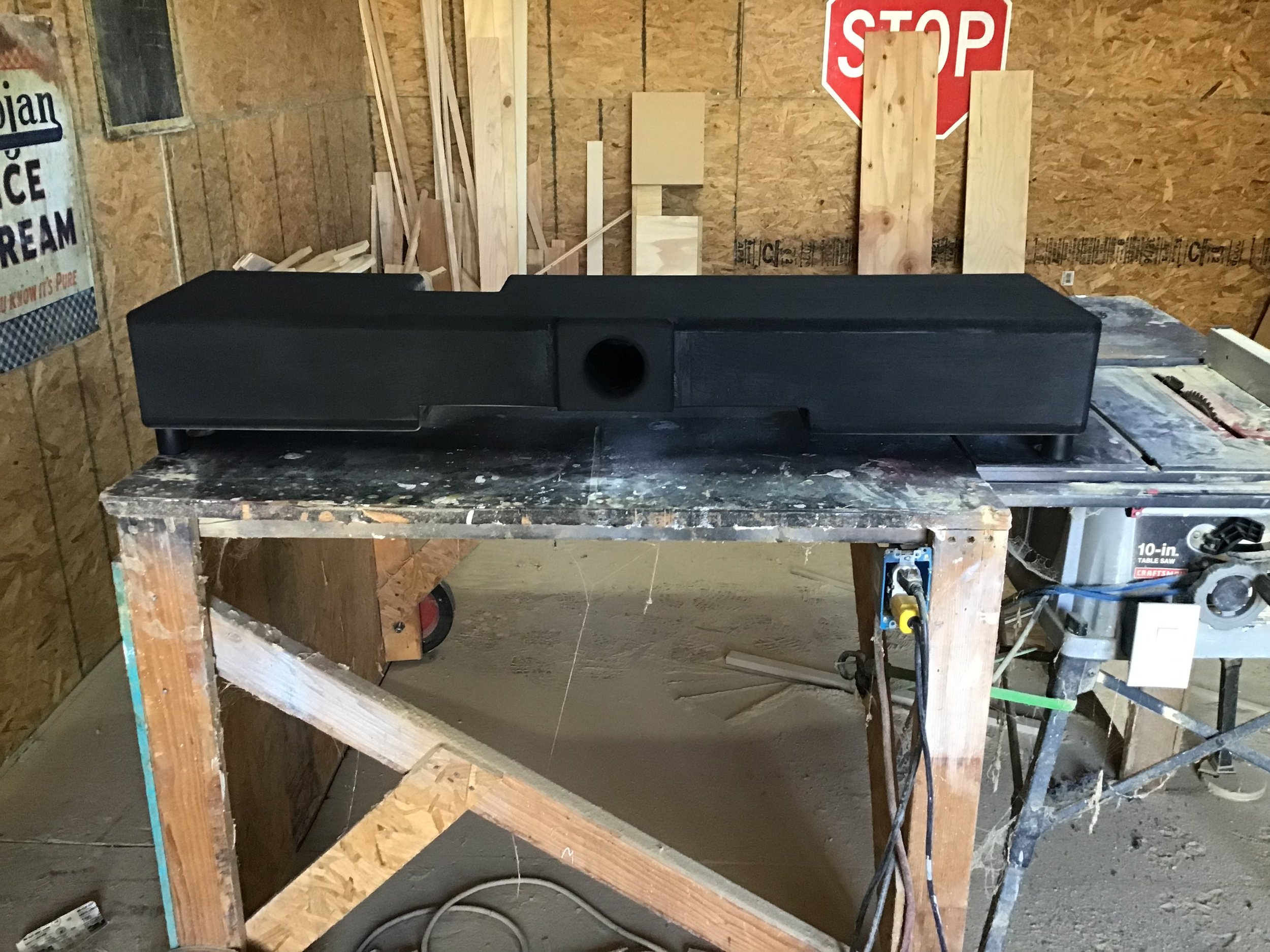

I did a downfire box recently for a 2004 f150. super small area under the rear seat. Was able to squeeze almost 1 cube in going all the way across. He used horrible 10 inch Rockville shallow mount subs though unfortunately. Really small space under those rear seats. I tried everything I could to talk him into going sealed, but he insisted on ported, even though there isn’t enough room to effectively port a 10 inch sub under there. Ended up with .9 cubes tuned to 38 HZ. I recommended plugging the port at some point and trying the JL shallow mounts sealed. I think he’d get a much better sound. It’s very difficult to convince 17 year old kids that Facebook doesn’t give the best advice.



[Jimi77 5,000+ posts]

I did a downfire box recently for a 2004 f150. super small area under the rear seat. Was able to squeeze almost 1 cube in going all the way across. He used horrible 10 inch Rockville shallow mount subs though unfortunately. Really small space under those rear seats. I tried everything I could to talk him into going sealed, but he insisted on ported, even though there isn’t enough room to effectively port a 10 inch sub under there. Ended up with .9 cubes tuned to 38 HZ. I recommended plugging the port at some point and trying the JL shallow mounts sealed. I think he’d get a much better sound. It’s very difficult to convince 17 year old kids that Facebook doesn’t give the best advice.
View attachment 55201

Wait... Facebook isn't a good source of knowledge???



[spokey9 5,000+ posts]

Wait... Facebook isn't a good source of knowledge???

But I base all my important life decisions off fb knowledge



[Jimi77 5,000+ posts]

But I base all my important life decisions off fb knowledge

At least you and I will be screwed together.



[Old_Slapper]

I did a downfire box recently for a 2004 f150. super small area under the rear seat. Was able to squeeze almost 1 cube in going all the way across. He used horrible 10 inch Rockville shallow mount subs though unfortunately. Really small space under those rear seats. I tried everything I could to talk him into going sealed, but he insisted on ported, even though there isn’t enough room to effectively port a 10 inch sub under there. Ended up with .9 cubes tuned to 38 HZ. I recommended plugging the port at some point and trying the JL shallow mounts sealed. I think he’d get a much better sound. It’s very difficult to convince 17 year old kids that Facebook doesn’t give the best advice.
View attachment 55201

That is a nice box!
He could opt for an 8" for that, or glass it to get the extra acreage. Either way, you will never defeat FB. At the end, however, as long as he's happy with it, let him run with it.



[HardofWhoring]

Wait... Facebook isn't a good source of knowledge???

The one I saw today was someone telling me that they need to change out their spark plugs because their knocking when they don't use 93 octane on their stock engine, and tunes are only for e85 and race fuel.
