4 15" Enclosure Design ($10 in Paypal)

[Platestacker45 10+ year member]

I'm having trouble finding anyone local that can design an enclosure and cutsheet for my 4 15" SoundStream SPLX's. This will be a daily driving with no comp use in mind. I would like a 3D diagram and full cut sheets. I want subs up and port back. I have $10 in paypal for a skilled blueprint design and cutsheet when it's all said and done. Thanks!

SoundStream SPLX-152

2005 Ford Explorer max dimensions

Top of 2nd row seat to rear hatch = 40"

Bottom of 2nd row seat to rear hatch = 44.5"

Width = 45"

Floor to top of seat = 18"

I came up with 16.44ft^3 after sub and port displacement. I have .49ft^3 left over from the gross total of what my max dimensions give me

and would like all of the .49^3 used for bracing.

Calculations with WinISD:

14ft^3 NET

35.07hz

13.5x13.5 port

17.25" long

182.25sq inches of port area

One of the side walls will be used as a port wall

Click to read more...



[rpfuror 10+ year member]

I can help you out, but I'm kinda confused about your dimensions.

do you want to slant from in top of 2nd row seat to rear hatch bottom by 4.5"... or something like that?



[Blove1991 10+ year member]

Yeah, thats exactly what he means lol......Due to window he can't go as far back as the bottom can

EDIT: Slant is for seat



[rpfuror 10+ year member]

hmm.. so you want the port on the slanted side? or am I thinking backwards and the seat is what is slanted???



[Blove1991 10+ year member]

Its probally that the seat is slanted......Just go by the seat being slanted and he will be back in 45 mins or so



[rpfuror 10+ year member]

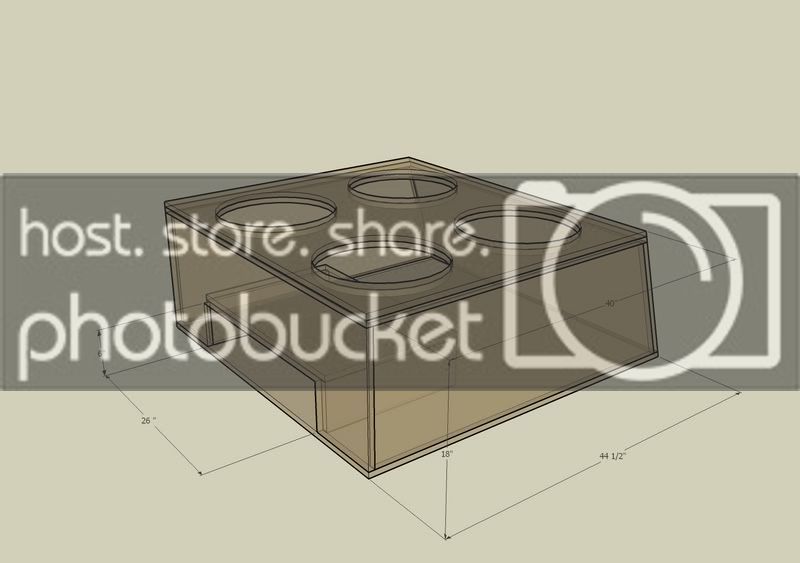

Here you go... this is a double baffle design 13.5 cu/ft (w/.25 extra for more bracing) @ 34-35 Hz (depending on the extra bracing) with 156 sq/in of port.



[Blove1991 10+ year member]

Lol so much for the 1:1 port ratio huh? ......but geuss its the port style you was going for



[rpfuror 10+ year member]

Wouldn't have been easy to do the 13.5 x 13.5 and still have the drivers fit in the box.

It's do-able if needed, but there should be zero problems with the port this way.



[Platestacker45 10+ year member]

Wouldent the port be all the way up against the hatch in that design?



[rpfuror 10+ year member]

sure, but where else you going to put it? I can try to put it up?



[Platestacker45 10+ year member]

So it would be up against my hatch with no clearence? I would think I'd need some room between the port and hatch? No?



[iamamp3pimp 5,000+ posts]

not entirely.

never heard of the 1:1 ratio.

1:9 comes to mind, and that design is perfect for that

RP

have the subs like this

----------

....OO....

O****O

**** = port



[Blove1991 10+ year member]

not entirely.
never heard of the 1:1 ratio.

1:9 comes to mind, and that design is perfect for that

RP

have the subs like this

----------

....OO....

O****O

**** = port

Most people on here will tell you 1:8 ratio is about the highest they would go



[profundus-sanus 10+ year member]

Most people on here will tell you 1:8 ratio is about the highest they would go

1:3 is the highest i'll go.

anymore and i put dividers to make it work.



[Platestacker45 10+ year member]

Well.... what should I do? //content.invisioncic.com/y282845/emoticons/confused.gif.e820e0216602db4765798ac39d28caa9.gif
