$10 paypay for box plan

[lilgator 10+ year member]

//content.invisioncic.com/y282845/emoticons/graduate.gif.d982460be9f153bb54e5d4cb744f6ae8.gif I need a box plan for 3 RE SX 15" firing up ports facing back.

Looking for 12 cubes @ 34 hz

space I have to work with is 48"L X 24~27"H X 28W

going in a 85 Ford bronco... Please include all measurements and cutouts.

I will pay today for best design I will need some kind of internal bracing probally also

gerardpritchard@yahoo.com

Click to read more...



[rpfuror 10+ year member]

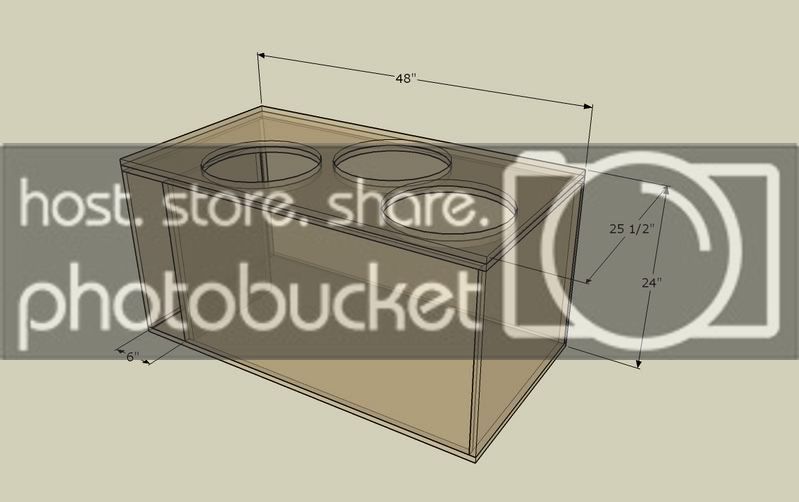

Net Volume: 11.95 cu/ft

Tuning Freq: 34.00 Hz

Port Area: 130.50 sq/in

This is double baffle design



[lilgator 10+ year member]

I couldnt tell how long the vent is for the portl I see its6" wide, but how long.

Also by double baffle do you mean that i use two 48" X 25.5" sheets of mdf for the top... Kinda like a double thick top?

The port area gives me the most trouble so I want to be 100% clear. The enclosure I have now for 2 15" SX sounds REAL good, and I know it could sound better if someone with more experience made it. this will be my 3rd enclosure I have ever made, and I want this one to be A1...Flawless

Any other designs?

Ideas?

Input?

Thanks rpfuror for your time hit me on the email or pm. If I use your design I will paypal immediately



[rpfuror 10+ year member]

Yeap, double baffle is a 2 pieces of mdf for the driver to add support.

I can give you all the dimentions in the design, if you decide to use it. Or if you want me to change anything I can do that also... for a small donation //content.invisioncic.com/y282845/emoticons/wink.gif.608e3ea05f1a9f98611af0861652f8fb.gif



[PV Audio 5,000+ posts]

Just to let you know, threadstarter, the customer does not dictate the price of a design, unless you want something of the quality of which you can afford.



[lilgator 10+ year member]

"RPFUROR" check Pm

BTW, thats a bada$$ box you designed, I'm going to use it

Also let me know if the numbers are before or after sub displacement

Pm me

or

gerardpritchard@yahoo.com



[ebmx66 10+ year member]

rpfuror sick design.....what program do you use to create that??



[doyoshuffle5 10+ year member]

what program did u use to make that box plan



[doyoshuffle5 10+ year member]

do u hapen to kno any good designs for pioneer subs



[rpfuror 10+ year member]

Also let me know if the numbers are before or after sub displacement

It takes into account the double baffle, driver displacements and extra bracing (not shown)

rpfuror sick design.....what program do you use to create that??

google sketchup for the design..

do u hapen to kno any good designs for pioneer subs

pm me with the specs and what your trying to do and I'll see what I can do for you.



[PV Audio 5,000+ posts]

what program did u use to make that box plan

Since I know the answer you want is obvious, let me tell you what you should know instead. What you see is made in SketchUp, made by a company called @Last which was bought out by Google. The program has nothing whatsoever to do with box design, and is merely a visual tool. ruporfor knows how to design boxes, not just draw them up in 3D. Very different.



[lilgator 10+ year member]

money sent

check pm...

That box is WICKED!!



[rpfuror 10+ year member]

Since I know the answer you want is obvious, let me tell you what you should know instead. What you see is made in SketchUp, made by a company called @Last which was bought out by Google. The program has nothing whatsoever to do with box design, and is merely a visual tool. ruporfor knows how to design boxes, not just draw them up in 3D. Very different.

I guess this was a very good way to interpret the question, I guess I aswered "what did you use to layout the 3d model"

PV Audio is 100% correct. The 3D layout was done in sketchup. The design is done by use of the readily available equations on this forum and a calculator. The end design is then turned into the 3D layout.
