who wants to check my box design?

[cardinalsfan 10+ year member]

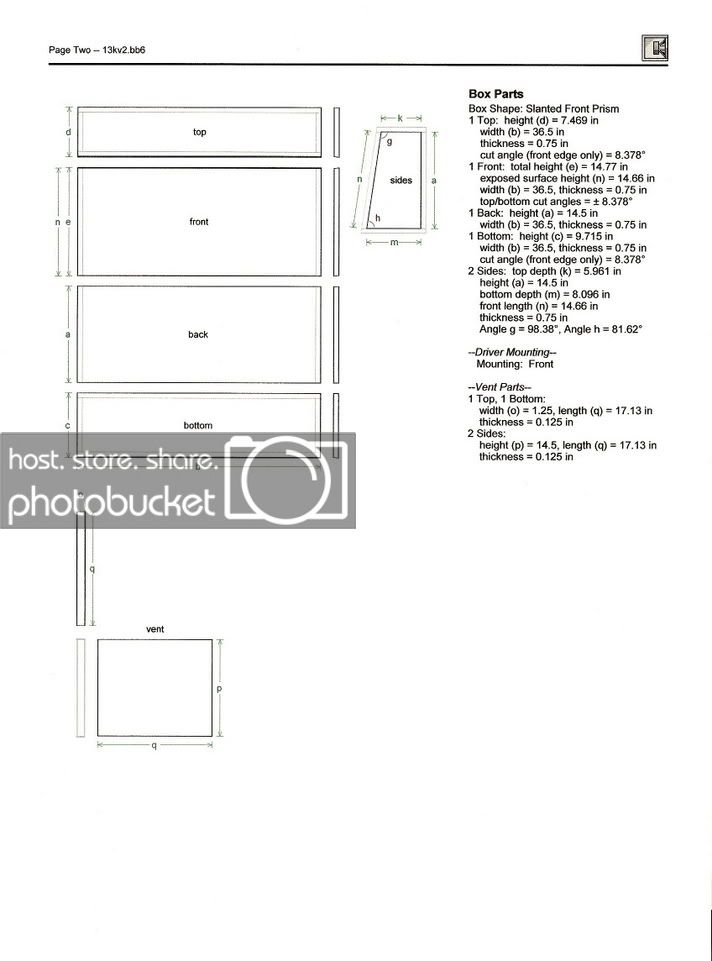

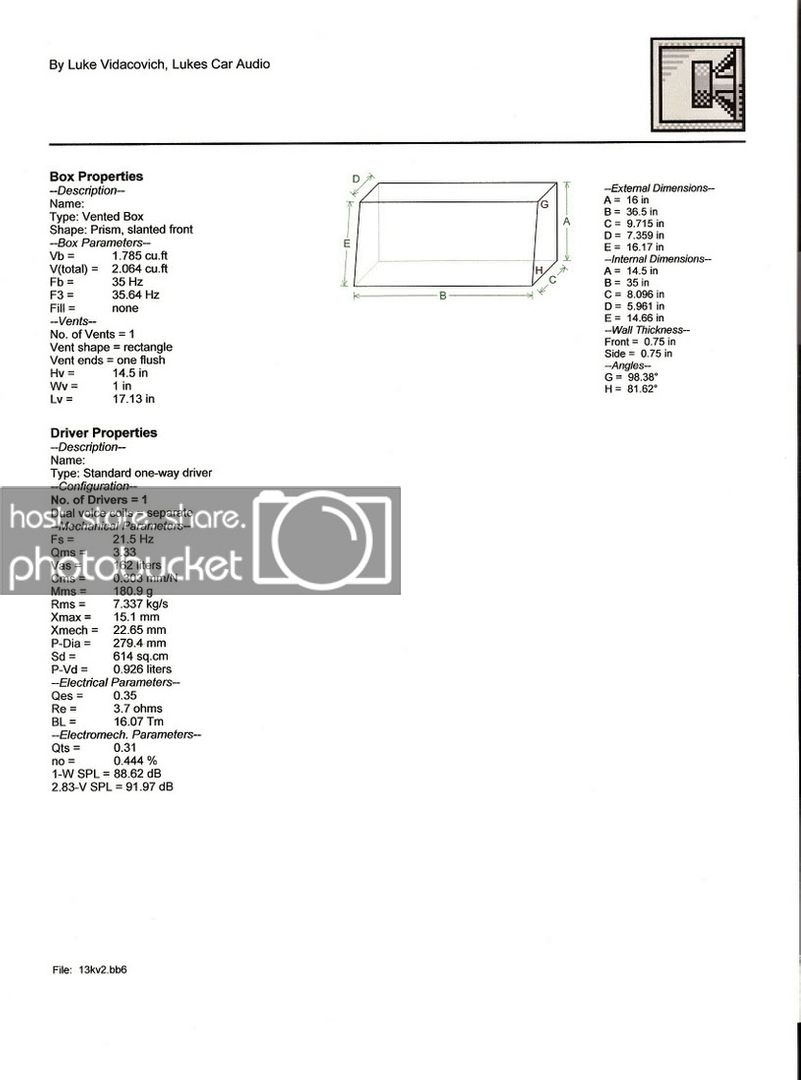

ok, ive done some measurements and some calculations with the t/s specs on the ED 13kv.2 and this is the box i have come up with....anyone wanna check it all for me and offer a little help?

the only help i really need is with the port...i realize im gonna hafta angle the first piece for the port but what about the others? and i need help with the folds. if someone wants to take this info into autocad for me you would be a savior!!

Click to read more...



[unbonyr 10+ year member]

looks good man



[Moe Lester 10+ year member]

port is far too small...



[MisterGrubbs 5,000+ posts]

...there is no port yet



[cardinalsfan 10+ year member]

there is a port, the drawing just doesnt show it...14.5 high by 1" wide and 17.13" long to get to 35hz...sounds right?



[amartin_72]

Make sure you use 3/4" MDF for the port too. I thought it shows that you have 1/4 listed? Just checking.



[amartin_72]

Wait you have .125 - 1/8th listed for port wall thickness, not 1/4 sorry.
