Trying to find em 4 BIG 3

[roarzorz 10+ year member]

I have a '91 Expo Sport. Here are pics of my setup.

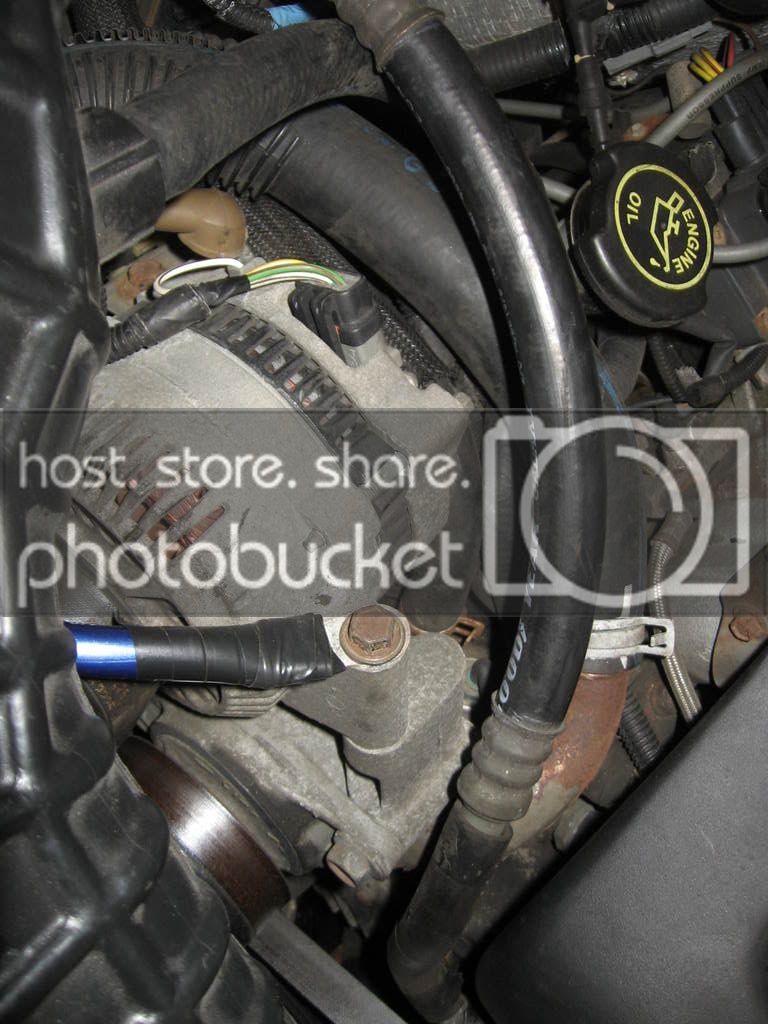

Here's the + connection on the back of the alt.

I grounded to the mounting bolt on the side.

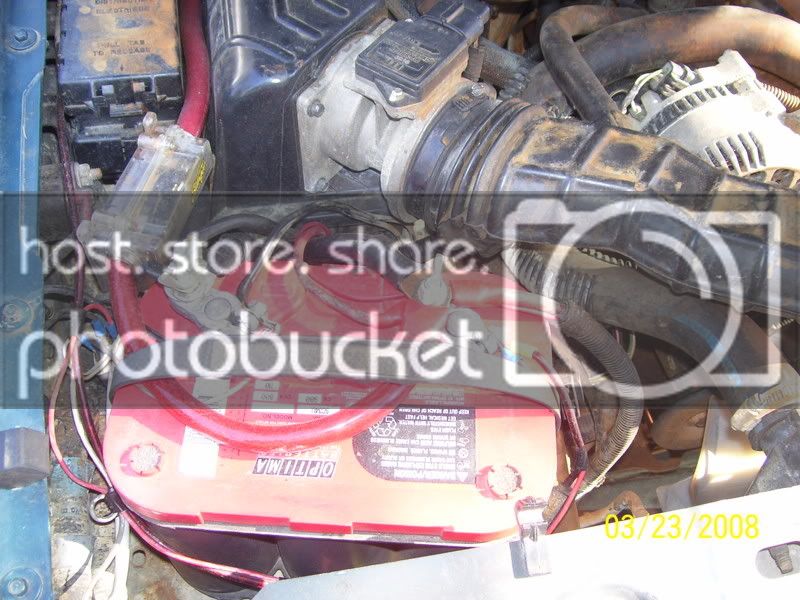

Everything goes straight to the battery.



[audiobahnuser18 5,000+ posts]

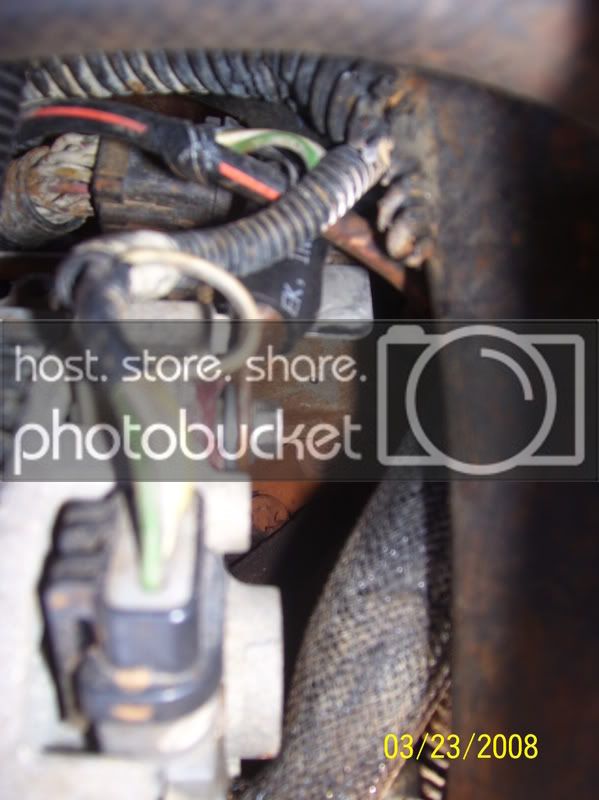

Here is where i ended up putting my 2nd alt ground guy's for the BIG 3.//content.invisioncic.com/y282845/emoticons/biggrin.gif.d71a5d36fcbab170f2364c9f2e3946cb.gif. thanks to everyone that helped me in this thread.



[audiobahnuser18 5,000+ posts]

Note: wire is actually not that close to the belt i had moved it.



[audiobahnuser18 5,000+ posts]

so what u guy's think is that a good ground where i put it? the bolt is going right to the block of the engine so i thought that is was. but just want to to double check with u guys.



[IDSkoT 5,000+ posts]

I think all Fords are like this (no Negative from alt).

I have a question, though... for the positive, mine goes through the engine compartment fuse box. I just go straight from pos to pos on batt, right? [This is for my Mustang]



[roarzorz 10+ year member]

That ground will work perfect. I would have routed the wire the other way going behind the alternator.



[audiobahnuser18 5,000+ posts]

Derrick im actually going to turn it 2morro probably mount it the way your talkn bout cause now that i look at it . ID just go pos. on battery put a fuse in middle of wire with holder of course lol then to pos on the alt.



[WrenchGuy 10+ year member]

What is an ALT NEG? The Big three is Alt to BAT, BAT to CHASSIS, and CHASSIS to ENGINE.



[roarzorz 10+ year member]

What is an ALT NEG? The Big three is Alt to BAT, BAT to CHASSIS, and CHASSIS to ENGINE.

An alternator's case is its ground. The alt is grounded from the case, through it's bracket, to the engine block.



[IDSkoT 5,000+ posts]

Wow, nevermind. I just feel dumb.



[Papaloads 10+ year member]

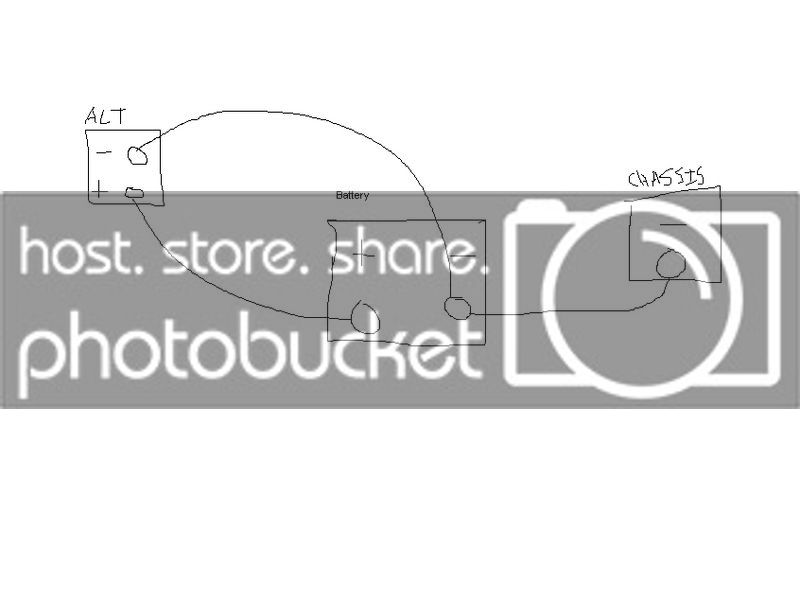

I always liked learning from pictures. This is a super basic drawing of what I think the big 3 should look like.

where the alt neg(-) is a bolt connecting the alternator to the engine block and the rest are self explanatory. Let me know if this makes sense or if i'm completely drawing out of my ***.



[IDSkoT 5,000+ posts]

I always liked learning from pictures. This is a super basic drawing of what I think the big 3 should look like.
where the alt neg(-) is a bolt connecting the alternator to the engine block and the rest are self explanatory. Let me know if this makes sense or if i'm completely drawing out of my ***.

I think that works,

But I believe the correct version is:

ALT + To Batt. +

Batt - to Chassis

Engine To Chassis (The logic in this, I suppose, is that the altenator is grounded VIA being screwed into the block, and thus completes the ground loop by attaching to the chassis)



[WrenchGuy 10+ year member]

An alternator's case is its ground. The alt is grounded from the case, through it's bracket, to the engine block.

I know that. But people are just throwing lingo into a very easy concept...lol

I didn't want people to get confused over it.
