TC Sounds Motor's

[audio_phill 10+ year member]

its a short top plate

9 all the way



[thegreatestpenn 5,000+ posts]

sweet, taking 3k pretty well so far //content.invisioncic.com/y282845/emoticons/smile.gif.1ebc41e1811405b213edfc4622c41e27.gif



[audio_phill 10+ year member]

the gap is narrower than a typical TC9, at least it looks like it, 1" slug Y35 will fully saturate a 3/4" 1010 top-plate so after the 1st slug there its a clearance thing lol. Gap that tight would help lower Q though if the coil is dense enough to make good use of the extra stout flux field.



[Mitch86 5,000+ posts]

I've always read that the RLp was a variation of the TC9 motor. I'm no TC expert though. Any of you tc fiends have a TC2+ motor laying around? //content.invisioncic.com/y282845/emoticons/biggrin.gif.d71a5d36fcbab170f2364c9f2e3946cb.gif



[thegreatestpenn 5,000+ posts]

the gap is narrower than a typical TC9, at least it looks like it, 1" slug Y35 will fully saturate a 3/4" 1010 top-plate so after the 1st slug there its a clearance thing lol. Gap that tight would help lower Q though if the coil is dense enough to make good use of the extra stout flux field.

got a C in physics in college, u kinda lost me



[DarkScorpion 10+ year member]

Excellent writeup, should be stickied.



[audio_phill 10+ year member]

I have a spare TC2+ with demodulation circuit



[whitedragon551 5,000+ posts]

Good info. If this was here a few days ago I could have deciphered what motor my Evo was. I read that it was a TC2 and a TC2+, but had no definitive answer besides what Shane told me.

I have what seems like a dumb question, but with XBL^2 its obviously an acronym (I know what it is, but Im not going to clutter the thread with that since its irrelevant to the TC). Is there a particular technology that TC stands for or is it just derived from TC Sounds name?



[ciaonzo 5,000+ posts]

the gap is narrower than a typical TC9, at least it looks like it, 1" slug Y35 will fully saturate a 3/4" 1010 top-plate so after the 1st slug there its a clearance thing lol. Gap that tight would help lower Q though if the coil is dense enough to make good use of the extra stout flux field.

So, you think the Qes/Qts would be the same if I took the 3LM off of my LMS4000 and replaced it with a TC9? Gap is exactly the same between the two. //content.invisioncic.com/y282845/emoticons/smile.gif.1ebc41e1811405b213edfc4622c41e27.gif
Q would definitely be lower with the 3LM, that's the reason the Q is so high on the SW8000's. //content.invisioncic.com/y282845/emoticons/smile.gif.1ebc41e1811405b213edfc4622c41e27.gif



[whitedragon551 5,000+ posts]

got a C in physics in college, u kinda lost me

http://www.caraudio.com/forums/subwoofers/498488-anyone-have-experience-these.html#post7401155



[audio_phill 10+ year member]

So, you think the Qes/Qts would be the same if I took the 3LM off of my LMS4000 and replaced it with a TC9? Gap is exactly the same between the two. //content.invisioncic.com/y282845/emoticons/smile.gif.1ebc41e1811405b213edfc4622c41e27.gif
Q would definitely be lower with the 3LM, that's the reason the Q is so high on the SW8000's. //content.invisioncic.com/y282845/emoticons/smile.gif.1ebc41e1811405b213edfc4622c41e27.gif

If magnets had the same charge, Q shifts should be minimal, and I'd like to point out that the LMT from the RL-s line has a tc9 top-plate and a qts over 1.00 lol. My Old school TC3LM 4K's have the exact same Q as my tc9 lms drivers

Gen 1 post-break in

Re = 2.8222 ohms

Fs = 22.8900 Hz

Zmax = 27.3518 ohms

Qes = 0.6362

Qms = 5.5296

Qts = 0.5706

Le = 0.8308 mH (at 1 kHz)

Diam = 208.2800 mm ( 8.2000 in )

Sd =34071.0096 mm^2( 52.8102 in^2)

Vas = 47.2054 L ( 1.6670 ft^3)

BL = 10.3802 N/A

Mms = 168.8843 g

Cms = 286.2579 uM/N

Kms = 3493.3530 N/M

Rms = 4.3926 R mechanical

Efficiency = 0.0836 %

Sensitivity= 81.2408 dB @1W/1m

gen 2 pre-break in

Re = 2.9618 ohms

Fs = 26.6445 Hz

Zmax = 25.0854 ohms

Qes = 0.7603

Qms = 5.6789

Qts = 0.6705

Le = 1.0287 mH (at 1 kHz)

Diam = 209.5500 mm ( 8.2500 in )

Sd =34487.7765 mm^2( 53.4562 in^2)

Vas = 25.9976 L ( 0.9181 ft^3)

BL = 12.2980 N/A

Mms = 231.8929 g

Cms = 153.8644 uM/N

Kms = 6499.2305 N/M

Rms = 6.8362 R mechanical

Efficiency = 0.0608 %

Sensitivity= 79.8554 dB @1W/1m



[huricaine 10+ year member]

the gap is narrower than a typical TC9, at least it looks like it, 1" slug Y35 will fully saturate a 3/4" 1010 top-plate so after the 1st slug there its a clearance thing lol. Gap that tight would help lower Q though if the coil is dense enough to make good use of the extra stout flux field.

hmmm, so the 2nd/3rd puck is overkill, but used for clearance on most motors with 3/4 TPs(y35 mags) given the pucks are relatively wide? This would make the 3hps stronger with more saturation? I dnt know much about this stuff, but i used to read a little about farromegnetics, etc.



[audio_phill 10+ year member]

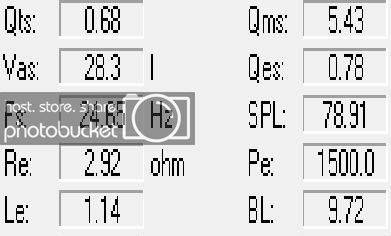

Insult to injury... TSP's from my LM10D2 (the gen one tsp's are from the sub in my avatar)



[audio_phill 10+ year member]

hmmm, so the 2nd/3rd puck is overkill, but used for clearance on most motors with 3/4 TPs(y35 mags) given the pucks are relatively wide? This would make the 3hps stronger with more saturation? I dnt know much about this stuff, but i used to read a little about farromegnetics, etc.

the 3HP makes use saturation wise of the top 2 ferrites



[audio_phill 10+ year member]

Magnetic coupling is a neat thing, demonstrated well in the graphs in the link posted a lil ways up.
