sporty_drew
10+ year member
Just here...

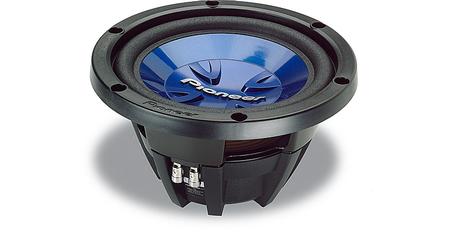

I have two of these BNIB. Here the specs and a photo from Crutchfield. I can get actual pictures tomorrow if needed. I'm asking 60 for the pair. Thats cheaper than i could find them on e-bay.
Size 10 -inch
Impedance 4 ohms
Cone Material IMPP
Surround Material Urethane
Sealed Box Volume (cubic feet) 0.7 - 1.3
Ported Box Volume (cubic feet) 0.9 - 1.55
Port diameter (inches) 3
Port length (inches) 6
Free-Air No
Dual Voice Coil No
Sensitivity 90dB
Frequency Response 20 - 4.5k Hz
RMS Power Range (Watts) 50-120
Peak Power Handling (Watts) 600
Top Mount Depth (inches) 5 3/8
Bottom Mount Depth (inches) 6 1/8
Cutout Diameter or Length (inches) 9 1/4
Vas (liters) 57.86
Fs (Hz) 28.9
Qts 0.68
Xmax (millimeters) 7.8
Size 10 -inch
Impedance 4 ohms
Cone Material IMPP
Surround Material Urethane
Sealed Box Volume (cubic feet) 0.7 - 1.3
Ported Box Volume (cubic feet) 0.9 - 1.55
Port diameter (inches) 3
Port length (inches) 6
Free-Air No
Dual Voice Coil No
Sensitivity 90dB
Frequency Response 20 - 4.5k Hz
RMS Power Range (Watts) 50-120
Peak Power Handling (Watts) 600
Top Mount Depth (inches) 5 3/8
Bottom Mount Depth (inches) 6 1/8
Cutout Diameter or Length (inches) 9 1/4
Vas (liters) 57.86
Fs (Hz) 28.9
Qts 0.68
Xmax (millimeters) 7.8
