OMG Sundown 1200 / 2010 presale

I got the sample of my v.2 SAE-1200D in... testing is going quite well. Honestly... I need to change the part number to SAE-1500D on these *laughs*

TEST 1:

1 ohm nominal @ 60 Hz

1440 Watts

54.6 V

26.4 A

2.07 ohms

** Over rated power at 1 ohm nominal with 2x rise

TEST 2:

1/2 Nominal @ 45 Hz

1750 Watts

49.6 V

35.3 A

1.4 ohms

TEST 3:

1/2 Nominal @ 50 Hz

1840 Watts

Popped Fuses (too much current draw)

Replaced fuses amp is okay -- I don't suggest 1/2 ohm daily but to get power testing somewhere close to 1 ohm actual I wired it that way with a known rise.

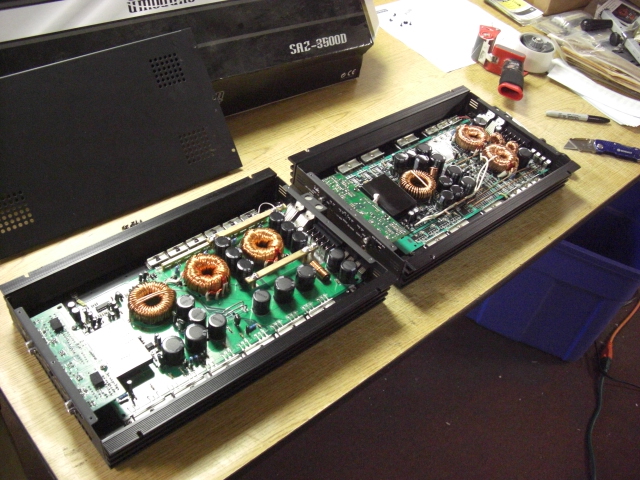

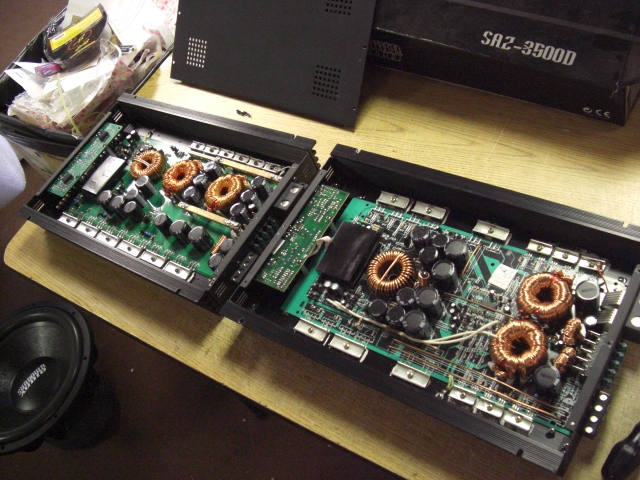

Some pictures vs. the v.1 SAE-1200D :









NEW on the LEFT

OLD on the RIGHT

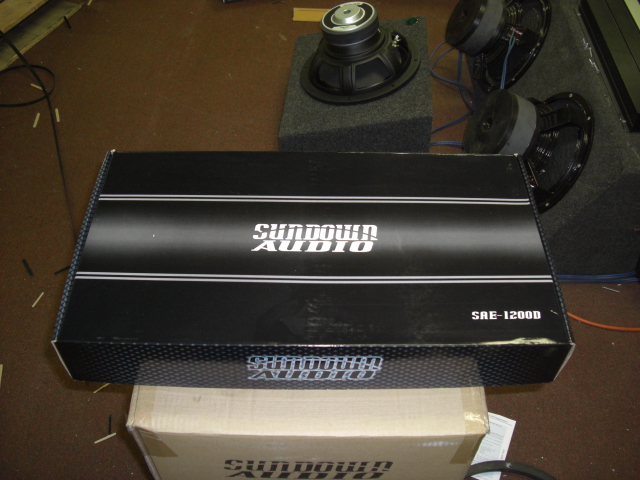

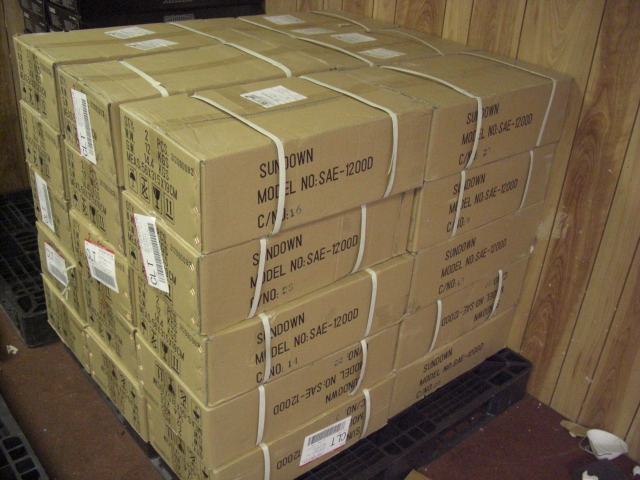

The amps are done - so pre-order is OVER. Few pictures of complete production run amps / cartons :

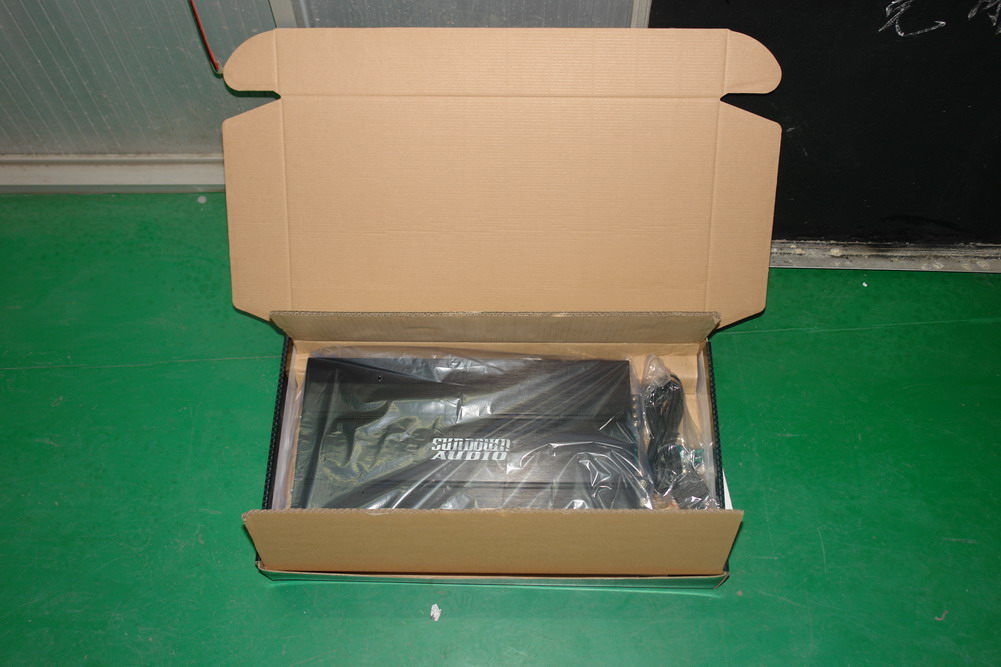

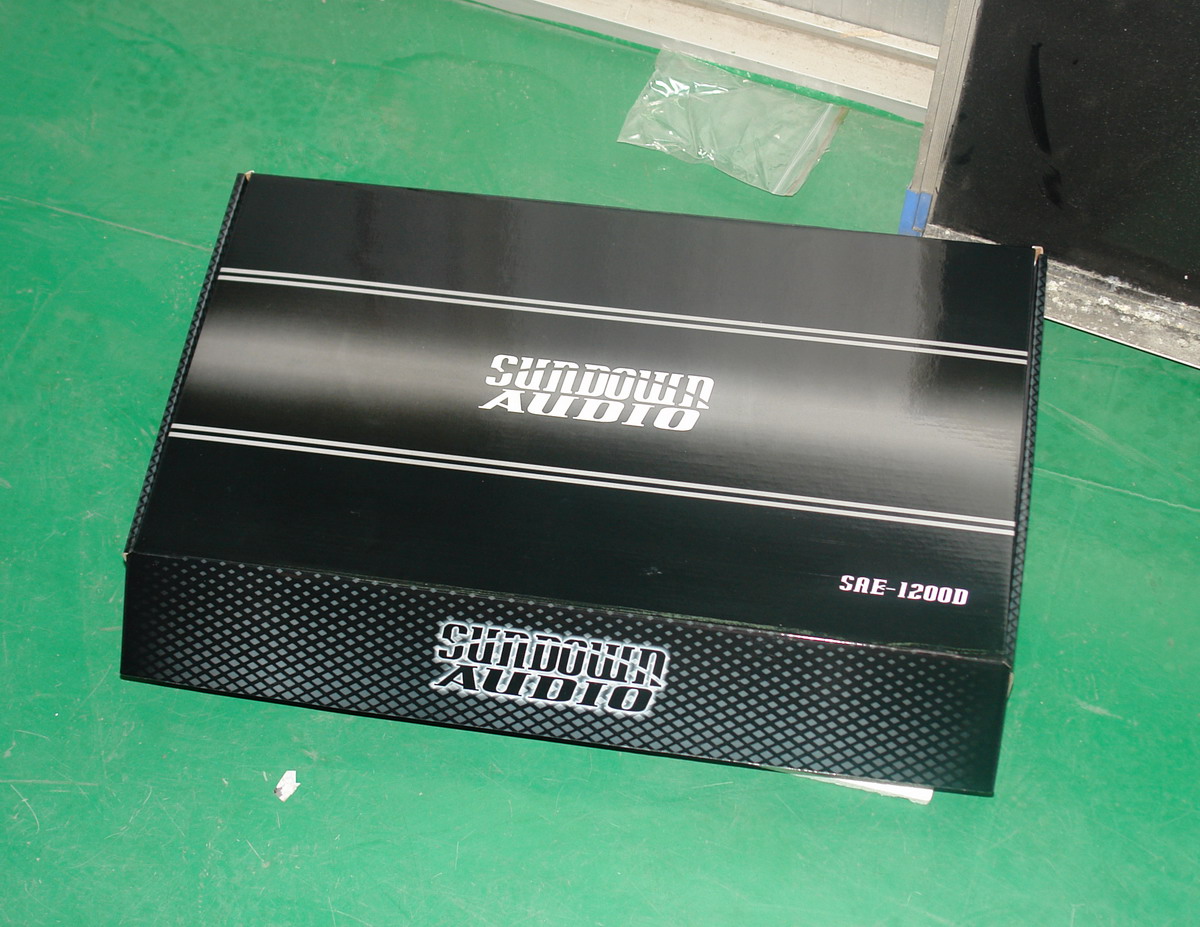

Not that it matters for performance... but we got the color of the carton printing spot on this time the way I like it with the glossy finish. Looks alot nicer! Also had the carton widened a little so the remote can fit in there along with the bubble wrap I add to the box. Had to pack the remote outside in the shipping carton and some people would throw them away by accident... so problem solved !

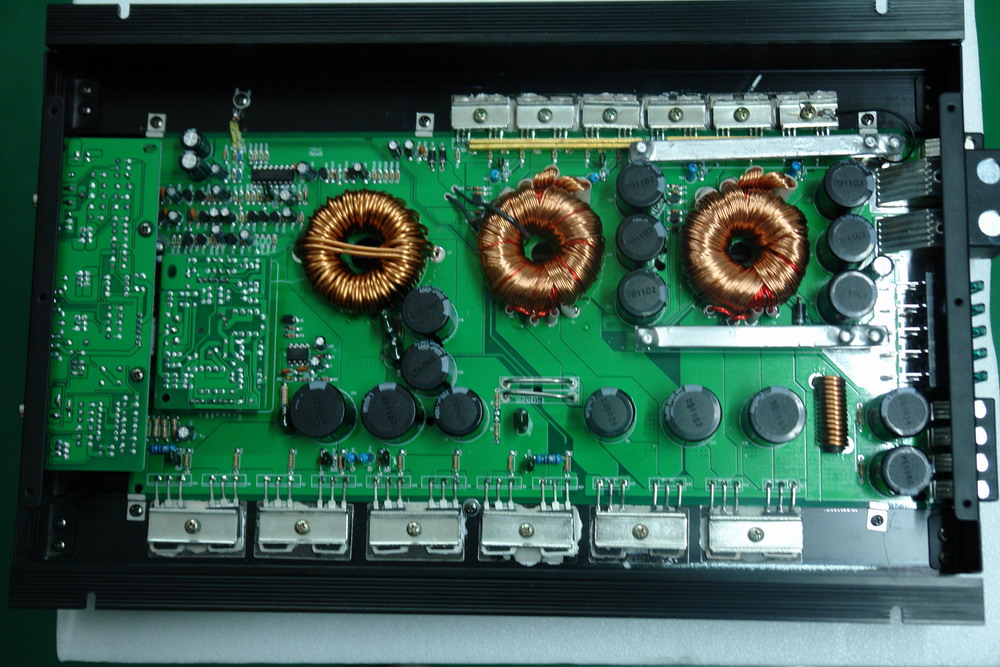

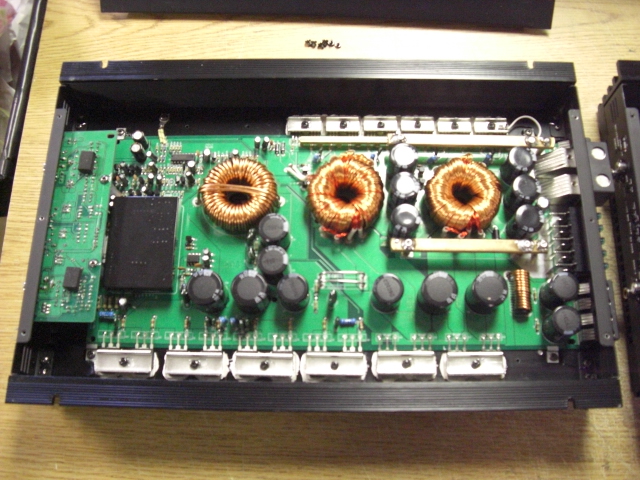

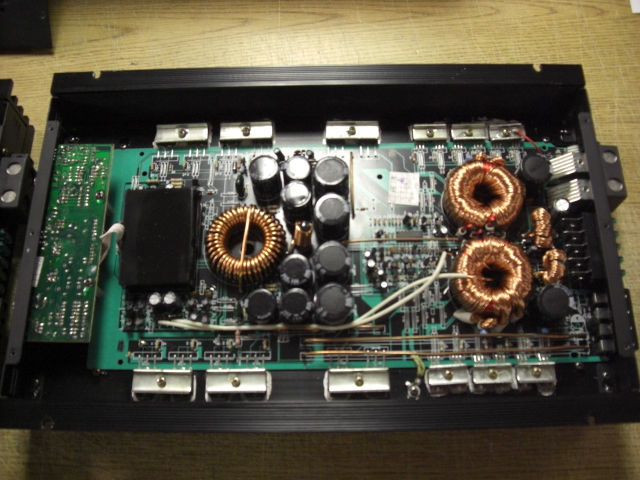

Notice all of the board tie downs along the edge... really took alot of measures for vibration resistance on the v.2 version.
