Kaotic Kustoms subs... pics, and all that fun stuff

[LFR]

I though I would just have a post for the subs I am building.



[LFR]

The 12" steel basket

12 inch
Voice coil	3 inch copper VC D4
RMS	800WRMS
MAX power handing	1600WMAX
SPL	85dB
Cone material	Paper
Impedane	Dual 4ohm/
Frequency response	35hz-2000Hz
Magnet material	Ferrite 140 oz
XMAX	26m
Qts	0.87
Vas	30.95liter
Qes	0.98
Fs	40hz



[LFR]

This 12" has a 2.5hp (2500 watt rms)
4" copper coil
200 oz motor
fs 32 hz
Qms 4.85
Qes 0.35
Qts 0.32
bl 23.3
vas 35.4L
sd 471.4 [email protected]
25mm xmax



[Bain]



[Bain]

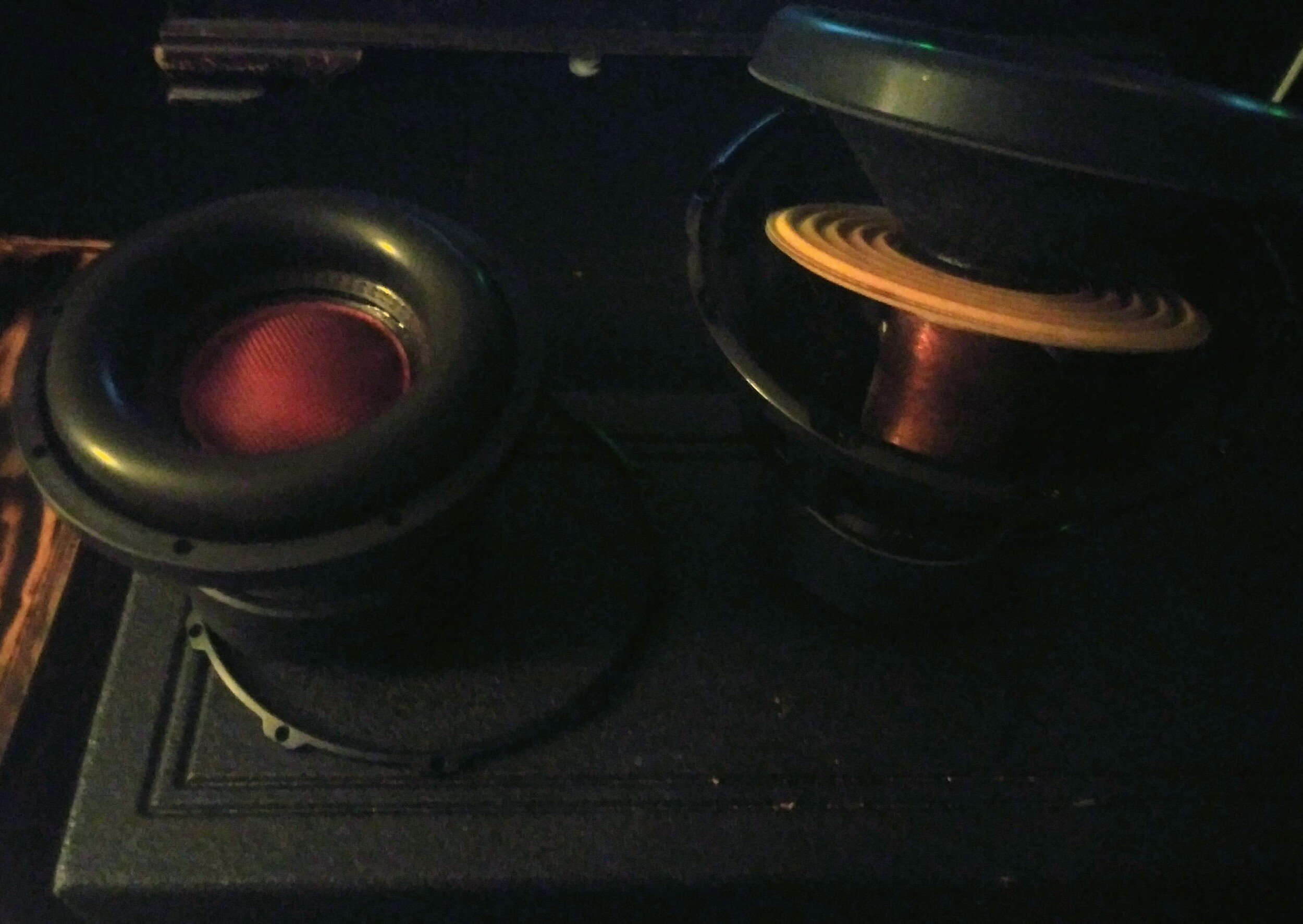

View attachment 46540

Single 1 ohm 3" Coil 3.25" wind width (18 awg copper wire)
Shorted this on a 1000 amp battery and takes it like a champ. Do some Big dummy math and it's actually over 10k... I told some kids I took the coil out of there moms vibrator after I banged her. The one ☝ the one lower ones the Gonzo Jizz facer jr. Spooged edition that's close to the ☝ there. Just has a 4 layer 20awg copper coil that's extreme and way better than that aluminum shit they use to save money bc copper electrically more efficient and don't brake when it gets loose butthole and slaps the side 3 times and no longer have 2 coils lol. Dumb shit people believe but cannot except this as truth. It is



[hispls]

Just has a 4 layer 20awg copper coil that's extreme and way better than that aluminum shit they use to save money

What would be your cost savings per unit having your coils wound in aluminum instead of copper? Can you quantify the efficiency (or dB) gains you get with copper over aluminum coils in each of your motors? Are there any other differences in TS parameters you consider when deciding on which material you want for your coils?
