Make/Model:
Alpine 9856 Headunit with KCA-422i ipod adapter
Specs:
FEATURES
Tuner
* • Preset Stations (FM:12/AM:6)
* • Auto Memory
* • Local/DX Selection
* • Up/Down Seek
HD Radio™ Ready
* • HD Radio Status Indicator
* • Automatic Digital/Analog Signal Switching
SAT Radio Ready
* • Sirius and XM Satellite Radio Compatible
* • Preset Memory, 3-Bands (18 Channels)
* • QuickSearch Function
* • Category Search
* • Text Scroll
Full Speed™ Connection for iPod®
* • Dedicated iPod Source Selection
* • Repeat One
* • Search Mode Selection (Playlist, Artist, Album, Song Title)
* • Shuffle (Albums, All)
CD Player
* • Regulated 1-Bit DAC
* • Zero data Mute (0 Bit Mute)
* • Digital Servo
* • Music Sensor Up/Dn
* • Disc Play/Pause
* • Forward/Backward
* • Music Search Function
* • CD Text, CD Text Display, CD Text Scroll
* • MP3 Text Information Display (ID3 Tag)
* • MP3/WMA Decoder/Playback
* • M.I.X. One (Folder)/All (Random Play)
* • QuickSearch Function (MP3 Files)
* • CD-R/CD-RW Compatibility
CD Changer Control
* • Repeat (One/Disc)
* • Music Sensor Up/Down
* • Forward/Backward
* • Disc Play/Pause
* • Elapse Time Display
* • CD Text Display/Scroll
* • MP3 Text Information Display (ID3 Tag)
* • Multi-CD Changer Control (with KCA-410C)
* • MP3 Changer Ready (CHA-S634)
* • M.I.X. One/All (Random Play One or All)
Bass Engine® Sound Tuning
* • Subwoofer Level Adjustment
* • Bass Center Frequency Control
* • Bass Width Adjustment
* • Bass Level Adjustment
* • Treble Center Frequency Control
* • Treble Level Adjustment
General
* • 50W x 4 High Power Amplifier (Micro Dynamics ™)
* • CD Changer Control Function
* • Flip Down Face
* • Rotary Encoder Volume Control (Pop-up Rotary Knob)
* • Black Face w/Blue illumination Buttons
* • 3 PreOut (2V PreOut)
* • Bluetooth® Ready
* • BBE Processor
* • Versatile Link Ready
* • MM Driver Ready (Hard Disc Drive Ready)
* • Media Playback
* • Separate Bass & Treble Control
* • Fader & Balance Controls
* • S.T.M. (Source Tone Memory)
* • Clock
* • Detachable Trim Plate
* • Anti-Theft Detachable Front Panel
* • Dimmer-on Input
* • Power Antenna Lead
* • Remote-on Lead
* • Audio Interrupt In
* • Wireless Remote Control Ready
* • Demo Function
* • Audio Mute
SPECIFICATIONS
FM Tuner
* • Tuning Range: 87.7-107.9 MHz
* • Mono Usable Sensitivity: 9.3dBf (0.8 µV/75 ohms)
* • 50dB Quieting Sensitivity: 13.5dBf (1.3 µV/75 ohms)
* • Alternate Channel Selectivity: 80.0 dB
* • Signal-to-Noise (S/N): 65.0 dB
* • Stereo Separation: 35.0 dB
* • Capture Ratio: 2.0 dB
AM Tuner
* • Tuning Range: 530-1, 710kHz
* • Usable Sensitivity (IEC Standard): 22.5/27.0 (µV/dBf)
CD Player
* • Sampling Rate: 44.1kHz
* • Signal-to-Noise (S/N): 105 dB
* • Frequency Response: 5-20k ±1 dB
* • Horizontal Resolution: 500 Lines or Greater
* • Channel Separation (1kHz): 85 dB
* • Dynamic Range (1kHz): 95 dB
* • Total Harmonic Distortion (THD): 0.008% (at 1kHz)
* • DAC Type: Regulated 1-Bit
* • Oversampling: 8X/352.8kHz
* • Wow & Flutter (%WRMS): B.M.L.
Bass Engine® Sound Tuning
* • Subwoofer Level Adjustment Range: -15dB to 0dB (1dB steps)
* • Bass Center Frequency : 60Hz, 80Hz, 100Hz, 120Hz
* • Bass Band Width Adjustment (Q): 4 choices (1 =wide, 4 =narrow)
* • Bass Level Control Range: +20dB to -14dB at 60Hz (2dB Steps)
* • Treble Center Frequency: (Selectable) 7.5kHz, 10.0kHz, 12.5kHz, 15.0kHz
* • Treble Level Control Range: ±14dB at 10.0kHz (2dB Steps)
* • BBE® Modes: On(1, 2, 3)/Off
Dimensions
* • Din Size: 1
* • Chassis Size (W x H x D) mm: 178mm x 50mm x 162 mm
* • Chassis Size (W x H x D) in: 7" x 2" x 6-3/8"
* • Nose Piece Size (W x H x D) mm: 170mm x 46mm x 19 mm
* • Nose Piece Size (W x H x D) in: 6-3/4" x 1-13/16" x 11/16"
General
* • CEA-2006 Power Rating (4Ohm@14.4 V =1% THD+N), S/N 80dBA (Ref: 1W into 4Ohm): 18W x 4
* • Max Power Output: 50W x 4
* • Pre Output Voltage (Before Clipping): 2V
* • Power Requirement: 14.4 (11-16) V.DC
* • Operating Temperature ( °C/ °F): 60°C (140°F) to -10°C (14°F)
* • Maximum Mounting Angle: 30° from Horizontal
* • Weight: 1.6kg (3lbs 8oz)
Condition/Description/Other Information:
4 months old, is in mint condition and comes with box and all manuals and accessories. Purchased from an authorized dealer so it does have some warranty left.
Price (with paypal fees included):
$155
Shipping Information
$10 shipping via usps or ups insured to the lower 48. People in canada, alaska, or hawaii, pm me for a shipping price
Contact Info
PM here or aim is iceteebone23

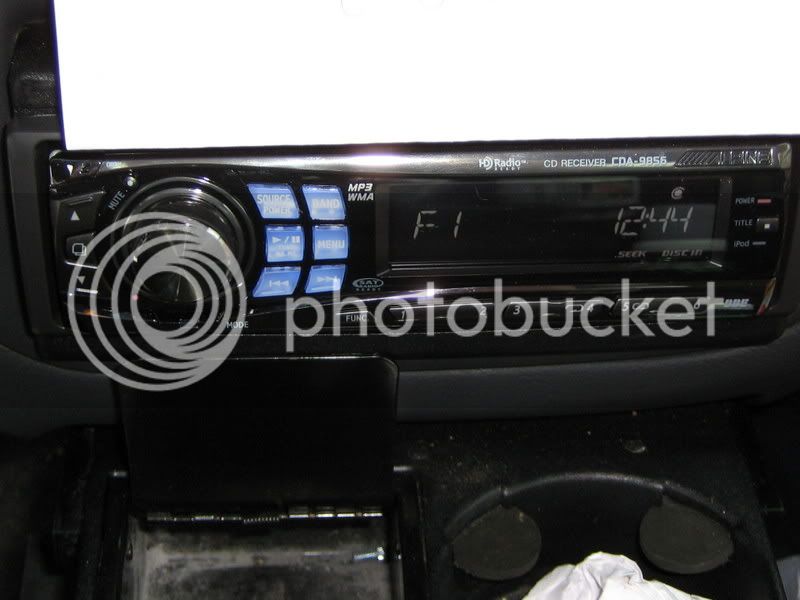

Pics:
