Does anybody know where I can find a stock JBL stereo wiring diagram for a 2002 Camry LE?

[Plantinum]

I cut the current connector instead of buying a harness as I wanted to solder it, but I'm having a hard time finding a diagram. It seems most Camry's have 2 connectors as to where mine has one. Every diagram or info I find does not match my wiring colours.

pics


Both the stock JBL radio and my aftermarket radio each have 14 wires.

Also the dash mount kit I got (once again years ago) is a metra 99-8231, but isn't the best fit. Does anyone know of better ones?

Click to read more...



[1aespinoza Premium Member]

but I'm having a hard time finding a diagram.

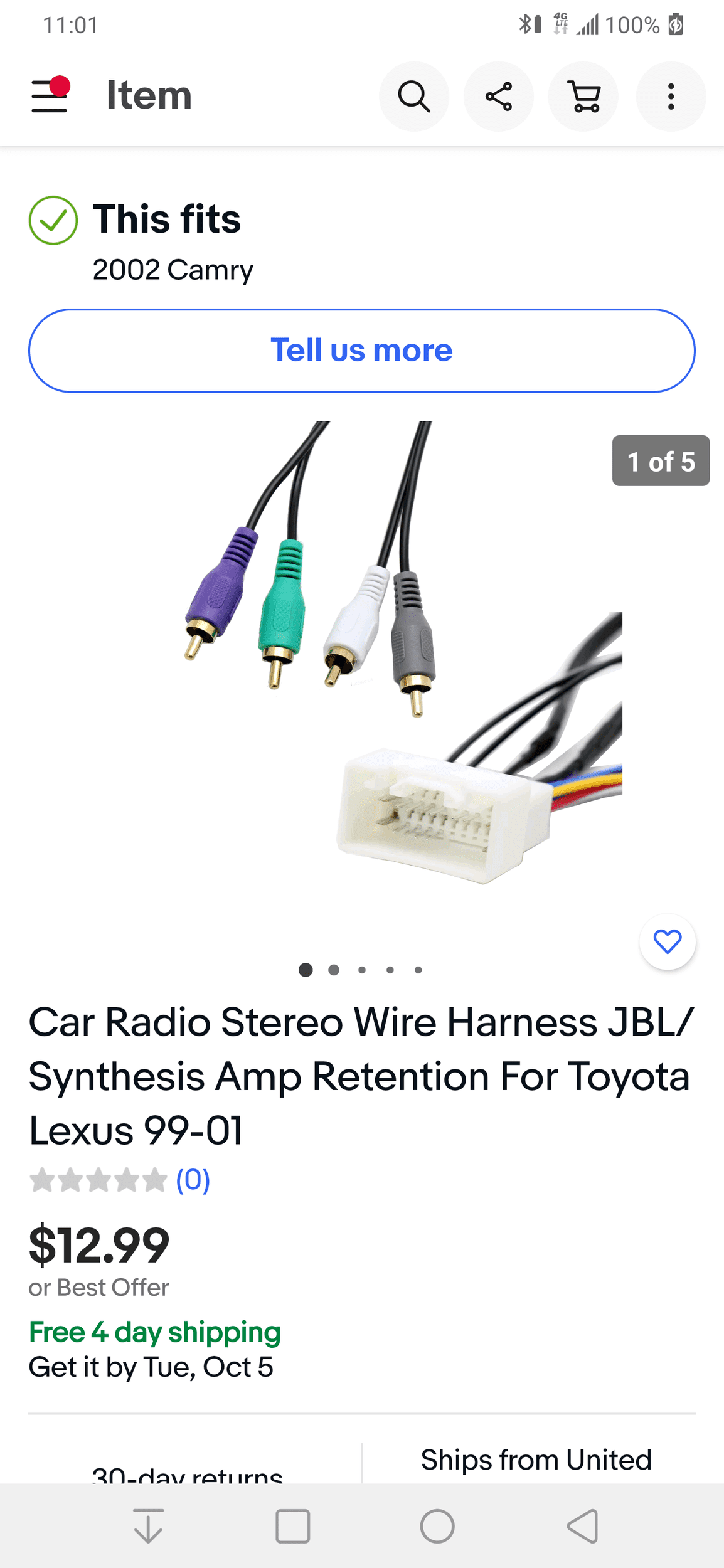

I think this is the one you need.

You can plug it into the severed harness block and reverse engineer it.
