custom built sq'ish woofers

[psychoacoustics 10+ year member]

Item(s) for Sale:

custom build sq/daily woofers

Item(s) Description/Condition:

ID spl motor (very similar to an atomic apx)

TC sounds composite cone with rubber surround

2 medium stiffness opposed spiders ( i fliupped one spider over to increase linearity)

woven leads

dual voice coil flat wound alumunium

12" rockford TR/HX2 baskets

flat black anodized aluminium dust cap

rubber frame gaskets

id conservatively rate these at 1000 watts due to the cone i wouldn't put a lot to it or it might break its not as forgiving as paper but its superstiff composite

Price:

300 each + shipping

not really looking for trades

Shipping and Miscellaneous Item Information:

shipping not included

i will ship from 14120 with enough insurance to cover the whole deal including shipping

Pictures:

before gluing the cone down

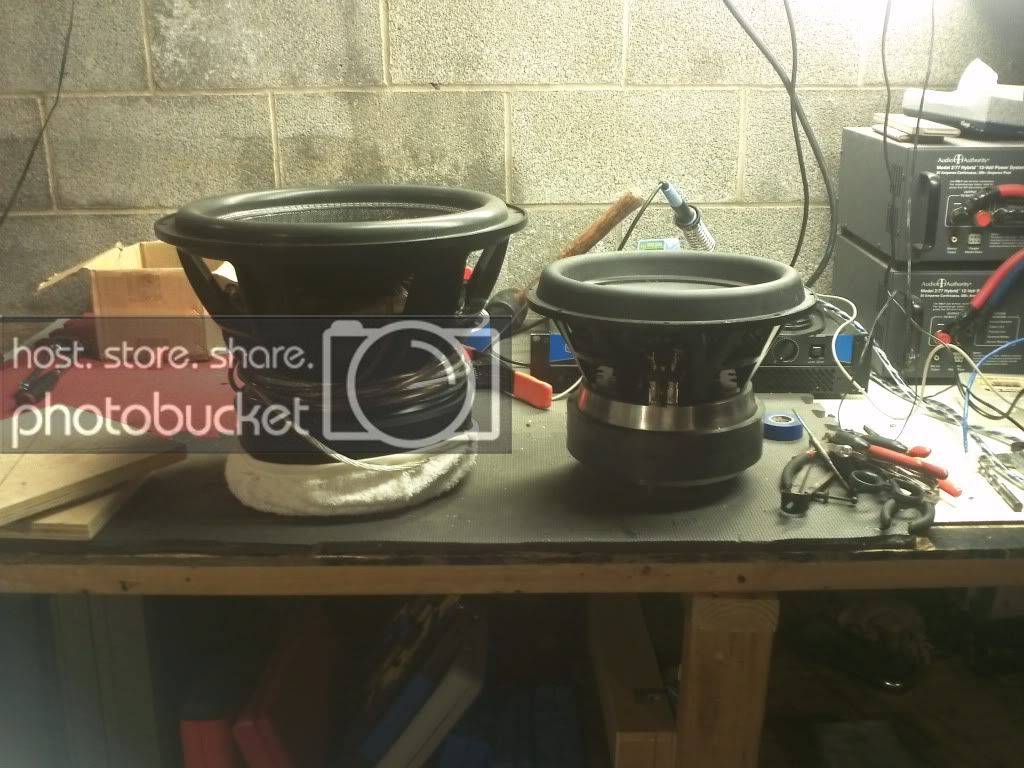

next to a 2010 TSNS

(List pictures in this section, 1st picture should be your username/date if you have less than 10 positive feedbacks with the i-Trader system or less than 10 references that you have sold to in the past. (These must be listed in your signature, or a link provided to a feedback thread listing these references)).

Click to read more...



[CHEMMINS 10+ year member]

Bump for a great guy to deal with.



[Bettr n' Revrse 5,000+ posts]

How many?



[gckless 5,000+ posts]

Nice sub, GLWS.

You selling that 10"?



[Ge_off_me 5,000+ posts]

Do want



[xmakeafistx 10+ year member]

If i'm right there was very few of those ID subs ever made.. I could be wrong but I think that motor is super hard to find.



[kpetree 10+ year member]

Coil configuration? I need a D2!



[psychoacoustics 10+ year member]

Nice sub, GLWS.
You selling that 10"?

no 10 in any pictures there is a 12" tsns it and its pair is sold

If i'm right there was very few of those ID subs ever made.. I could be wrong but I think that motor is super hard to find.

thats them

How many?

2

Coil configuration? I need a D2!

d1
they are d1 measured in parallel



Re = 0.4337 ohms

Fs = 43.9657 Hz

Zmax = 5.9305 ohms

Qes = 0.6009

Qms = 7.6148

Qts = 0.5569

Le = 0.3723 mH (at 1 kHz)

Diam = 254.0000 mm ( 10.0000 in )

Sd =50670.7504 mm^2( 78.5398 in^2)

Vas = 14.7829 L ( 0.5221 ft^3)

BL = 8.0295 N/A

Mms = 323.3194 g

Cms = 40.5304 uM/N

Kms =24672.8555 N/M

Rms = 11.7291 R mechanical

Efficiency = 0.1965 %

Sensitivity= 84.9508 dB @1W/1m



[Norcalflat]

............



[CerwinVega_Fan 10+ year member]

Are those tsns's????



[Kangaroux 5,000+ posts]

Are those tsns's????

No, they're CVR's.



[psychoacoustics 10+ year member]

yea thats a tsns



[psychoacoustics 10+ year member]

so 1500-2k conservatively with some of the nicest looking combinations of parts to ever be Frankensteined

and its halloween!



[psychoacoustics 10+ year member]

christmas present?



[Papermaker85 5,000+ posts]

looks sweet, kinda high we but it do great in a few alignments..

pretty **** huge too!

props on the mirror spiders, something I look forward to using on my own woofers keeps the cms more linear on the rearward stroke.
