Caleb's SQ "Re"build log.

[calebkhill 10+ year member]

Never made a real build log, just scattered progress through the forums.

So, rebuilding...

I'm currently tearing this down and rebuilding from ground zero. Before, it was a "finished"build with a few loose ends. Now, I'm rebuilding for competition, with a few changes and equipment upgrades, and upgrades all around.

Plans:

3 way front + 2 15" RF subs

the

Equipment

Pioneer 80prs

Rockford 3sixty3

-Alpine MRP F300 running....

PHD FB 6.1 pro tweets (a pillar)

-Zapco Ref 1000.4 running....

Midrange: PHD FB Pro 4" midrange (a pillar)

Silver Flute 8" (kick panels)

-2x Zapco Ref 200.2 running...

2x Old school RF 8ohm 15" (will find specs later)

Other

Improve deadening throughout

Amp rack

Complete rewiring

RTA/REW tuning

Will add videos and pictures as progress goes fourth.

Thanks!

Click to read more...



[calebkhill 10+ year member]

We did a little bit today. Not much time but got started.

Hey, I'm trying to build in a way that i can accumulate points in competition, so if you see anything i do that may hurt or hinder me, let me know.

Thanks to all!!

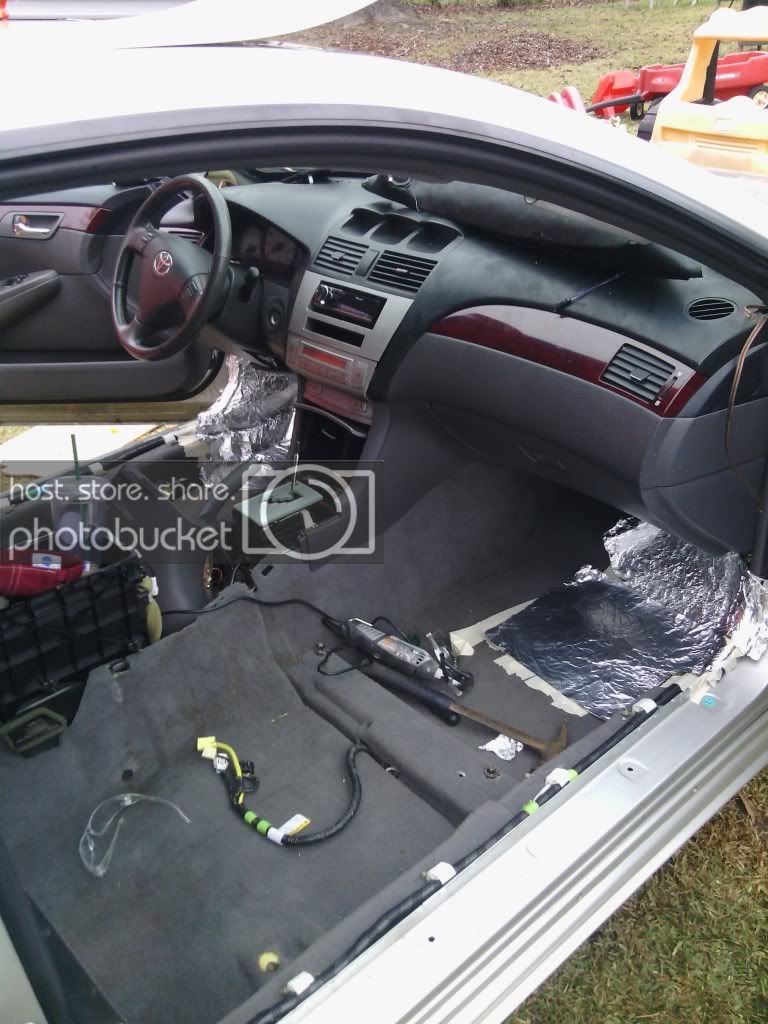

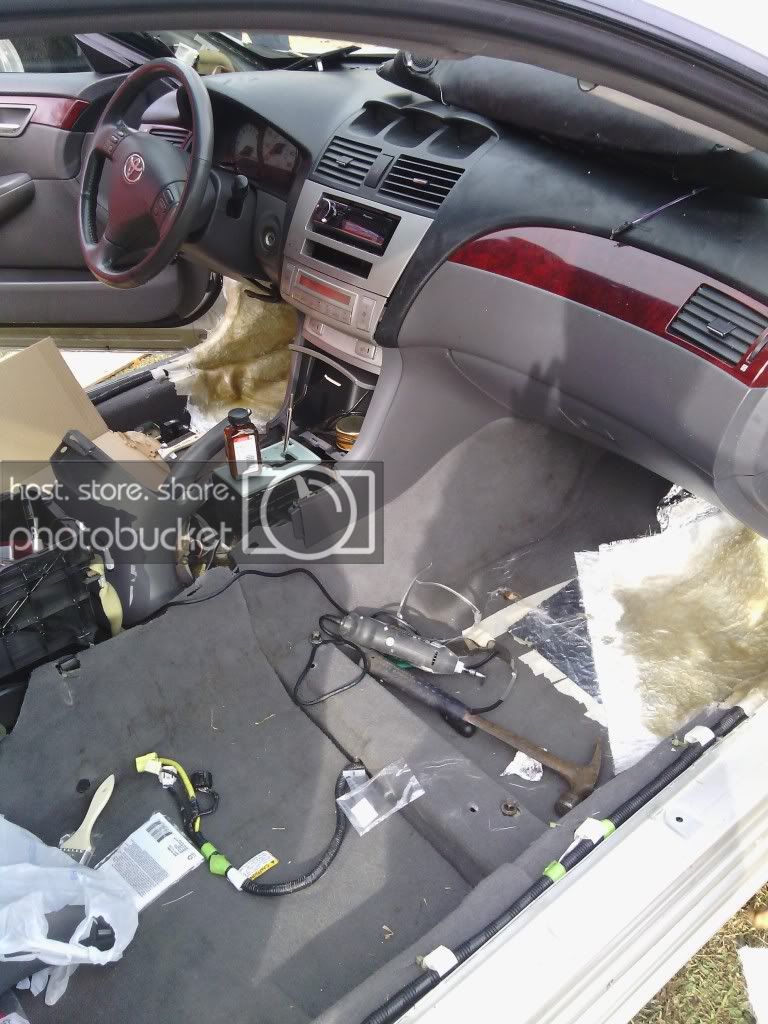

Started wiring.

Amp rack construction



[wagonmaster 10+ year member]

You should protect the power wire where it goes through the bulk head. I would sugest spliting some vacuum line and placing over the metal edges.

Tim



[thevic24 5,000+ posts]

x2 on the above and sound deadening....lots and lots...



[calebkhill 10+ year member]

More updates. Finishing the wiring up front. Amp rack coming together, still in its baby phase. A little sound absorption. Really would like to be a little unique in the wiring, maybe looms, but I'll think of something later on.

RCA and remote from HU into cabin.

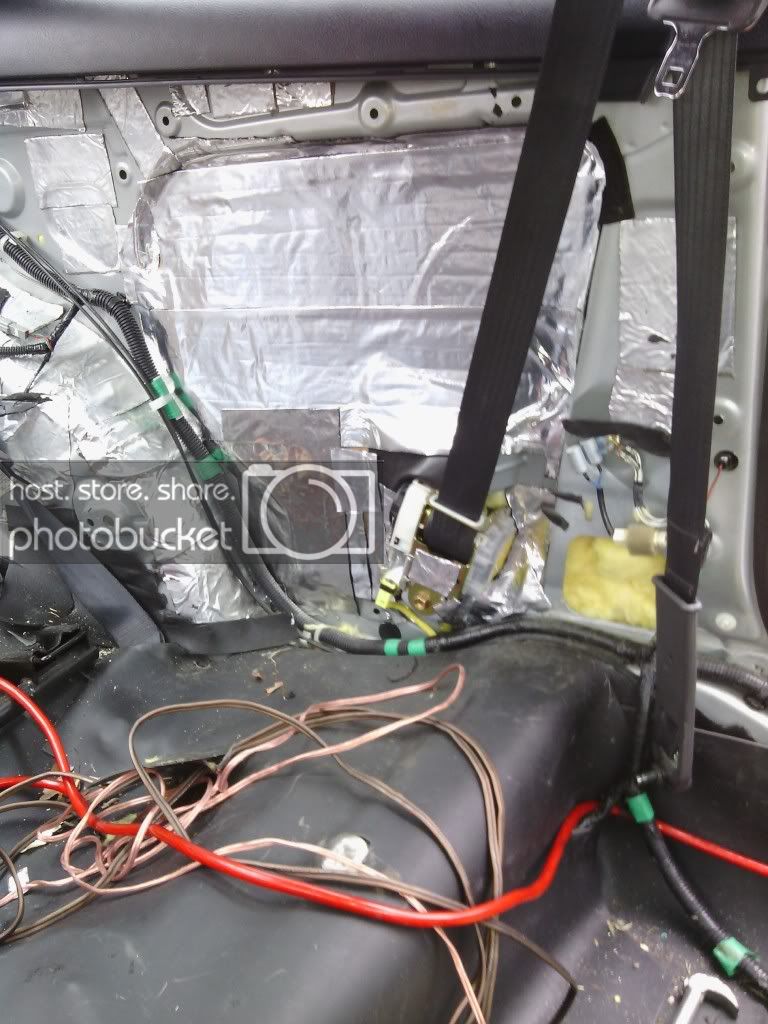

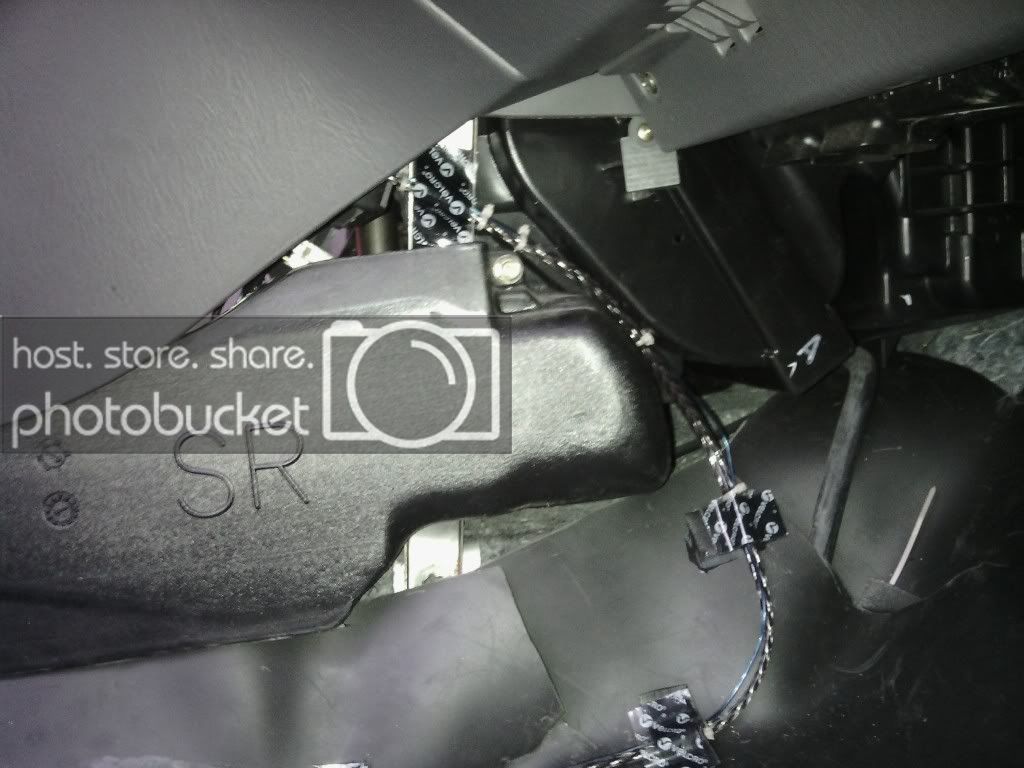

More wiring, passenger side.

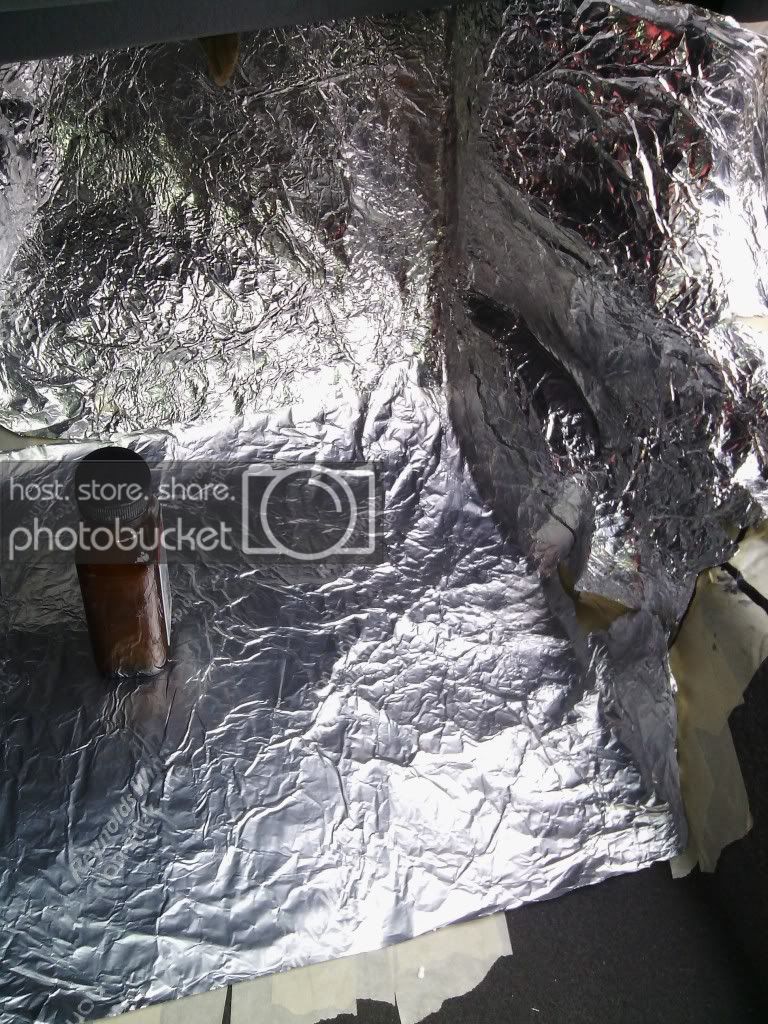

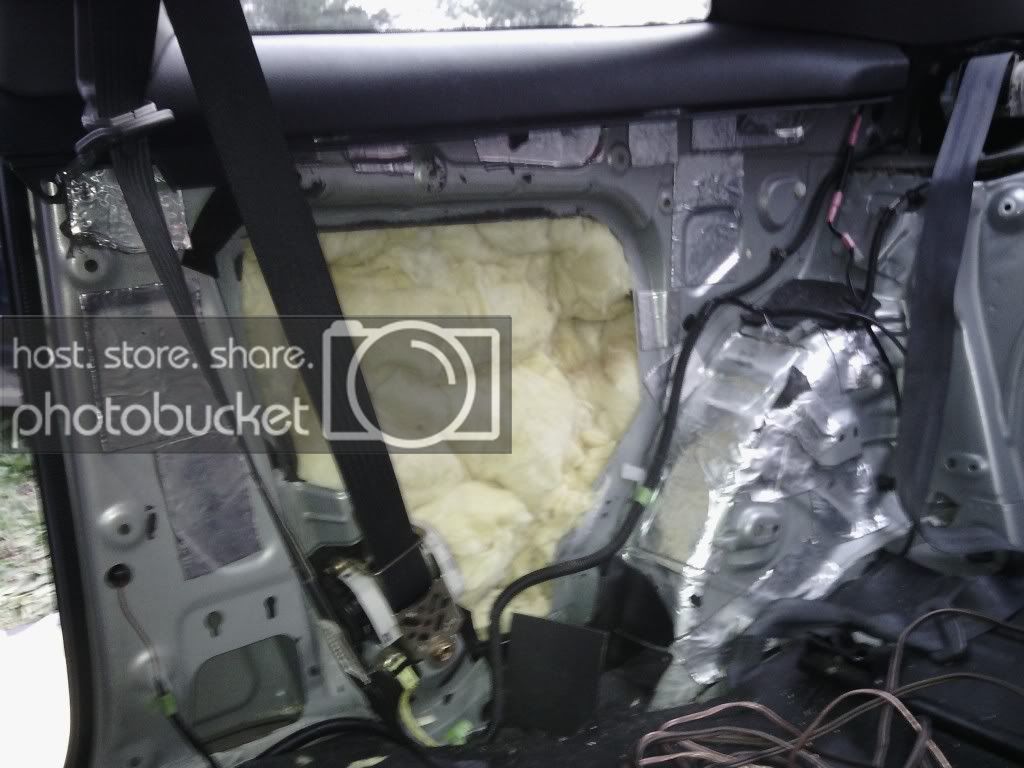

Fiberglass absorption, rear well.

Opposite well

Amp rack construction

Video update.



[calebkhill 10+ year member]

More work...

-Got nearly all the wiring in the cabin finished, all but installing the front to rear 1/0

-Made much more progress on the amp rack. Got the basic framework done and mounted to the body.

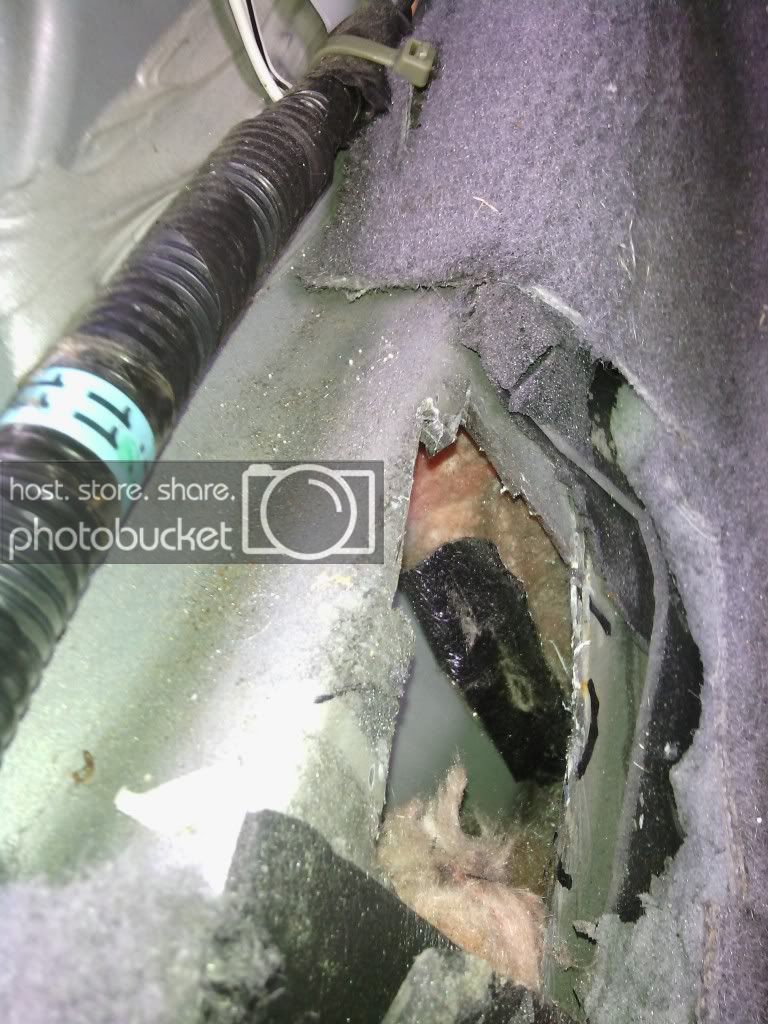

-Rear wells, B pillar, and doors deadened and filled with fiberglass insulation.

Got to finish the amp rack, kick panels, and DSP setup. A pillars are going to be in test mode for a while before permanent fabrication.

Rearwells

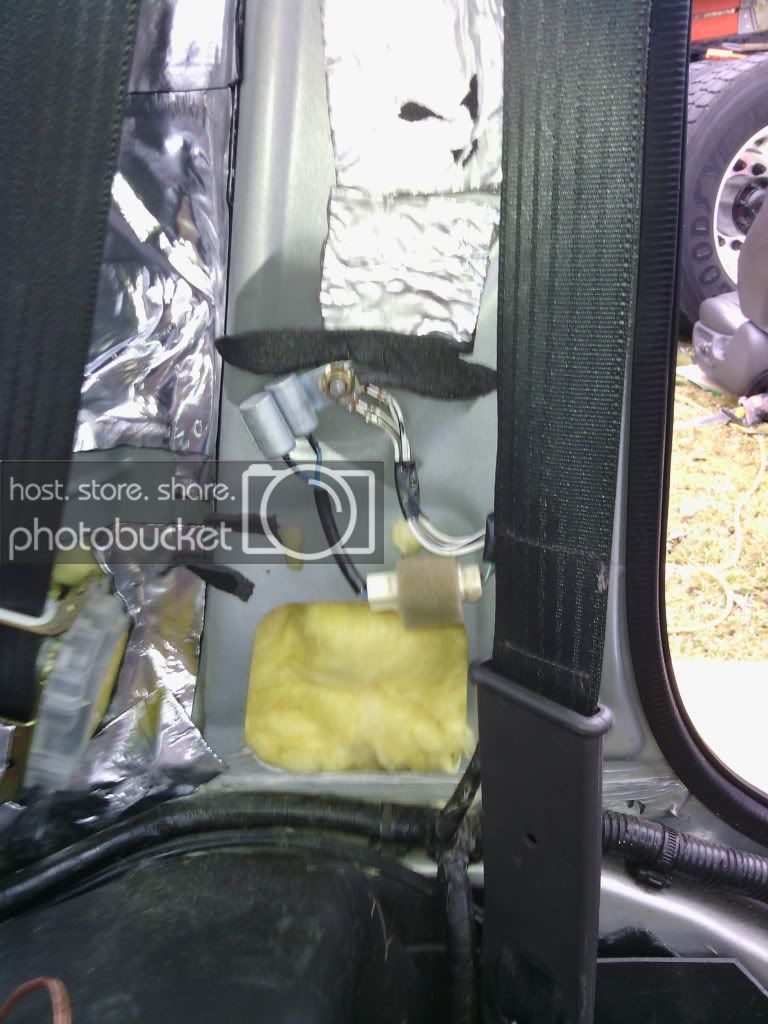

B pillar

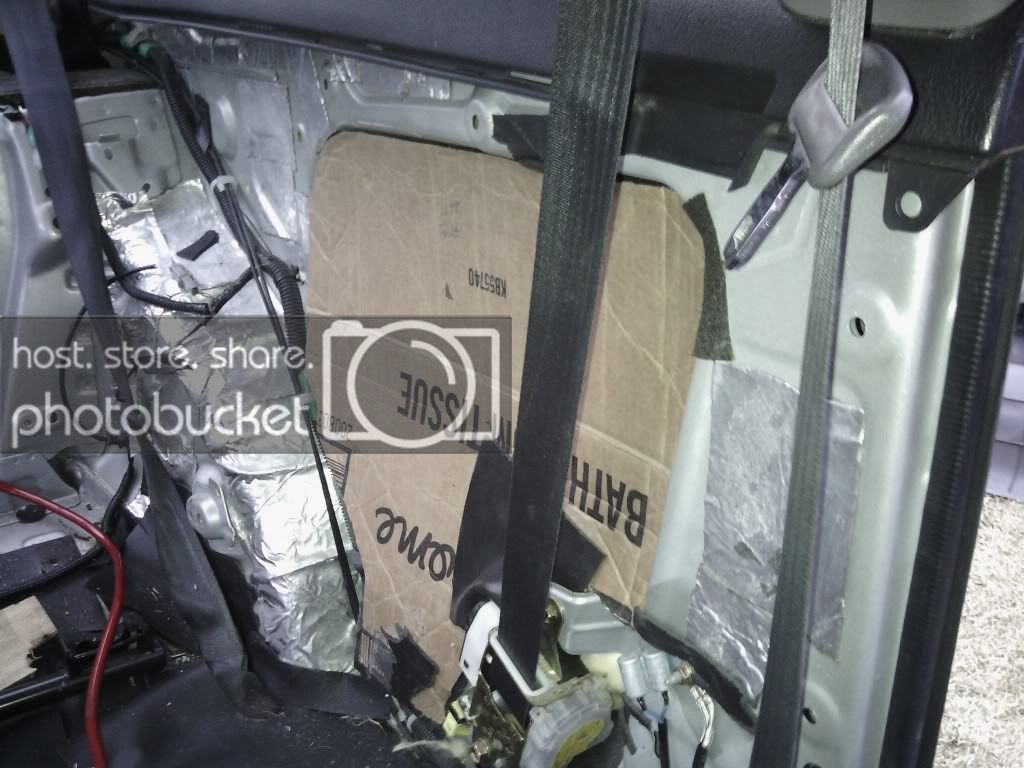

Doors

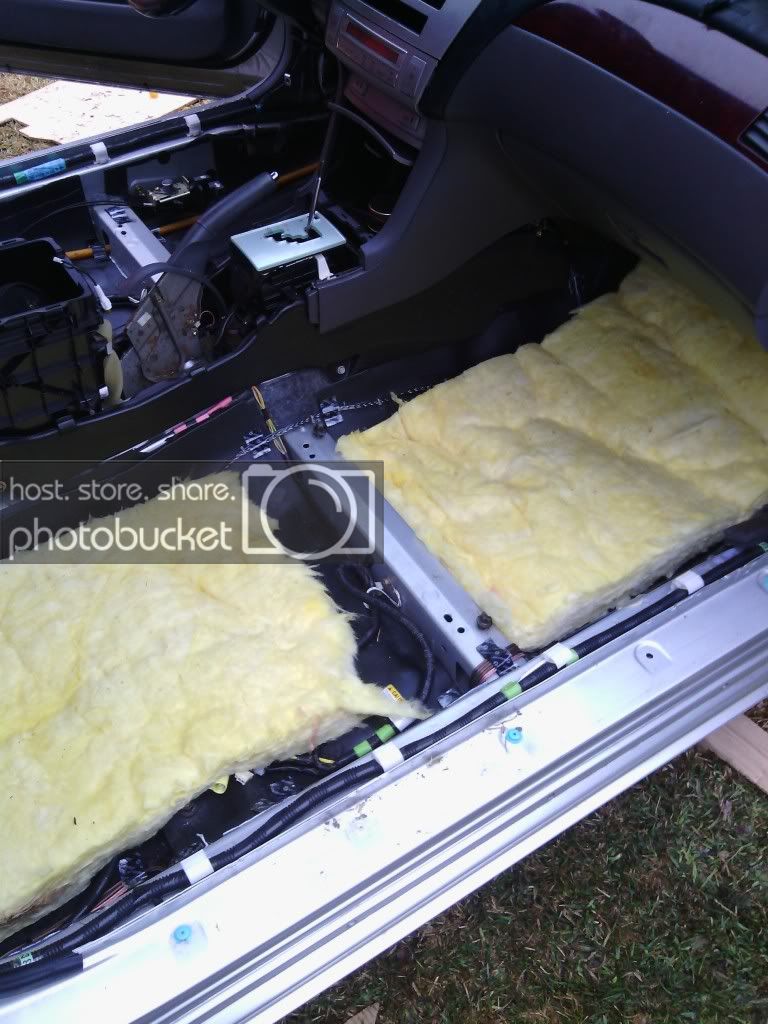

Door panel filled with insulation



[Staynlean 10+ year member]

Nice man, great work so far. I'm following.



[calebkhill 10+ year member]

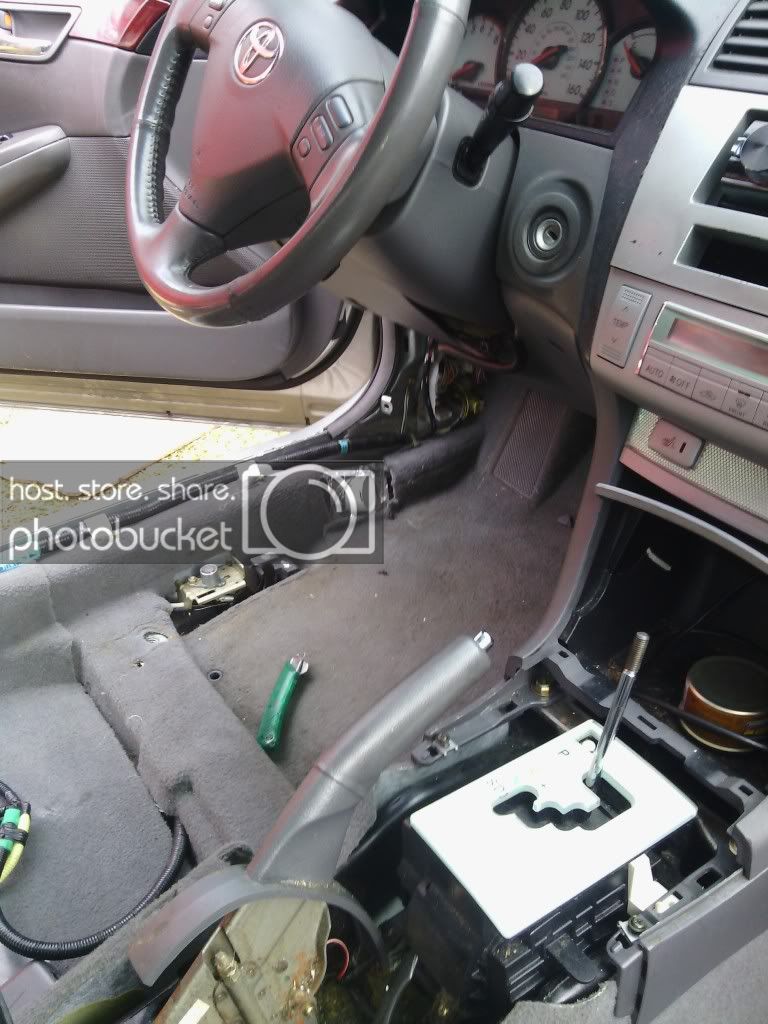

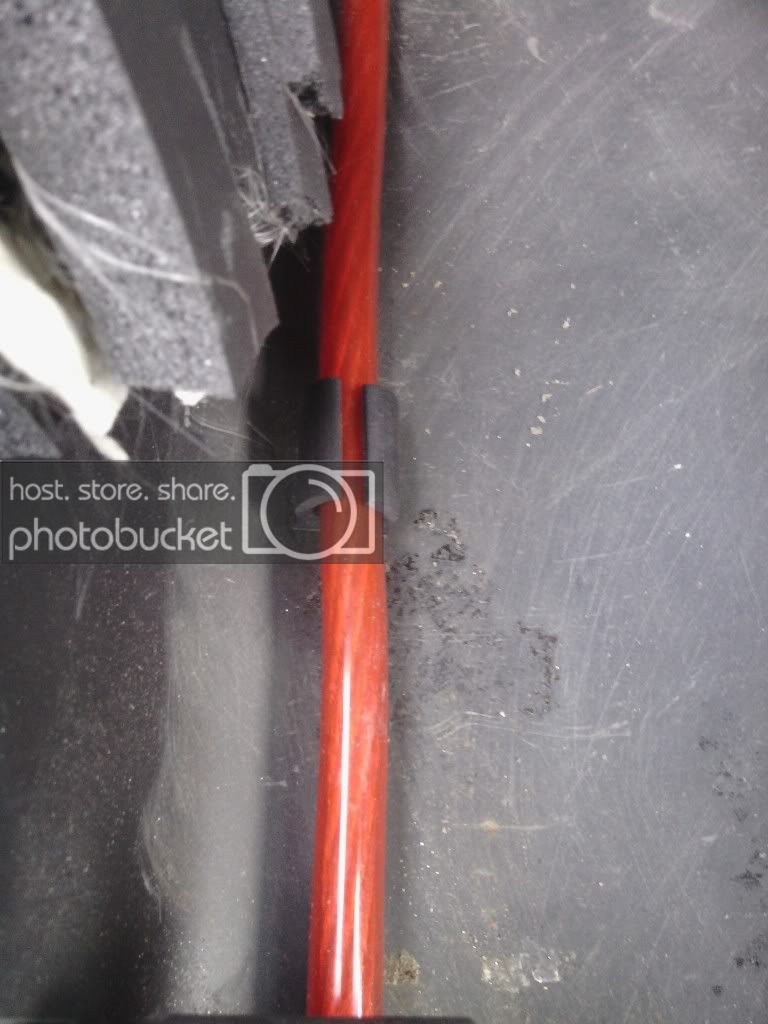

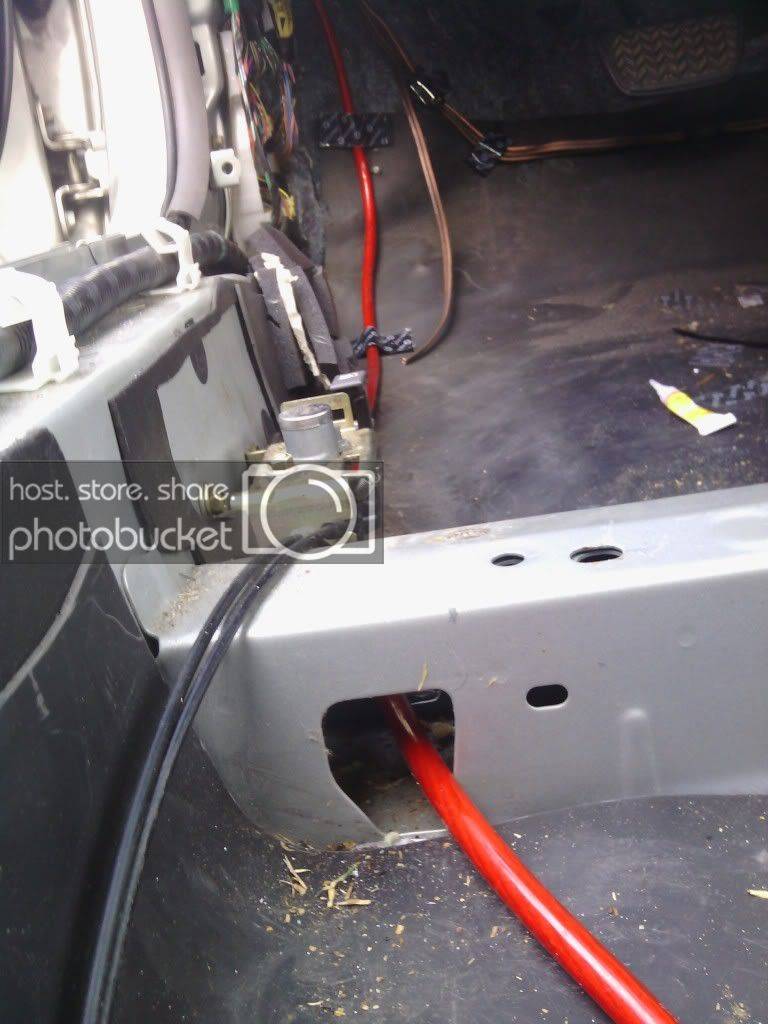

All the wiring inside the cabin is finished. Carpet is ready to go back in. 1/0 also installed. Still have to cover in a rubber grommet later.

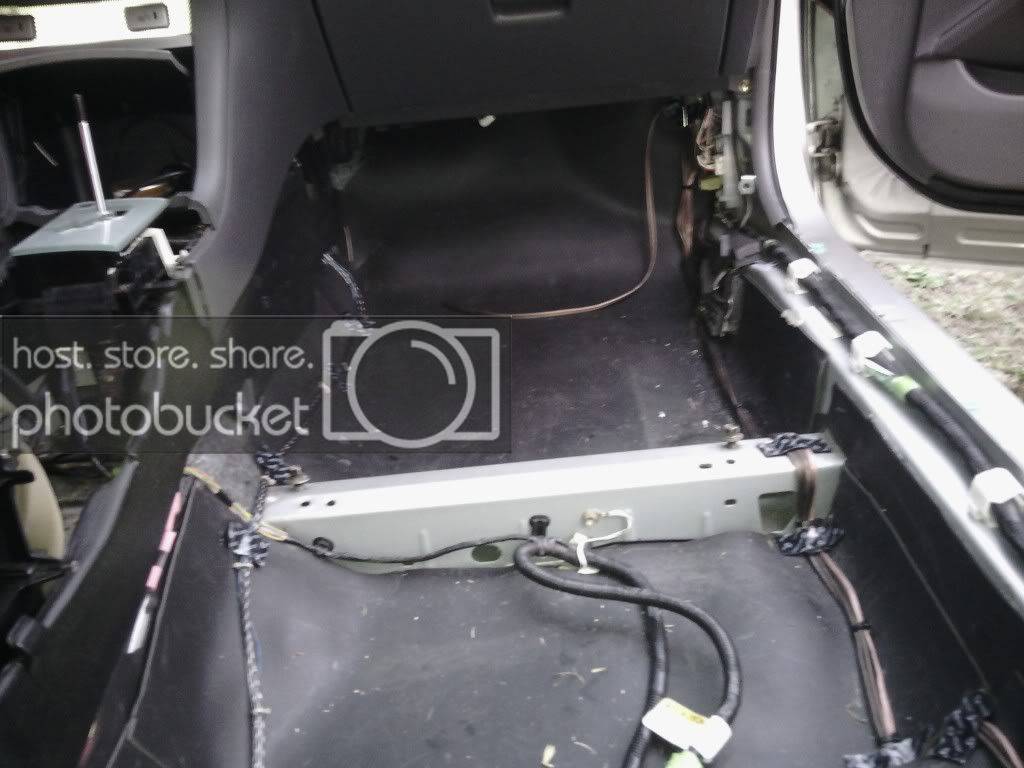

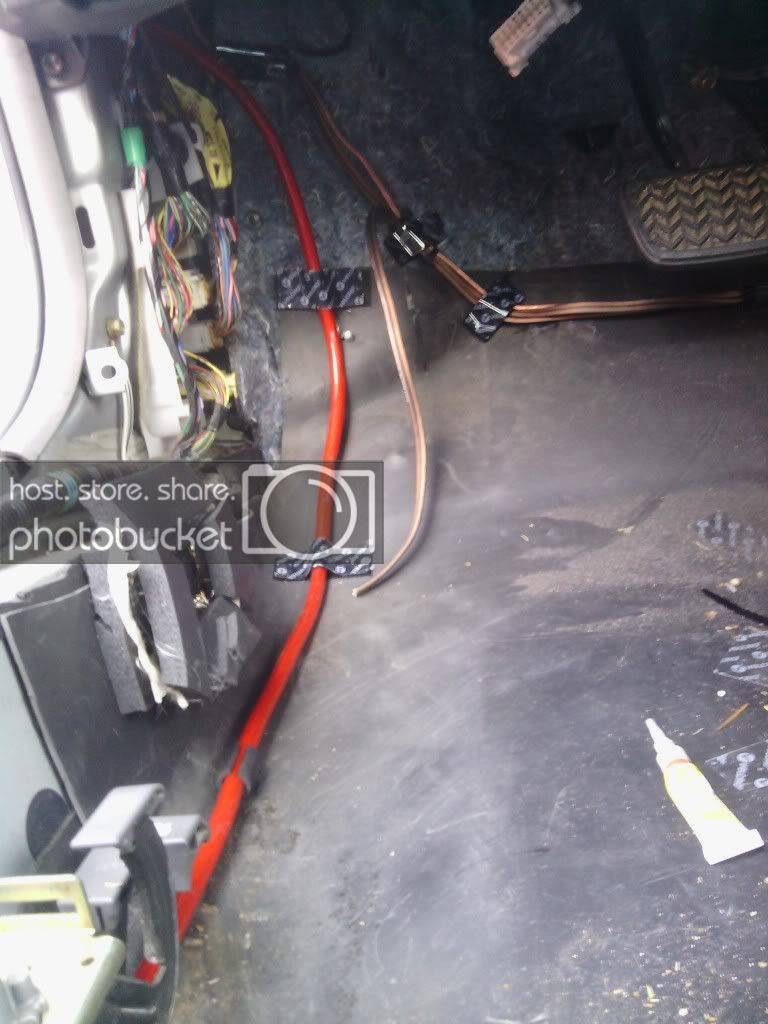

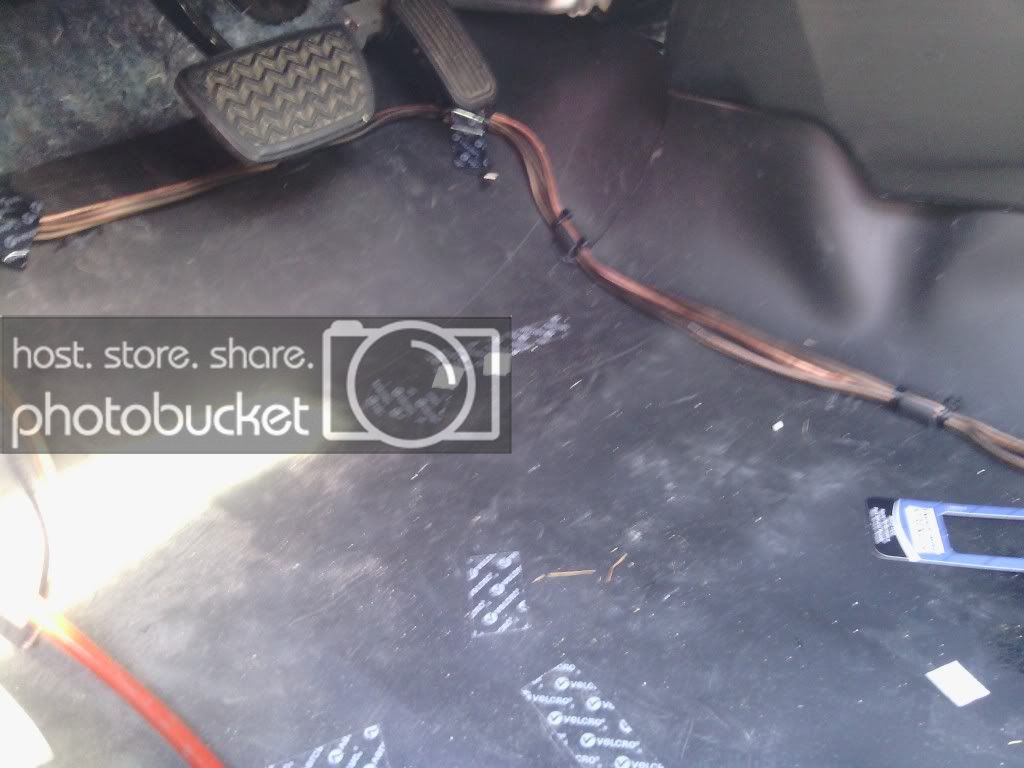

Floor to back seats.

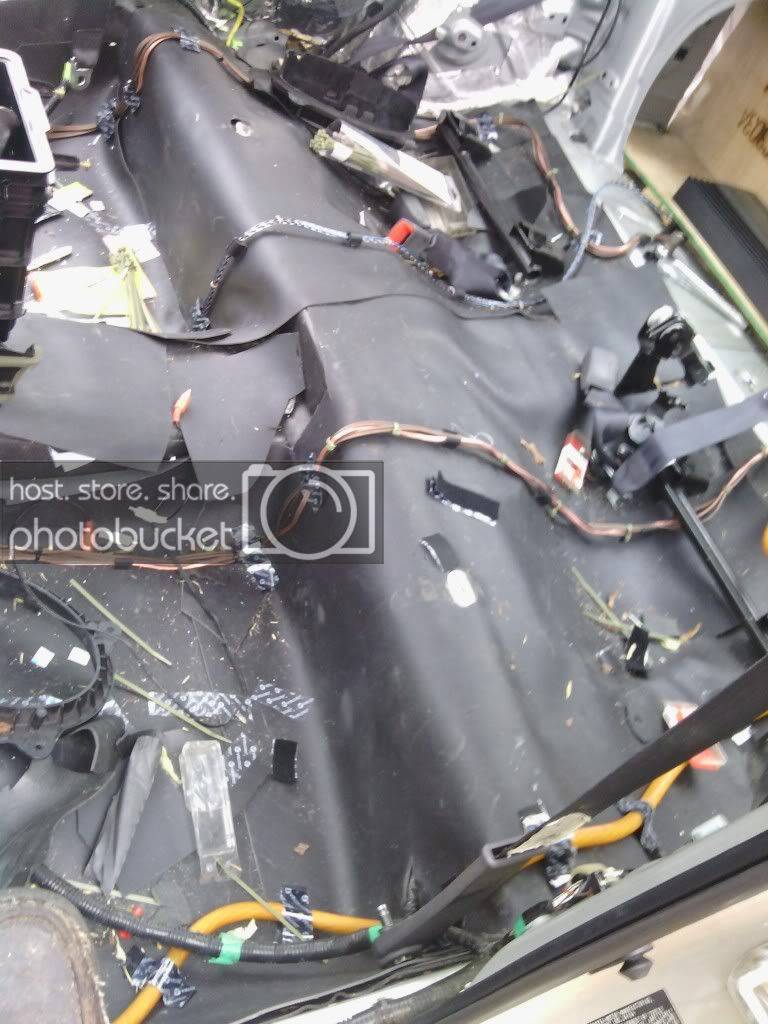

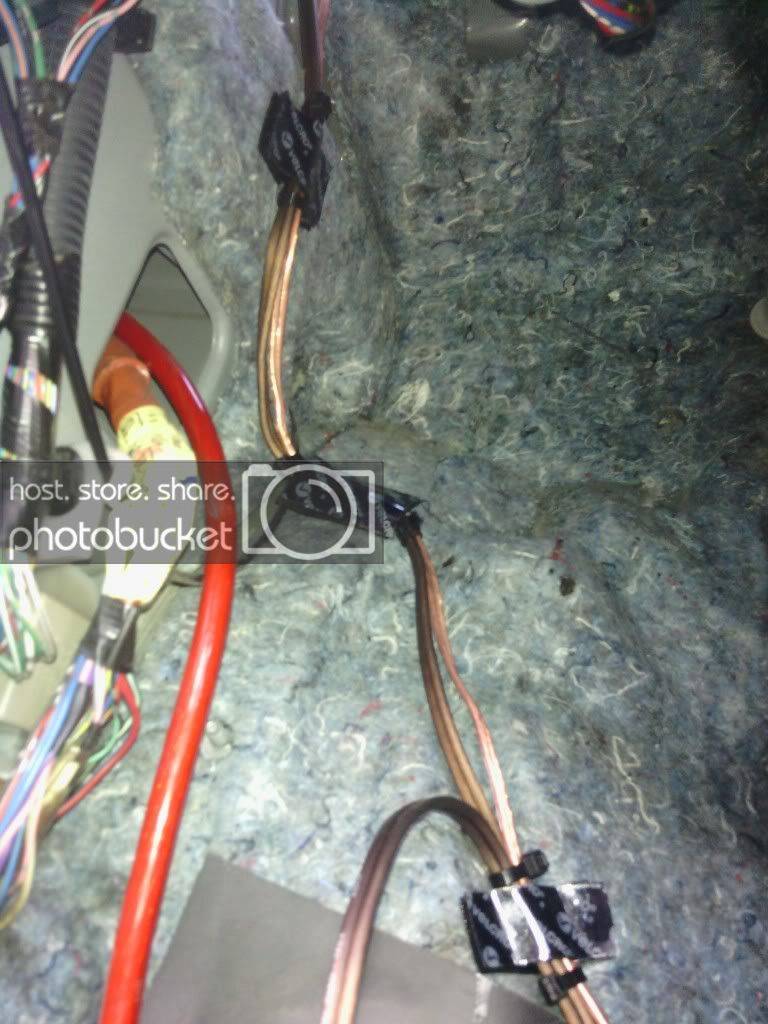

Back seats to amp rack

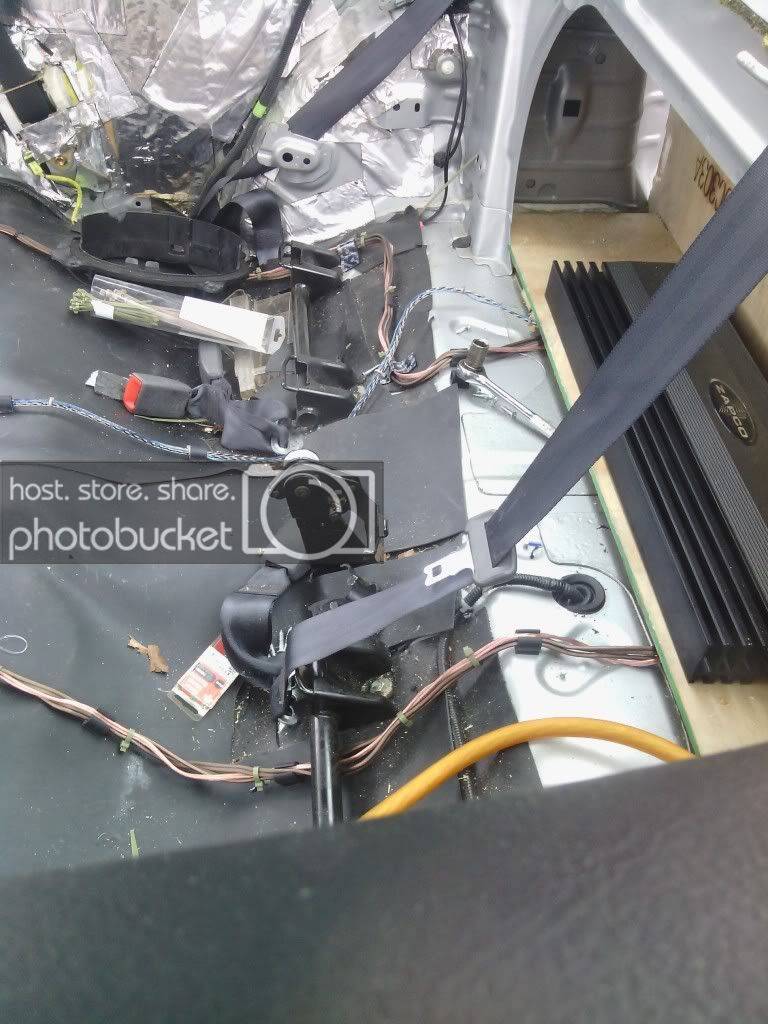

From cabin to rear of amp rack

Rear of amp rack



[argenis69 10+ year member]

Nice



[calebkhill 10+ year member]

Almost finished. Well, the hard stuff anyway. Had to put this under the passenger side. Back when my air conditioner drain flooded, i had to remove the foam underneath, therefore throwing the alignment with the carpet off

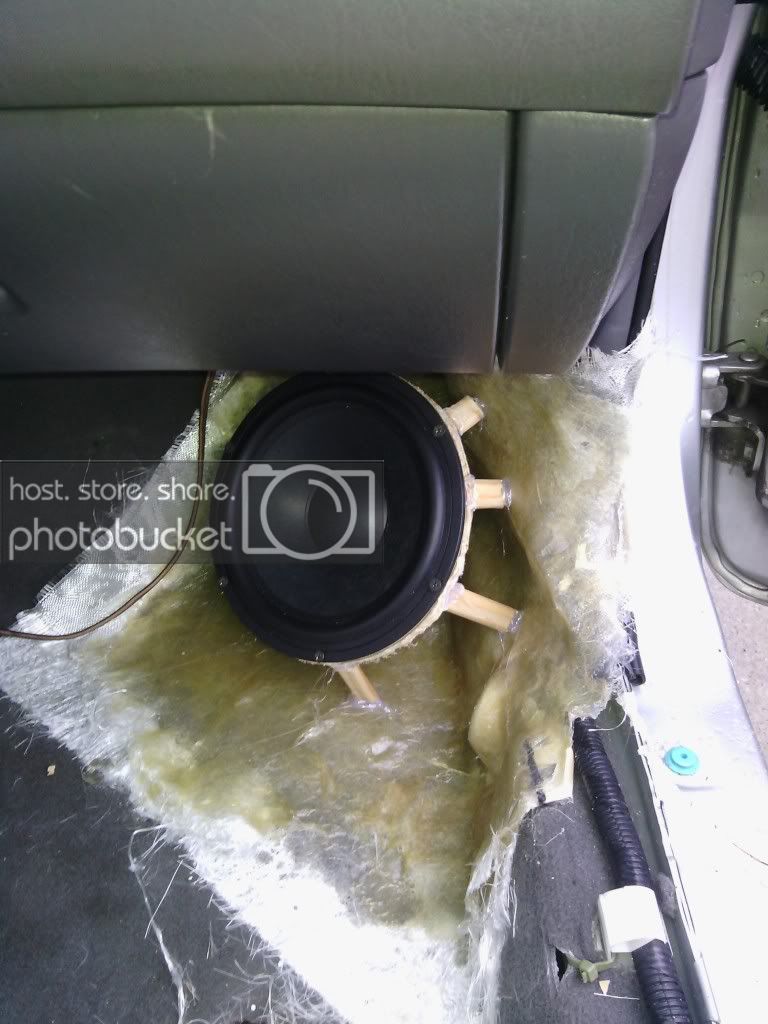

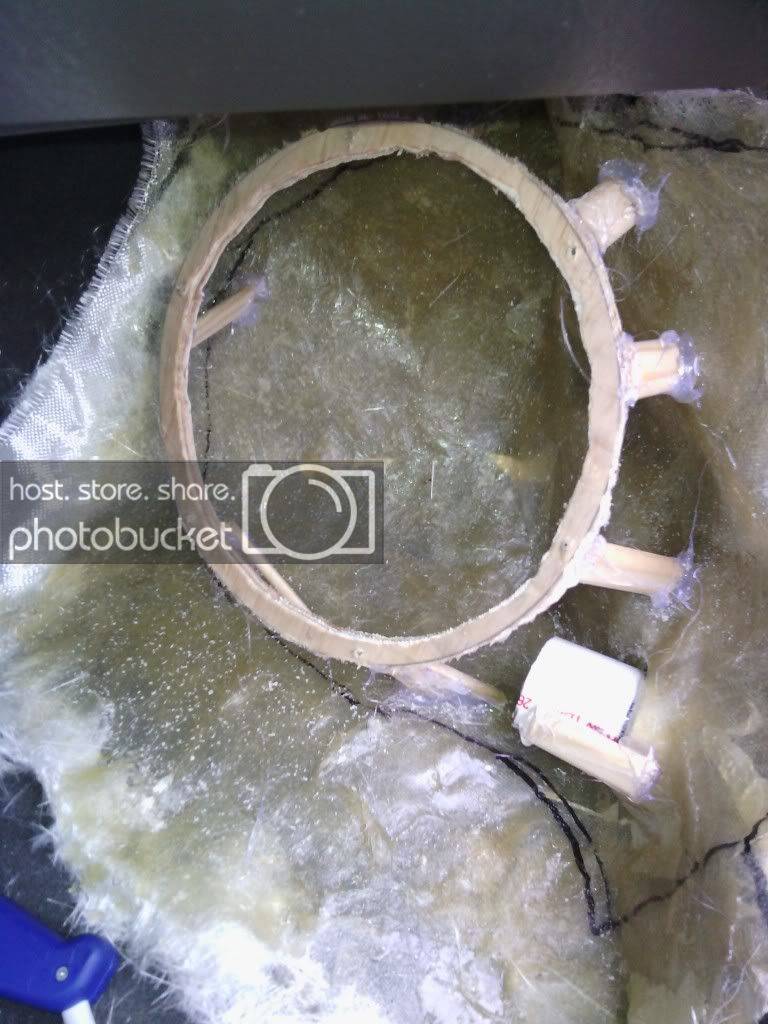

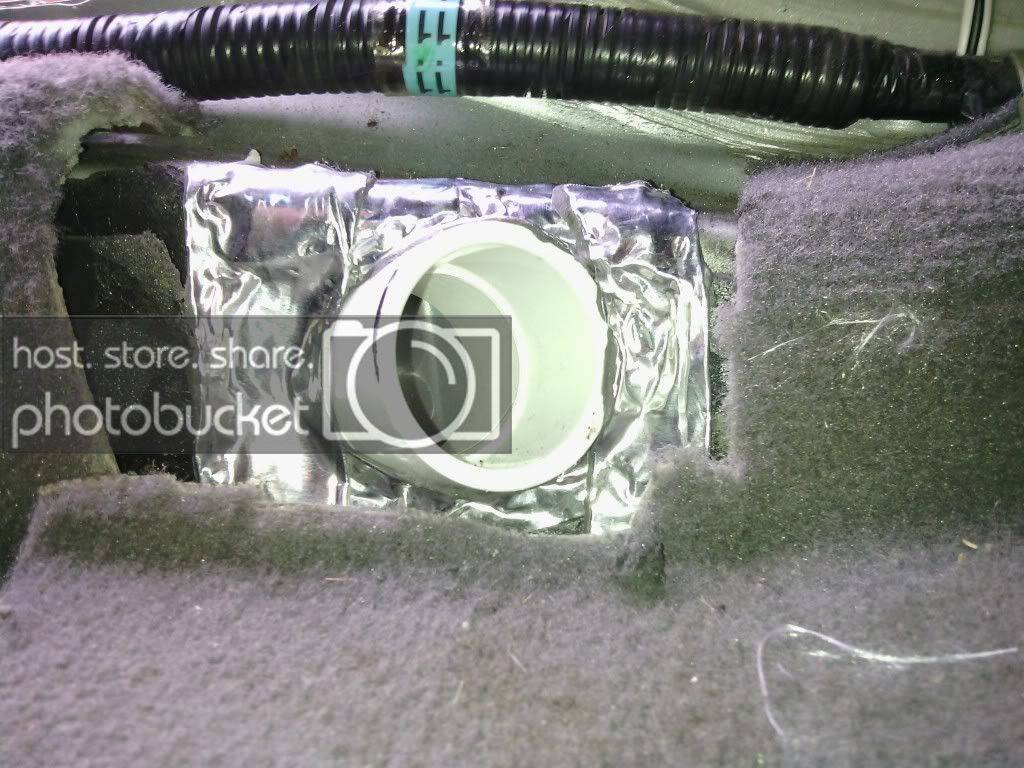

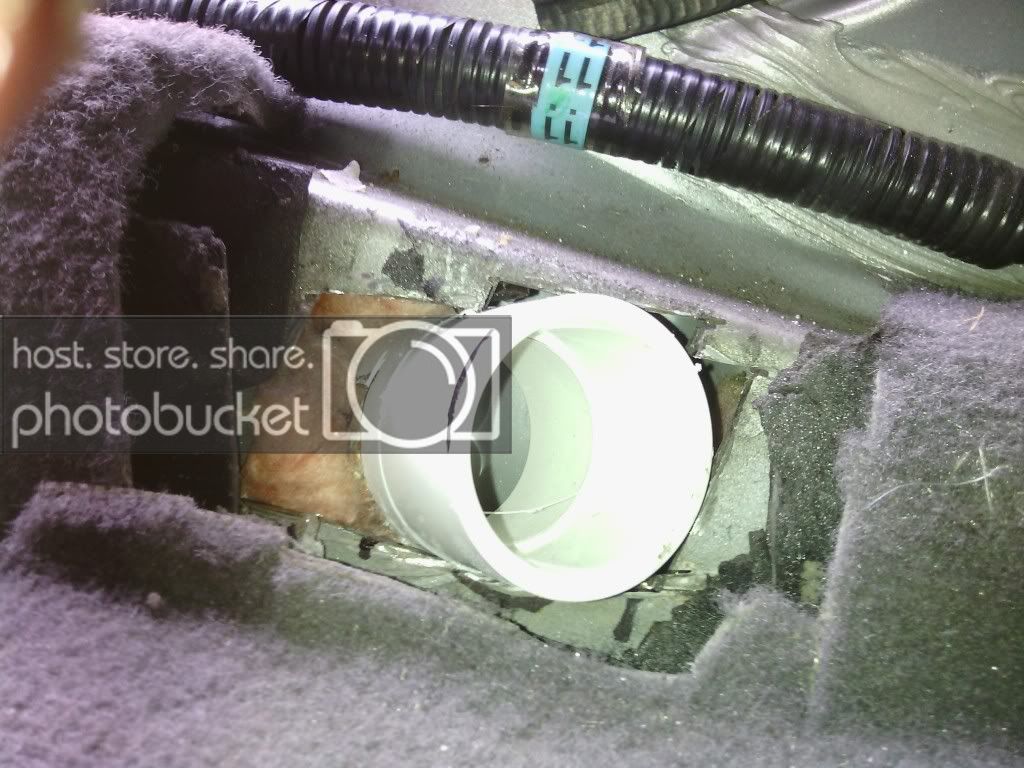

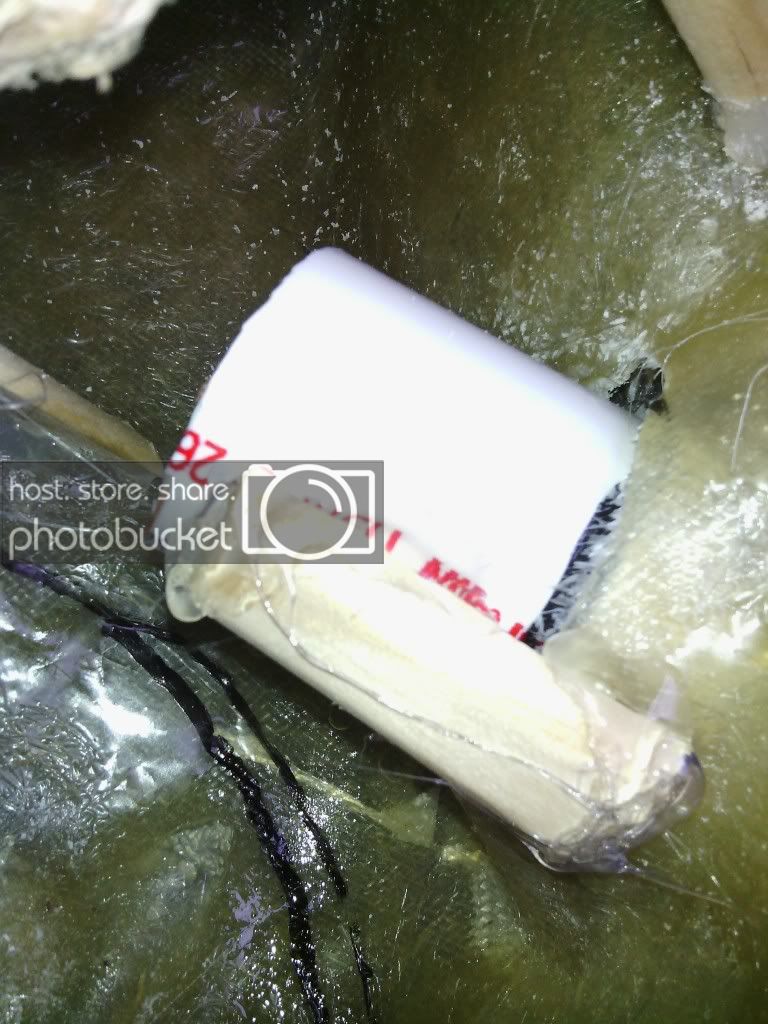

Midbass kick vent - this is my solution for a sealed vent outside the cabin.

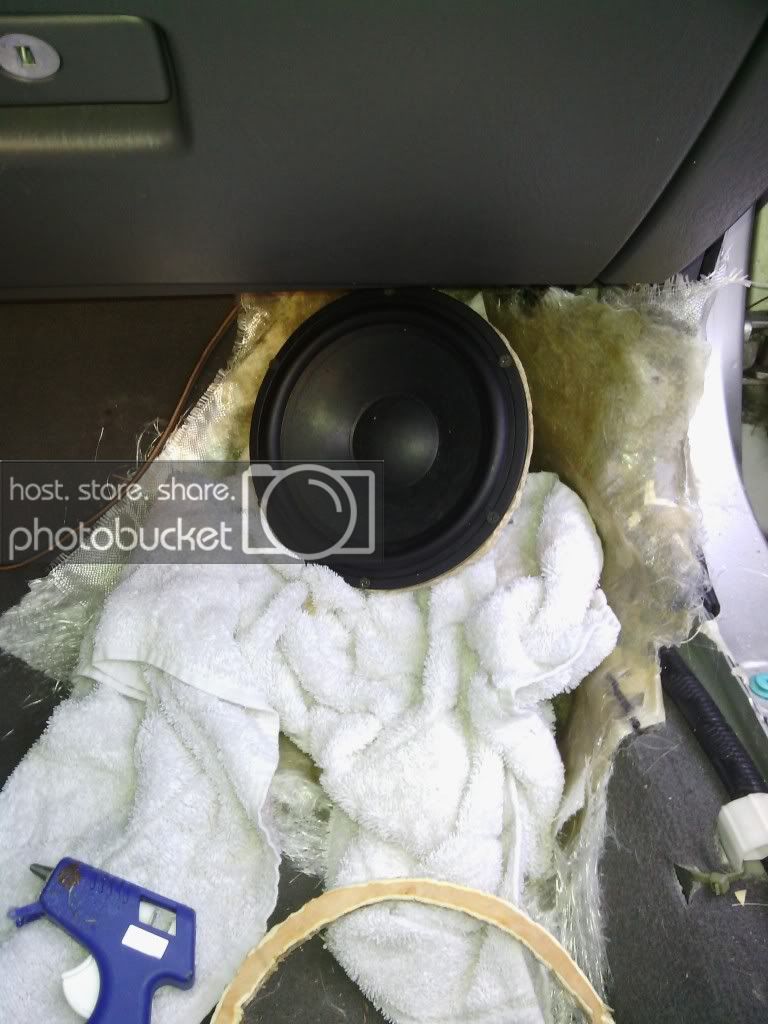

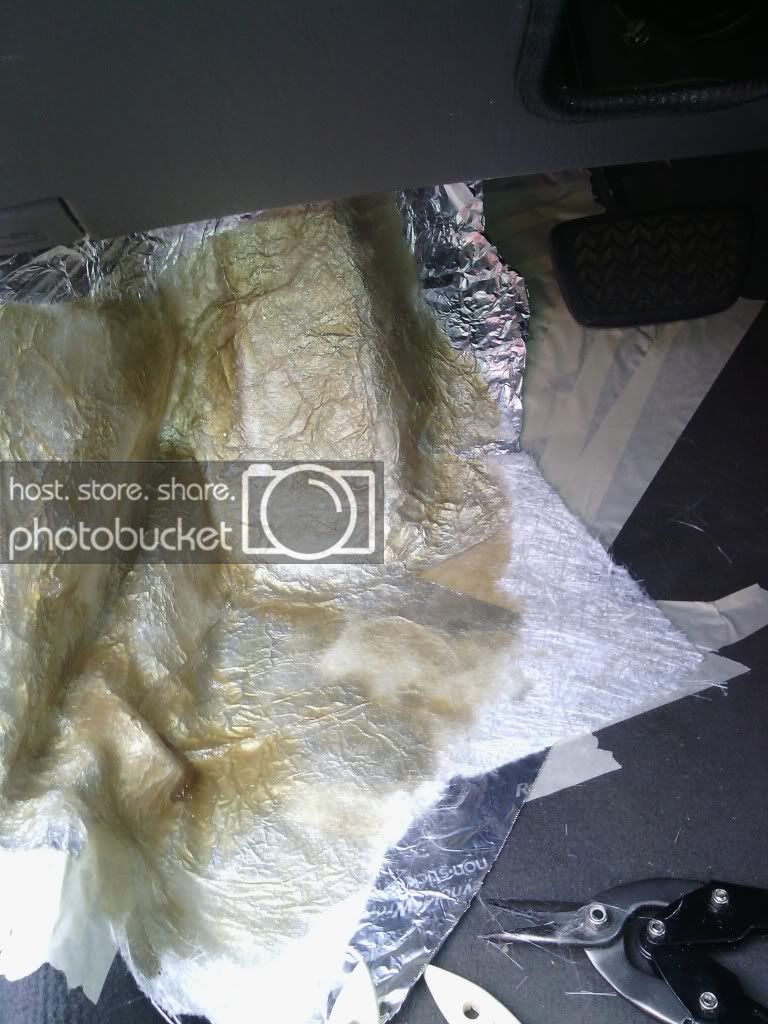

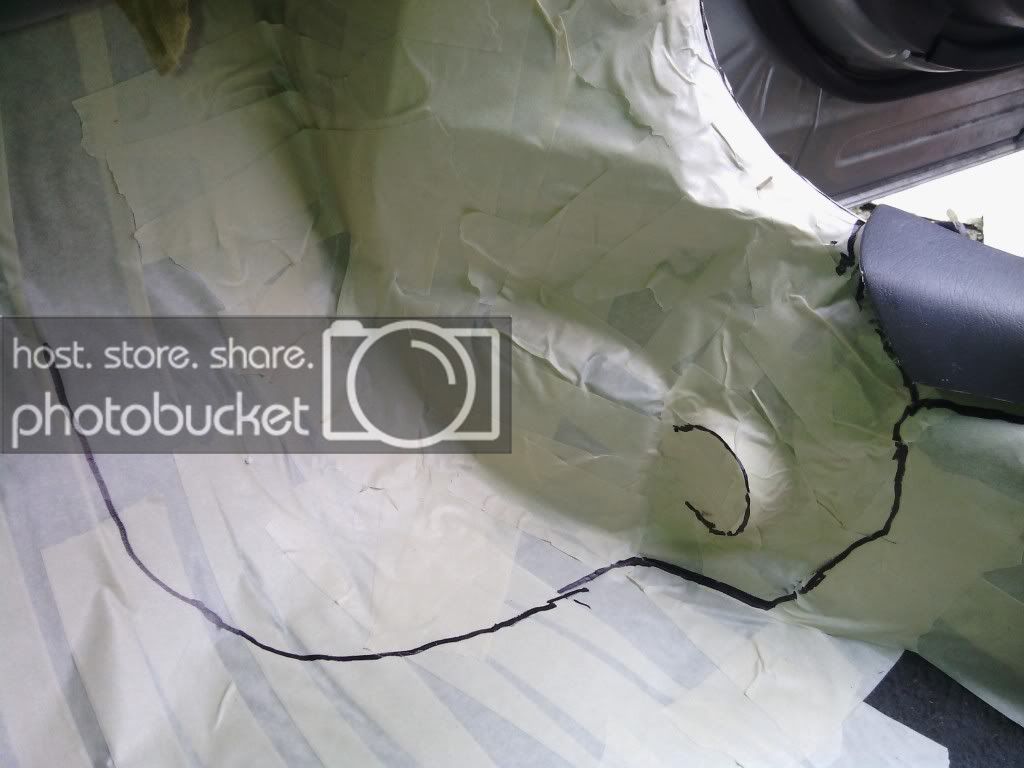

Fiberglass prep



[calebkhill 10+ year member]

Glassed

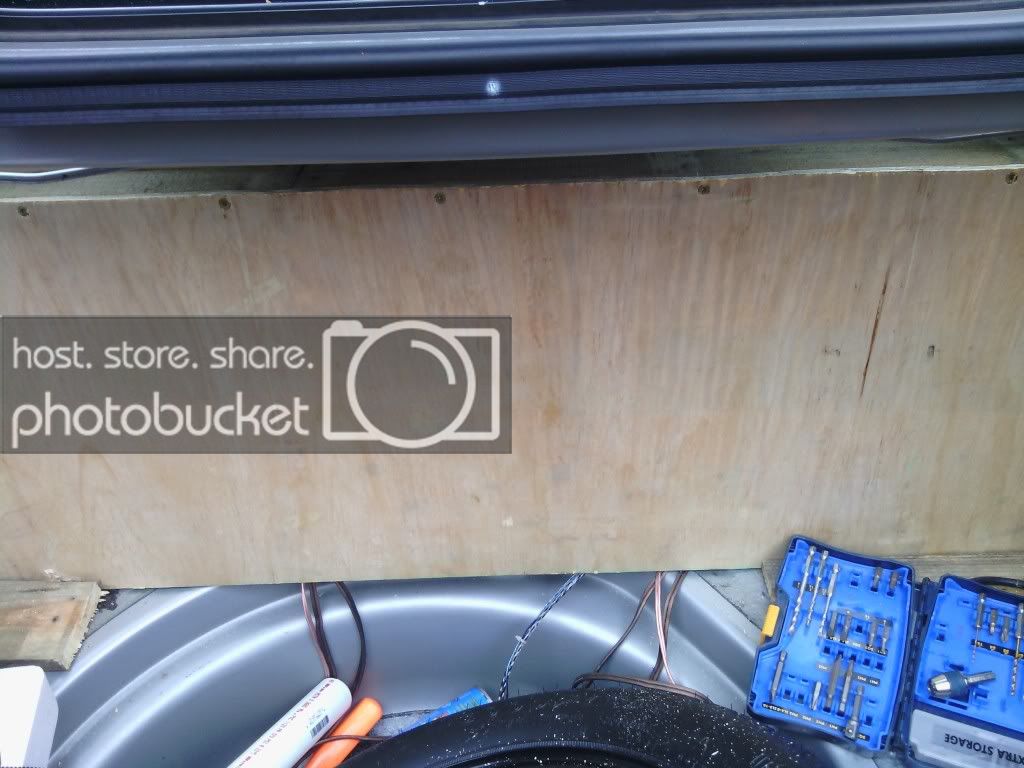

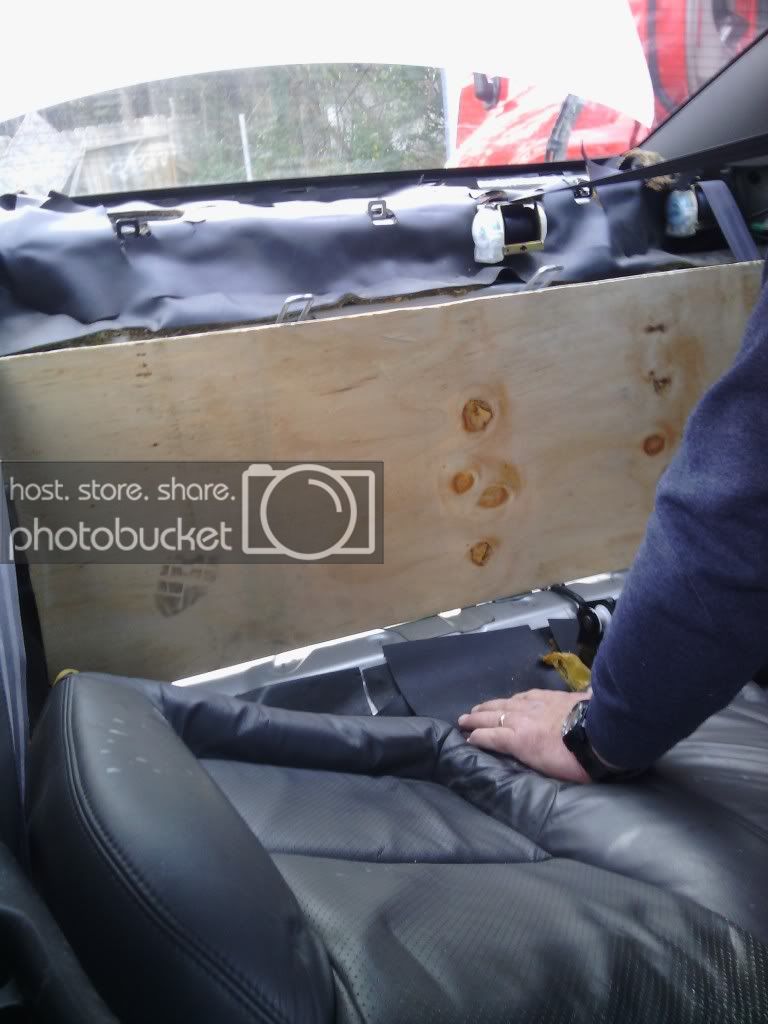

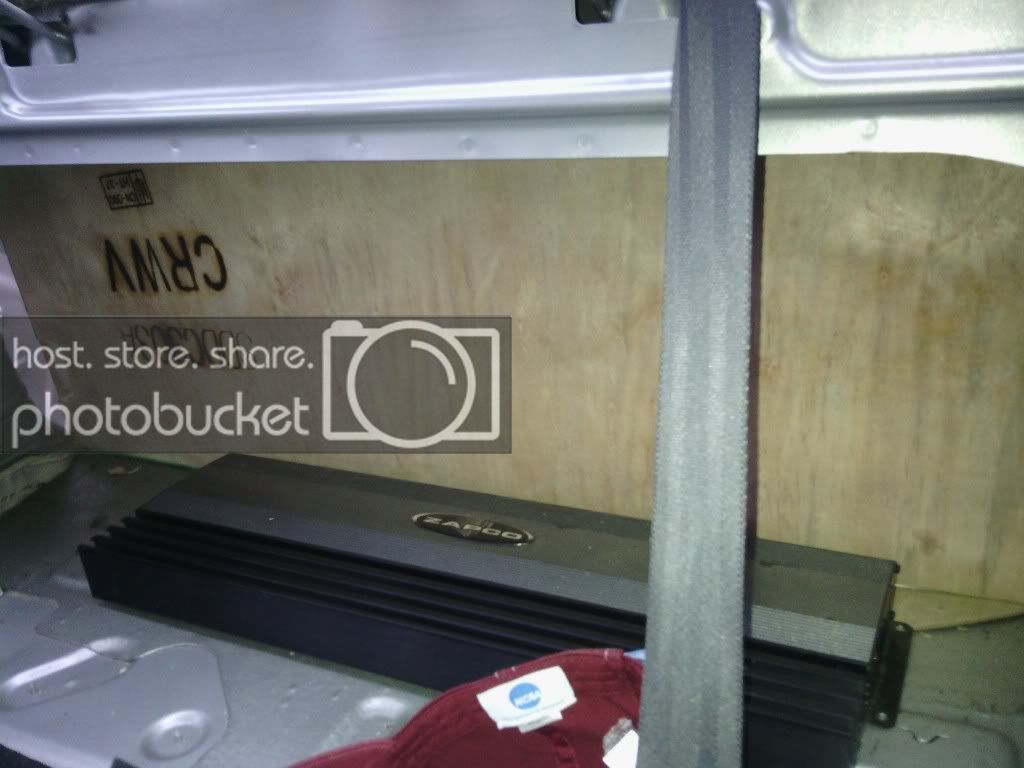

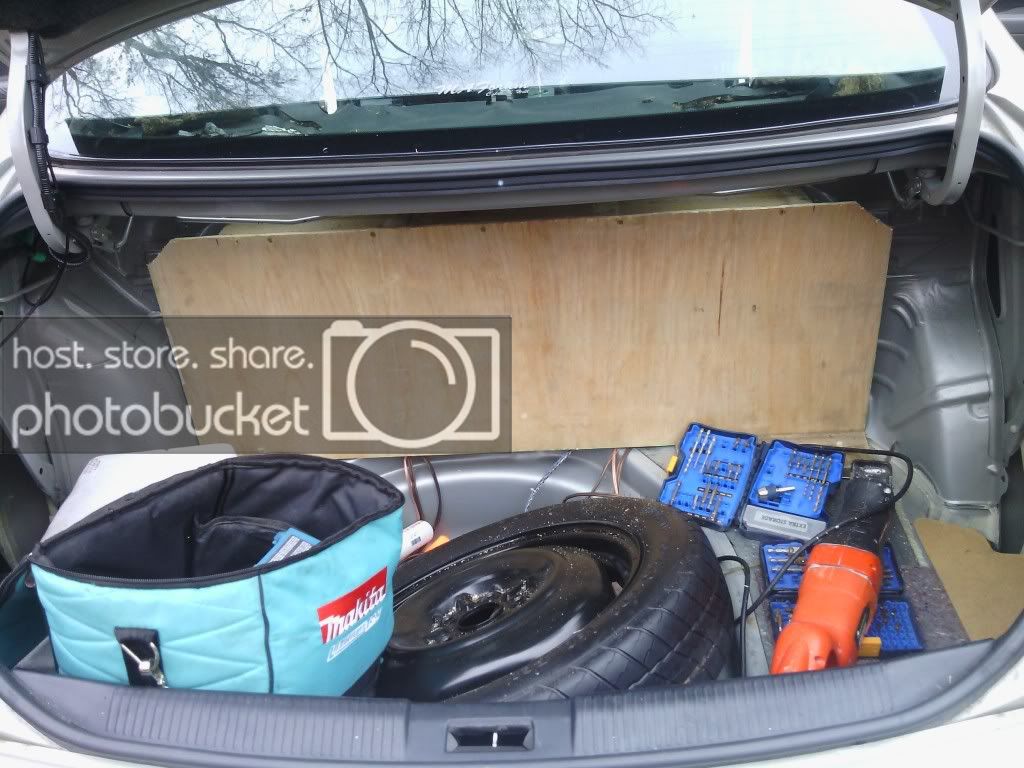

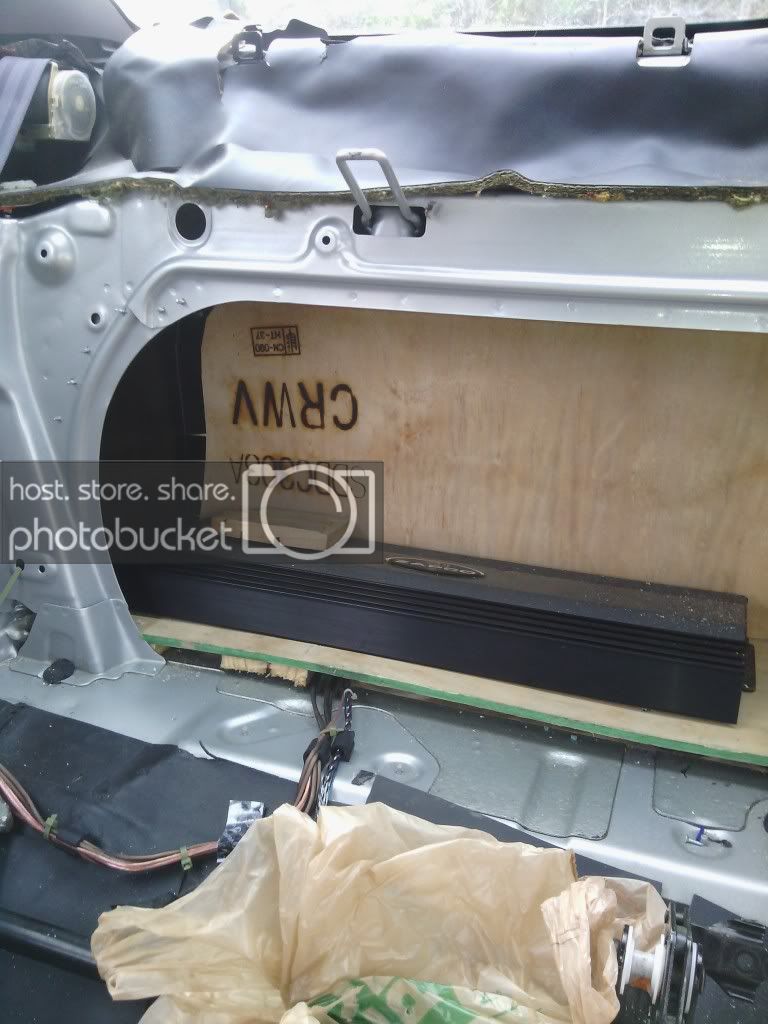

Amp rack



[av83 10+ year member]

Looking good. I would have coated the other side of the cardboard on the doors with resin or something to waterproof tho. But this is coming together nicely man.



[calebkhill 10+ year member]

Looking good. I would have coated the other side of the cardboard on the doors with resin or something to waterproof tho. But this is coming together nicely man.

Lol yea, i knew better.



[calebkhill 10+ year member]

Got a little bit done before the rain put me inside.

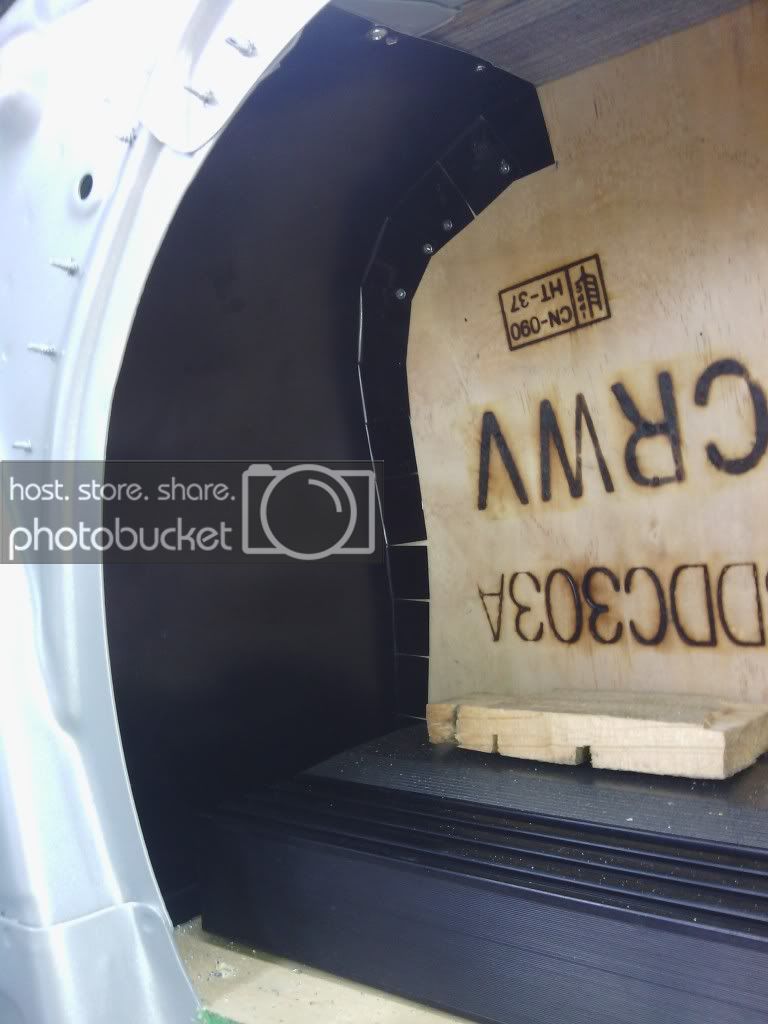

Setting the angle

Mounted

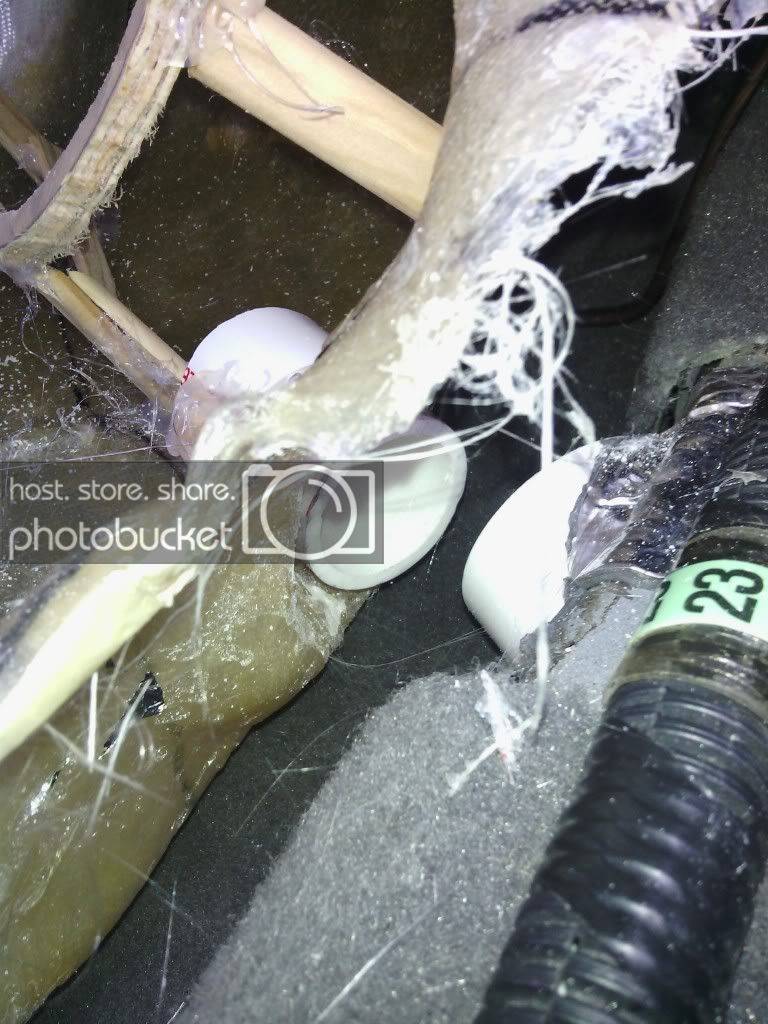

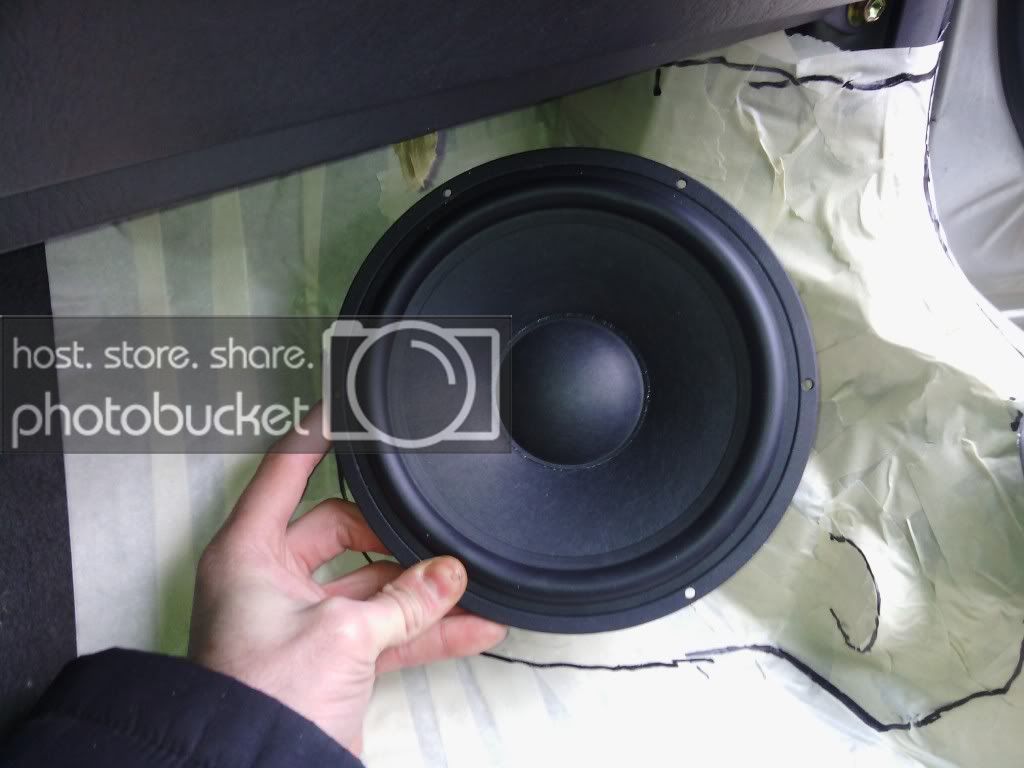

Midbass vent
