CAF Stacked Subwoofer Box Build for the Jeep!

[caraudiofab 10+ year member]

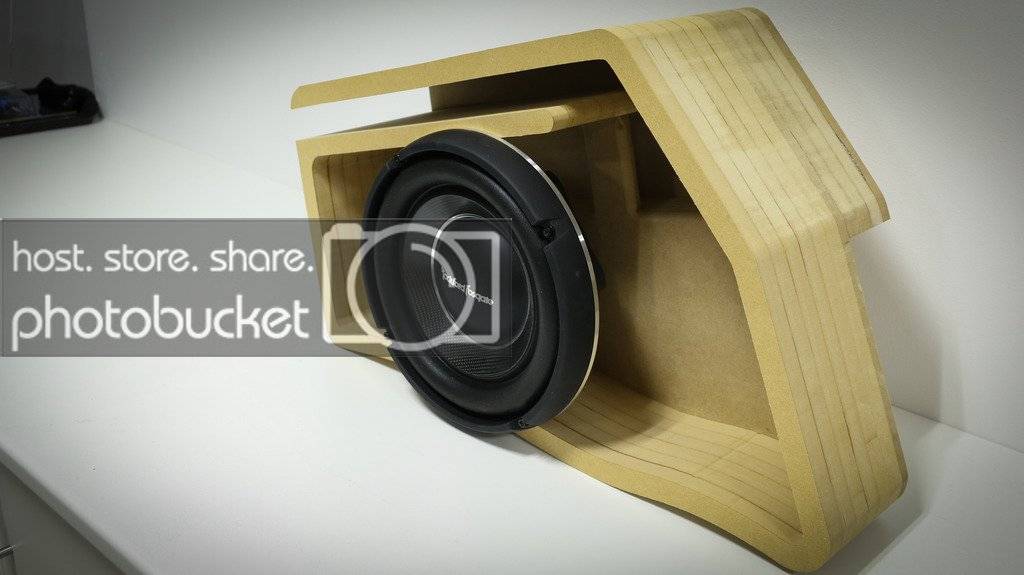

I started working on the subwoofer box for the Rockford Fosgate T1 10 Slim Subwoofer. Box will be a ported layered stack style box. This will allow me to capture the shape of the location the box will fit into while incorporating the port geometry.

To start I had to get the shape:

Click to read more...



[caraudiofab 10+ year member]

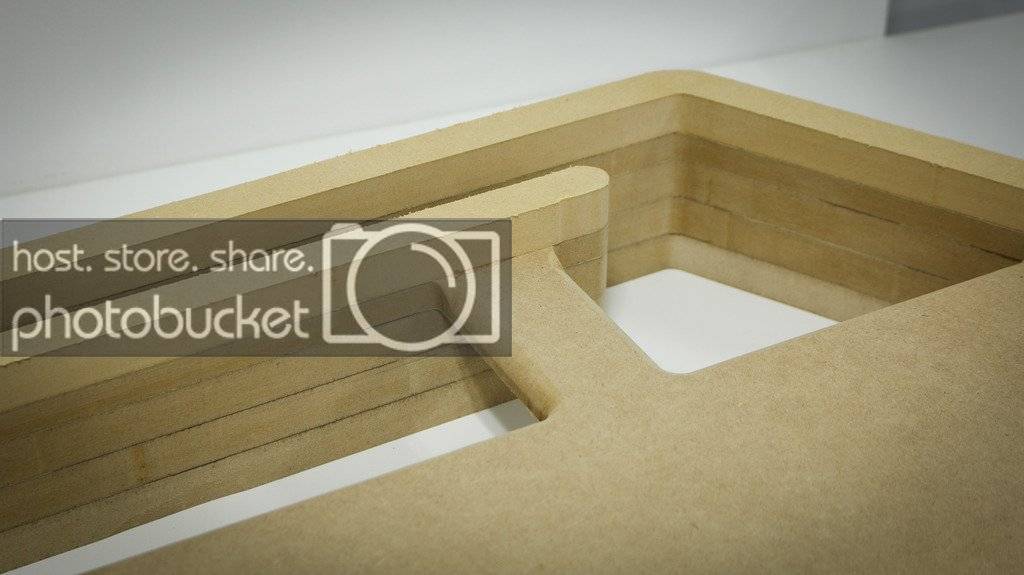

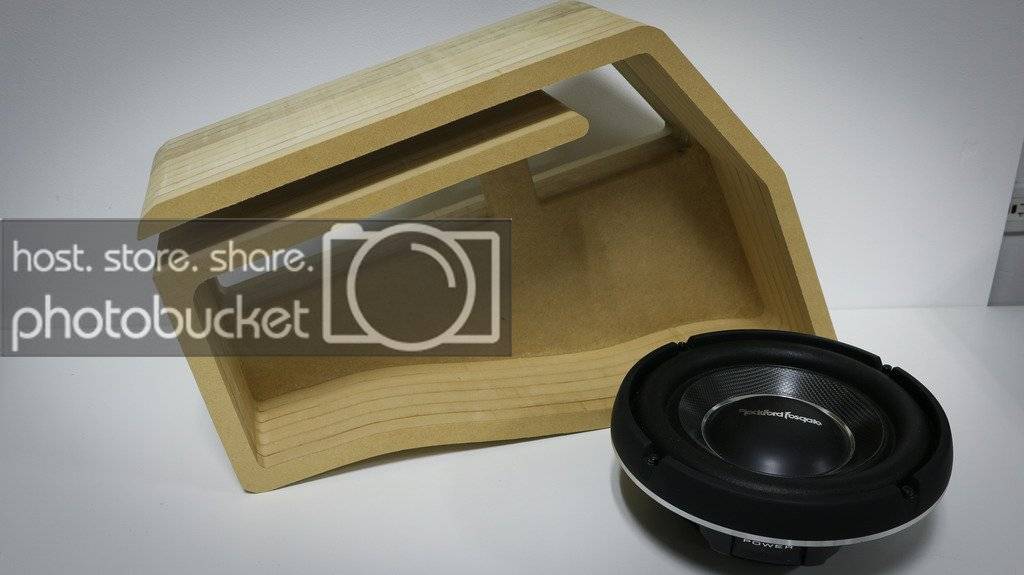

Once I had my overall shape I had to come up with the shape for the back side of the box near the window, I also had to add the port geometry:

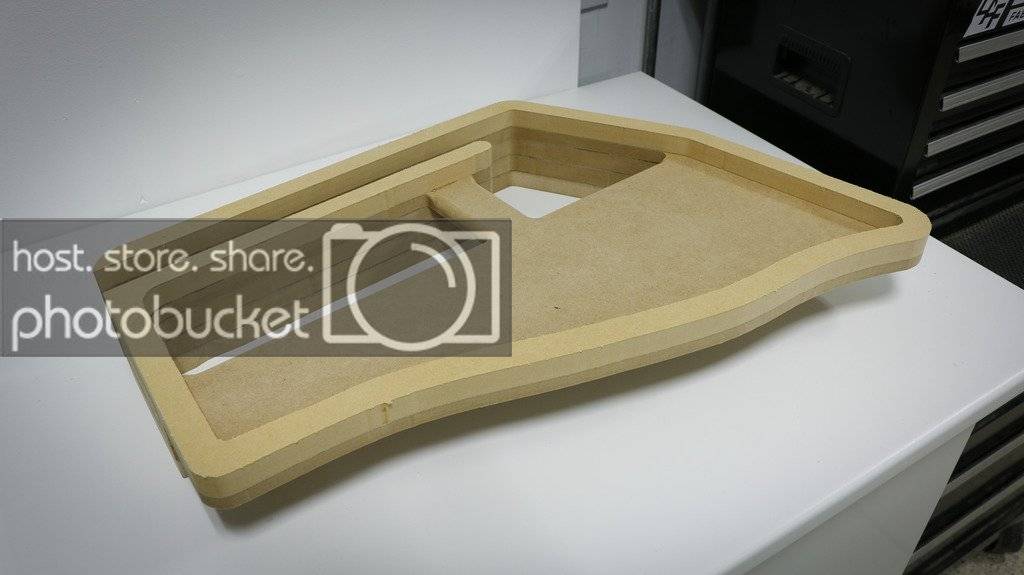

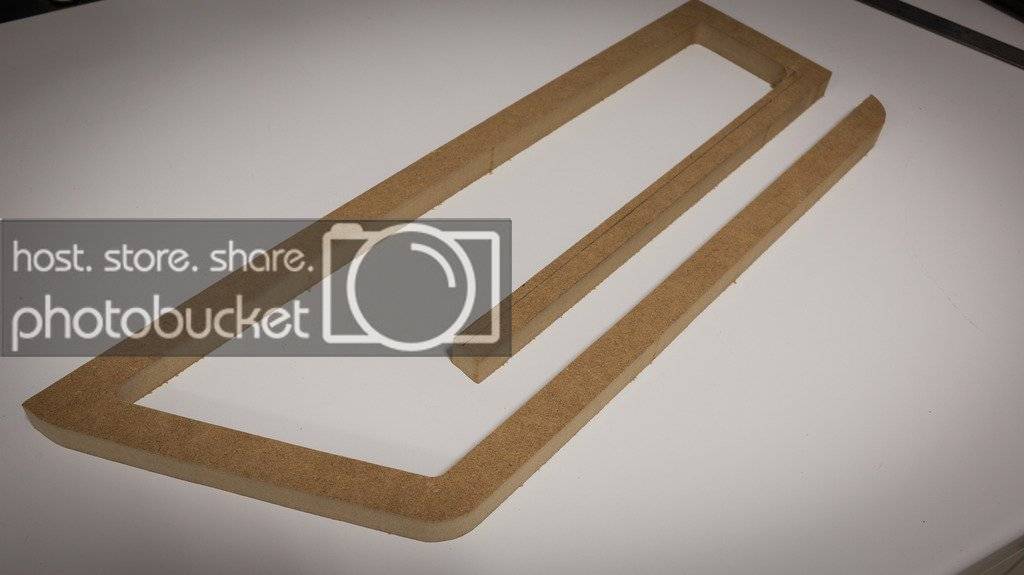

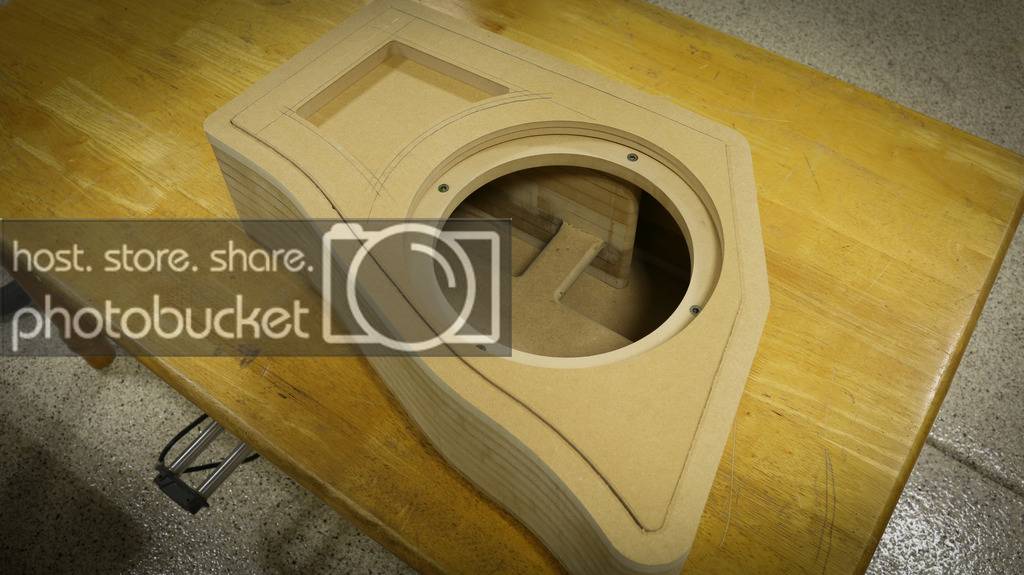

After I copied that layer a few times I made a transition layer which adds a port brace and also caps off the bottom edge of the larger overall shape.



[caraudiofab 10+ year member]

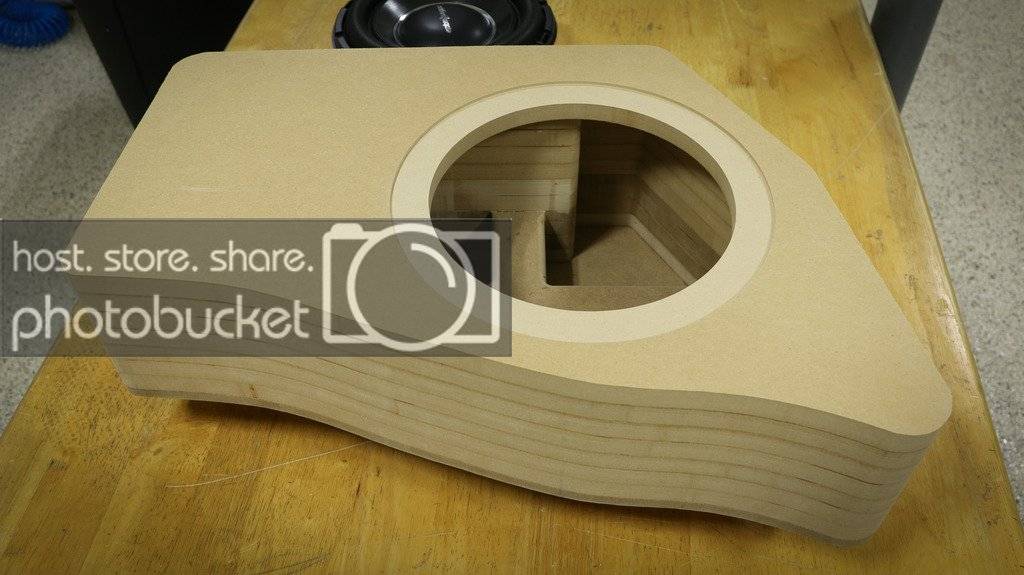

Next I capped off the back of the box.

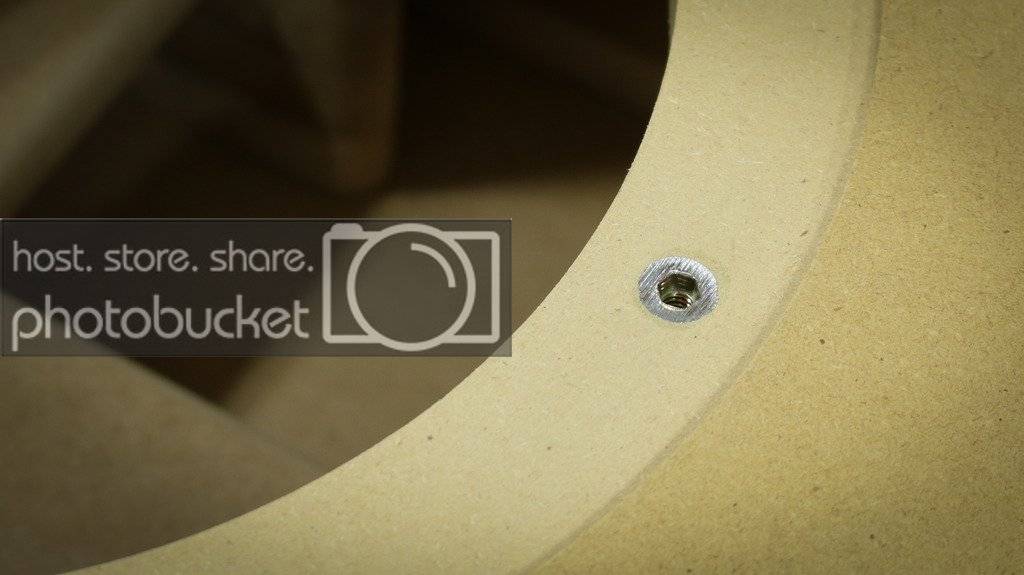

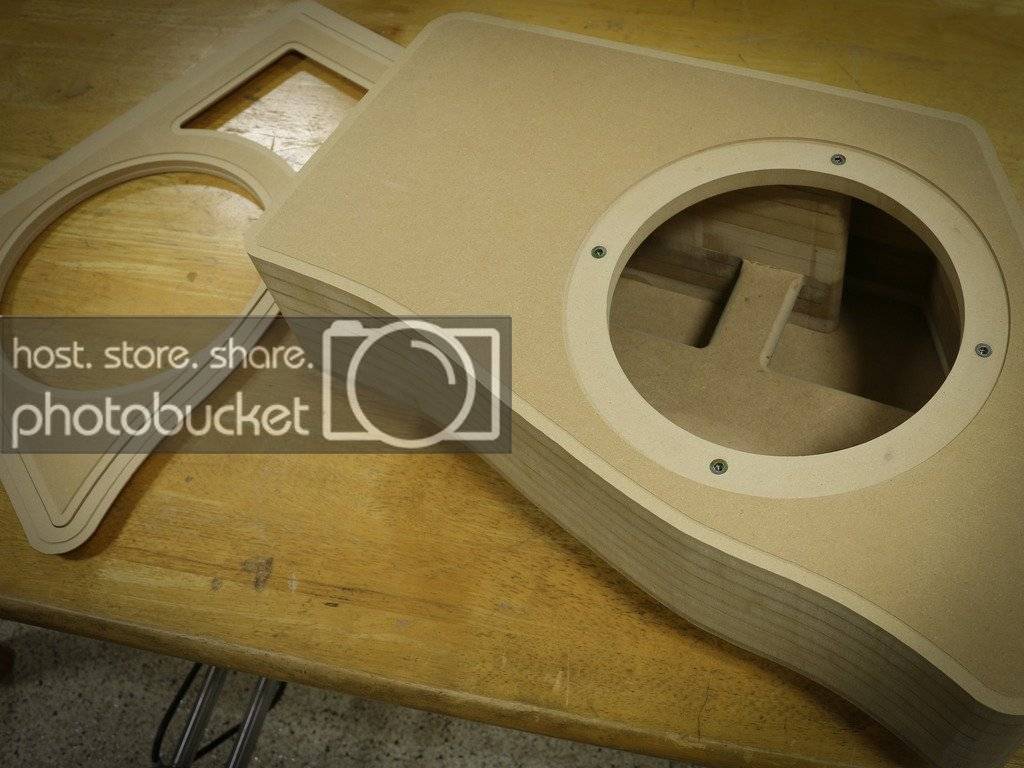

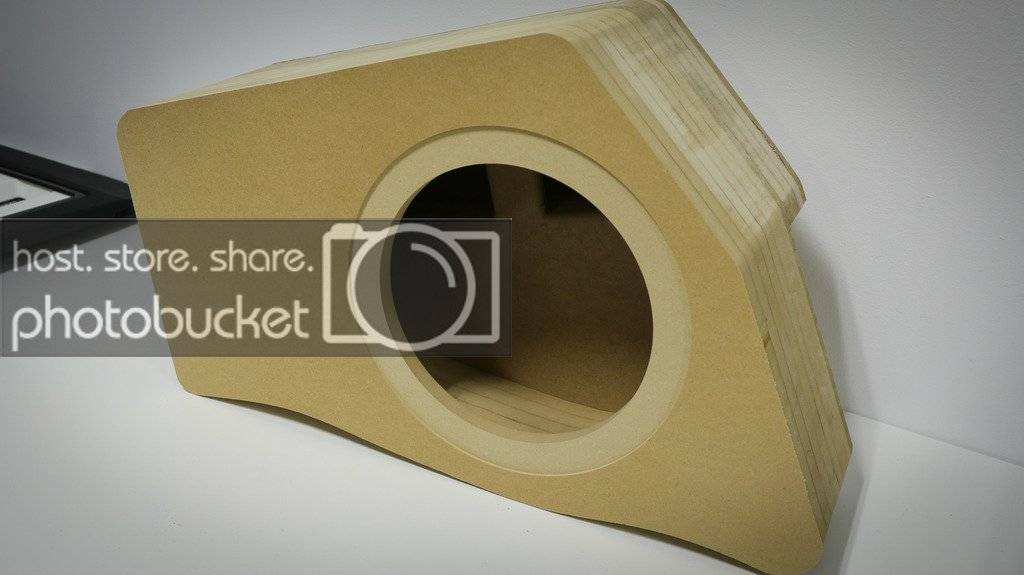

Then I added the front baffle, I used a rabbeting bit to add a small flush sink surface into the baffle.

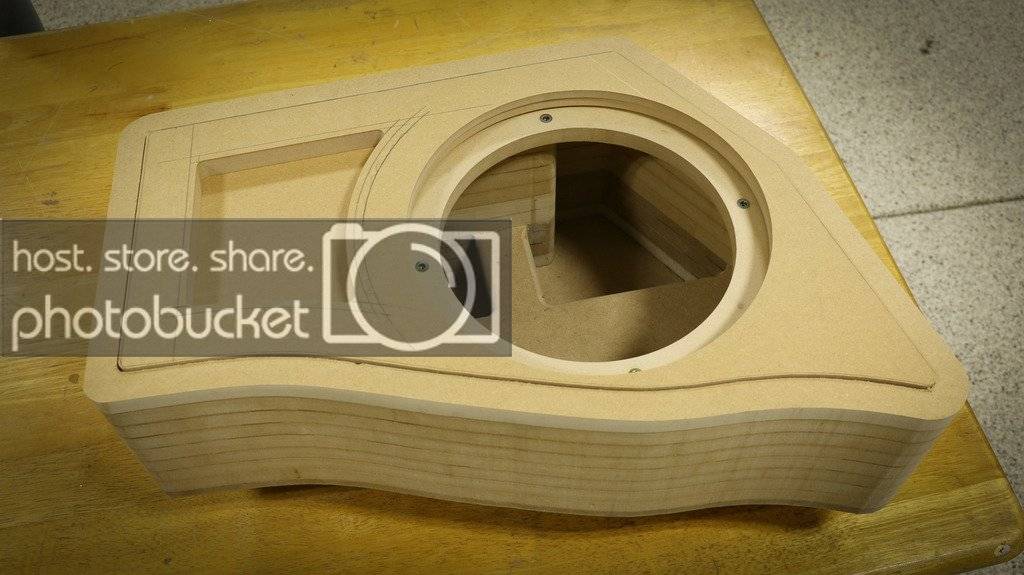

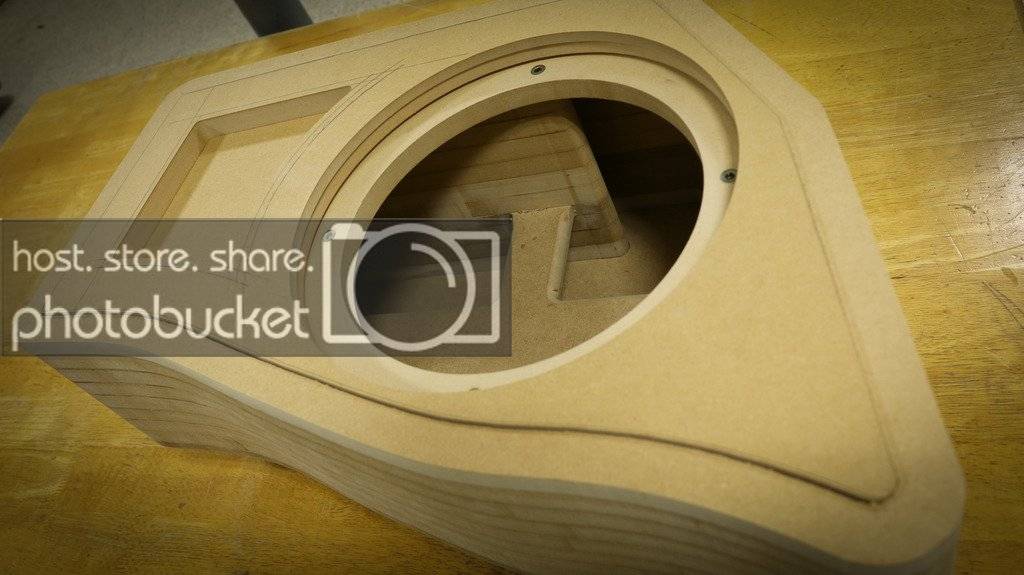

Prepped for mounting the subwoofer:



[caraudiofab 10+ year member]

See the build process in this video:



[BOOMINGRANDPA 5,000+ posts]

that looks nice man



[caraudiofab 10+ year member]

that looks nice man

Thank you, cant wait to start doing some beauty panel type work and making it look even better.



[caraudiofab 10+ year member]

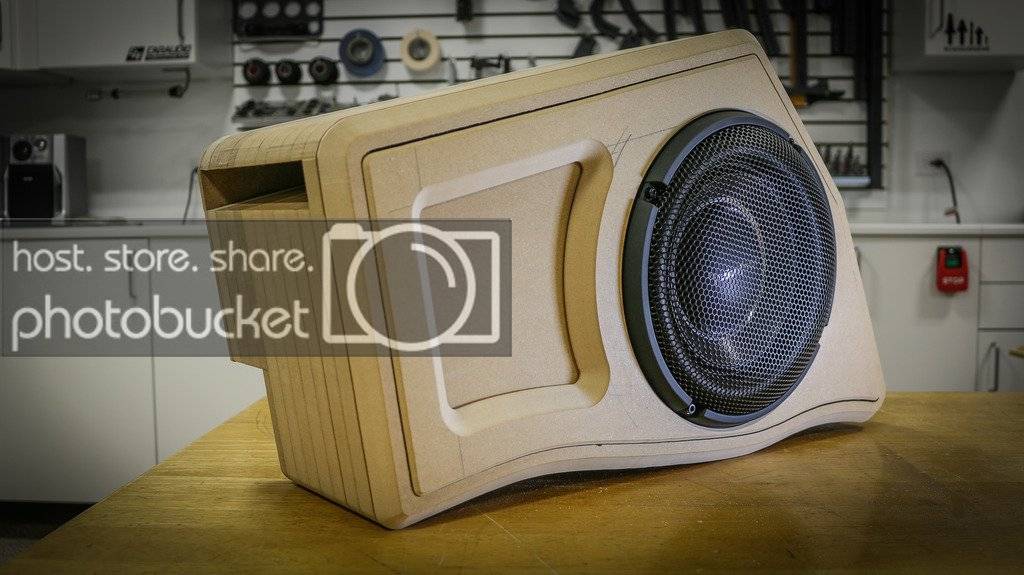

More progress:











Watch the video process here:



[Boomin_tahoe 5,000+ posts]

What's the difference between a stacked style sub enclosure vs. a reg one that would def be curved/complexed to match the interior shape?



[DarkKnightSM]

Your videos are pretty awsome man. It gives me hope and motivation to continue on in this car audio world



[adulbrich 5,000+ posts]

What's the difference between a stacked style sub enclosure vs. a reg one that would def be curved/complexed to match the interior shape?

Yeah, basically it's easier to follow the contour of the vehicle. It would be a nightmare using MDF any other way. Usually, people just make a wood baffle and then fiberglass the rest, but this looks nice.



[youdoofus]

More progress:










Watch the video process here:

oh, are you the guy behind the youtube channel Car Audio Fabricators?

oh, nvm. same build as seen in one of his videos. I was at work and the stupid filter on the interwebz there blocks many pictures, esp ones from photobucket. Makes me wonder how much MDF he throws away!!

SMD's skeleton box uses a similar practice of routering out specific shapes, glue and clamping.



[DarkKnightSM]

oh, are you the guy behind the youtube channel Car Audio Fabricators?

Pure genius, wish hed do more builds



[Boomin_tahoe 5,000+ posts]

Gonna be heavy...mdf is notortious for that. But, it's nice as hell tho.



[youdoofus]

Gonna be heavy...mdf is notortious for that. But, it's nice as hell tho.

can probably withstand a direct hit from a cruise missile too!
