Item(s) for Sale:
This set includes a 6.5" Midbass, 4" Midrange, and 1" Tweeter.
Included are 3-way passive crossovers, and original grills
Bonus: 2-way passive crossovers labeled 113/135TW
The crossover cases are cast aluminum with a plastic base.
They are in good shape with no rust.
A PDF of the owner's manual will be included. I determined these were the Q version and not the N version based on the owner's manual.
Item(s) Description/Condition:
I noticed that they were listed online; however, the cones are different colors, and my set is certainly older. I'm not sure about these specs, so that is why I measured the actual T/S parameters.
Product Summary from SonicElectronix website:
Manufacturer: Audiobahn
Model number: ABC6003Q
UPC: 651718006589
Weight: 14.00 lbs
Internal SKU: abc6003q
Internal product ID: 74
• 6.5 + 4" Carbon Component 3-way Matched Component System
• Power Handling: 320 watts R.M.S.
• 6.5" Frequency Response: 30Hz - 25kHz
• 20 oz. Strontium Magnet
• 4" Frequency Response: 45Hz - 25kHz
• 18 oz. Strontium Magnet
• Carbon Honeycomb Cone
• Butyl Rubber Surround
• Chrome Plated Cast Aluminum Basket
• 2 Layer High-temp ASV Voice Coil
• 25mm Silk Dome Tweeter
• Surface or Flush Mount
• Component Matched 18dB Per Octave Crossover Network
• 4 Ohm Impedance
• Sensitivity: 91dB
• RETAIL = $480
Price:
$150 shipped to the CONUS. Paypal addy to be given in PM.
Shipping:
Shipping via USPS Priority Mail or UPS, your choice.
I've been selling and shipping car audio online (mostly ebay: AV_Service_Plus) for over 7 years. Buyer feedback is 100% and all audio equipment. I know how to package equipment so it arrives in the same condition. All components will be separately bagged then packed to prevent damage. Speakers will be shipped with grills in place.
Miscellaneous Item Information:
I recently picked these up, cleaned them up, and tested them. I have not installed them in a vehicle. They were previously installed then stored. This set has about 4 years of use, and another 6 years of storage.

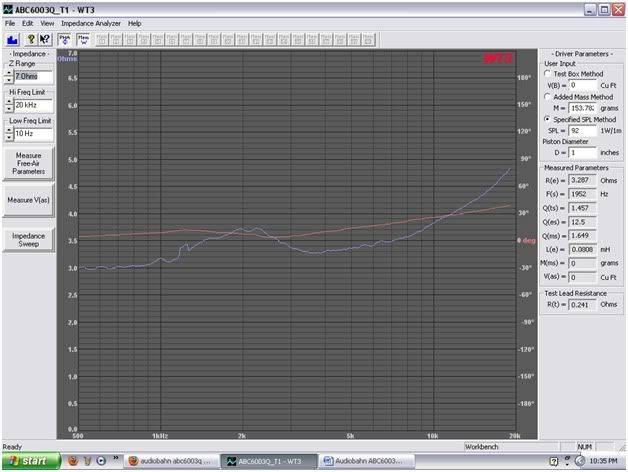

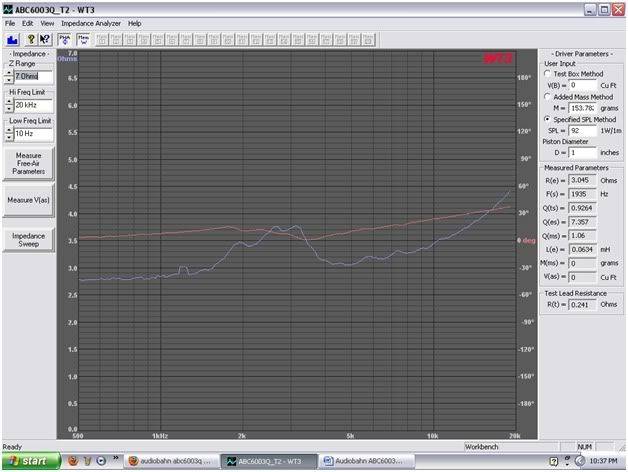

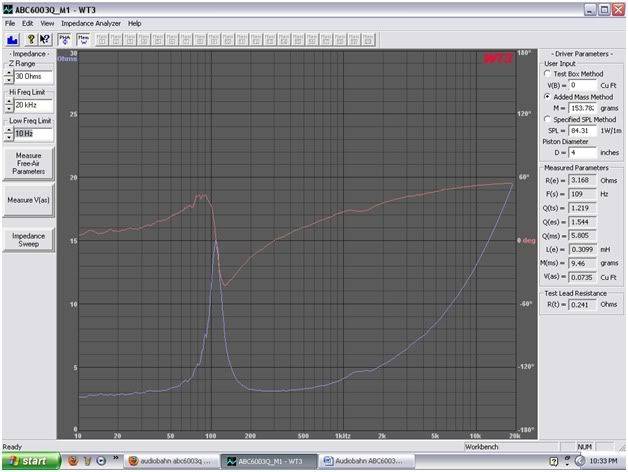

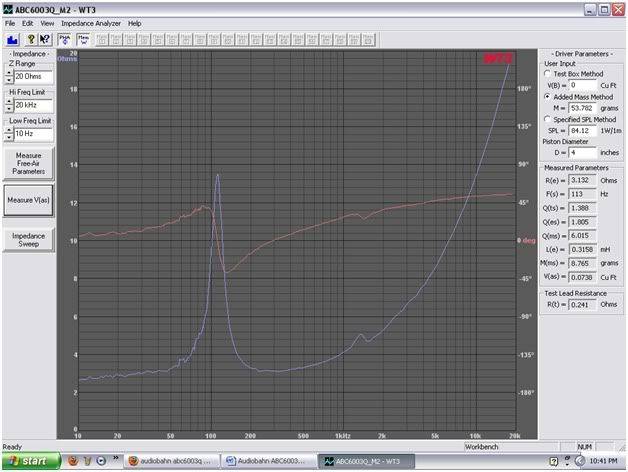

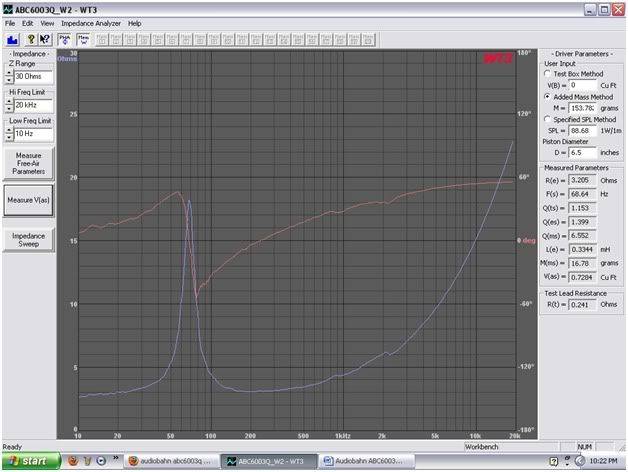

I fully tested these with my WooferTester3, as I do all speakers I sell. The impedance plots are shown below. All drivers work good. The specs say 4 ohm impedance, but i measured 2 ohm through the crossovers for the midbass and lower midrange, sloping up to 4 ohm for the upper midrange and tweeter.
The dust caps were loose, I glued them down. One mid got some extra glue which dried white. Better than a buzzing dust cap. I used just enough to secure the dust cap without getting any inside the voice coil. That same mid has a small crease in the cone that I cannot explain (visible in pic below). Both mids have two symmetrical lines in the cones that appear to be how they came when new. Just the one mid has the crease though. I can't tell you why since i've only had them in my possession for about a week, but it doesn't affect functionality. Will you hear a difference? Depends who you are and where they are installed.
These speakers are beefy, huge magnets with cast baskets, but the depth is reasonable. Wiring is via set screws for the midbass and midrange. The tweeter includes a flush mounting cup.
I am selling them because I don't need them.
