audioman14

Senior VIP Member
audio control 4.1

$130 shipped

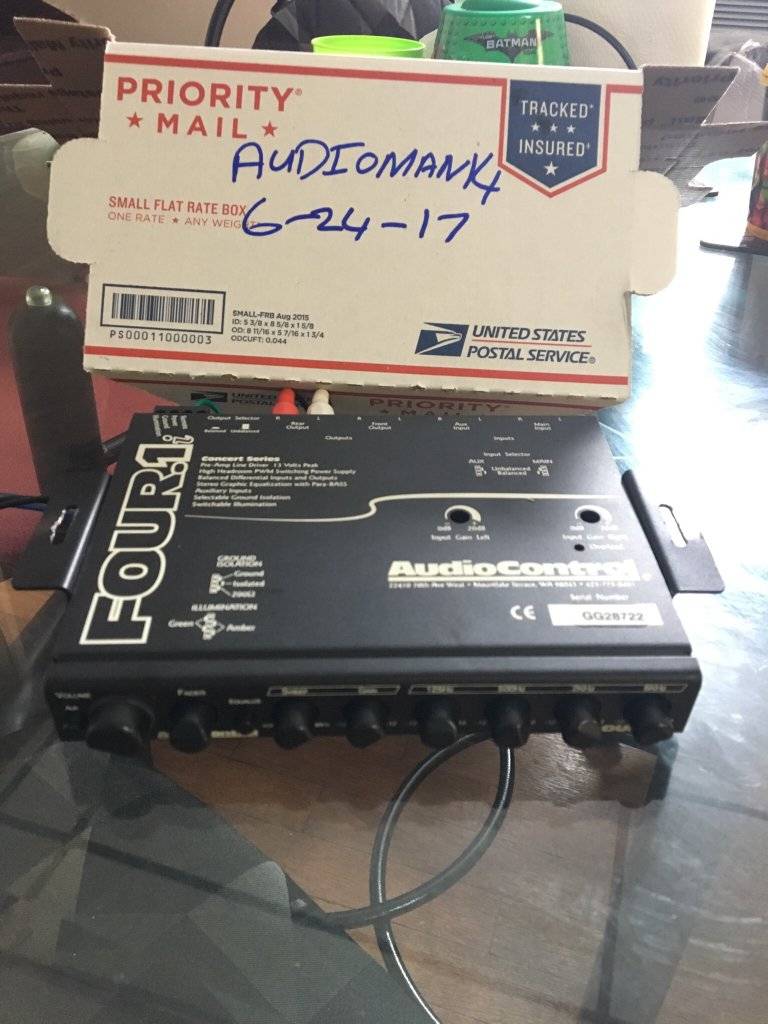

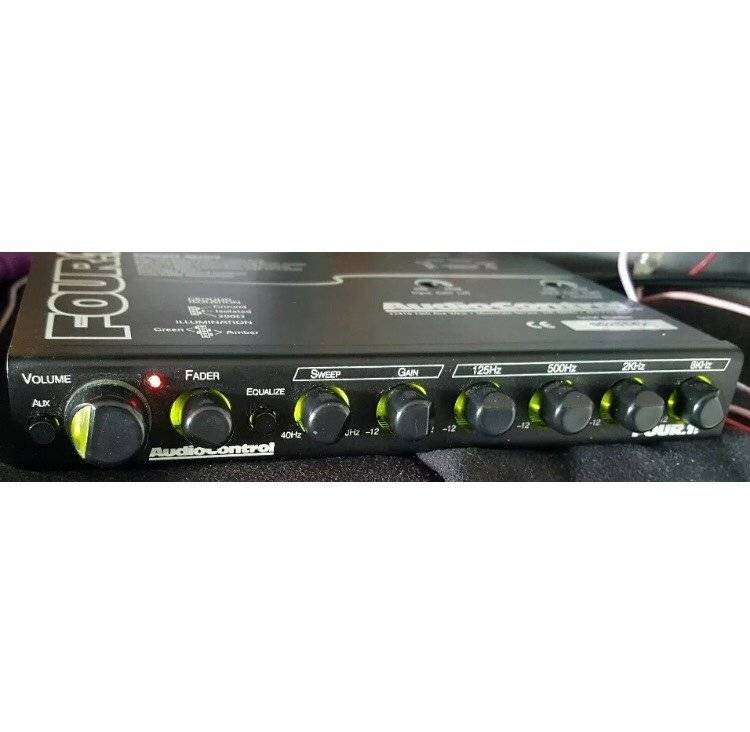

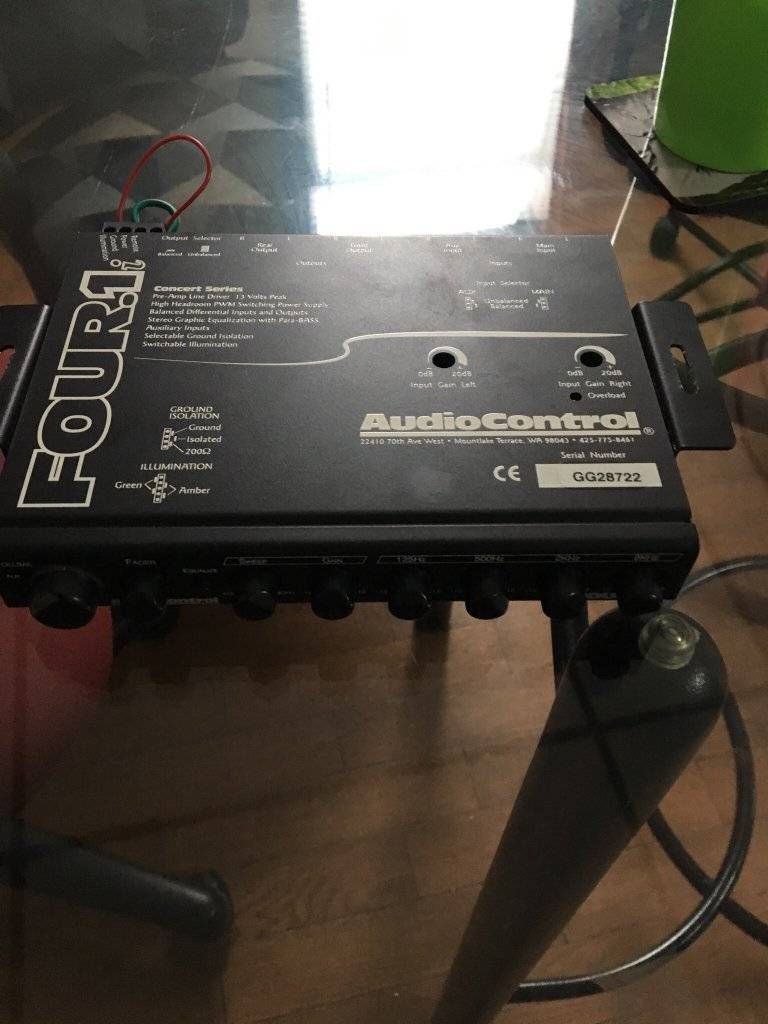

Picture shows it powered on test bench and knobs back-lit, this can change between green and red. Comes with mounting hardware and power plug.

In-Dash Car Audio Equalizer with Auxiliary Input

Stereo Graphic Equalization

Para-BASS Low Frequency Controls

Pre-amp Gain: 20 dB

Line Driver: 13V Peak Output

Balanced Differential Inputs and Outputs

High-Headroom PWM Switching Power Supply

Main and Auxiliary Switchable Inputs

Switchable Backlighting Color(Amber/Green)

Master Volume and Fader Control

Selectable Ground Isolation

Optimum Voltage LED


Sent from my iPhone using Tapatalk
