Alfa Romeo 147 SQ build - Pioneer/BRAX/Helix/JBL/HAT


Lojze Carman

CarAudio.com Enthusiast
Mar 19, 2019
39
2
This is my old SQ install in Alfa Romeo 147 (small European hatchback)

Equipment list

Pioneer P9 combo
Brax X2000, X2400, Crown/JBL BPX 2200.1
2 x JBL C 660 GTI
Hybrid Audio L4 Se
Infinity EMIT
JBL W15 GTI x2 (sealed)//2 x KEF B200 ported version

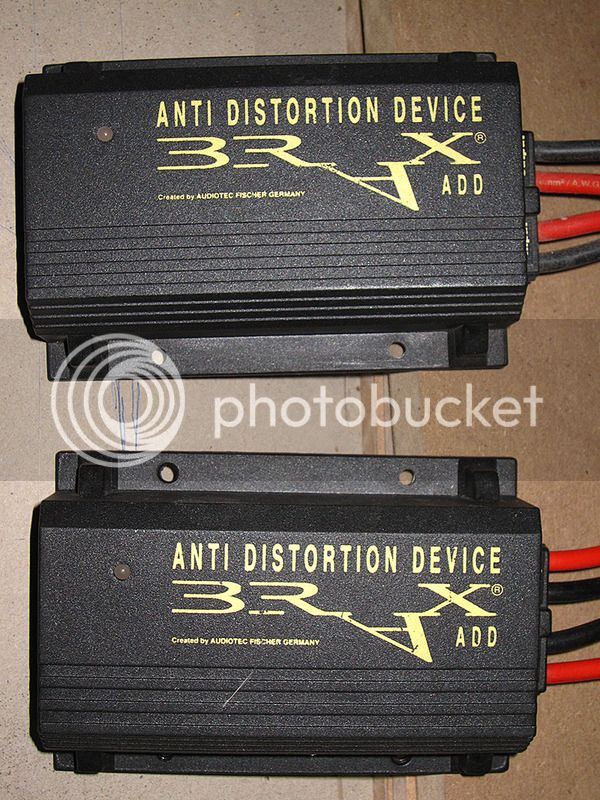

Brax aniti distortion device x2, Brax IPC 1 and 2 farad
Silent coat damping materials, self adhesive neopren 1cm thich, closed cell foam 2cm thick
Cables from Esoteric Audio, DLS, Dietz, Oyaide, Kimber, Qed Silver Anniversary XT - bi-wiring

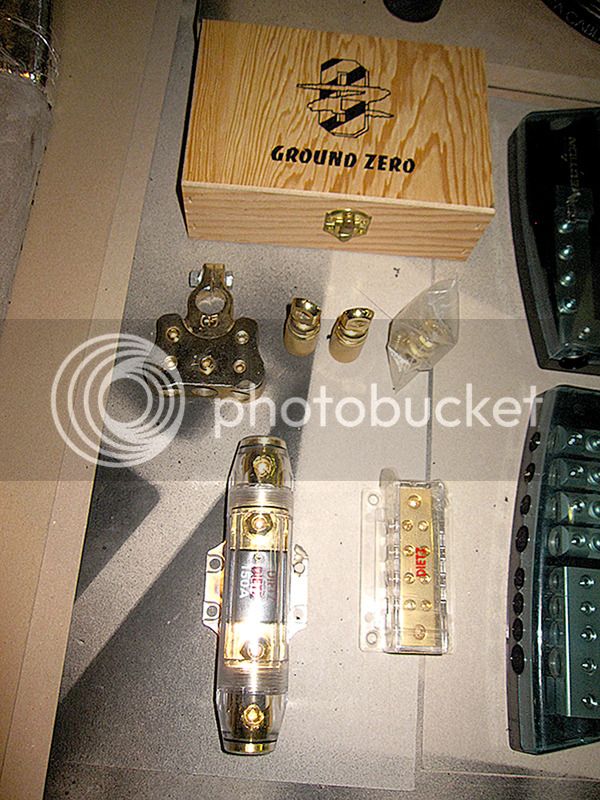

Distribution blocks and shit from Audison/Connection

Goal is to achive the highest possible SQ with given equipment...


OP
Lojze Carman

Lojze Carman

CarAudio.com Enthusiast
Mar 19, 2019
39
2

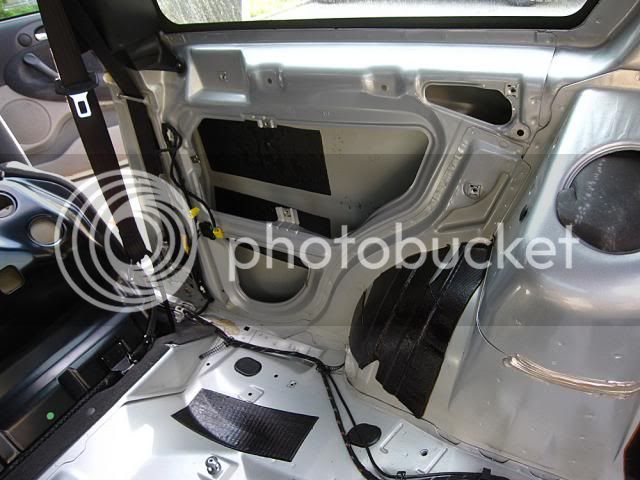

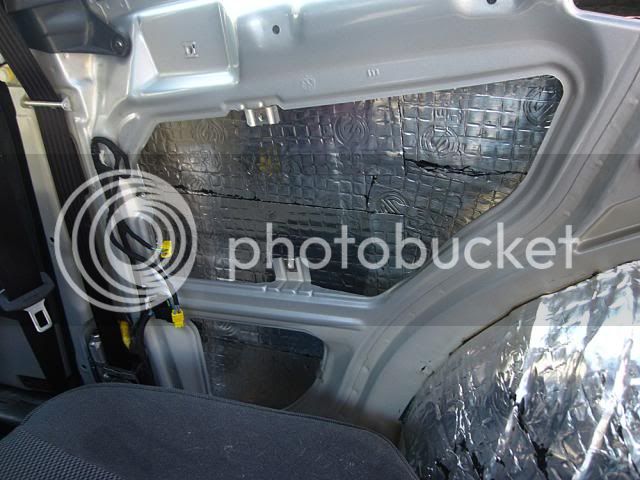

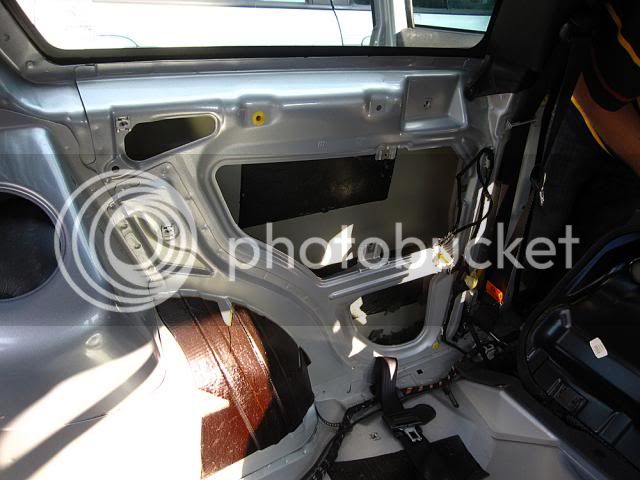

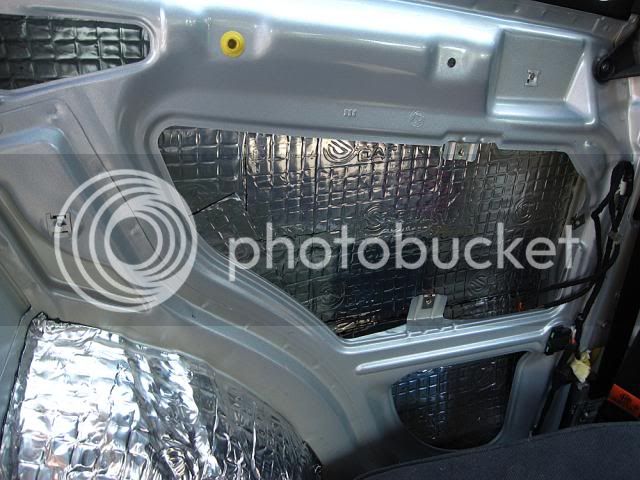

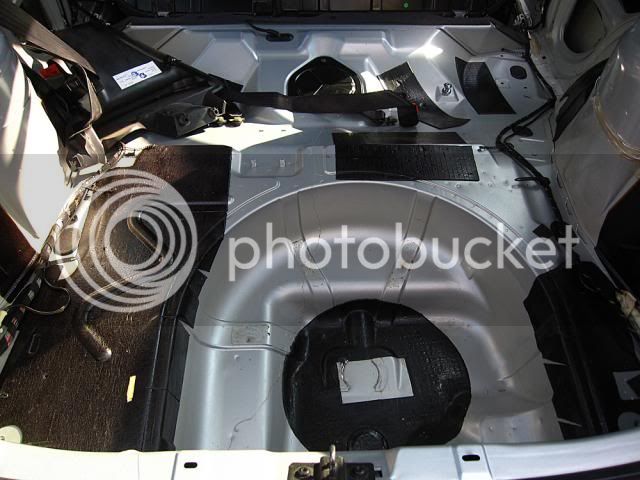

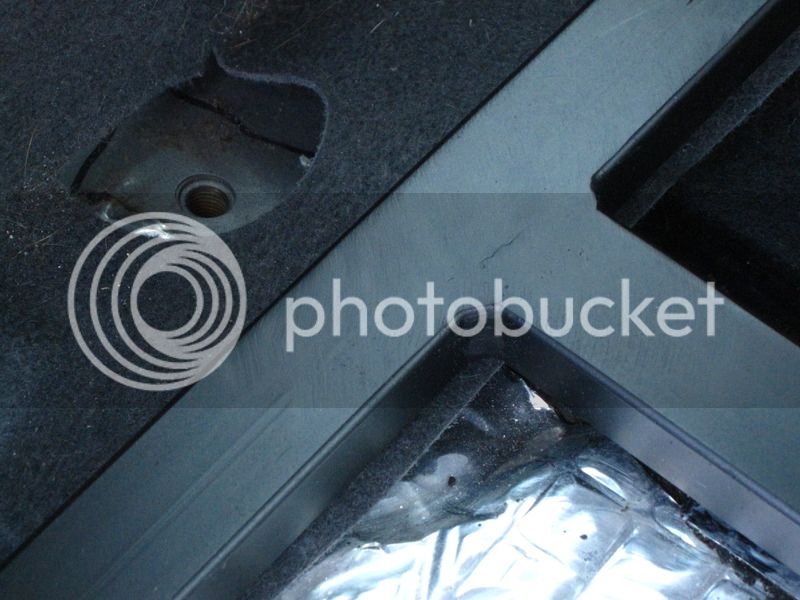

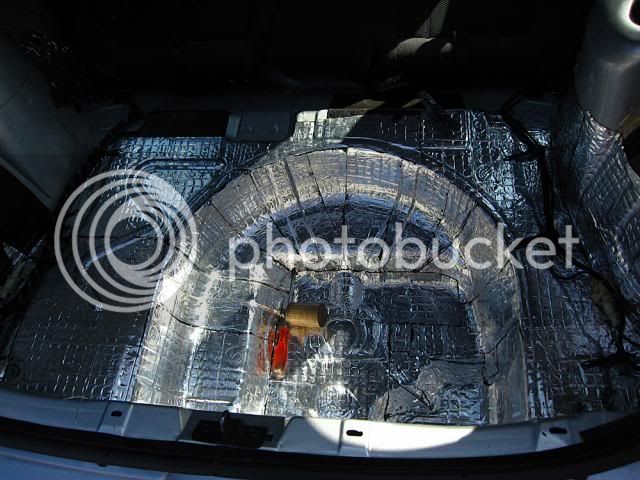

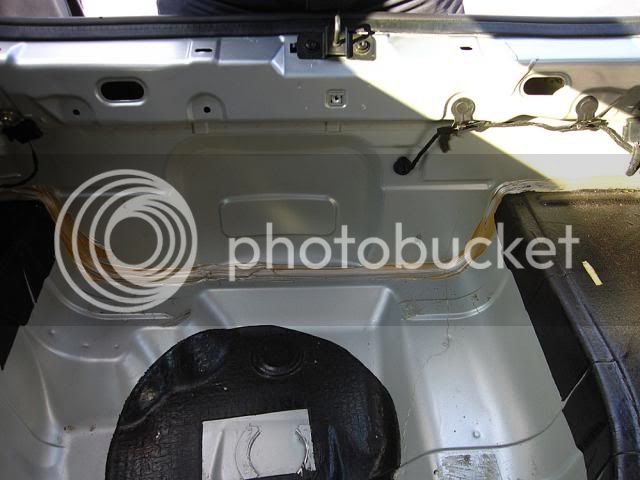

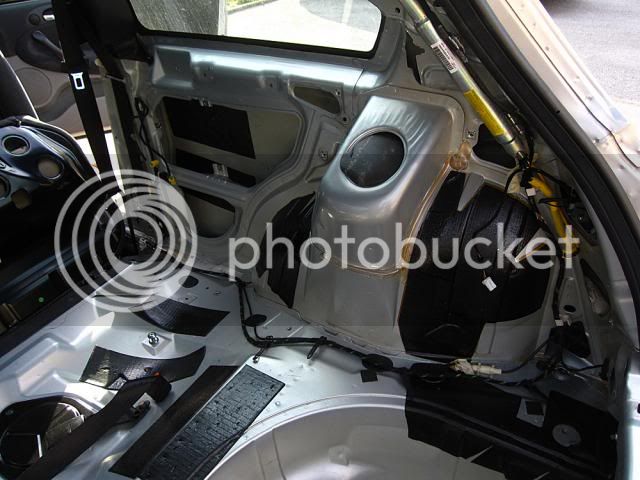

vehicle was deadened with SilentCoat damping material - trunk, both side panels, hatch doors, doors, roof, floor.....
everywhere 2 layers, with a layer of 1 cm thick sound barrier

















Second part of damping will be applied - layed down when I get all needed speaker cables


OP
Lojze Carman

Lojze Carman

CarAudio.com Enthusiast
Mar 19, 2019
39
2

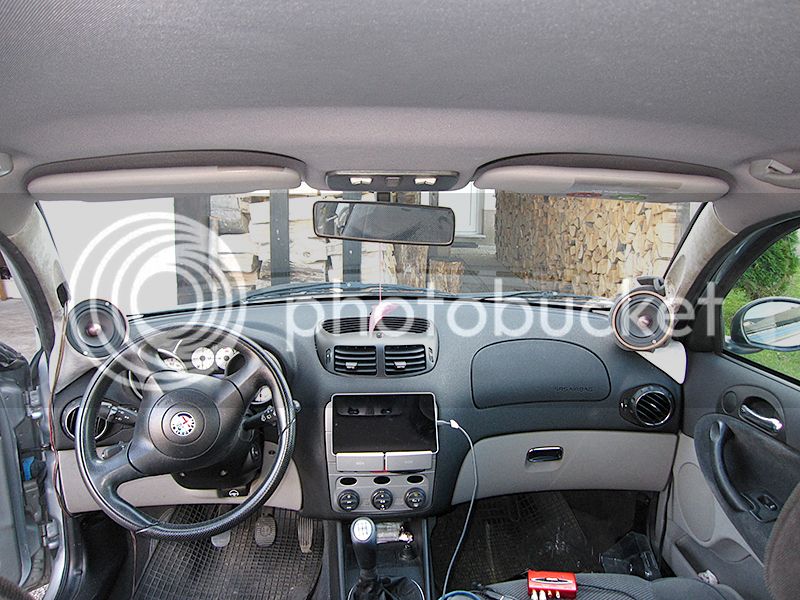

First segment of install is to prepare all needed parts to start with A-pillar fabrication for mid/high drivers. Speakers will be arranged in semi on-axis manner, according to tests this is the best solution for homogen, very wide and deep stage in this car with evenly spaced L/LC/C/RC/R.  Midbass drivers will be installed in doors in sealed panels with AP membranes, but more about it later....

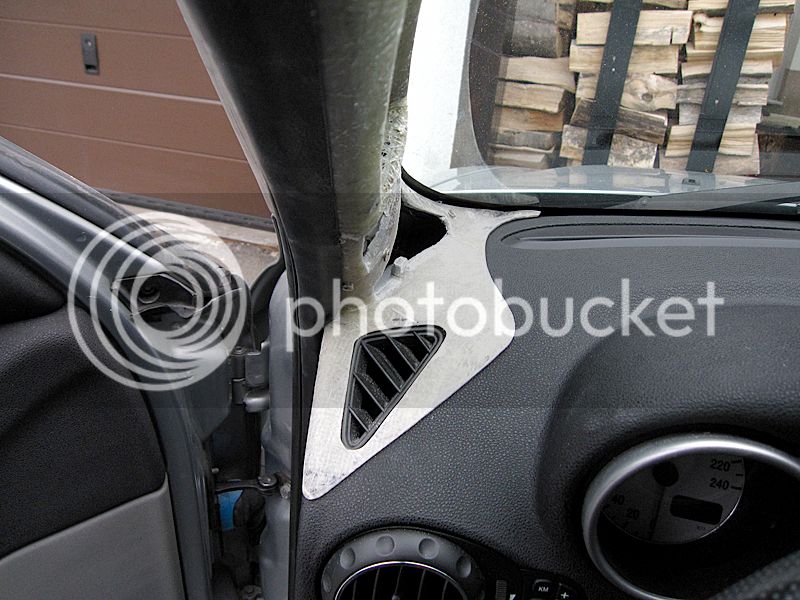

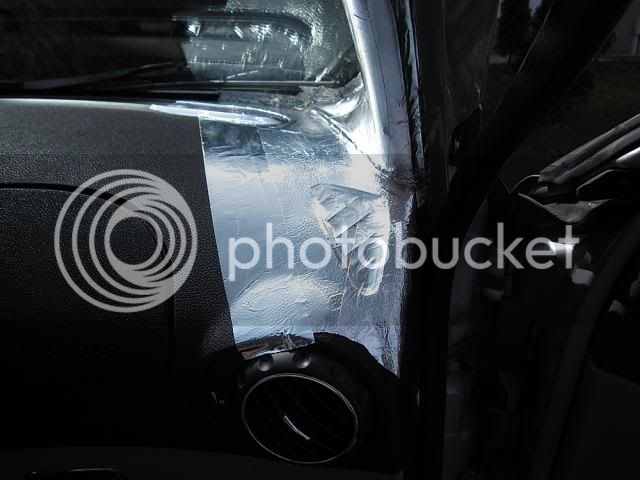

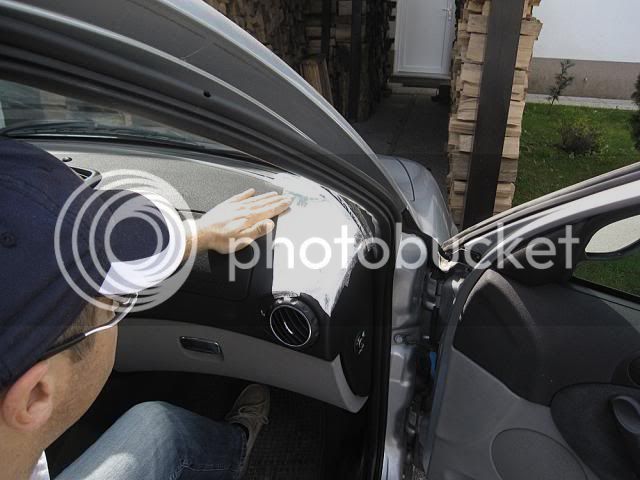

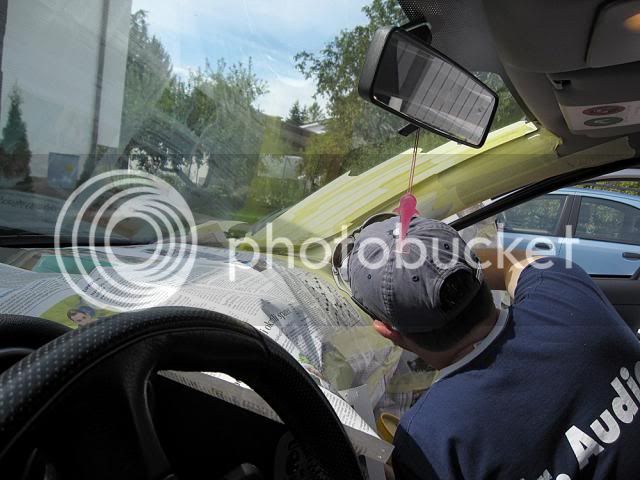

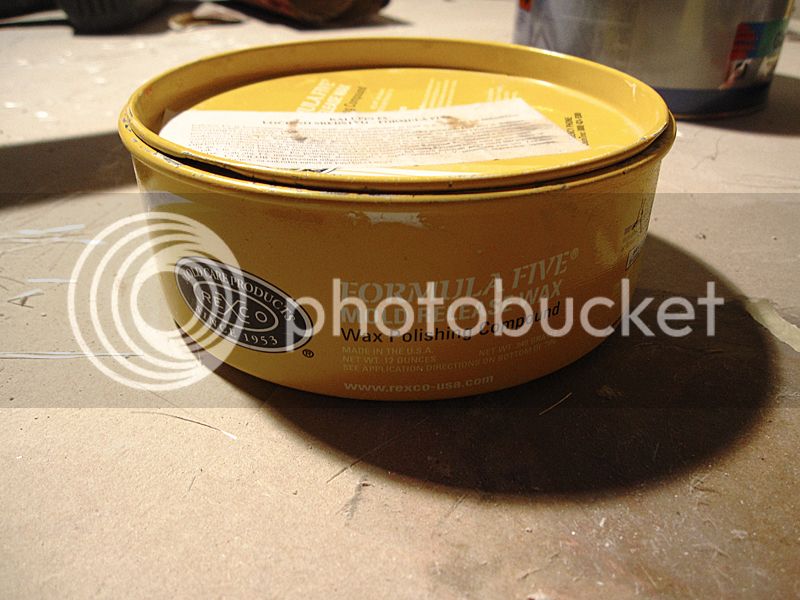

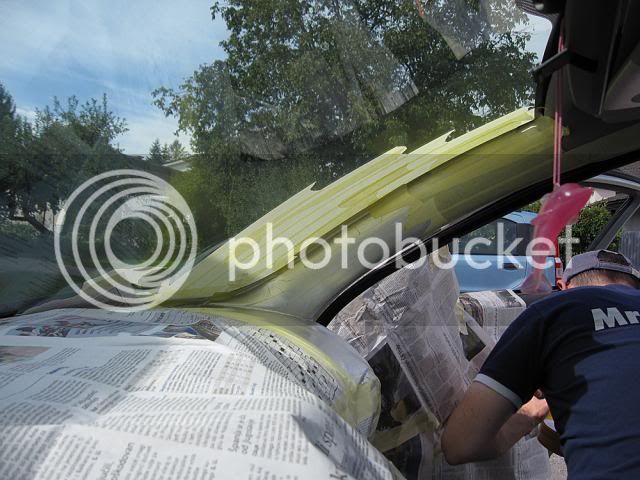

First I taped off dash with Aluminium self adhesive tape...it sticks quite good to all surfaces including the ones slightly greased with MaxiBrill.....after that Formula5 was applied to Alu foil ... F5 is used for demolding...nothing sticks to it

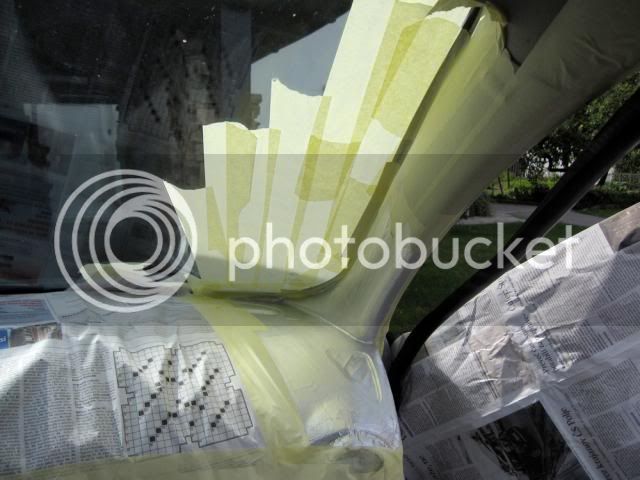

windscreen, A-pillars were also protected with Alu foil and F5....

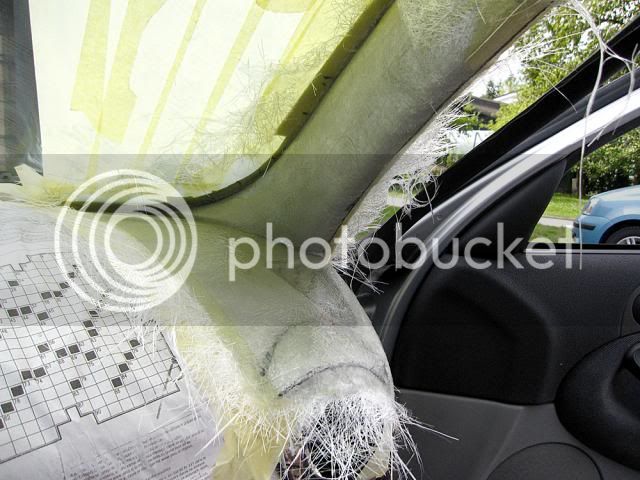

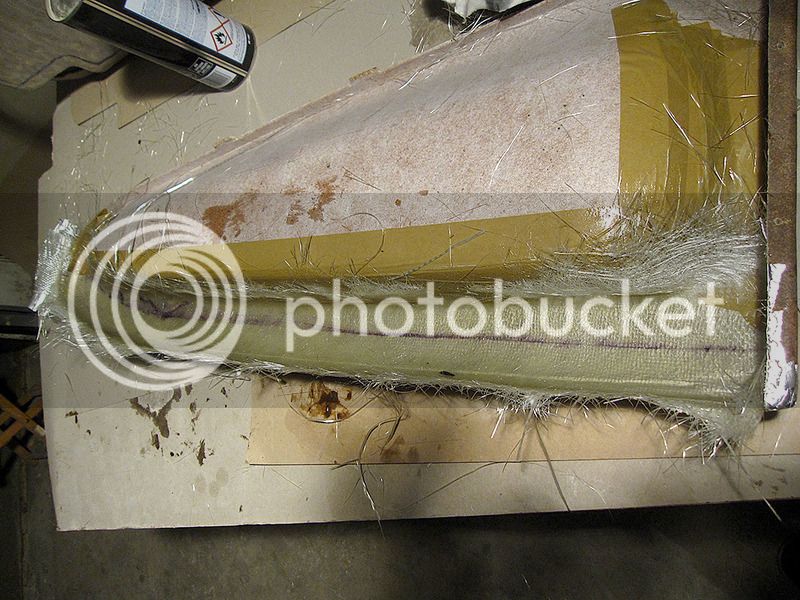

applyed a few layers of Fiberglass with very light mix of resine to prevent fiberglass wrapping....it all ended as inspected.....no wrapping at all, me happy as a child.....lol


OP
Lojze Carman

Lojze Carman

CarAudio.com Enthusiast
Mar 19, 2019
39
2

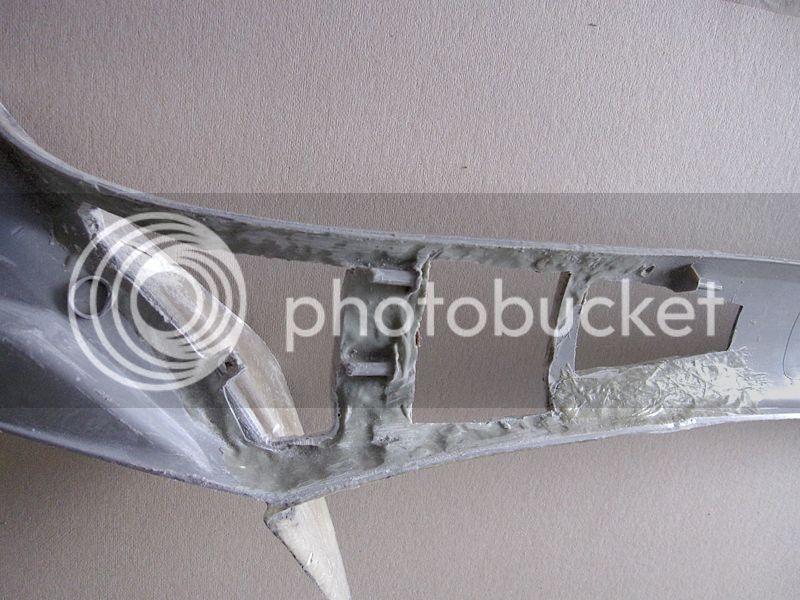

A-pillar fabrication started with mold of dash and partly a-pillar.





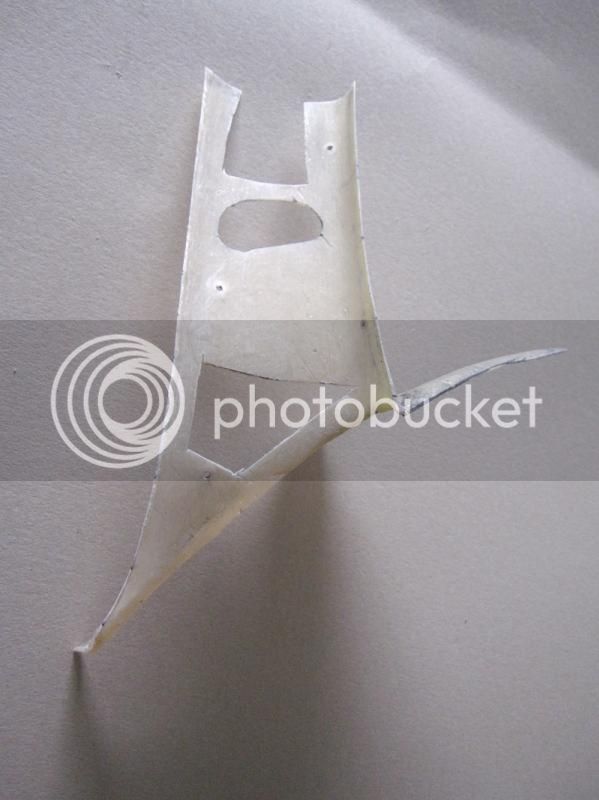

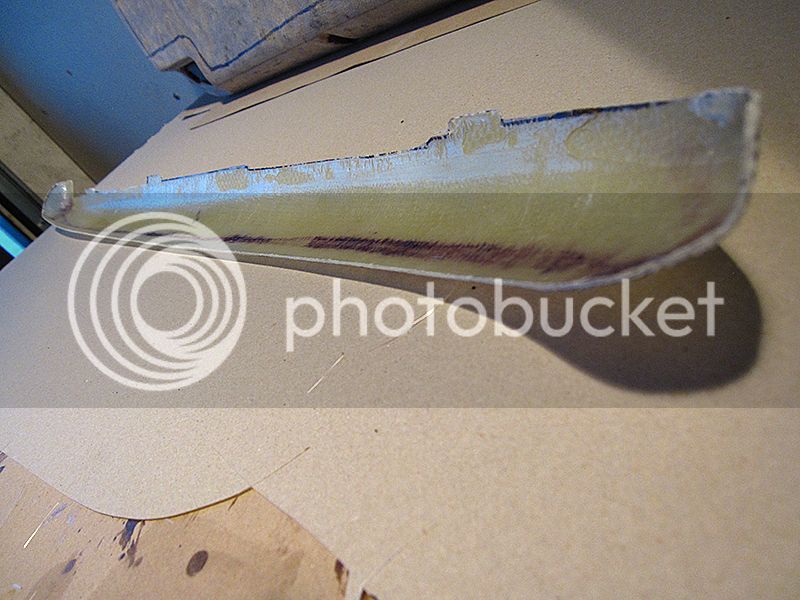

Mold has been removed and cleaned up on edges, I also shaped it to desired shape

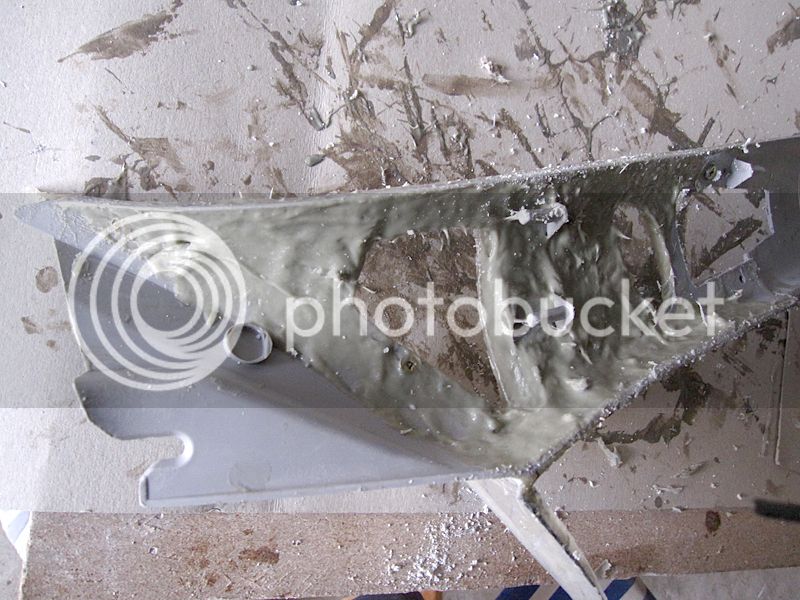

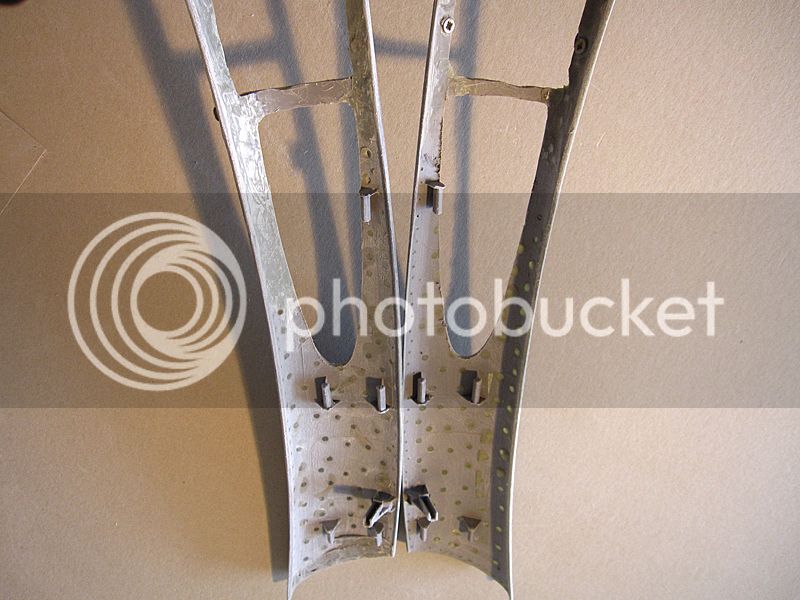

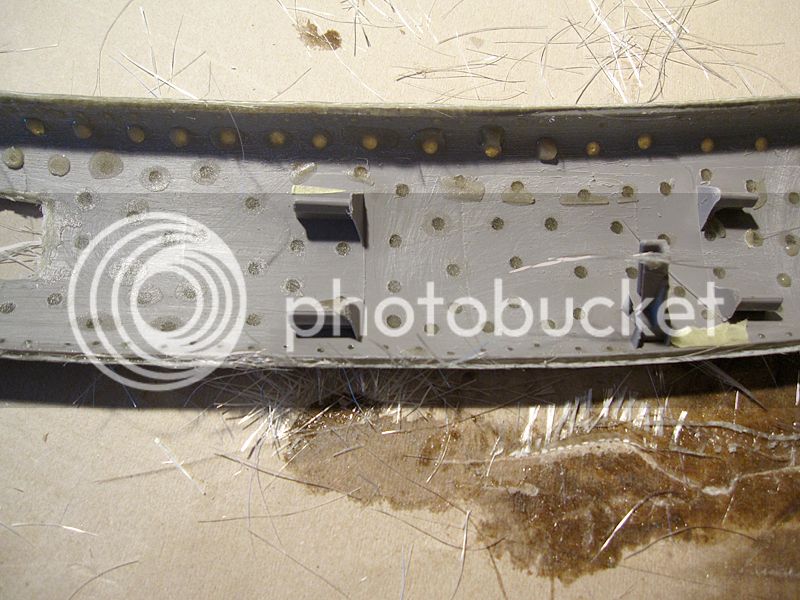

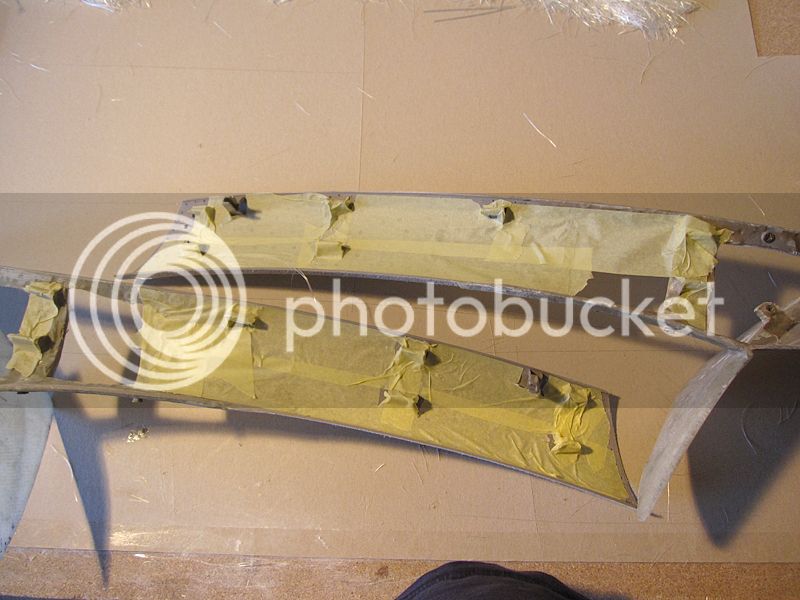

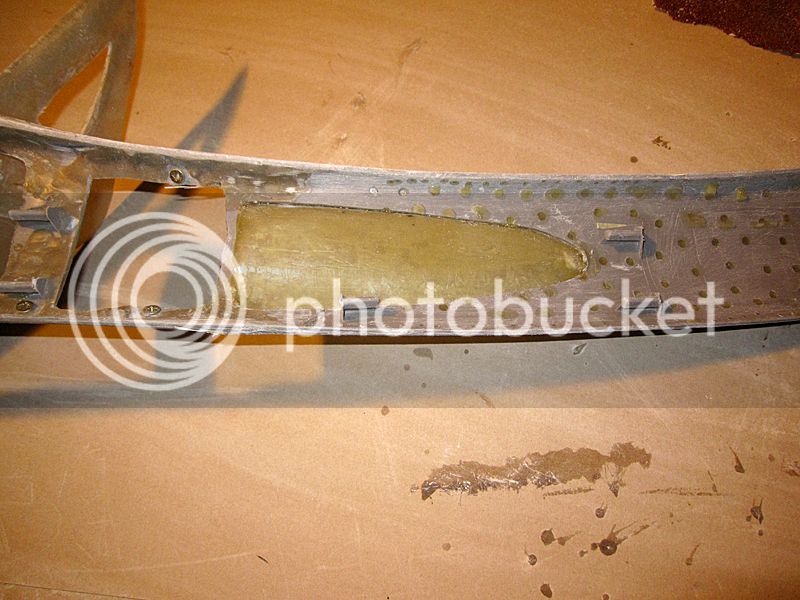

This part was sanded shaped and bonded with original A-pillar. Before that "marriage" original A-pillars were sanded with rough sandpaper 24 grit and I drilled a bounch of holes for better bond between ABS and Fiberglss part. This time I used mix of Poliester resine and filler with strands for bonding this two parts.











[/URL

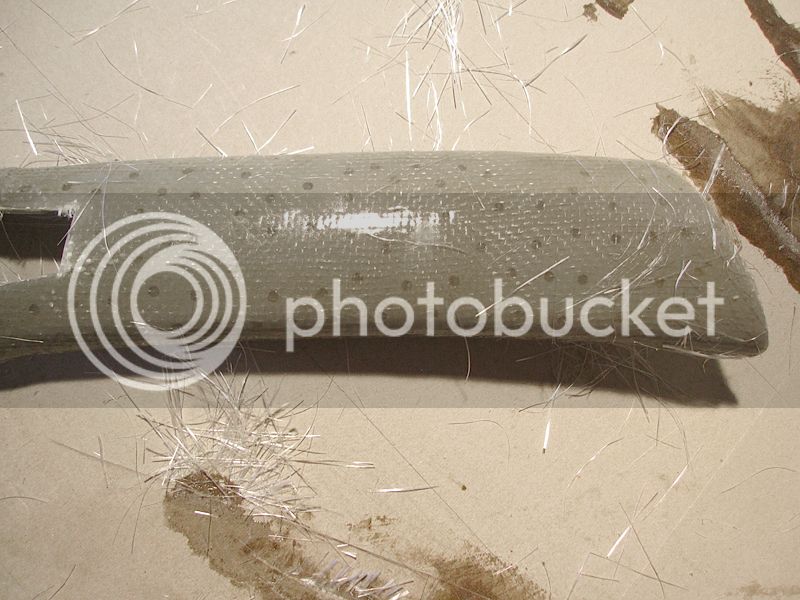

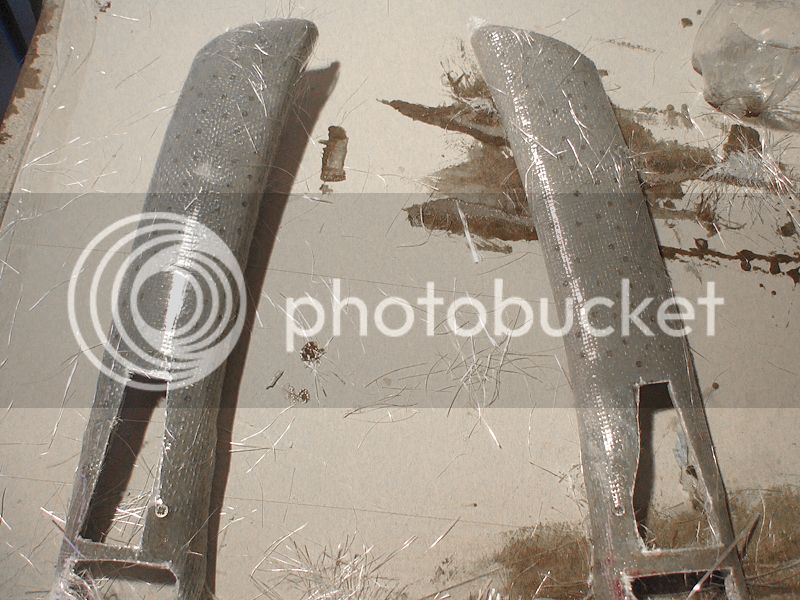

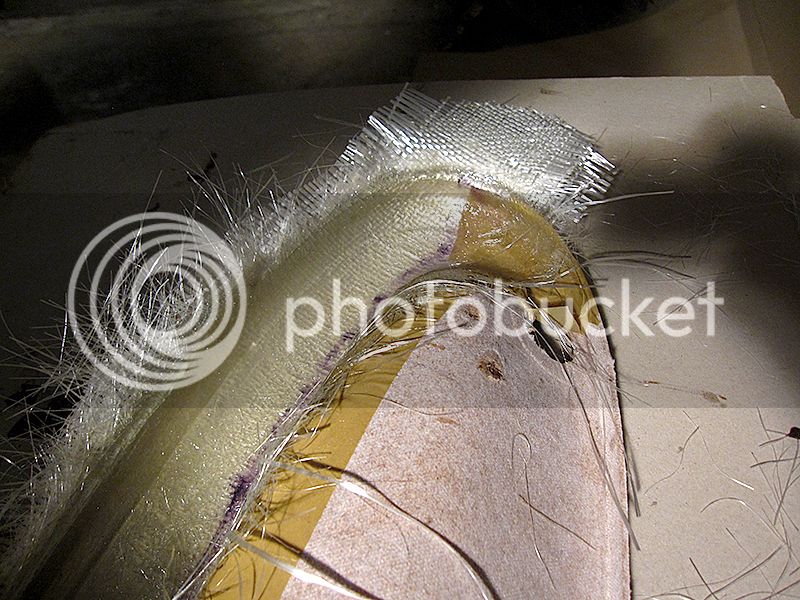

after bonding process, I applayed 3 layers of fiberglass rowing over A-pillars to strenghten them and to have the same material for base for further fabrication to obtain the best possible bond.





http://s675.photobucket.com/user/lbaudio_team/media/ALFA%20ROEO%20147%20TS/A-Pillars/IMG_6500_zpsf387cc16.jpg.html





http://s675.photobucket.com/user/lbaudio_team/media/ALFA%20ROEO%20147%20TS/A-Pillars/IMG_6500_zpsf387cc16.jpg.html





http://s675.photobucket.com/user/lbaudio_team/media/ALFA%20ROEO%20147%20TS/A-Pillars/IMG_6500_zpsf387cc16.jpg.html





http://s675.photobucket.com/user/lbaudio_team/media/ALFA%20ROEO%20147%20TS/A-Pillars/IMG_6500_zpsf387cc16.jpg.html



OP
Lojze Carman

Lojze Carman

CarAudio.com Enthusiast
Mar 19, 2019
39
2

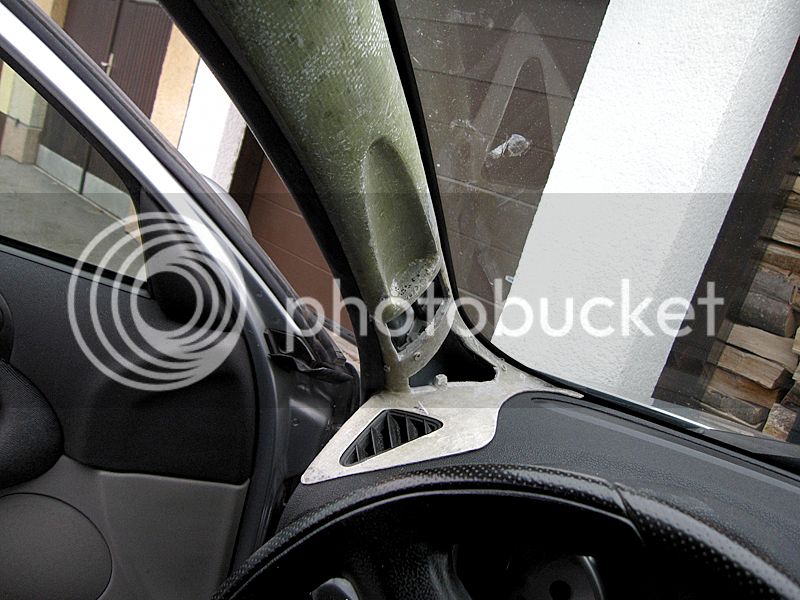

after bonding process, I applayed 3 layers of fiberglass rowing over A-pillars to strenghten them and to have the same material for base for further fabrication to obtain the best possible bond.

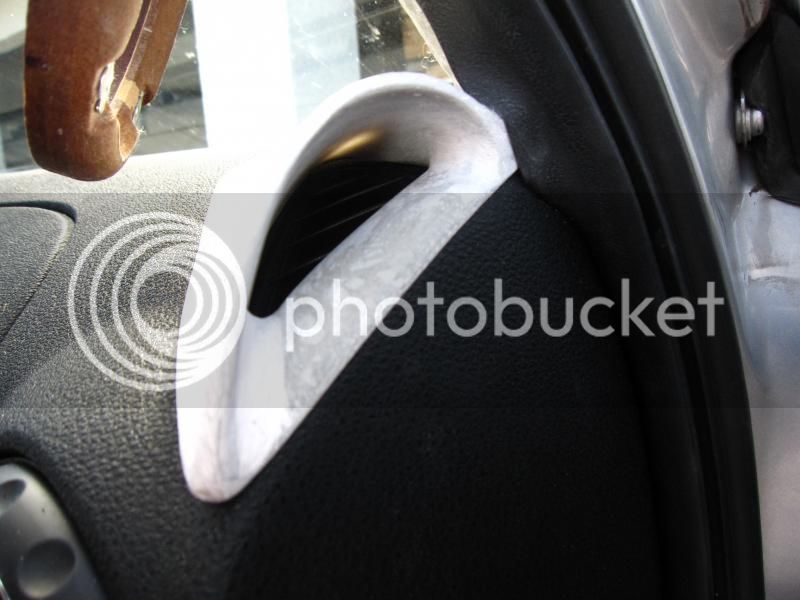

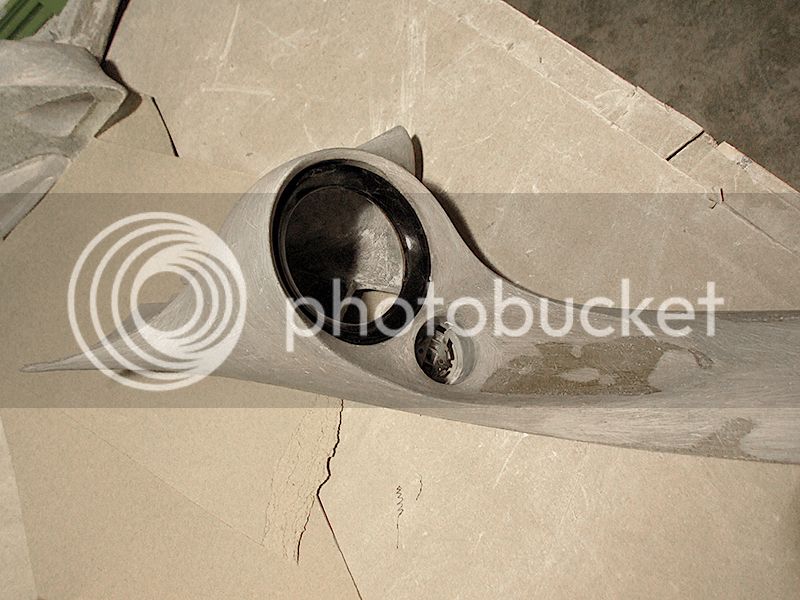

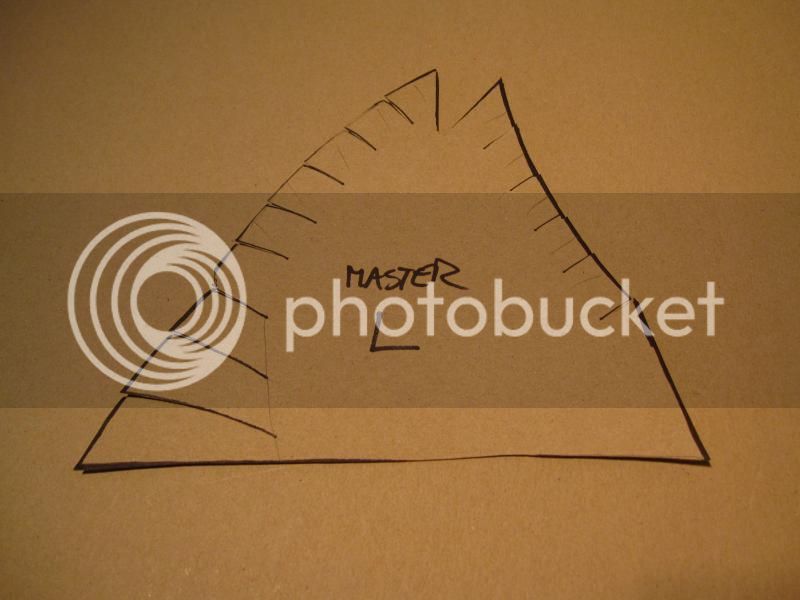

When I had all templates ready I first create hole on exact position on A pillar pod..... exacly where the ventilation hole on dash is located.......

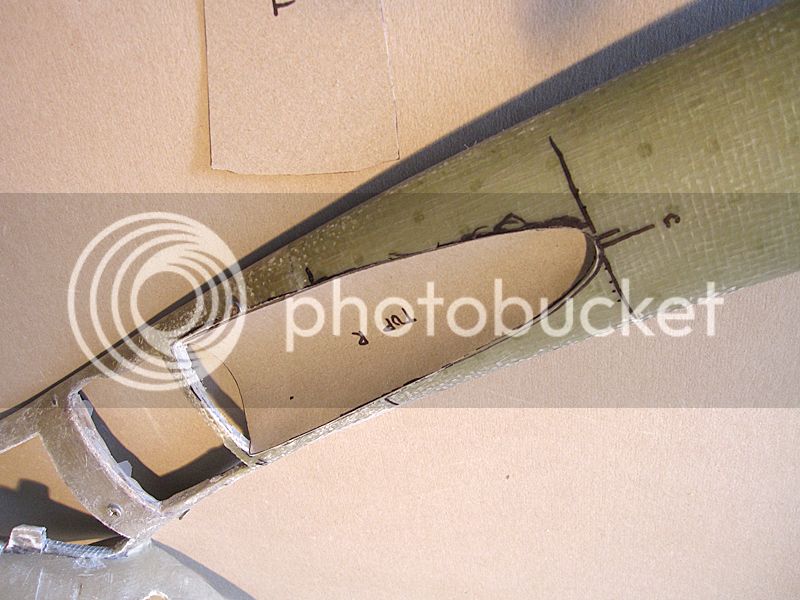

Then, I created additional template for arch that will be fabricated over this ventilation hole









template was treated with Formula5 paste and when it was dry I applyed filler with strands






OP
Lojze Carman

Lojze Carman

CarAudio.com Enthusiast
Mar 19, 2019
39
2

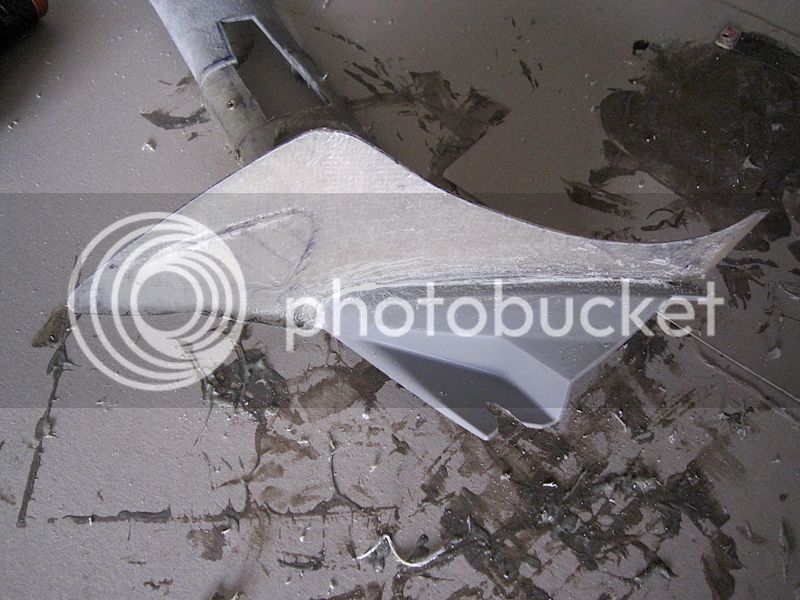

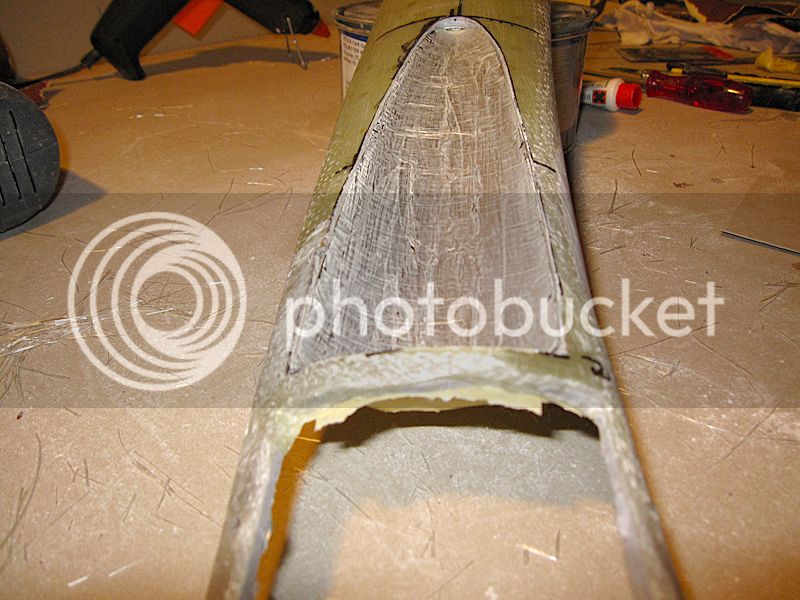

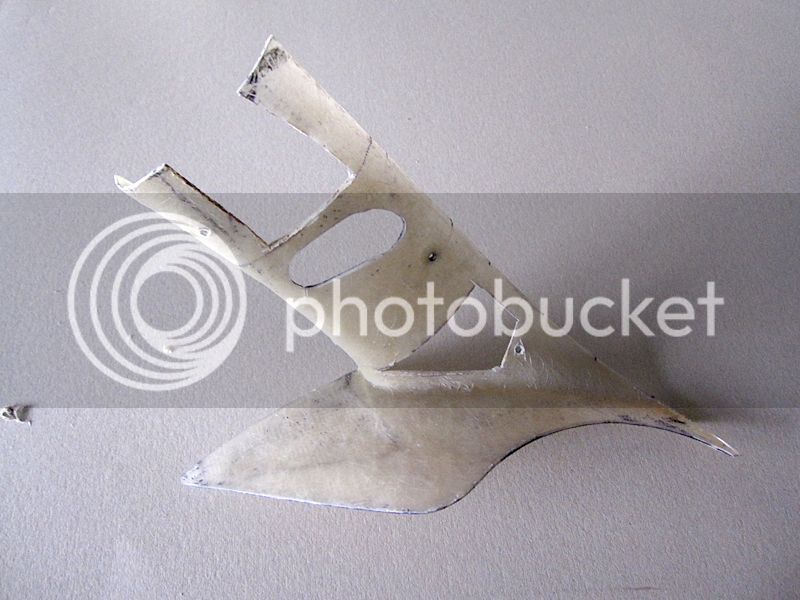

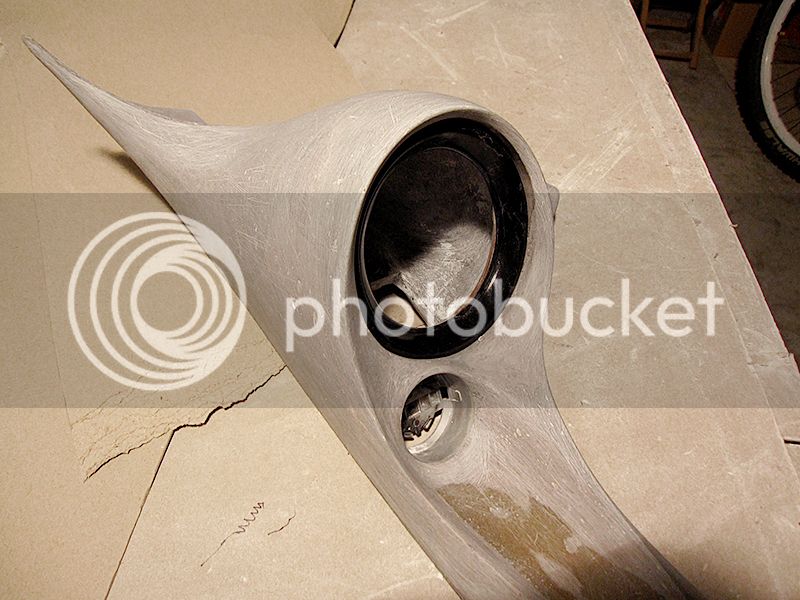

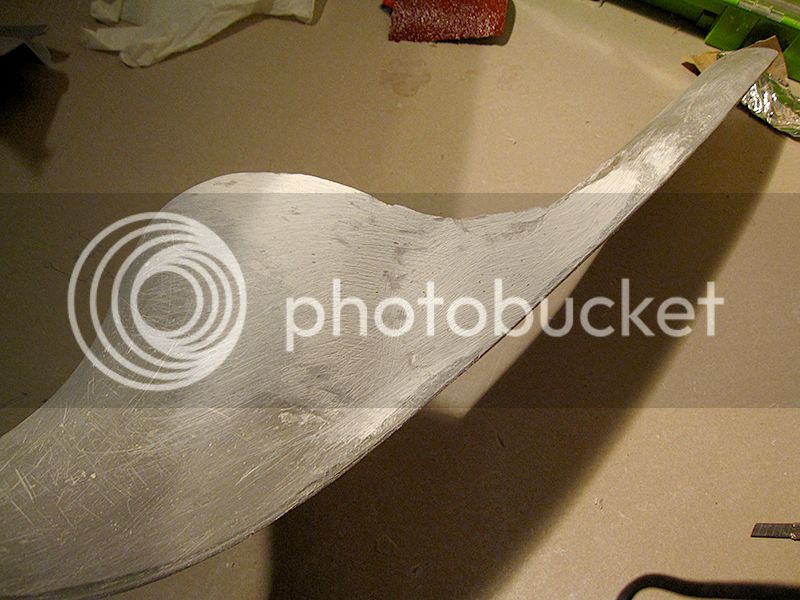

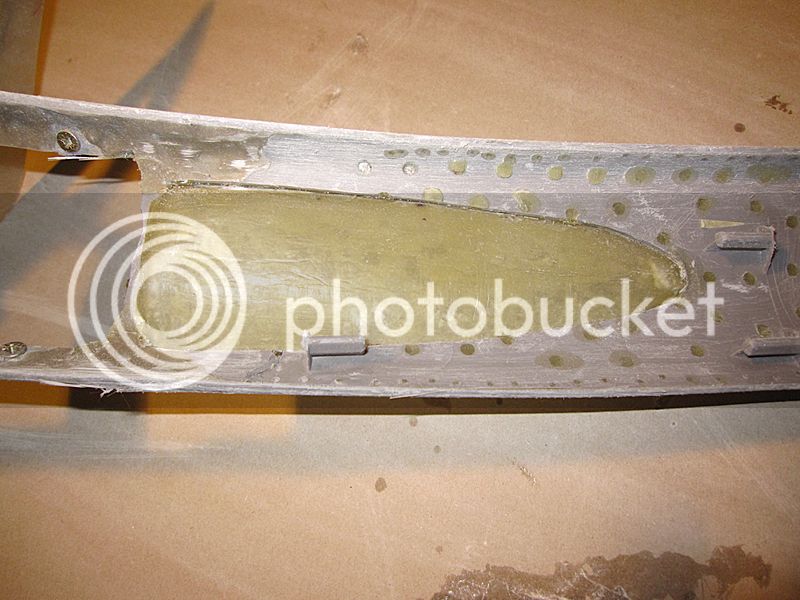

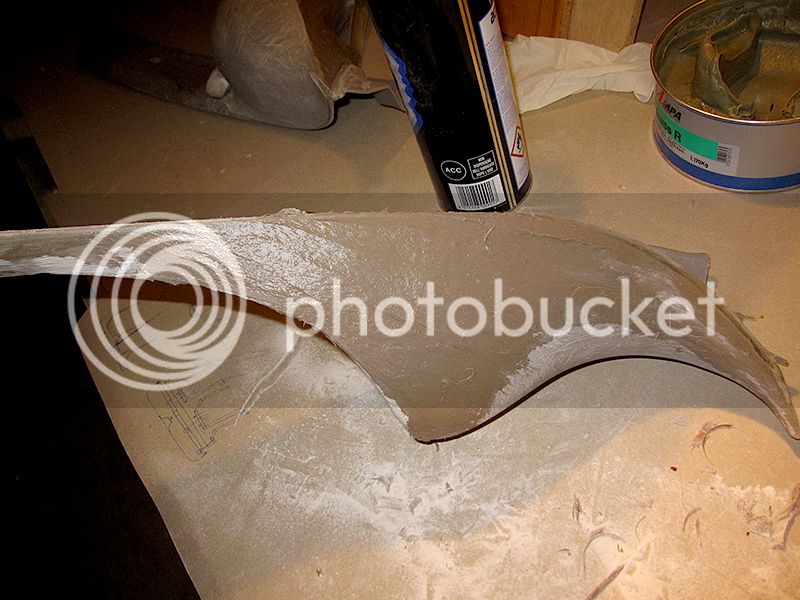

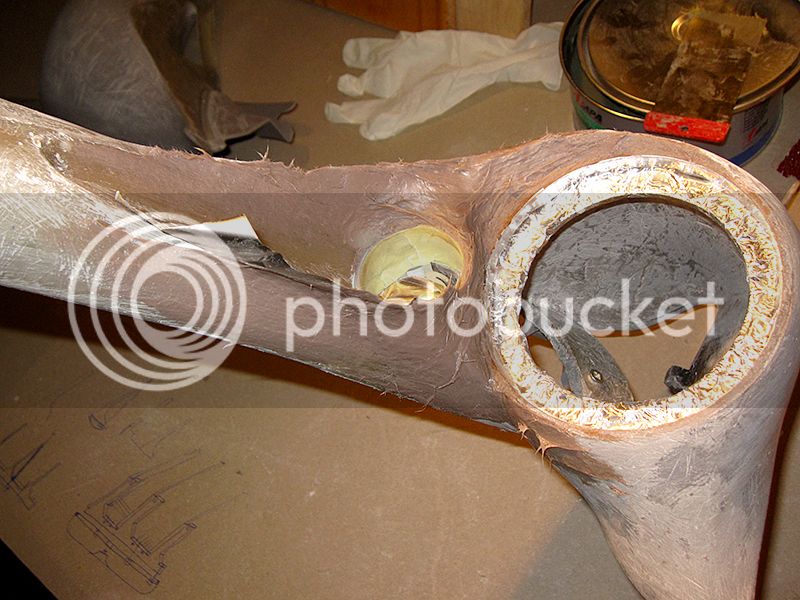

When filler cured I removed template, sand everything and create a smoorh transitions from hole to the arch.

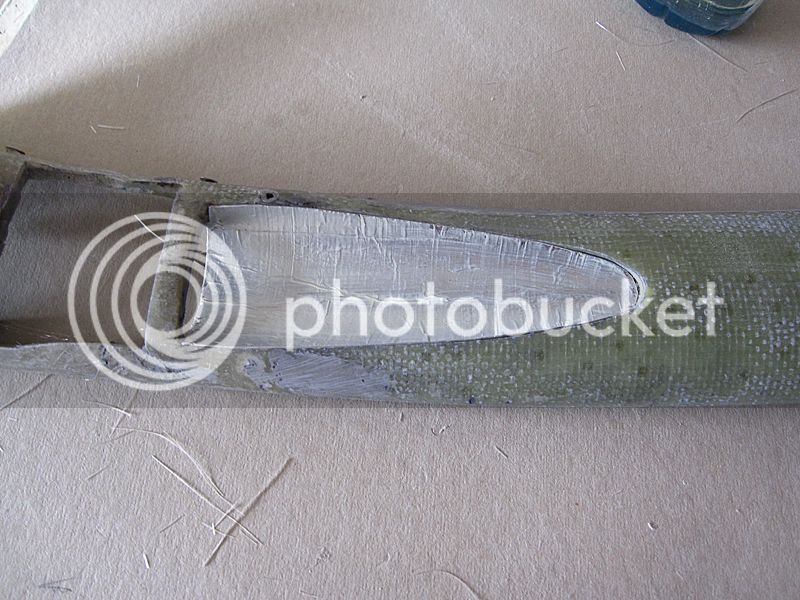

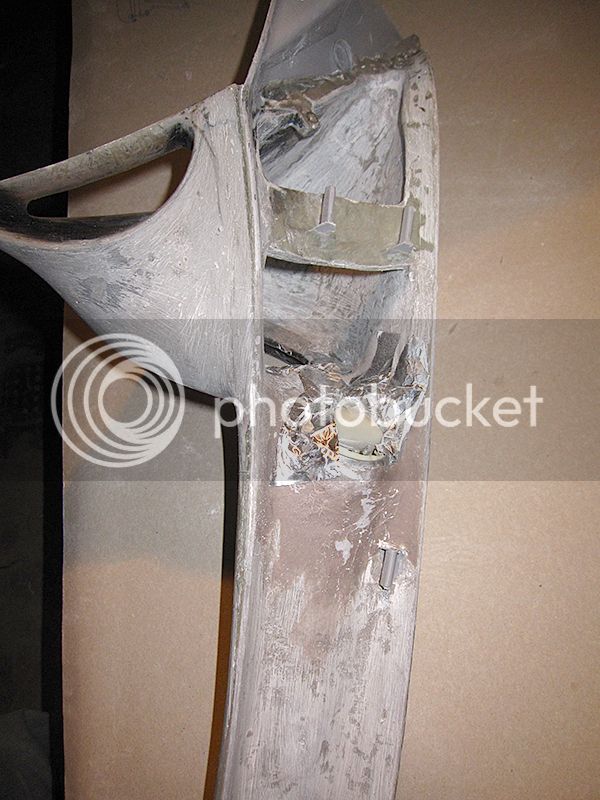

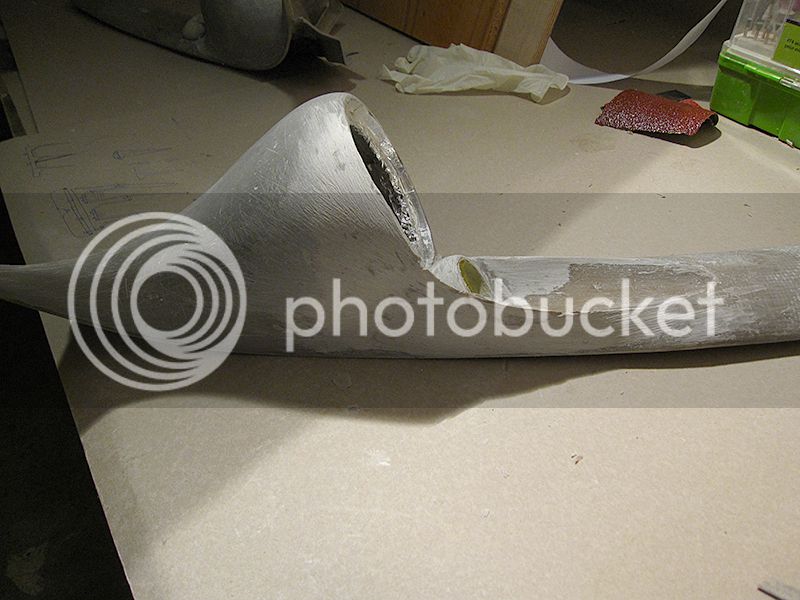

Then I created new template for dented part where the tweeter will be located



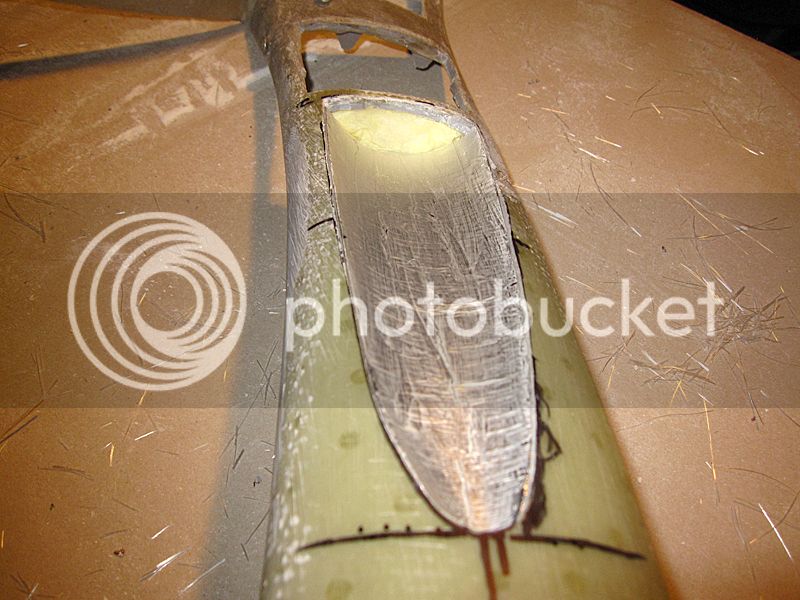

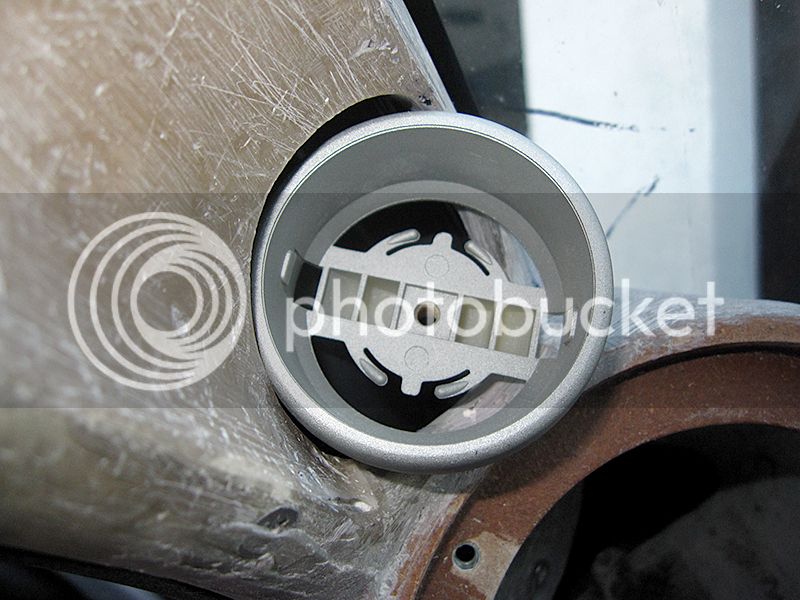

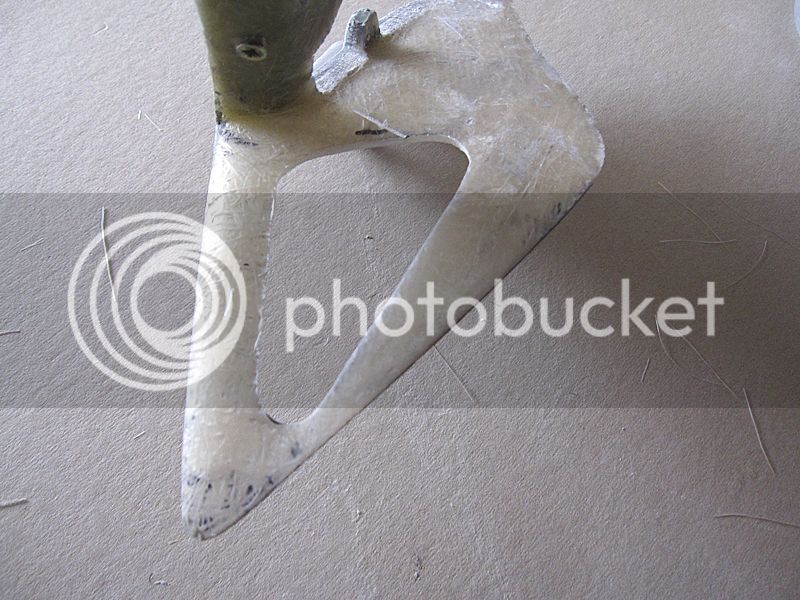

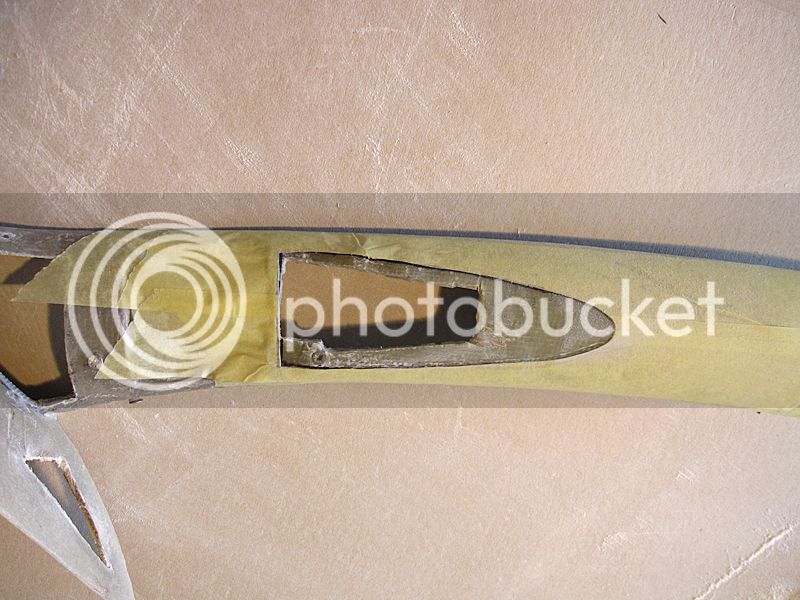

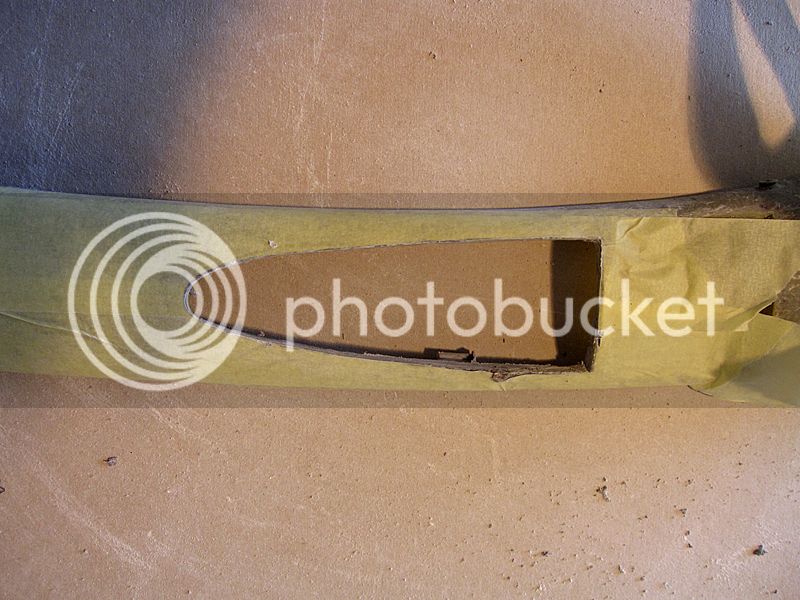

the final shape of the dent was cut out from Apillar









test fit with template inserted



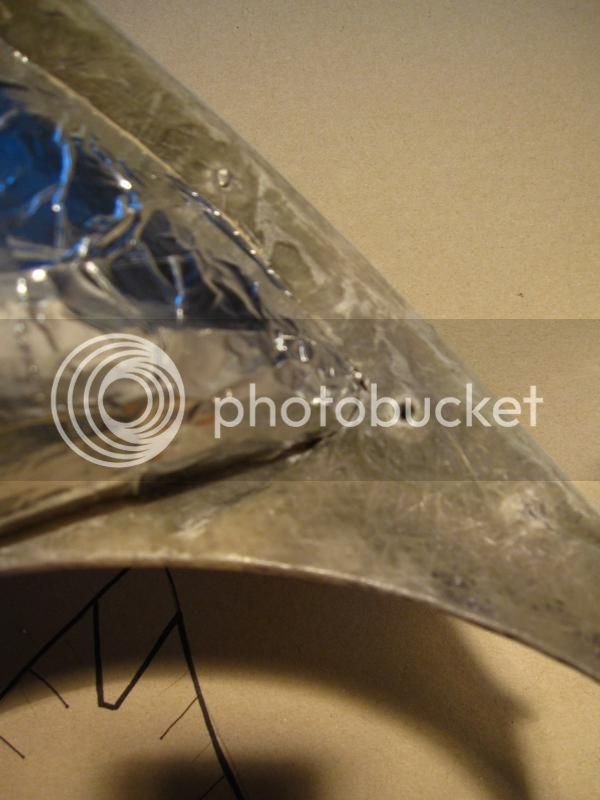

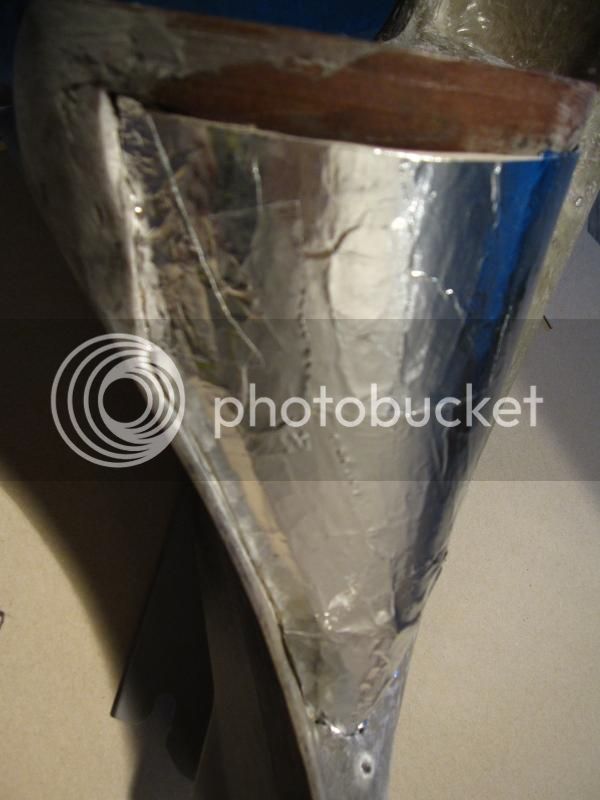

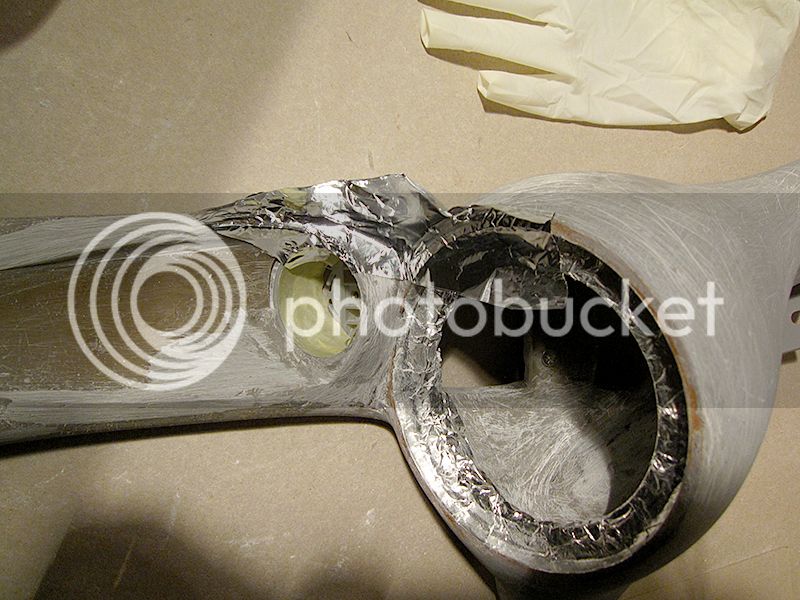

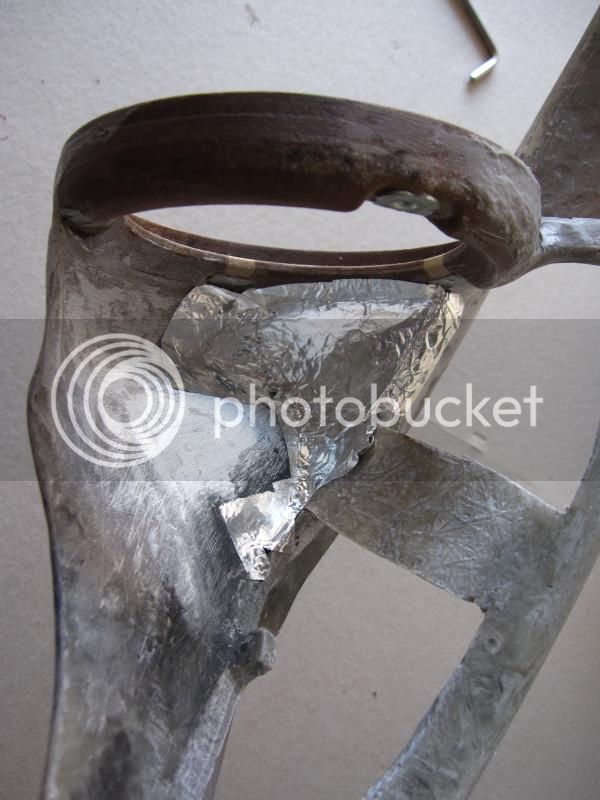

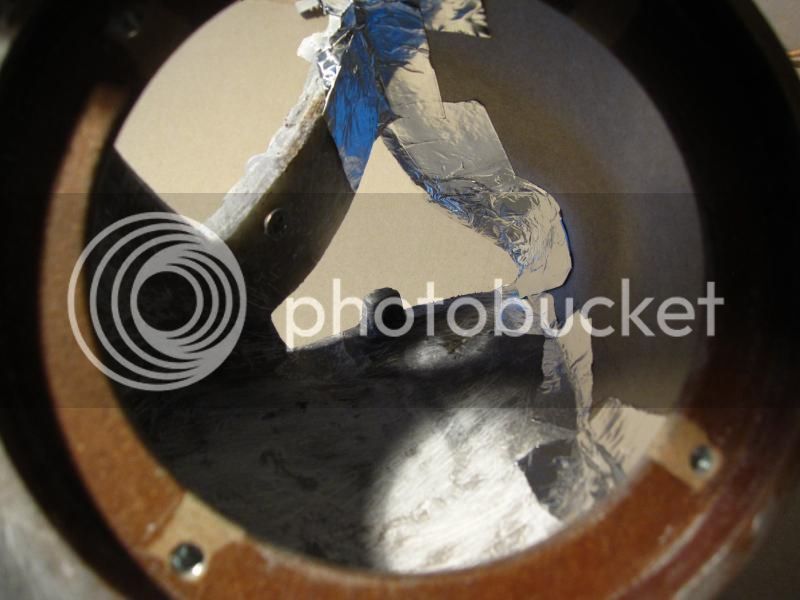

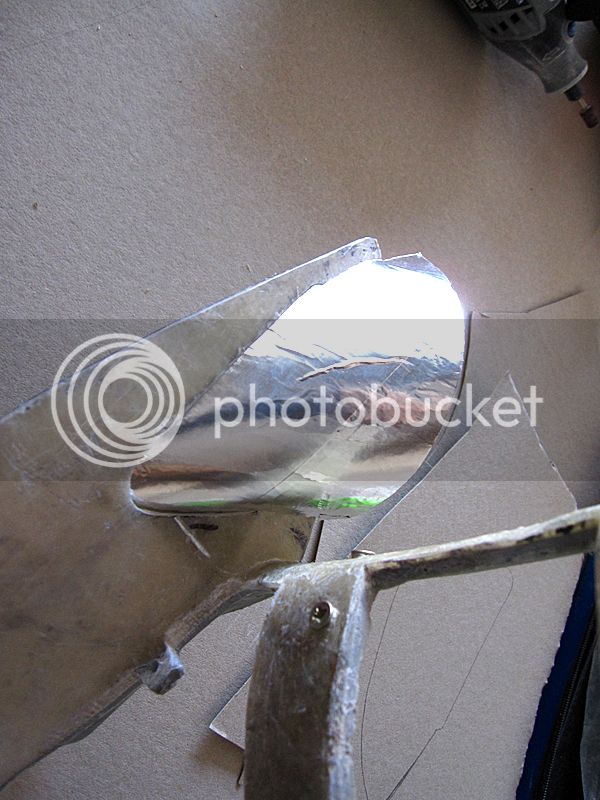

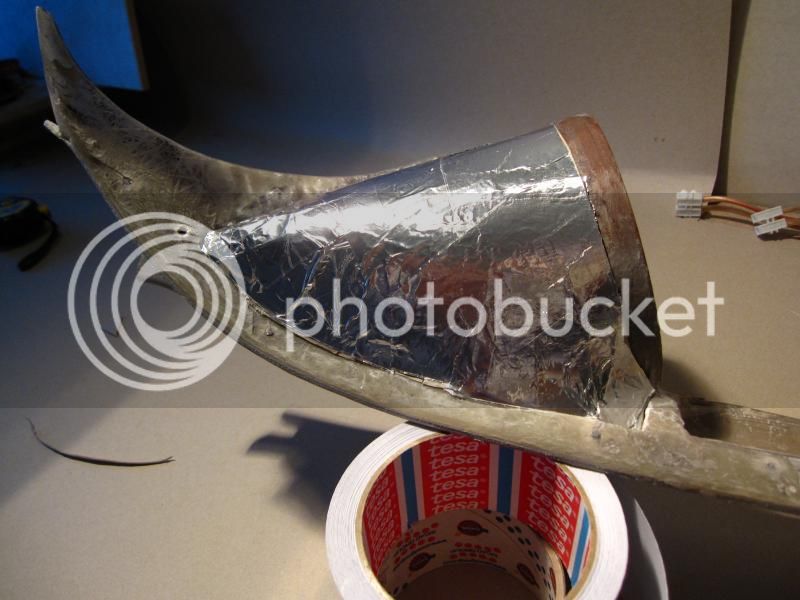

template taped off with ALU tape and applyed Formula5, temporary glued to the a-pillar with hot glue



















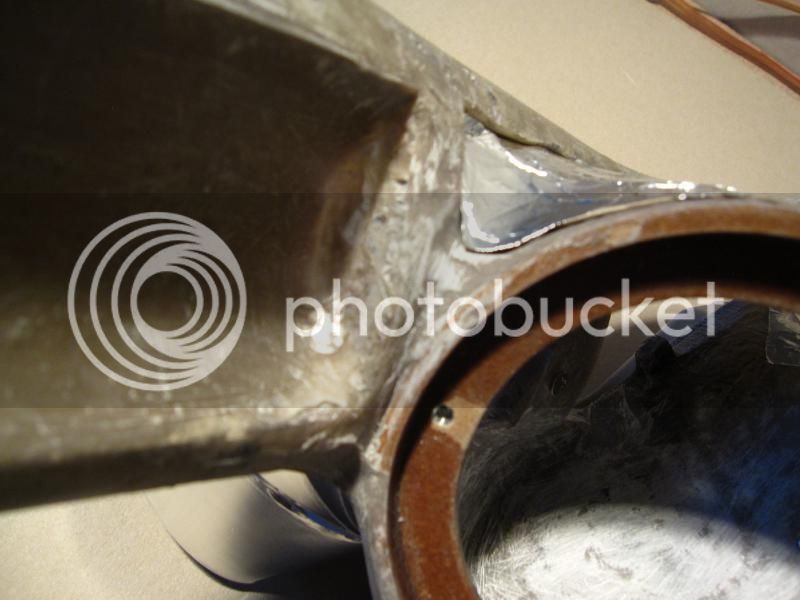

After that I applied filler from the back side to strenghten everything a little bit and sanded it down...




OP
Lojze Carman

Lojze Carman

CarAudio.com Enthusiast
Mar 19, 2019
39
2

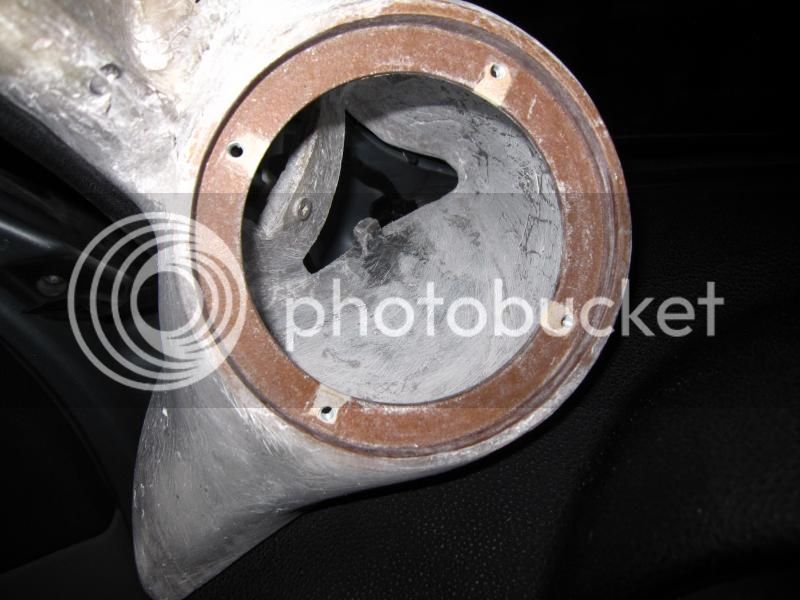

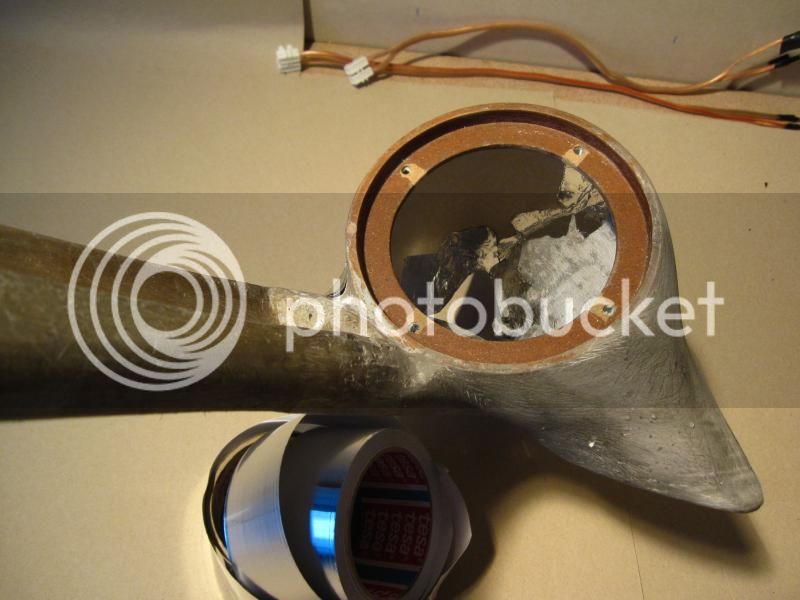

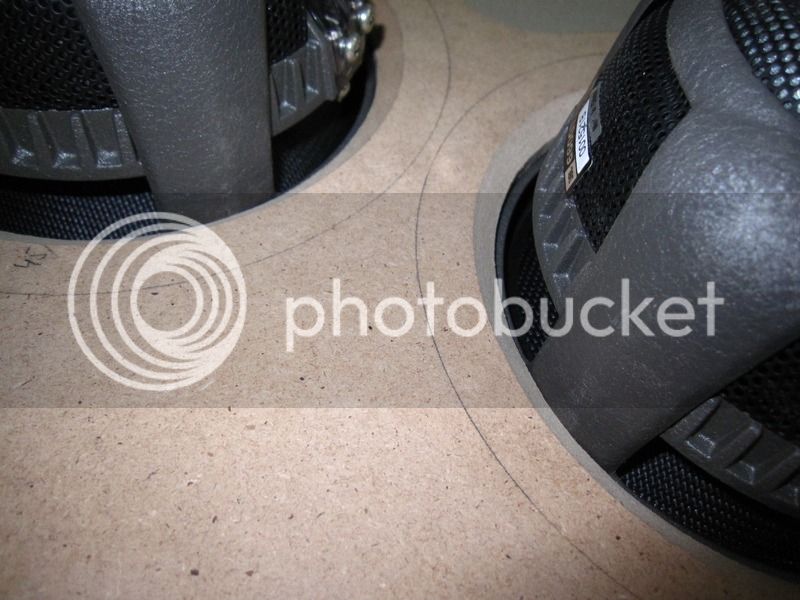

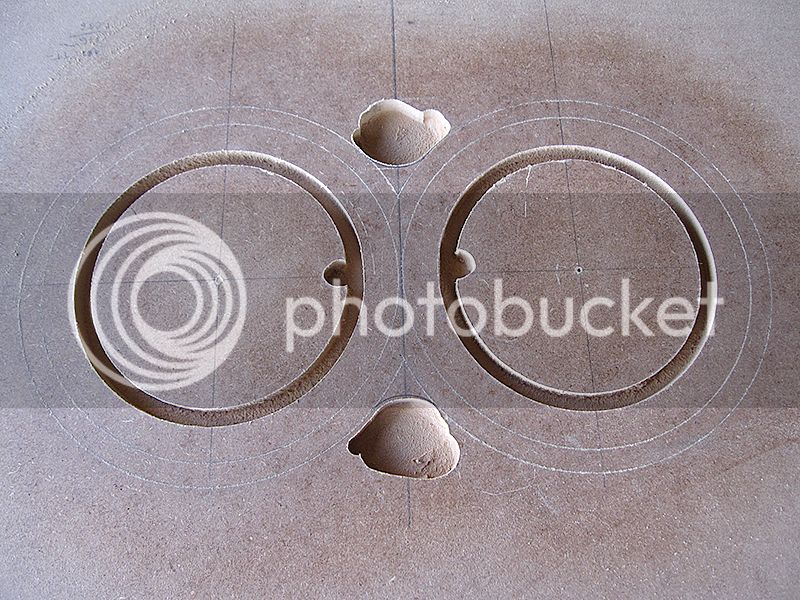

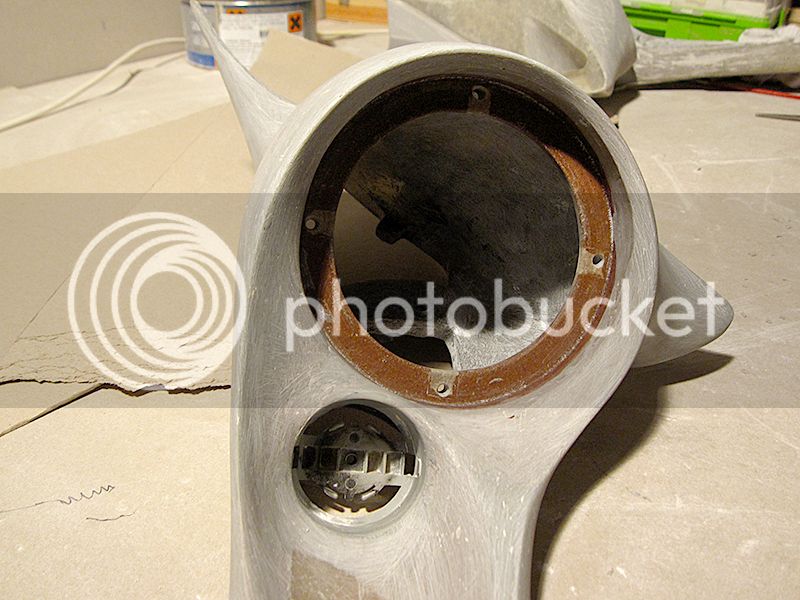

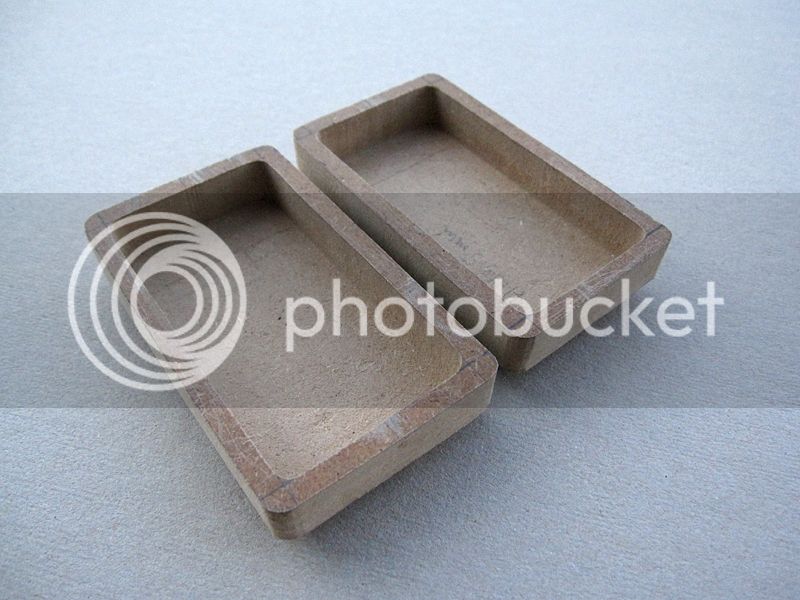

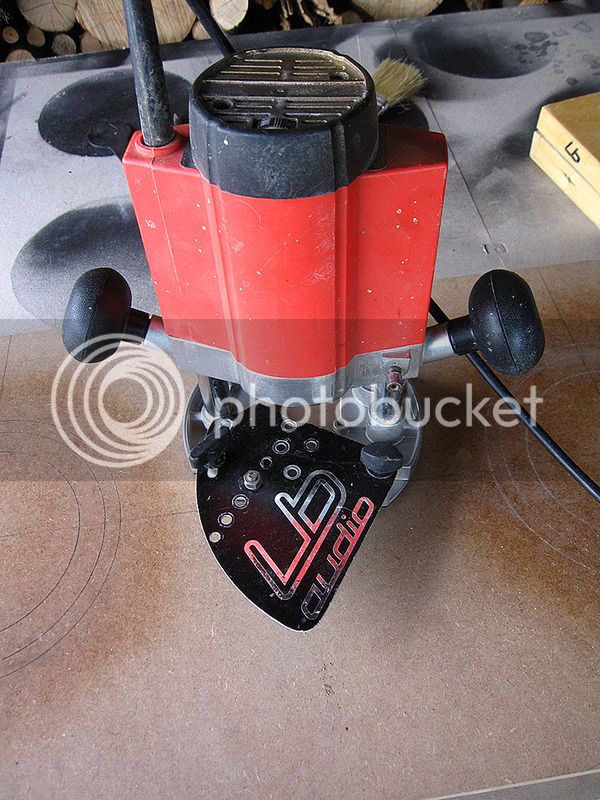

....routering rings out of MDF for mids and optional Emits... Probably I will start build only with tweets from JBL set, and later I will do some additional testing with EMITs....

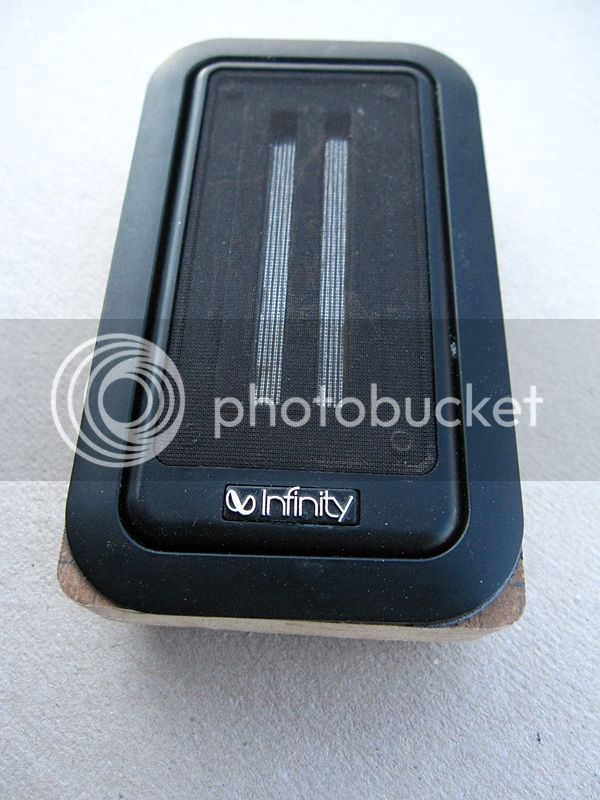

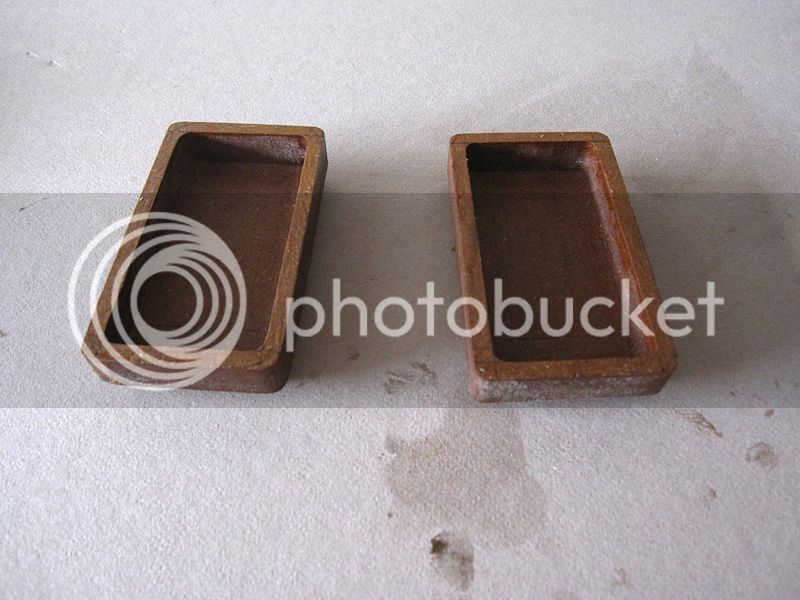

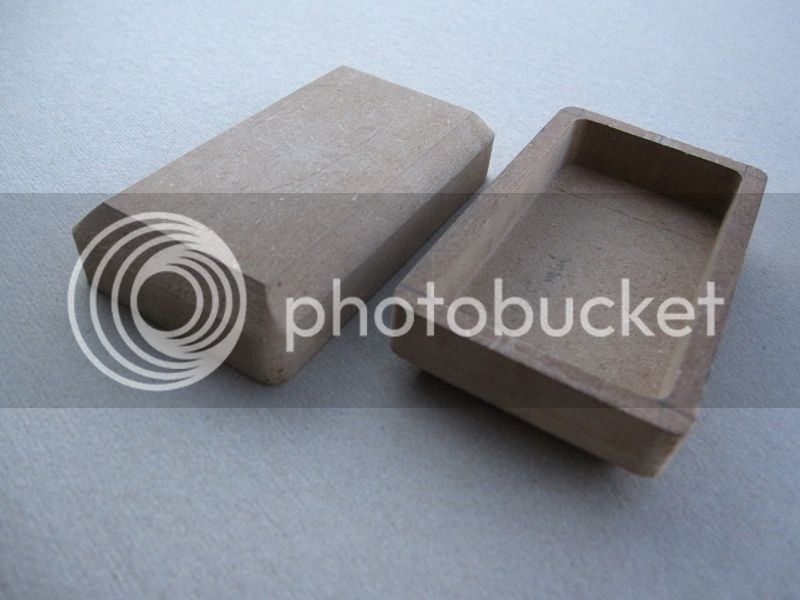

started with base for EMIT tweeters - freehand ofkorzz lol











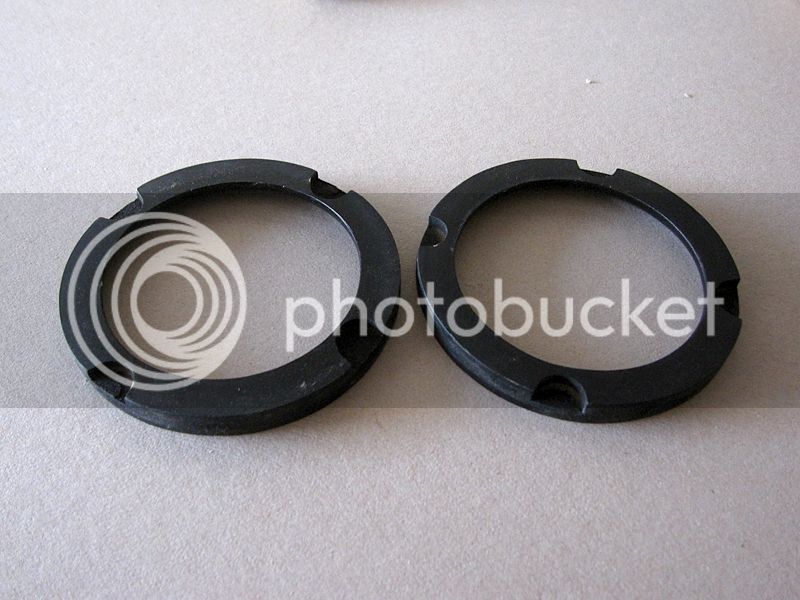

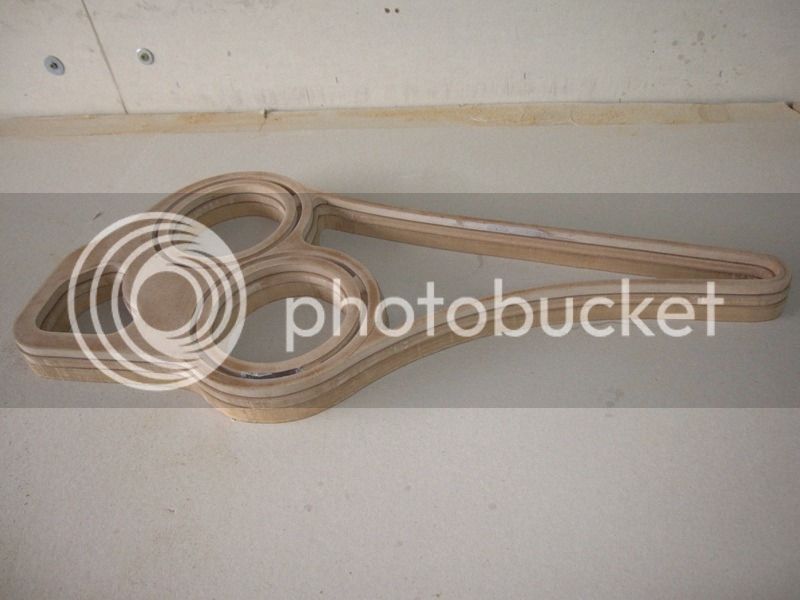

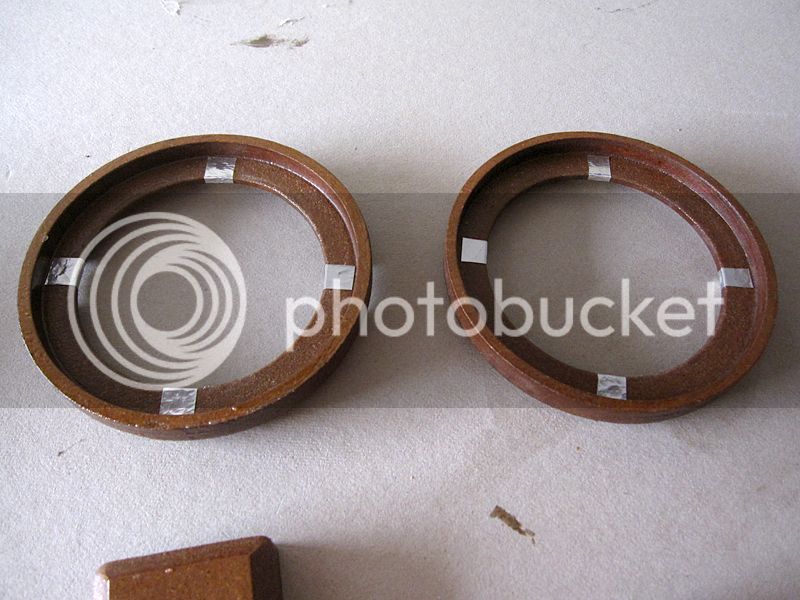

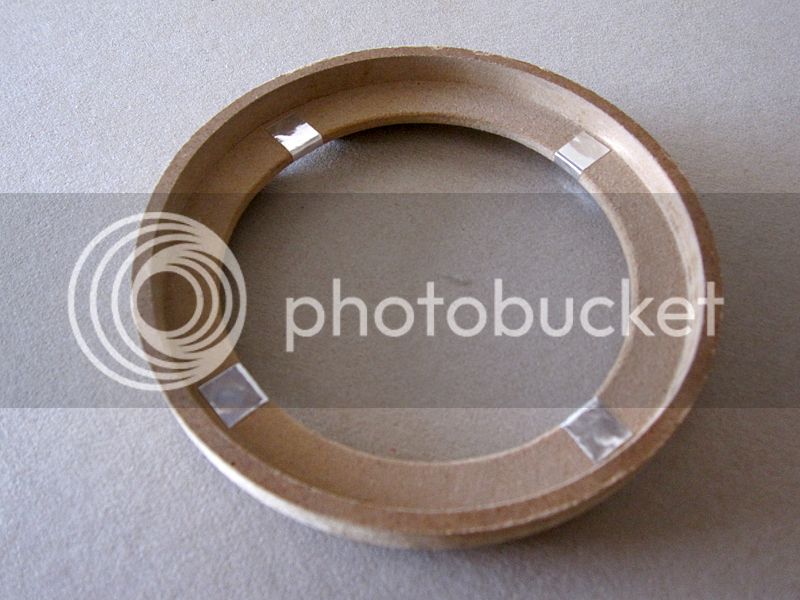

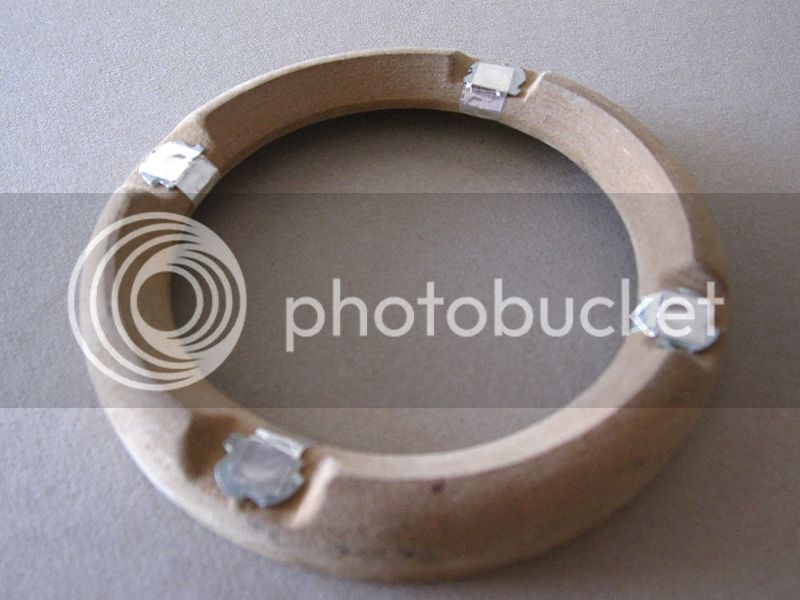

Rings for HAT L4SE





Beauty Rings that will hide fastening screws on L4





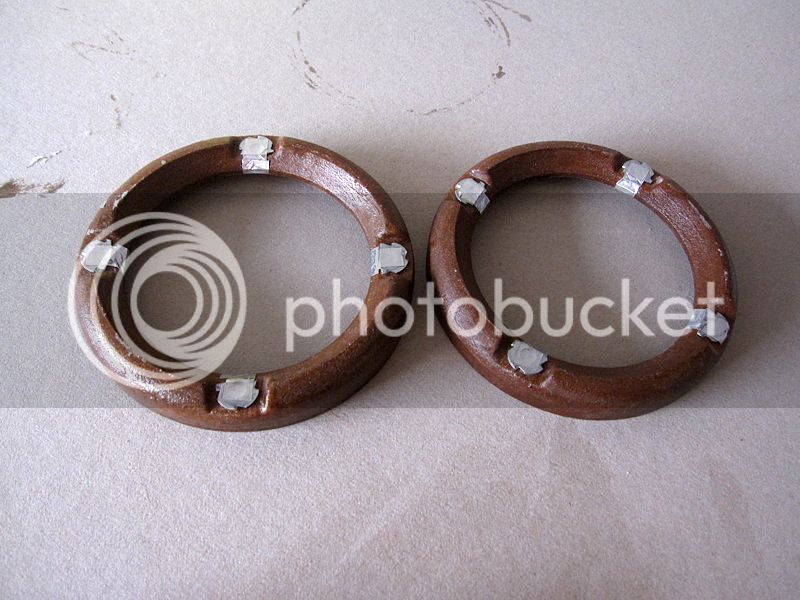

All base rings were soaked with Poliester resine to protect them against humidity and to obtain better and stronger bond between MDF and Filler, to prevent small cracks that usually accour on the edges...








OP
Lojze Carman

Lojze Carman

CarAudio.com Enthusiast
Mar 19, 2019
39
2
some additional pics


started to build panel walls.....start on the lower part







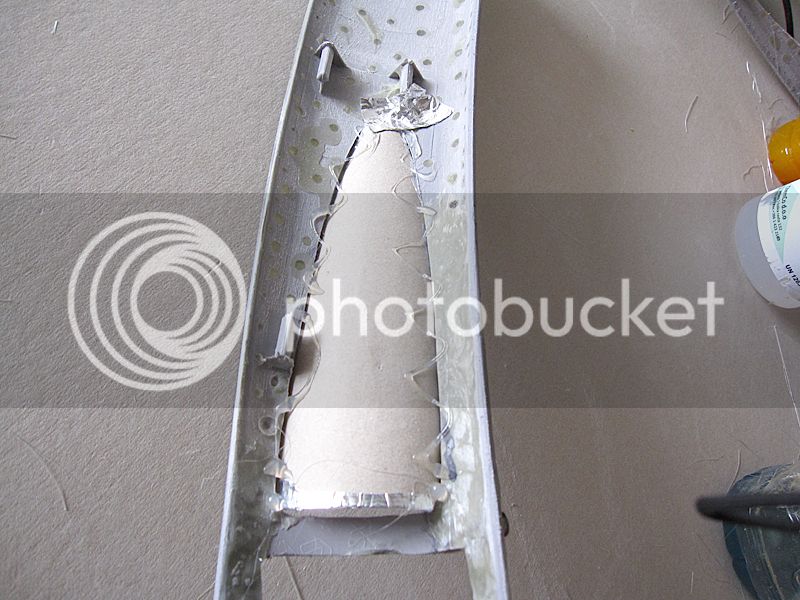

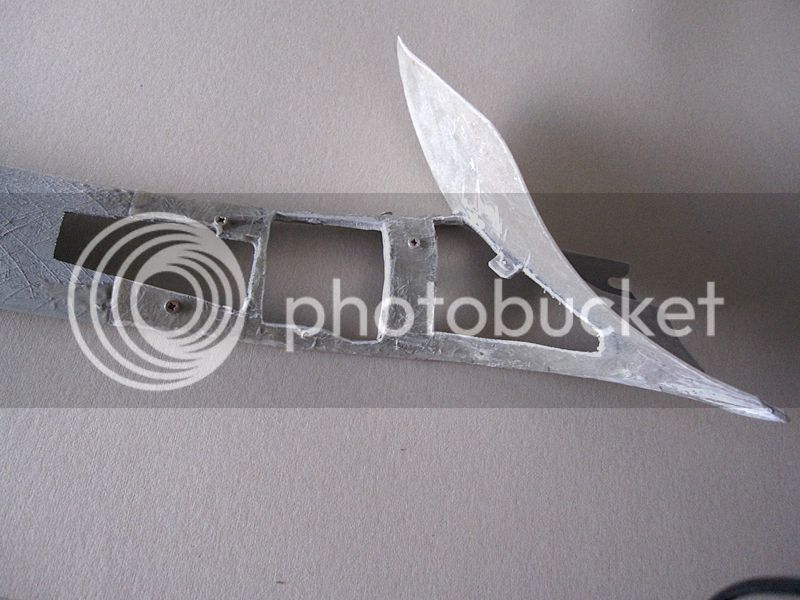

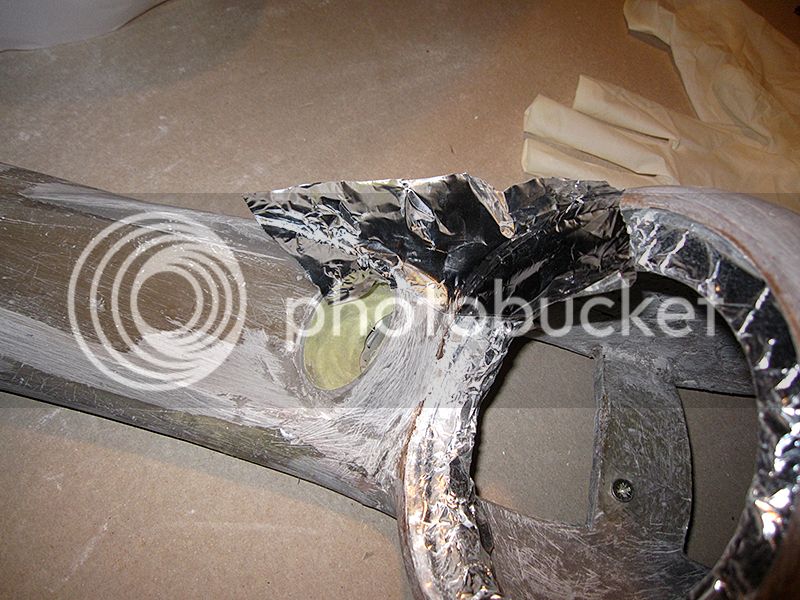

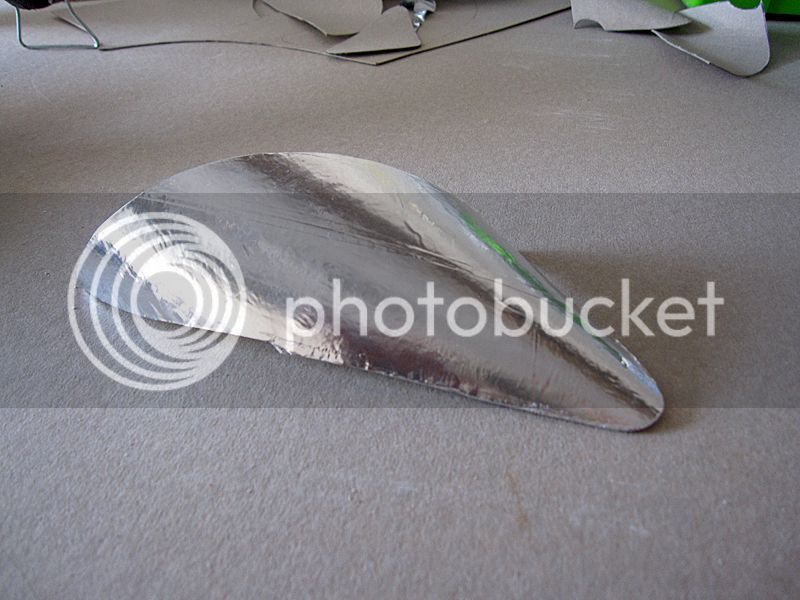

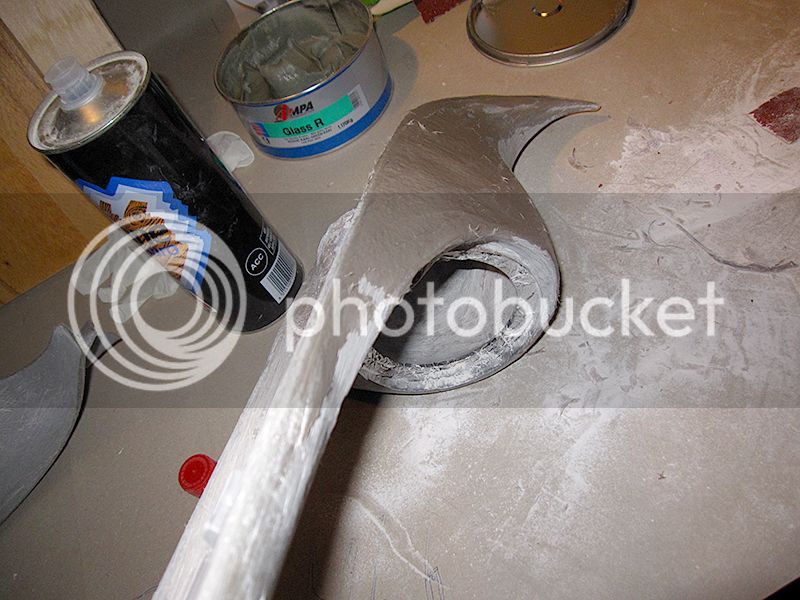

made template for a part of panel wall out of Alu self adhesive tape, treat it with Formula5 and apply filler with strands







http://s675.photobucket.com/user/lbaudio_team/media/ALFA%20ROEO%20147%20TS/A-Pillars/IMG_6834_zps2fcff432.jpg.html





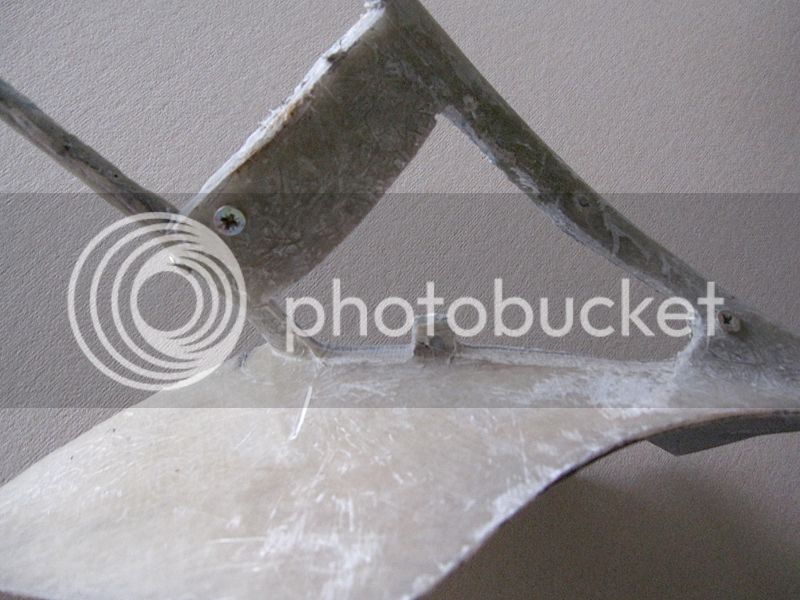

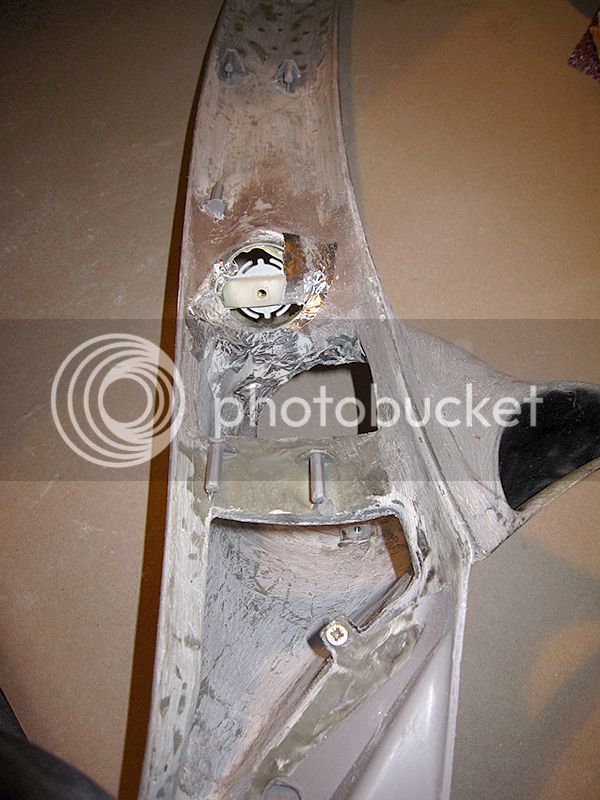

from the inside of the panel



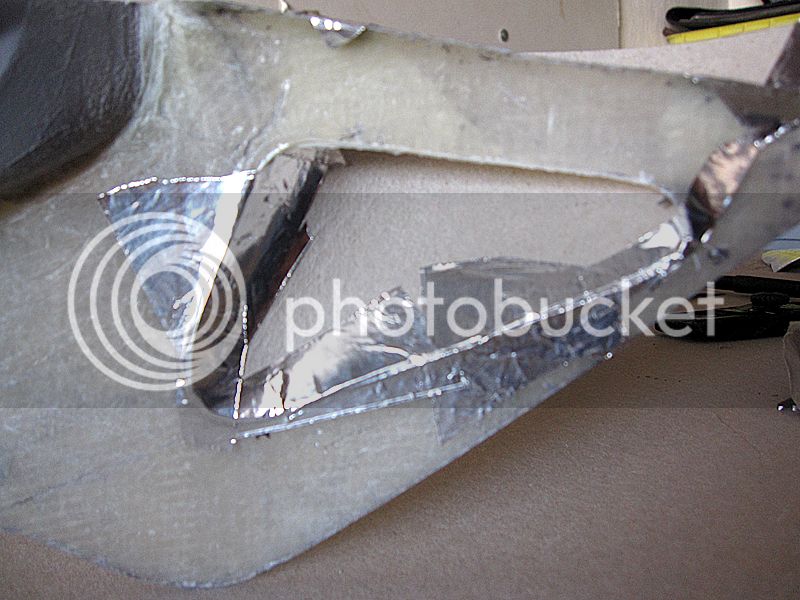

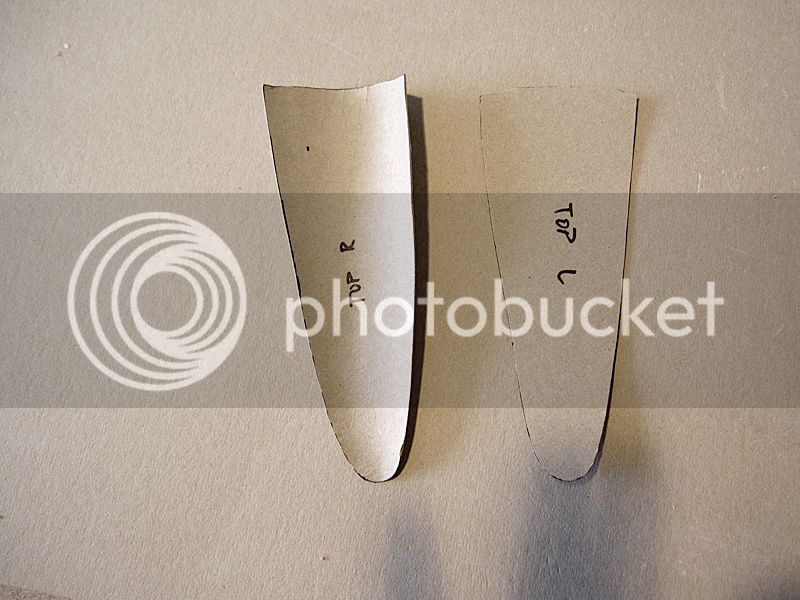

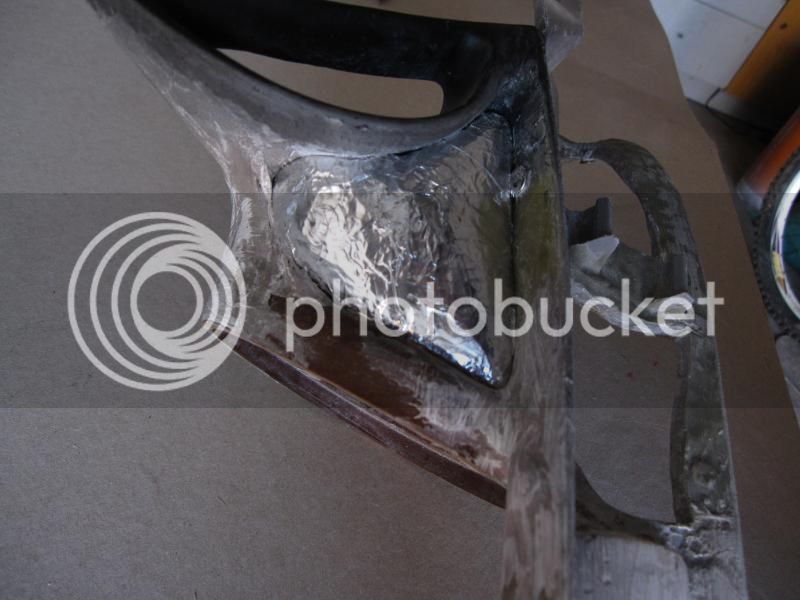

for next part I made a cardboard template....again, taped it off with alu foil and apply F5c and glued it in place

















Filler applied, template removed when everything cured up.

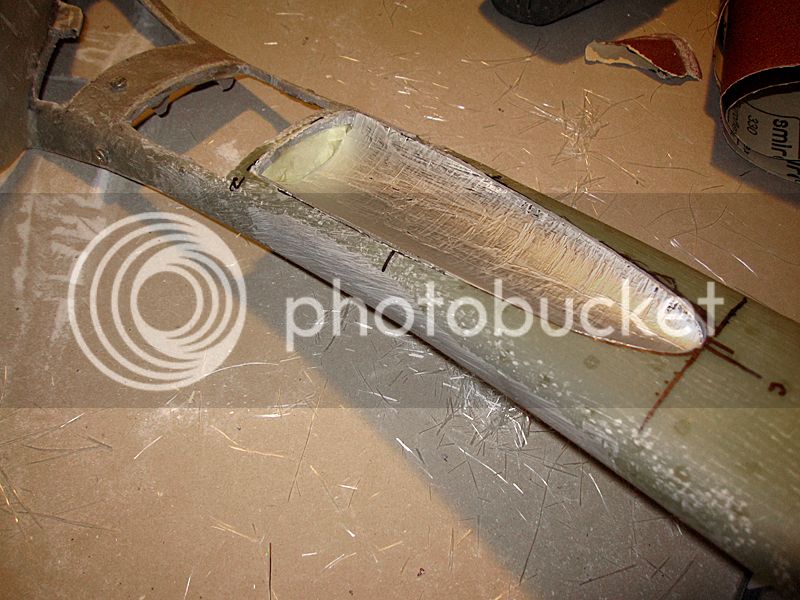

All imperfections on inner panel walls were smoothed out.







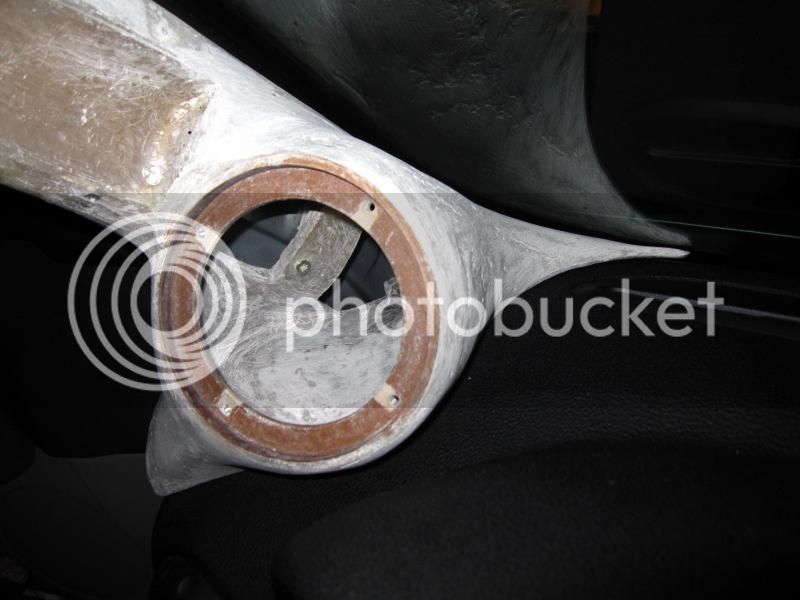

left mid enclosure is closed now, all templates removed and inside of the panel is smoothed out, still have to repeat all this procedure on the right side, and then I'll start with tweeter position/angle testing and with finishing both design wise..


OP
Lojze Carman

Lojze Carman

CarAudio.com Enthusiast
Mar 19, 2019
39
2

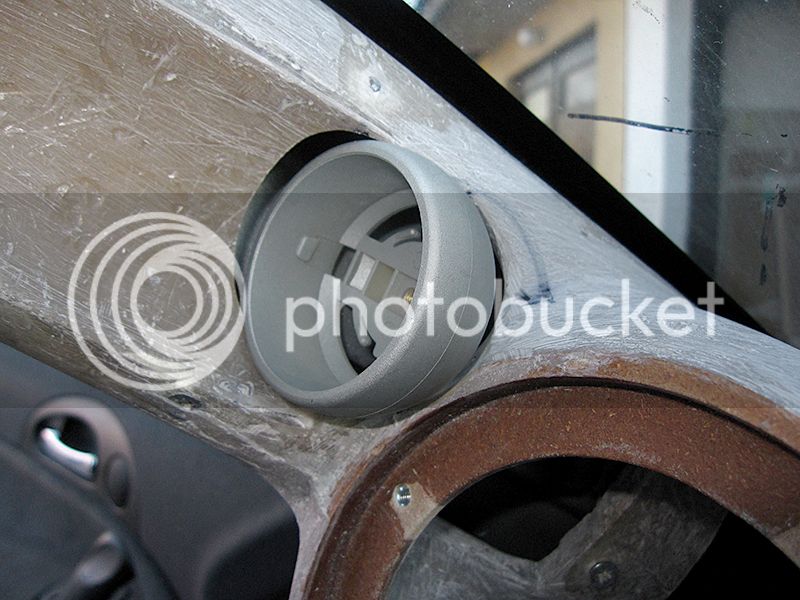

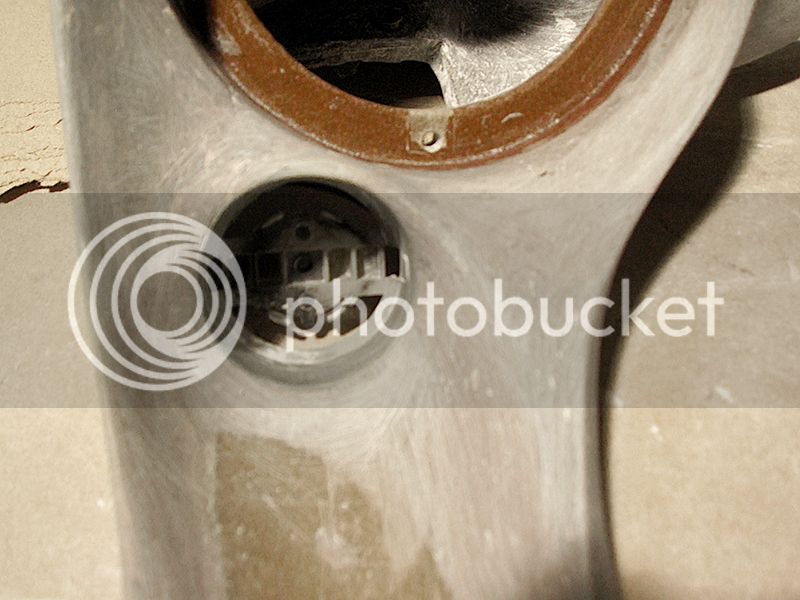

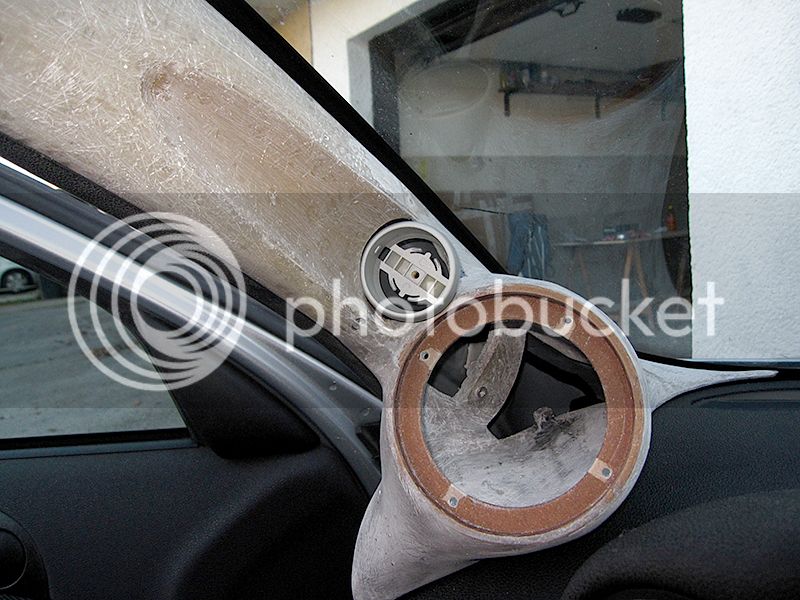

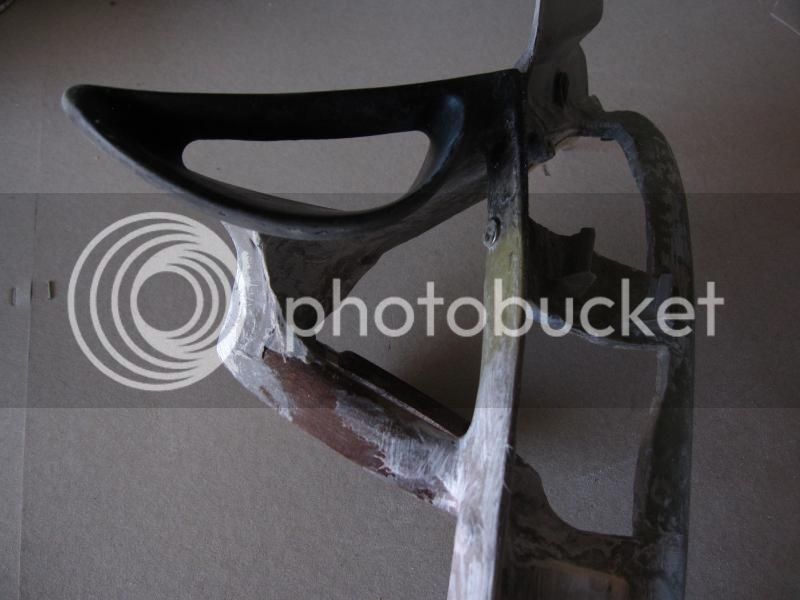

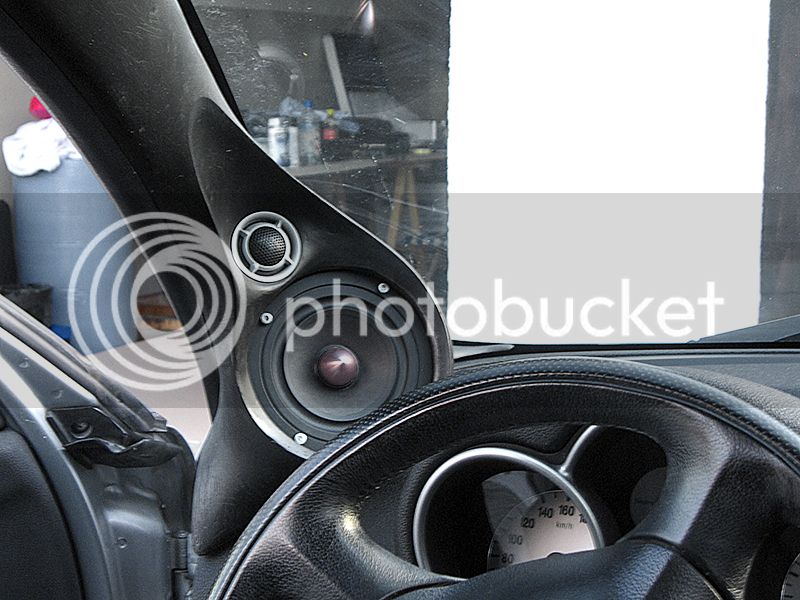

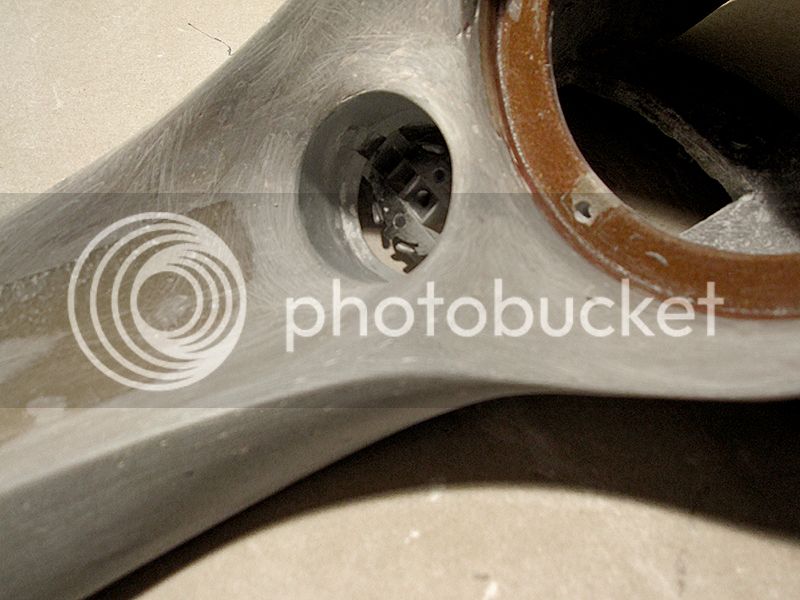

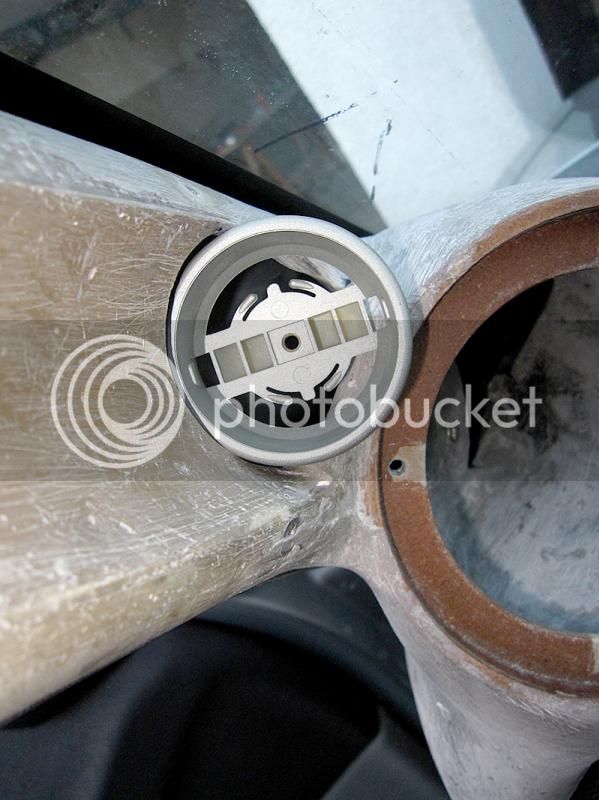

Tweeter orientation and angles were set based on week long testing. They are aimed very similar to mid range drivers.

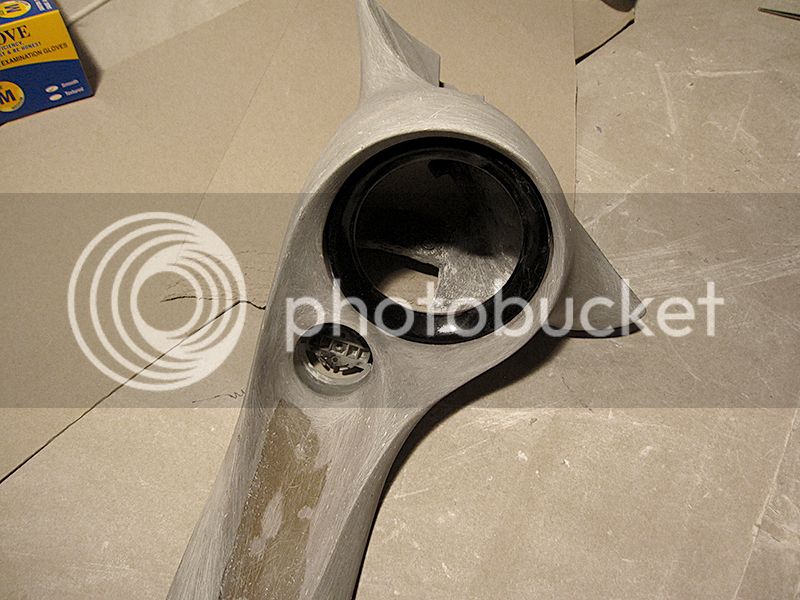

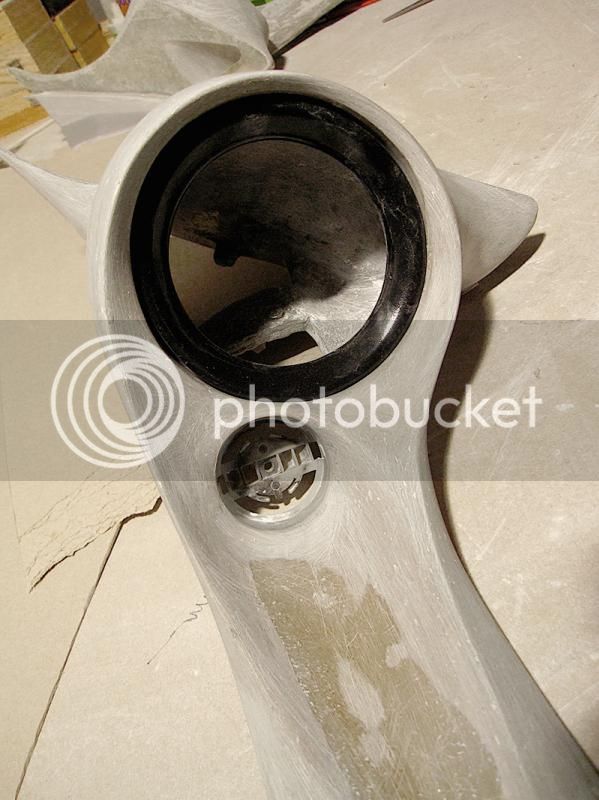

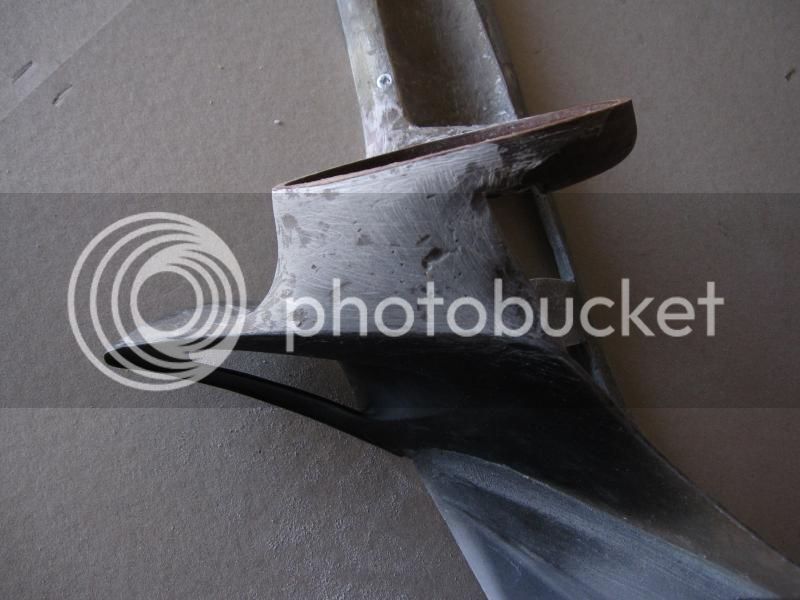

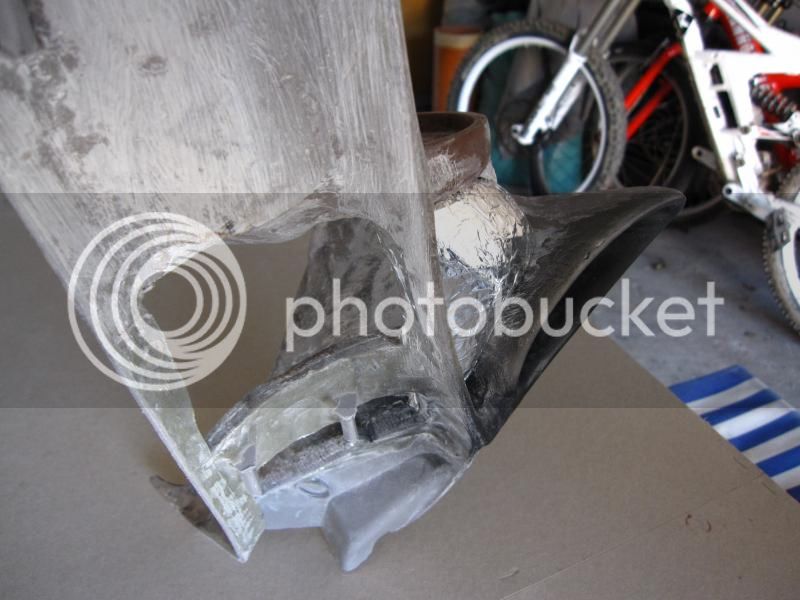

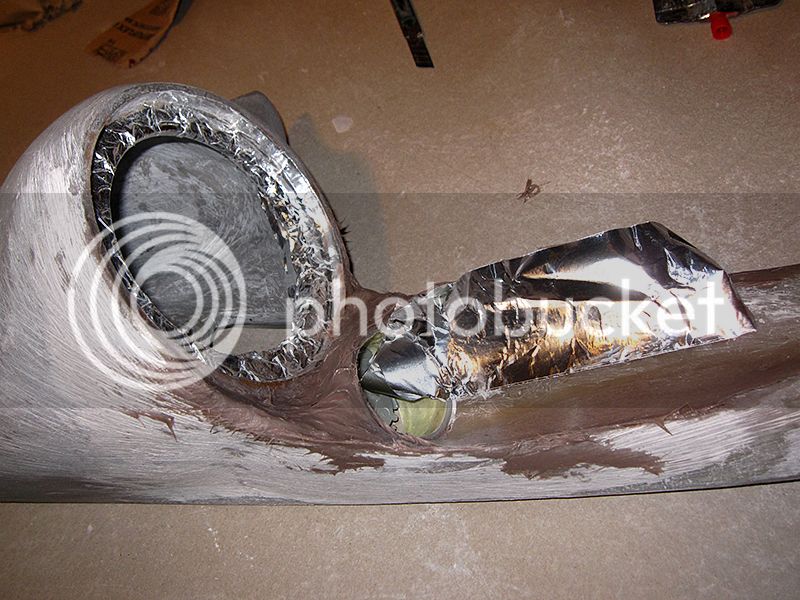

Tweeter "cups" were taped off, and glued in place with filler....a lot of filler :D

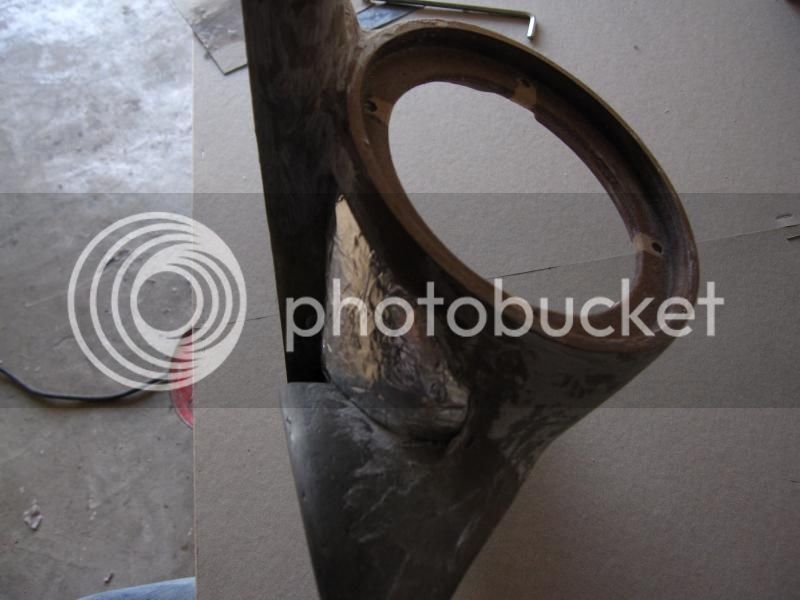

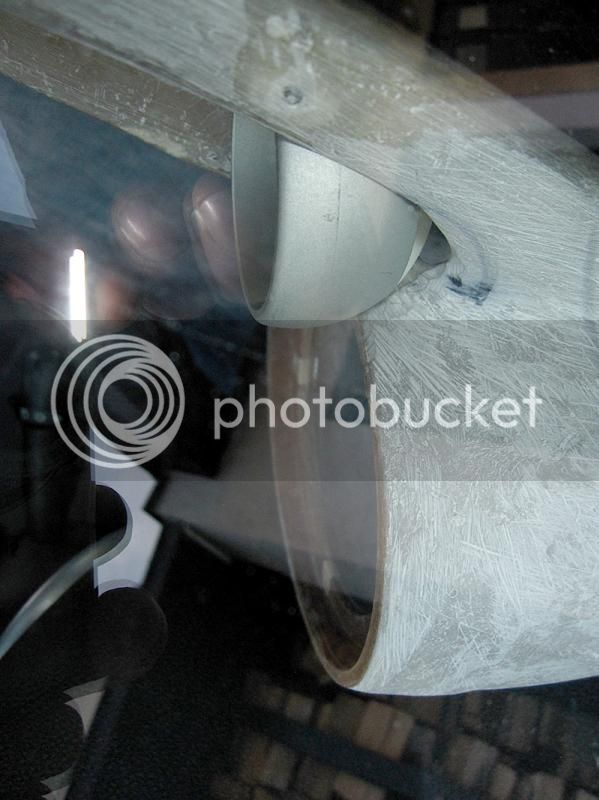

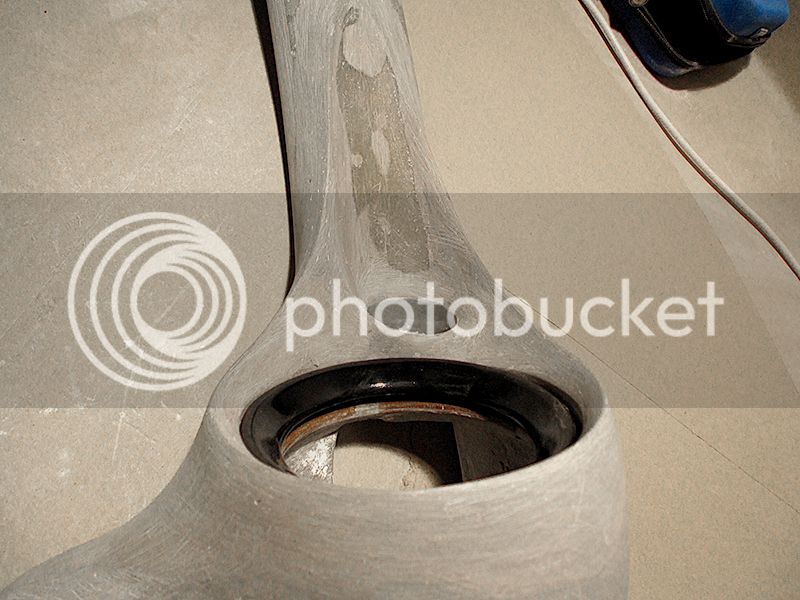

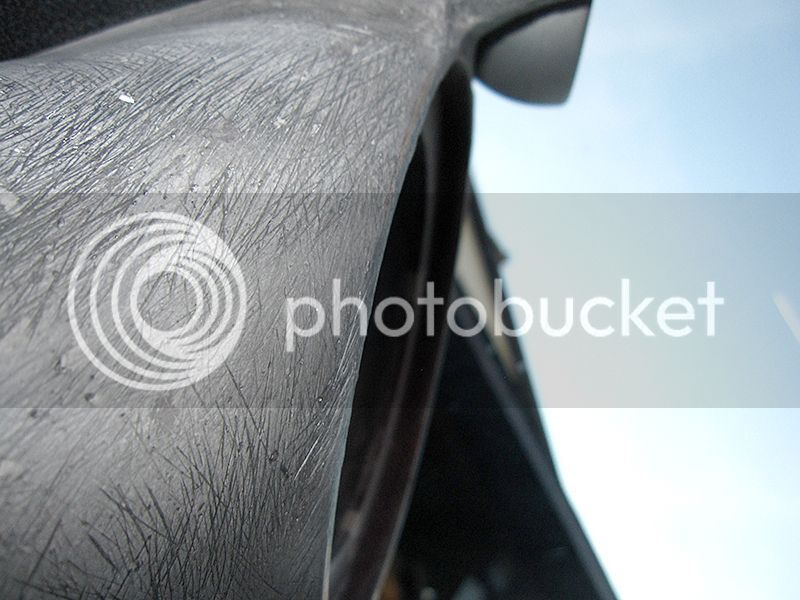

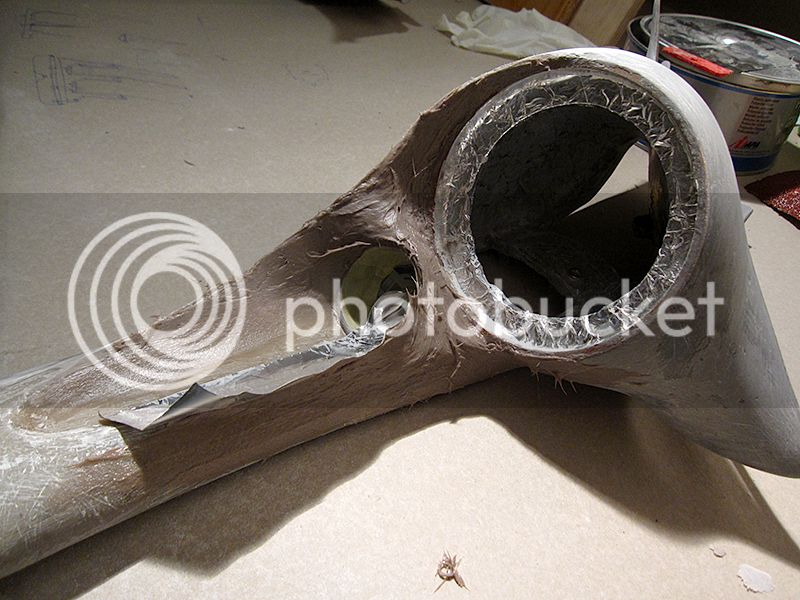

Then I started shaping a pillars






































OP
Lojze Carman

Lojze Carman

CarAudio.com Enthusiast
Mar 19, 2019
39
2
Things started to move again, temperatures become bearable outside and in garage....

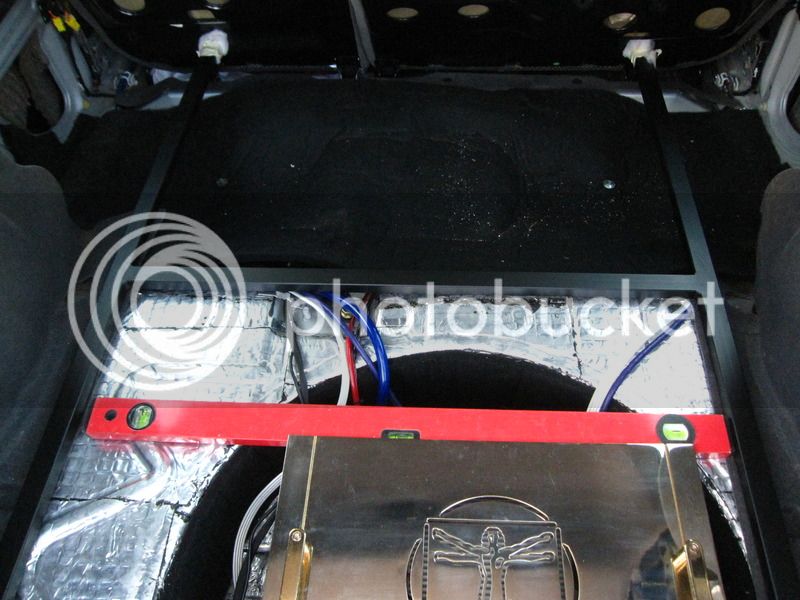

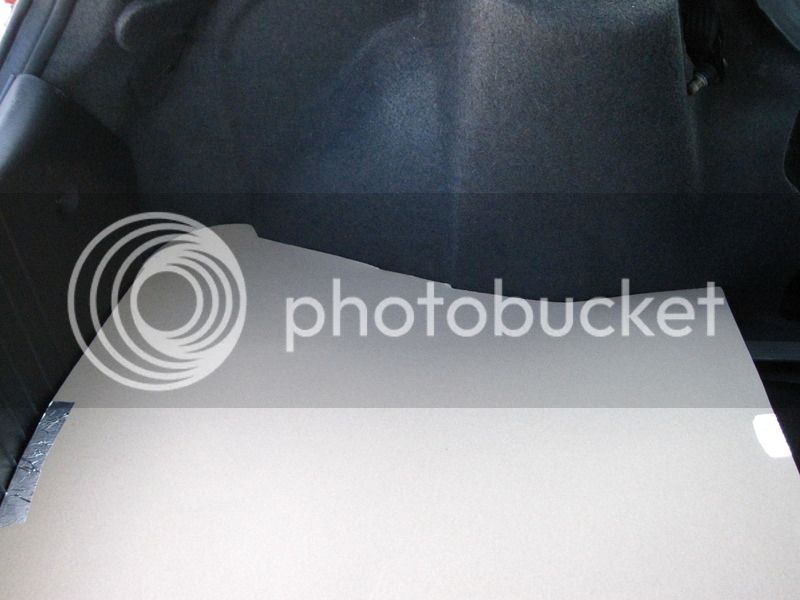

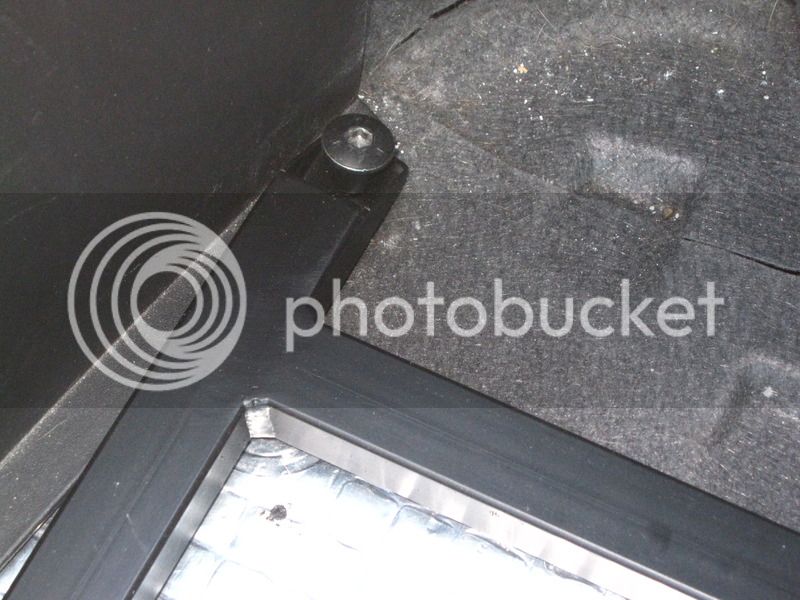

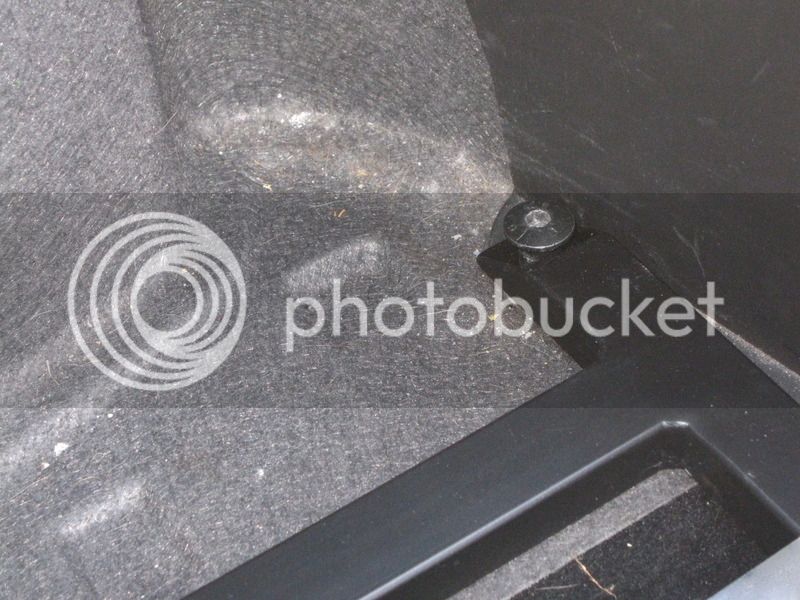

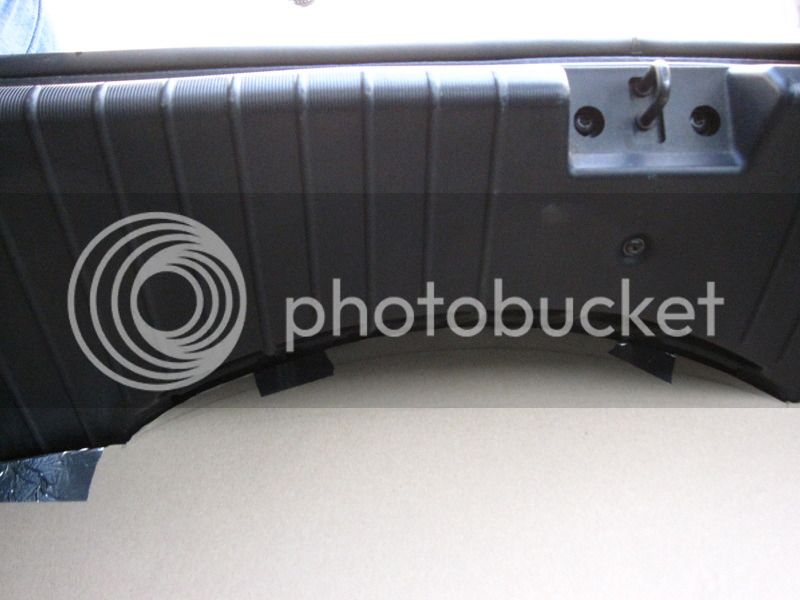

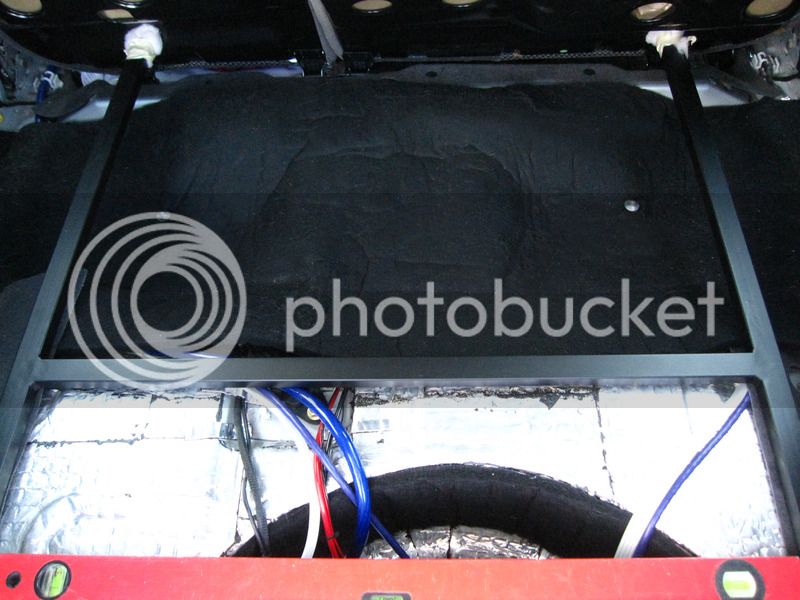

Started work on metal frame that will use as base support for 0.75" MDF board It will be bolted down to the car frame. SW box will sit on this board and will be also secured to the metal frame. Two additional braces will be welded to the frame later - I left them because I need space for temporary amp so I will maintained some tunes in the car until the final amp rack will be fabricated.









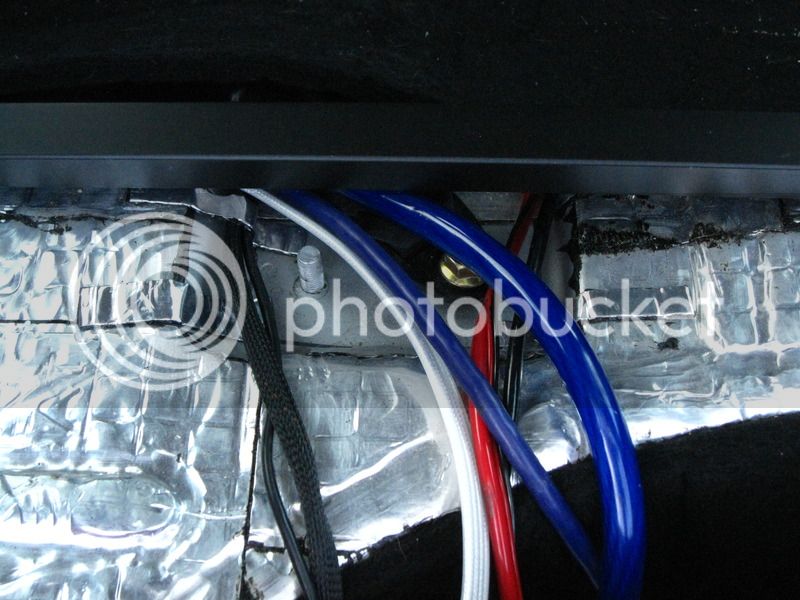

All grounds will be bolted to the chassis here

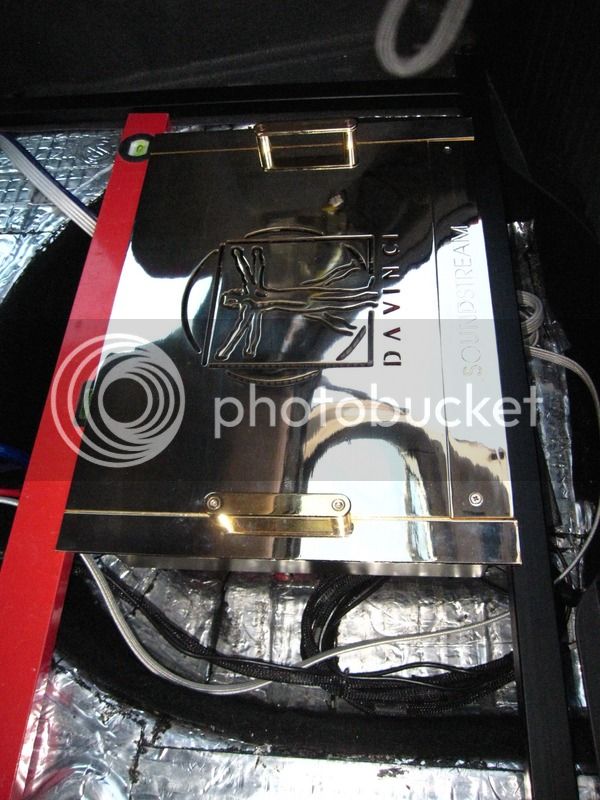

temporary amp

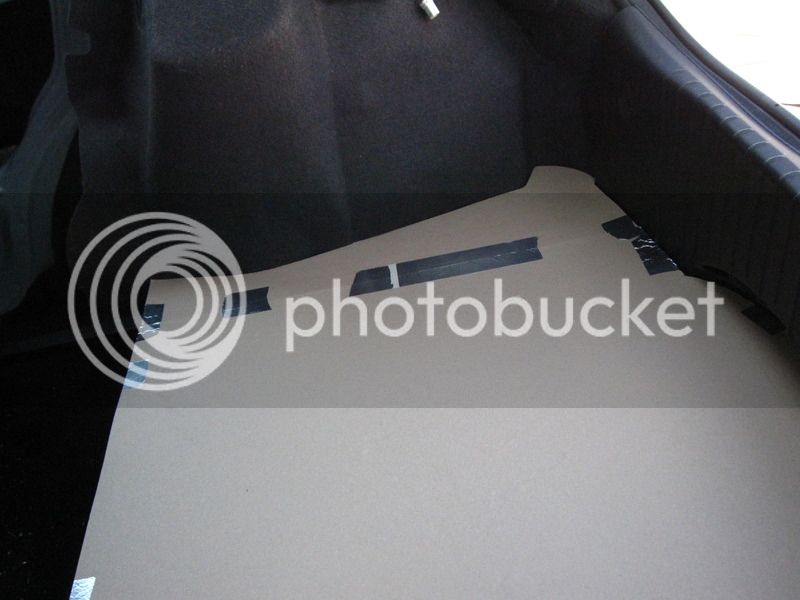

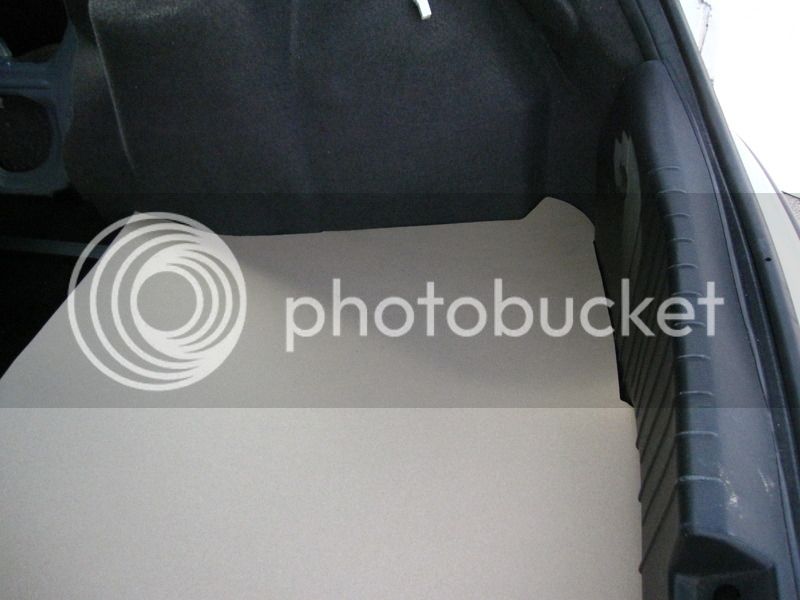

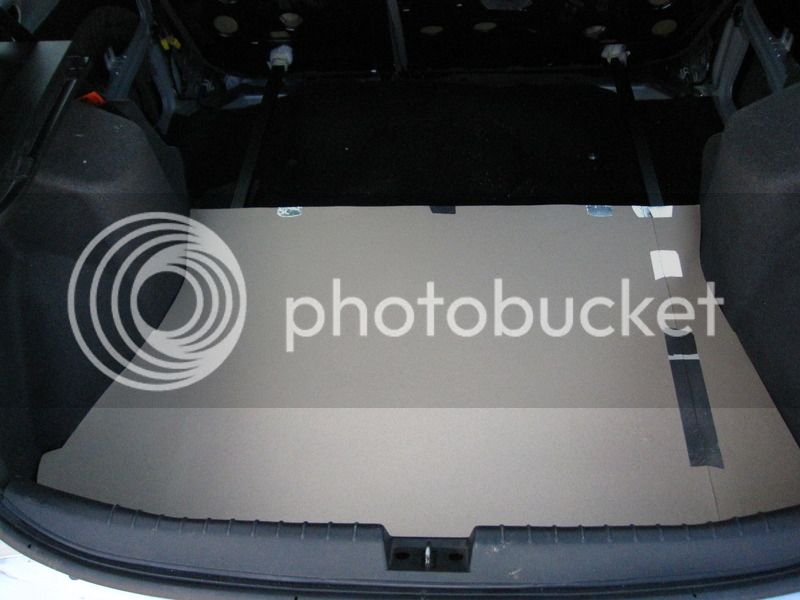

after that I made cardboard template for MDF plate











and my lazy helper



say what ?!!??



OP
Lojze Carman

Lojze Carman

CarAudio.com Enthusiast
Mar 19, 2019
39
2

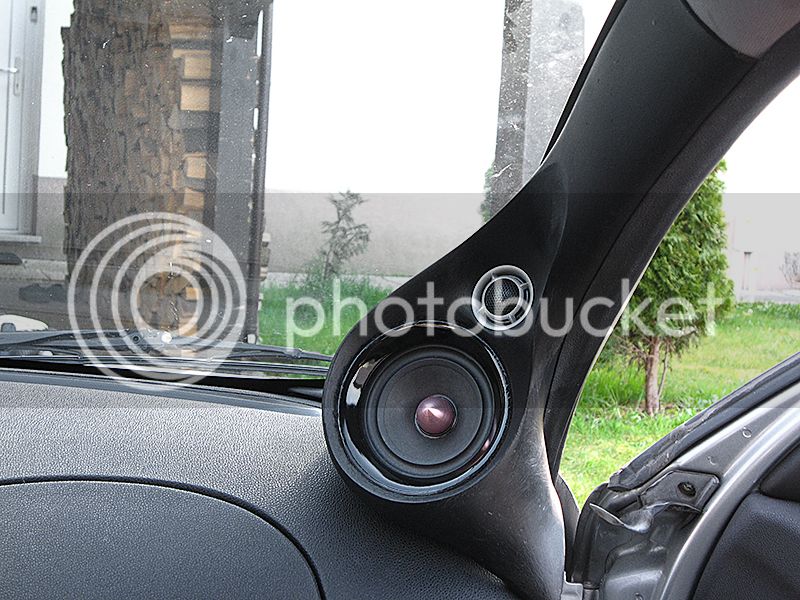

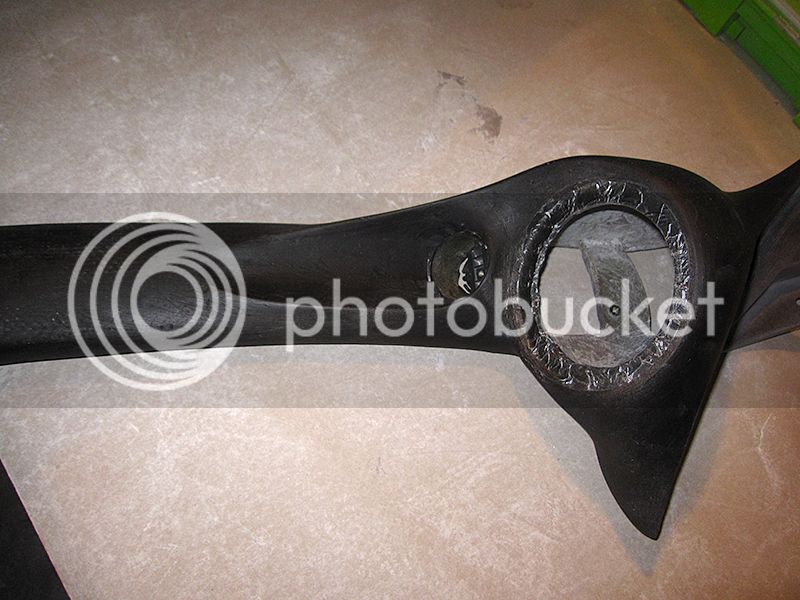

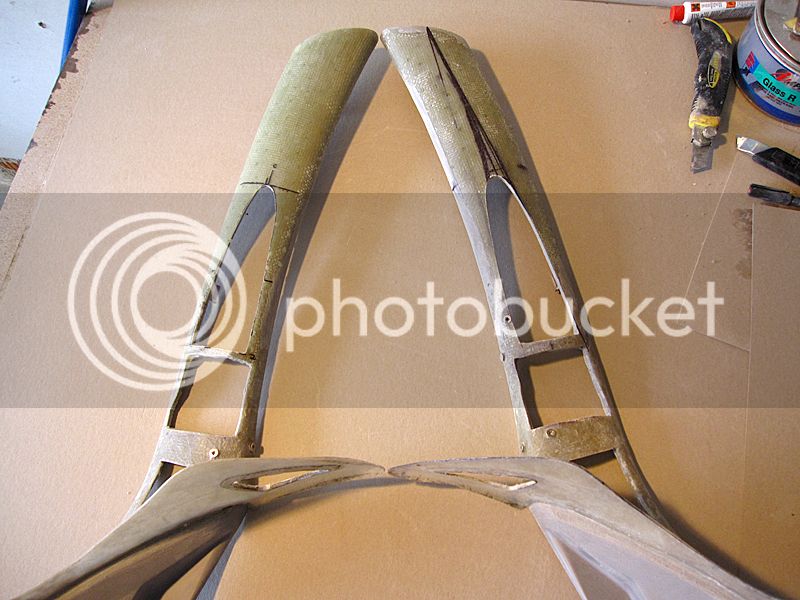

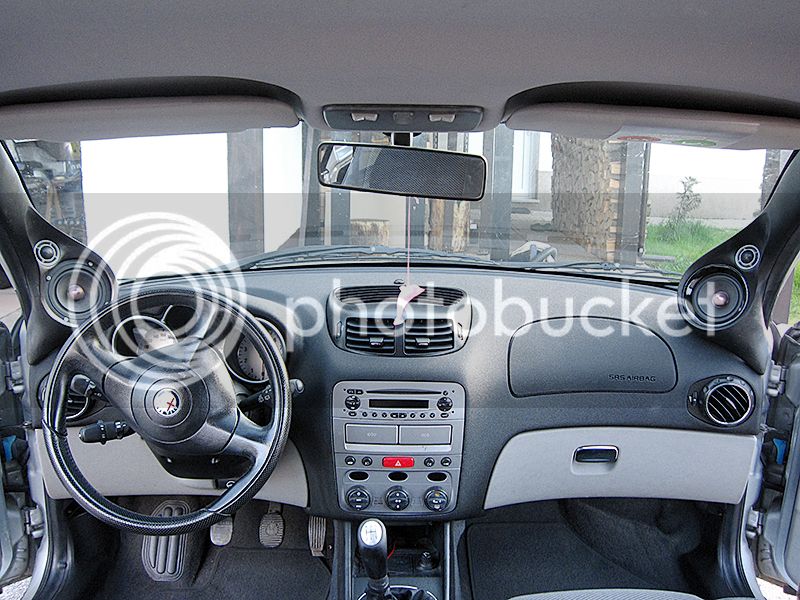

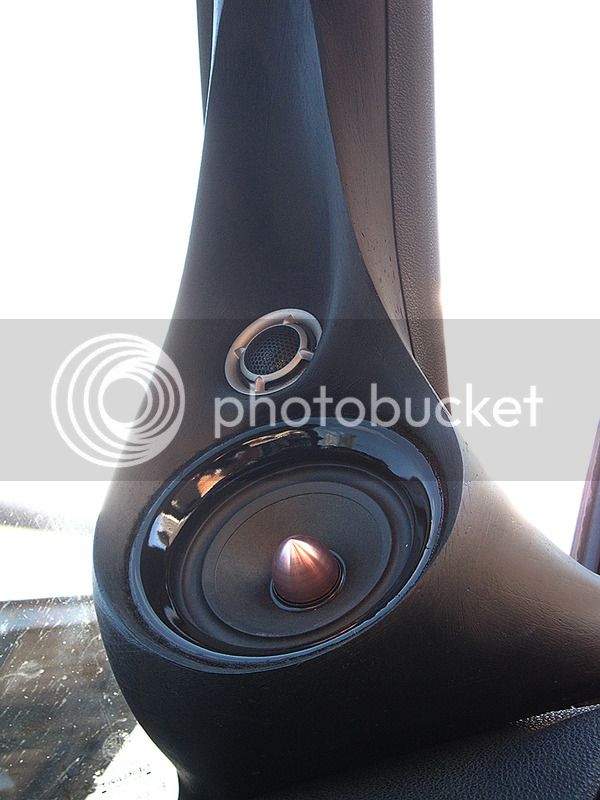

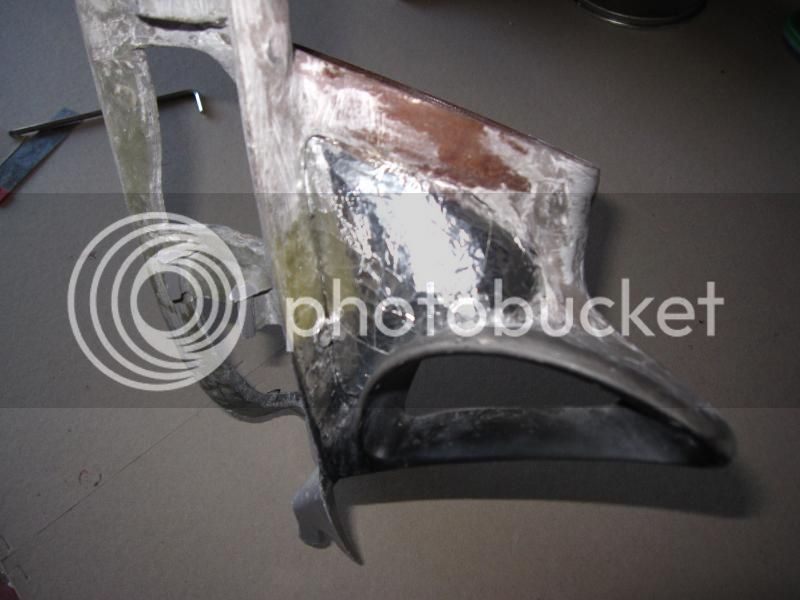

first A-pillars - they still lack finish, I will put them in paint when all other parts will be finished and prepared for finish









Temporary Amp rack

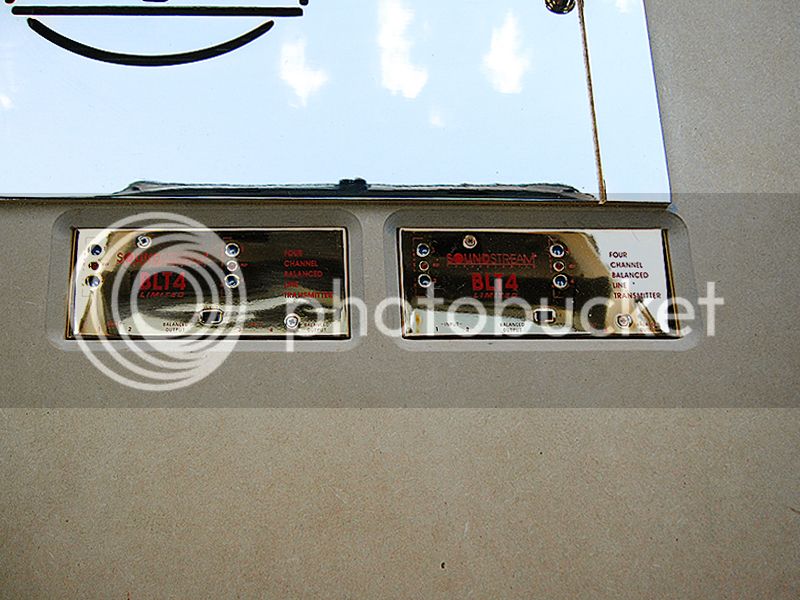

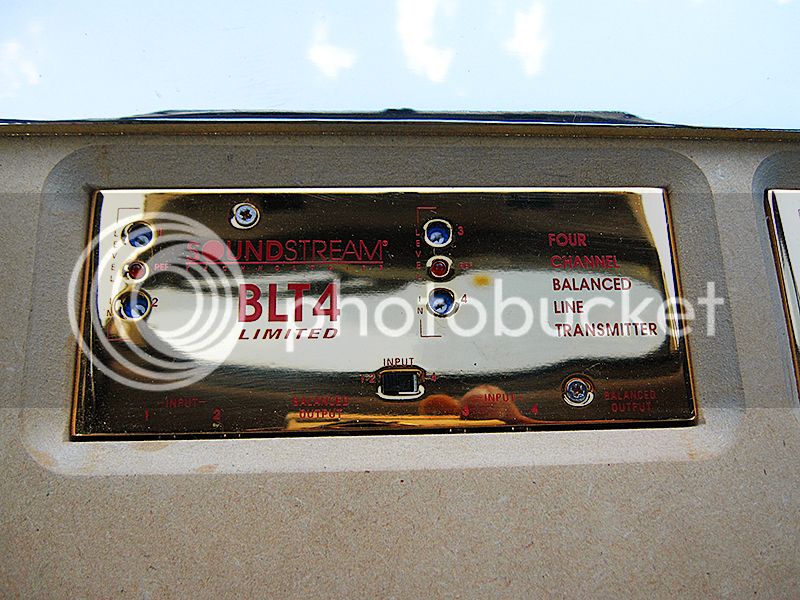

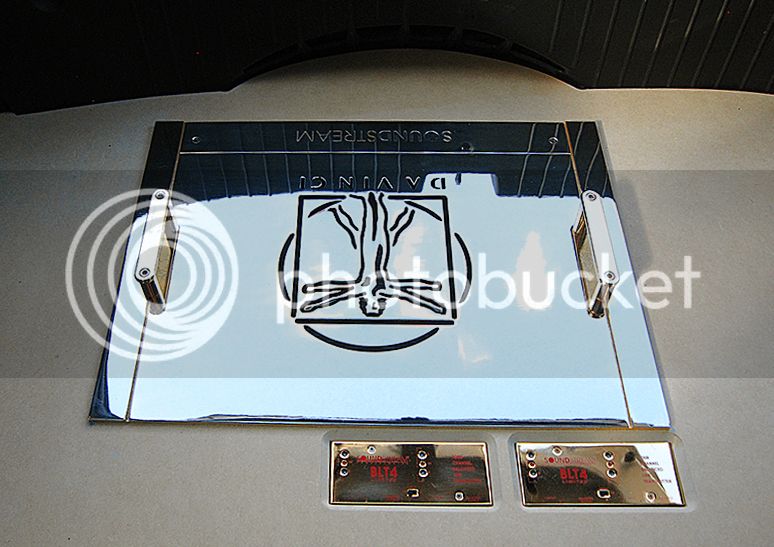

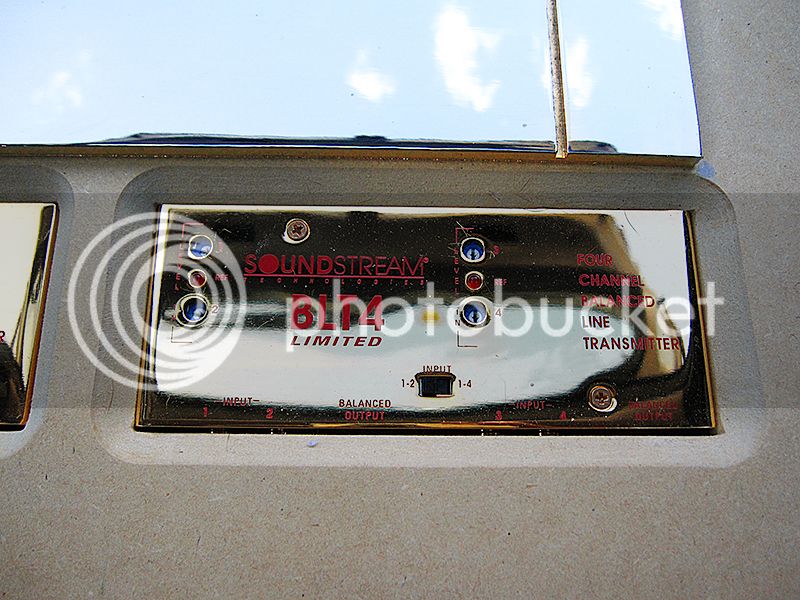

BLT Limited

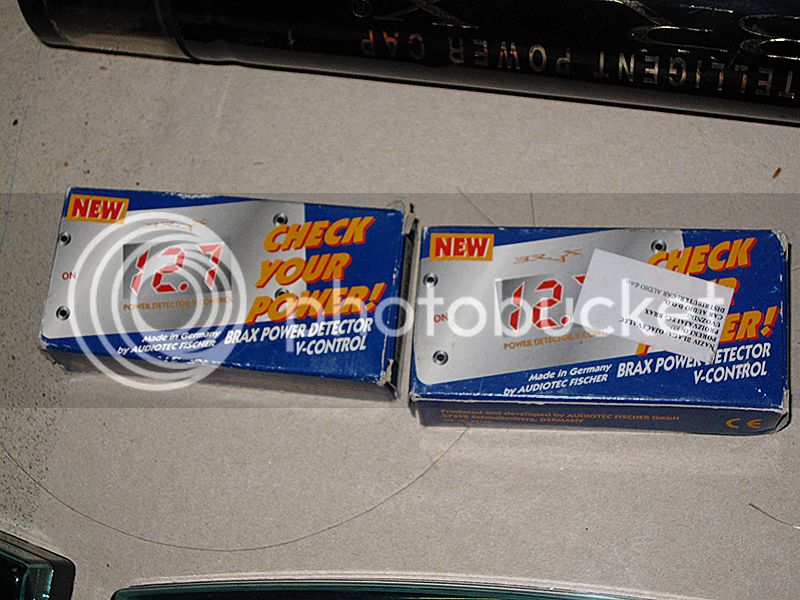

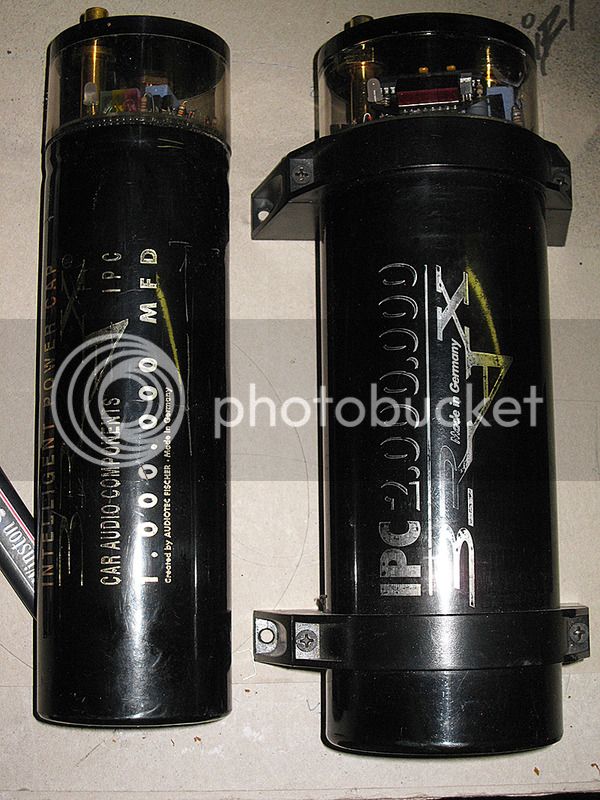

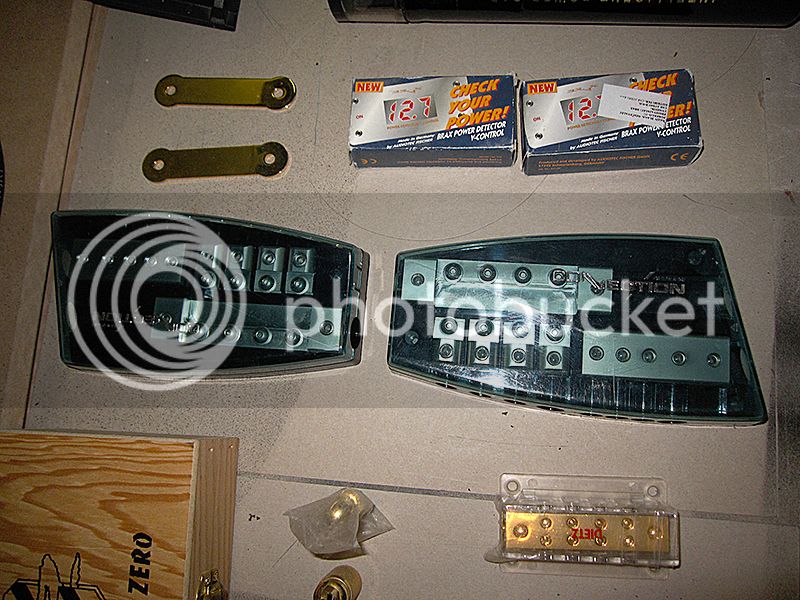

and a few other bits of system - caps, cable terminators, SW cable, voltmeters....













Esoteric audio subwoofer cable



I also started to hallucinate about door pod design




OP
Lojze Carman

Lojze Carman

CarAudio.com Enthusiast
Mar 19, 2019
39
2
...so here we go....at last :D:D

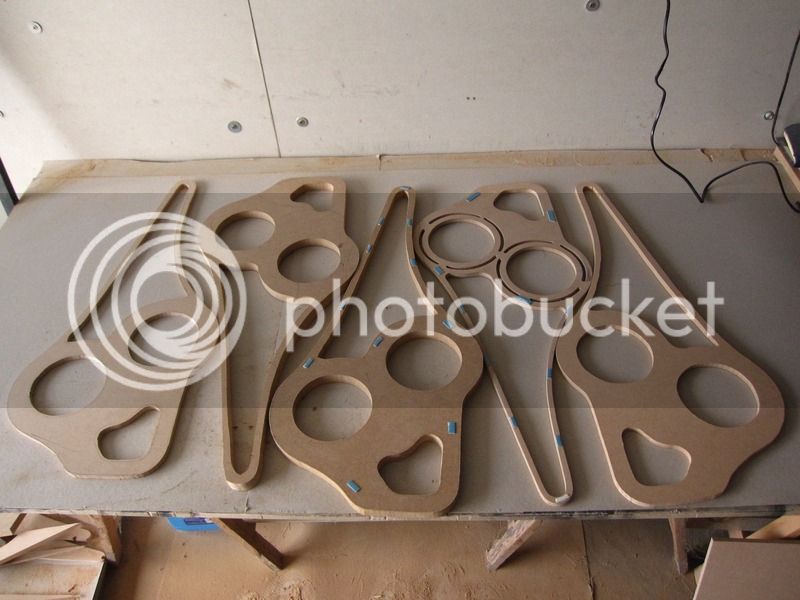

At last I started to work on door panels/enclosures for dual mid bass drivers. Preparing a couple of parts needed for final assembly.

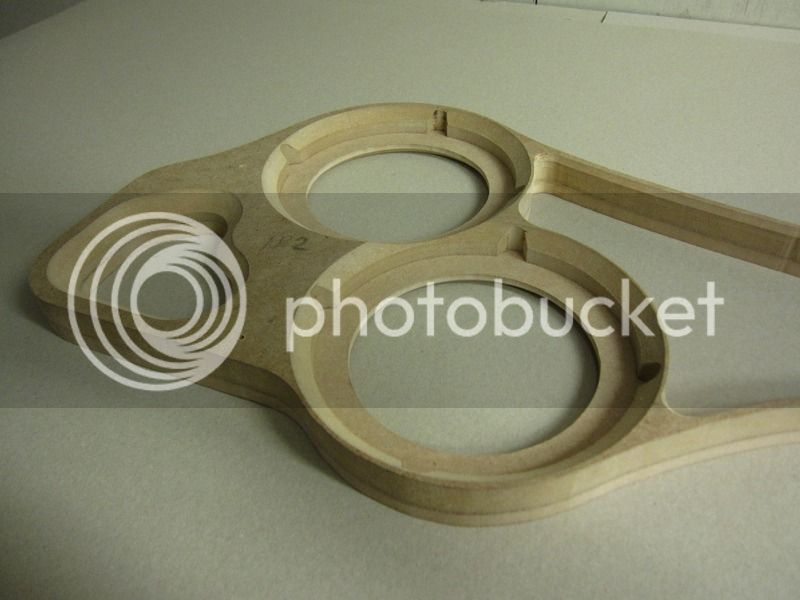

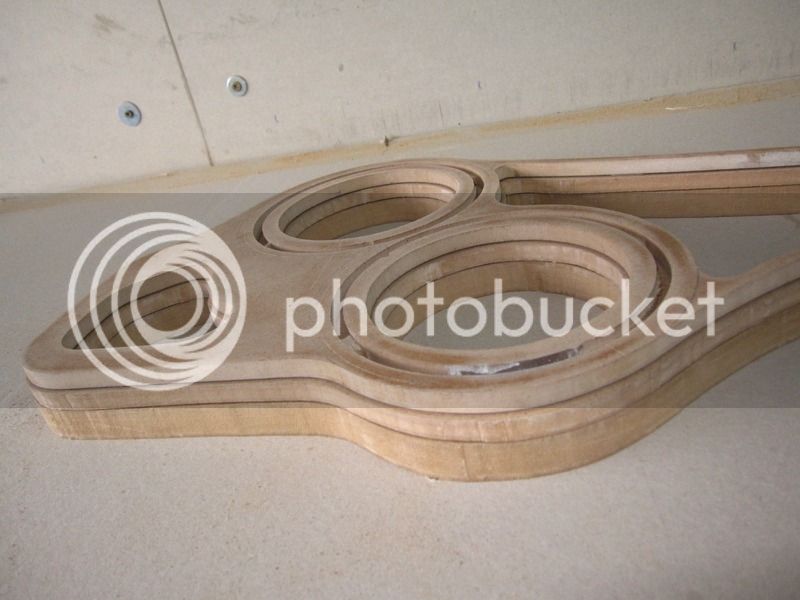

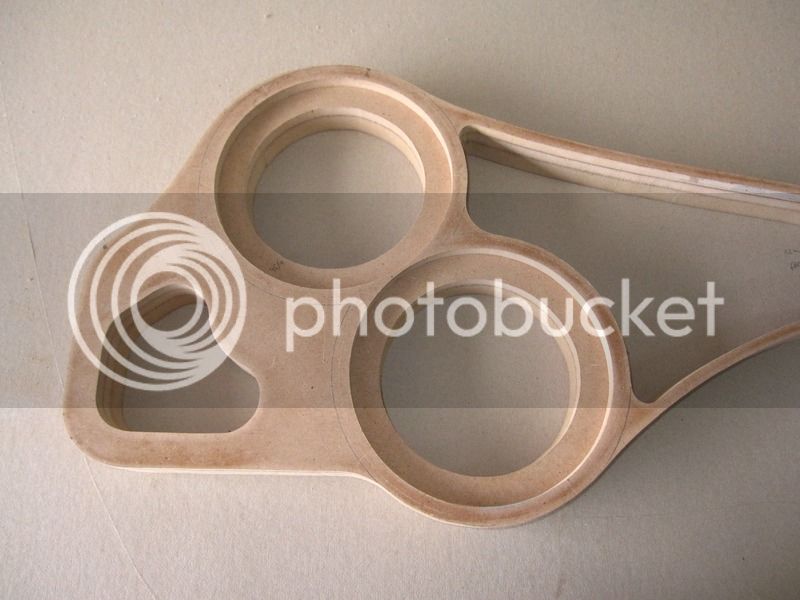

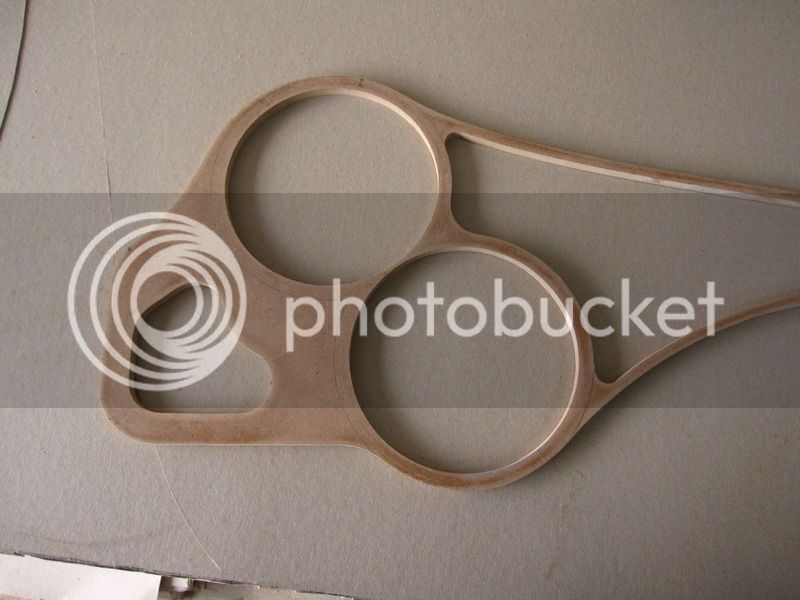

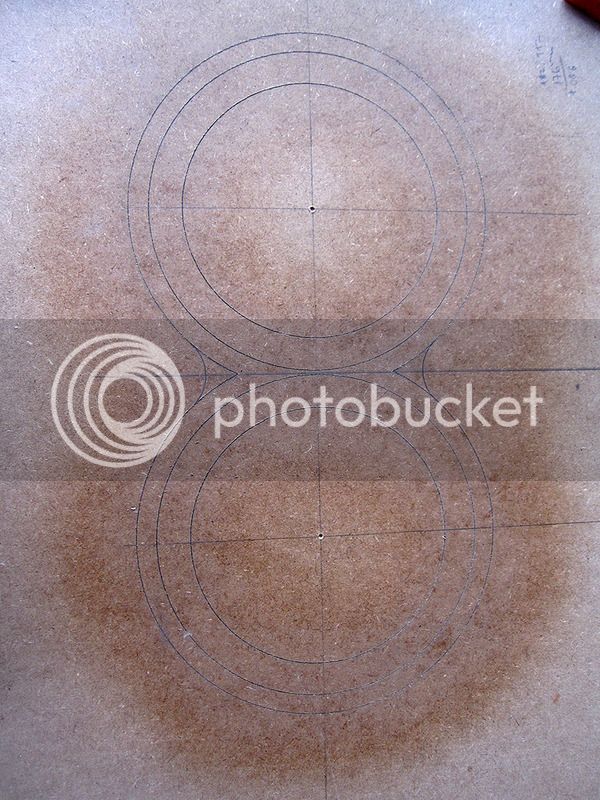

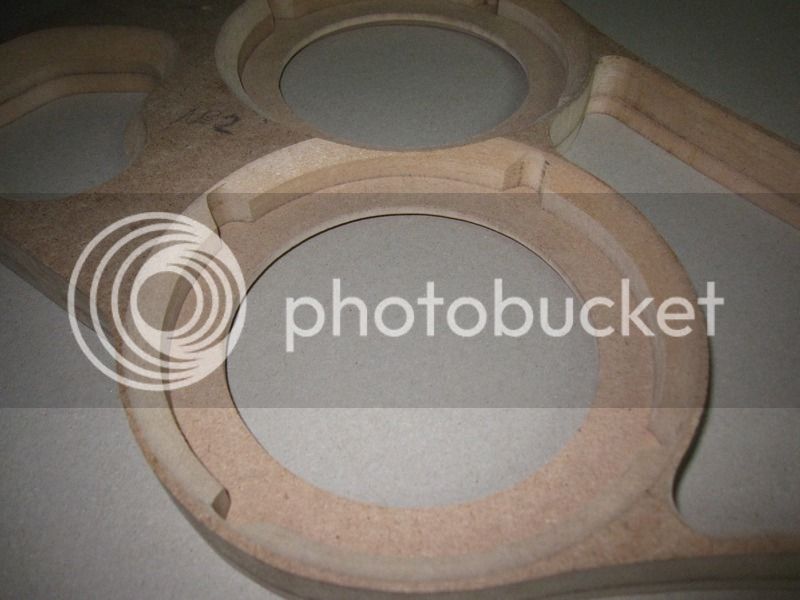

Started with rings for dual mid bass drivers...not sure if I would use them since plan changed a lil bit, but anyways heres the pics







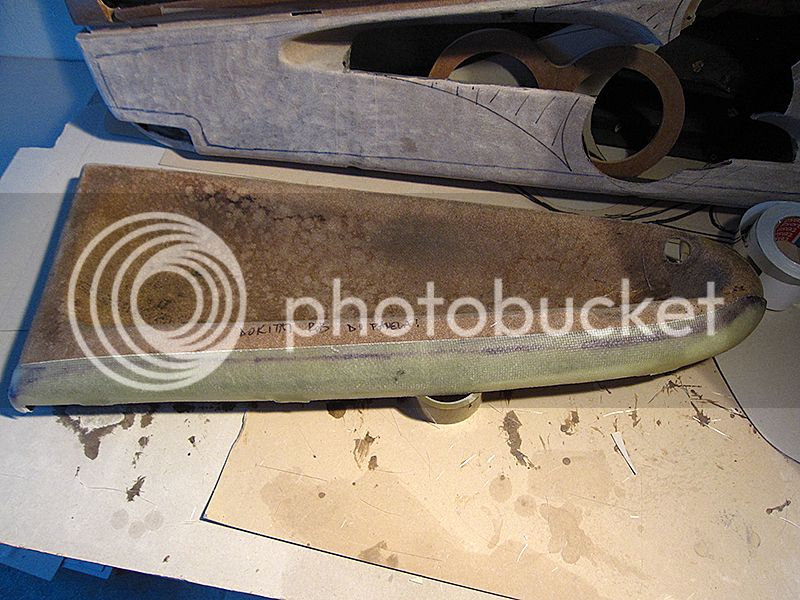

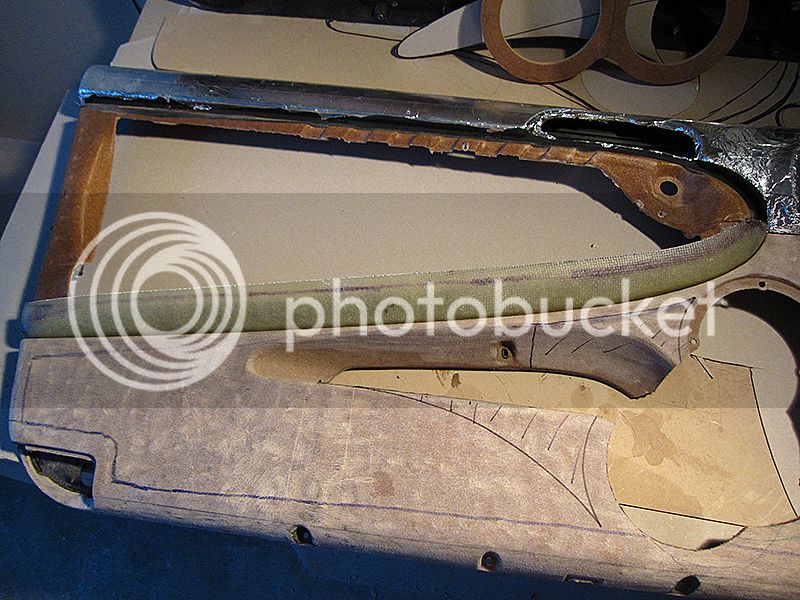

moved to next part - I will modify arm rest part of the doors so I need to fab a part the will go over pimped arm rest to hide seam. The arm rest will be cut in two so I will be able to reinstall it when doors are finished.

















[/QUOTE]


OP
Lojze Carman

Lojze Carman

CarAudio.com Enthusiast
Mar 19, 2019
39
2

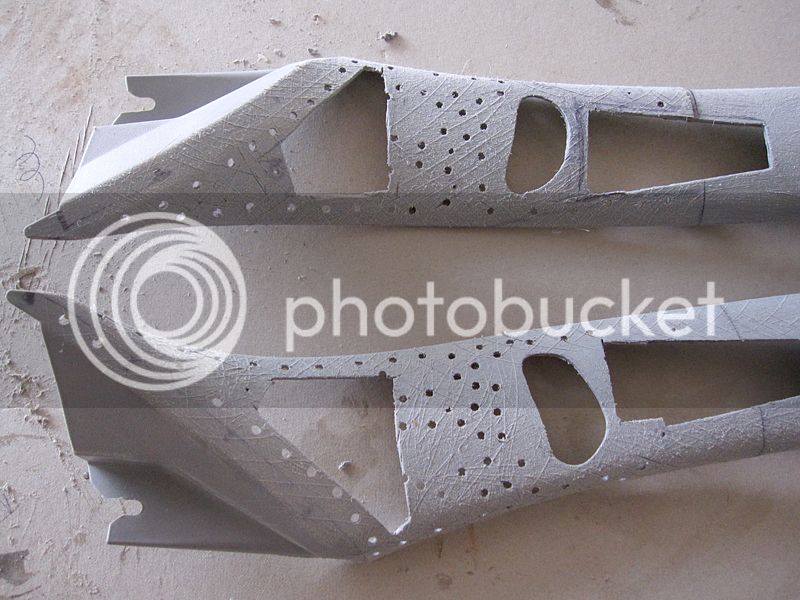

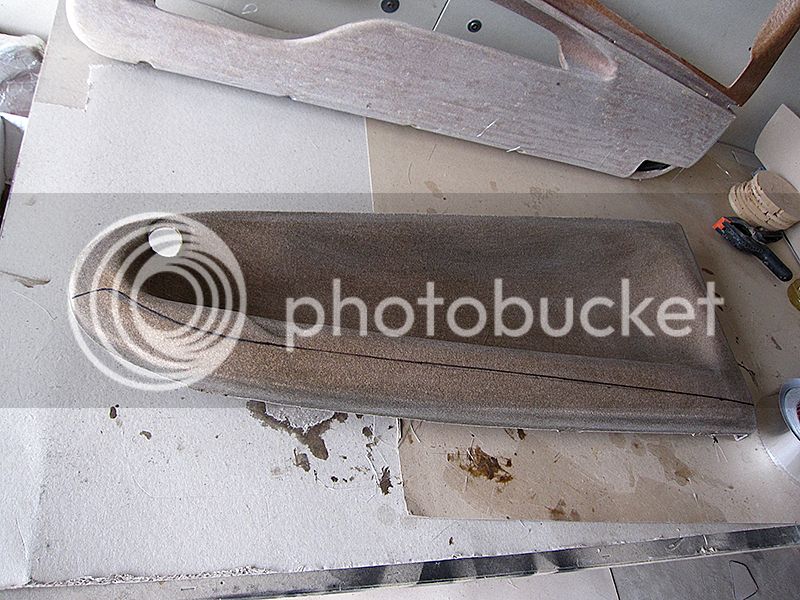

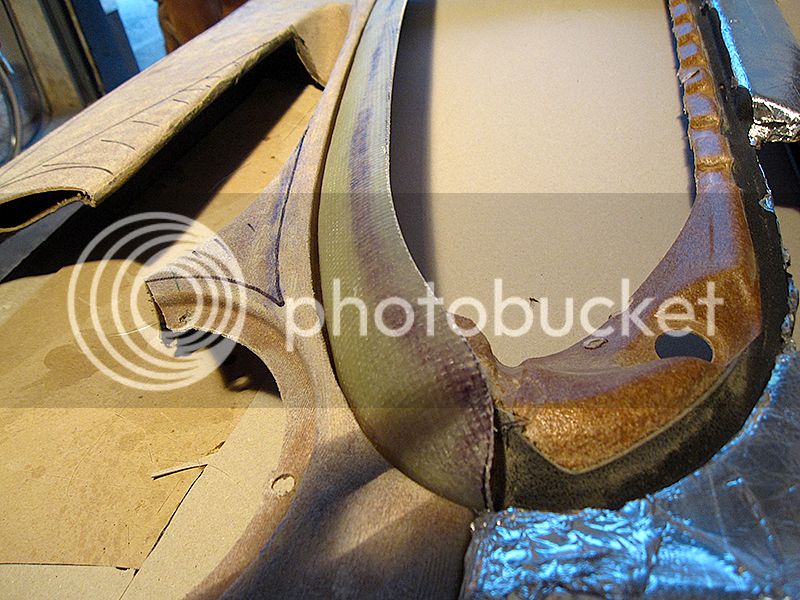

Then I moved to fabricating mold of the Inner door metal

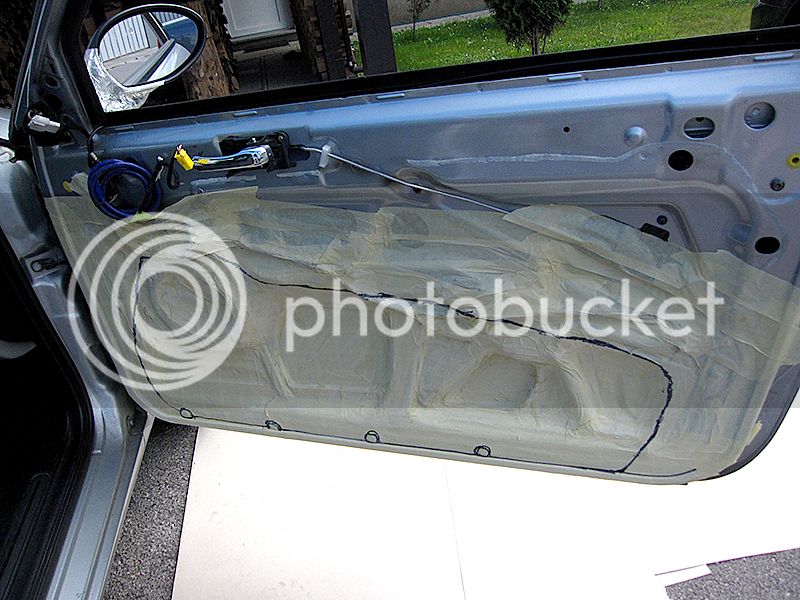

Doors were disassembled and taped off

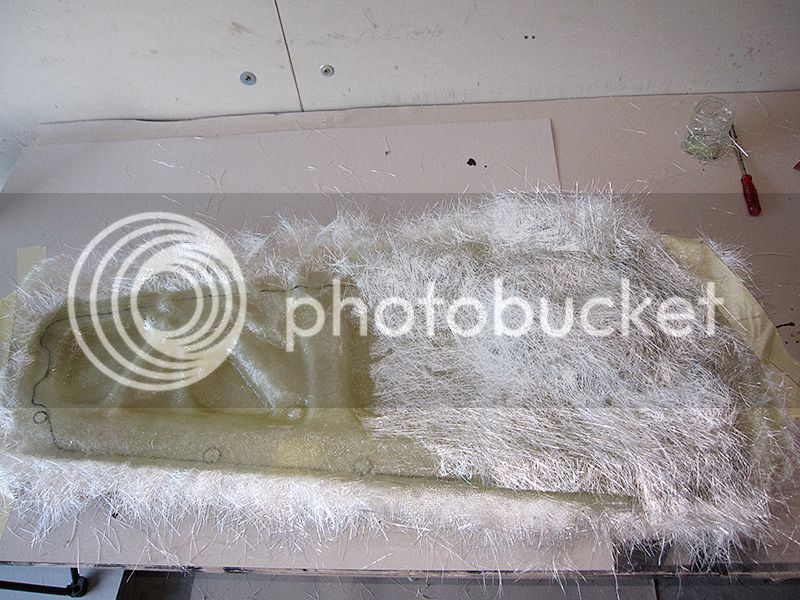

Old release wax was applied and a 5/6 FG layers added

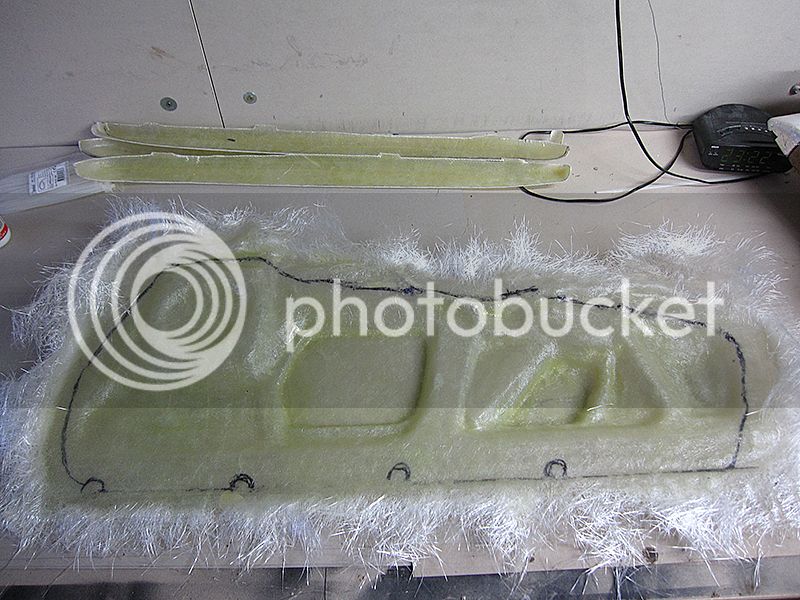

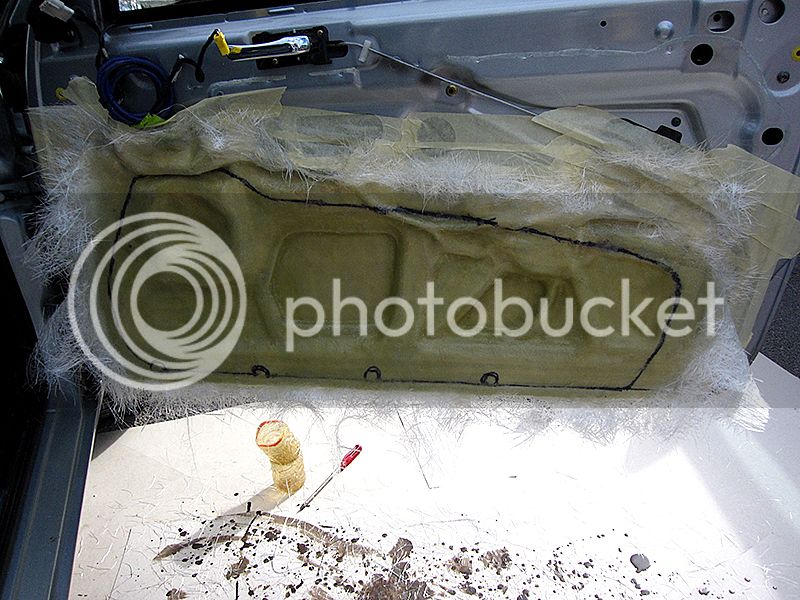

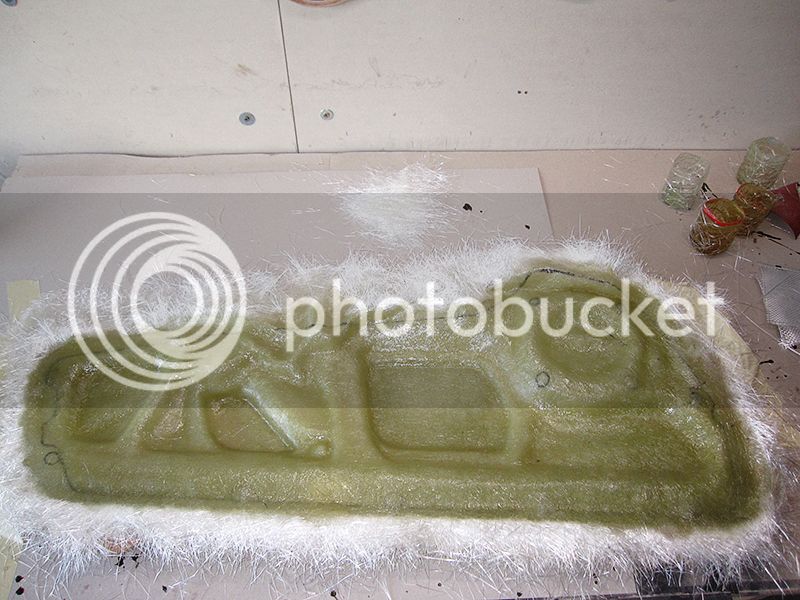

pulled off of the doors, cleaned up back side



added a couple of additional FG layers to strengthen it up. It is 1/3 of an inch thick, I think it is enough. There will be added Silent coat on this panel to deaden it





Mold was then trimed to desired shape (can't find pic)

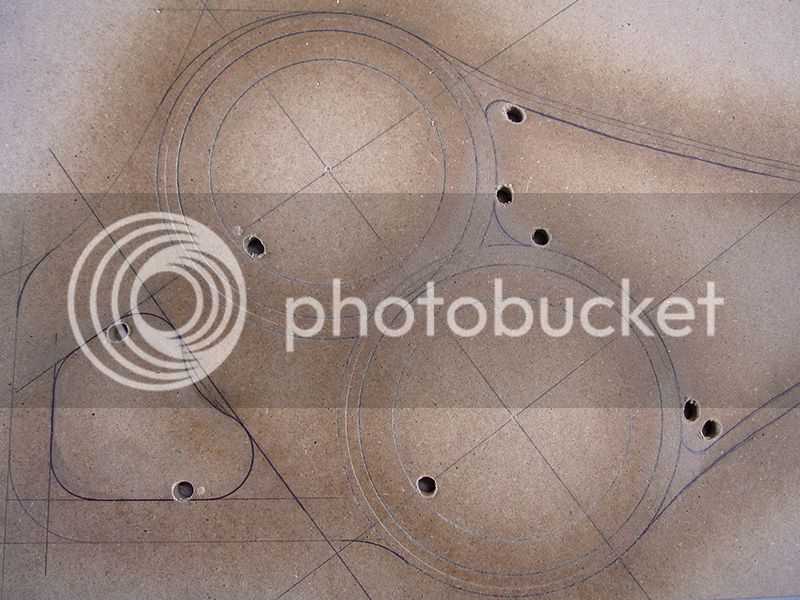

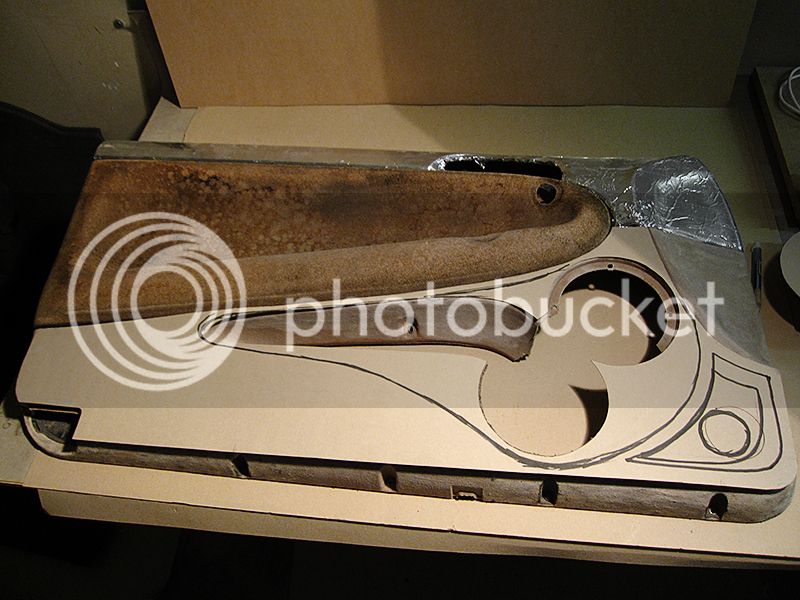

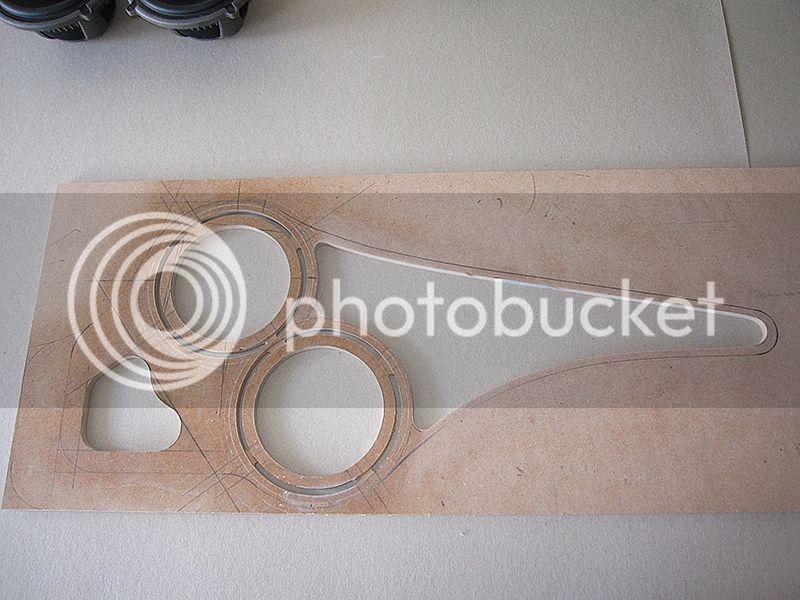

Then I moved to MDF template for front door panel fascia/rings/port shape, dent shape














OP
Lojze Carman

Lojze Carman

CarAudio.com Enthusiast
Mar 19, 2019
39
2
so...on to the news..a few pics

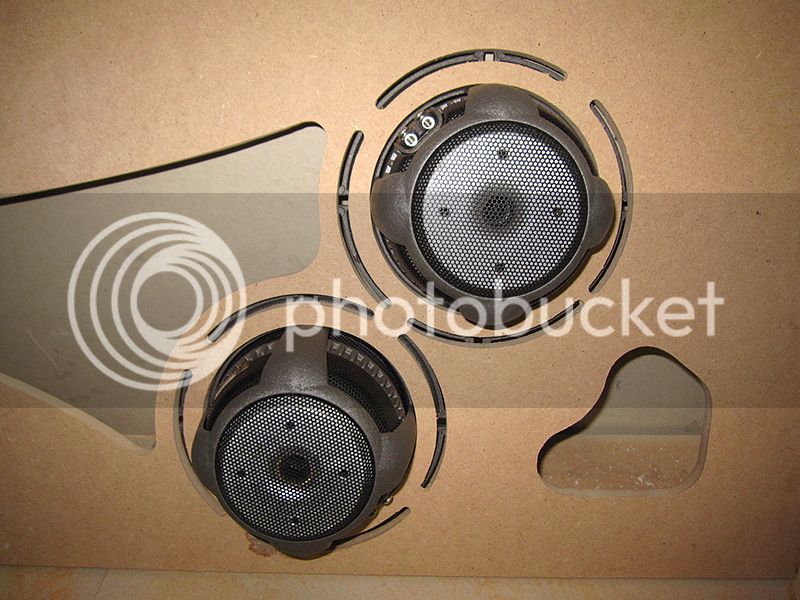

Im working on driver supports/rings for mid bass drivers that will be a part of door panels. Supports will hold also a port and a dent, so the final looks should go well with A-pillar design... heres a few pics of what Im doing for last couple of days:

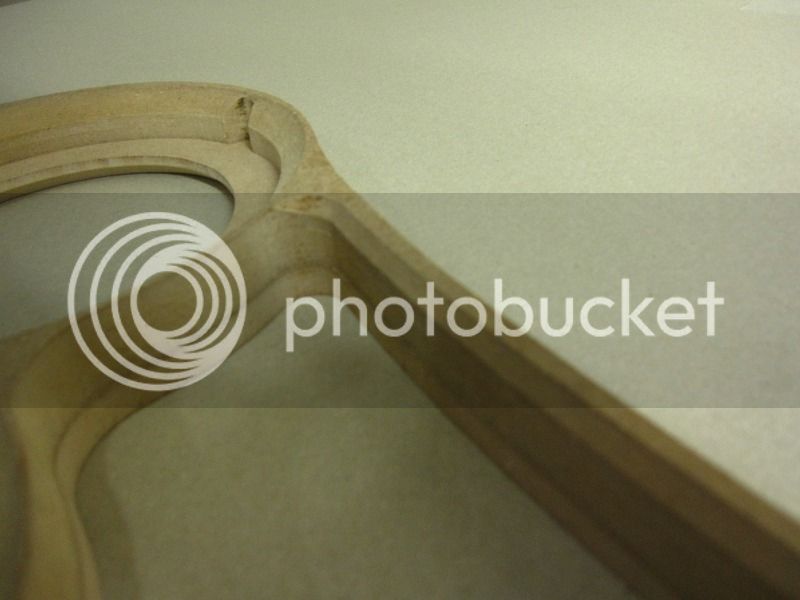

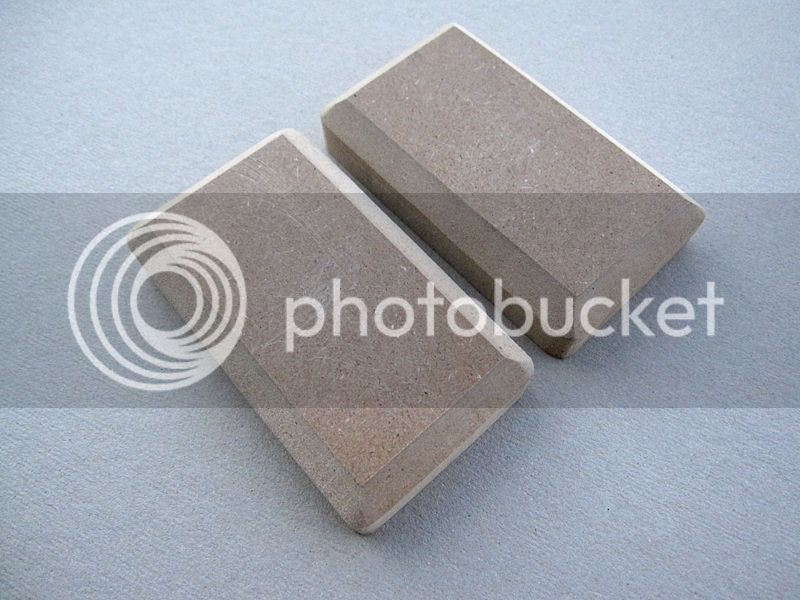

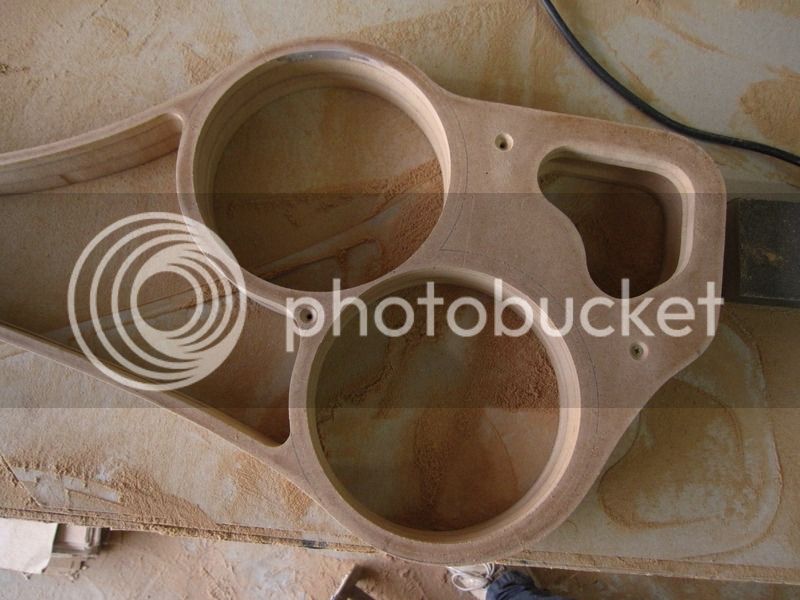

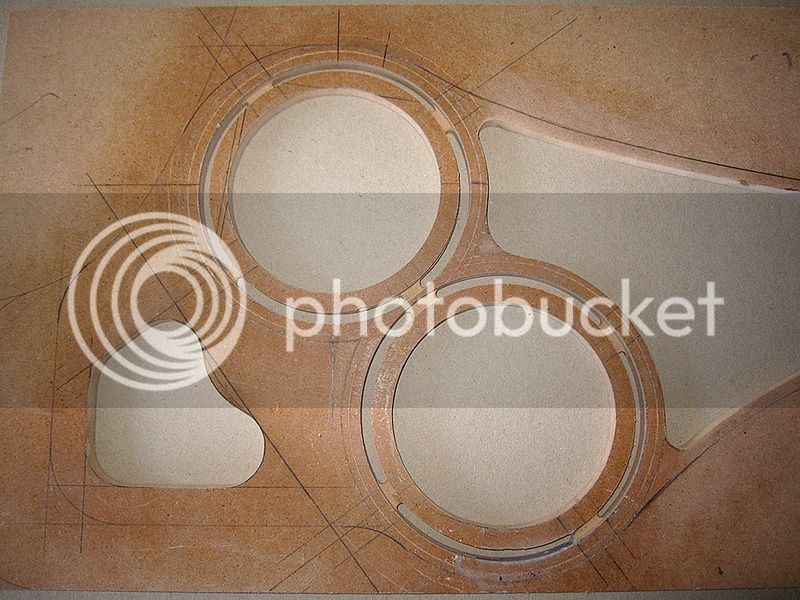

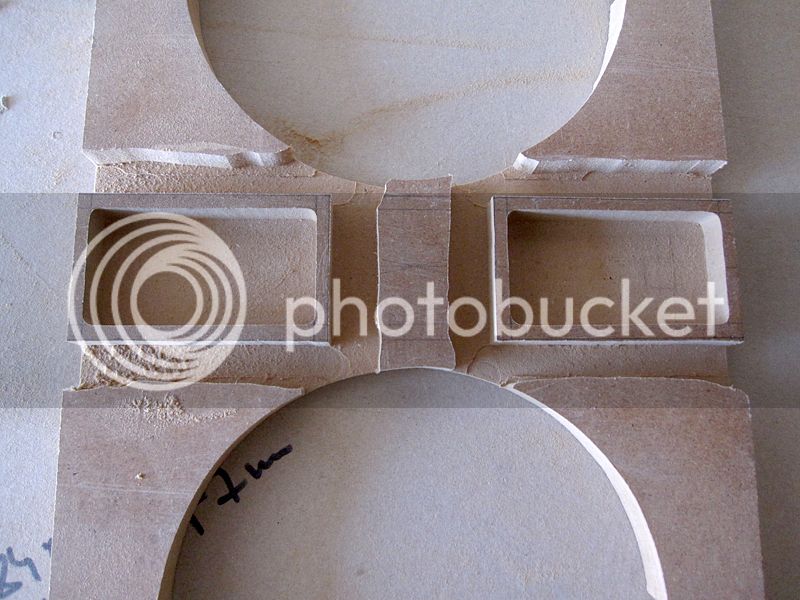

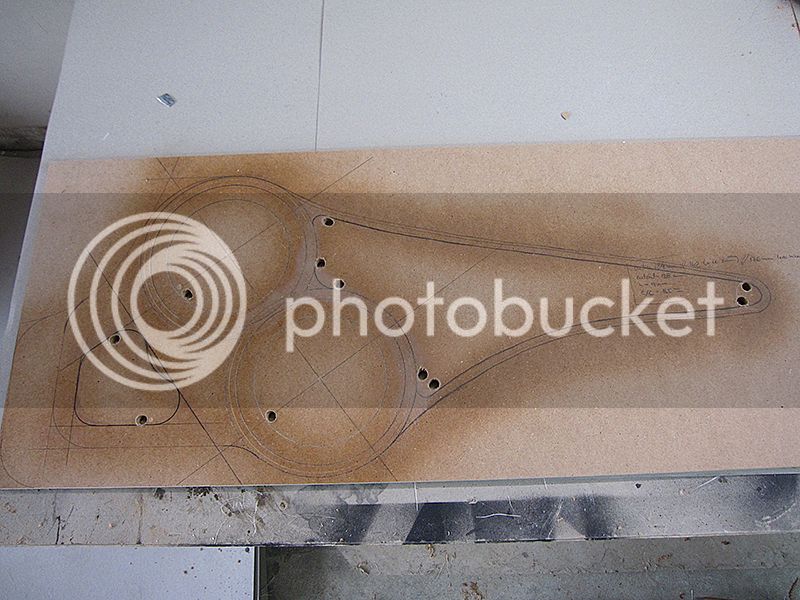

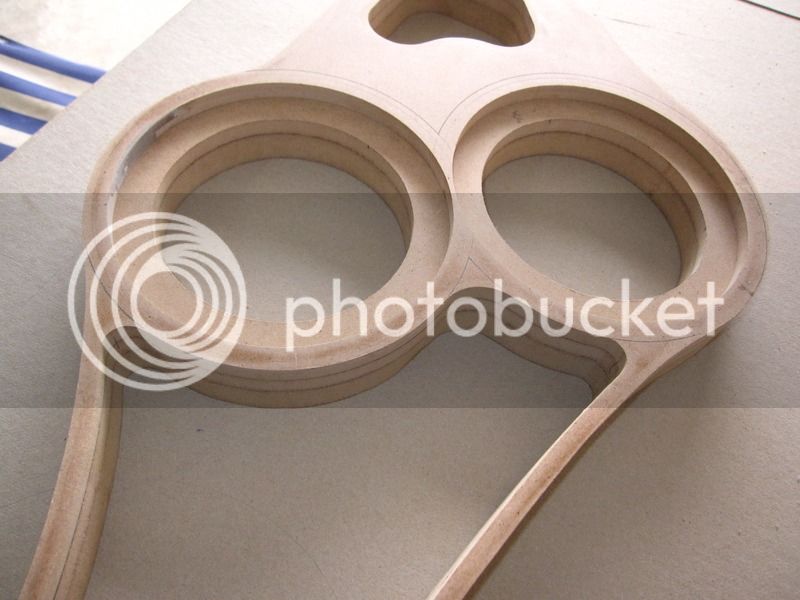

 Supports are made out 10 and 19 mm MDF

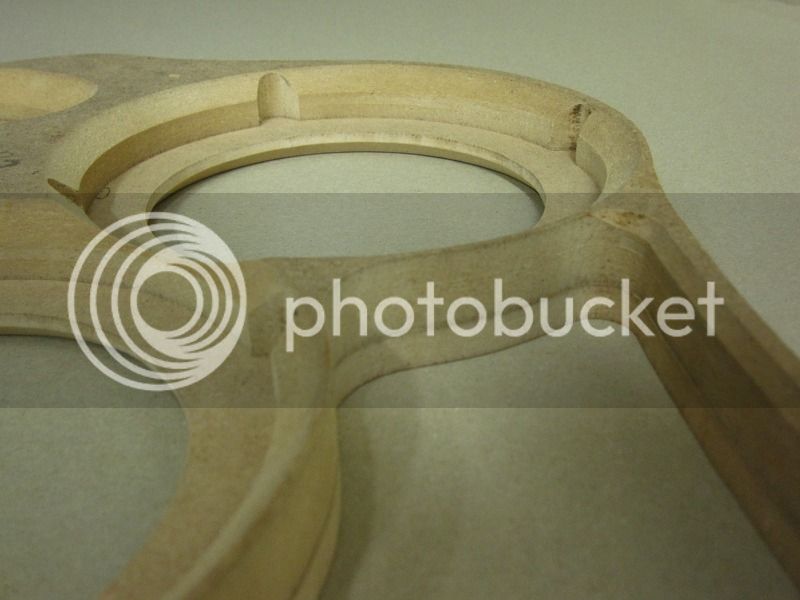

first I cut shapes out with a jig saw, then glued two and two pieces together with double sided tape and finished them with copy router bit. First I made holes for cutout.  then part of template was removed and template reused for countersunk for driver. I also rabbeted around driver in front and at cutouts behind the drivers







modified template




















[/QUOTE]

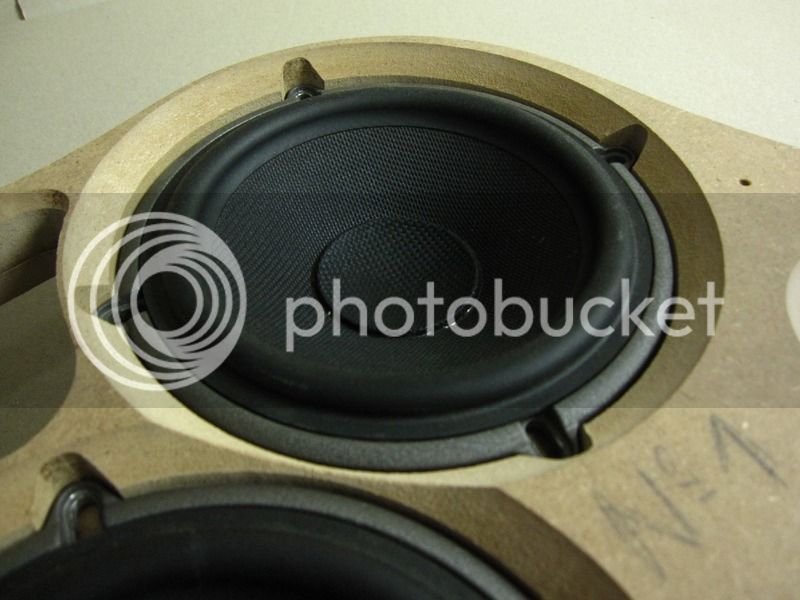

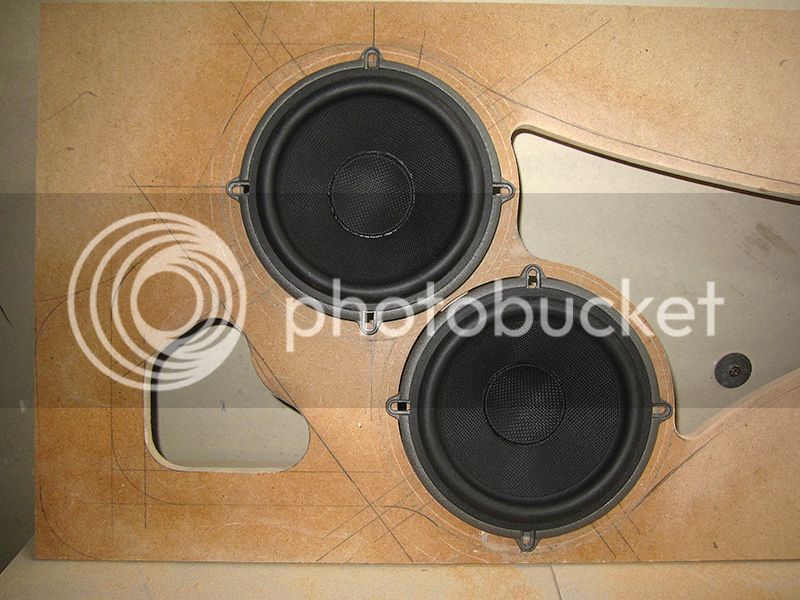

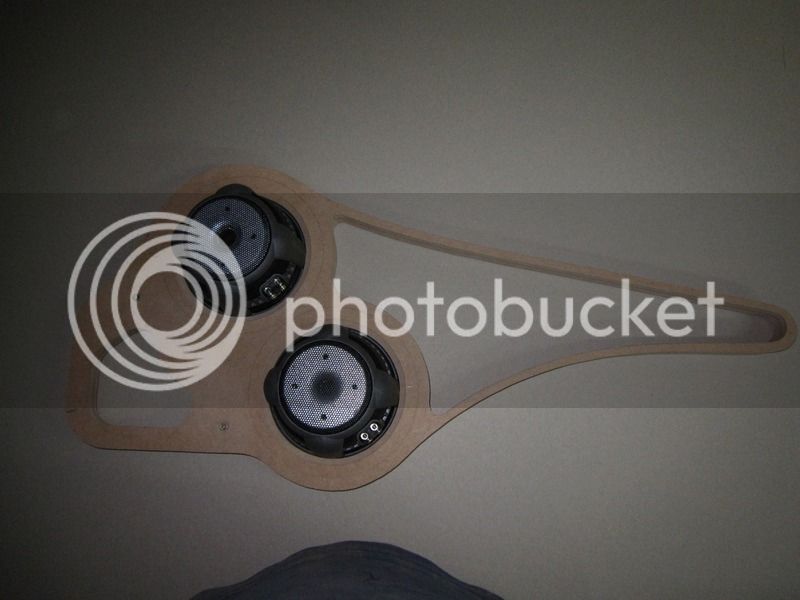

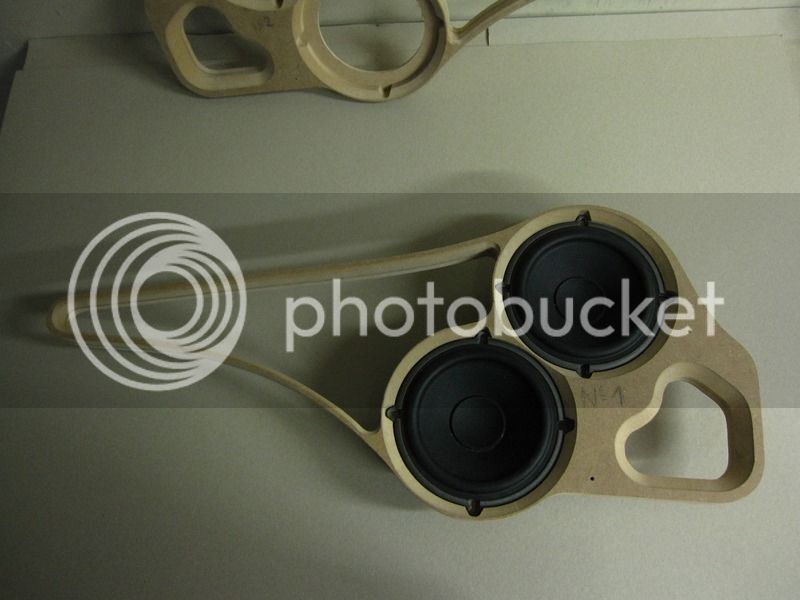

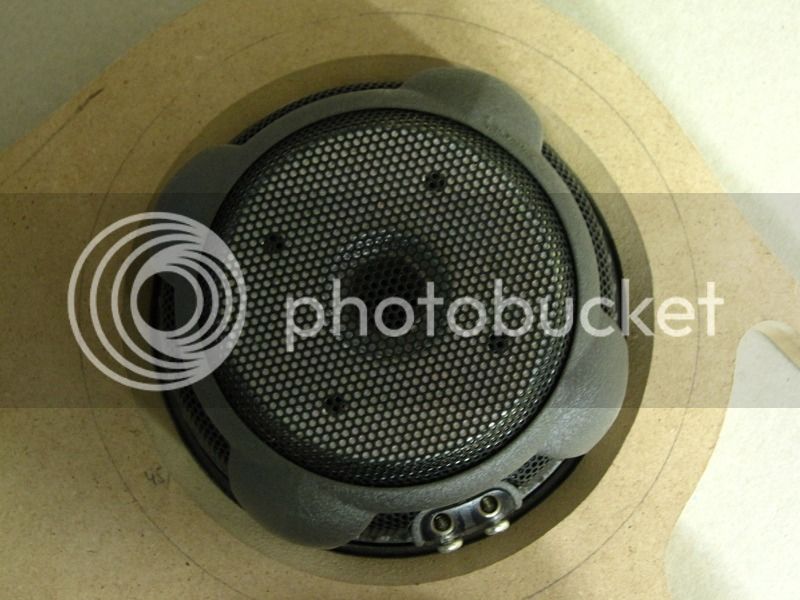

test fit with drivers....perfect fit






OP
Lojze Carman

Lojze Carman

CarAudio.com Enthusiast
Mar 19, 2019
39
2
Then I glued all pieces together and cleaned up all excess glue



taped off speaker and port cutouts

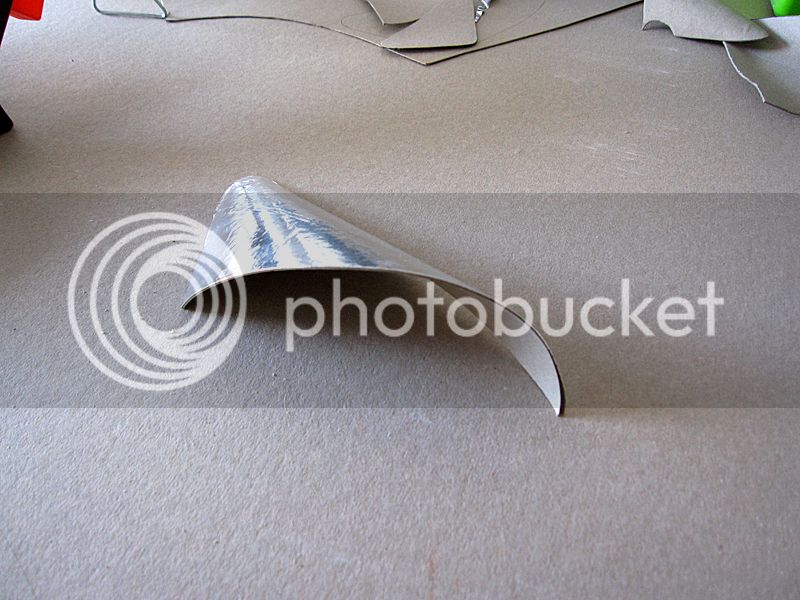

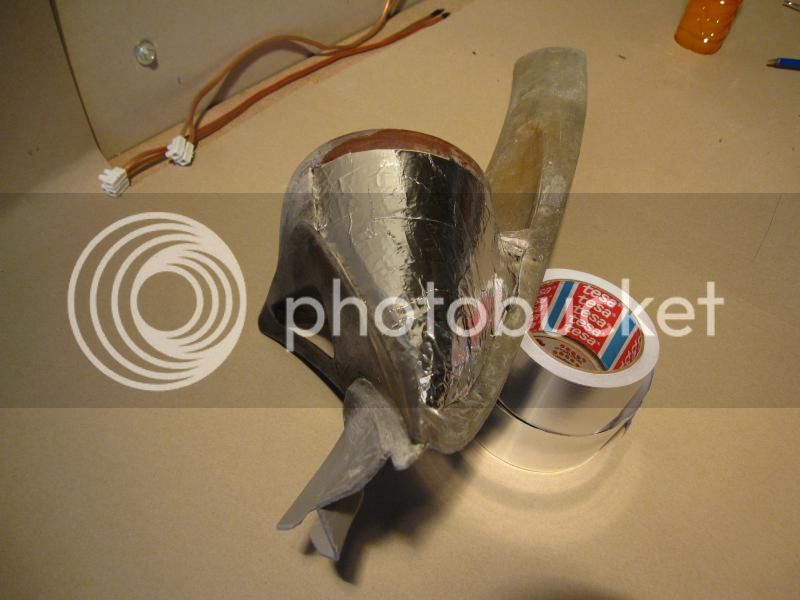

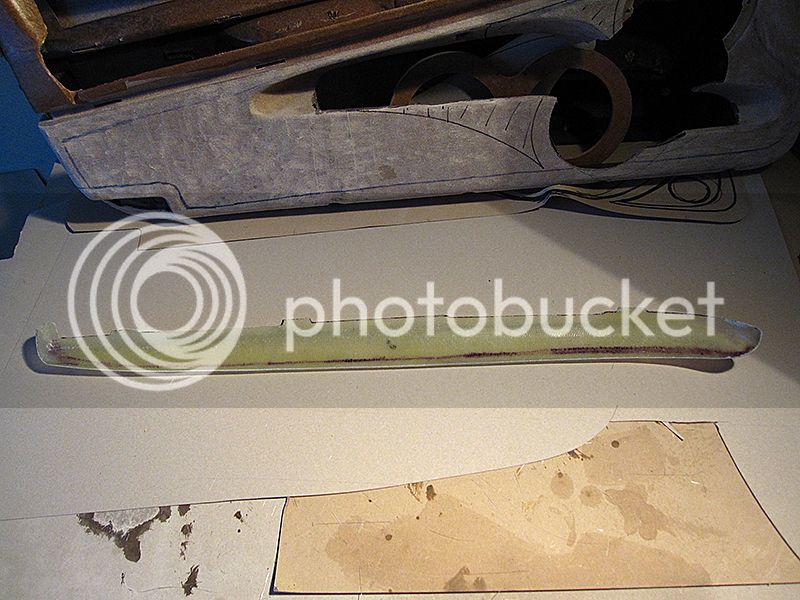

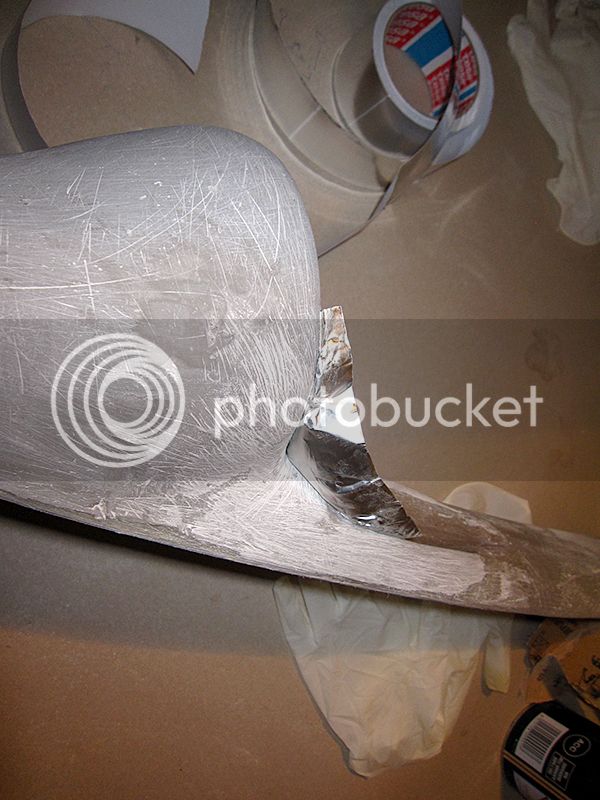

started with cardboard templates for dented part, taped them off with aluminum foil and waxed. I temporary glued them in with hot glue










prepared a few pieces of rowing









template removed

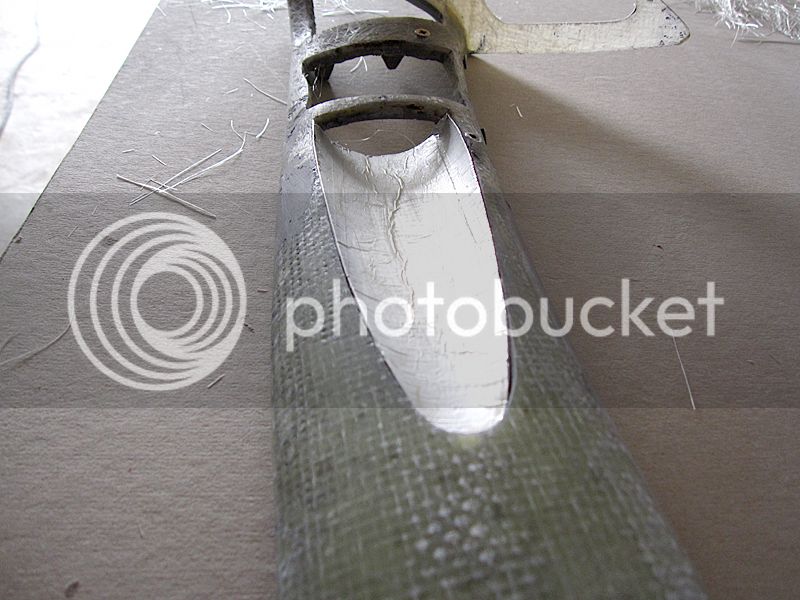

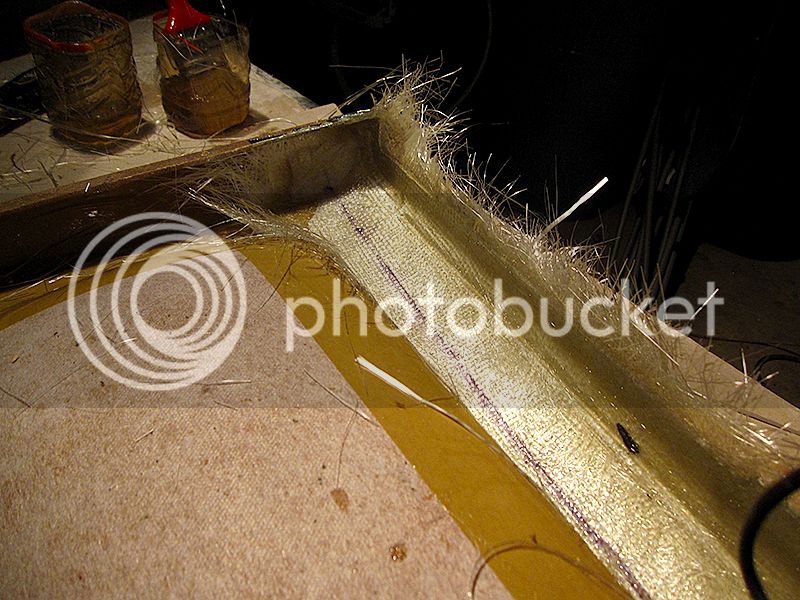

added a 5-6 additional fiberglas layers from behind

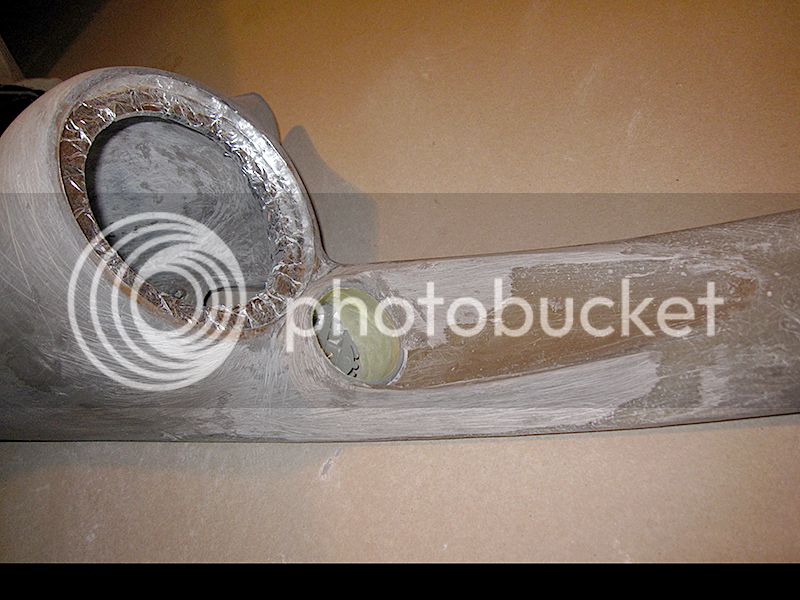

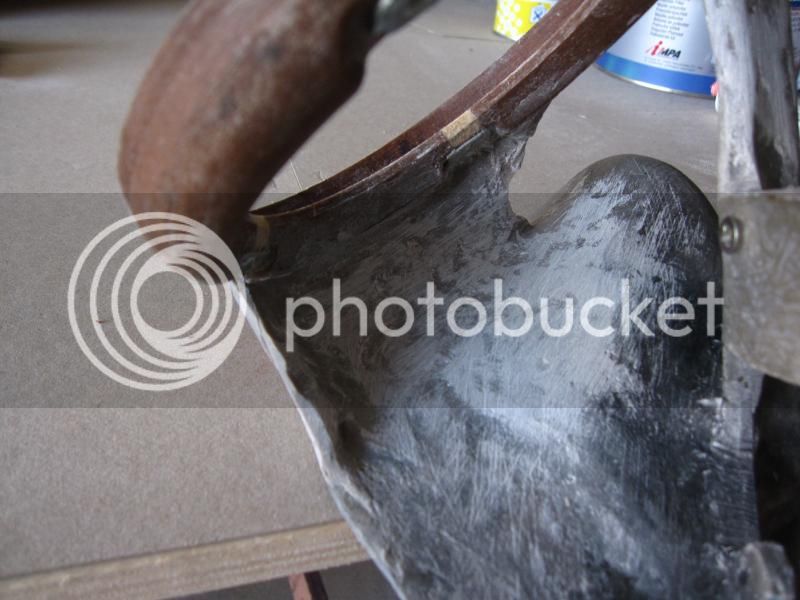

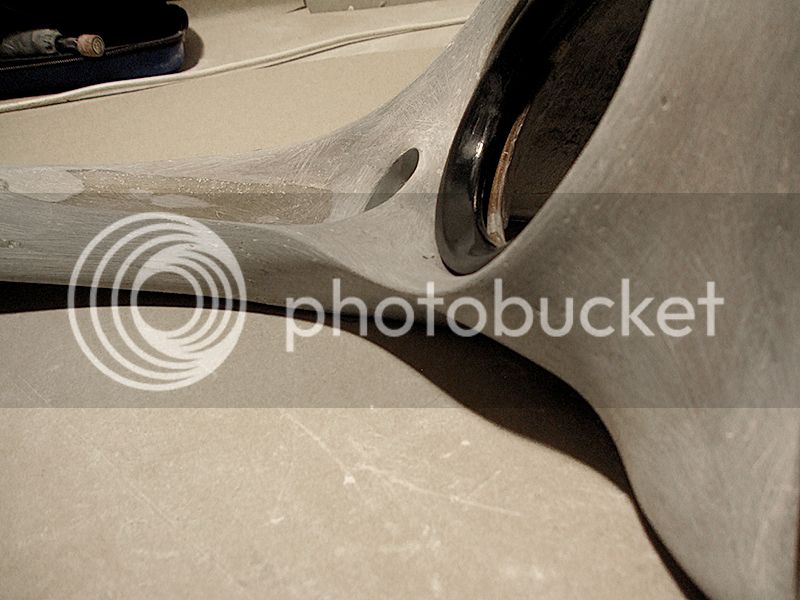

the last thing I did was to smooth out transition between MDF ring and dent



....taday I started work on port endings and port pipe placement.....more pics later


OP
Lojze Carman

Lojze Carman

CarAudio.com Enthusiast
Mar 19, 2019
39
2
....later sunday some new pics

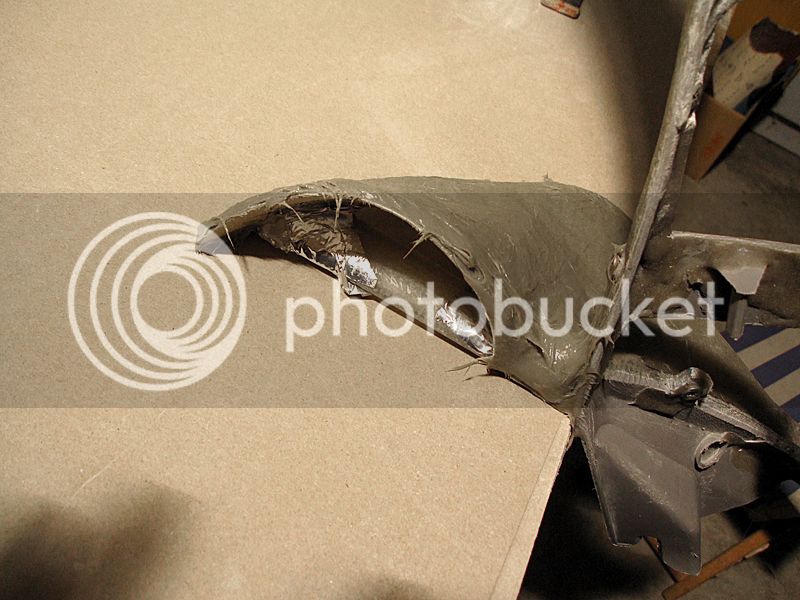

I toyed with port ending/aeroport. Made 4,5,6 different versions, in the end I didn't even count them anymore. I made several attempts with Floral foam, one with modeling paste, ...and the last version was made out of filler with strands. Since I wanted to somehow keep rabbeted part of the port intact I hadn't many options to make desired flare shape, in the end I ended with just simple transition from port pipe to the rest of the panel. This part will be probably redesigned later. so heres some pics, not all versions were photographed, so here is what I have:
V1 with straight pipe, the exit of the port was too obstructed











V2 with angled pipe



Vx attempt with modeling paste - first step was to position port tube with 45 degree elbow











this is really tight fit...a millimeter on each side to the driver basket






then I taped off everything with Alu tape and apply modeling paste and shaped it to desired shape





again Alu foil and wax



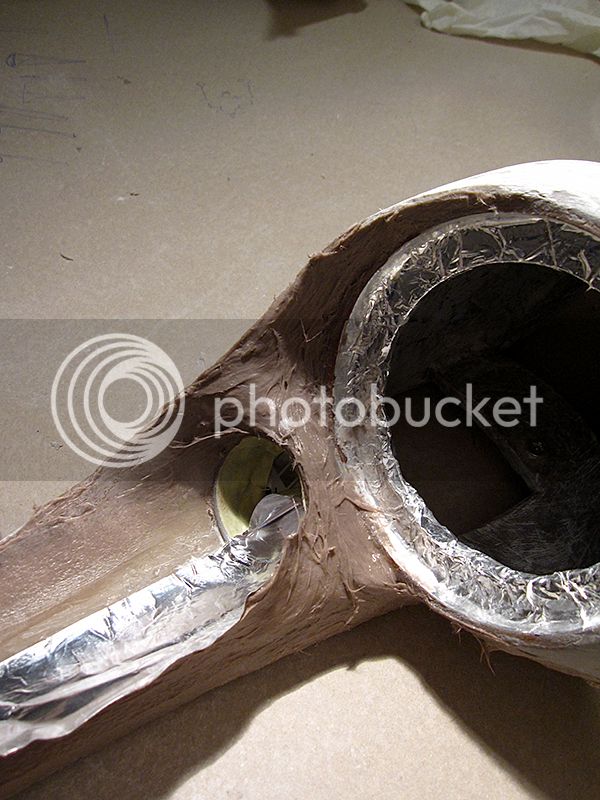

fiberglas applied





after it cured I removed fiberglass part and cleaned up edges. I scraped it because there would be needed a lot of fitting and timing to get everything aligned perfectly....so up to a new version ....

more after commercials :D
