2005 Ford 500 first real install

[qikazel]

I wanted to post my first installation in 20 years. That install had nice equipment, but was pretty basic. That basically involved putting in an amp on the trunk floor, installing a box and an aftermarket headunit. This time around, I have several goals. The first goal was keep the trunk functional. The second was to wire it safely and neatly. Third was to install components for the first time. I have reviewed multiple installs on here for ideas and I think it came out pretty good. I am looking forward to ALL feedback, good and bad.

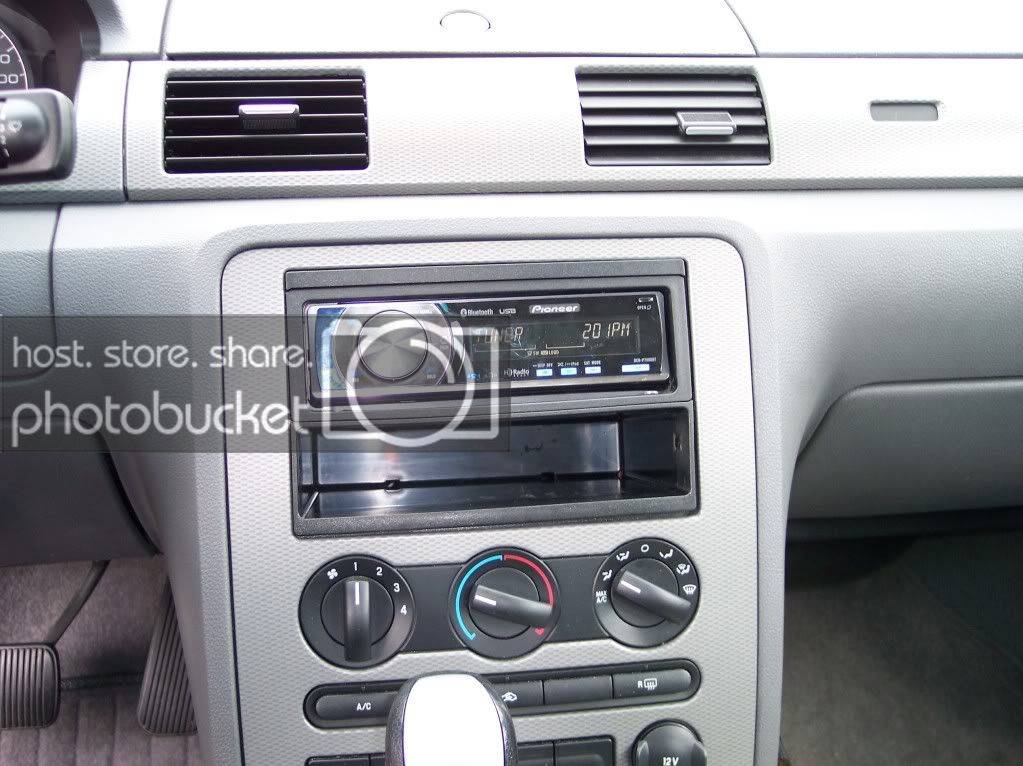

Here is the headunit. A Pioneer BT-7000.

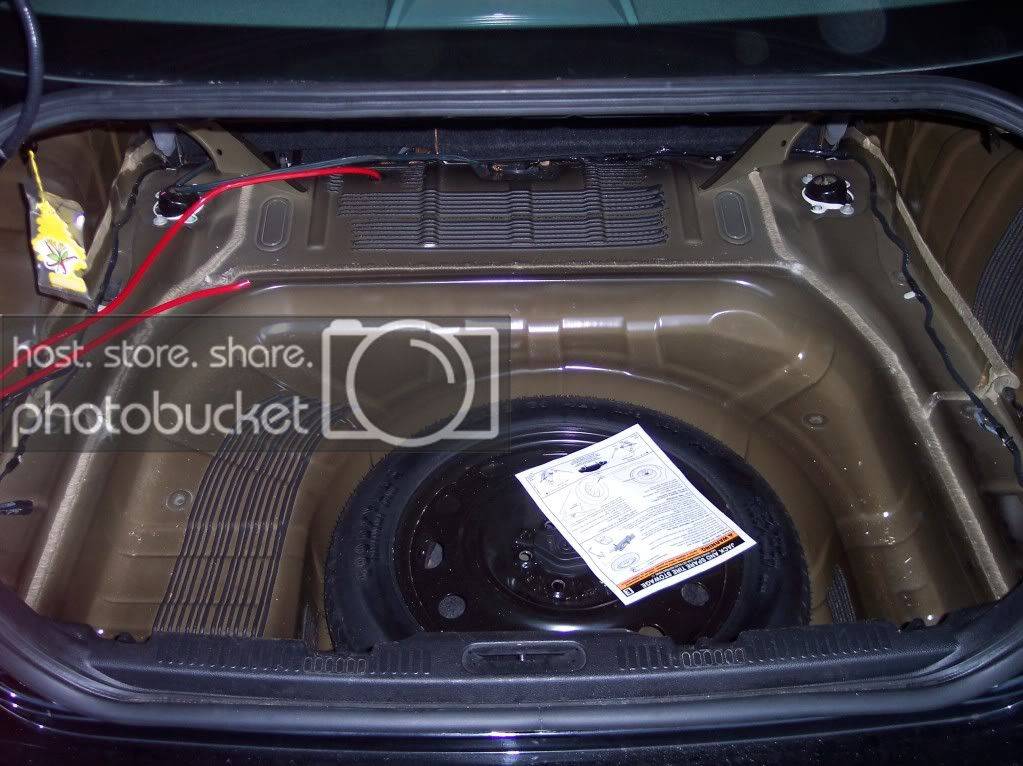

I ran the 4 gauge under the car in a very heavy duty electrical conduit used for underground wiring. I utilized a factory grommet to enter the trunk.

I built a stand to mount my sealed box on. This allows it to meet up with the baffle board I made to seal the trunk. The ground was done to Keepitalives specs from his install.

I started Dynamatting the large holes and sheetmetal areas. I have since gone back and covered everything.

Here is the first false floor I made. This holds the two Soundstream 500's I am using. The wiring is exposed as well.

This pic shows the box sitting on the stand I built and covered.

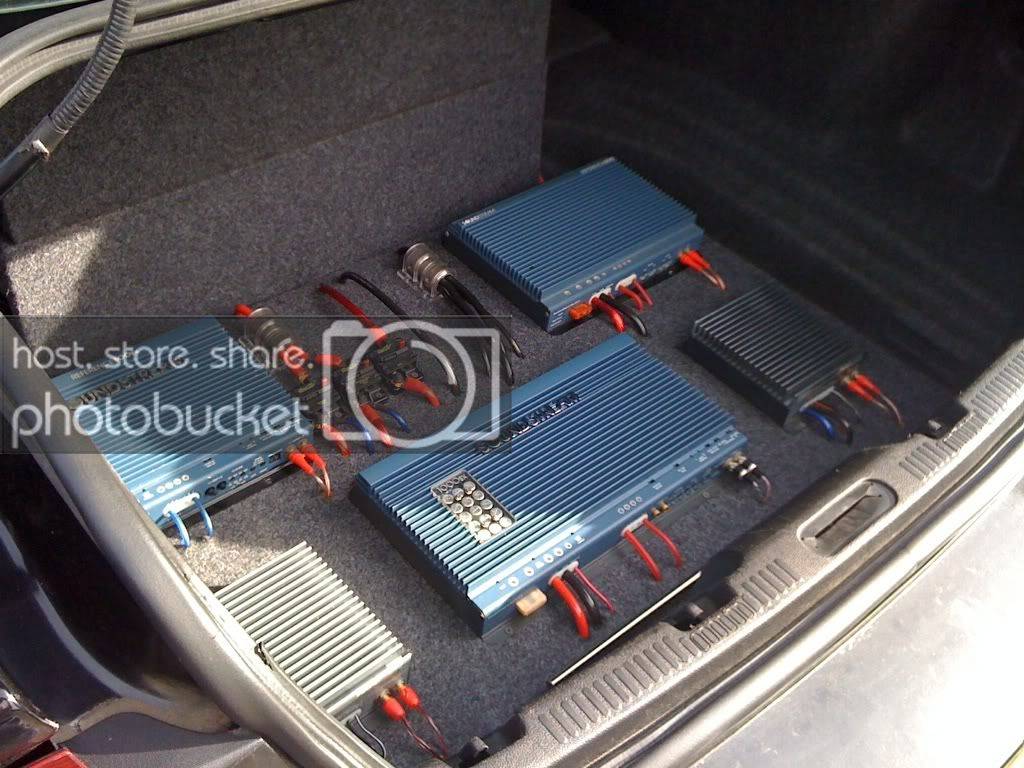

Here are some pics of the installed amps.

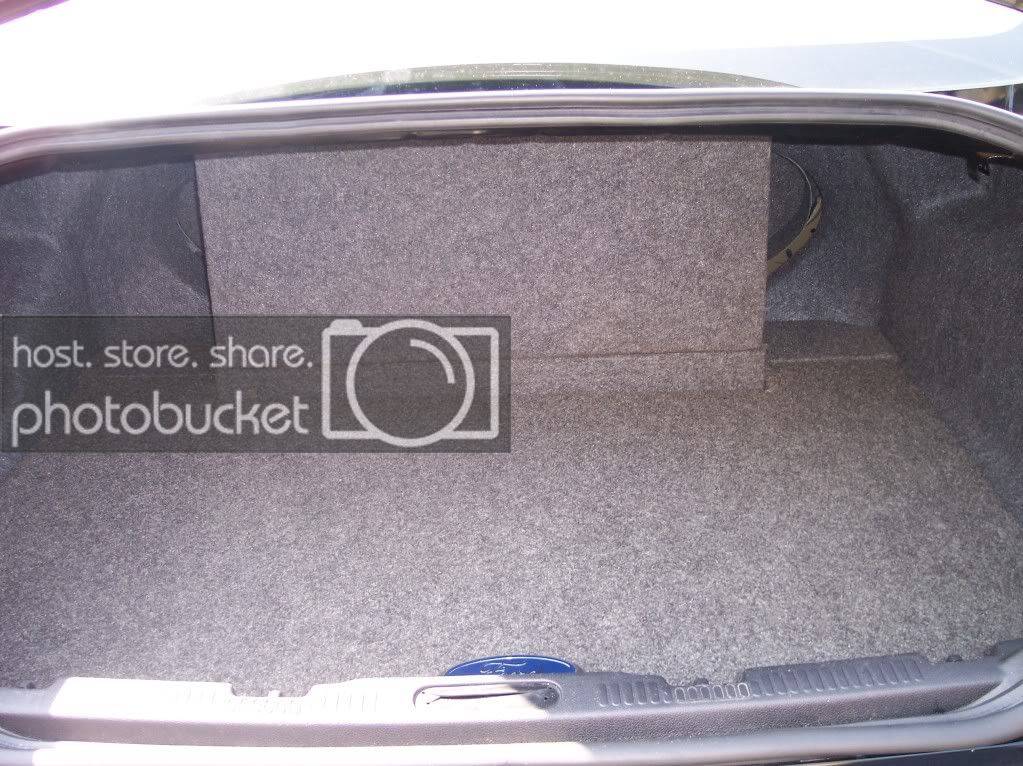

Here is a pic of the finished trunk. This is the second false floor I built.

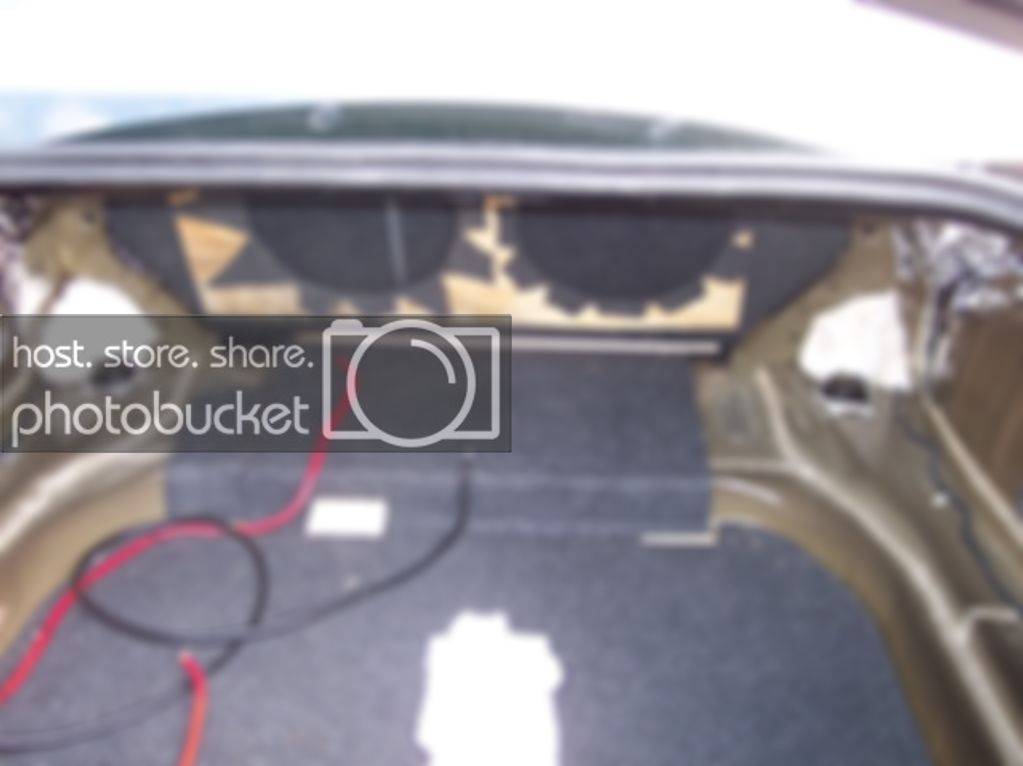

Here is a pic of the baffleboard and subs. They are 12 inch Phoenix Gold X-Maxes.

Let me know what you think!
