2003 Dodge Ram Quadcab Build Pictures

[Zellner 10+ year member]

Ok guys so heres the finished product. My brother and i put about a week of fun hard work into this truck and I've put in over a 1.2 grand easily lol. The discoloration on some of the black stuff is from the mosquito repellent i had on..it was oily and made finger smudges on everything i touched lol.Oh and sorry i DIDNT vacuum!! In the Truck is everything im my sig:

2 New RE SE's D4 @ 1ohm (ONE FIRED UP ONE FIRED DOWN)

4 RE RE Comps

1 Soundstream PCX2000D wired @ 1 ohm = 2000RMS x 1

1 Fusion PP-AM8004 wired @ 4 ohms per channel = 75RMS x 4

1 Alpine CDA-9857 w/ iPod adapter

Also i need a new battery but in the build now is a Batcap 800 look-alike lol

2 runs of Lightning Audio 4 gauge with 200A fuse

If you have any interest at all in having some custom work done shoot me a PM because we love the projects and are more than willing to do work for your ride. We will offer good prices and you can be the judge of what you'll get in return from these pictures of my truck (Also we built the box in my Avatar for my Yukon).

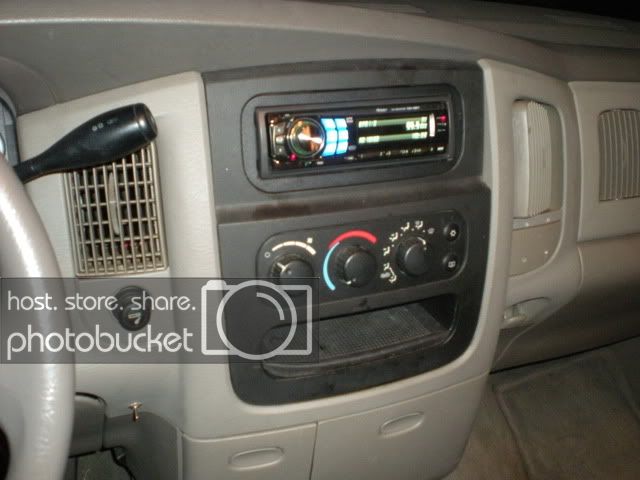

The Alpine 9857 installed

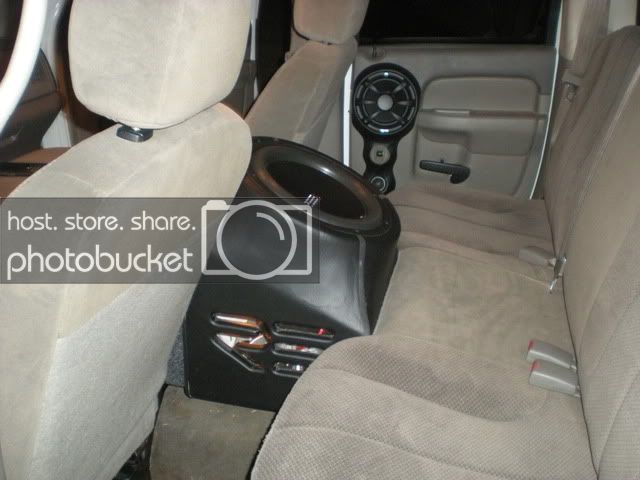

Overall view of the back

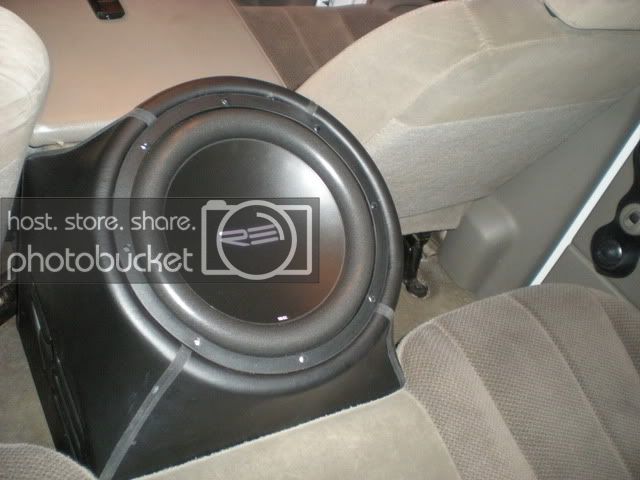

Looking down at the flush mounted RE SE

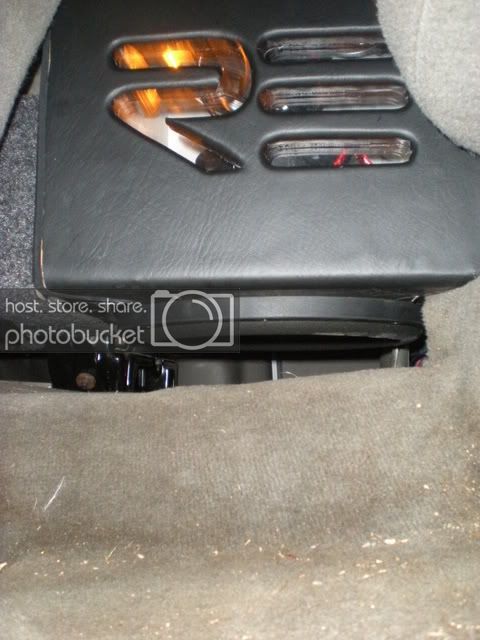

The downfired RE SE under the box

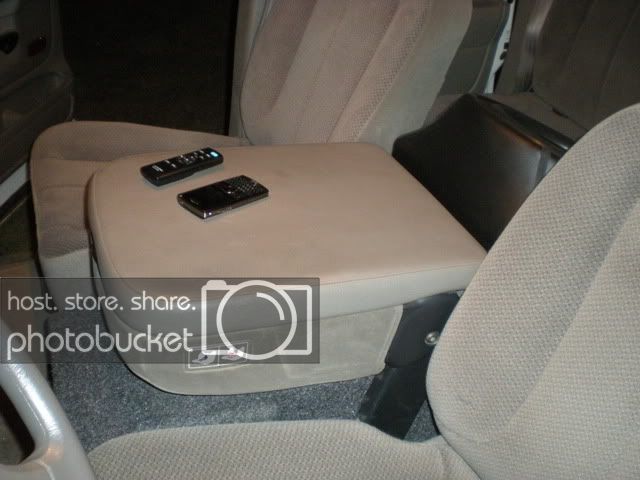

Made the box to mount the stock armrest on and give it the clean look

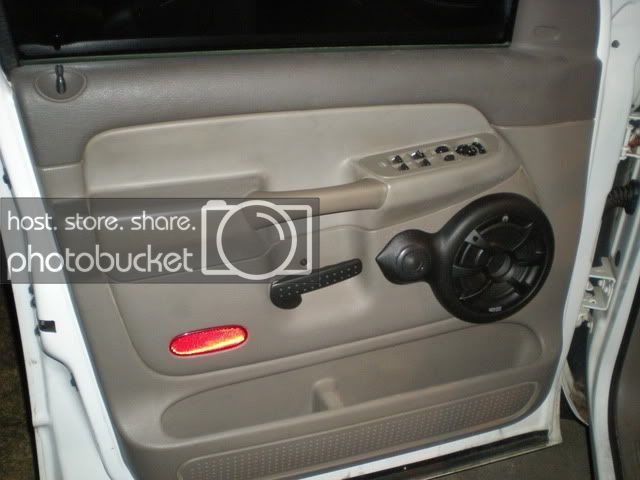

Front fiberglassed door panels cover in black vinyl

Fiberglass starts flush with the armrest as intended

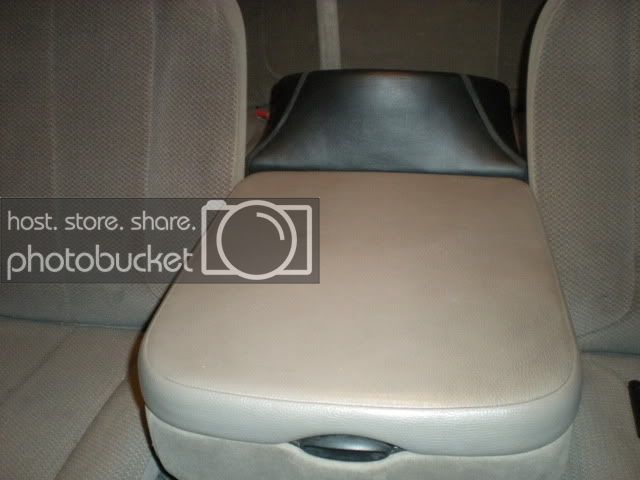

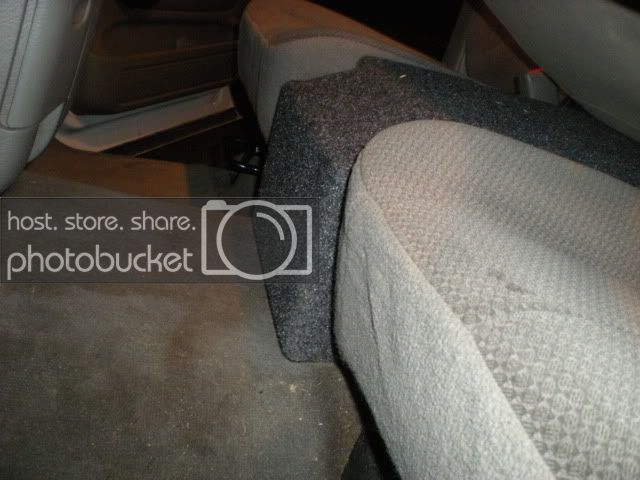

Box ends with the seats adding to the stock clean feel

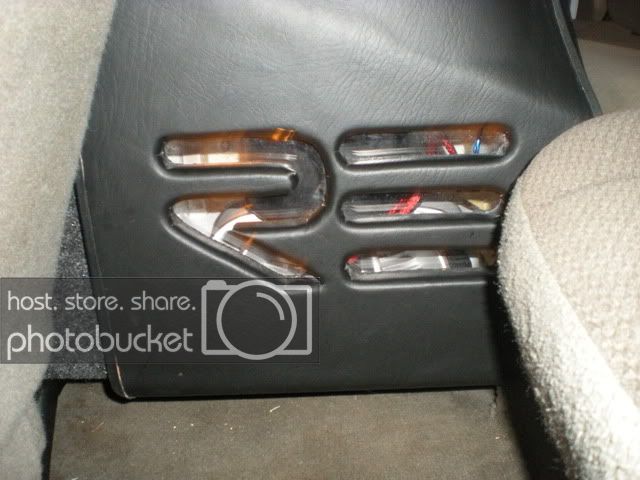

(On both sides) Cutout with a plexi window to see the downfiring SE magnet...inside it lit up by orange neons (looks SICK)

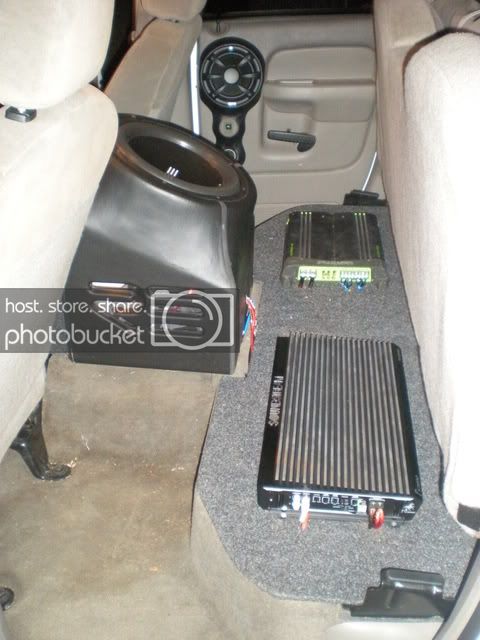

False floor we cut to match the stock storage compartment to make the wires and amp clean

Let me know what you guys think of the install. IT WAS FUN!
