Why are my coils reading differently?

[mazzasec 5,000+ posts]

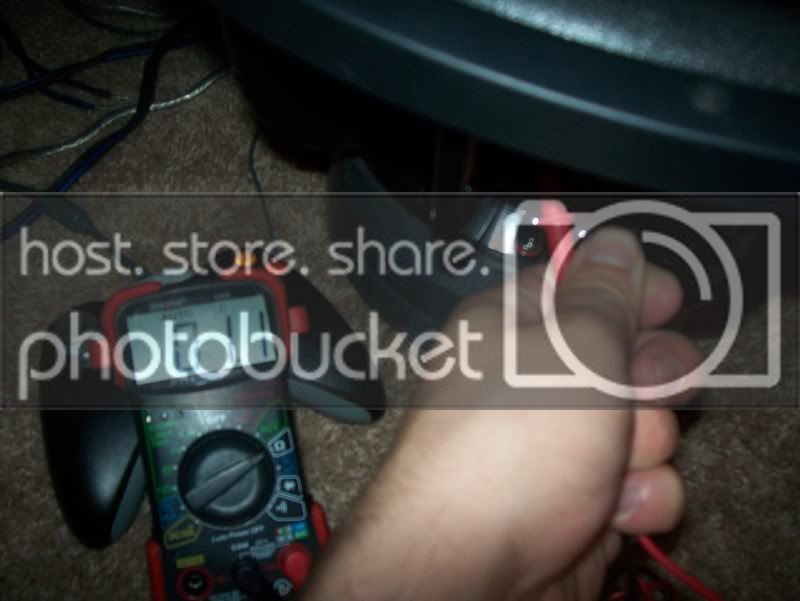

Well when I check with a DMM one coil reads 1.1 and the other is at 2.3

I got D1 woofers

Butttt

When I put the DMM to where its attached at the tinsel and not in the terminal it reads right

Something about the terminal is causing it to read differently

Does that affect it ?

Click to read more...



[mobeious 10+ year member]

make sure the solder point isnt touching the basket



[mazzasec 5,000+ posts]

make sure the solder point isnt touching the basket

Would this be causing it?

There seems to be a connection between the center bolt and the right upper terminal



[mobeious 10+ year member]

if any part of that metal that is soldered is touching the basket that could be ur problem ... hard to see in that pic.. the nut that holds the terminal on doesnt matter

is there somthing commin of that bolt to that right terminal?



[mazzasec 5,000+ posts]

if any part of that metal that is soldered is touching the basket that could be ur problem ... hard to see in that pic.. the nut that holds the terminal on doesnt matter
is there somthing commin of that bolt to that right terminal?

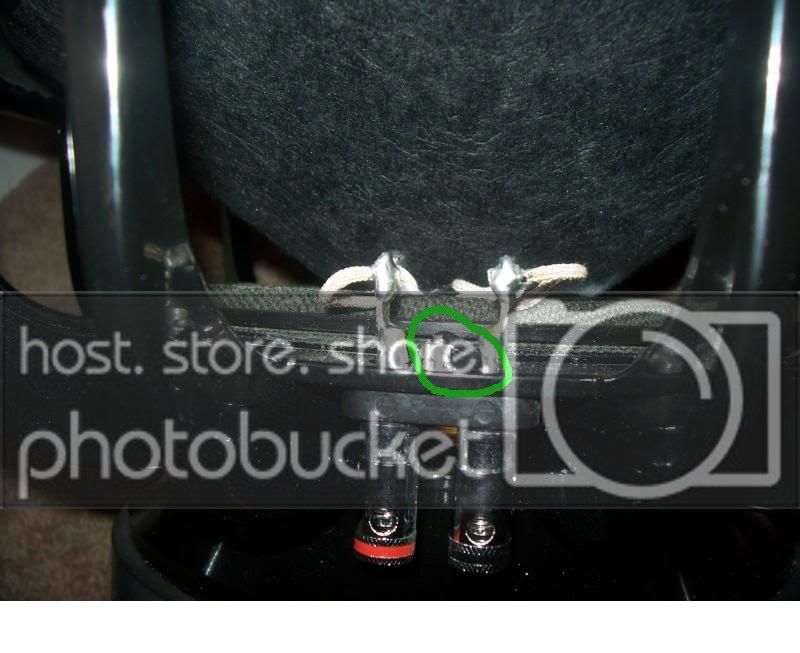

I edited the image.

Its circled in green



[headlesskoopa 10+ year member]

still hard to see



[mazzasec 5,000+ posts]

still hard to see

You dont see that black piece in the center?



[mazzasec 5,000+ posts]

bumppppppppppp



[Rusty...WCA 10+ year member]

looks like ca to keep the nut from backing off



[mazzasec 5,000+ posts]

looks like ca to keep the nut from backing off

The other nut doesnt have any on it though and reads fine.



[Rusty...WCA 10+ year member]

heres what ive seen cause that, if at the terminal it read 2 and the leads it reads 1 there is a issue in the terminal, those terminals are not 1 piece, the spring loaded section has a post that comes up throught the basket , then a tab is soldered onto it. that tab is what the lead wire is soldered to, sometimes where the post and tab are soldered the connection goes bad and you get the exact same problem your describing, grab a solder gun and re-solder the post and tab, wait for it to cool all the way off to room temp and read it again, any heat in the termianls will cause a crazy reading on your dmm



[mazzasec 5,000+ posts]

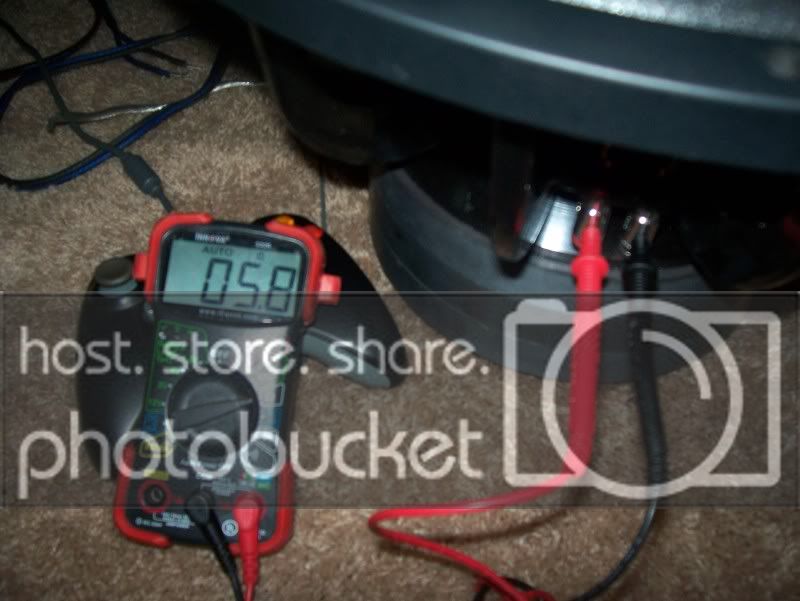

Here it is with the DMM in the terminals Goes all over the place.

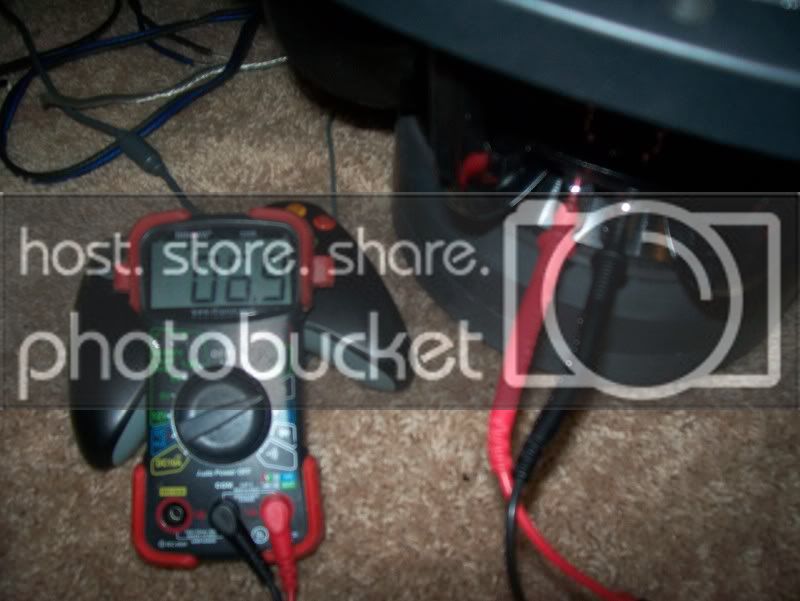

But when I put the DMM to the tinsel leads it reads right



[headlesskoopa 10+ year member]

u made me put my glasses on i see it



[mazzasec 5,000+ posts]

heres what ive seen cause that, if at the terminal it read 2 and the leads it reads 1 there is a issue in the terminal, those terminals are not 1 piece, the spring loaded section has a post that comes up throught the basket , then a tab is soldered onto it. that tab is what the lead wire is soldered to, sometimes where the post and tab are soldered the connection goes bad and you get the exact same problem your describing, grab a solder gun and re-solder the post and tab, wait for it to cool all the way off to room temp and read it again, any heat in the termianls will cause a crazy reading on your dmm

The spring loaded piece that comes up into the basket seems to be connect to that center bolt. It looks like a VERY solid connection where the tinsel is soldered to the terminal. But ill retry that //content.invisioncic.com/y282845/emoticons/biggrin.gif.d71a5d36fcbab170f2364c9f2e3946cb.gif



[Rusty...WCA 10+ year member]

yup, im 99% sure its a bad connection between the post and tab
