TeamPSI custom IB 12s (red/black) ***Pics***

[LaserRed38 10+ year member]

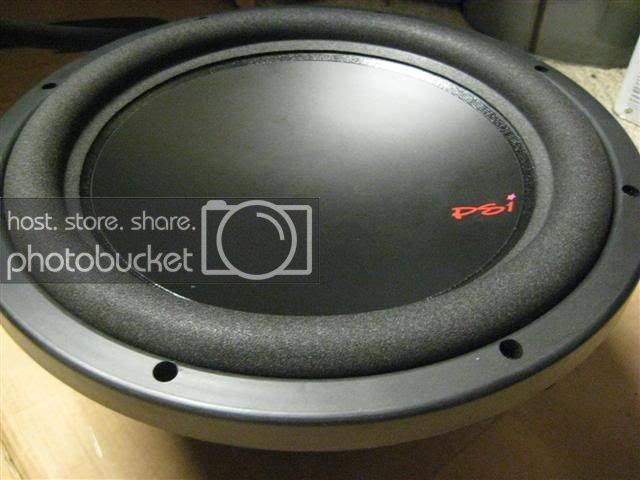

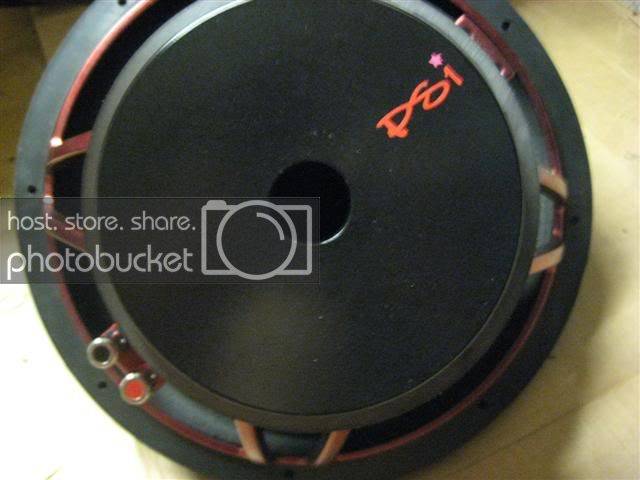

These are directly from Dave. They should be delivered Tuesday. Going in the back of my Mustang. The baffle will be 3/4" plexi and covered from the interior with carpeted beauty panels when parked, so that it just looks like a standard rear seat delete for Mustangs. Lower part will be one side covered amp/processor rack, other side will be storage; both with hinged/locking lids.

Build log will be up next week as the system finally comes together. A-pillars are being wrapped today. Only things left are getting my bitone and eventually building kicks for the mids and new Double Din HU, either the Kenwood 6140 or that new Pioneer 110BT. Anyways on to the pics...

Click to read more...



[James Bang 5,000+ posts]

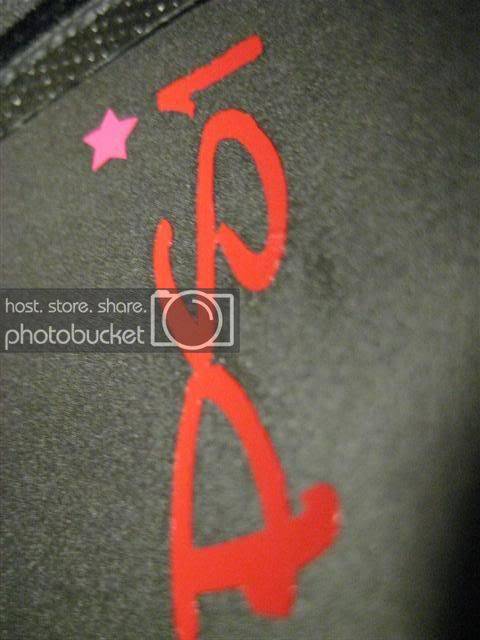

the pink star is a nice touch.

any t/s params?



[LaserRed38 10+ year member]

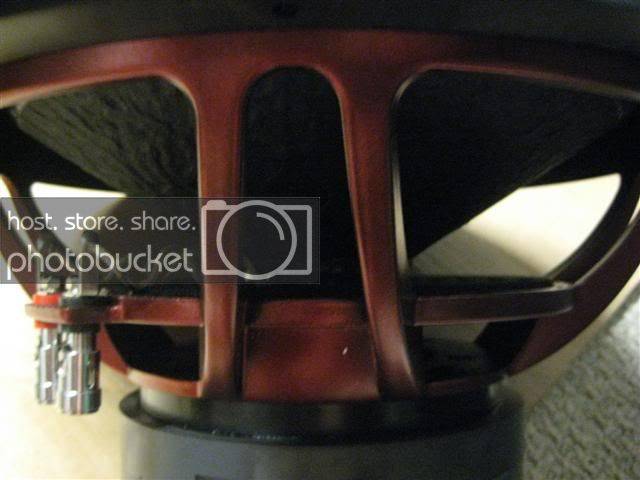

The basket looks a little dark, but I'm hoping it's just no flash pics. Can't do anything now I guess. I wanted the baskets painted to match the car since they will be seen from the trunk but Laser Red is a 3-stage paint and would have cost a lot more. Told him to get it close and this will do for me. I also got an extra logo made to throw on the back window. I don't have any other stickers, and "Psi" doesn't exactly scream "steal me" IMO...

Btw, they are single 4ohm, and will be ran off the rear channels of an Audison LRx6.9. I have 470w @2ohm on tap, but everyone knows IB you don't need a lot of power. The rest of the system is is my sig...Dave is a pretty smart and cool guy also! Will definitely buy more stuff from him in the future.

T/S parameters...

Revc = 3.5403 ohms

Fms = 35.7714 Hz

Zmax = 24.7043 ohms

Qes = 0.8686

Qms = 5.1926

Qts = 0.7441

Le = 1.3338 mH (at 1 kHz)

Diam = 261.6200 mm ( 10.3000 in )

Sd =53756.5909 mm^2( 83.3229 in^2)

Vas = 79.3544 L ( 2.8024 ft^3)

BL = 9.6856 N/A

Mms = 102.4061 g

Cms = 193.3050 uM/N

Kms = 5173.1709 N/M

Rms = 4.4326 R mechanical

Efficiency = 0.3929 %

Sensitivity= 87.9611 dB @1W/1m

Sensitivity= 91.5016 dB @2.83Vrms/1m



[LaserRed38 10+ year member]

the pink star is a nice touch.
any t/s params?

Lol you beat me. But yeah that's their trademark. I ordered custom red logos (usually white) and wondered if the pink star would stay. Guess so hah. Doesn't bother me though, looks kinda cool actually...



[kfx450r 10+ year member]

Sweet basket



[JL Audio 5,000+ posts]

if I paid for a recone service, i'd not want the logos.. plain is good for me :/

nice looking subs though.



[plugitin 5,000+ posts]

i was gona ask if this was going in your girlfriends ride //content.invisioncic.com/y282845/emoticons/biggrin.gif.d71a5d36fcbab170f2364c9f2e3946cb.gif lol



[ngsm13 5,000+ posts]

Tits.

nG



[tRiGgEr 5,000+ posts]

I'm surprised you don't find any white sticky residue on his speakers. He seems like the type who would rub one out on to his products.



[LaserRed38 10+ year member]

Lol I usually prefer logoless cones/dustcaps, but like I said it's the standard PSI logo, just in red. I let him have a little creativity, and for the price for two custom subs it's a good deal. I don't mind, I think you guys will like them more once you see the install, but don't really care if people like/don't like the logos as long as they sound good hah. To each his own, but they look like quality stuff from the pics. I hope they sound as good as they look. Only a couple more days...



[brmcm15 10+ year member]

nice sub.

i really like the red basket



[SPLaudio 5,000+ posts]

i like it its very different from his normal a non spl sub. guys if he didnt want the logo it wouldnt be on there i am sure. its nice to have something different but not plain. 99% percent of the people who see that decal wont know a thing about it..



[RAM_Designs 5,000+ posts]

Tits.
nG

this.



[req 5,000+ posts]

sweet looking subs. i dont like the pink star, id of wanted a darker red maybe. but good ish. i look forward to the install pics!



[TeamPSI 10+ year member]

You guys know my company name is Pink Star Industries right? //content.invisioncic.com/y282845/emoticons/biggrin.gif.d71a5d36fcbab170f2364c9f2e3946cb.gif
