Sundown Tooled 18" Frame : Completed

[sundownz Pro Seller]

The tool is done and the very first unit rolled out of the mold yesterday. I will have a sample to play with next week !!!

This one is currently patent pending (our 8, 10, 12, and 15 are already patented) -- ETA for full stock will be Jan-Feb of 2015.

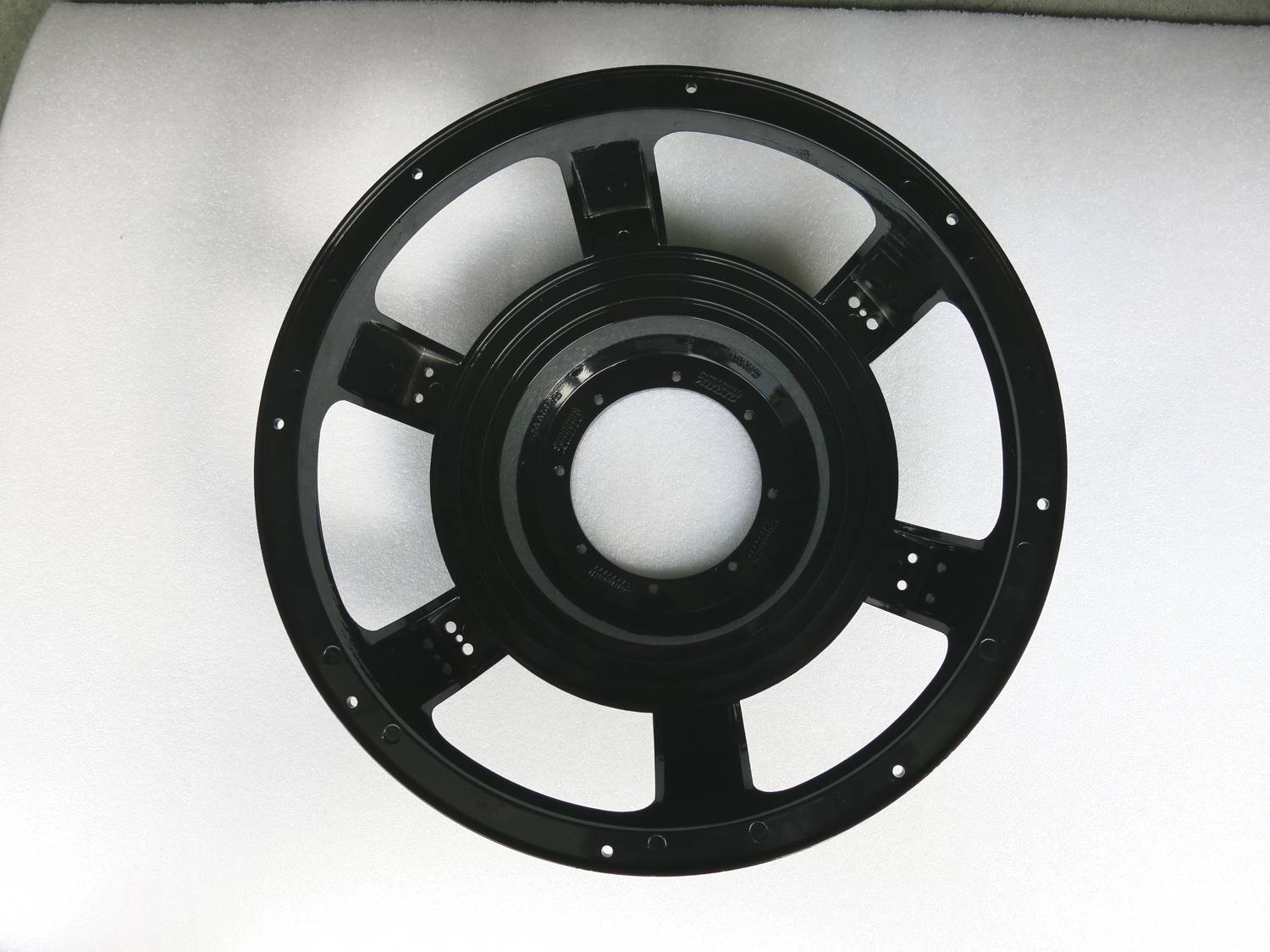

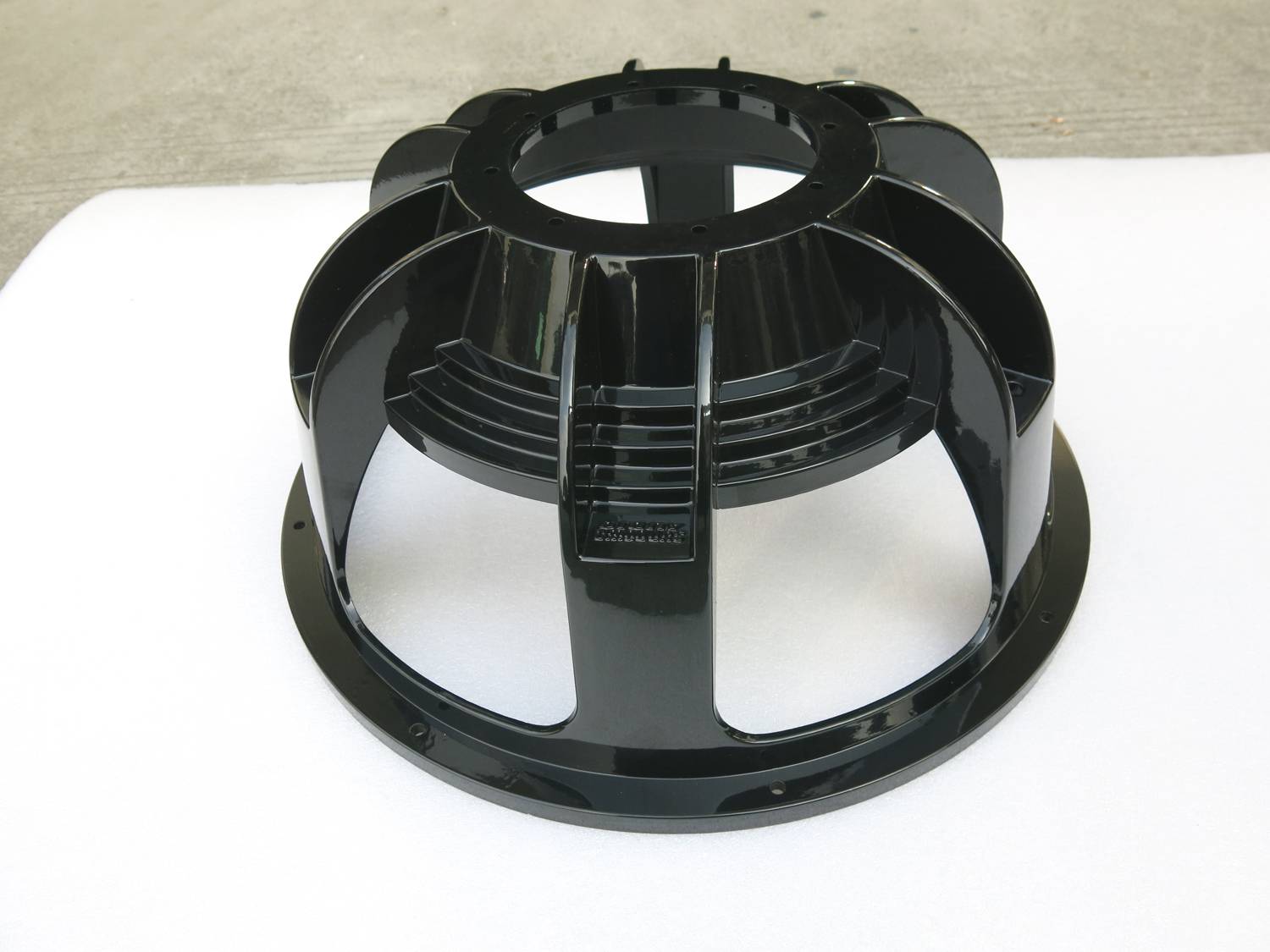

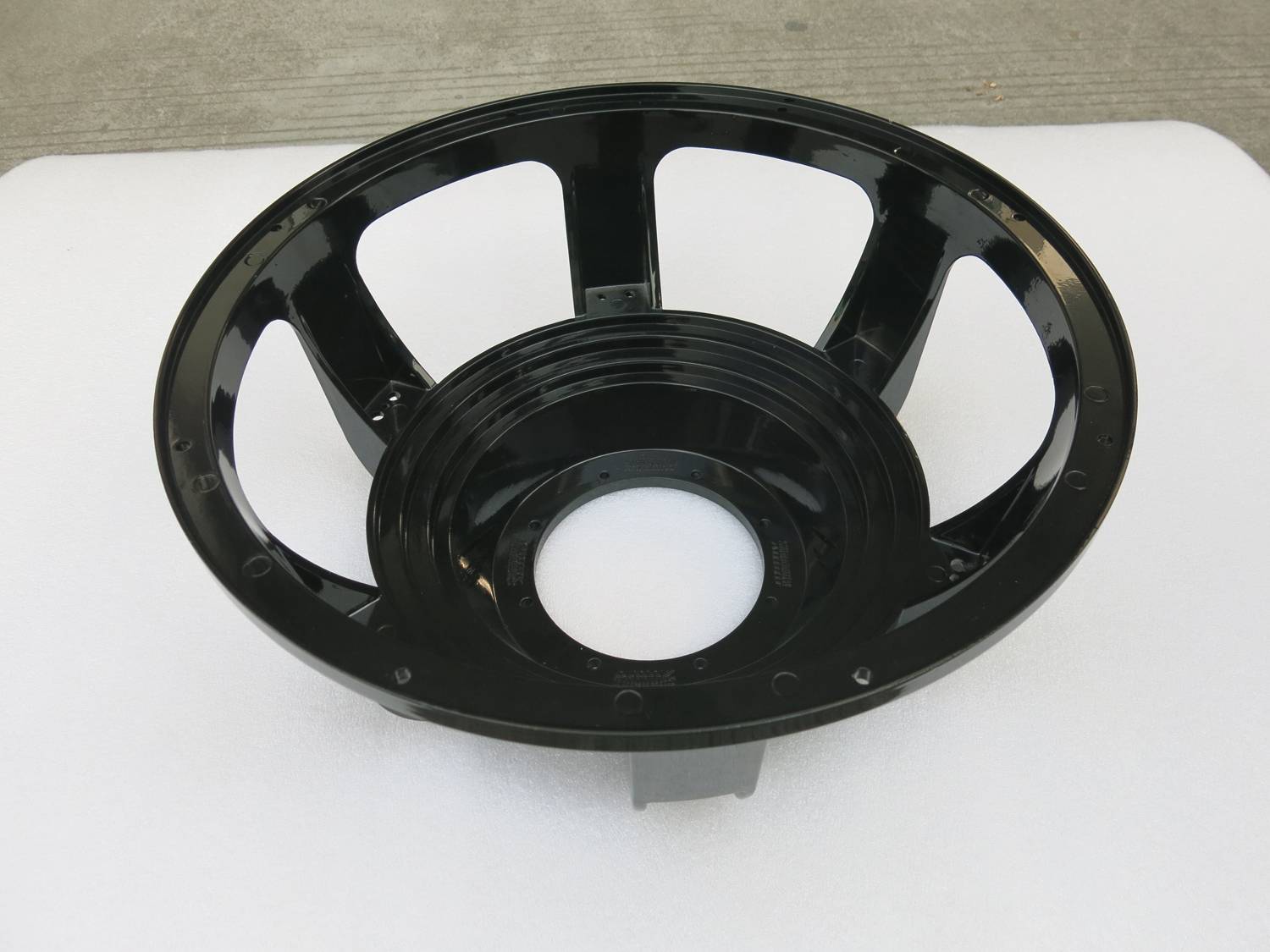

This frame is ~8.3" tall, supports 6" p-p excursion, and up to a 12" spider (also have 10" and 9.25" landings)... it weighs in at 10-11 lbs (I'll weigh it myself when it gets here). I will finally be comfortable making TEAM 18s at that point.

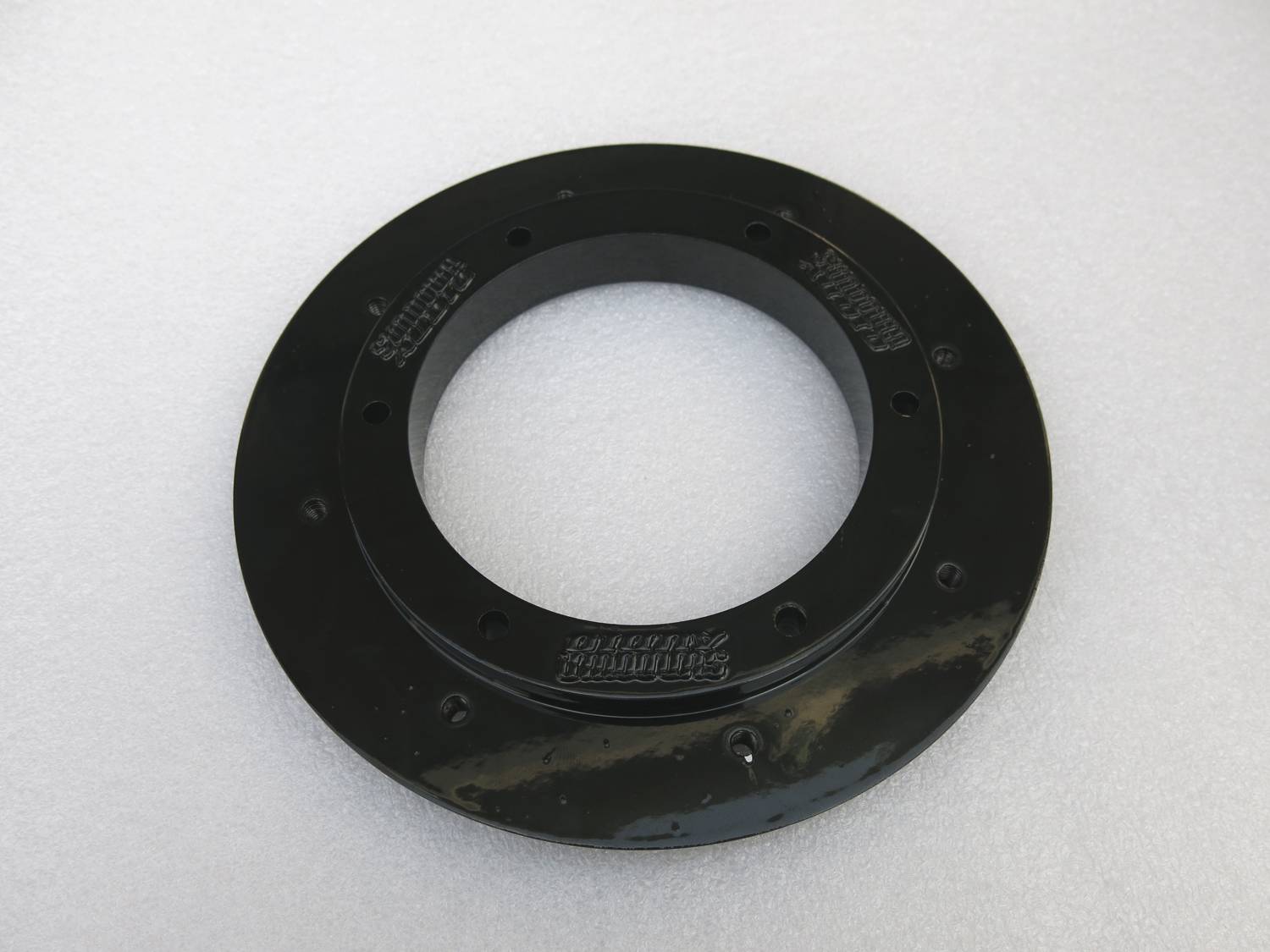

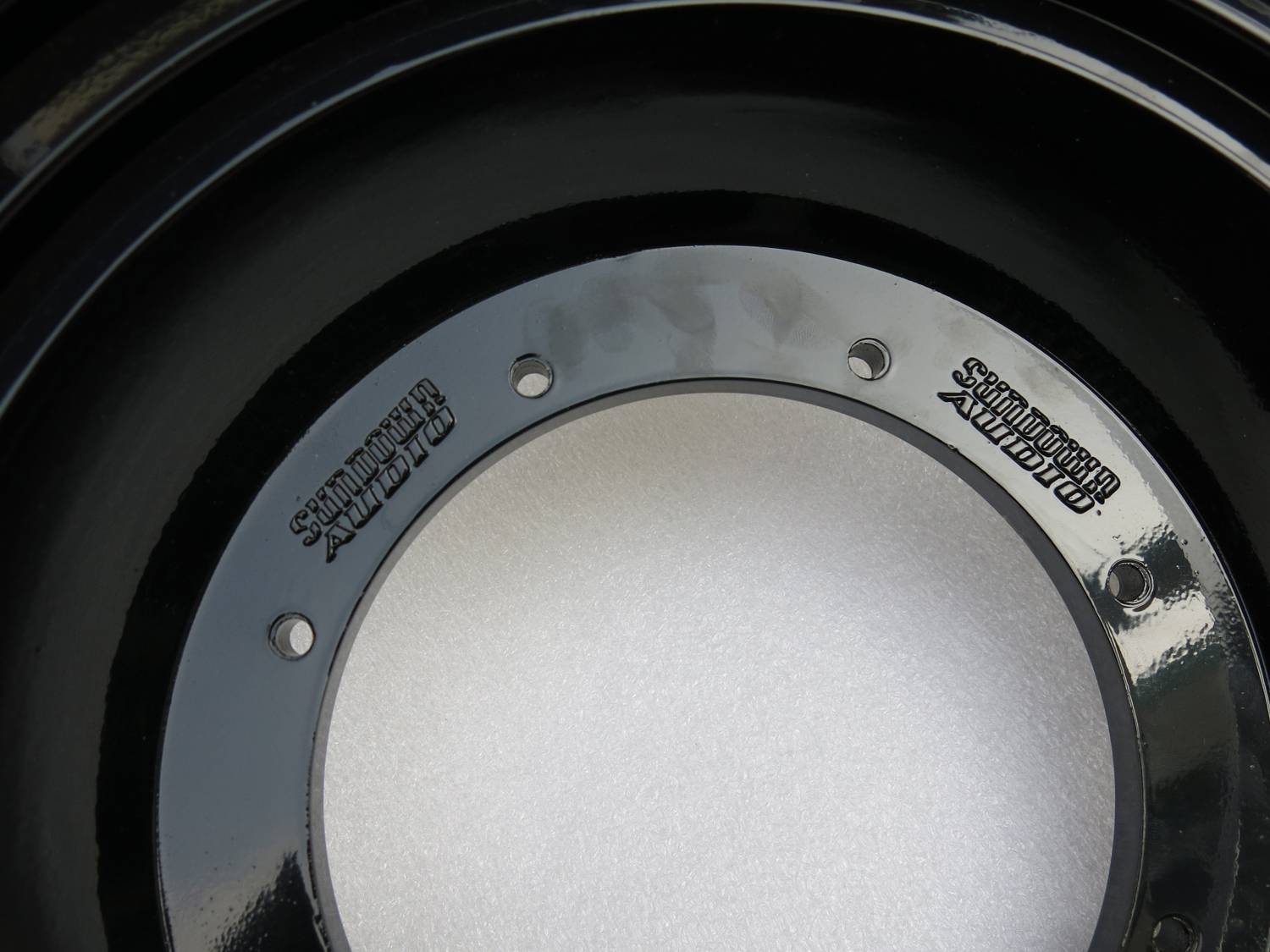

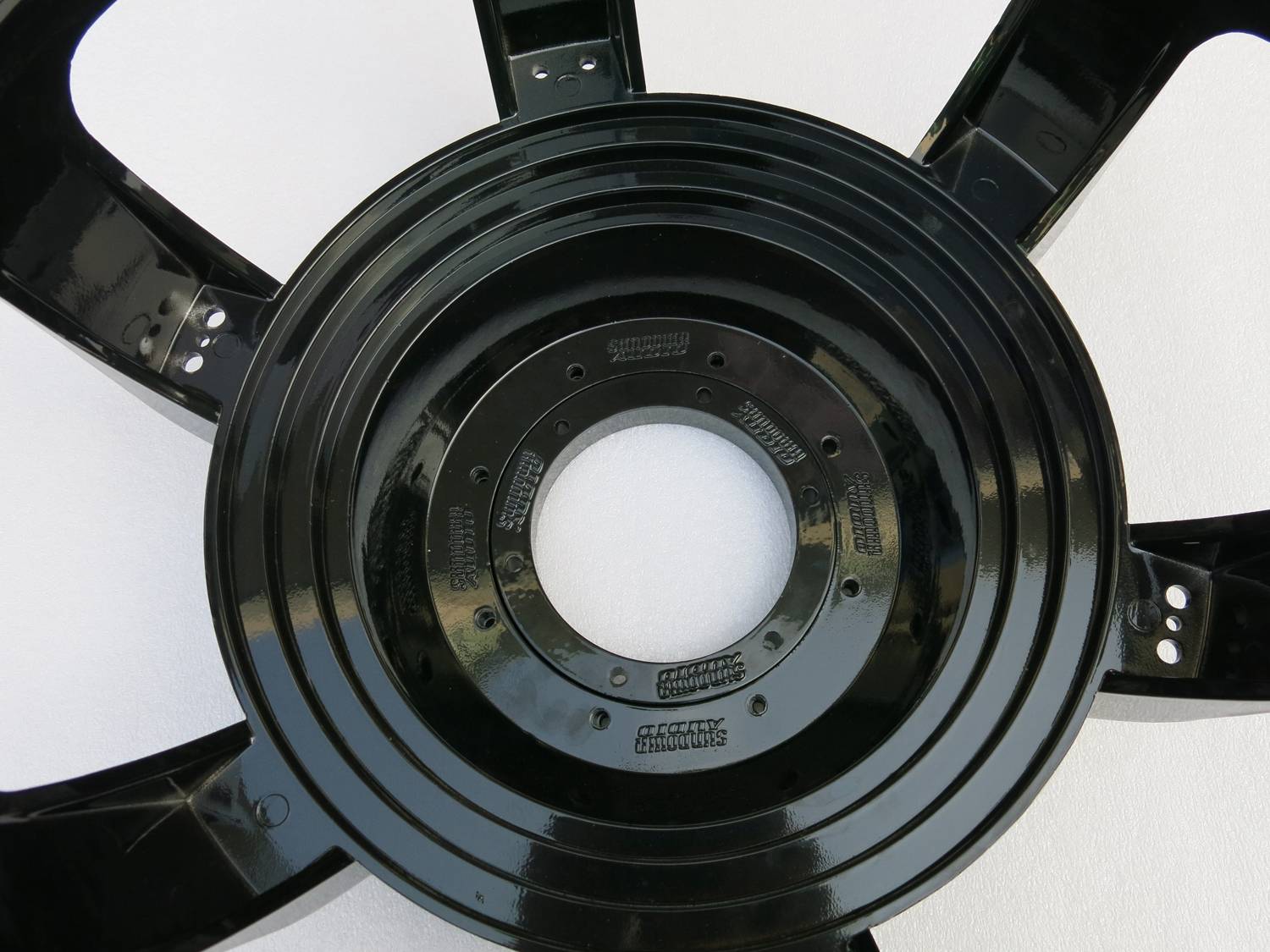

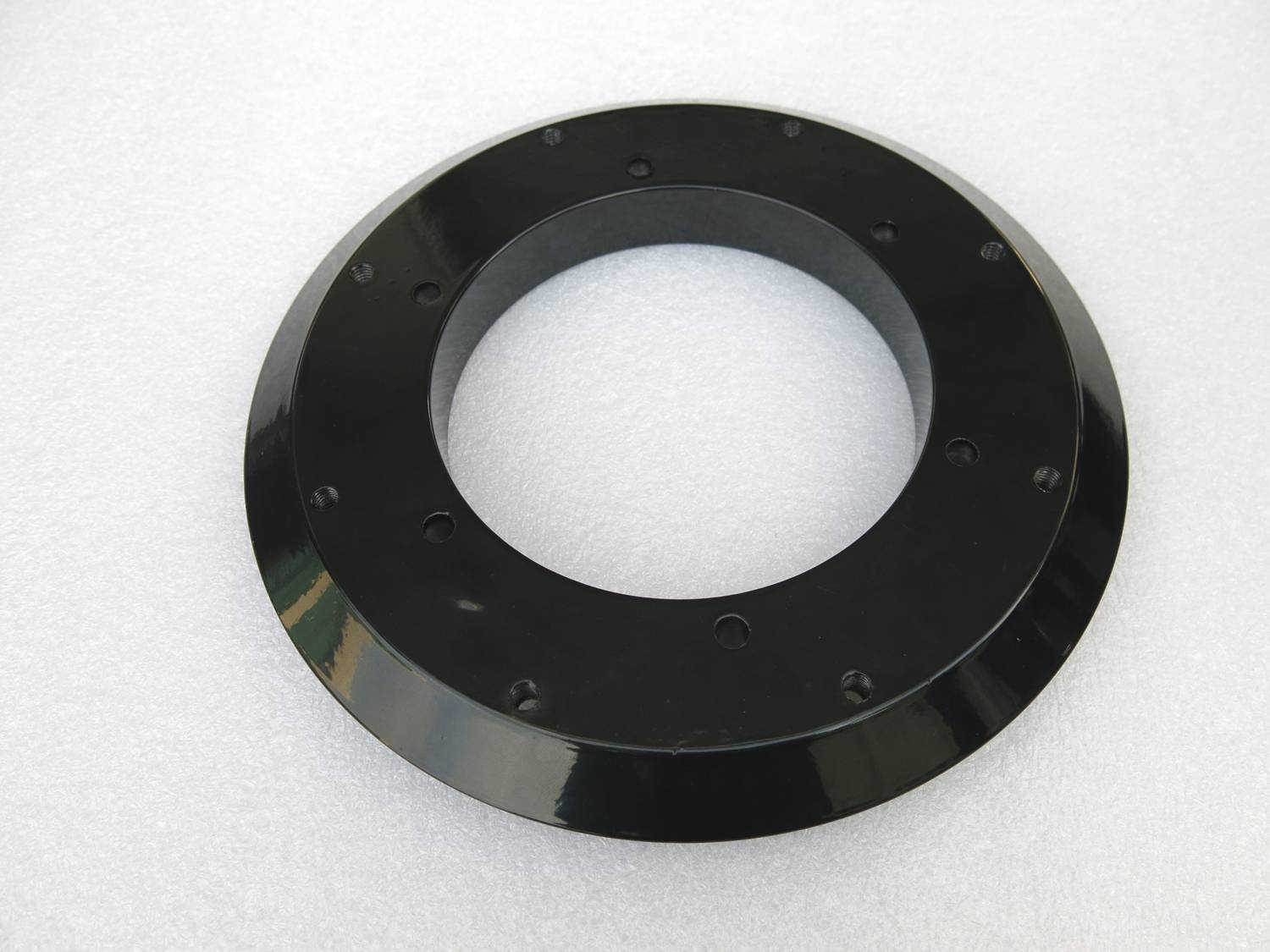

The main bolt pattern is a new, bigger pattern for coils larger than 4" in diameter. For all current designs we have a cast aluminum adapter piece that attaches to the base for a standard 127mm bolt pattern.

All current products will still use a 10" spider and current surround sizes -- future motors that support the additional throw allowed by the basket will move up to the 12" spider landing at that time and will also receive a newly tooled surround to mate up to that (no ETA to announce yet for that).

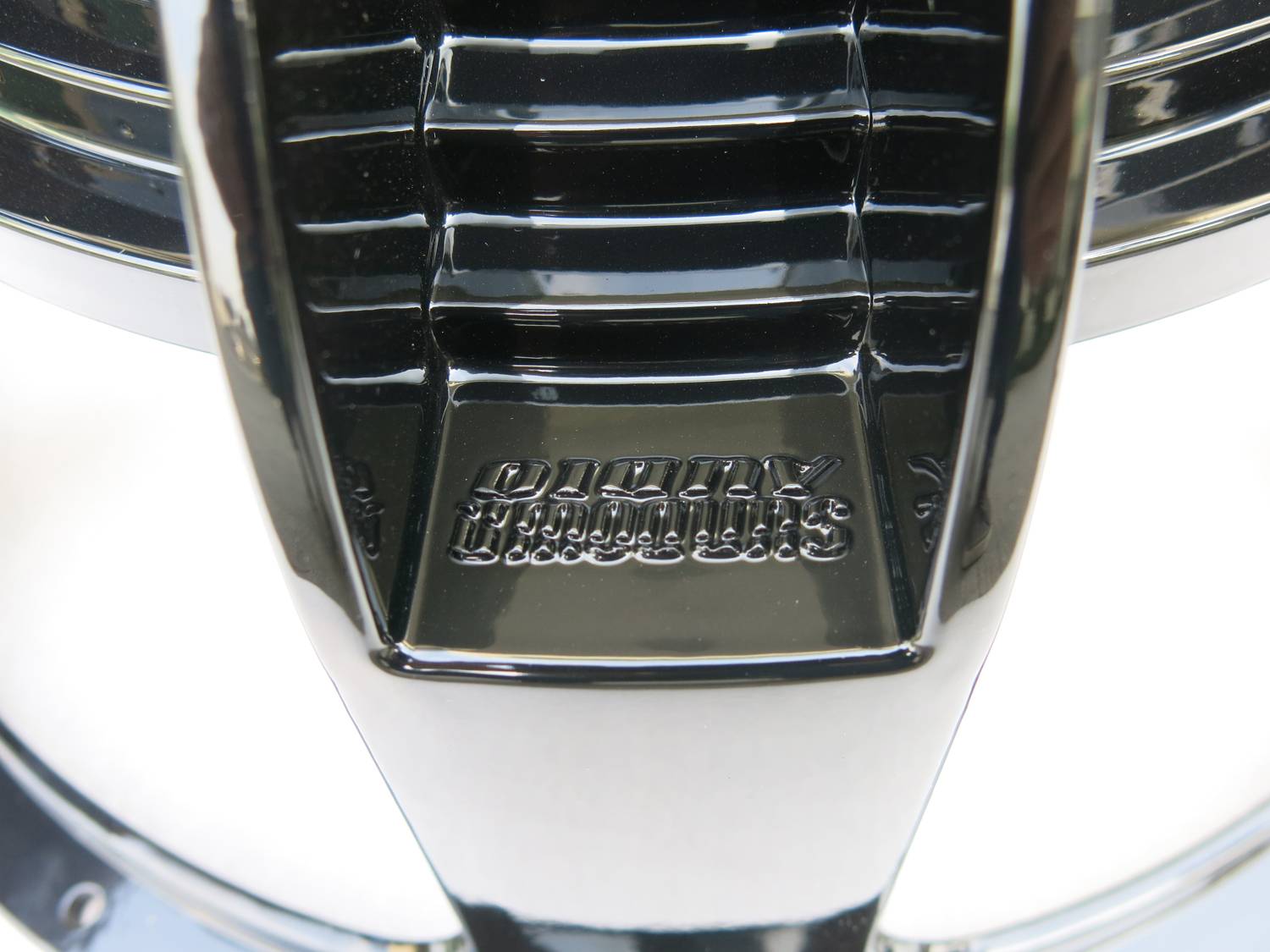

Anyway... it's been a long time coming; enjoy the photos!

Click to read more...



[Tantricz]

The tool is done and the very first unit rolled out of the mold yesterday. I will have a sample to play with next week !!!
This one is currently patent pending (our 8, 10, 12, and 15 are already patented) -- ETA for full stock will be Jan-Feb of 2015.

This frame is ~8.3" tall, supports 6" p-p excursion, and up to a 12" spider (also have 10" and 9.25" landings)... it weighs in at 10-11 lbs (I'll weigh it myself when it gets here). I will finally be comfortable making TEAM 18s at that point.

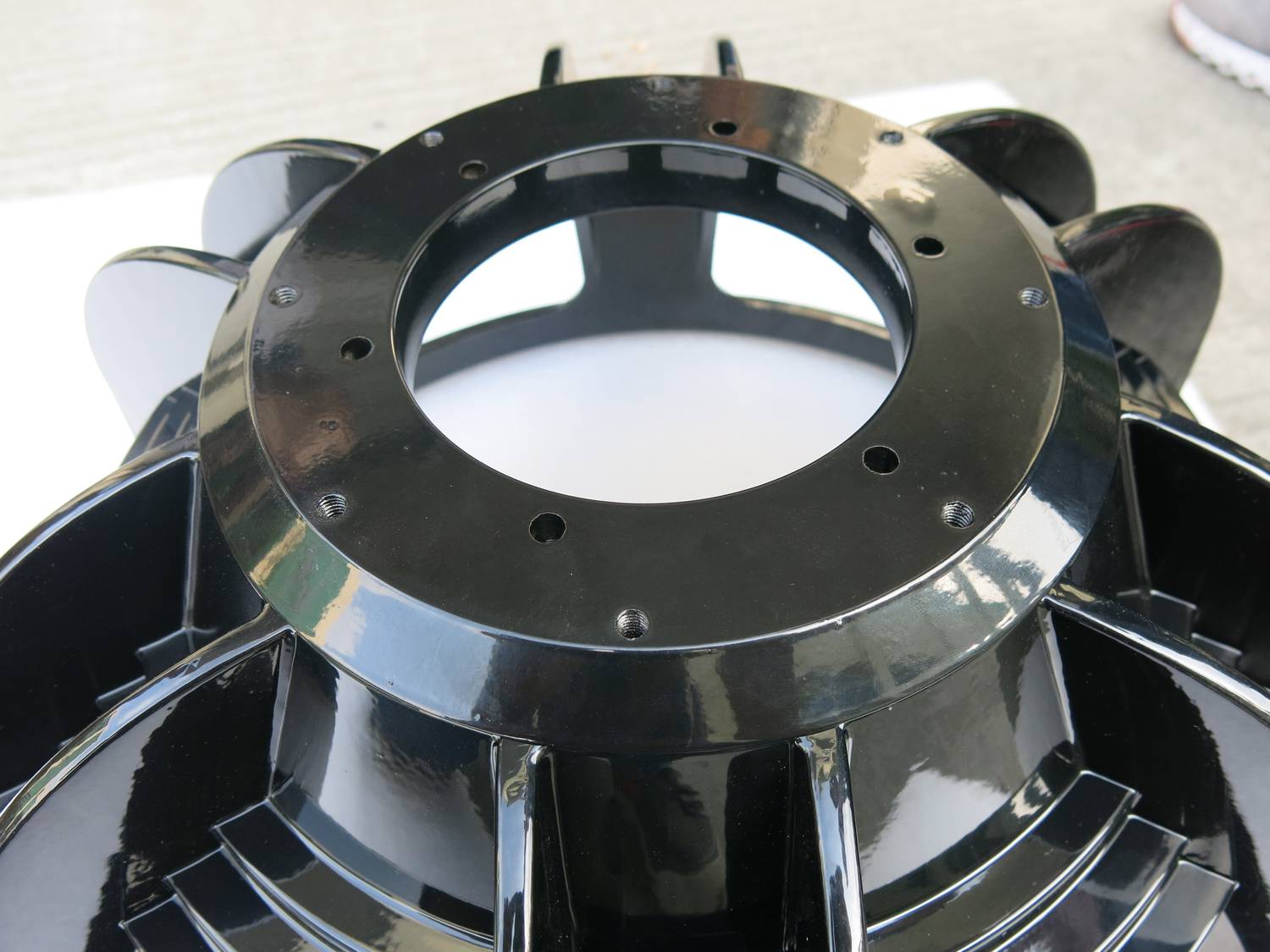

The main bolt pattern is a new, bigger pattern for coils larger than 4" in diameter. For all current designs we have a cast aluminum adapter piece that attaches to the base for a standard 127mm bolt pattern.

All current products will still use a 10" spider and current surround sizes -- future motors that support the additional throw allowed by the basket will move up to the 12" spider landing at that time and will also receive a newly tooled surround to mate up to that (no ETA to announce yet for that).

Anyway... it's been a long time coming; enjoy the photos!

Awesome looking stuff Jacob I love to see New stuff at sundown //content.invisioncic.com/y282845/emoticons/smile.gif.1ebc41e1811405b213edfc4622c41e27.gif



[garretttt4 10+ year member]

Wait, how much are the team subs going to be?



[Timmy13091 10+ year member]

Wait, how much are the team subs going to be?

I found some team woofers on woofer etc I think it was



[sundownz Pro Seller]

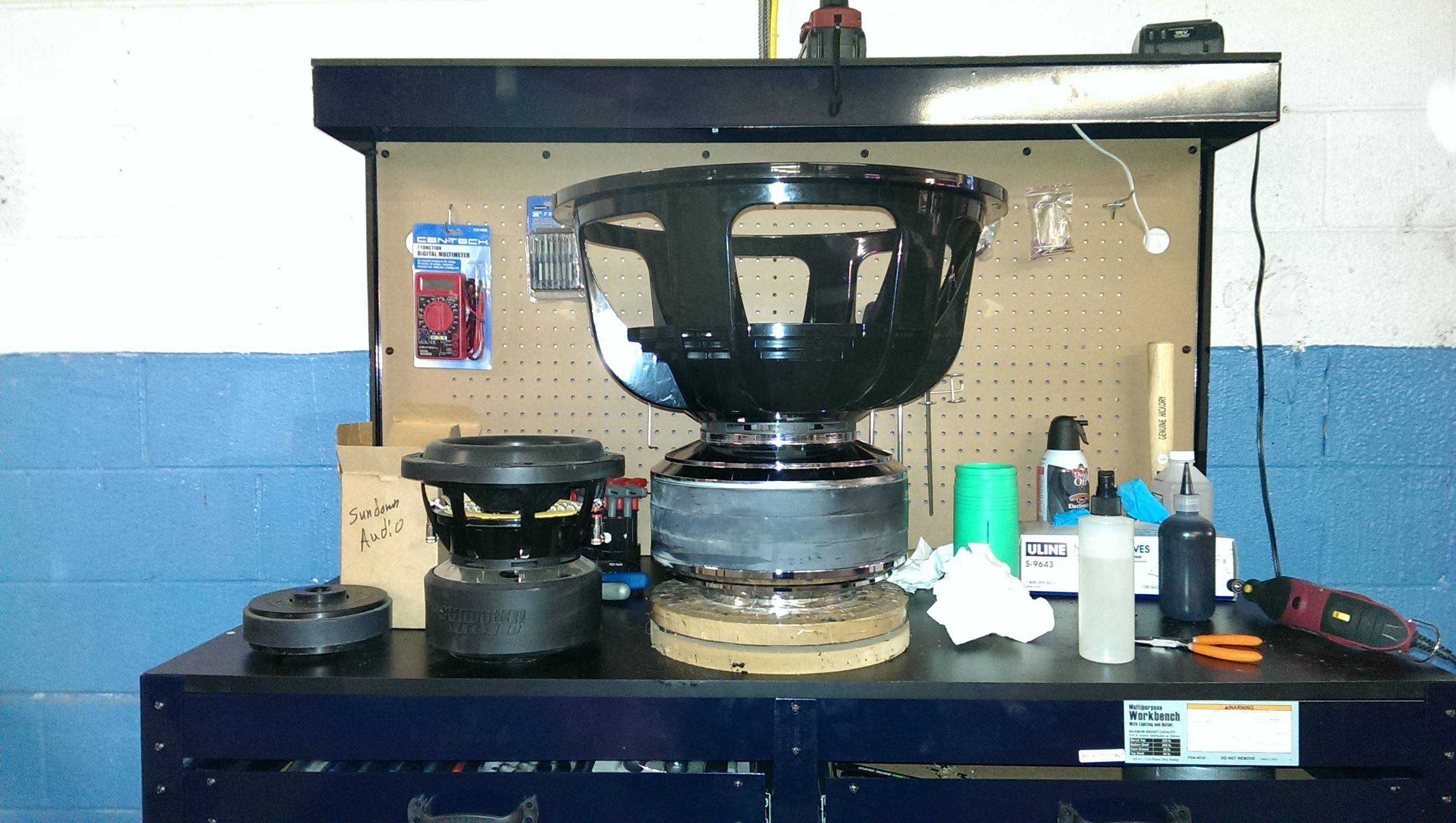

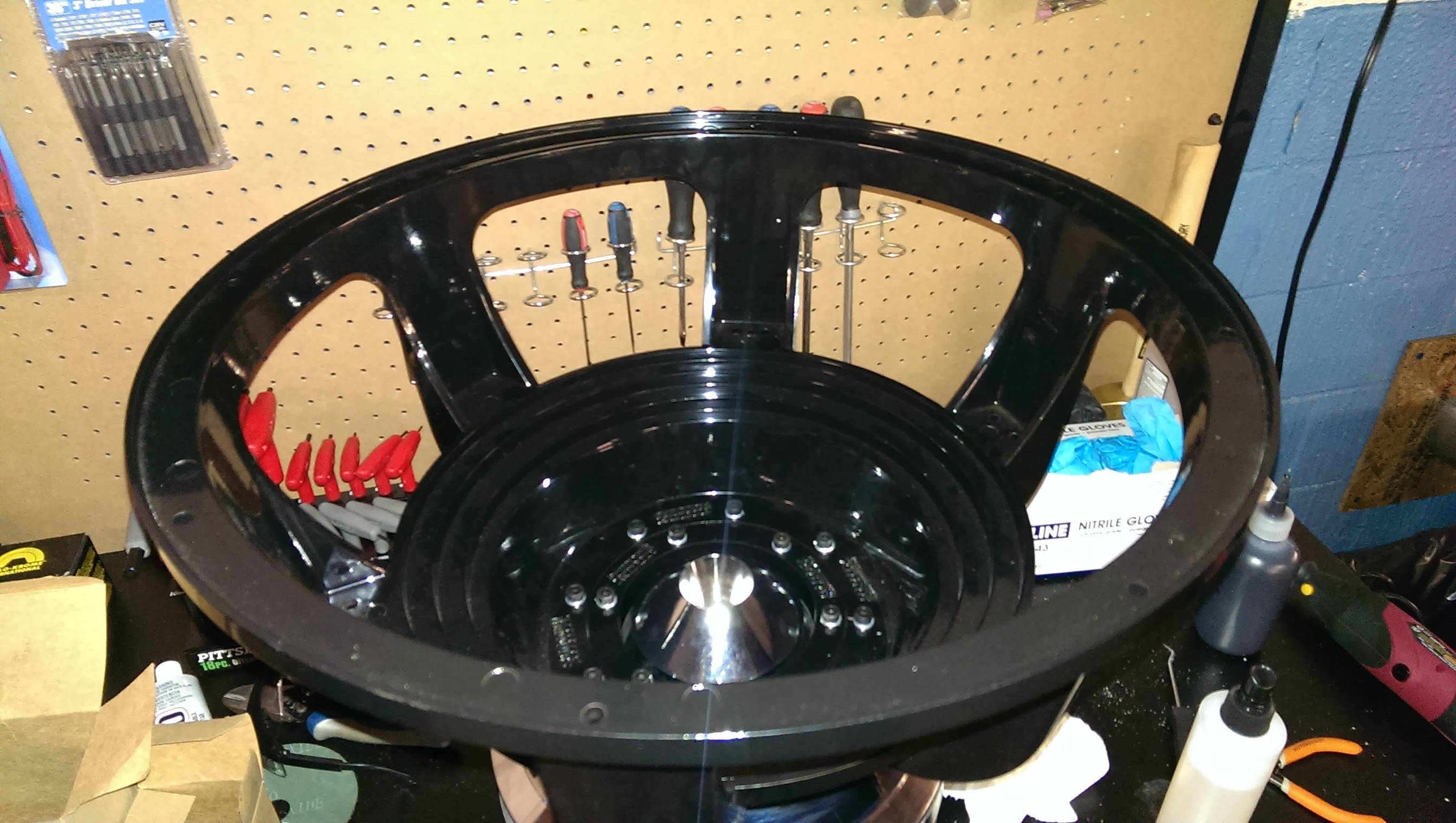

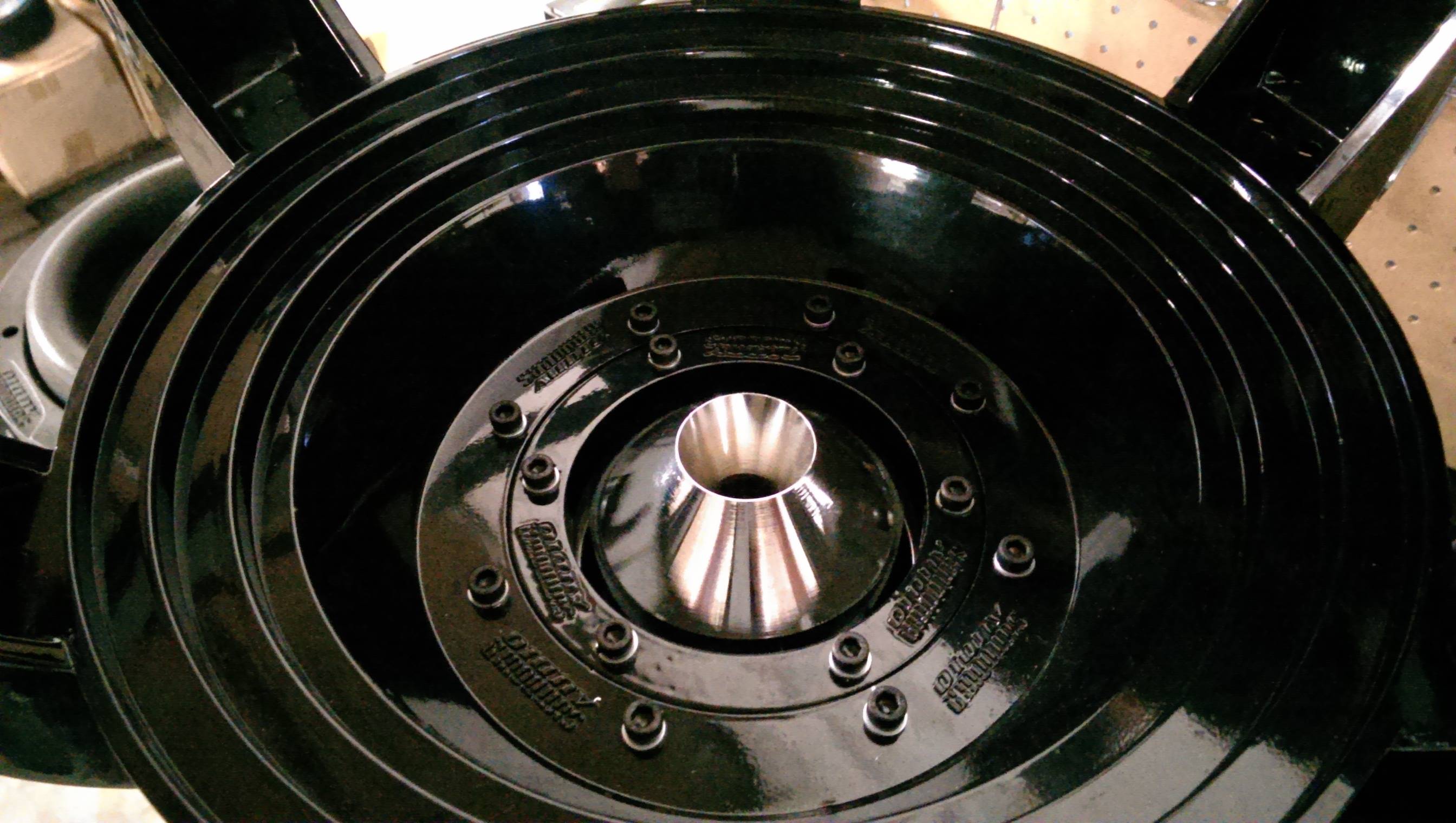

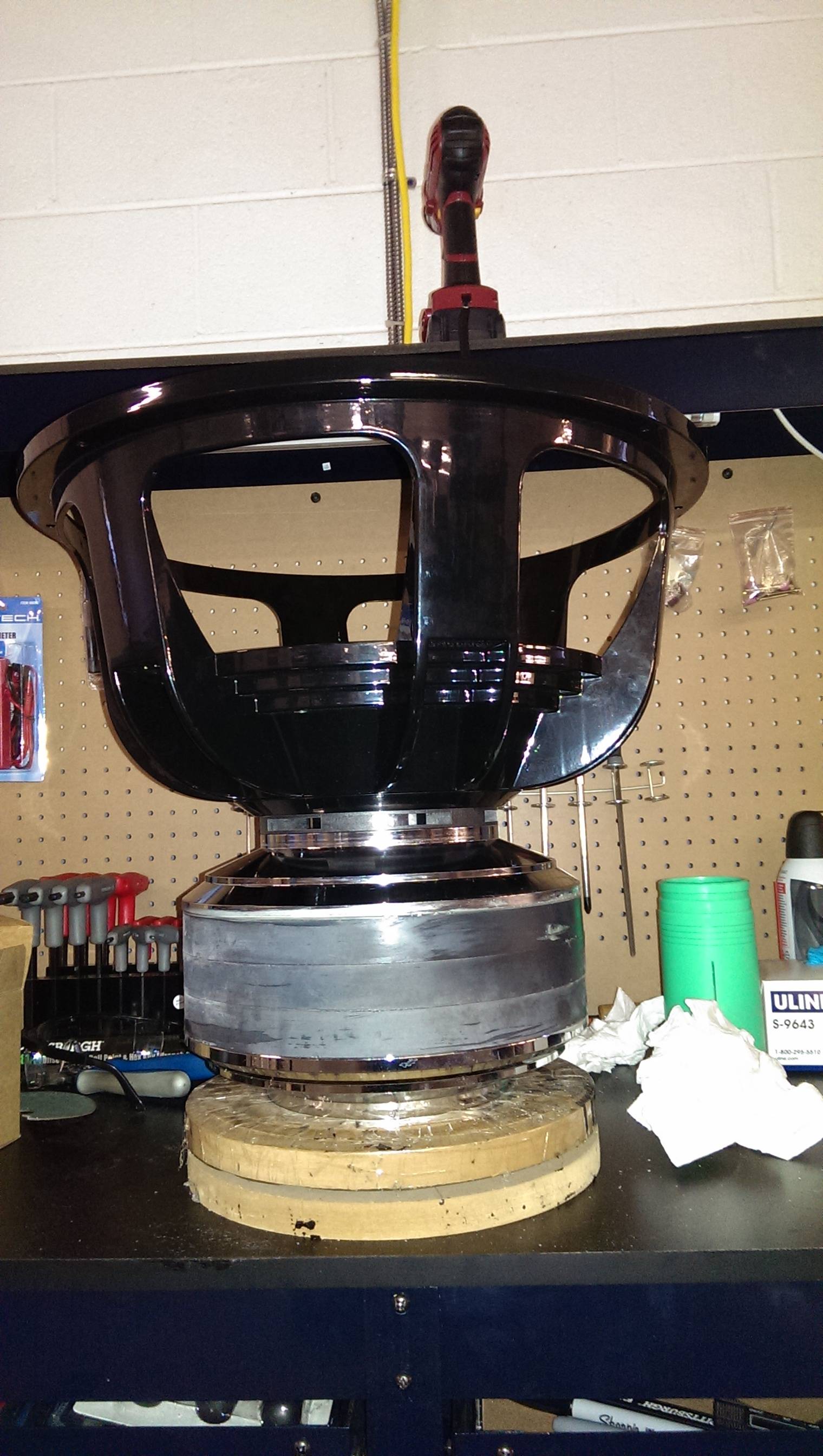

Some photos mocked up to a TEAM motor along with the bolt pattern adapter in place:

In the future bigger motors will have the bigger 8-bolt pattern on them in addition to the 127mm pattern; so we'll only need to use the adapter on 3" coil motors. But the adapter ensures we can mate this frame up to any of our existing motors on the market.
