The brand new MSK Series amplifiers are now in stock and a new product line from Skar Audio, so what we did today was go ahead and throw them on the test bench here in our office to test power via clamp testing...
Testing conditions/setup was identical on both amps, allowing for an easy comparison between the line. We are very happy with the results, and this will give you a baseline reference point when browsing and choosing from the compact amplifiers on the market.
We will also be posting the results from our SMD AD-1 Amp Dyno testing in this thread as well, so you can see a side by side comparison of the results from each method used...
Head Unit Volume : 60/62
Head Unit Sub Level : 6/6
Test Frequency : 50 Hz
Test Load : (1) ZVX-12 D2 resting @ 0.8 Ohm
Test Electrical : (4) Non-Charging Shuriken SK-BT75 12v Batteries
Amp Gain Set Level : 1/2
-------------------------------------------------
MSK-200.1D
POWER OUTPUT : 256 Watts (calculated)
AMP CURRENT : 11.9 A (measured)
AMP VOLTAGE : 21.5 V (measured)
ACTUAL IMPEDANCE : 1.81 ohms (calculated)
SUPPLY VOLTAGE : 13.17 V
------------------------------------------------

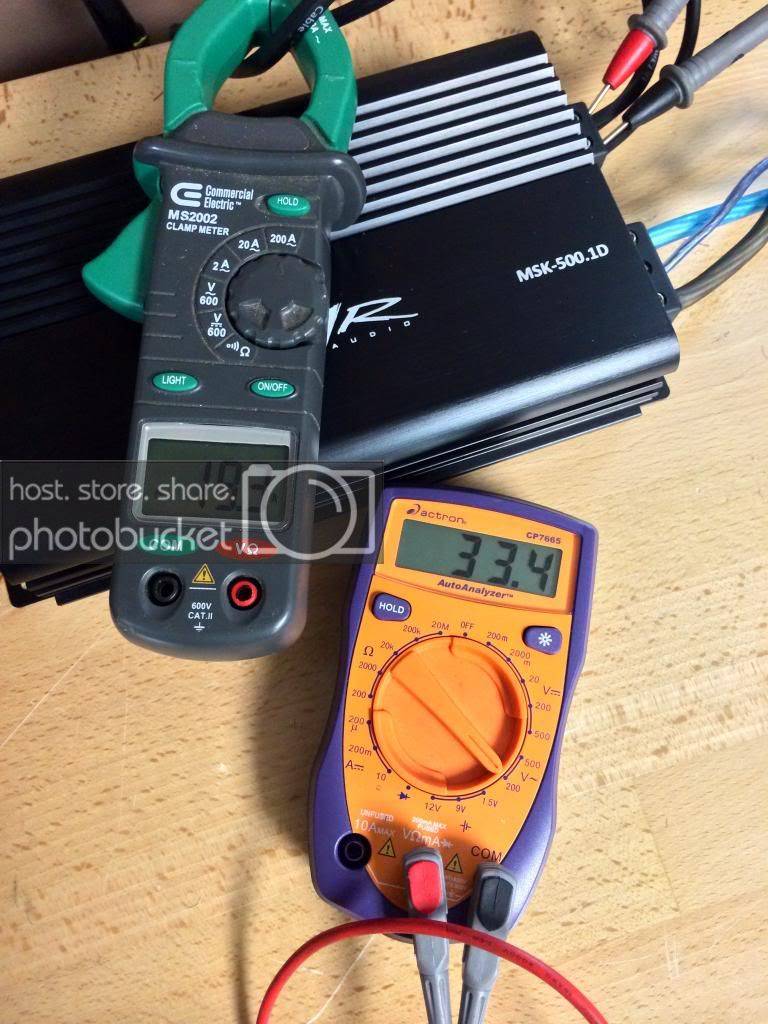

MSK-500.1D
POWER OUTPUT : 645 Watts (calculated)
AMP CURRENT : 19.3 A (measured)
AMP VOLTAGE : 33.4 V (measured)
ACTUAL IMPEDANCE : 1.73 ohms (calculated)
SUPPLY VOLTAGE : 12.88 V
Testing conditions/setup was identical on both amps, allowing for an easy comparison between the line. We are very happy with the results, and this will give you a baseline reference point when browsing and choosing from the compact amplifiers on the market.
We will also be posting the results from our SMD AD-1 Amp Dyno testing in this thread as well, so you can see a side by side comparison of the results from each method used...
Head Unit Volume : 60/62
Head Unit Sub Level : 6/6
Test Frequency : 50 Hz
Test Load : (1) ZVX-12 D2 resting @ 0.8 Ohm
Test Electrical : (4) Non-Charging Shuriken SK-BT75 12v Batteries
Amp Gain Set Level : 1/2
-------------------------------------------------
MSK-200.1D
POWER OUTPUT : 256 Watts (calculated)
AMP CURRENT : 11.9 A (measured)
AMP VOLTAGE : 21.5 V (measured)
ACTUAL IMPEDANCE : 1.81 ohms (calculated)
SUPPLY VOLTAGE : 13.17 V
------------------------------------------------
MSK-500.1D
POWER OUTPUT : 645 Watts (calculated)
AMP CURRENT : 19.3 A (measured)
AMP VOLTAGE : 33.4 V (measured)
ACTUAL IMPEDANCE : 1.73 ohms (calculated)
SUPPLY VOLTAGE : 12.88 V
