Show me your 'lectricals!

[metalheadjoe 10+ year member]

Iraggi 320a on the left. 1/0 between the alternators and the battery. Napa agm on the right. Ill Customz battery terminals.

Let's see your engine bay and electrical setup!

Click to read more...



[Ridinhi 5,000+ posts]



[Ridinhi 5,000+ posts]

View attachment 36305View attachment 36306

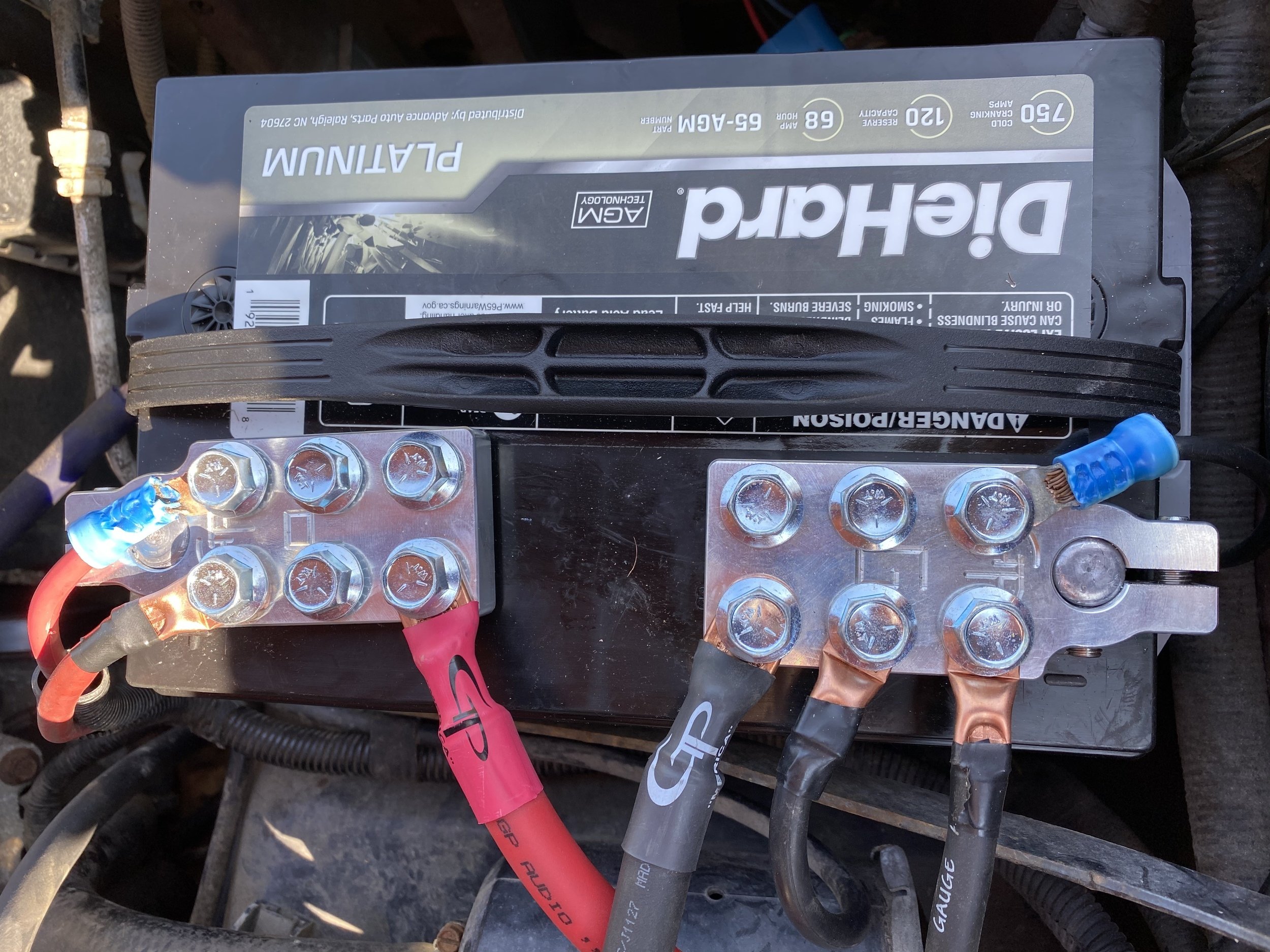

Diehard agm. Not sure why my power wire isn’t in this pic, must been when I was rewiring. Anyways, this is a combo of ofc and cca, currently in the process of rewiring everything with ofc. And 200 amp alternator. Should have went bigger but worlds better than the stock 95 amp.



[mrj858 10+ year member]

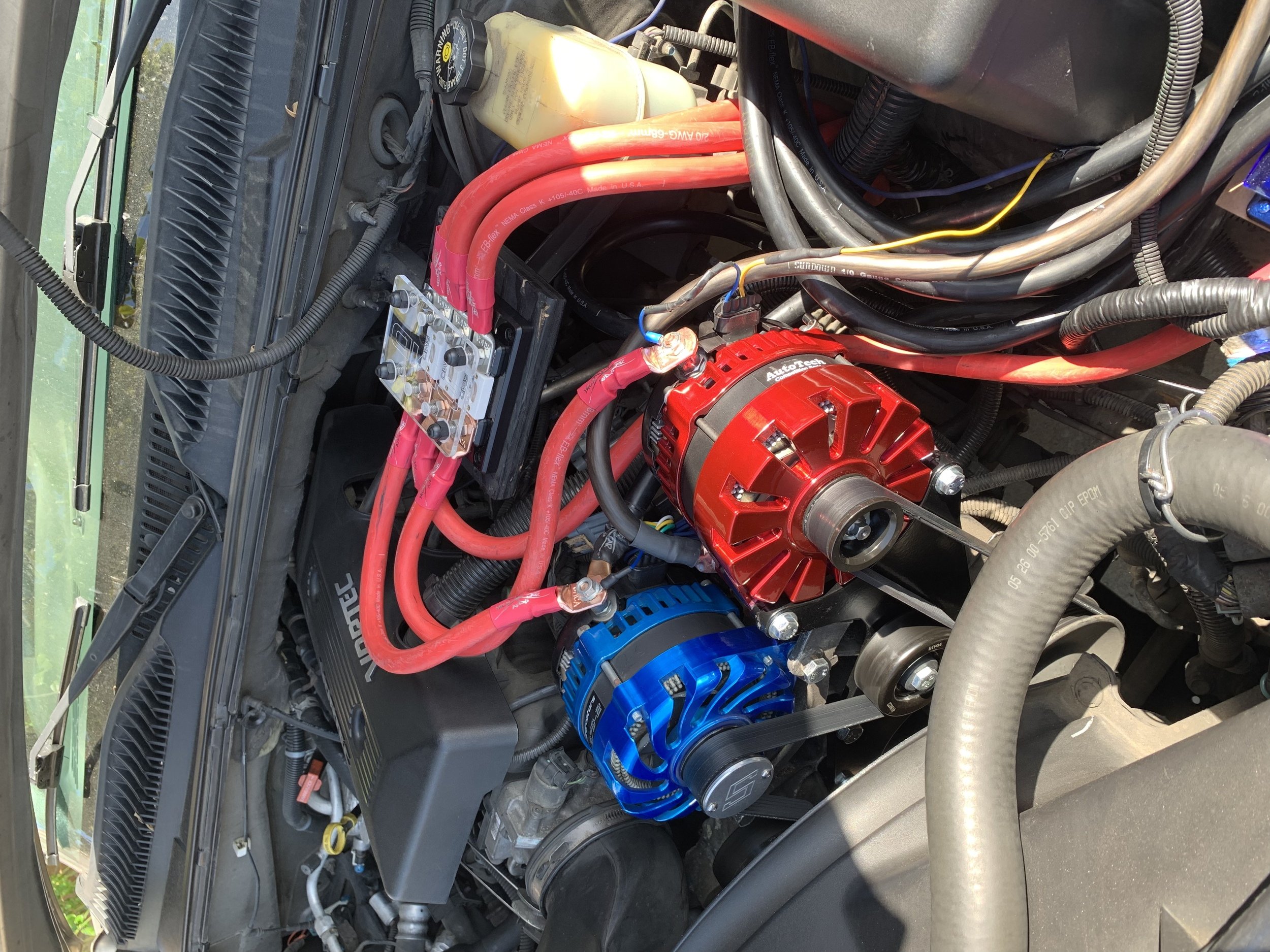

Billet Candy red Autotech 370 and a billet blue Singer 370 (soon to be replaced with a matching Billet candy red Autotech 370) 6 runs of 2/0 EB flex wire 3 positive and 3 Negative runs….260 AH Yin long LTO bank and 8 banks of maxwell caps in the rear



[some dude]

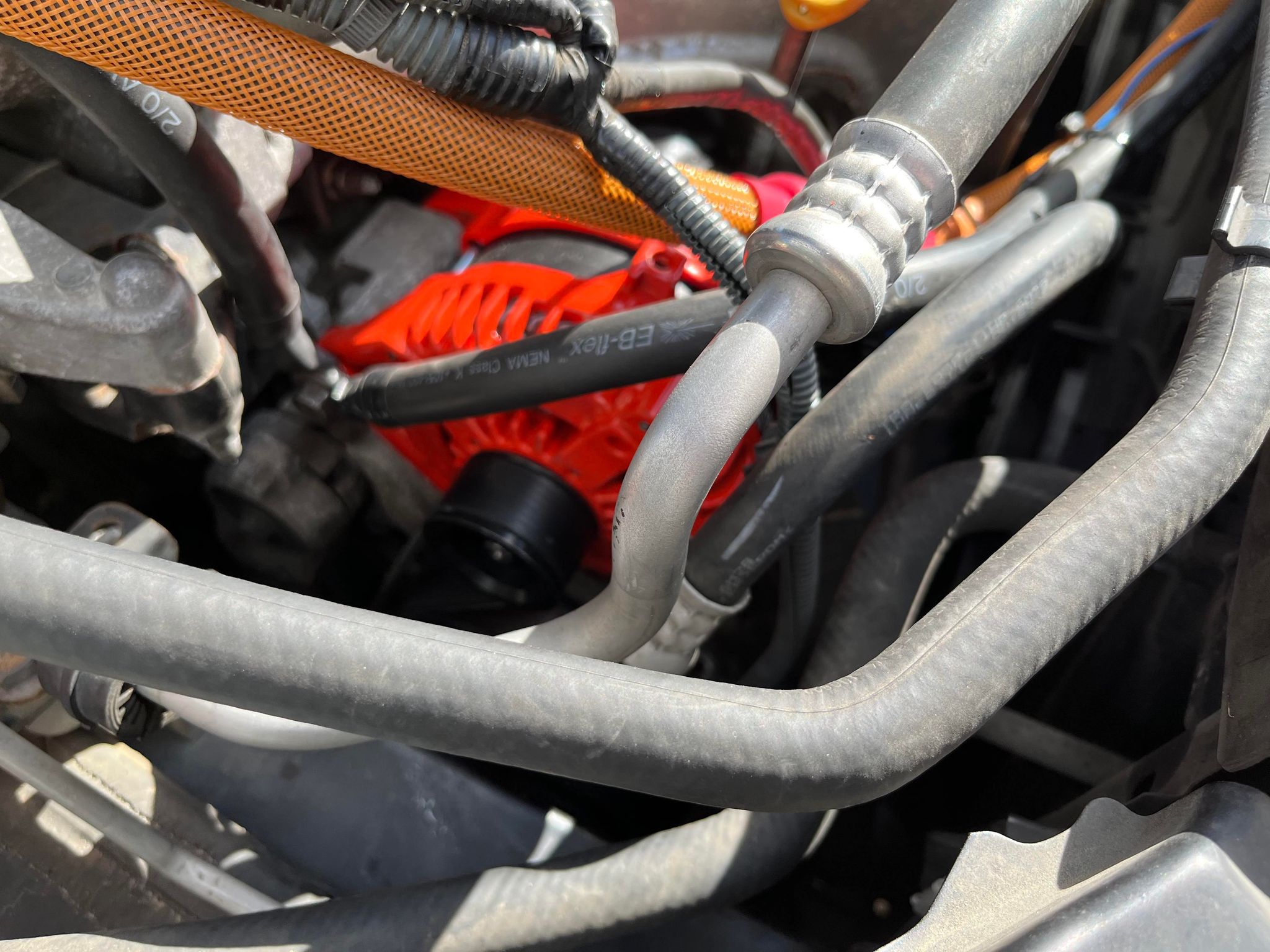

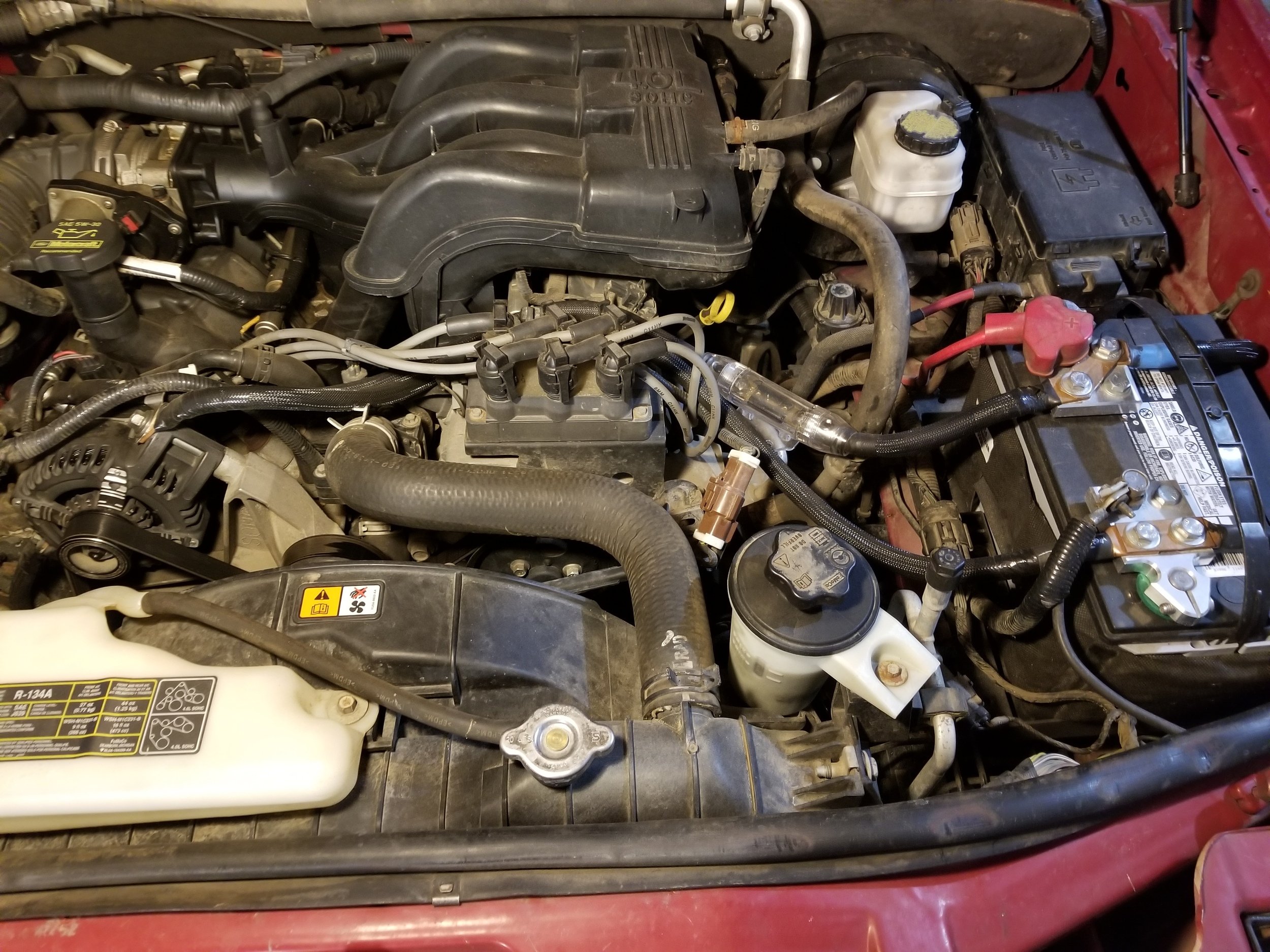

150A alternator with a 80AH AGM and 1/0 wire.
Fairly simple but it seems to get the job done.



[Popwarhomie 5,000+ posts]

Baby lecs

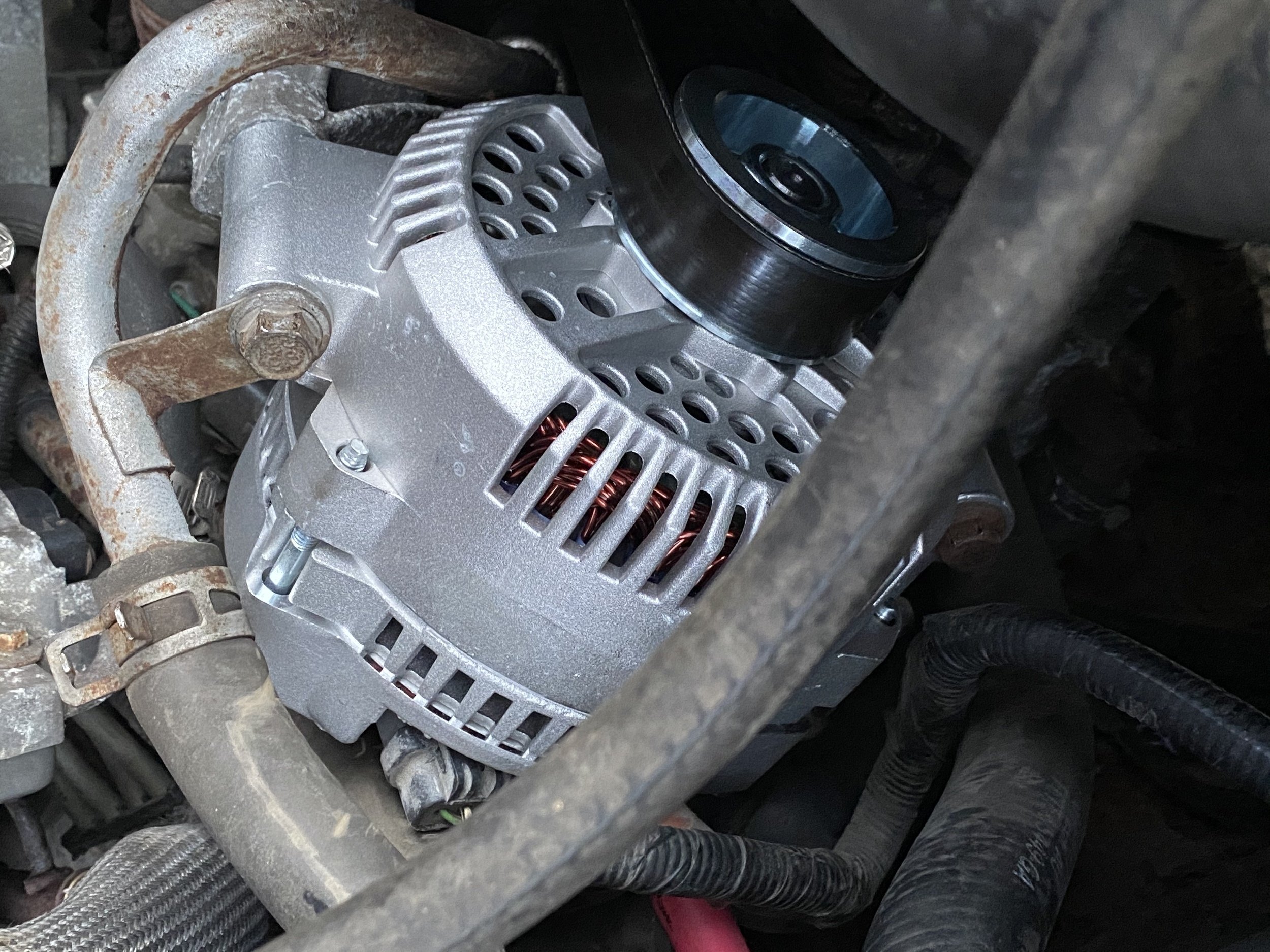

AT320 alt

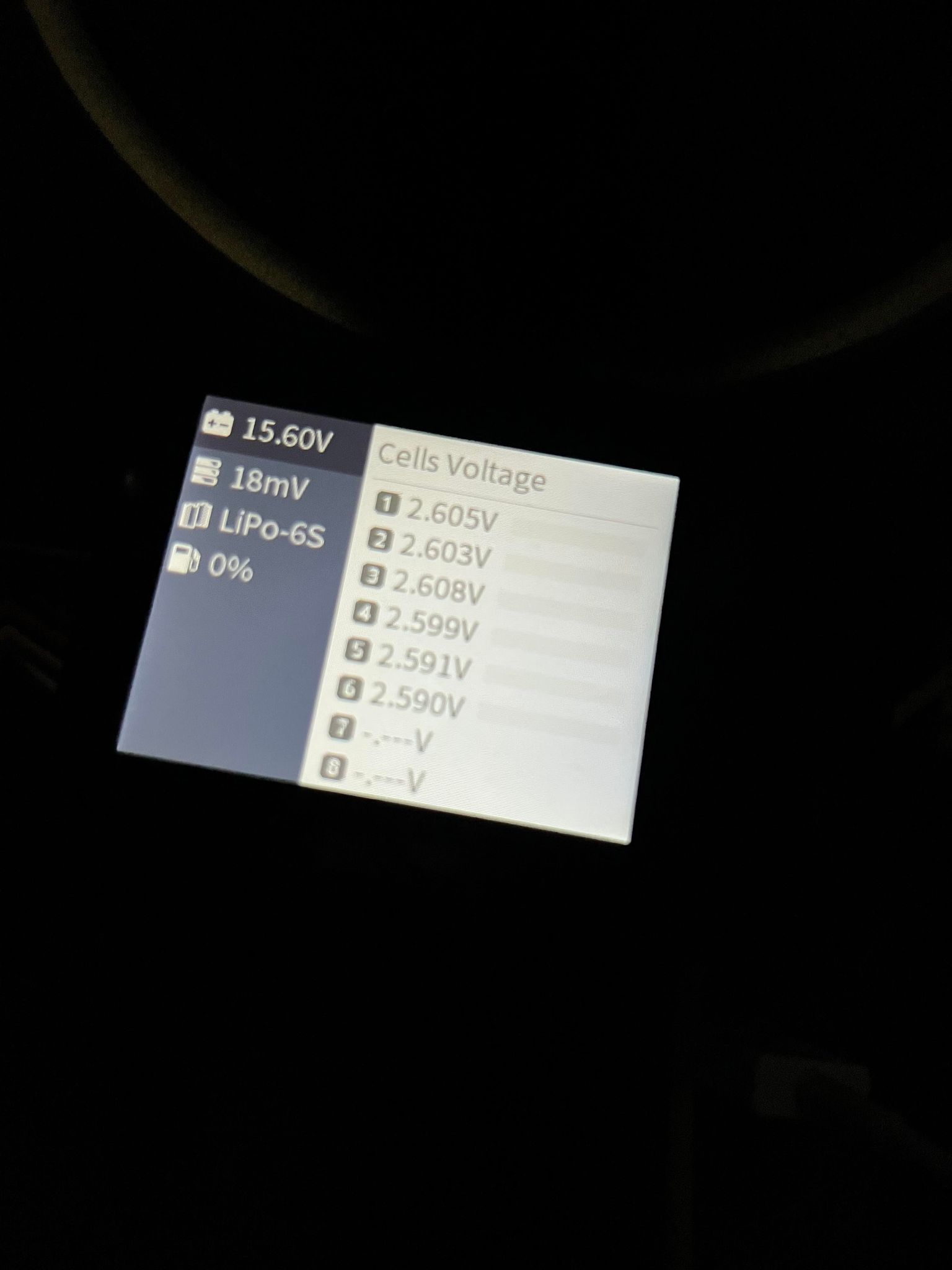

Hot voltage.

I actually don't have a picture of the lithium installed but just imagine 40ah of ding dongs in a shitty made wooden box with spaghetti wiring because I'm too lazy to clean it up....



[KicktheSDbasshead]

A cluster love of batteries lmao 320 auto tech alt
2 xs power d2400 95 ah batteries and 4 banks of the ole headway lmao! Oh and that ioxus "super" cap!



[KicktheSDbasshead]

Hey popwarhomie you charging headways at 15.6?



[Popwarhomie 5,000+ posts]

Hey popwarhomie you charging headways at 15.6?

No.



[Melissa Stephens Jones]

View attachment 36303
Iraggi 320a on the left. 1/0 between the alternators and the battery. Napa agm on the right. Ill Customz battery terminals.

Let's see your engine bay and electrical setup!

Melissa with Iraggi here! Dont know your real name to give you a shout out! But nice post!



[KicktheSDbasshead]

Oh ish fed ex came today yin long
