Precision port.. how much is usable?

[deez283 10+ year member]

Info is on their site..

Products Menu (psp-inc.com)



[Cclodbuster2017]

But each flare has around 2 inches of 4" port on it



[Cclodbuster2017]

volume of box: 2.15ft3
tuning freq: 33hz
port diam: 4"
number of ports: 1
Equals a flared port at both ends? 12.5"

Not sure if they mean both sides flared?



[SlugButter]

You need both sides flared.



[SlugButter]

So the flare would add around 3.5 inches of port for each flare, 7 for both, meaning you’d need a 5 inch piece in the center to get you to 12 inches of total port.



[Cclodbuster2017]

I want both sides flared but on that website are they asking for a port with one flare or 2 flares? This website:

http://www.psp-inc.com/tools2.html



[SlugButter]

I want both sides flared but on that website are they asking for a port with one flare or 2 flares? This website:

http://www.psp-inc.com/tools2.html

They want you to cut the center 5 inches short, which would account for a flare on both ends.



[Cclodbuster2017]

So a 7 inch center since its 12 inches long?



[SlugButter]

Yep.



[SlugButter]

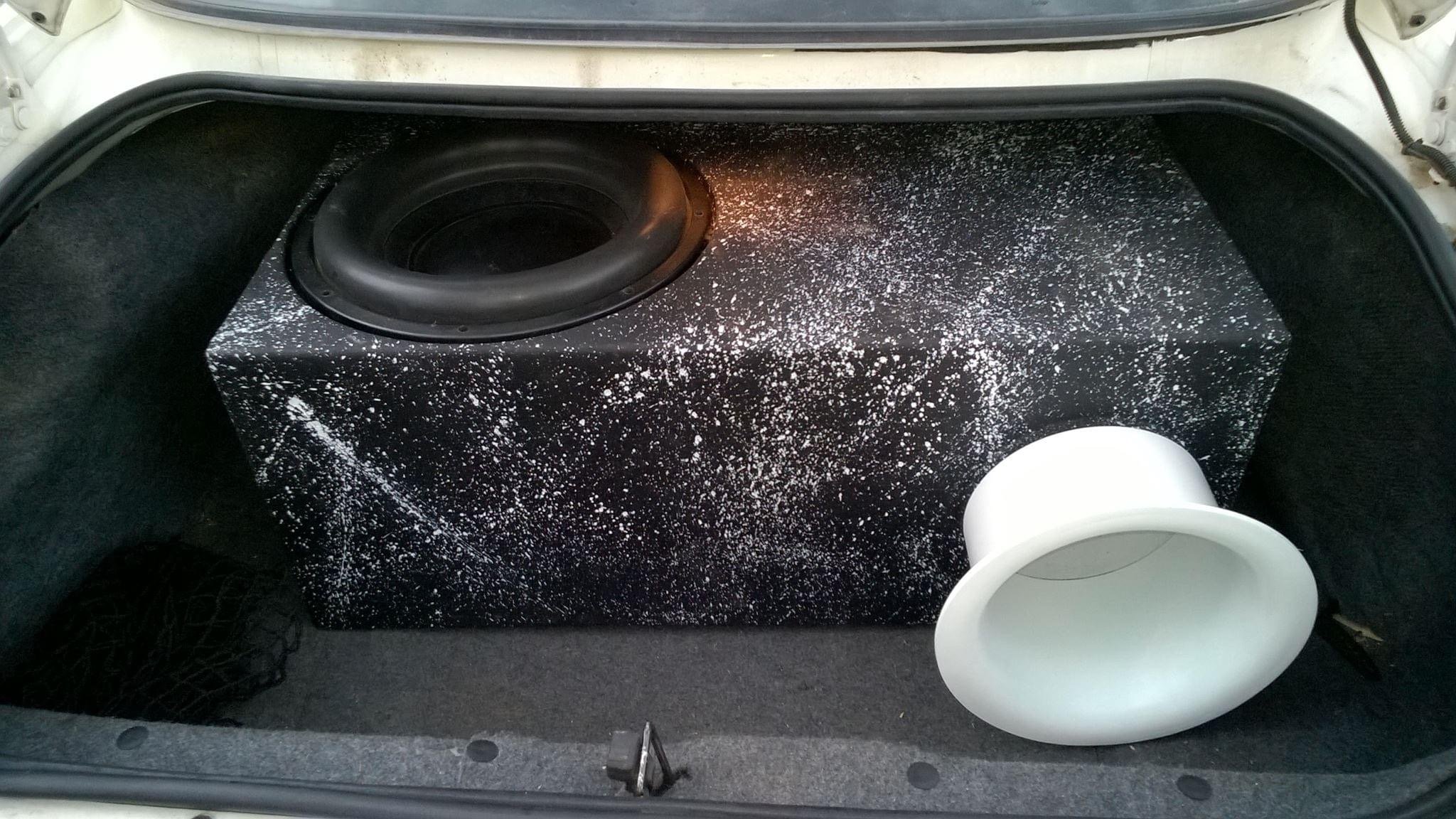

I wish they made larger ports. I personally like “big ass ports”. The flares are larger and they have bigger sizes. Expensive though. Used them on this box.



[SlugButter]

Big as$ ports. Edited crap.



[Cclodbuster2017]

With the 4" precision port it says to cut 6 inches short than the flare length port required value. 2" port is 5 inches.



[Cclodbuster2017]

Nice box SlugButter!



[SlugButter]

Thank you. The kid who put it in his car ruined his sub by running dirty power and not upgrading his alternator like I told him, but it sounded good for awhile.



[Cclodbuster2017]

With the 4" precision port it says to cut 6 inches short than the flare length port required value. 2" port is 5 inches.
