OS Amp decsion, Eclipse XA4000 or MMATS SQ-4070

[ace_800 5,000+ posts]

Both the same price shipped. MMATS has all plugs

Eclipse

4-channel car amplifier

ICEpower full-range Class-D amplifier design

Fuse rating: 30A x 3

Dimensions: 15-3/4"W x 2-5/16"H x 10-1/4"D

Power:

125 watts RMS x 4 at 4 ohms

175 watts RMS x 4 at 2 ohms

350 watts RMS x 2 bridged output at 4 ohms

Specs:

Variable high-pass filter (30-500 Hz, 18 dB/octave)

Variable low-pass filter (50-500 Hz, 18 dB/octave)

Variable bass boost (0-8 dB at 32-64 Hz)

Subsonic filter (18 Hz, 18 dB/octave)

MMATS

Amplifier Type: Dual Channel

Bass Boost: With Bass Boost

Bridgable: Bridgable

Power Output

RMS Power at 4 Ohms: 70 W x 4(Underrated I hear, not sure how much though)

Performance

Bass Boost Frequency: 45 Hz

THD at Rated RMS Power: 0.05 %

Signal to Noise Ratio: 105 dB

Frequency Response: 10 Hz - 25000000 Hz

Other Features

MOSFET amp: Yes

Click to read more...



[ace_800 5,000+ posts]

bump for a quick answer



[Papermaker85 5,000+ posts]

No doubt the mmats they are awesome amps..



[ace_800 5,000+ posts]

meh, leaning more towards the eclipse. The plugs on both sides of the amp kind of messes up where I am going to mount it. Plus its a stronger amp with better xovers.



[Slayerx 10+ year member]

I love my XA amps, sound amazing, easy on the electrical, and imo look pretty cool.



[ace_800 5,000+ posts]

I went ahead and bought the XA.



[dragnix 5,000+ posts]

meh, leaning more towards the eclipse. The plugs on both sides of the amp kind of messes up where I am going to mount it. Plus its a stronger amp with better xovers.

you answered your own question



[Papermaker85 5,000+ posts]

The mmats is by far superior..



[RAM_Designs 5,000+ posts]

The mmats is by far superior..

Care to explain in detail?

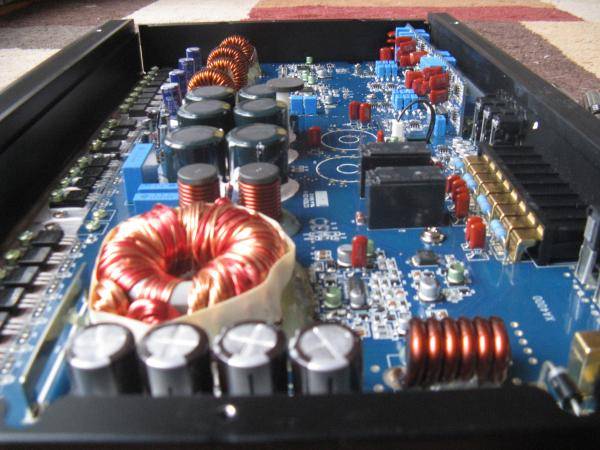

Here's some inside shots:



[Suicide Bobb 5,000+ posts]

Yeah man you definitely should've picked up the MMats lol...It's way more efficient and it's more than likely a better SQ amp as well. Not that the Eclipse is bad, by any means.



[Slayerx 10+ year member]

Yeah man you definitely should've picked up the MMats lol...It's way more efficient and it's more than likely a better SQ amp as well. Not that the Eclipse is bad, by any means.

lol more efficient? you have any tests showing the mmats efficiency?

and i doubt it's sq is better.

cuz a watt is a watt 'member? //content.invisioncic.com/y282845/emoticons/sneaky.gif.7189749b3a3f769e8815b47e8ae87f88.gif



[RAM_Designs 5,000+ posts]

Yeah man you definitely should've picked up the MMats lol...It's way more efficient and it's more than likely a better SQ amp as well. Not that the Eclipse is bad, by any means.

I doubt it's more efficient at all...the Eclipse is a full range class D.



[ace_800 5,000+ posts]

Having the rca' on one side and power/ground on another threw off how I wanted to mount it. I loved the xa5000 I installed for someone years ago



[Papermaker85 5,000+ posts]

Mmats amps are superior, I'm not going to get into an argument..

Look up the parts and do the research..

If you where comparing mmats to zapco etc then it might be legit but your comparing it to a ice powered full range class d amp, the slew rate alone will tell the story..



[Slayerx 10+ year member]

Having the rca' on one side and power/ground on another threw off how I wanted to mount it. I loved the xa5000 I installed for someone years ago

I still want to get a 4000 and 5000, just to have them all lol
