Pre-amp / parametric EQ / X-over

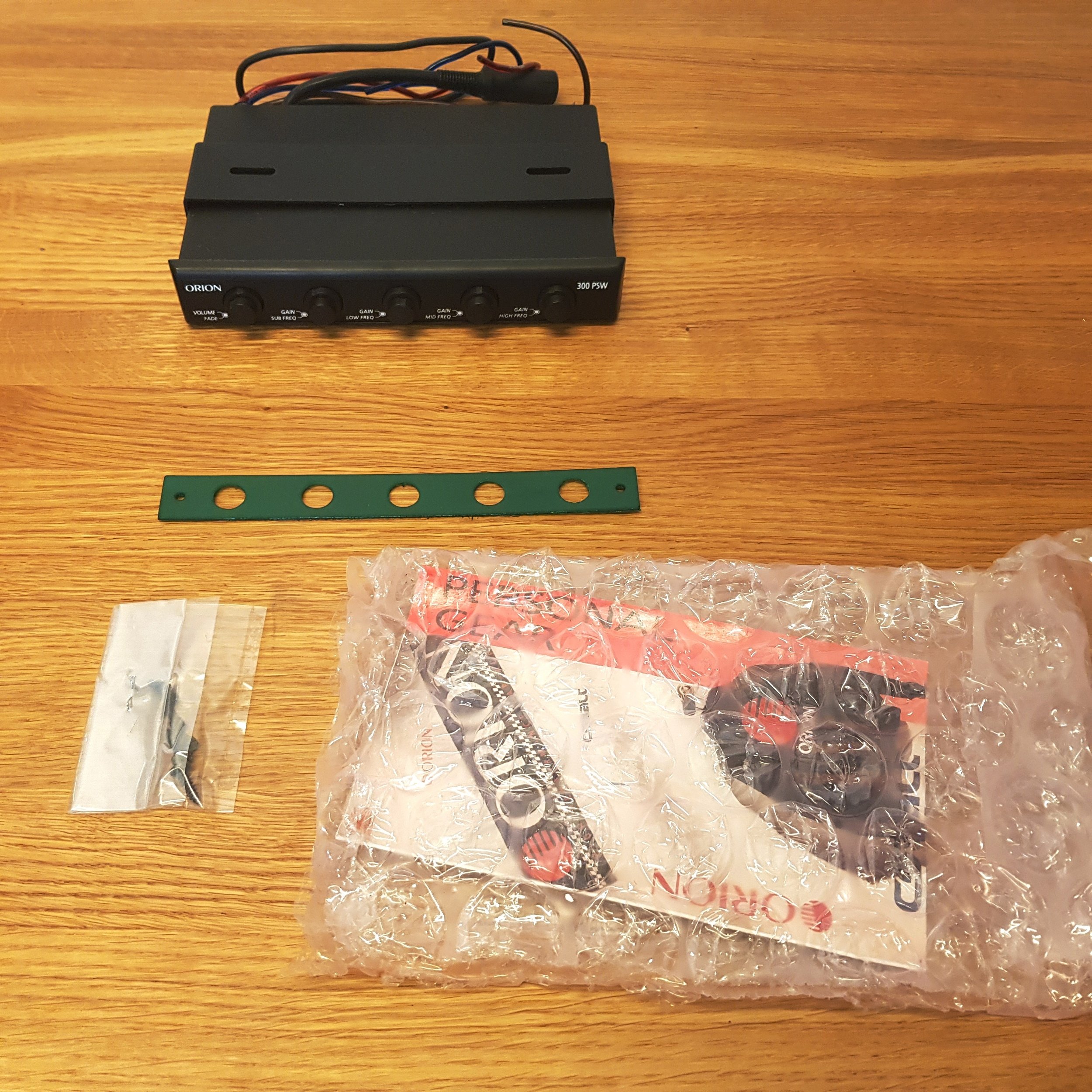

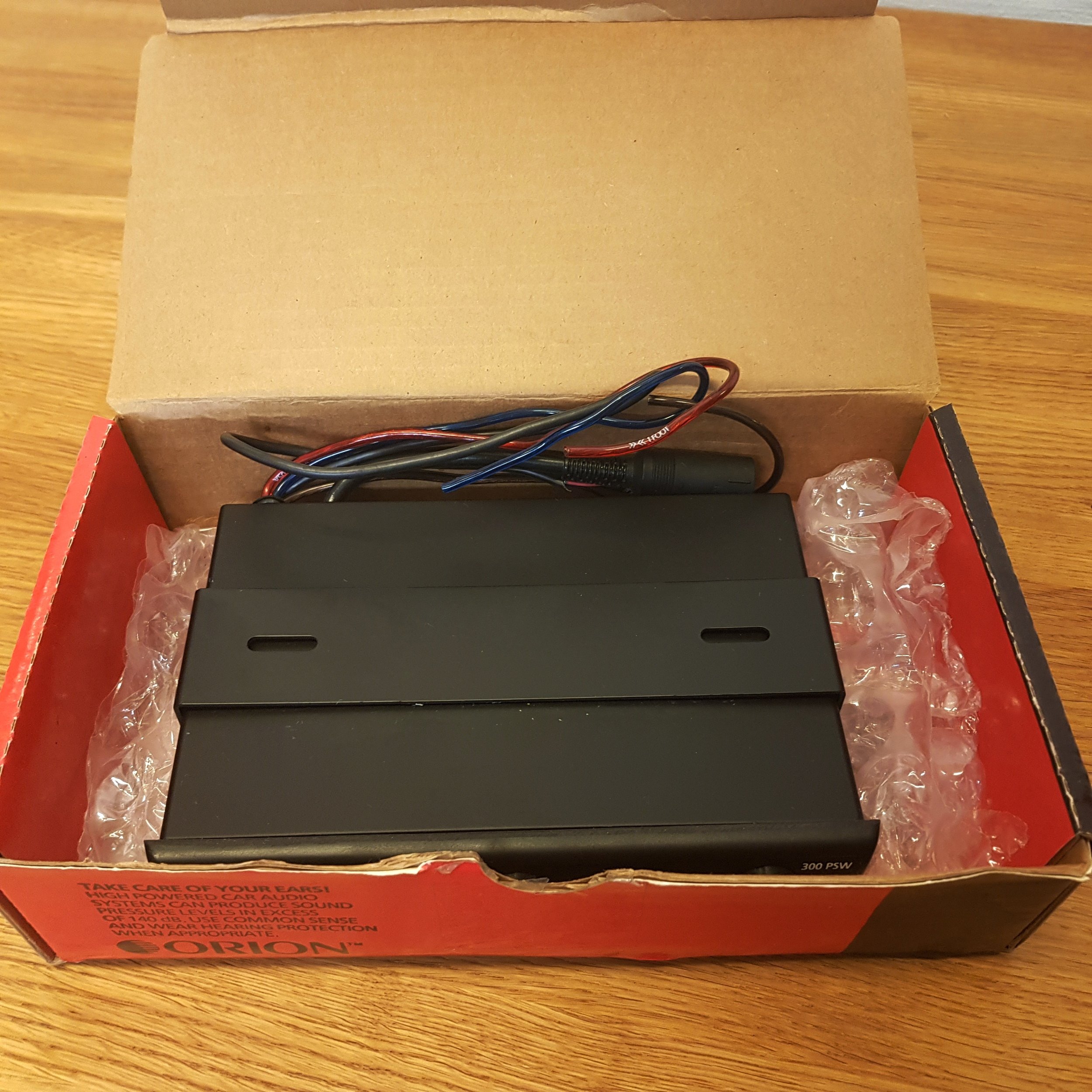

New, in box.

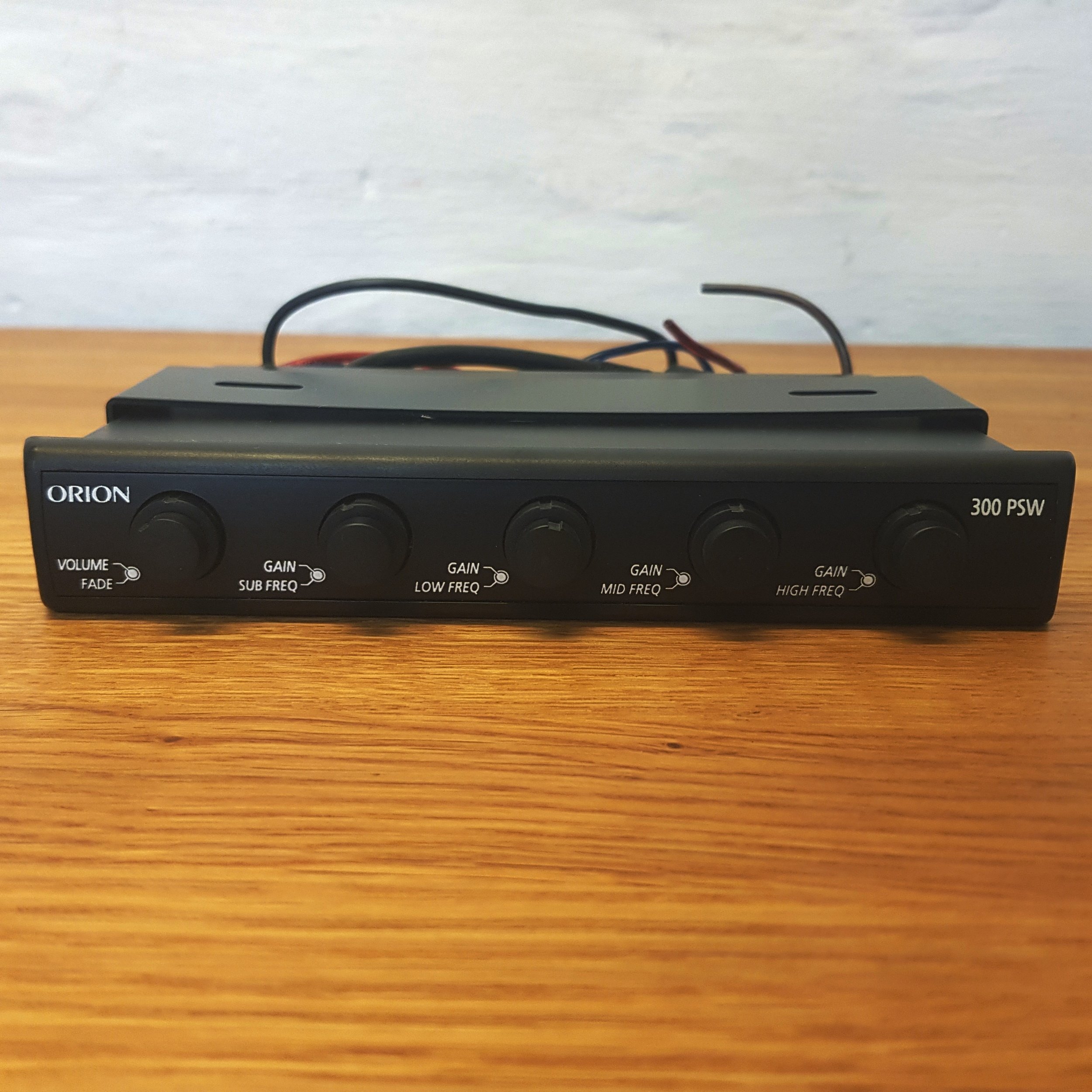

The 300PSW is a 1/2 din preamplifier and 3 band parametric equalizer with a fader control and seperate subwoofer output. It has an RCA input and can be run off of phantom power through the din cable or can be wired directly. The Subwoofer output has level and crossover frequency adjustments.
Technical Information:
-Main Volume control effects all outputs
-Subwoofer volume effects volume of sub out only.
-For the Three EQ Controls, the outer knobs offer frequency adjustments and inner knobs offer +/- 12dB of boost/cut.
-The gain controls on the top of the PSW adjust the input sensitivity.
Specifications:
Input Voltage: Up to 3v RMS
Output Voltage: Up to 9V RMS
Sub Woofer Crossover Frequencies: 35Hz to 200Hz
Sub Woofer Crossover Slope: 12dB per Octave
Low Frequency EQ Band: 35Hz to 90Hz
Mid Frequency EQ Band: 100Hz to 500Hz
High Frequency EQ Band: 4.5kHz to 12.5kHz
Boost/Cut on EQ Bands: +/- 12dB
Signal to Noise: 98dB
THD: 0.03%
Stereo separation: 80dB
Input Impedance: 10Kohms
Output Impedance: 100ohms
New, in box.
The 300PSW is a 1/2 din preamplifier and 3 band parametric equalizer with a fader control and seperate subwoofer output. It has an RCA input and can be run off of phantom power through the din cable or can be wired directly. The Subwoofer output has level and crossover frequency adjustments.
Technical Information:
-Main Volume control effects all outputs
-Subwoofer volume effects volume of sub out only.
-For the Three EQ Controls, the outer knobs offer frequency adjustments and inner knobs offer +/- 12dB of boost/cut.
-The gain controls on the top of the PSW adjust the input sensitivity.
Specifications:
Input Voltage: Up to 3v RMS
Output Voltage: Up to 9V RMS
Sub Woofer Crossover Frequencies: 35Hz to 200Hz
Sub Woofer Crossover Slope: 12dB per Octave
Low Frequency EQ Band: 35Hz to 90Hz
Mid Frequency EQ Band: 100Hz to 500Hz
High Frequency EQ Band: 4.5kHz to 12.5kHz
Boost/Cut on EQ Bands: +/- 12dB
Signal to Noise: 98dB
THD: 0.03%
Stereo separation: 80dB
Input Impedance: 10Kohms
Output Impedance: 100ohms
