honda/acura whats this radio wire info?

[Ali2627]

hi, i have a 2015 acura ilx aka a 2013 honda civic almost lol

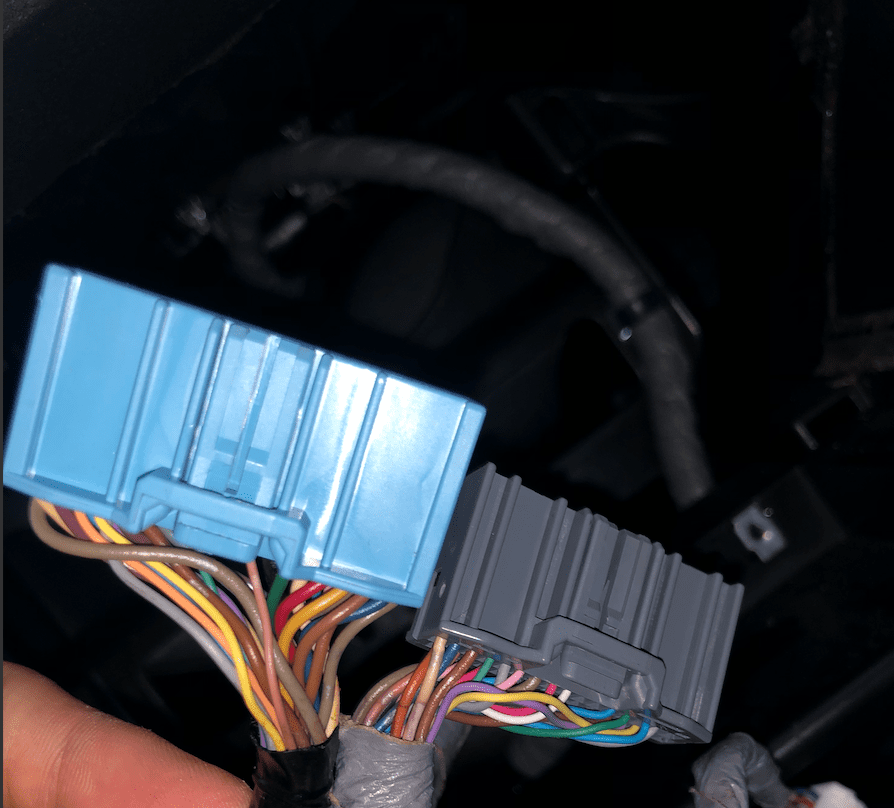

i got a nav model screen but it has a different connection (blue) and the oem harness of the car is grey... any conversion kits out there ? or information of how to connect these two? i don't care for nav just want a bigger screen!!! none of the wire colors match up so idk what to do.....

Click to read more...



[Louisiana_CRX 5,000+ posts]

Dont cut the plug off your factory harness



[Ali2627]

Dont cut the plug off your factory harness

do u know what connector the oem one is? I've checked amazon it just gives me the radio harness which is a different shape

i also am gonna take it to another audio shop at the first one said its 50/50 but they will charge 200$ to test 10 wires lol.......



[Louisiana_CRX 5,000+ posts]

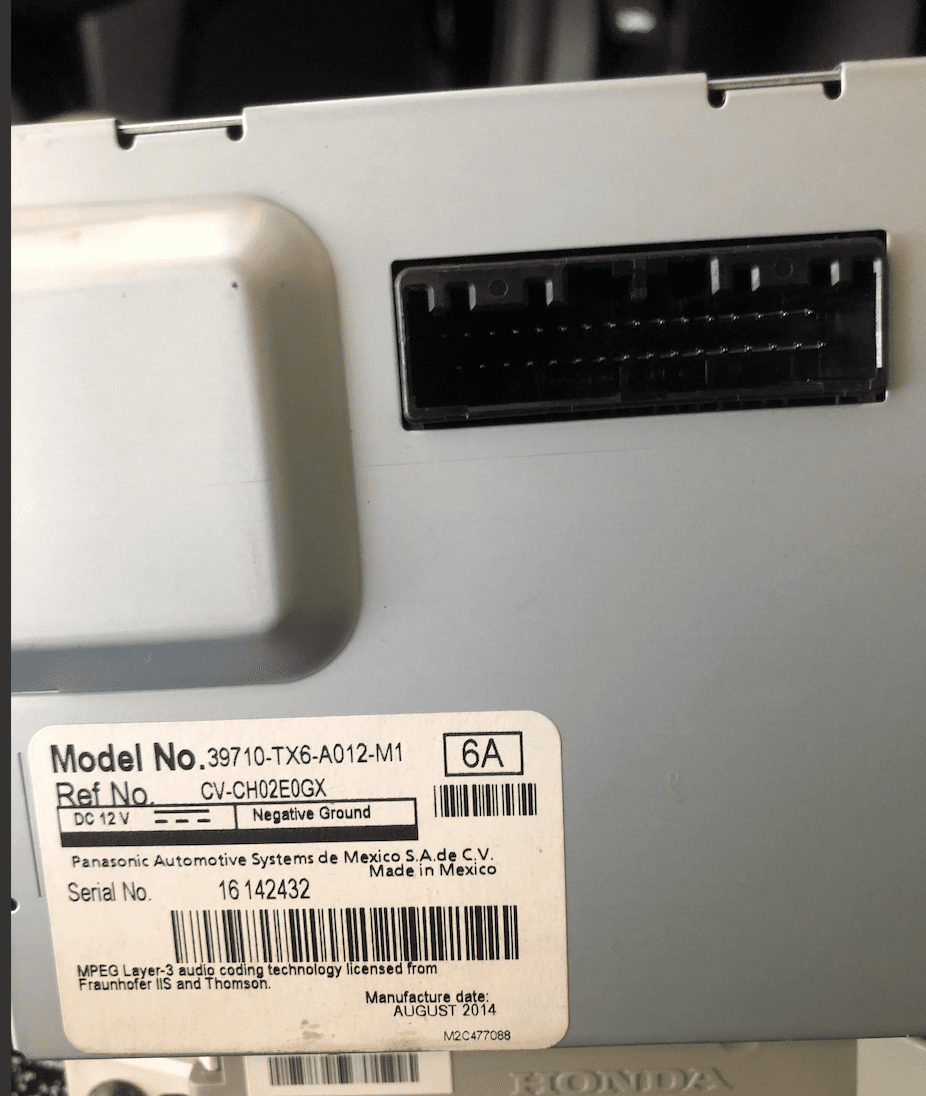

Send me a pic of the inside of the plug . I want to see the rectangle opening .



[Ali2627]

Send me a pic of the inside of the plug . I want to see the rectangle opening .

2015 acura ilx base model



[Ali2627]

o.o



[Ali2627]

hey all just wanted to update that i bought jumper pins in the mean time and any info of what color to connect to would be helpful!



[Louisiana_CRX 5,000+ posts]

I was hoping there was a reverse harness for your new deck...but I couldnt find one..I was thinking a radio reverse plug for deck and a standard plug on the original harness would make a nice simple hookup ... but no luck
