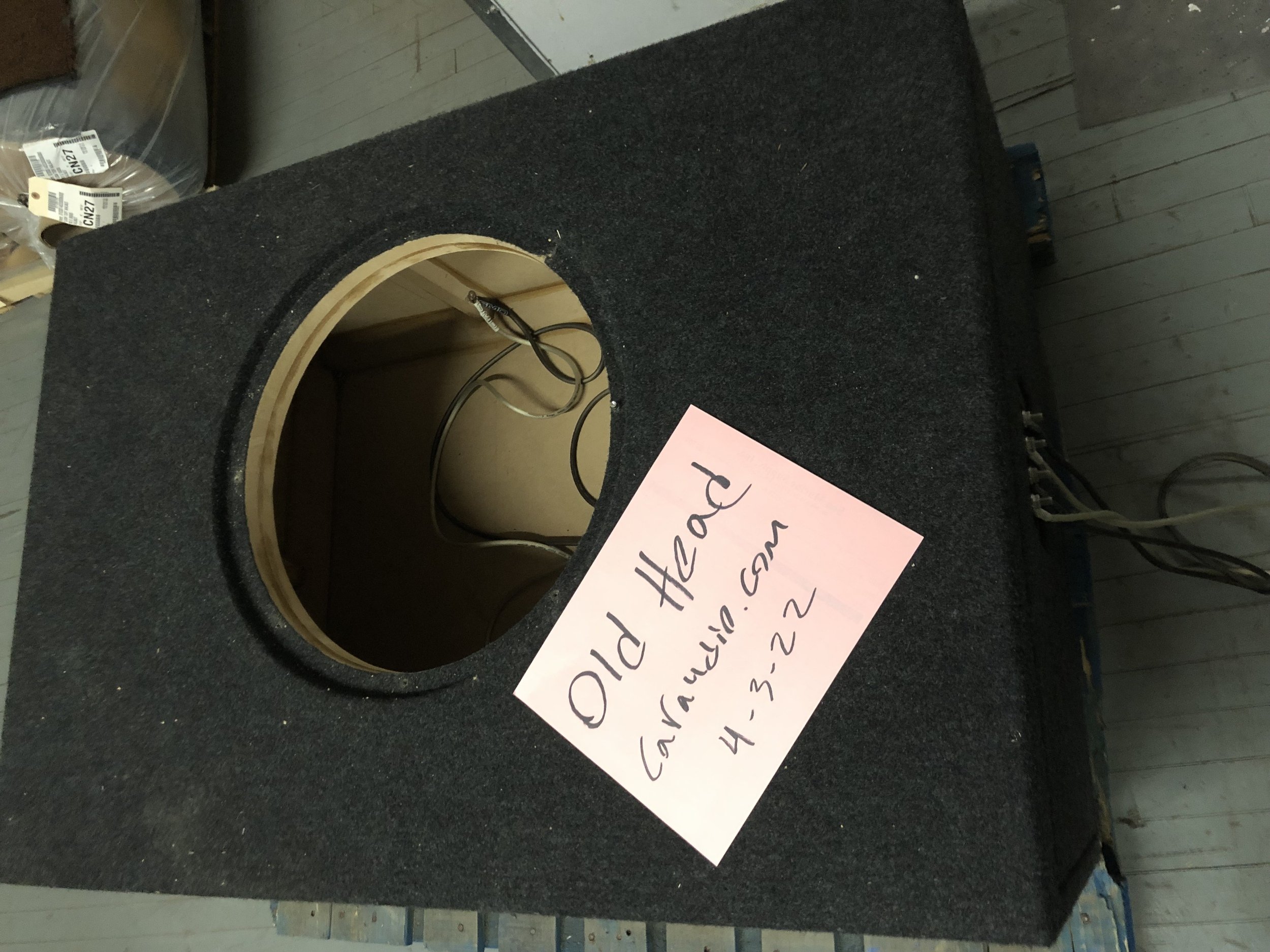

FOR SALE Custom 18” Ported Enclosure

Old_Head

CarAudio.com Newbie
Rating - 0%
0   0   0
Mar 26, 2022
5
0
Price
$ 400
Condition (1 being worst - 10 being best)
9
Was Photo Included
Yes
37046
Local pickup in 49783 Michigan

Box was built by Brian Plautz AudioFanaticz


This has been very well taken care of and was only used for a year with 1500watts, stored indoors.

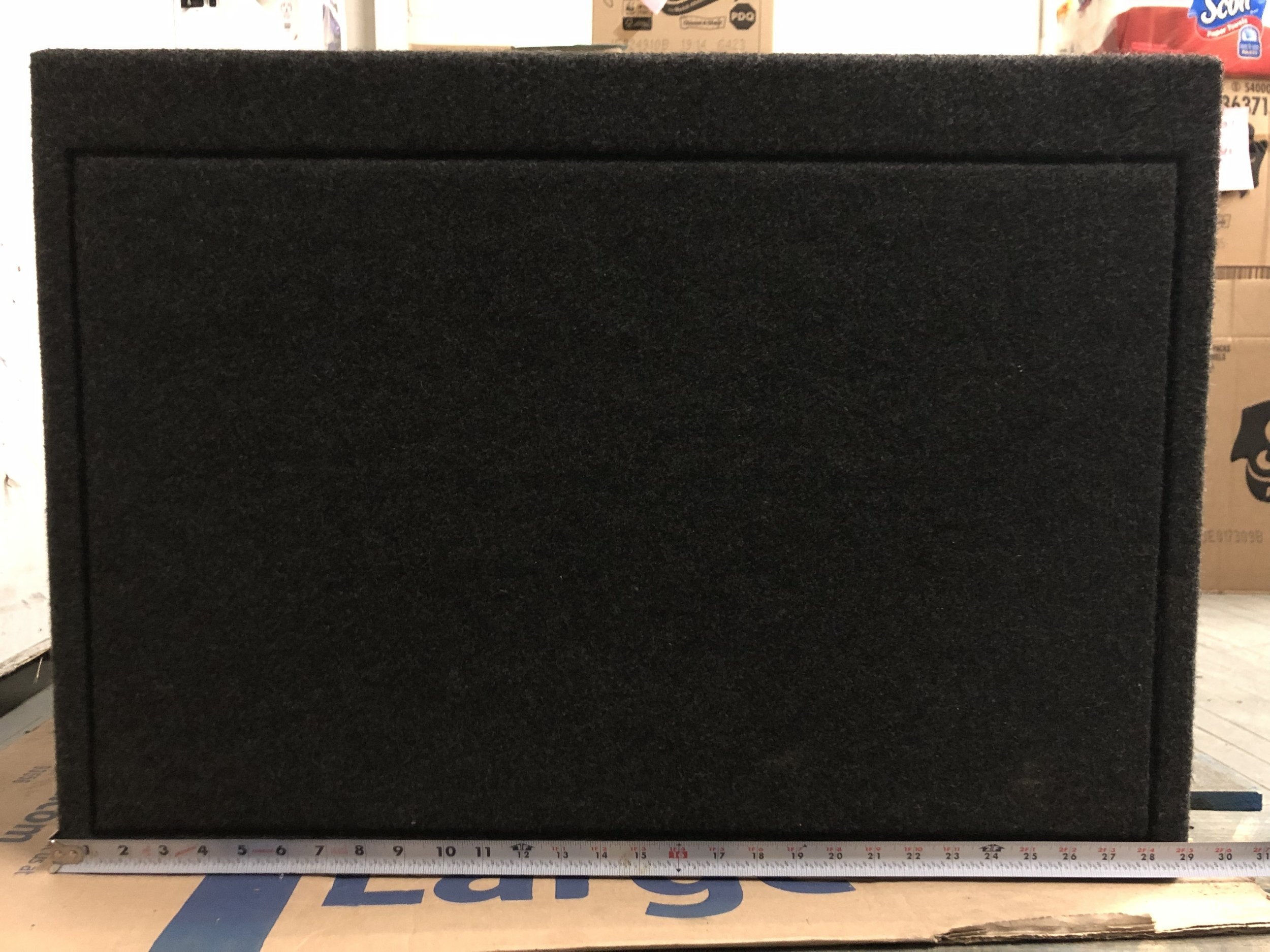

External dimensions: 20.5H by 41.5W by 29D
Gross volume: 10.72 cubed
Port volume: 2.57 cubed
Bracing volume: 0.4 cubed
Subwoofer volume: 0.25 cubed
Net volume: 7.50 cubed

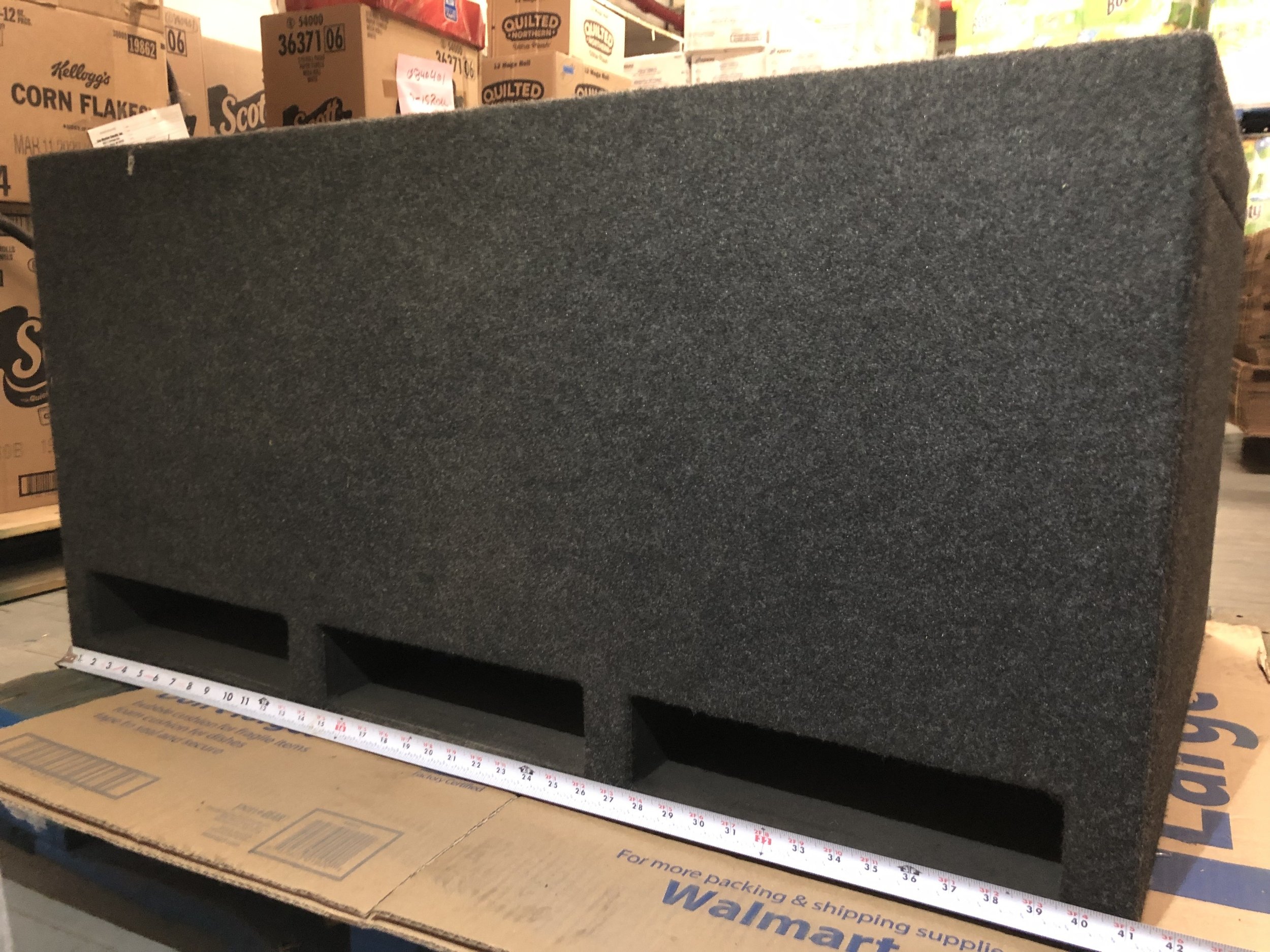

Port size: 38.5W by 3H by 30L
Physical port length: 26.25 inches
Port area: 115.50 square inches/15.40 per cube
Port tuning: 32.06Hz

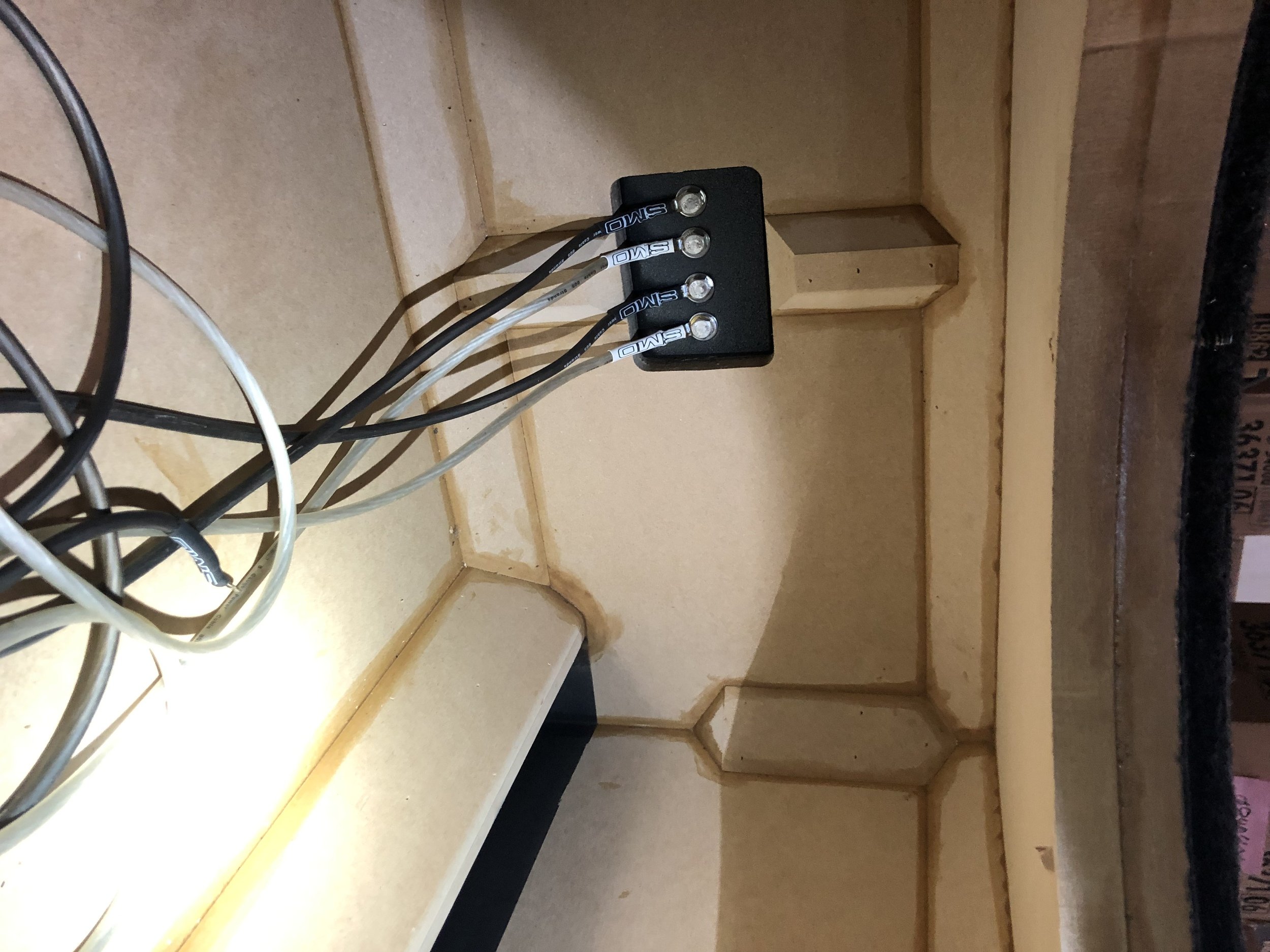

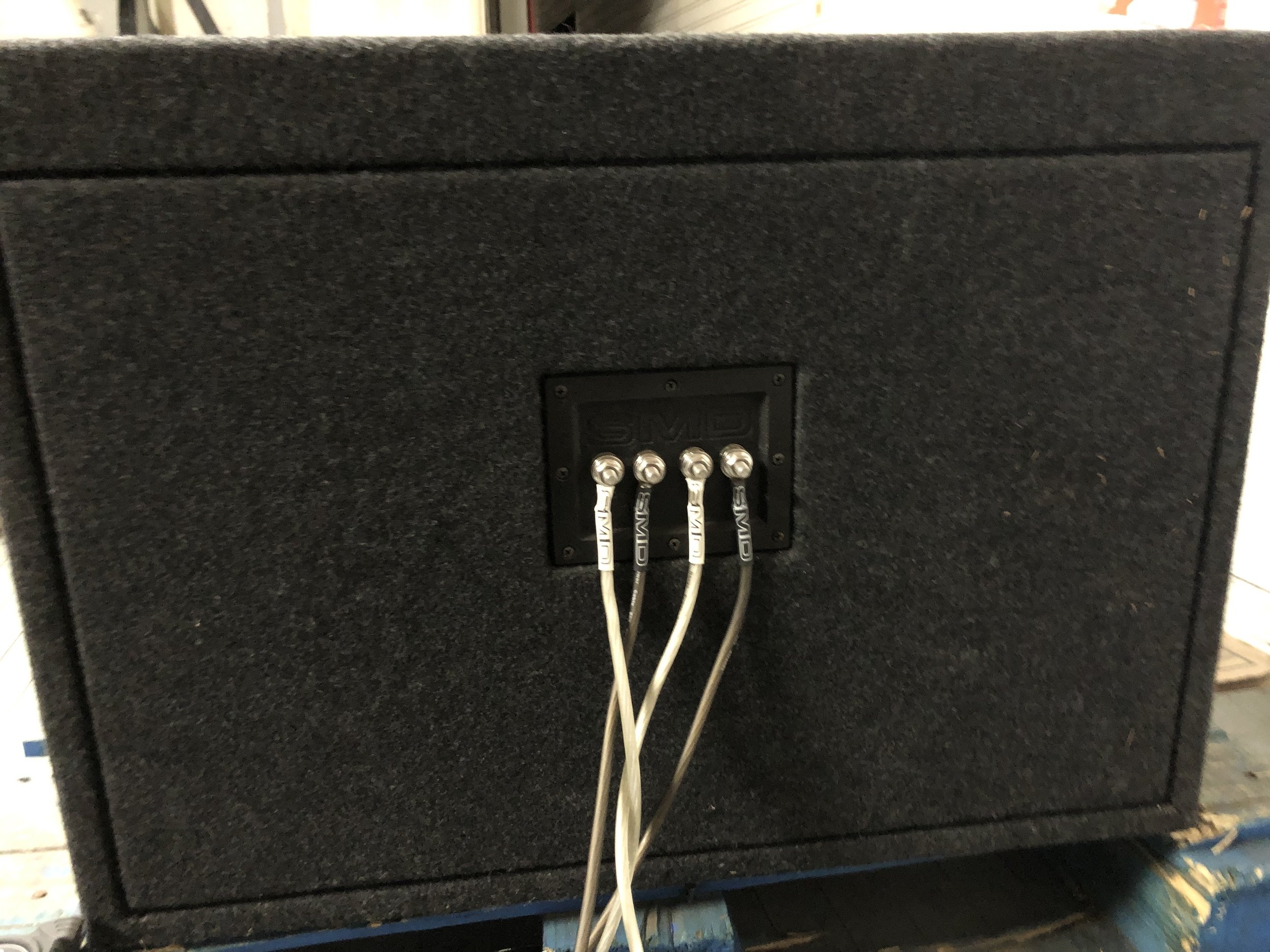

SMD 2 channel terminals w/ Sundown 8awg OFC

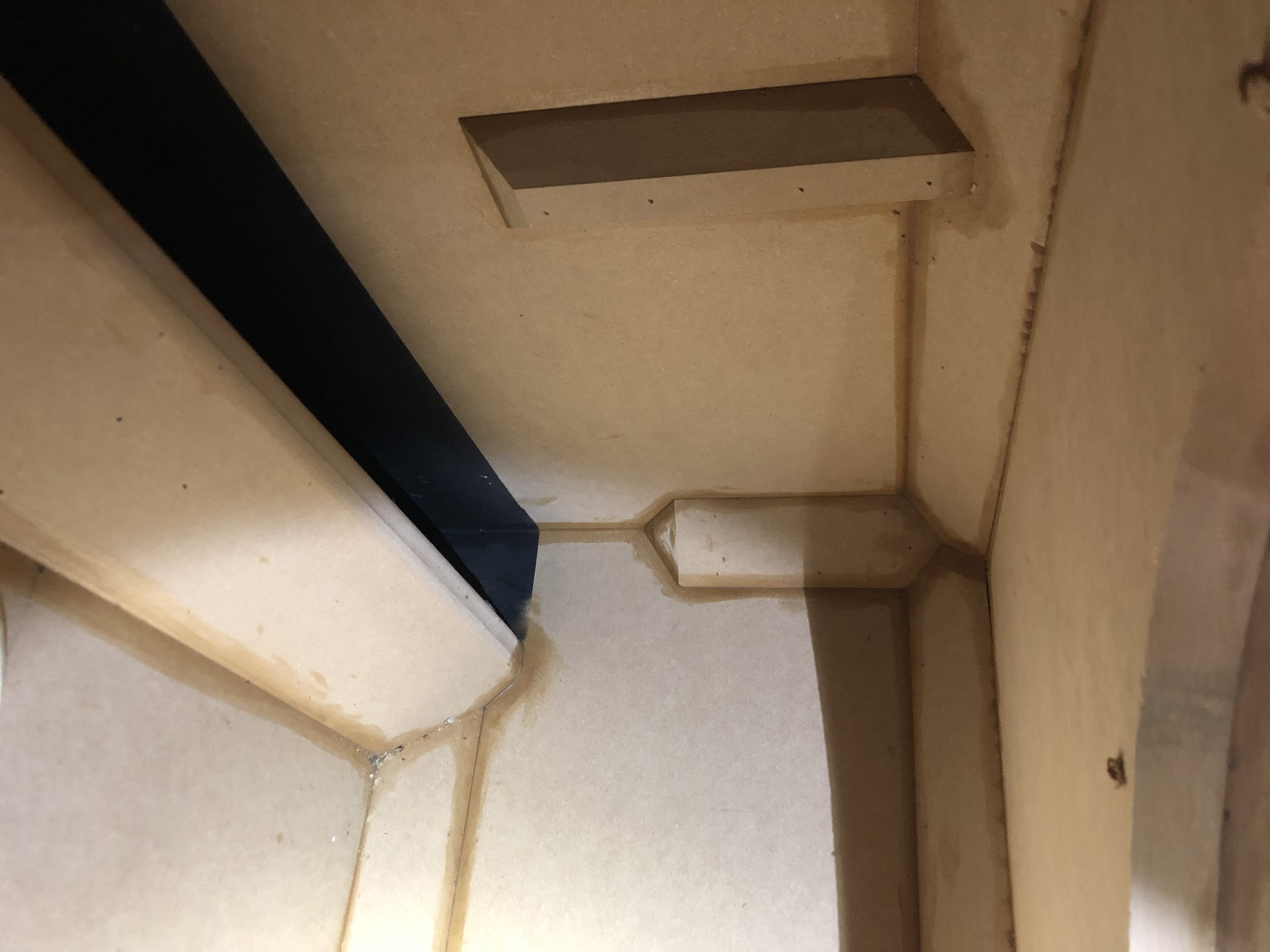

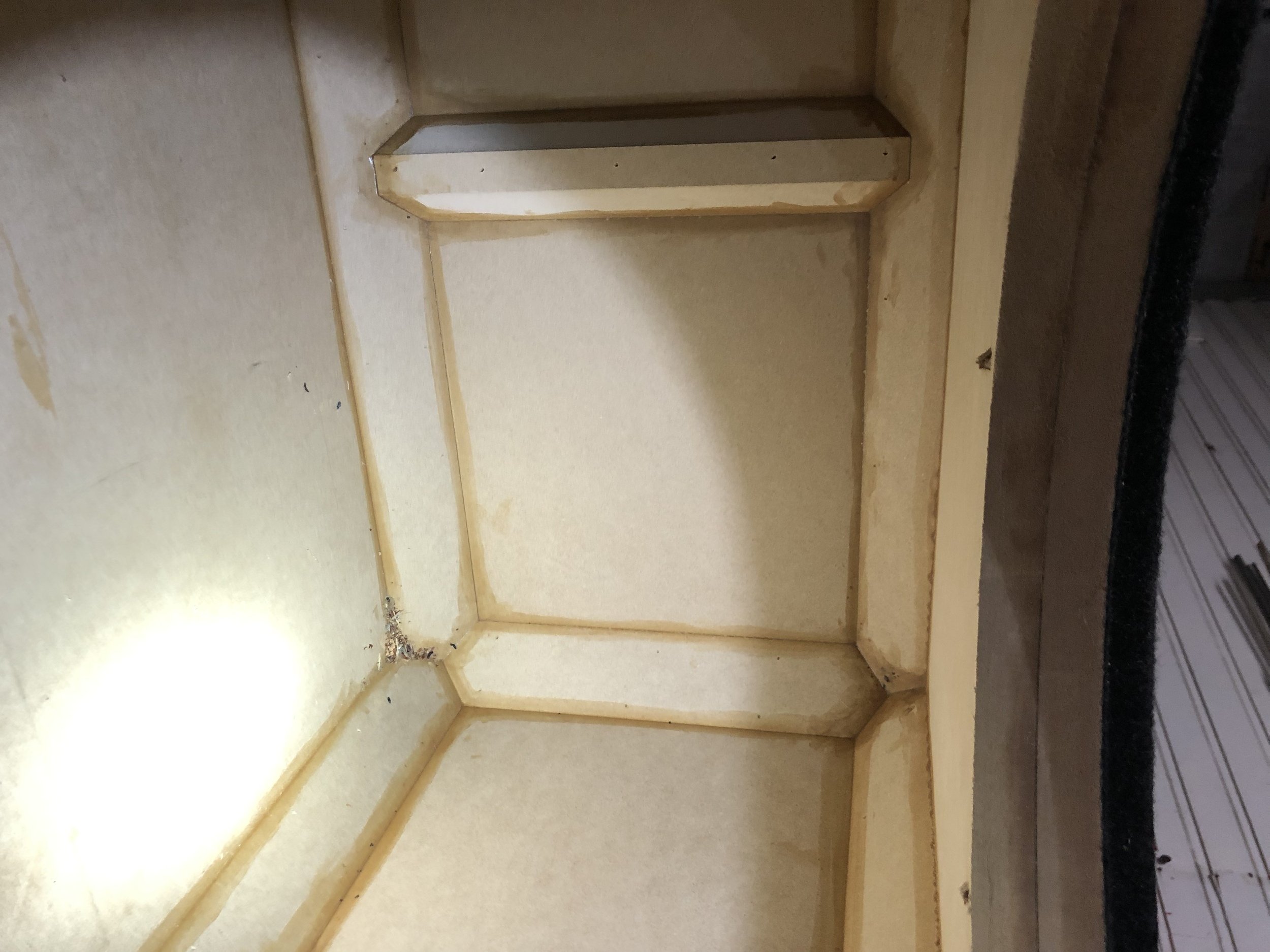

45 degree corners and additional bracing

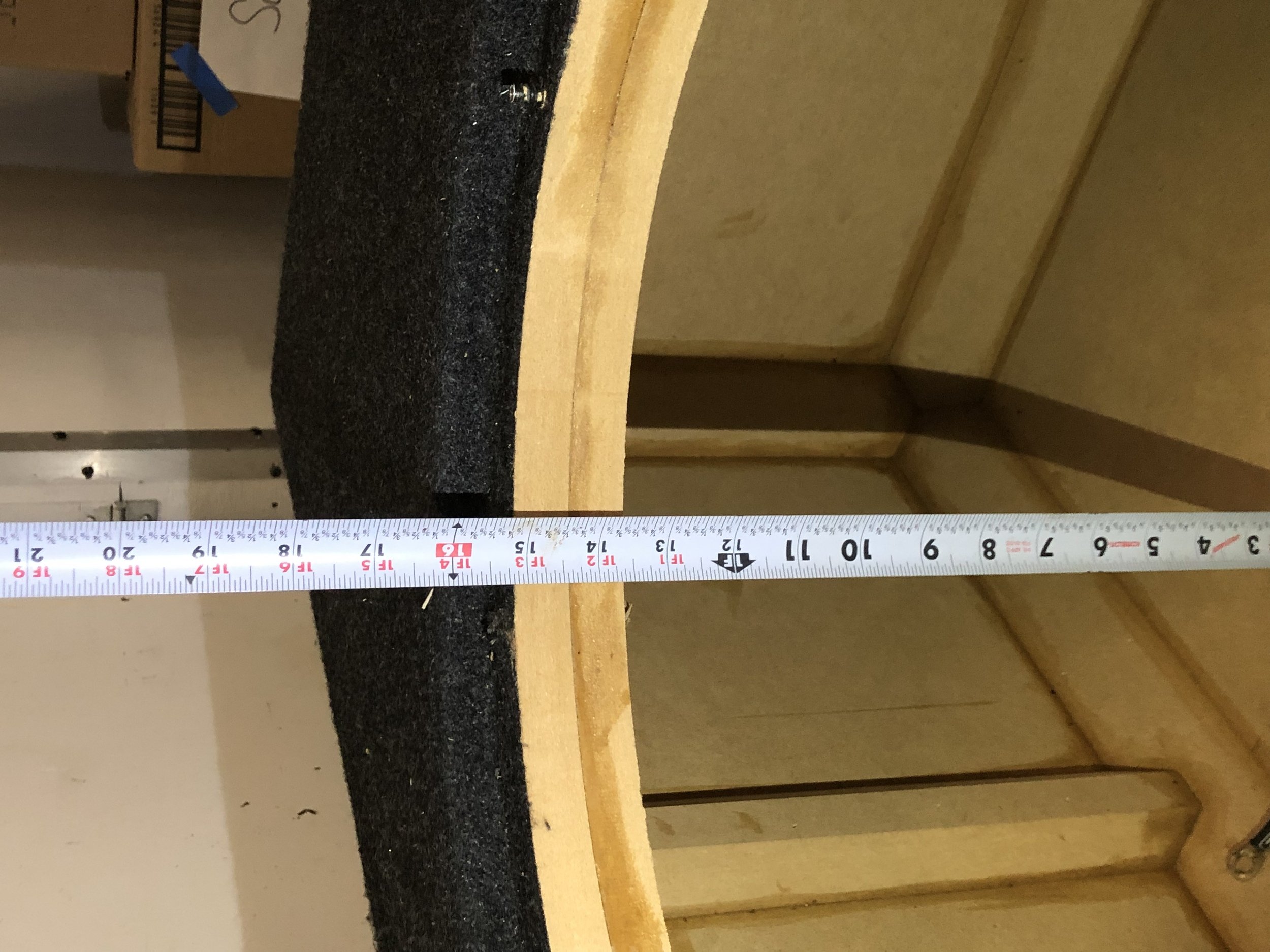

Double layer baffle 1.5 inches thick
Third layer baffle with flush mount cutout
Subwoofer depth: 11.250 inches
Subwoofer cutout: 16.750 inches
Flush mount cutout: 18.5 inches
