Built Nightshade v.3 15"

[sundownz Pro Seller]

I came in yesterday and built this bad boy... a customer had ONE unit on order for a bit and I got a pair of the Aluminum sleeves as samples so I am building this one and one other one this week (both with fat 8-layer coils and are single sub orders). These also don't call for any Gap ID sleeves as they use the fat coil -- so I have enough parts to make them //content.invisioncic.com/y282845/emoticons/thumbsup.gif.3287b36ca96645a13a43aff531f37f02.gif

-----

* Collecting the parts up.

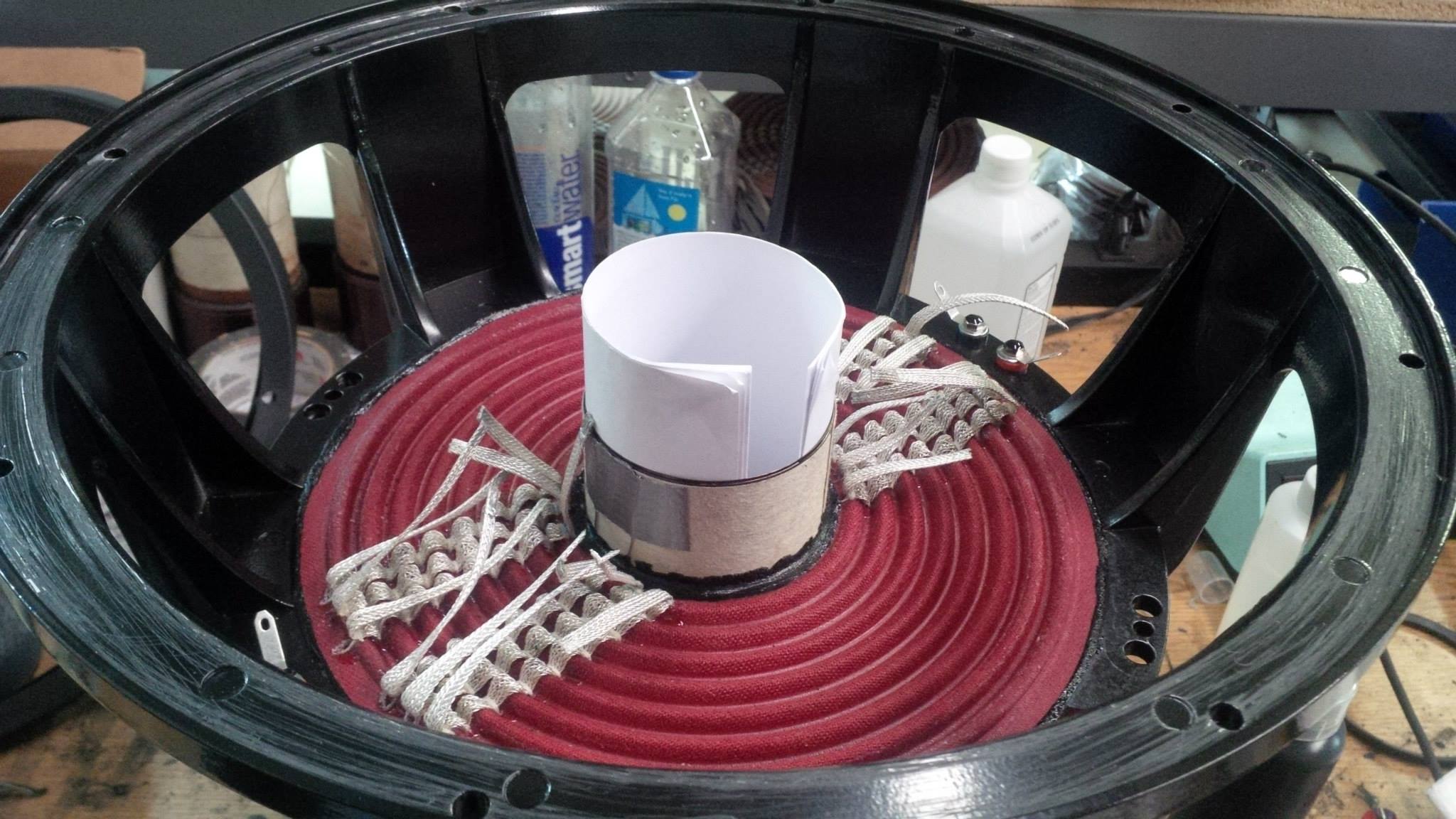

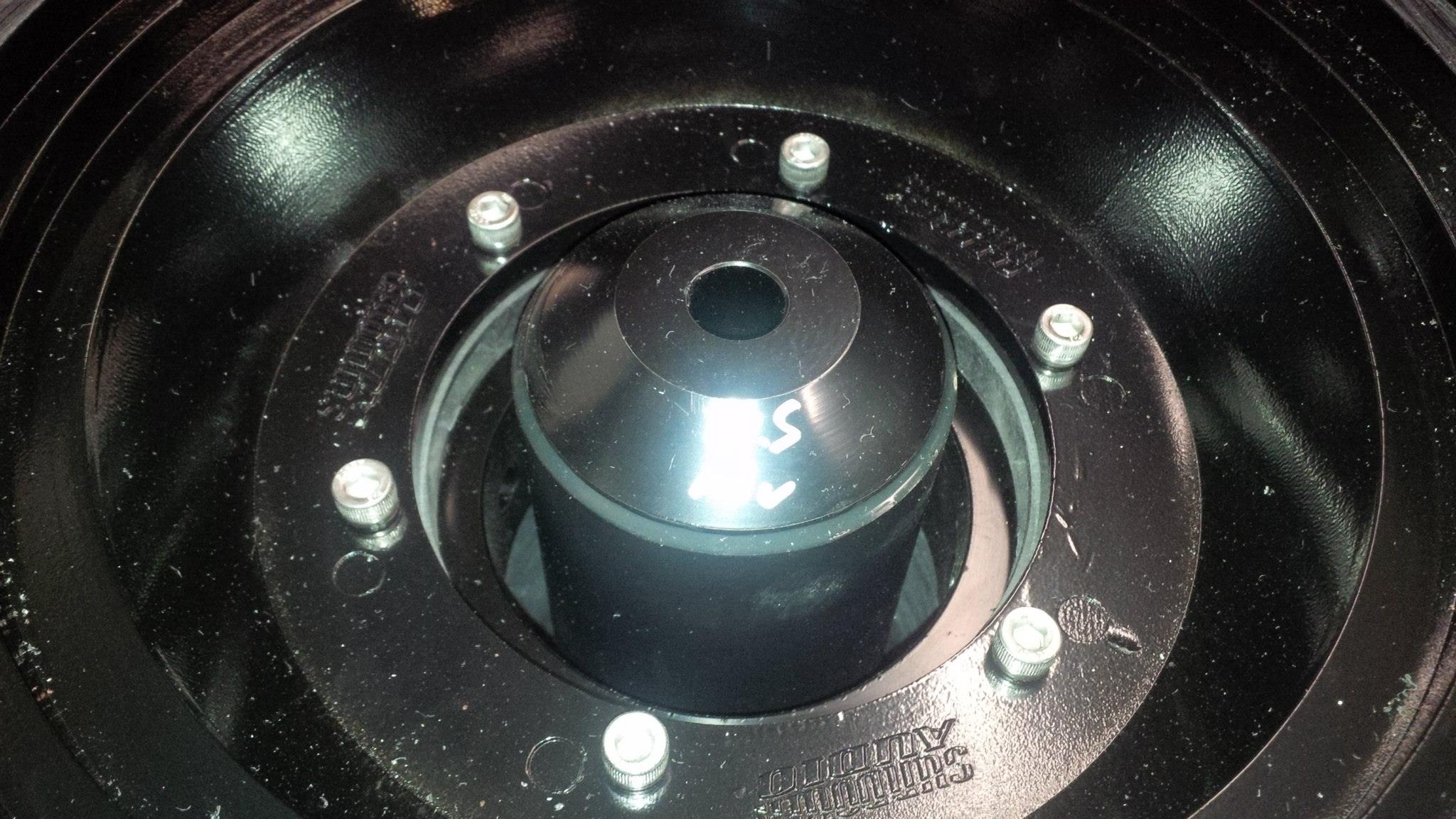

* You can see the black coated aluminum pole sleeve in place on the pole but not Gap ID sleeve -- so the overall gap is still pretty massive. The "fat" coil fills it up nicely, though.

* Starting the rear glue joint

* Rear glue joint completed

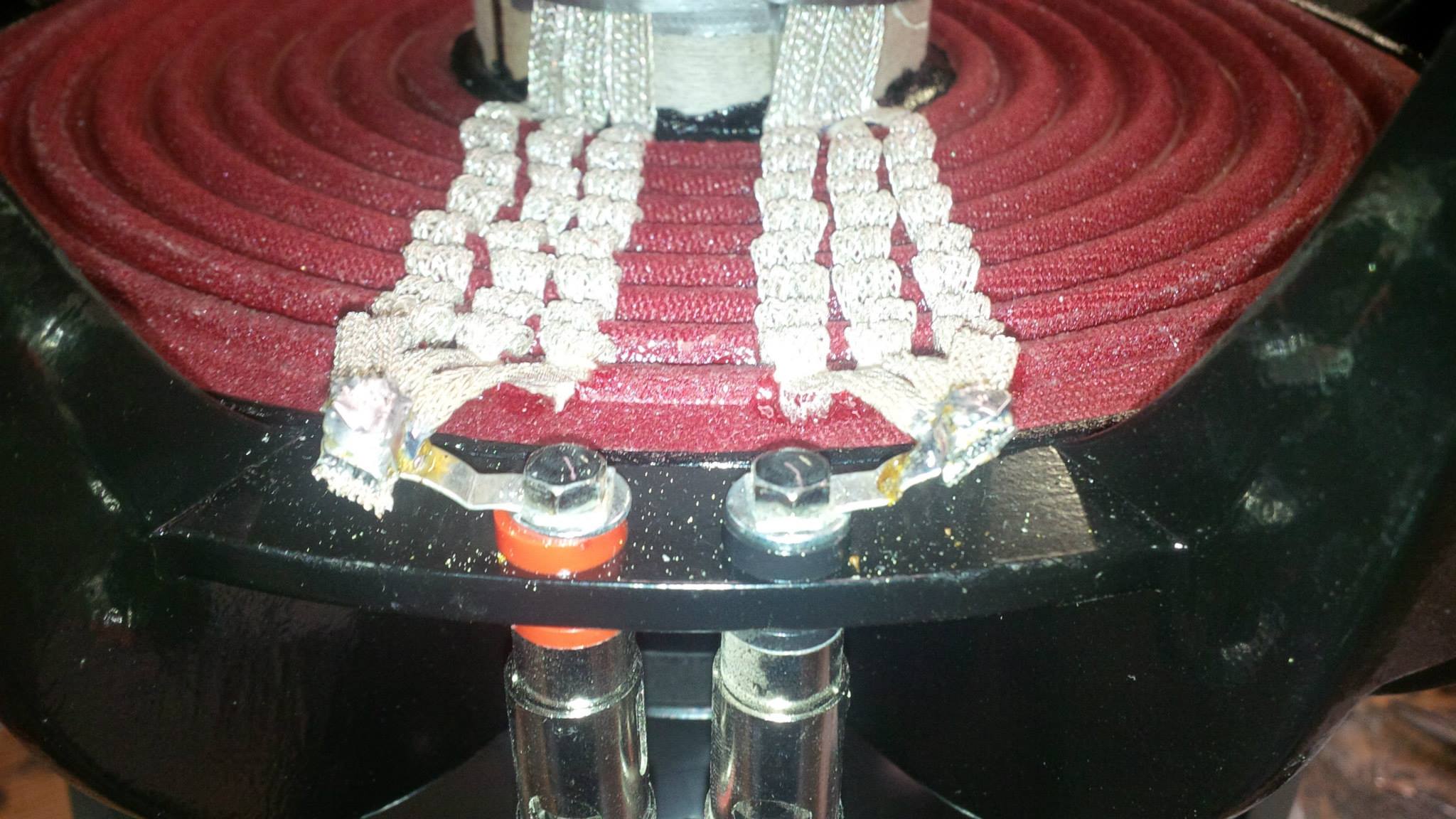

* Prototype "XL" lead wire option. The XL spiders for the NS v.3 are EXTRA red in color. The stock spiders are a very faint reddish with smaller triple lead wires. These leads are prototypes for now -- we'll offer them later as an option for anyone.

* It was interesting to get these all in the terminal.

* Finished product

* Finished product

-----

So I hope to get it tested and dust cap on today //content.invisioncic.com/y282845/emoticons/thumbsup.gif.3287b36ca96645a13a43aff531f37f02.gif

Click to read more...



[sundownz Pro Seller]

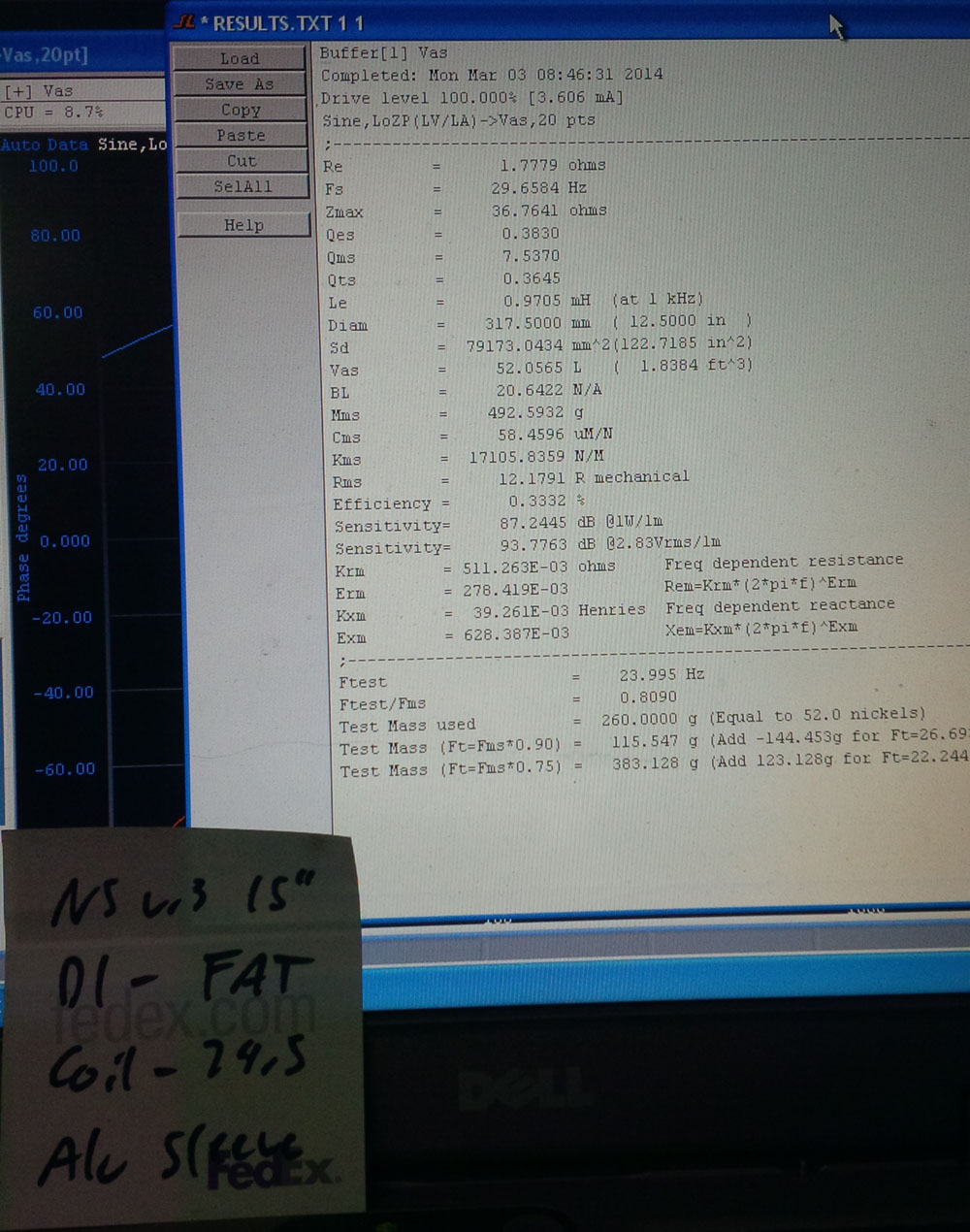

I pulled the T/S spec today -- notice how low inductance is even with the massive fat coil. That is the pole sleeve in action -- and the NS v.3 also has a magnet ID ring and a pole cap ring... so triple faraday action //content.invisioncic.com/y282845/emoticons/smile.gif.1ebc41e1811405b213edfc4622c41e27.gif

Yes that is right around 1/2 of the Re in terms of Le.
