Sold 12" TC9 Subwoofer for sale

[branden 10+ year member]

(copied from the thread i bought it from, i bought it from TeamPSI)

12"

Revc = 1.4987 ohms

Fs = 27.8046 Hz

Qes = 0.3320

Qms = 5.5769

Qts = 0.3133

Le = 1.3924 mH (at 1 kHz)

Sd =48168.8790 mm^2( 74.6619 in^2)

Vas = 45.4528 L ( 1.6051 ft^3)

BL = 13.6893 N/A

Mms = 237.5983 g

Sensitivity= 86.4357 dB @1W/1m

Sensitivity= 93.7095 dB @2.83Vrms/1m

I've been holding onto this sub for quite a while, but I've decided to sell it. I was actually going to keep it and use it. I built it probably a year ago.

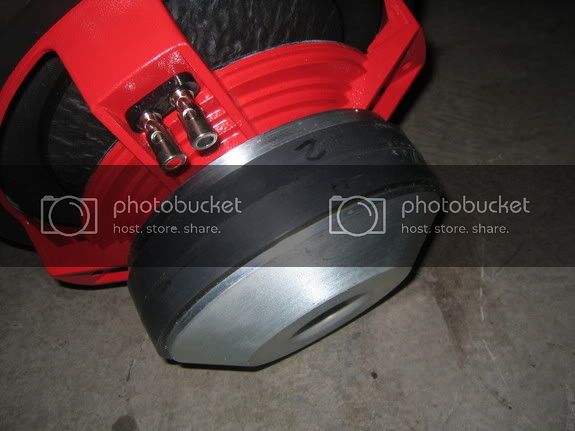

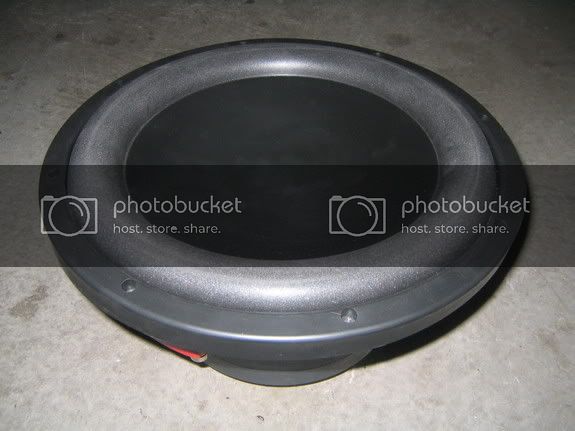

It's a short stacked TC9 with a tighter than standard gap (better for motor strength), a dual one ohm (0.7) aluminum flatwind voice coil, dual stacked linear spiders, heavy duty paper cone (like the RE MT uses), inverted 2 poly cone cap (like the SX or XXX would have), all on a custom powder-coated red 4 spoke basket.

This is about the best all around sub I could build from a TC9 platform. It will sound very very nice, play the lows effortlessly, and should still burp a very decent score if needed.

It will work best in .8ft sealed and 2ft ported@34hz.

The sub will handle ~1200w rms

$200 shipped

Pics up tonight

Click to read more...



[branden 10+ year member]



[WillyG4444 10+ year member]

What's the weight of this sub?



[branden 10+ year member]

i have no idea, im guessing ~40lbs



[branden 10+ year member]

BUMP, gotta get this sub sold, if you are local, i will give u a 1.75 cu ft ported box tuned to 30 hz



[branden 10+ year member]

bump!!



[mikescanlon 10+ year member]

trades? i live an hour and a half north of you, could meet you for trade.

give me a call, i'll tell you what i have.

i think you'll be happy. : )



[branden 10+ year member]

nahh no thanks



[tsenfw 10+ year member]

pics w/ username and date? do you have any references? How would this compare to an FI Q or BL?
