Xterminator and 2006 AX Lines ** TONSA PIX**

[flakko 5,000+ posts]

okay first of all, from what ive been told, these amps will NOT be shipped until the first week in FEB.



now onto the good stuff, ill let the pictures do the talking:





Seee... made here...



--------------------------------------------------------------------------------



^^^6 ft amp??? lol



--------------------------------------------------------------------------------



Click to read more...



[flakko 5,000+ posts]

Specs taken from a brochure...

Stereo:

AX-600

PWR: 165x2@4, 300x2@2, 600x1@4

THD: 0.025% at rated 4 ohms

Damping Factor: >600

DIM (LxWxH): 16.1 x 11 x 2.7

AX-1000

PWR: 300x2@4, 500x2@2, 1000x1@4

THD: 0.025% at rated 4 ohms

Damping Factor: >600

DIM (LxWxH): 19.6 x 11 x 2.7

AX-2000

PWR: 600x2@4, 1000x2@2, 2000x1@4

THD: 0.025% at rated 4 ohms

Damping Factor: >1000

DIM (LxWxH): 27.5 x 11 x 2.7

////////////////////////////////////////////////////////////////////////////////

Multichannel:

AX-4300

PWR: 75x4@4, 90x4@2, 180x2@4

THD: 0.025% at rated 4 ohms

Damping Factor: >200

DIM (LxWxH): 16.1 x 11 x 2.7

AX-5600

PWR: 75x4@4, 90x4@2 + 500x@1 (Sub)

THD: 0.025% at rated 4 ohms

Damping Factor: >200

DIM (LxWxH): 19.6 x 11 x 2.7

////////////////////////////////////////////////////////////////////////////////

Class DE:

AX-500DE

PWR: 300x1@4, 500x1@2, 750x1@1

THD: 0.1% at rated 4 ohms

Damping Factor: >250

DIM (LxWxH): 9.1 x 11 x 2.7

AX-1000DE

PWR: 350x1@4, 700x1@2, 1000x1@1

THD: 0.1% at rated 4 ohms

Damping Factor: >250

DIM (LxWxH): 16.1 x 11 x 2.7

AX-1500DE

PWR: 500x1@4, 900x1@2, 1500x1@1

THD: 0.1% at rated 4 ohms

Damping Factor: >250

DIM (LxWxH): 19.6 x 11 x 2.7

AX-3000DE

PWR: 1200x1@4, 2000x1@2, 3000x1@1

THD: 0.1% at rated 4 ohms

Damping Factor: >250

DIM (LxWxH): 27.5 x 11 x 2.7

////////////////////////////////////////////////////////////////////////////////

Tubes:

AX-TU300C

PWR: 100x2@4, 160x2@2, 320x1@4

THD: 0.05% at rated 4 ohms

Damping Factor: >600

DIM (LxWxH): 13.6 x 11 x 2.7

AX-TU600C

PWR: 165x2@4, 300x2@2, 600x1@4

THD: 0.05% at rated 4 ohms

Damping Factor: >600

DIM (LxWxH): 16.1 x 11 x 2.7

AX-TU1000C

PWR: 300x2@4, 500x2@2, 1000x1@4

THD: 0.05% at rated 4 ohms

Damping Factor: >600

DIM (LxWxH): 19.6 x 11 x 2.7

AX-TU4300C

PWR: 70x4@4, 90x4@2, 180x2@4

THD: 0.05% at rated 4 ohms

Damping Factor: >600

DIM (LxWxH): 16.1 x 11 x 2.7



[flakko 5,000+ posts]



The Xterminator line taking the place of the I/S, includes 2 channel, 4 channel and class D mono amplifiers, and is FAR beyond entry level.

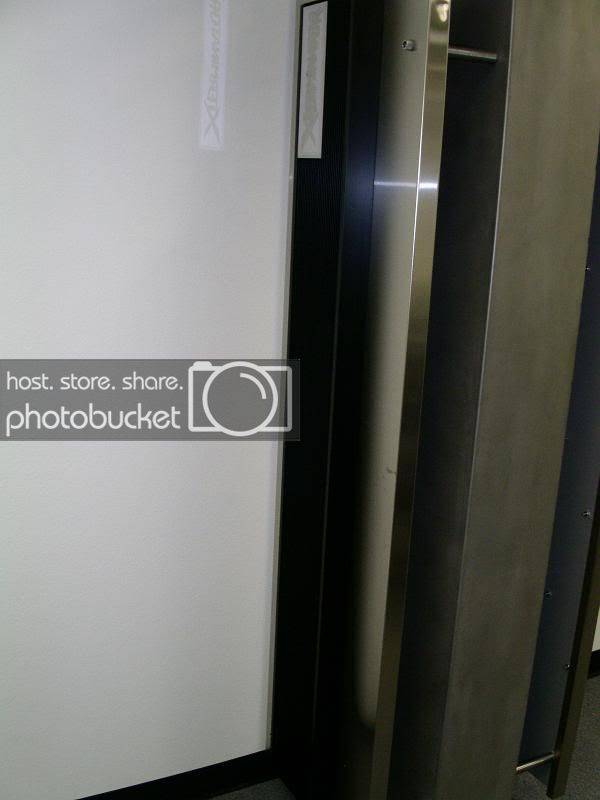

^^^^^ A 6 ft xterminator? Lol



[flakko 5,000+ posts]

Specs:

XT-800.2

PWR: 100x2@4, 200x2@2, 520x1@4

THD: 0.03% at rated

DIM (LxWxH): 7.9 x 8.75 x 2.5

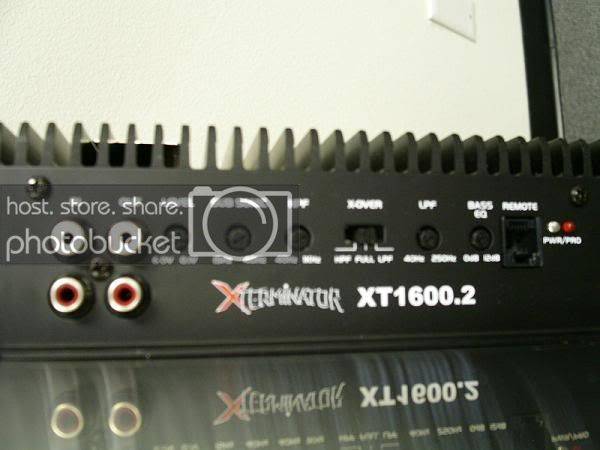

XT-1600.2

PWR: 200x2@4, 400x2@2, 1100x1@4

THD: 0.03% at rated

DIM (LxWxH): 12.6 x 8.75 x 2.5

XT-800.4

PWR: 50x4@4, 100x4@2, 260x2@4

THD: 0.03% at rated

DIM (LxWxH): 12.6 x 8.75 x 2.5

XT-2000D

PWR: 150x1@4, 300x1@2, 800x1@1

THD: 0.1% at rated (guestimate forgot to copy that)

DIM (LxWxH): 12.6 x 8.75 x 2.5

XT-4000D

PWR: 200x1@4, 450x1@2, 1200x1@1

THD: 0.1% at rated ( guestimate forgot to copy that)

DIM (LxWxH): 13.8 x 8.75 x 2.5

*** IM PRETTY SURE THAT THERE ARE MORE AMPS IN THIS X LINE, THESE ARE THE ONES I GOT OFF THE CES DISPLAY ***



[alphakenny1 10+ year member]

quote me on the 6ft amp? lol jk. i'd like to know the specs on that.



[skmfkr 5,000+ posts]

price list



[flakko 5,000+ posts]

lol i give that out to noone hehe



[skmfkr 5,000+ posts]

then this thread is worthless



[loud-n-low 10+ year member]

xterminator made overseas like the is were? i have ax1000(custom high current)600x,and200x



[netherland24 5,000+ posts]

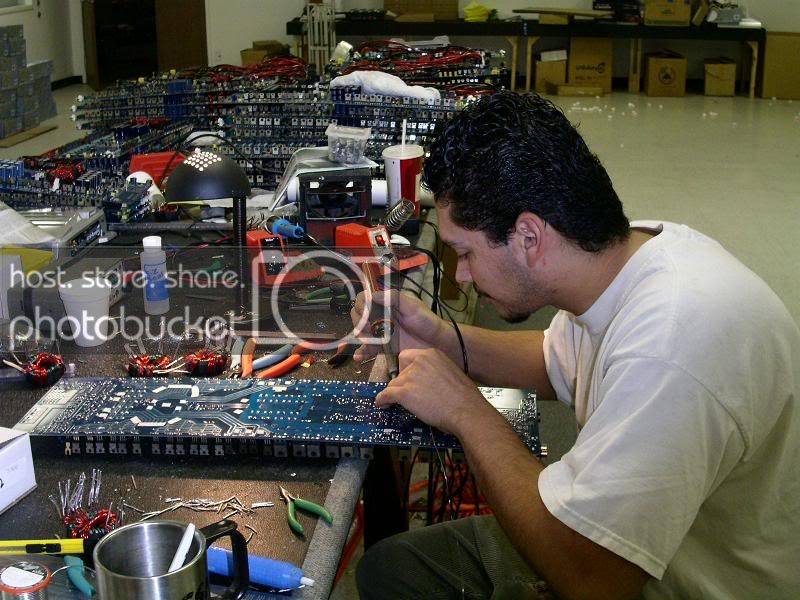

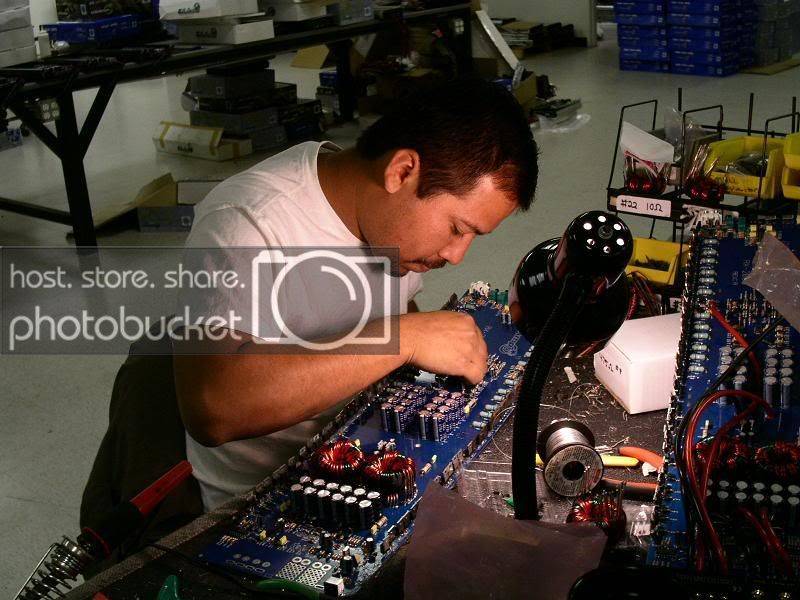

WAIT ARE THOSE MEXICANS WORKING ON THE AMPS? or CUBANS... day workers huh? **** usamps



[swc204 10+ year member]

then this thread is worthless

shut up

they all look very nice



[saywhat? 5,000+ posts]

WAIT ARE THOSE MEXICANS WORKING ON THE AMPS? or CUBANS... day workers huh? **** usamps

oh god! a legit mexican/cuban worker?!?!?!?!?!?!?!?! IMPOSSIBLE!!!!



[Worlddre 5,000+ posts]

im not sure how i feel about an amp that i can is almost at eye level with me



[netherland24 5,000+ posts]

oh god! a legit mexican/cuban worker?!?!?!?!?!?!?!?! IMPOSSIBLE!!!!

did i ask for ur funny hahah joke's.... no i didnt.

but nice amps. looks like 1 every week is built



[swc204 10+ year member]

oh god! a legit mexican/cuban worker?!?!?!?!?!?!?!?! IMPOSSIBLE!!!!

oh god! a legit southern racist?!?!?!?!?!?!?IMPOSSIBLE!!!!
