Super rare 10" LMS Driver *D1*

[resko1 10+ year member]

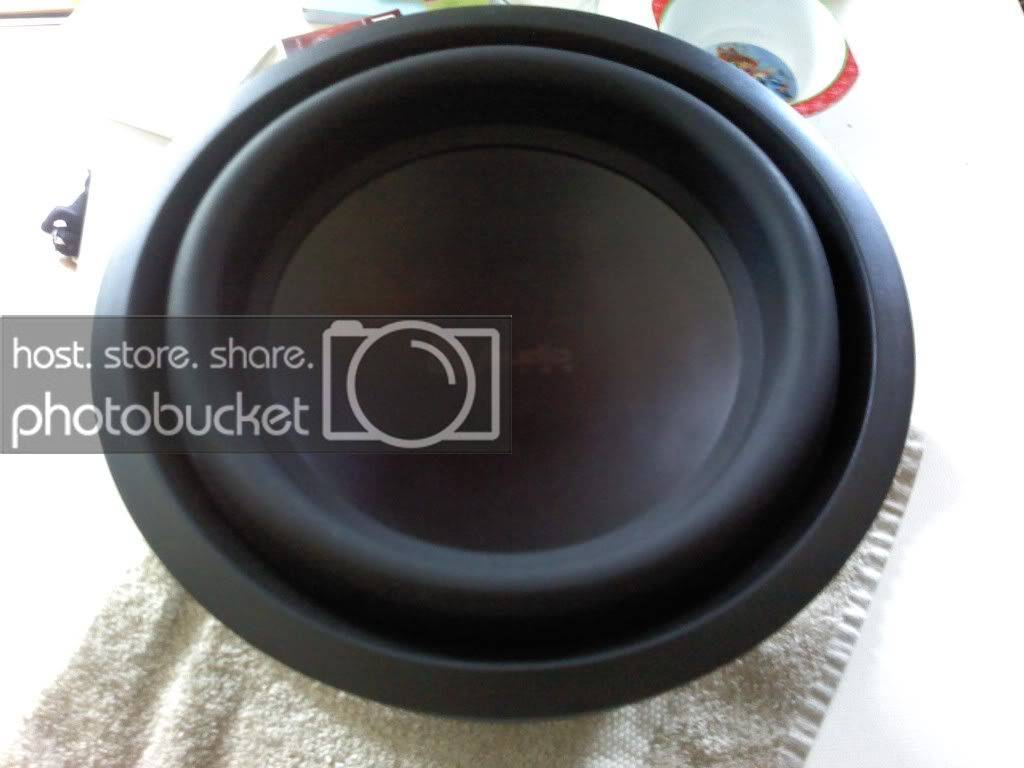

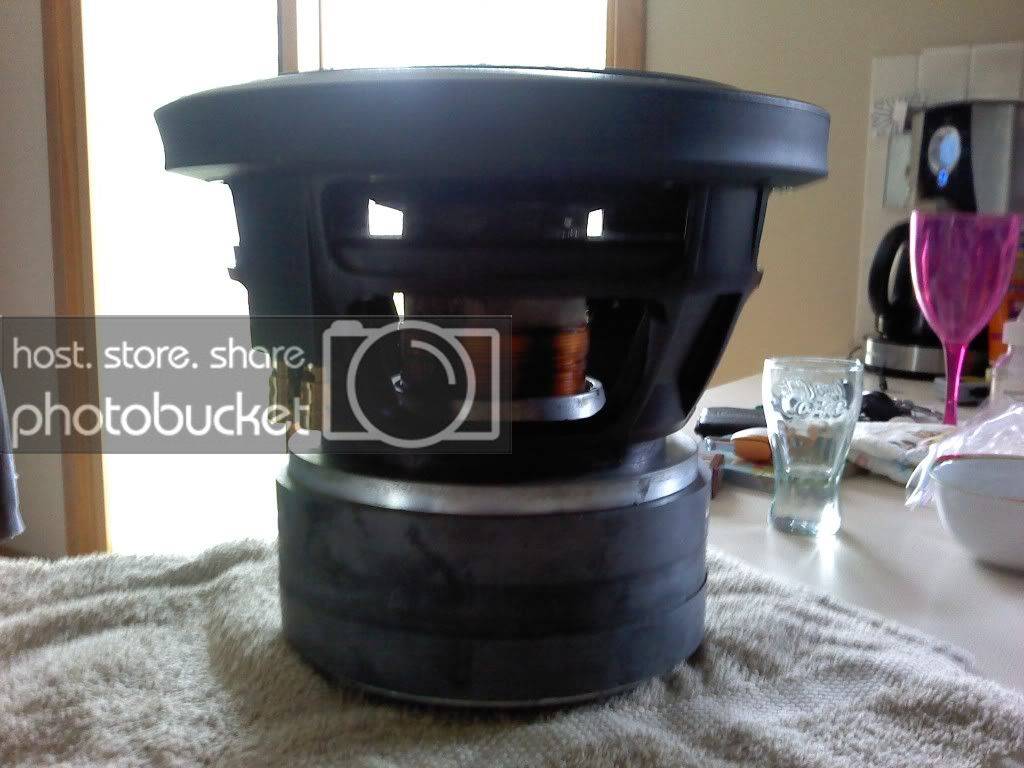

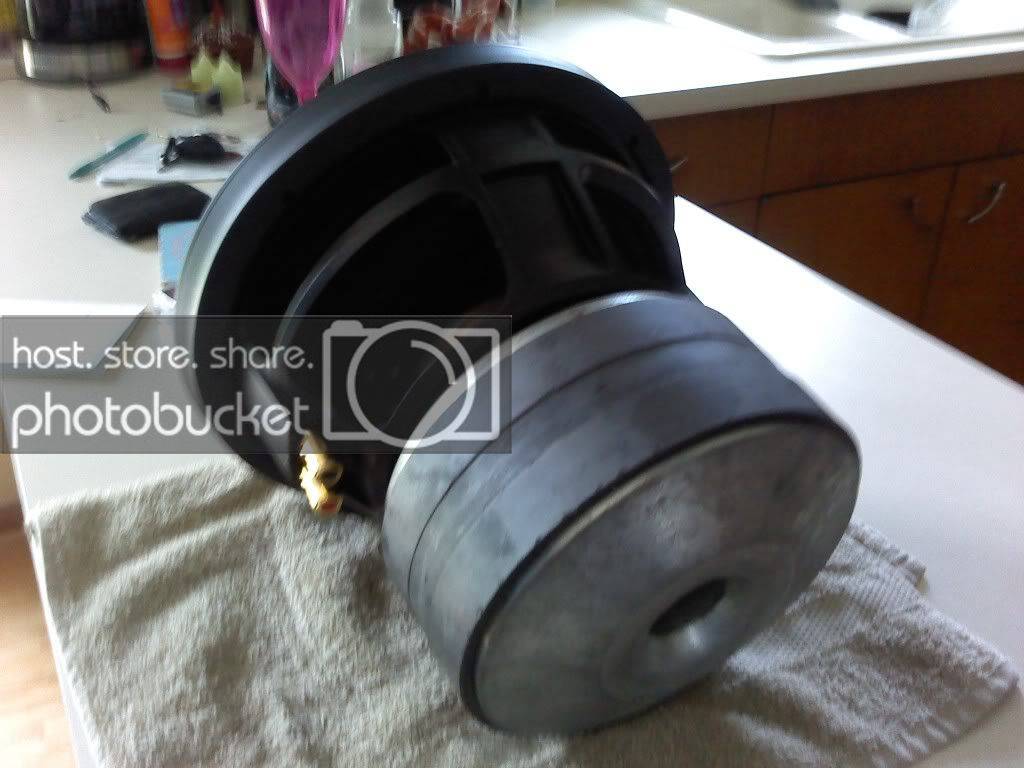

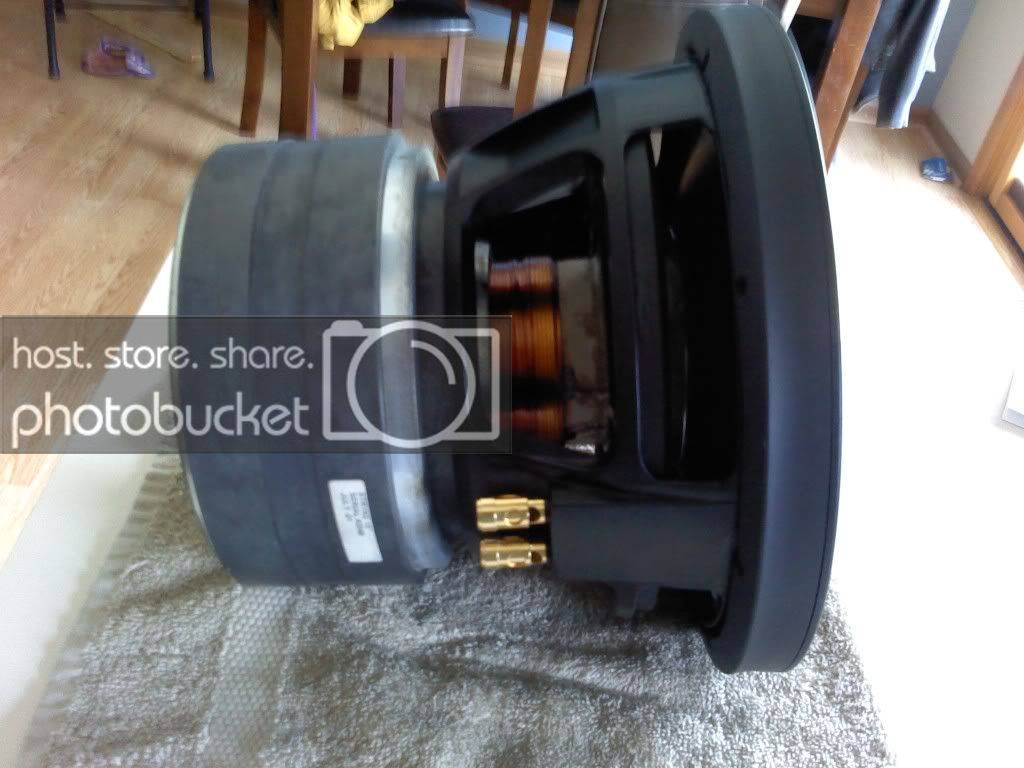

1. Product: 10" Driver custom built using a Stryke HE15 motor. Its similar to the earlier sw9100 3hp's except this one is "sandwiched" with 2-1" slugs and a .75" between them. Also the gap is larger then the 3hp. 10" Brand new TI basket with gold plated terminals, dual mirrored linear roll ultra soft 8.75" spiders with sewn in flat leads, one piece titanium audiopulse/tc sounds cone with high roll rubber surround. And i used an alpine type r gasket i had laying around since this didnt have one. Looks **** imo. And the most rare is the D1 Aluminum FW LMS coil. 3.4" ww.

2. Specs: 750-1k rms. coils read 1.2ohms each. powered for break-in, ts parameters, and linearity.

here are tsp's.

*TC custom D1-taken in series*

FS- 27.59hz

QTS- 0.621

QES- 0.751

QMS- 3.574

VAS- 0.6914cuft

RE- 2.434 ohms

LE- 2.312 mH

Zmax- 14.01 ohms

Xmax- 29mm

xmech-29mm (mechanically limited)

MMS- 251g

CMS- 0.13 mm/N

BL- 11.88 tm

SENS- 79.28db 1w/1m

linearity passed, xmax and xmech are the same. 29mm. Its limited by the cone touching the spiders so your guaranteed to never exceed xmax. Lol.

Designed like that to have the utmost distortion free sound. Meant to be used in a HT setup. 2-3cu sealed on 500w would produce an f3 between 28hz and 32hz with -3db roll off to 24hz. Personally i would run 2cu for dynamics so you dont kill it with 16hz explosion "pops".

3. Description/Condition: 100% working. used only for break in tsp testing. 8/10 cosmetic. motor has some tarnish from age and the cone has a few light dimples but very hard to notice. Careless fingers

4. Price: :320 shipped. This is a one time offer. I need money fast for sa8 recones so i lost my mind today and posted this. ABSOLUTELY NO TRADES.

If i get the money i need for recones, this will be closed as fast as it opened. I really DO NOT wanna sell it but i have shows to do.

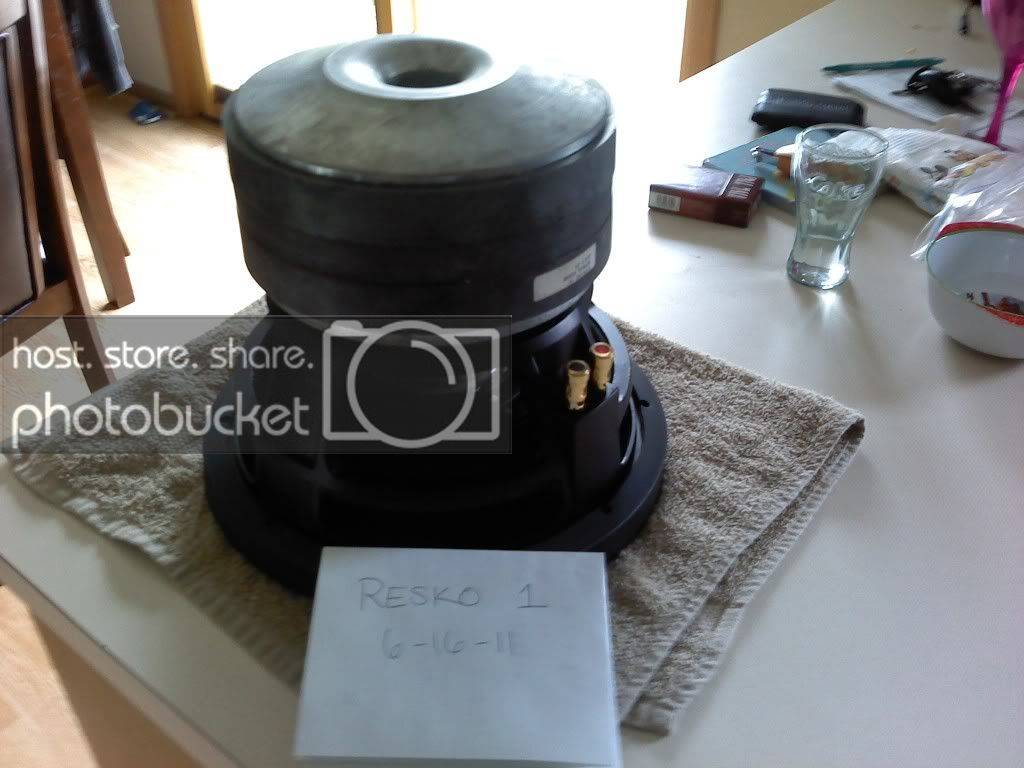

Item Pictures:

(List pictures in this section, 1st picture should be your username/date if you have less than 10 positive feedbacks with the i-Trader system or less than 10 references that you have sold to in the past. (These must be listed in your signature, or a link provided to a feedback thread listing these references)).

Click to read more...



[resko1 10+ year member]

Your welcome to make offers too. But keep in mind this is one of a kind using extremely rare parts. All TC based.



[UMWDawg92 10+ year member]

**** nice sub! bump for a good guy and sweet *** sub. GLWS



[boomzabit 10+ year member]

If i were looking for a nice azz 10 this would probably fill the void. Crazy nice sub. GLWS.



[Imtjnotu 5,000+ posts]

If I had the money I swear to god id be all over this.....take the top off place it on a 3hp and take the motor and make it a 15......nice asss sub



[blazeplacid 10+ year member]

looks dangerous



[tuckintaco93 10+ year member]

one sick lookin sub ...do all tc baskets have the space under the spiders like that ?



[kgcolbyIII 10+ year member]

"Drools"



[8thGenSI 10+ year member]

If I only had antoher 100 bucks!



[Bettr n' Revrse 5,000+ posts]

Holy hell I want this!



[sobe3yourself. 10+ year member]

Why u no d2?



[resko1 10+ year member]

If I had the money I swear to god id be all over this.....take the top off place it on a 3hp and take the motor and make it a 15......nice asss sub

Wouldnt work. Coil would bottom out on a normal 3hp. This one has an extra inch of depth But the coil was specifically designed for a 3hp top plate.

Why u no d2?

IDK, ask Thilo at TC Sounds?

Coil reads 1.2 per side. Motor i got from mr stryke himself and is rare also. Very few made. Motor and coil alone are worth the price.

But feel free to make offers. I need recones for 8-sa8's in d4 only. If you have the recones i would trade.



[resko1 10+ year member]

one sick lookin sub ...do all tc baskets have the space under the spiders like that ?

Yeah. They all have quite a bit of clearance under the spiders. Problem is not enough clearance under the cone. If it did, this sub would do well over 3" p to p instead of the 2.5" it does now.



[resko1 10+ year member]

Anyone?



[supermaxx123 10+ year member]

Looks like a beefed up oem, I loved my oem. Glws
