Shok Industries Competition SQ Car build ( rebuild actually)

[sparkplug121988 10+ year member]

I love the layout! Thats is some clean quality work.



[headshok 10+ year member]

Hi guys,

Car was sent for inspection today. So no updates on the car.

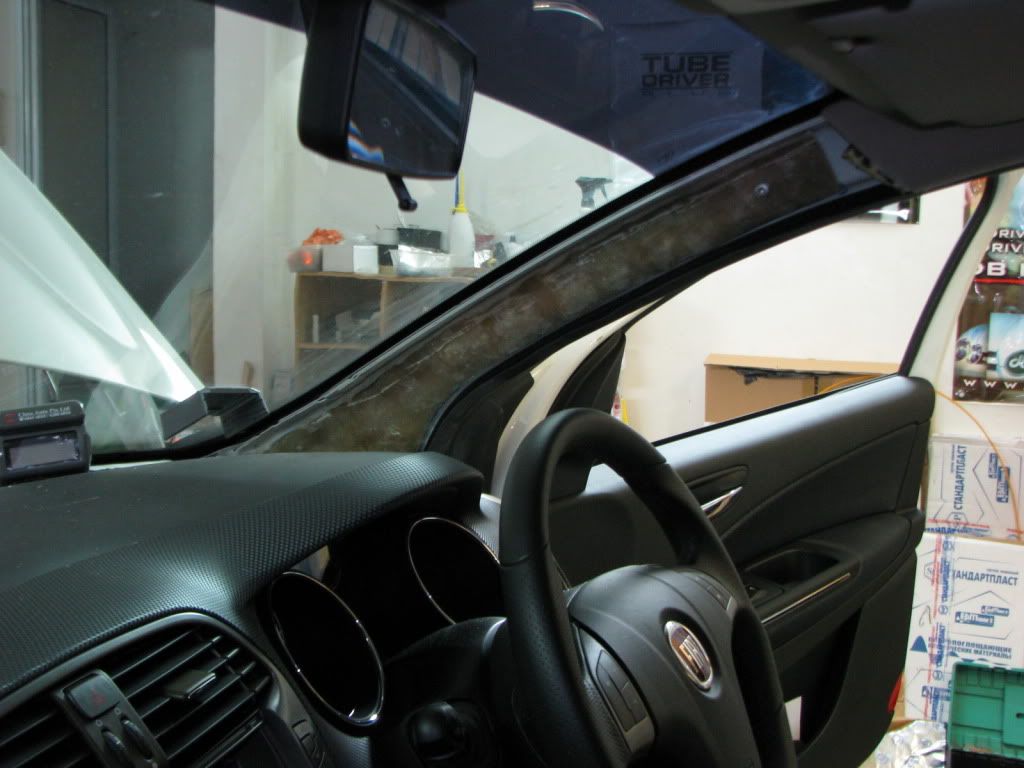

But what I do have are pictures from another fiat bravo, using the same exact speakers. The A pillars for the Comp car was built in the same exact way. So here are some pics to give you guys a better idea how this massive A pillar was built

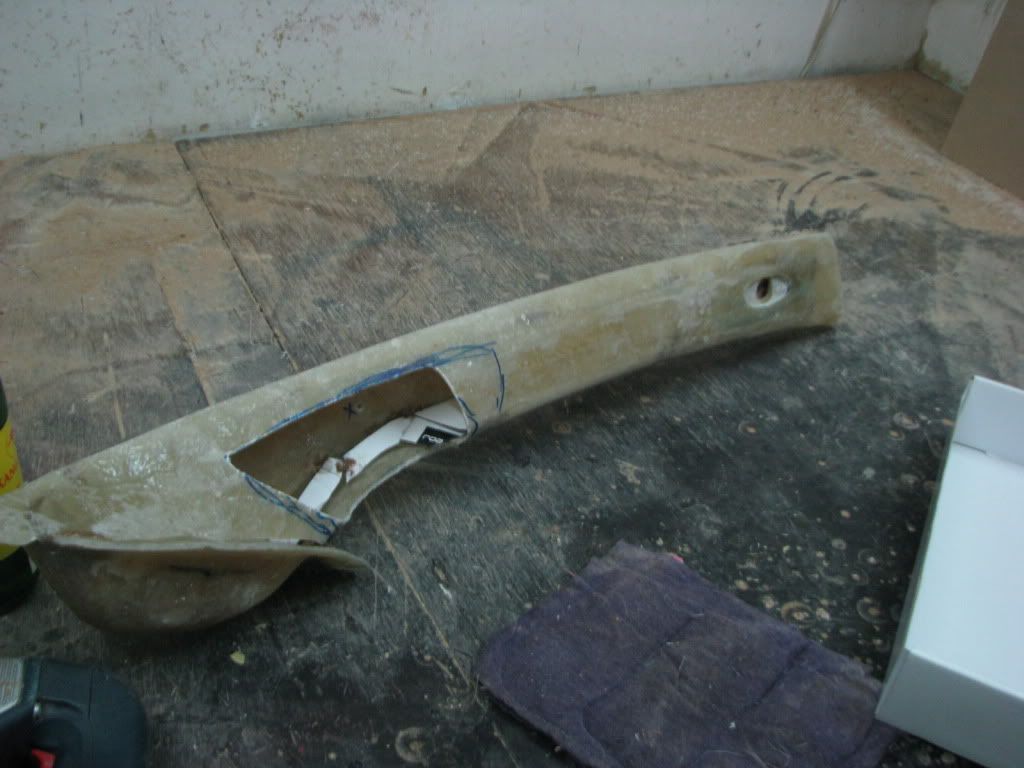

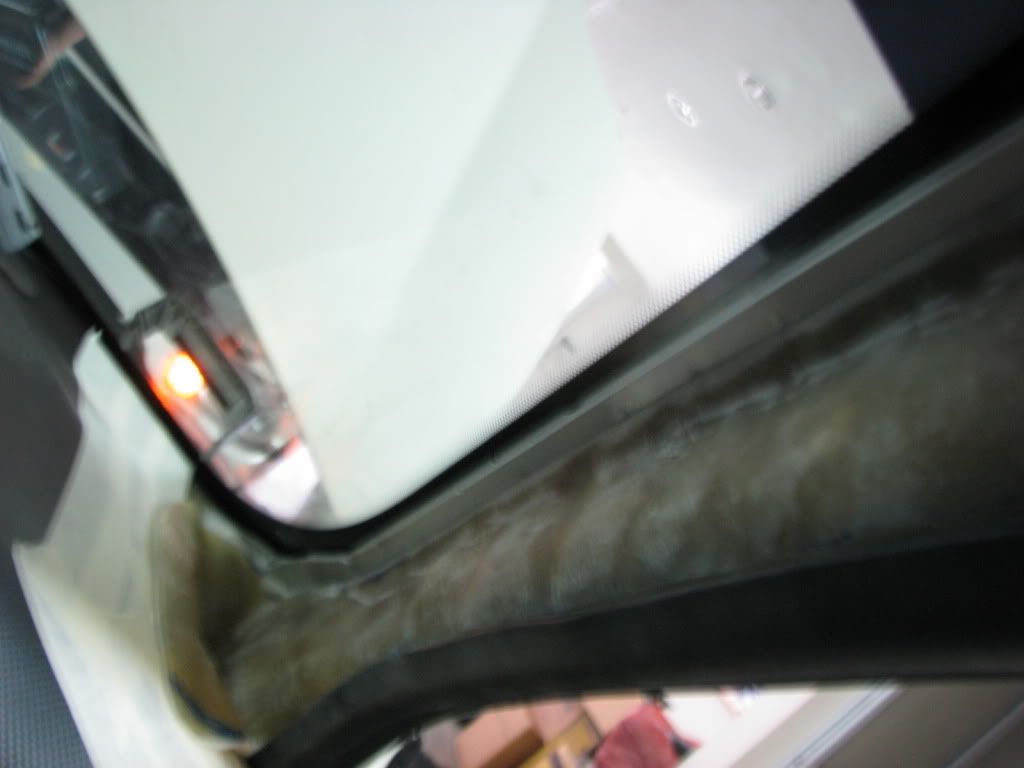

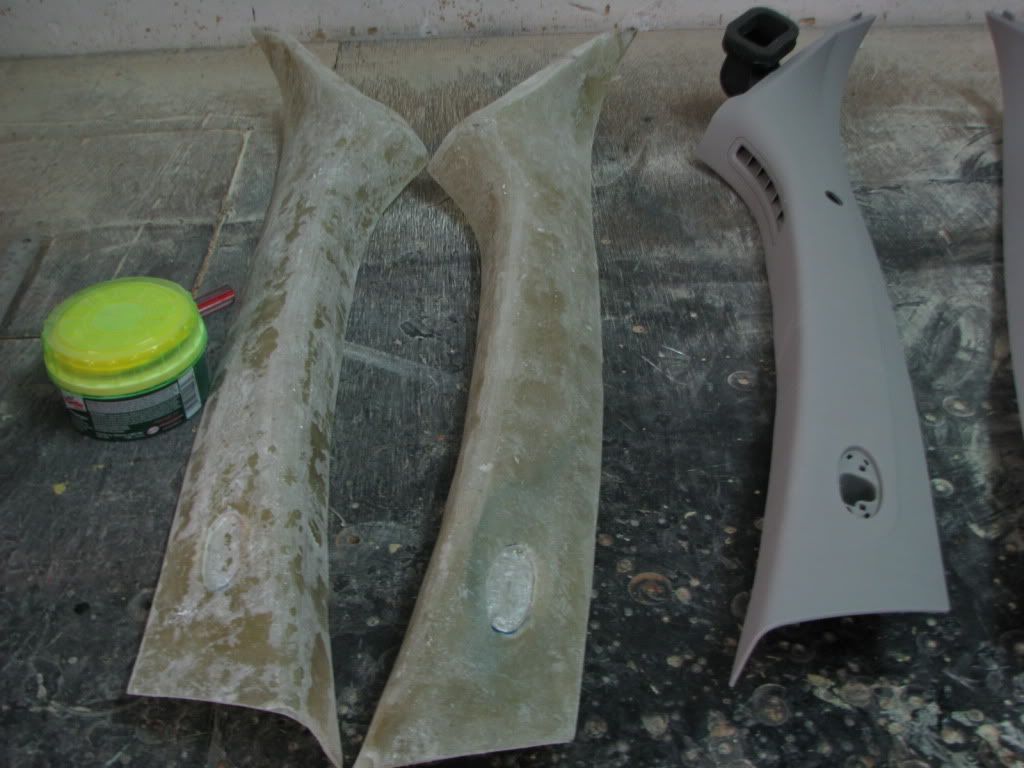

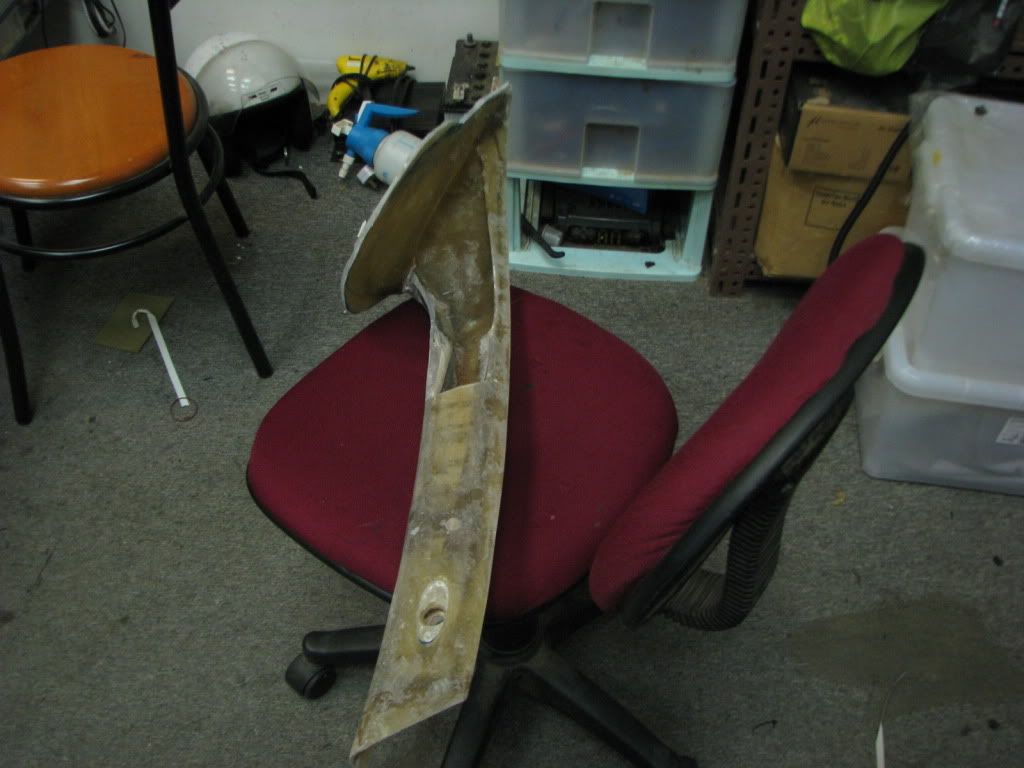

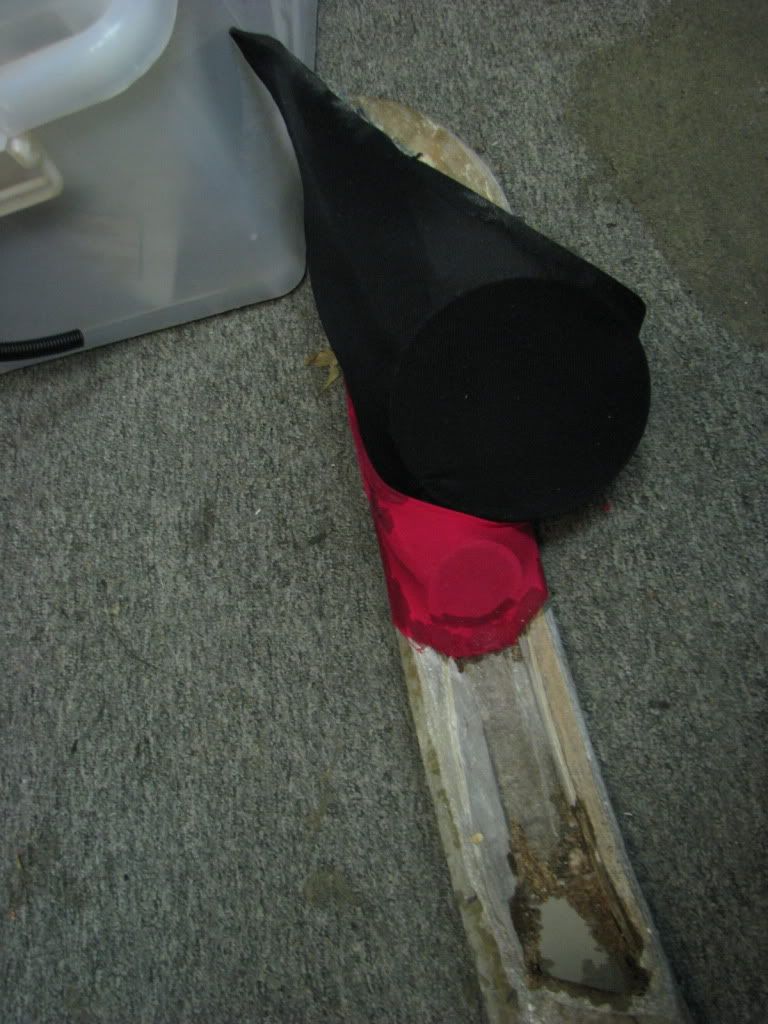

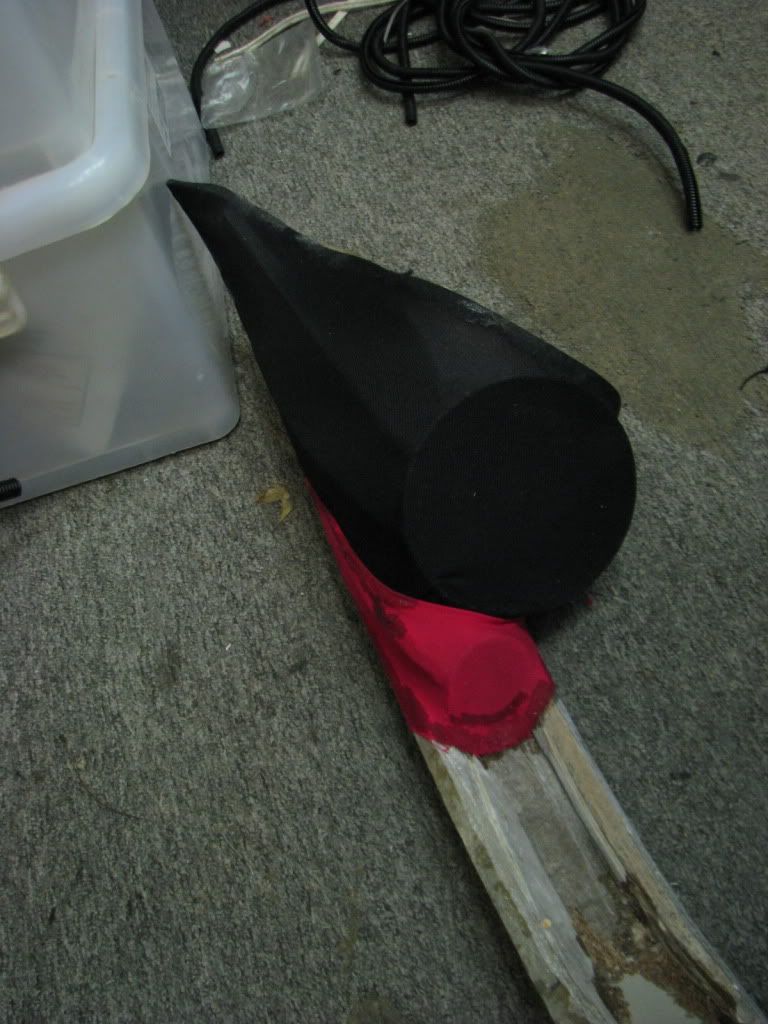

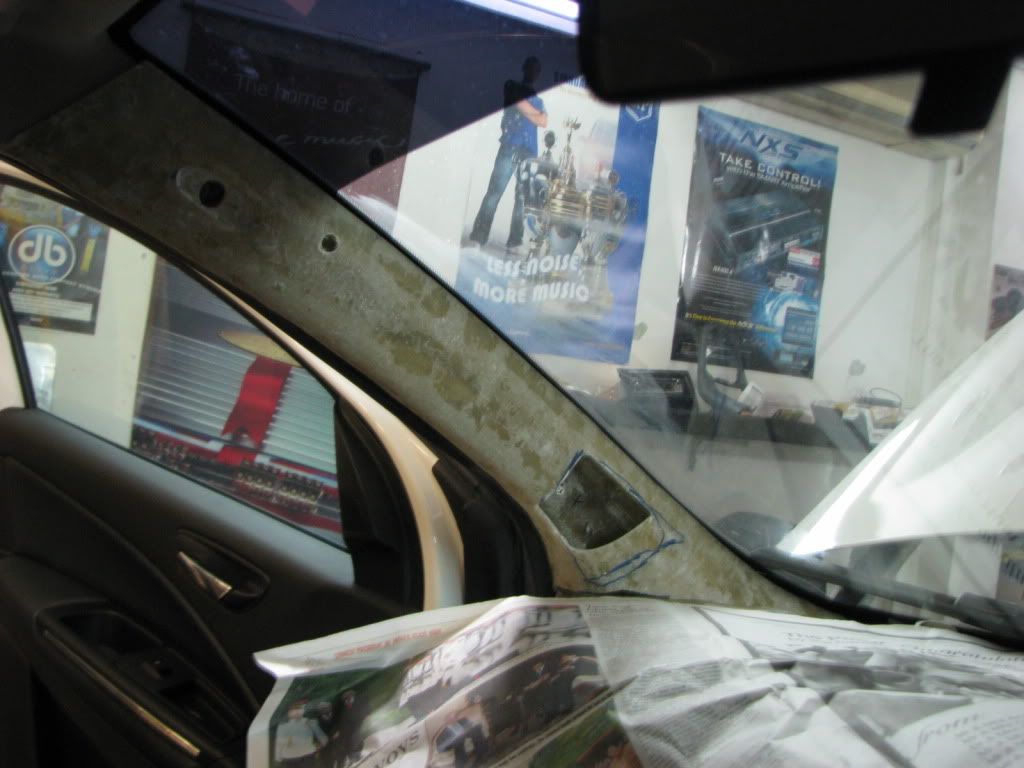

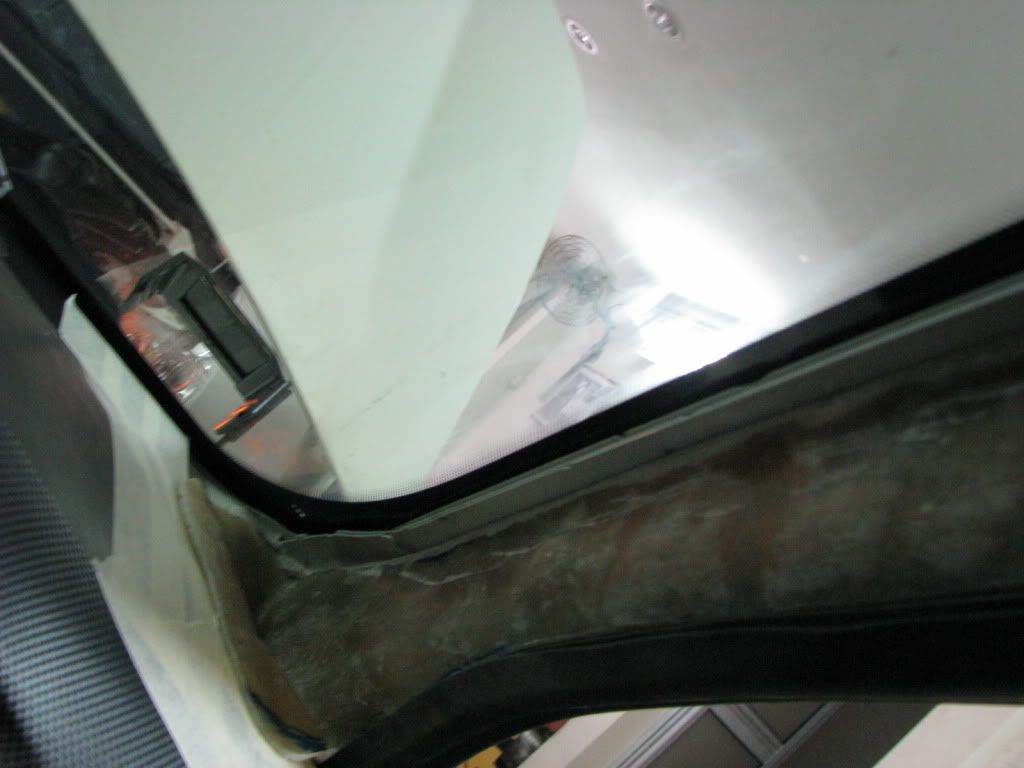

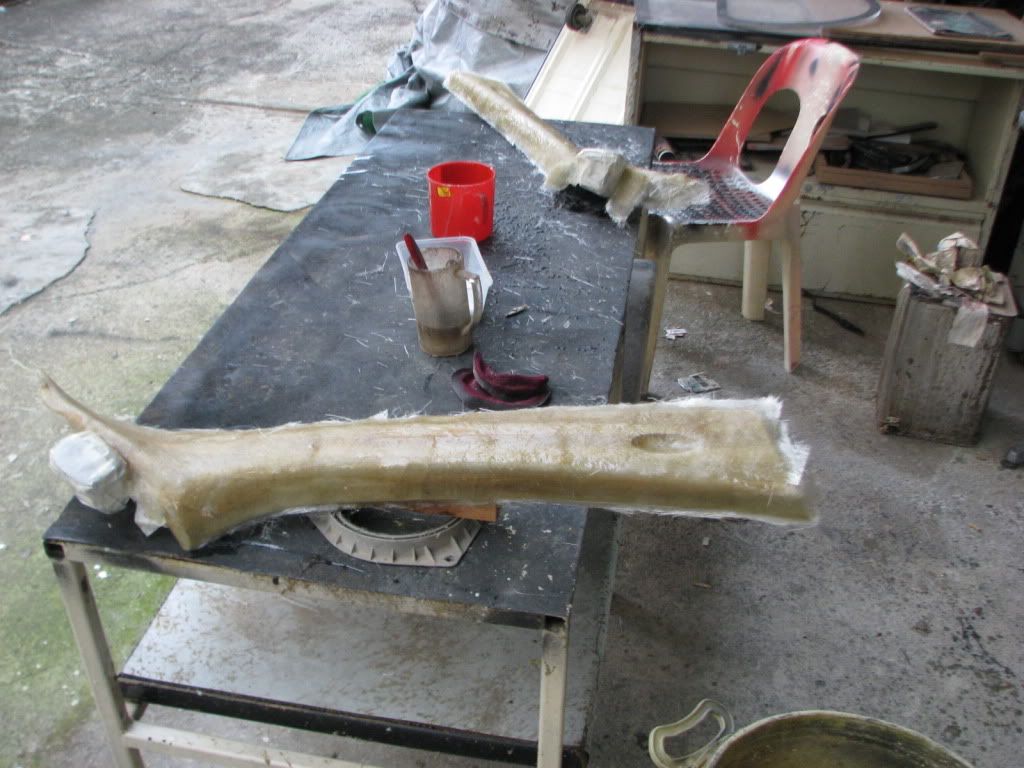

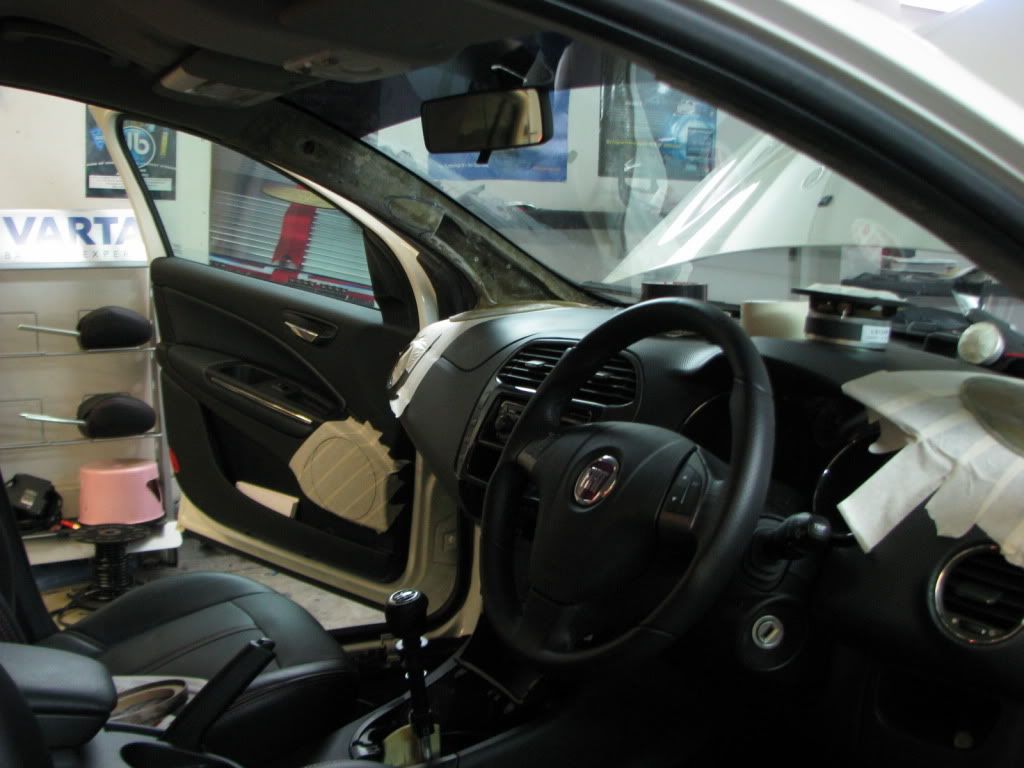

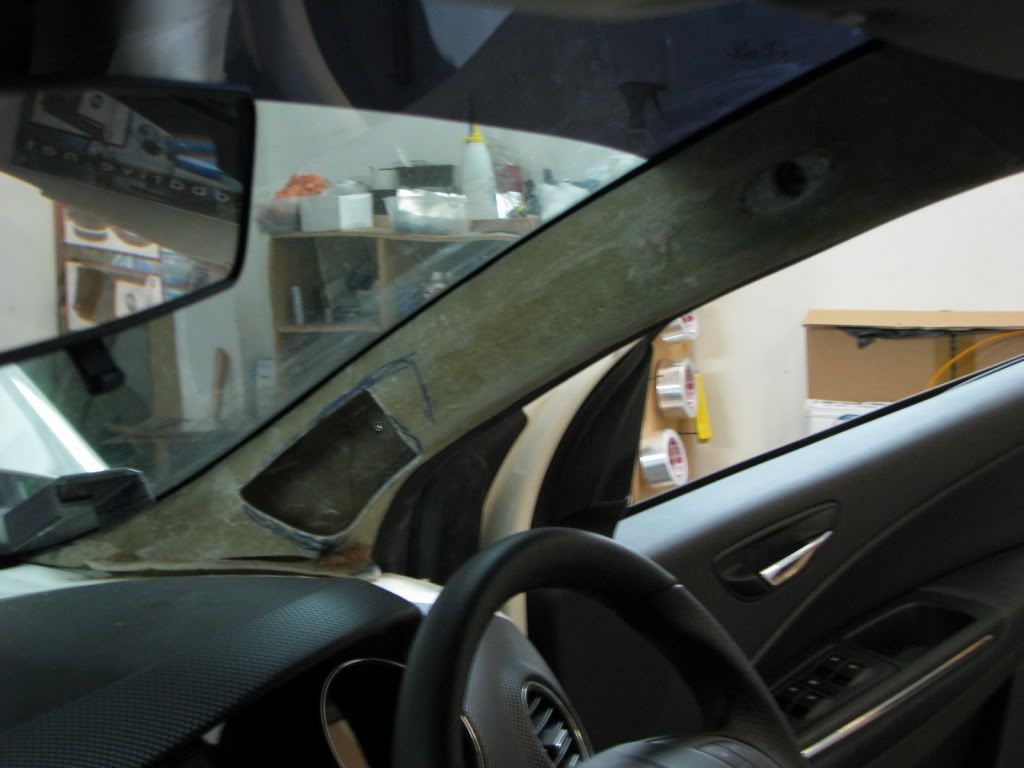

The original A pillars are taken out a mold is made

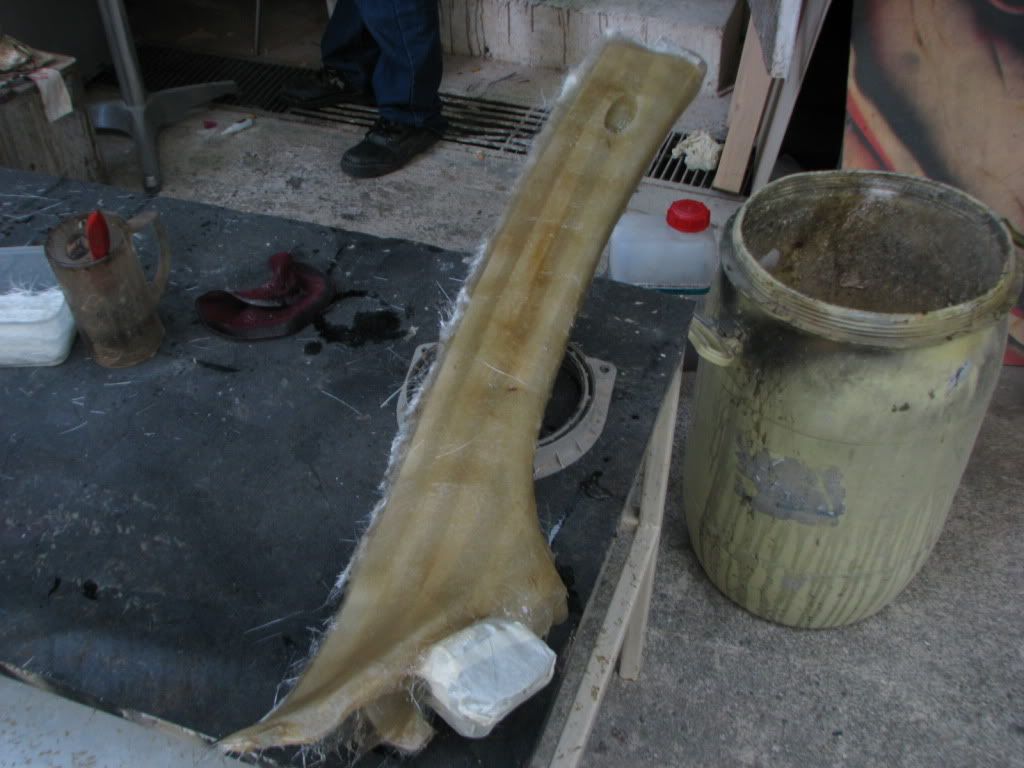

tadaa!

Instant A pillar!



[headshok 10+ year member]

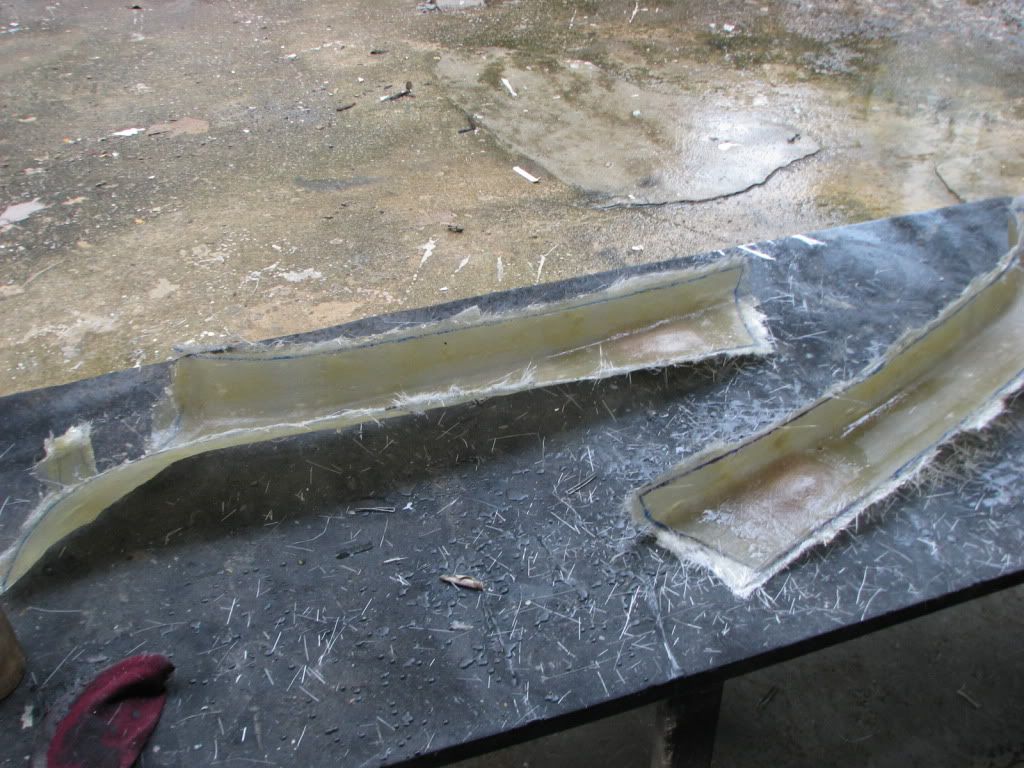

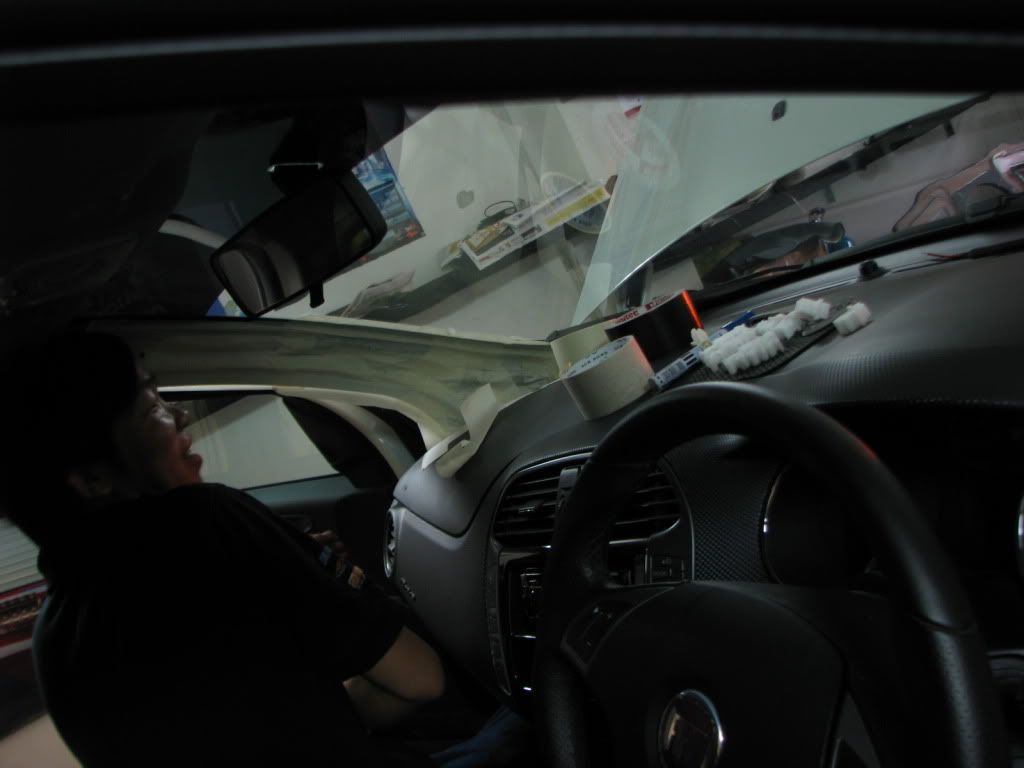

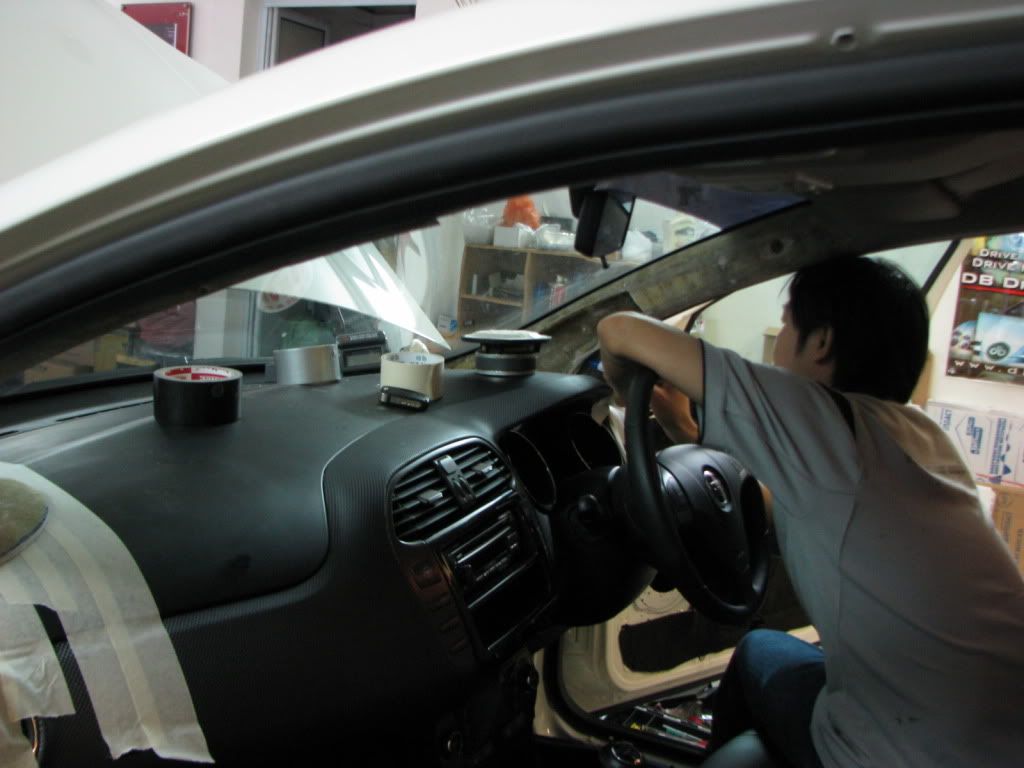

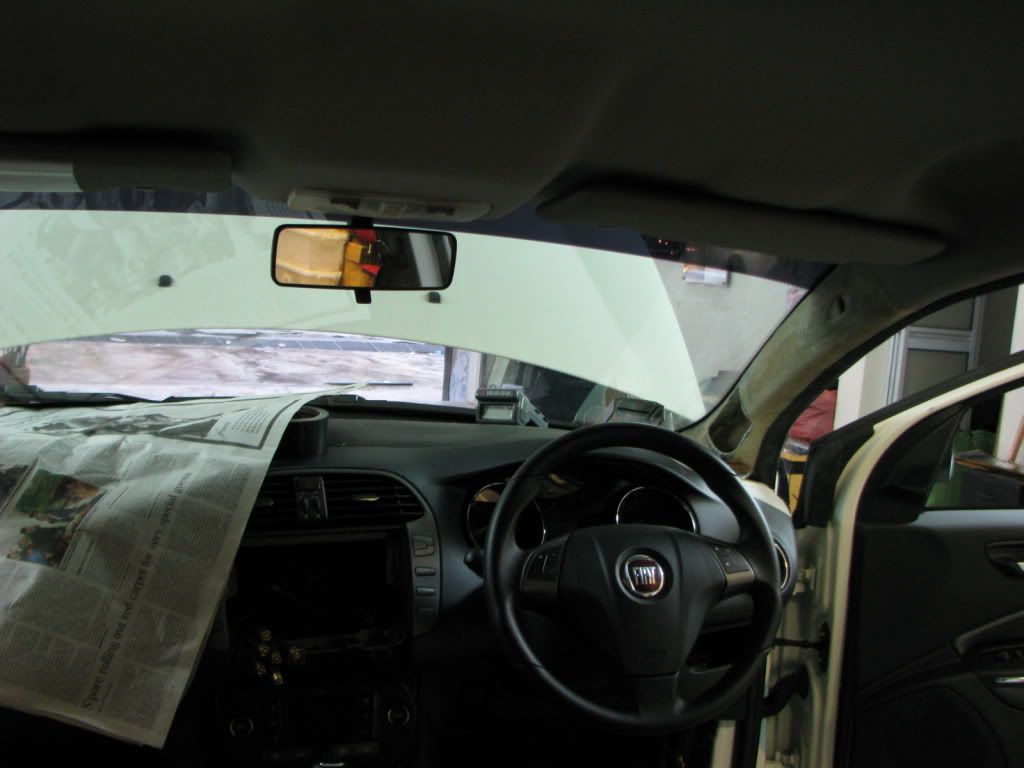

Now for the “ enclosure”.. have the car all taped up

now the fabricated A pillar is put on top

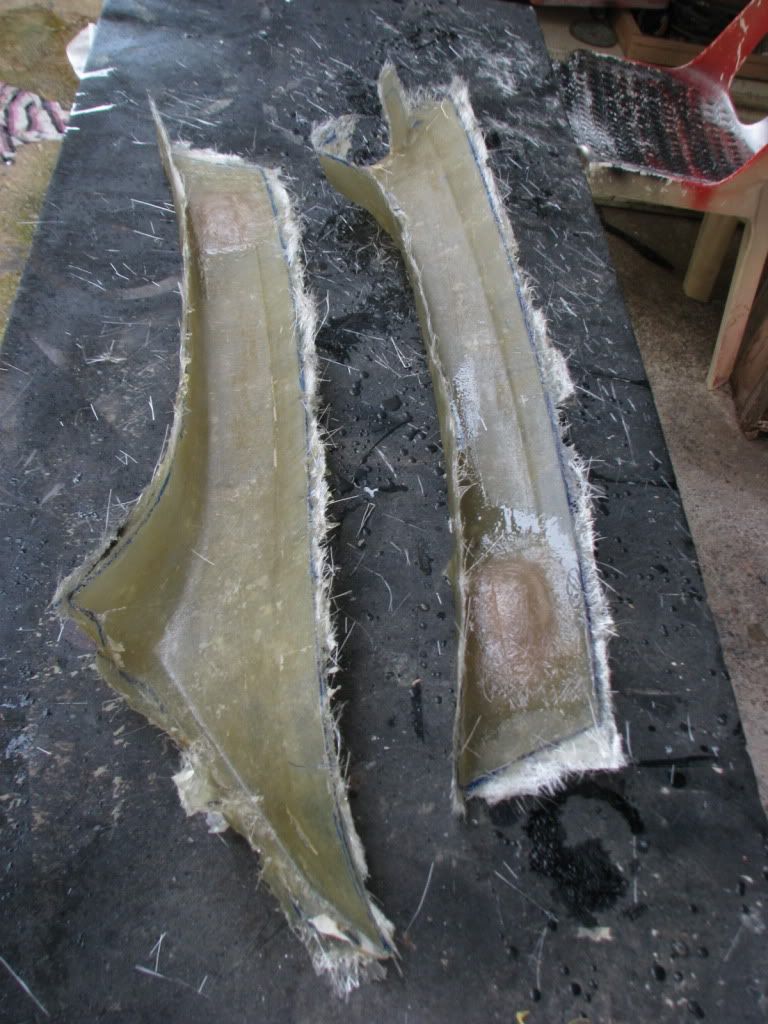

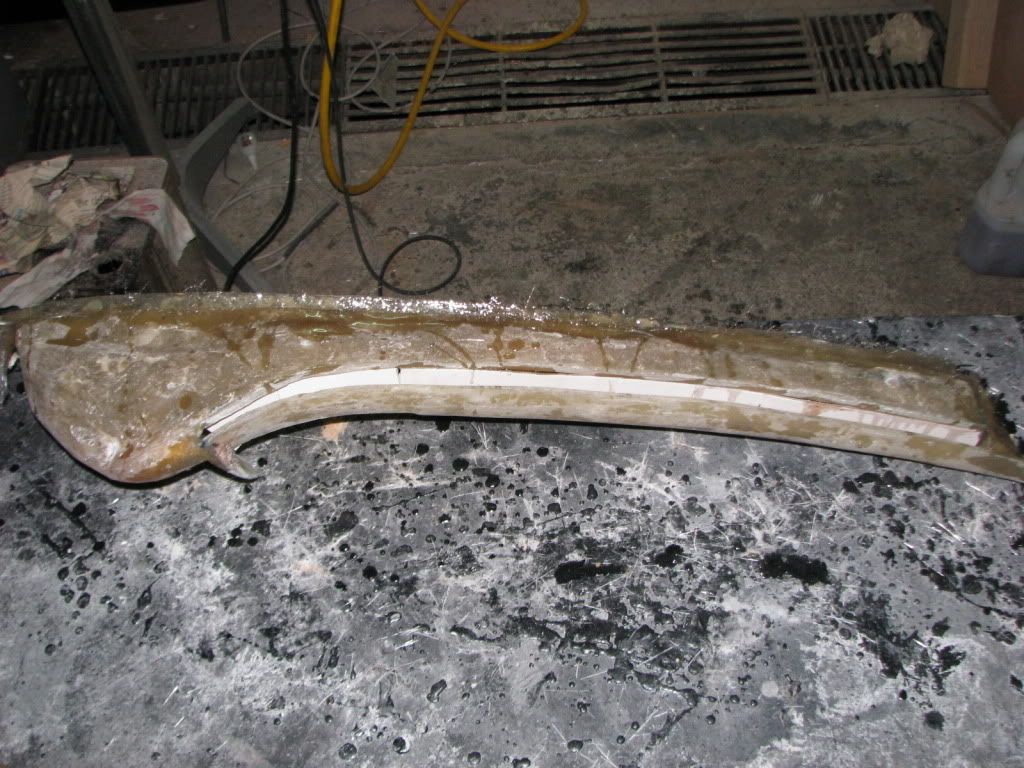

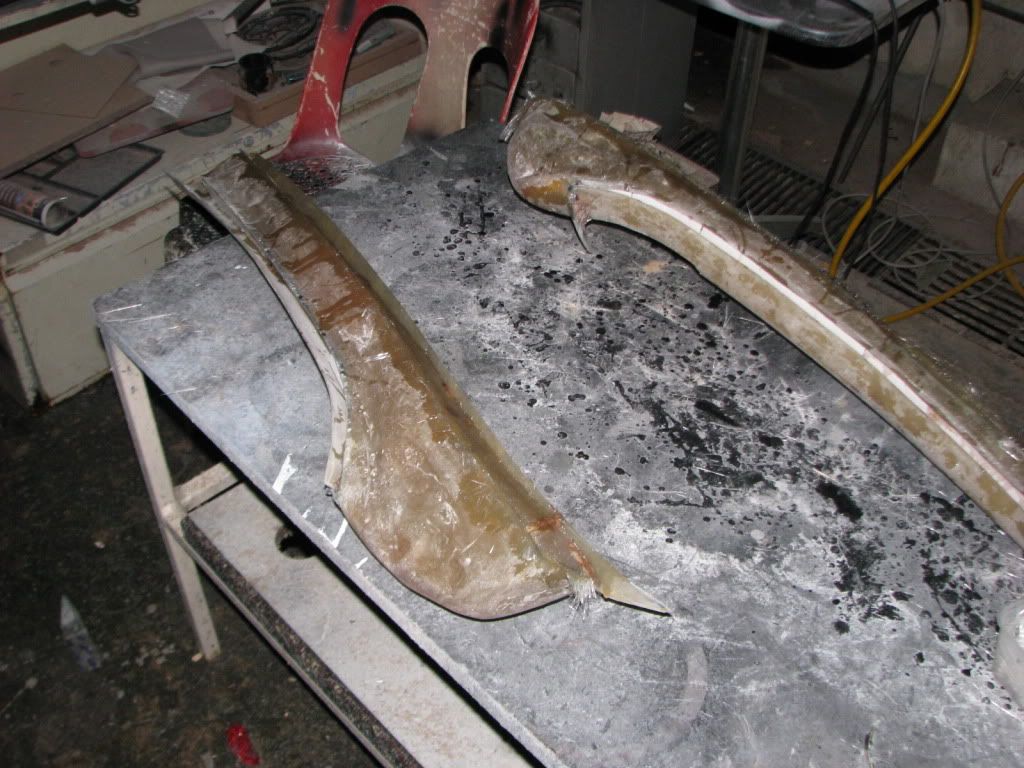

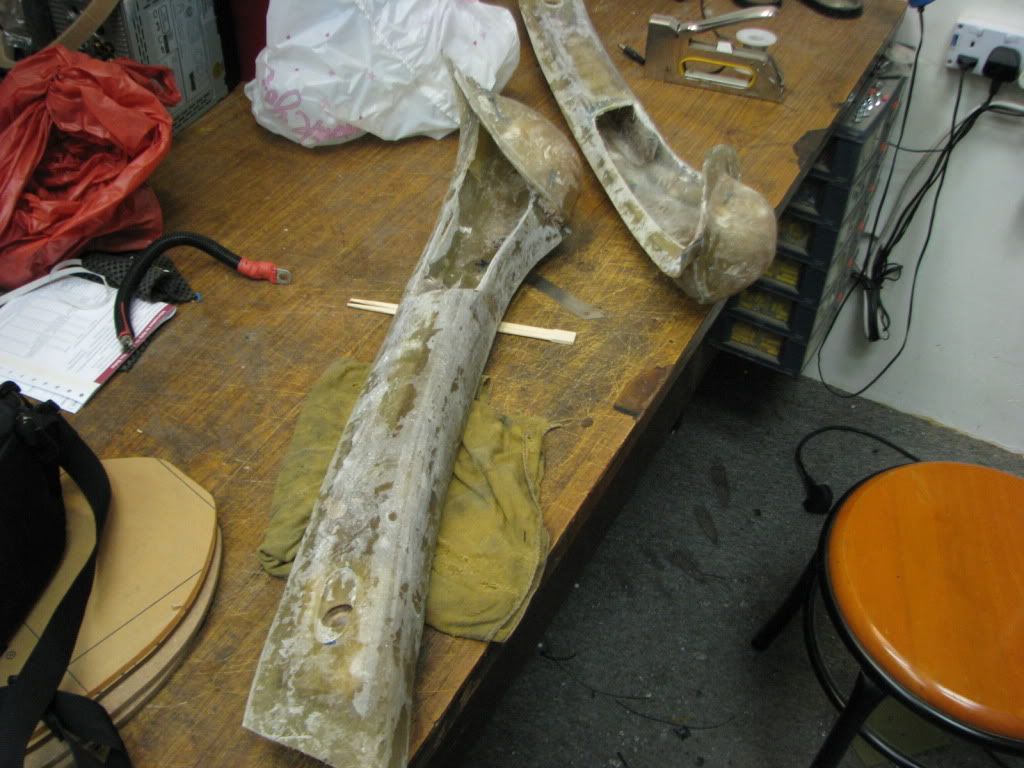

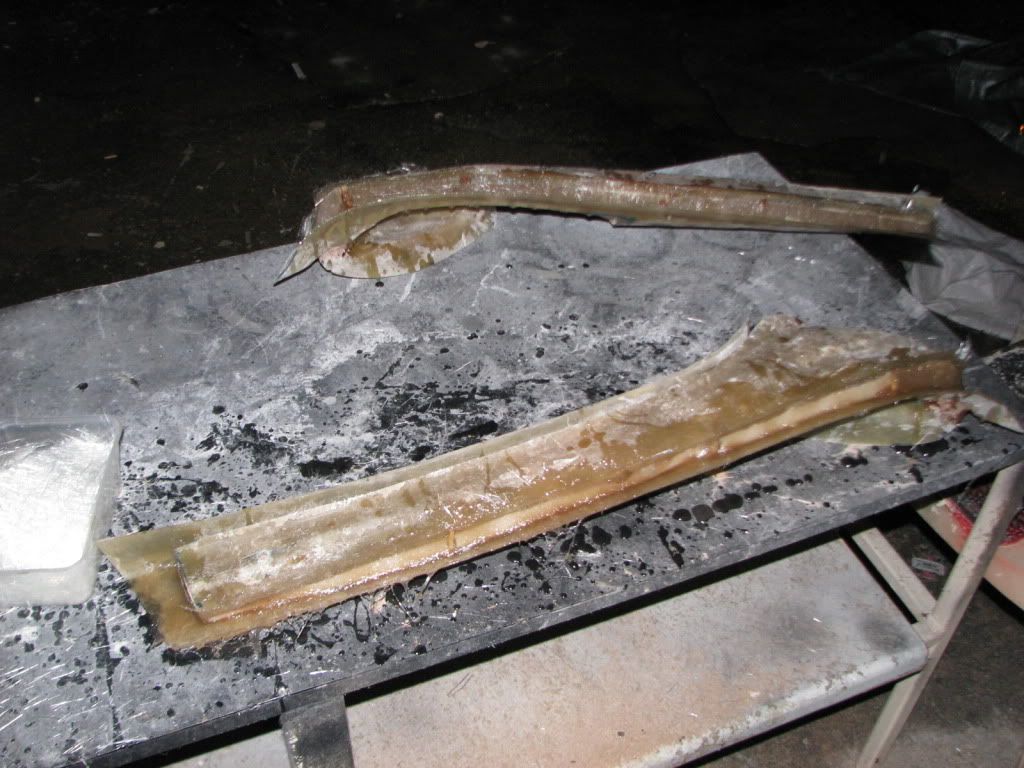

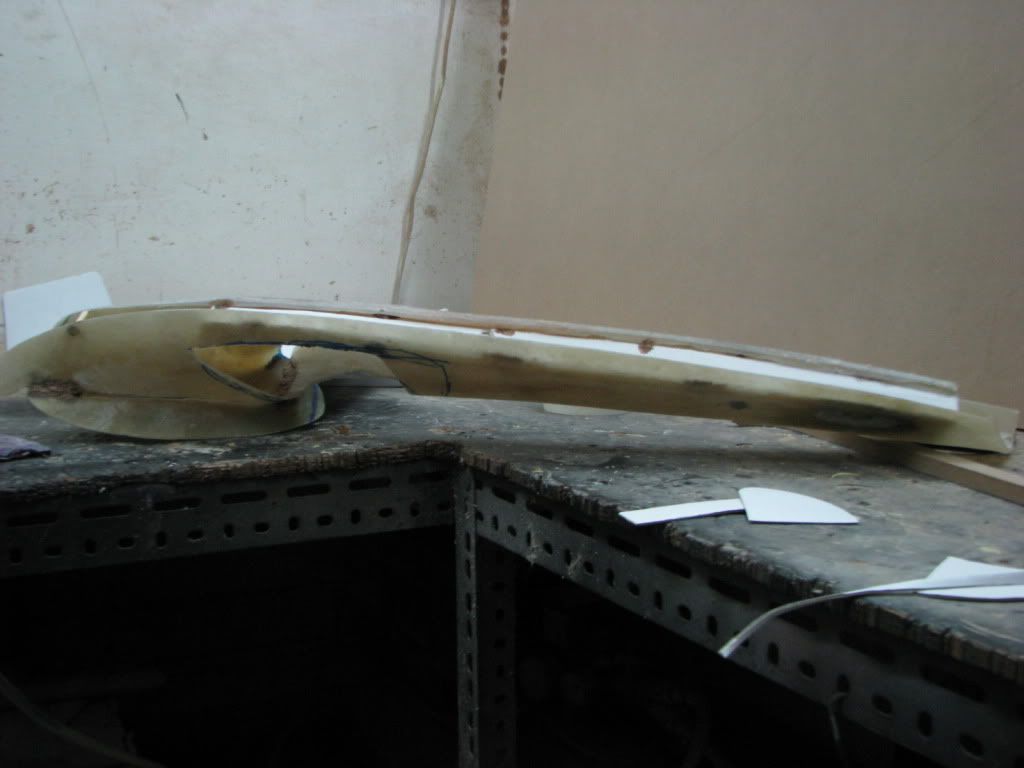

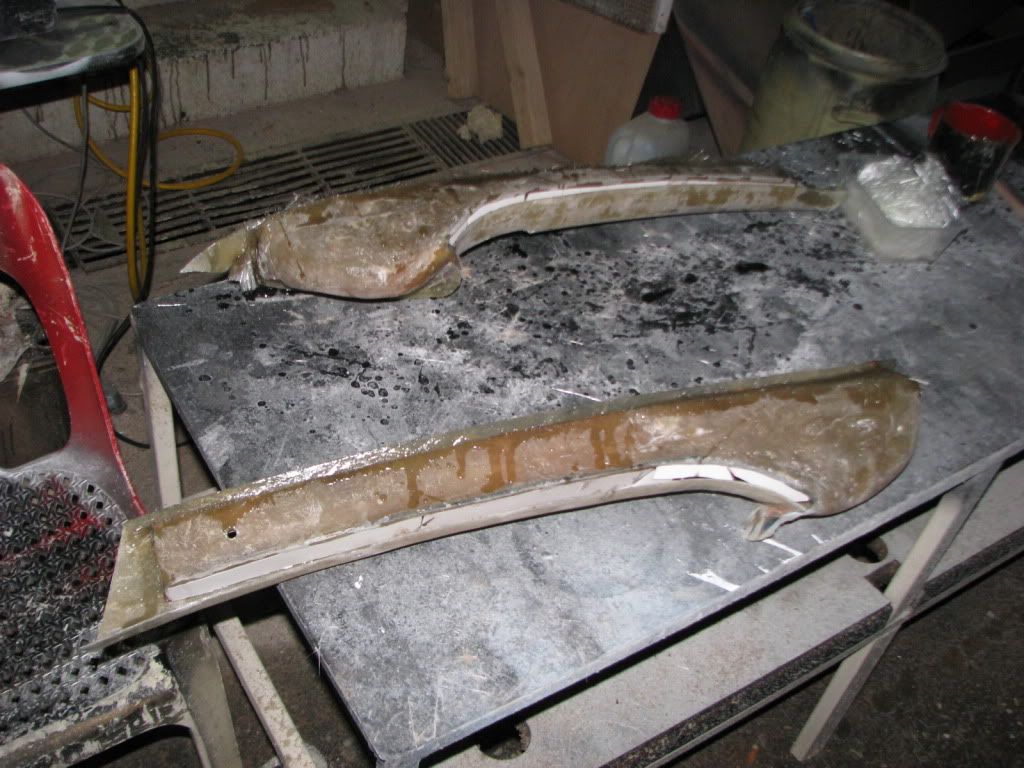

now the 2 pieces are taken out and put together

That’s all for today, more pics up tomorrow.. heheh..

Cheers all



[wone 10+ year member]

nice sht



[headshok 10+ year member]

Here’s part 2 of the A pillar build

Now its time to seal off the “ A pillar”

and here we goooo

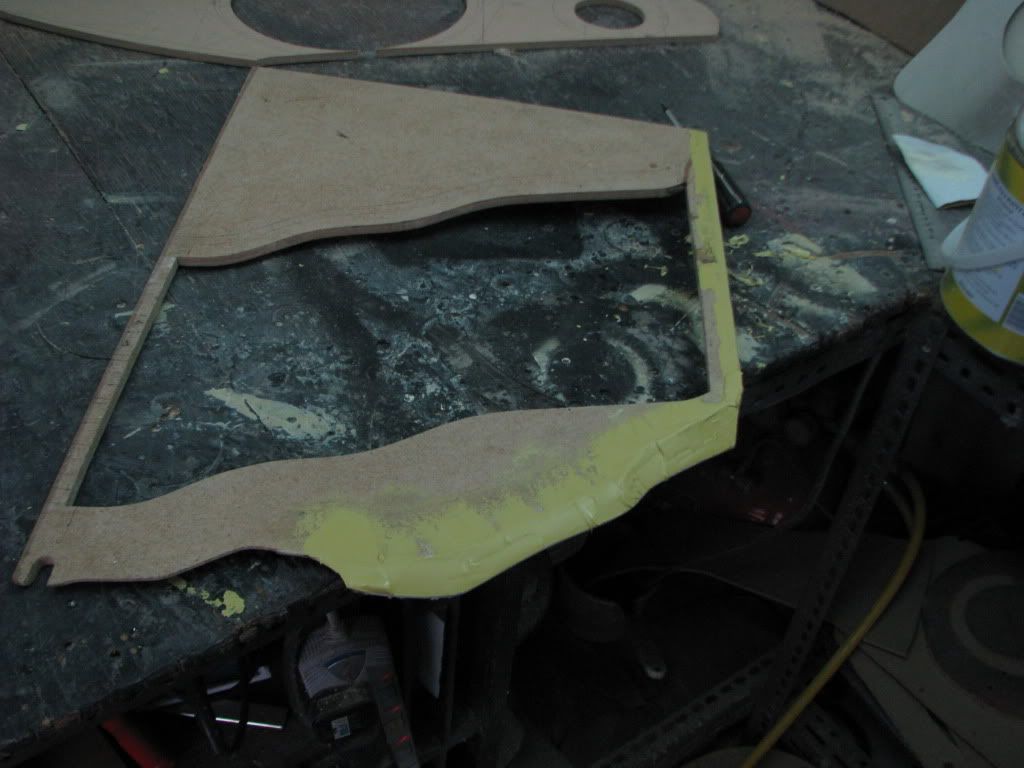

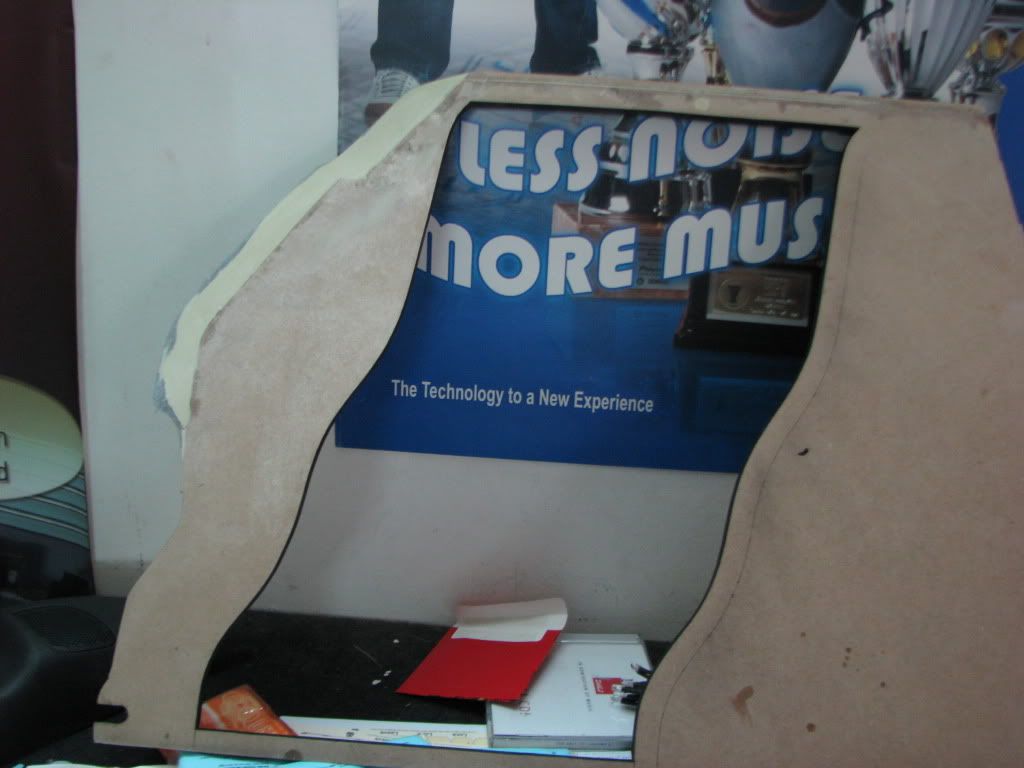

now this is the base of the A pillar. This is the part where the baffles will be mounted onto

taking measurements on where to put the tweets and 4 “

and here we go..

That’s all for today.

Cheers!



[headshok 10+ year member]

Hey all,

Now onto the last installment of A pillar build

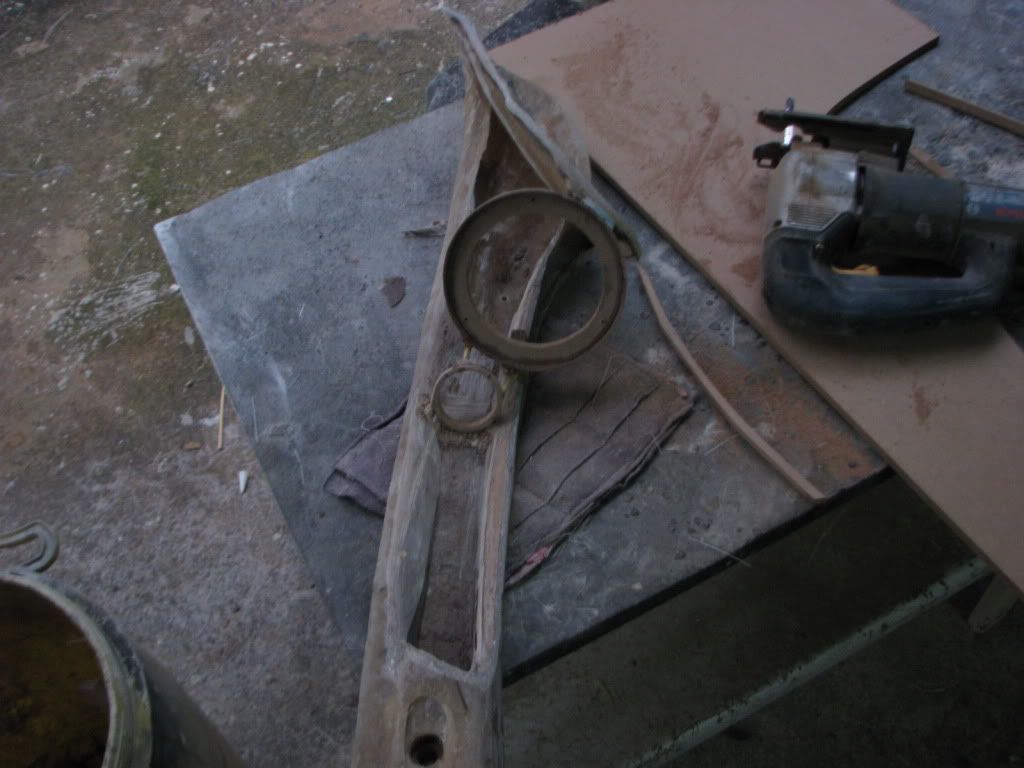

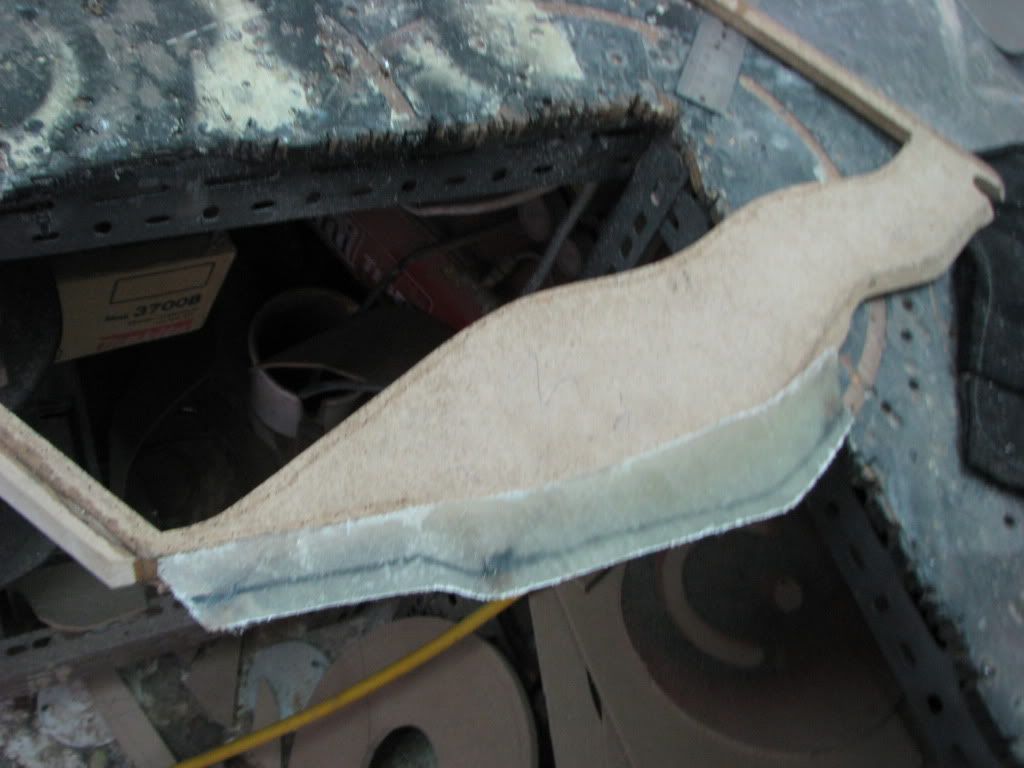

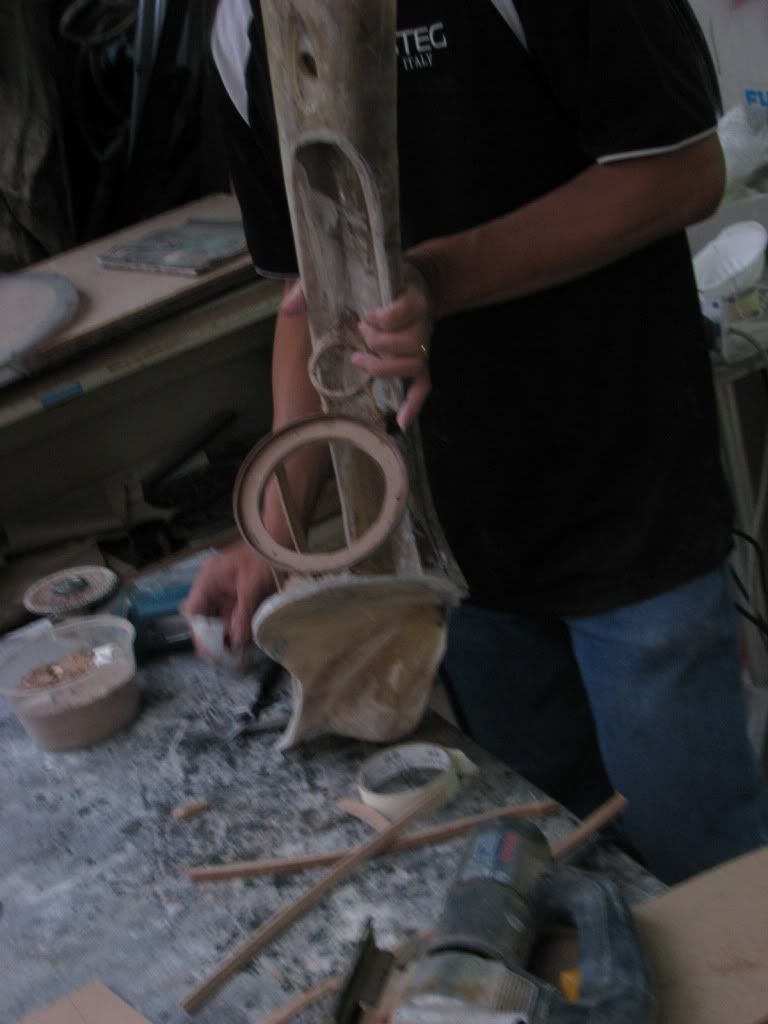

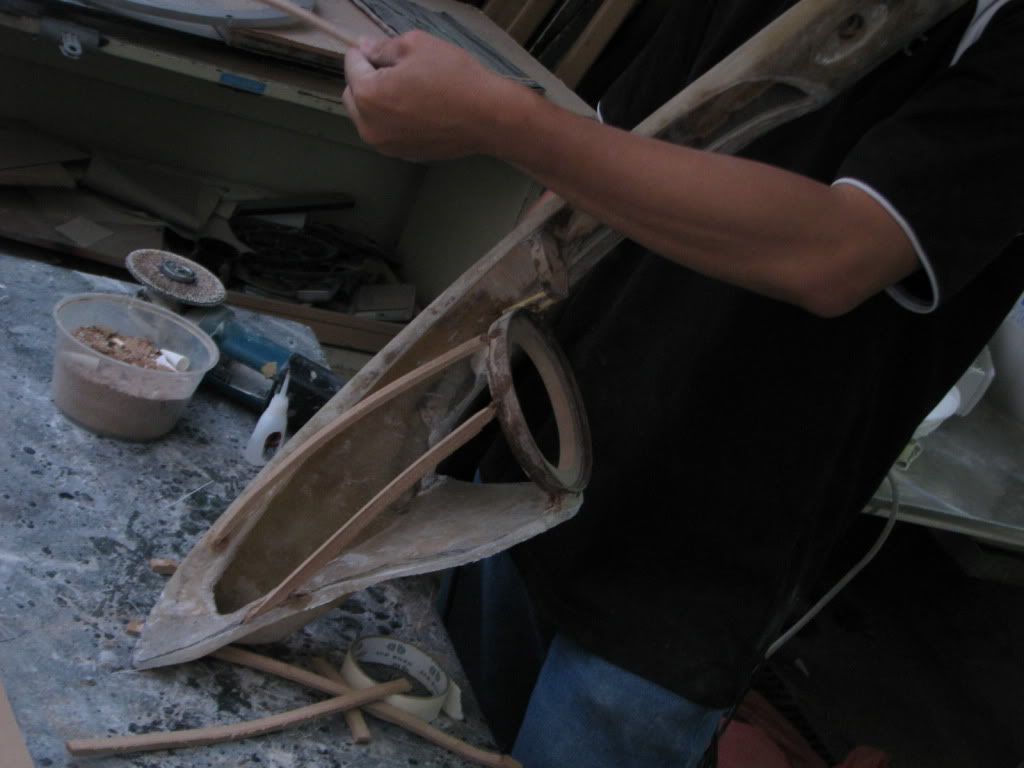

Putting the stand offs on the baffles

what I like about this A pillar is the frame work. Its as though it has a skeleton.

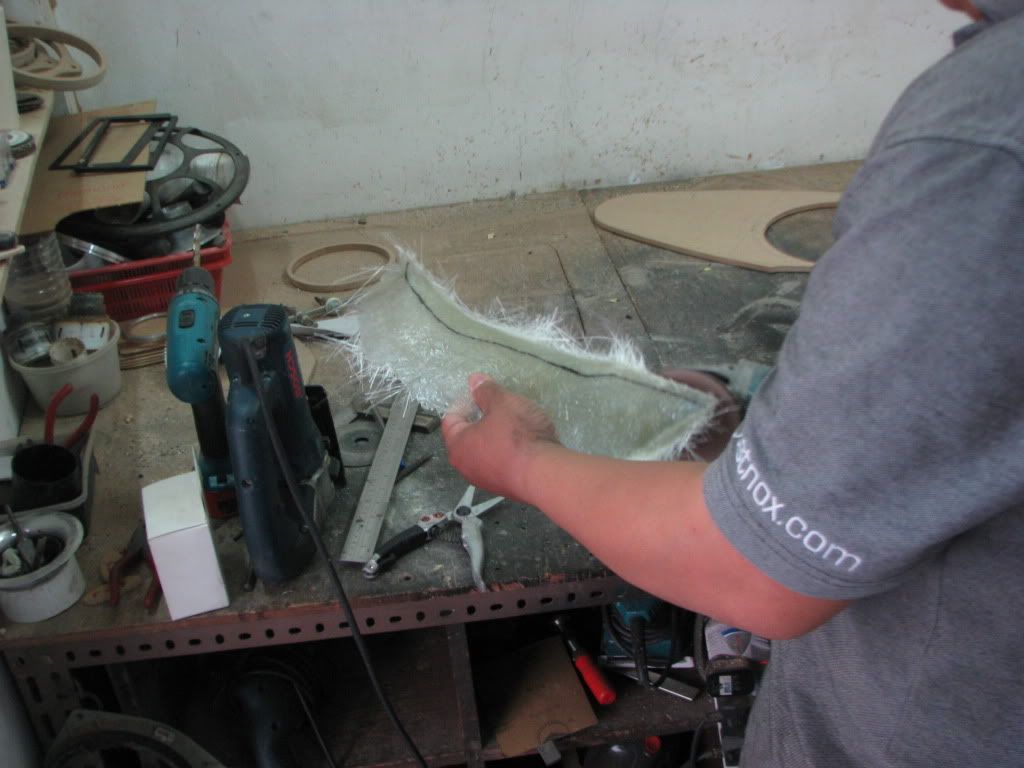

now to pull some fabric over

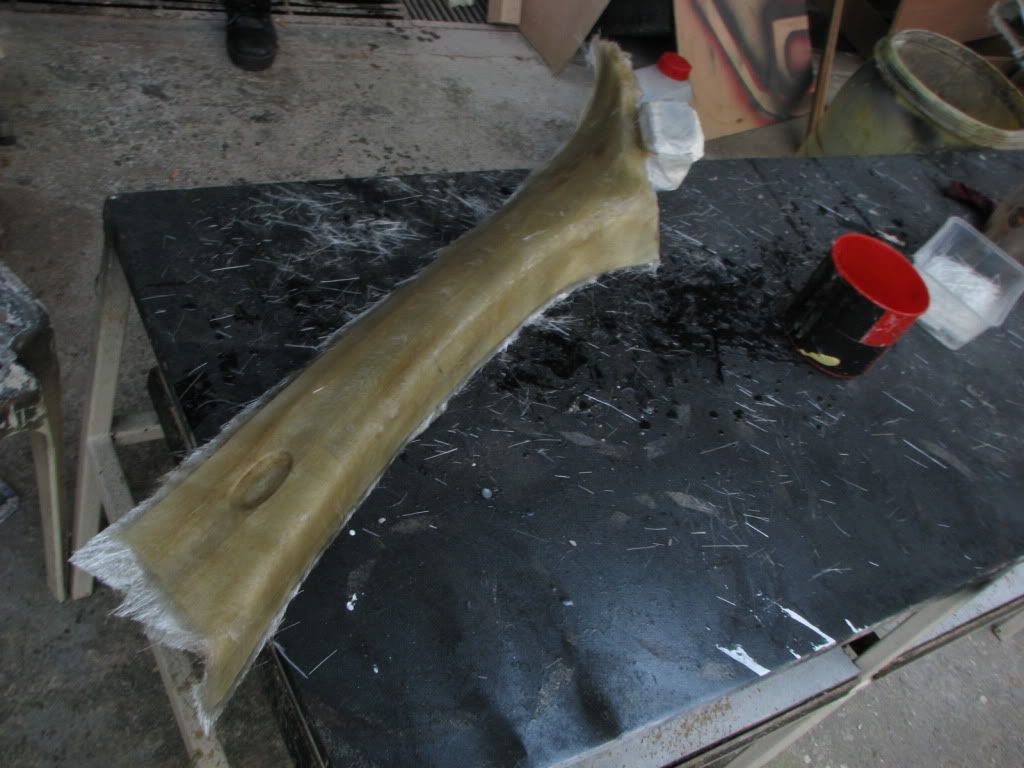

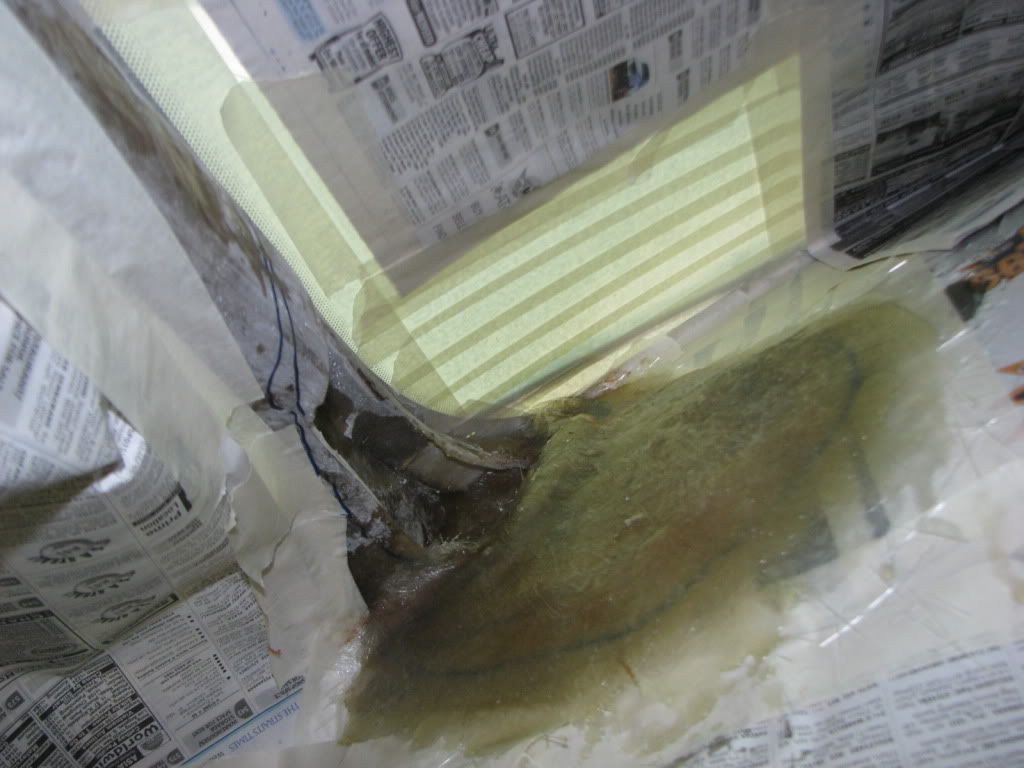

applying resin is pretty straight forward,

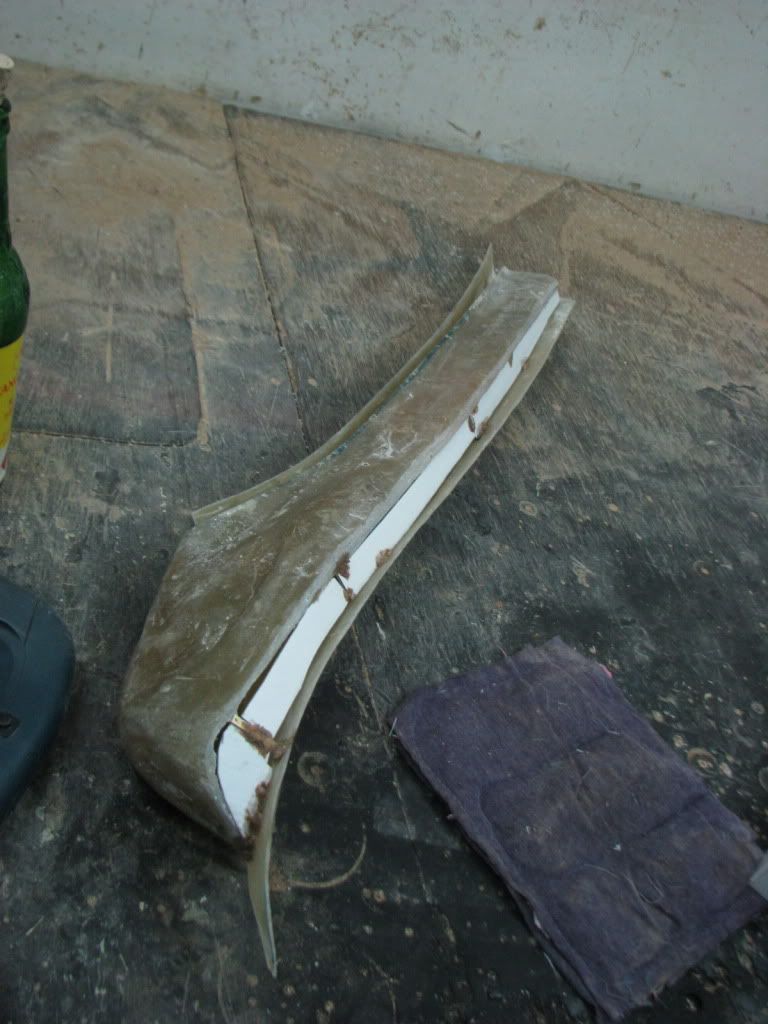

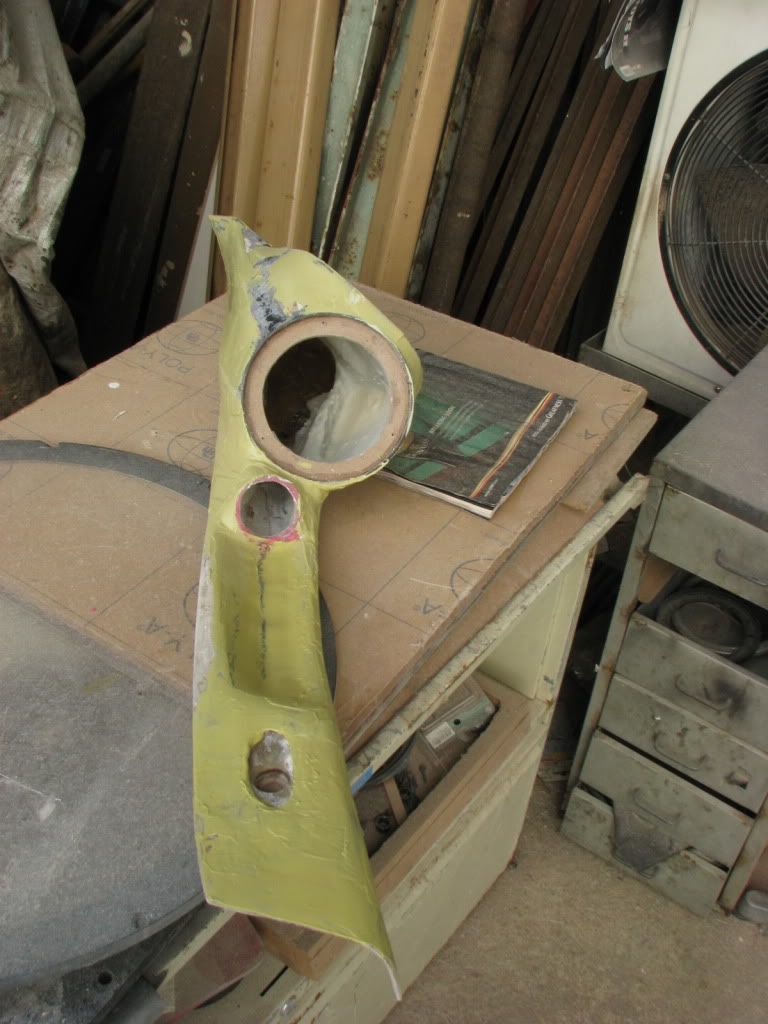

So here’s the end product

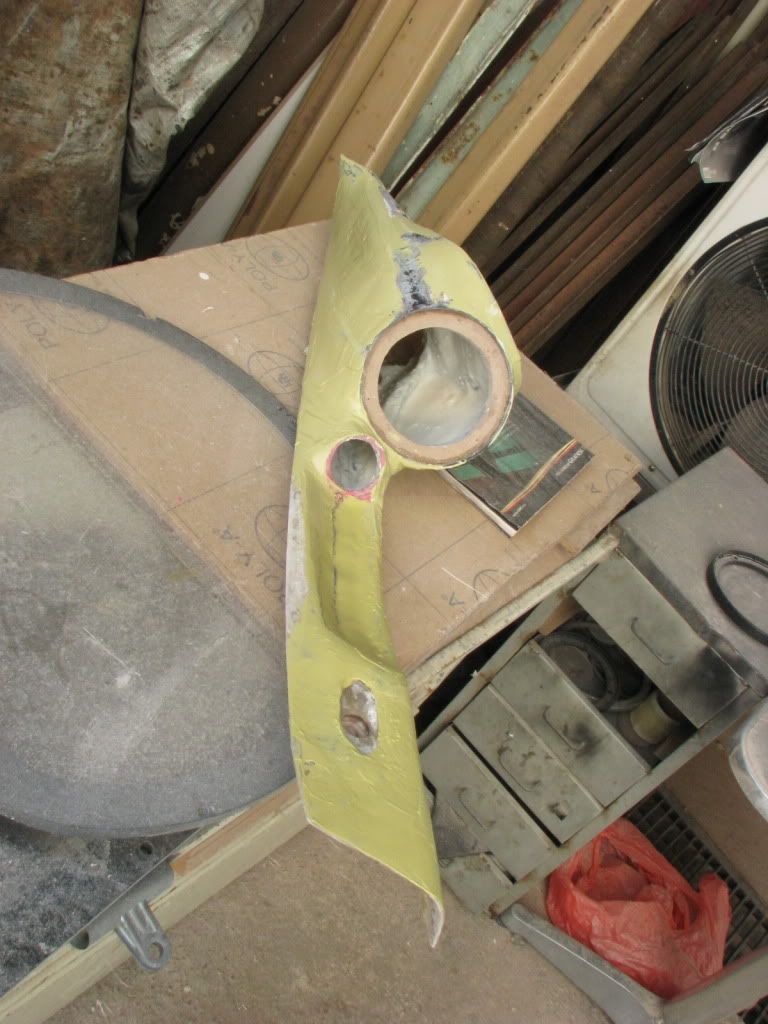

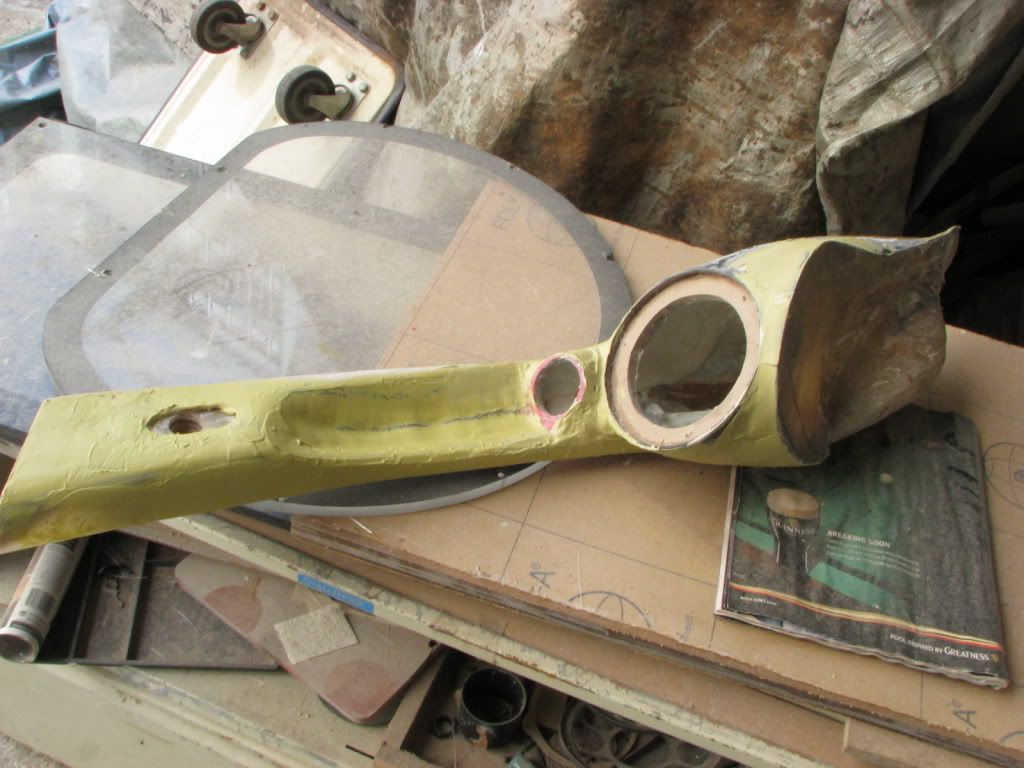

from here on, the A pillar just needs a shit load of sanding and its all ready 

The comp car is back and I’ll have more pics up soon! The whole setup is more or less done, but unfortunately, the colour scheme we thought would have turn out nice turned out really ugly.

We’ll be redoing certain parts of the build, so look out for it. But here’s a sneak peek for you guys..

cheers all



[headshok 10+ year member]

Hi all,

Hope everyone had a good weekend 

Anyway, the car’s almost complete and we are beginning tuning of the system. This system is proving to be quite challenging.

The test car we had this setup on used a Clarion D2 ( 9255 for the US folks). Now we have it on the #F1 and it’s a different beast.

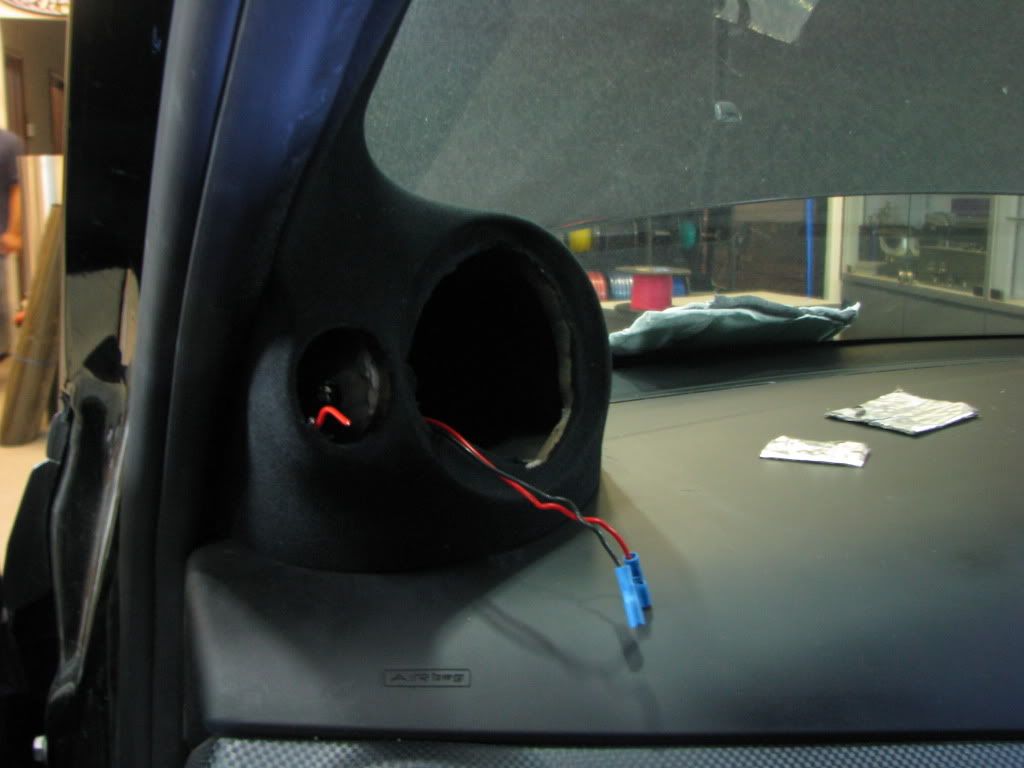

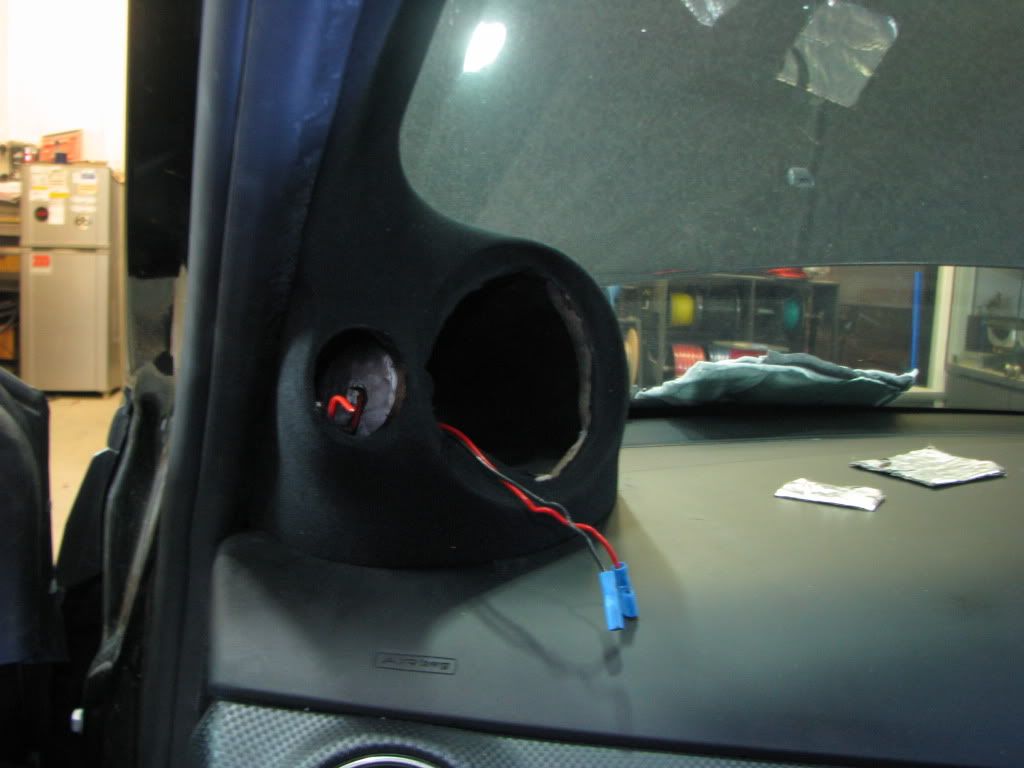

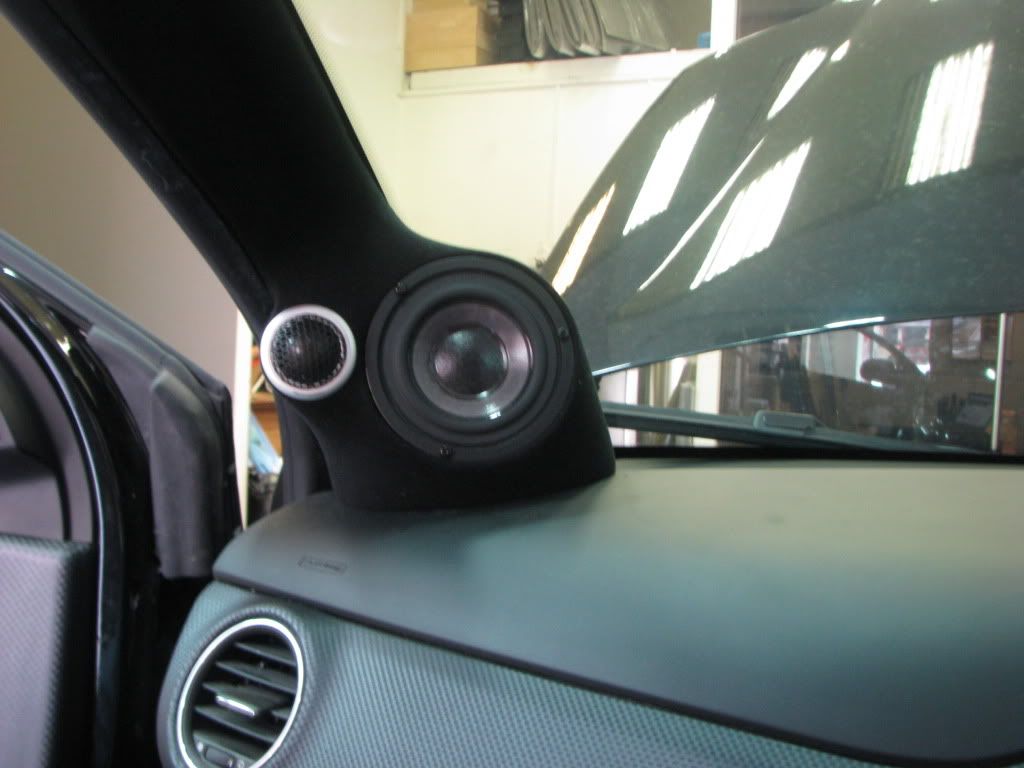

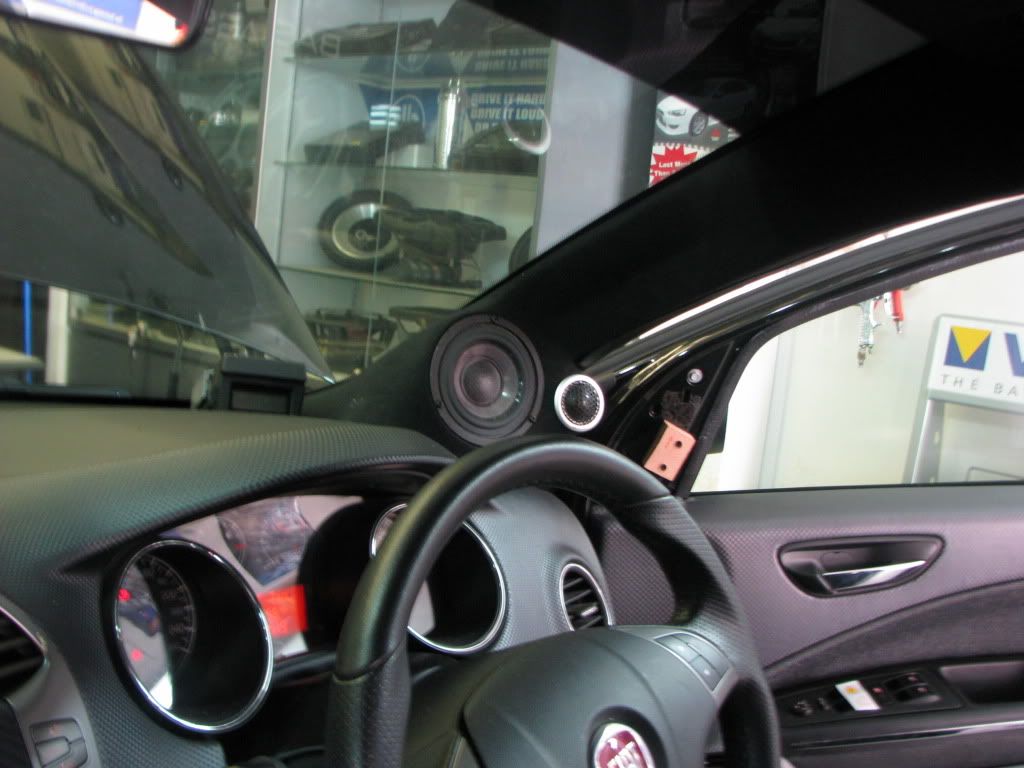

We got the A pillars in.

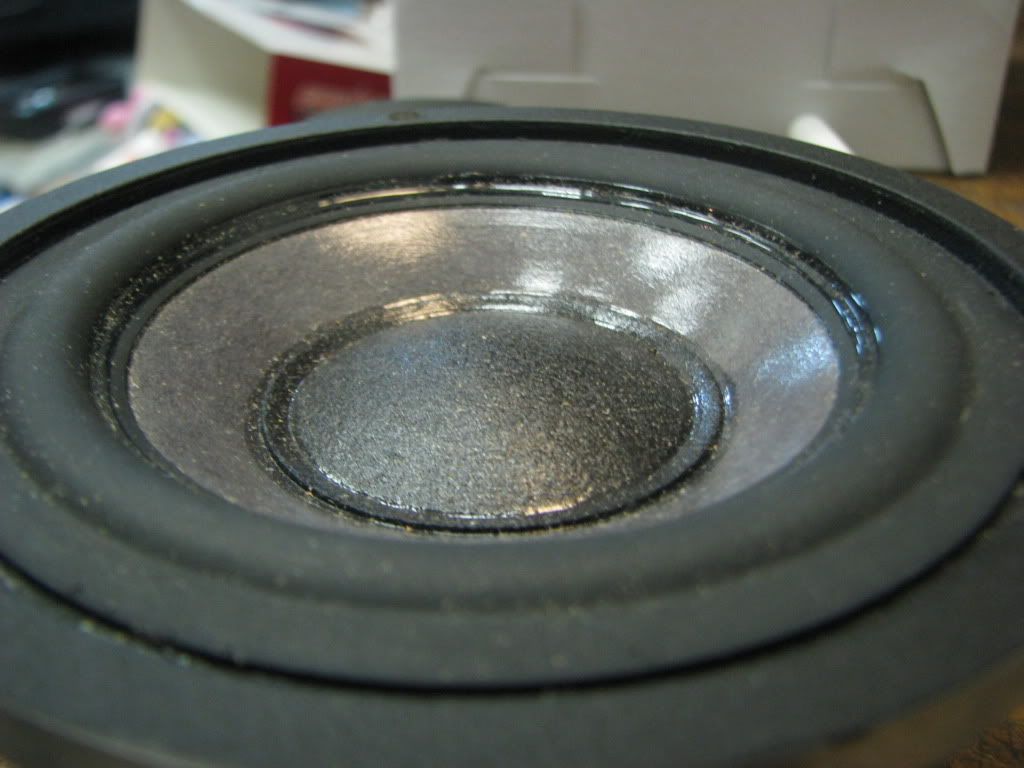

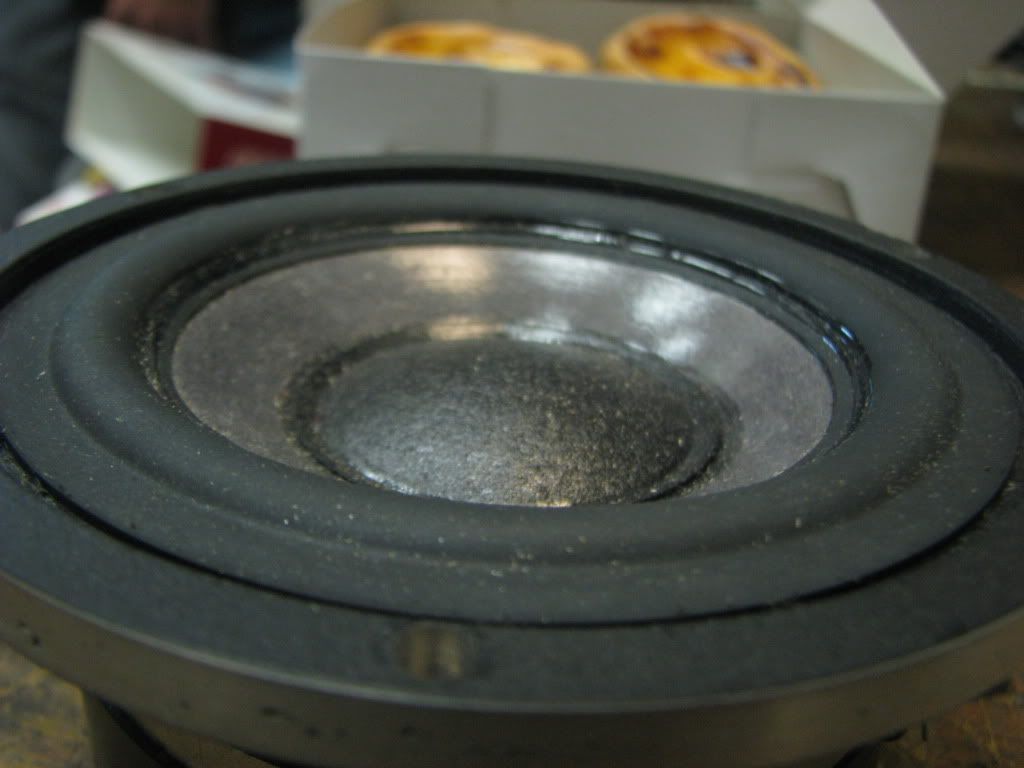

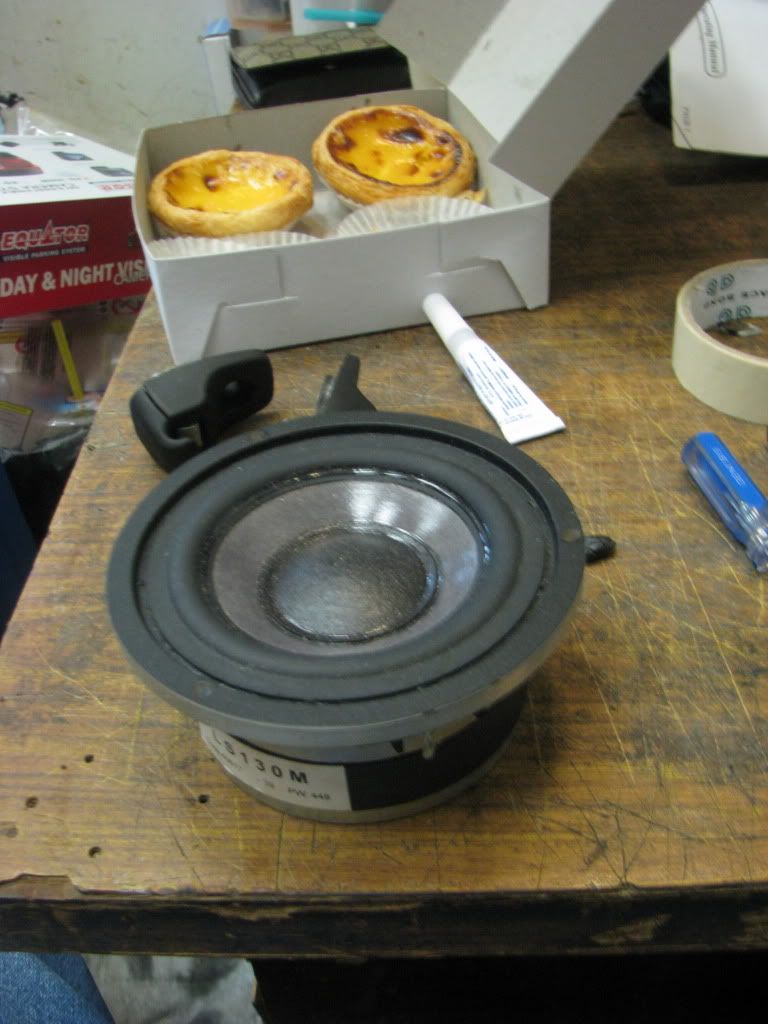

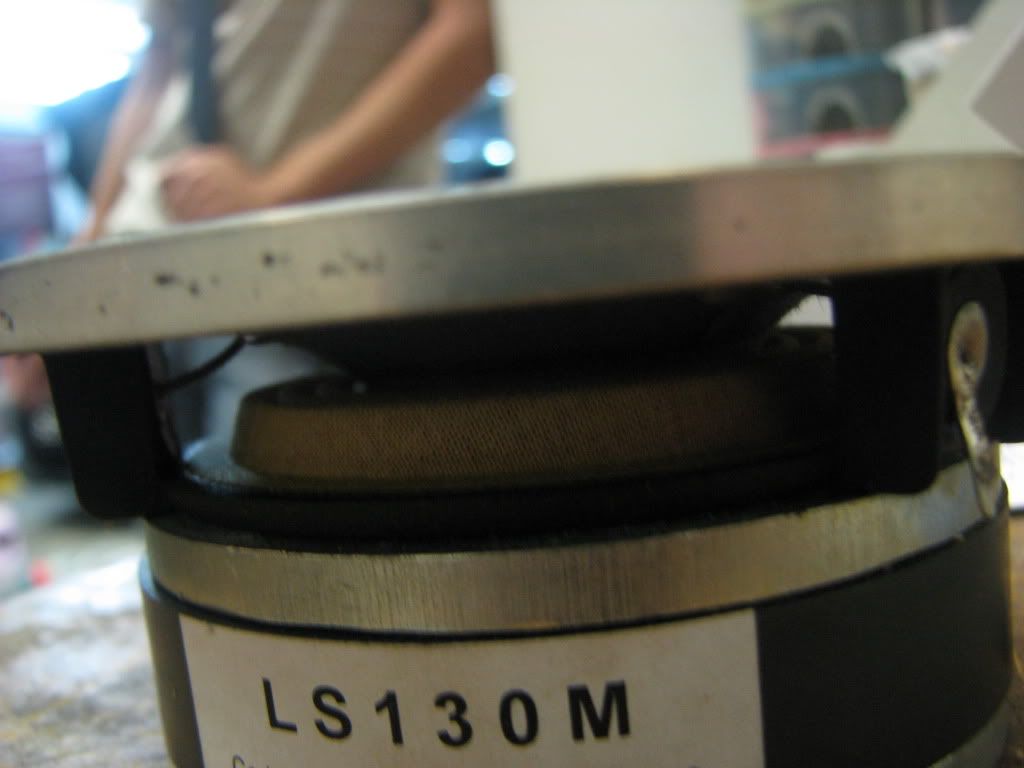

Here’s some close up shots of the mid range, EB tec LS 130

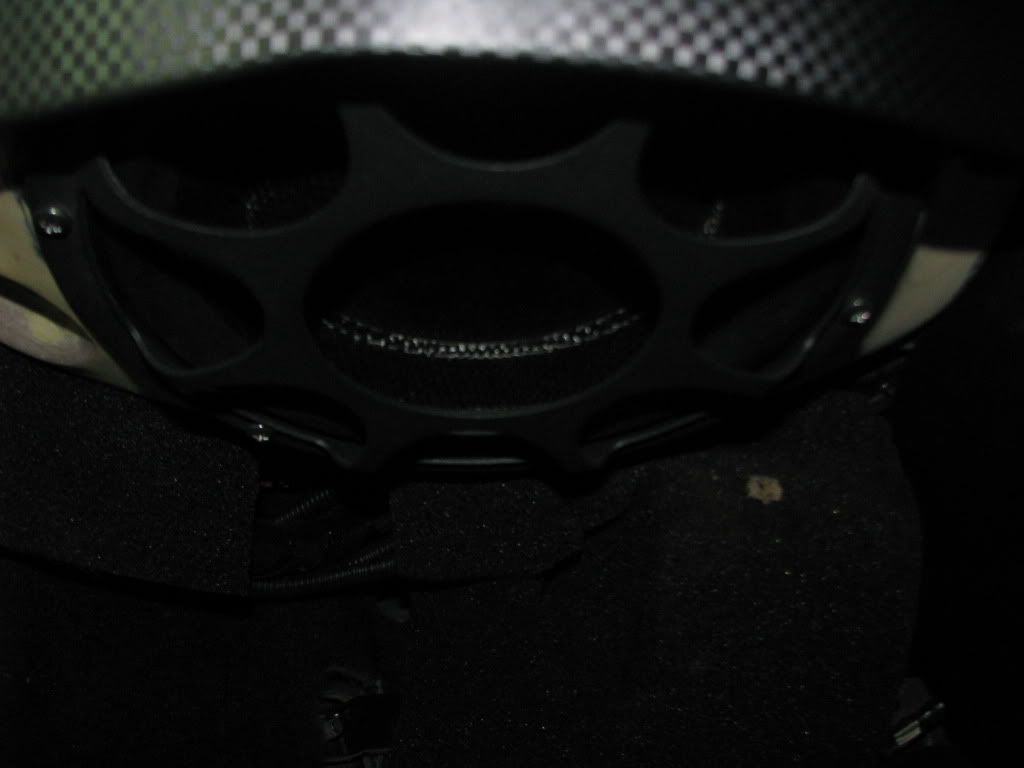

speakers in

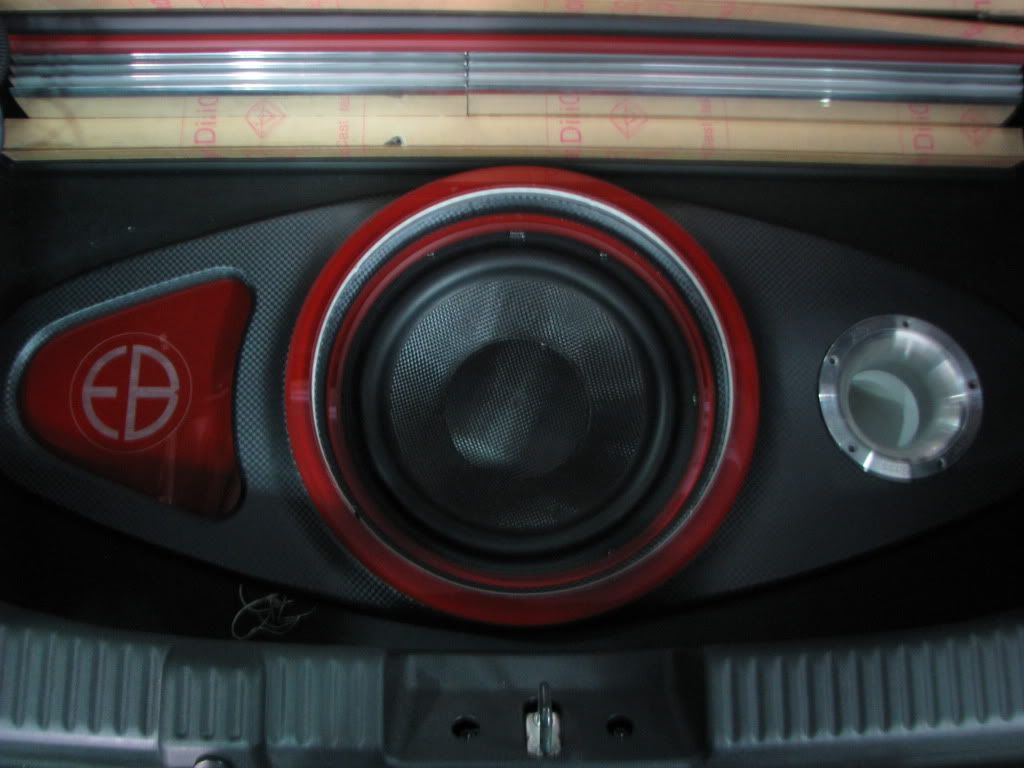

Here’s a shot of the little 8” sub in the front.. heheh.

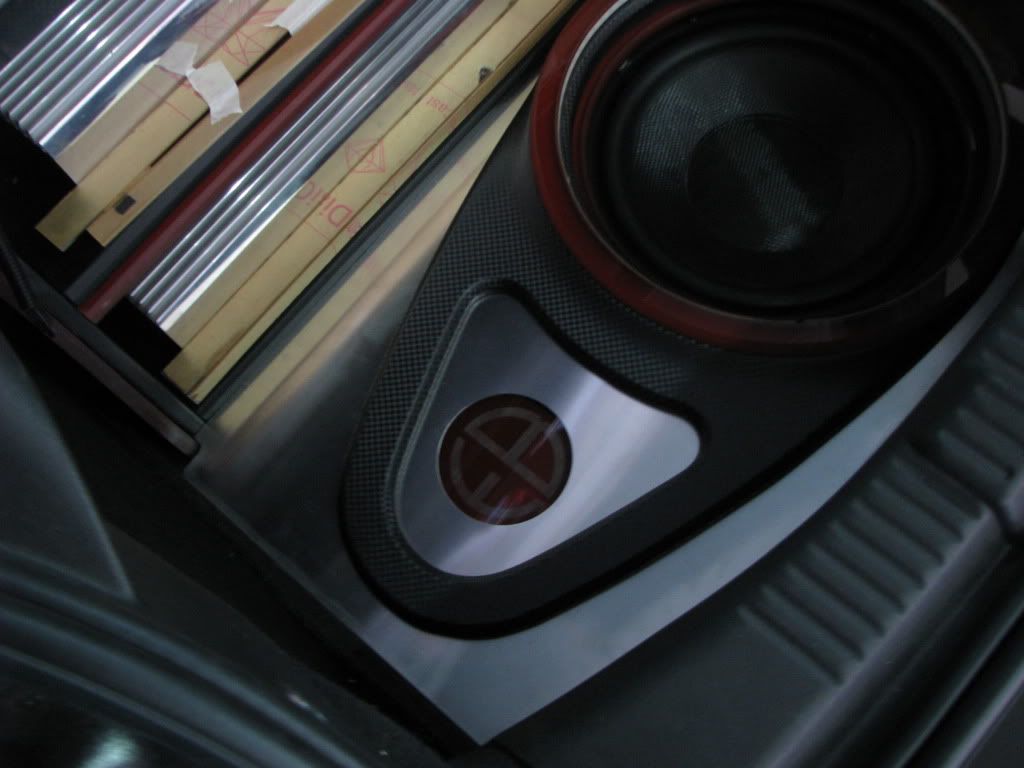

and here’s a nice little logo done 

Now we actually hit a little snag along the way and are re-doing part of the layout.

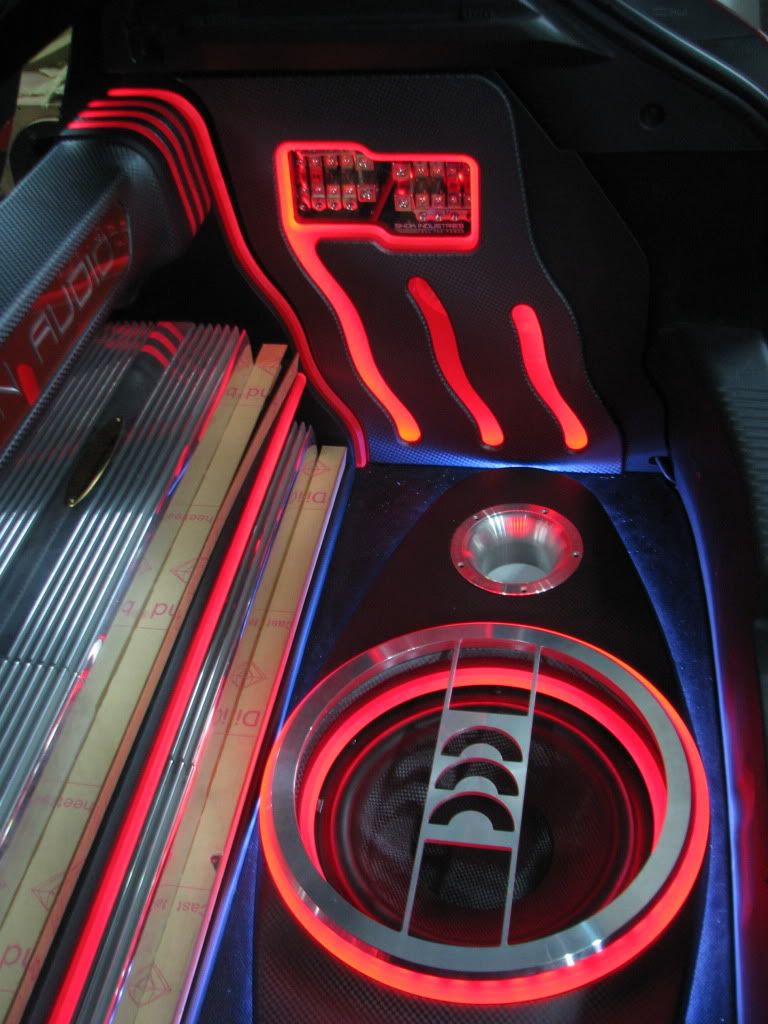

Problem was the colour scheme, it is TOO RED! It looked like vegas when we open the trunk at nite.

So well, some things gotta change. Look out for it.

Cheers!



[headshok 10+ year member]

Hi all,

Well, we just got a new jack for the car.. hahaha.. pretty cool colour too!

Anyway, bad thing about the Fiat Bravo is that the dam alternator is under the car and we have to jack up the car to gain access to it.

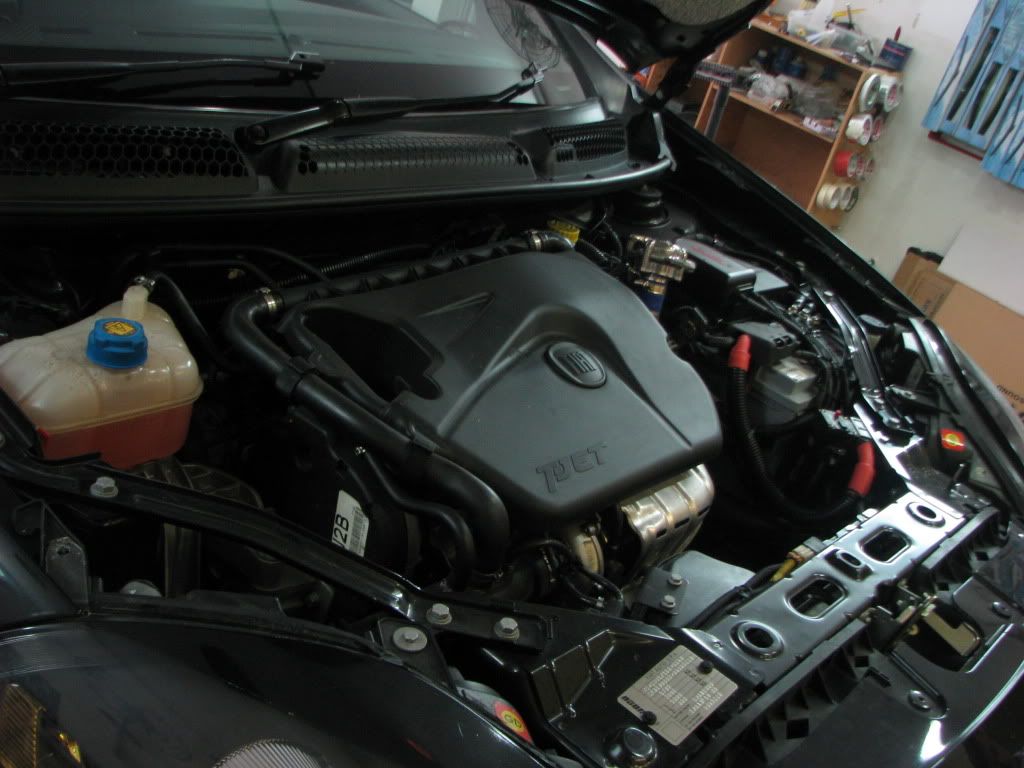

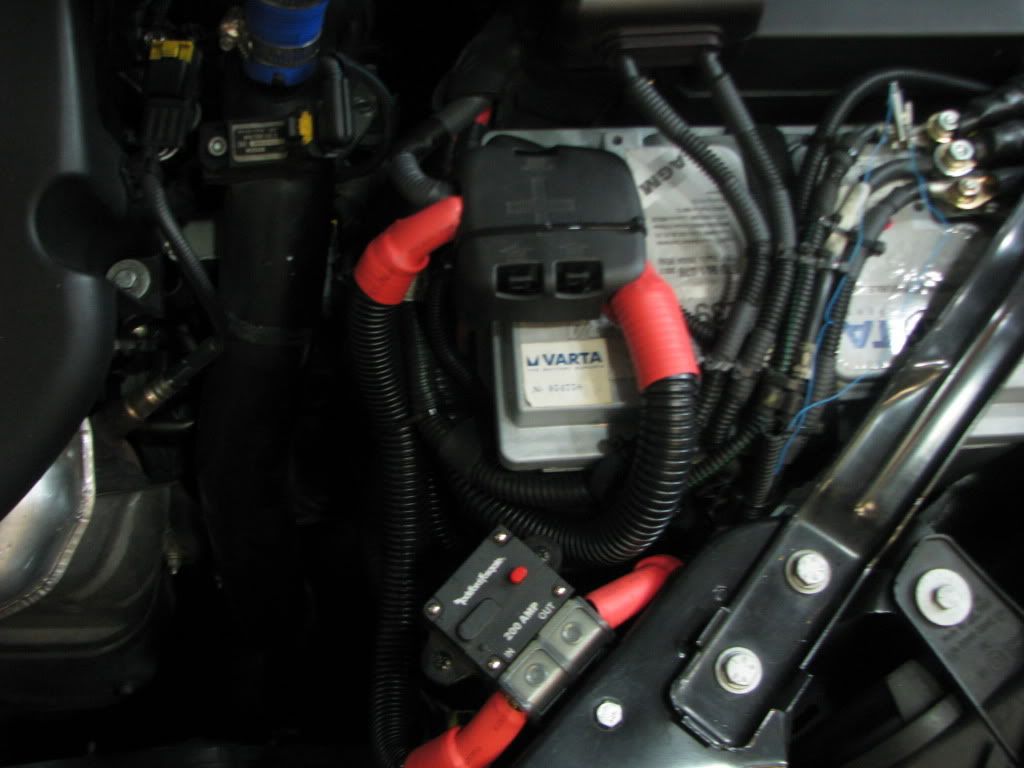

Engine bay shot

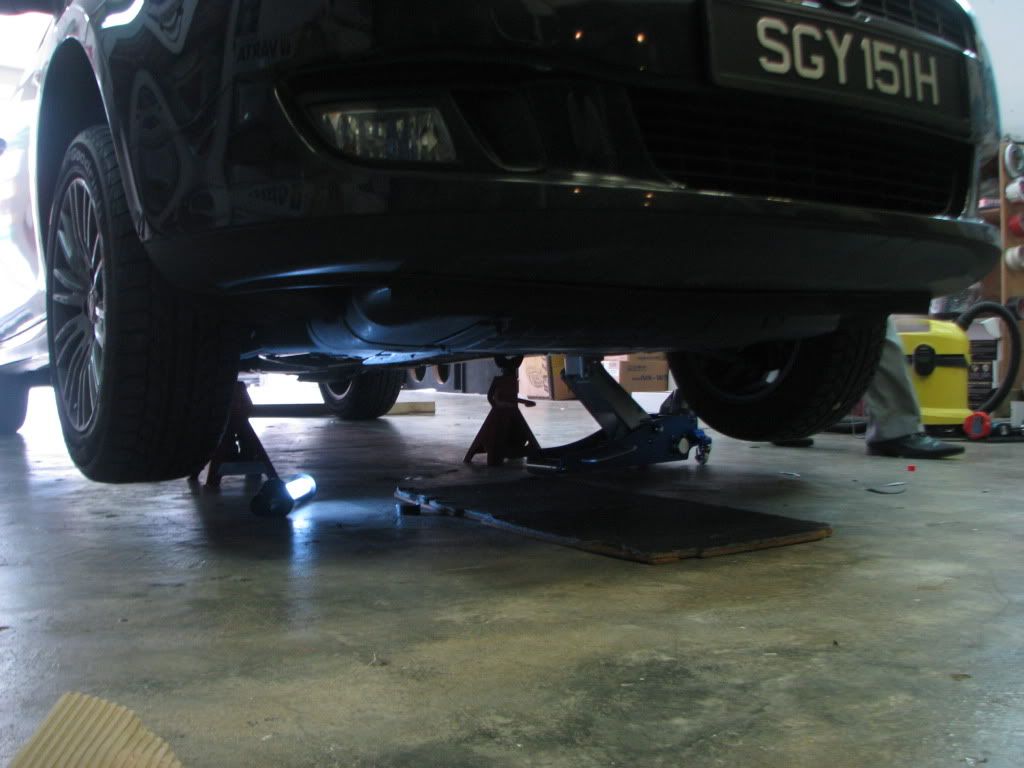

jacked up the car

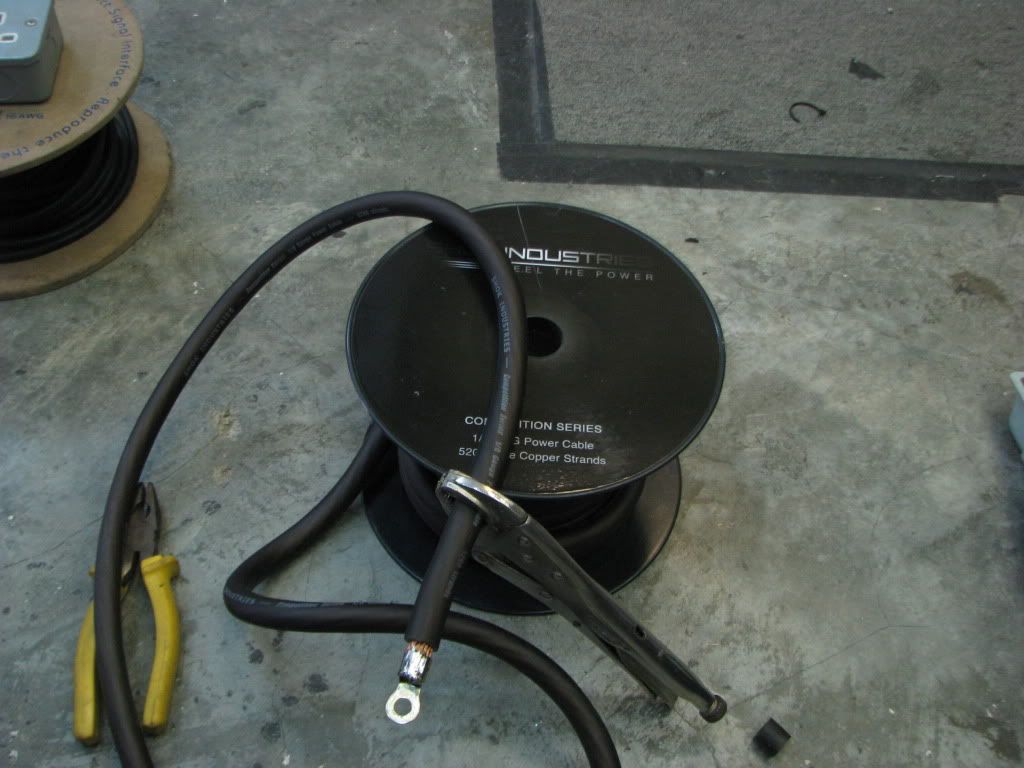

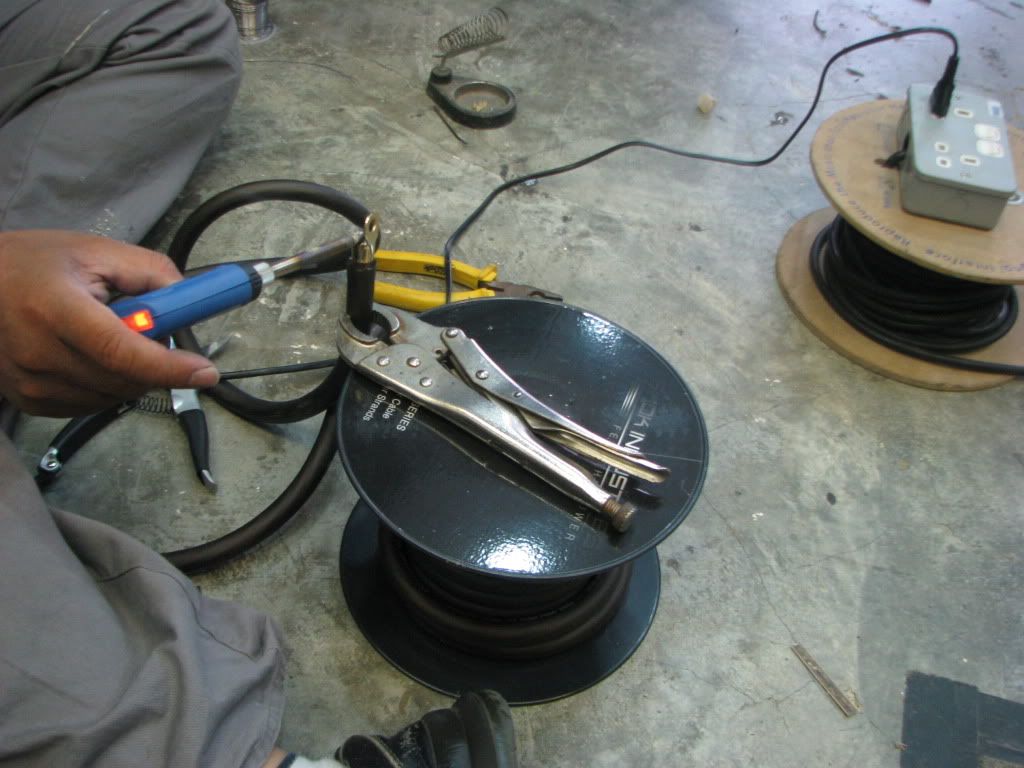

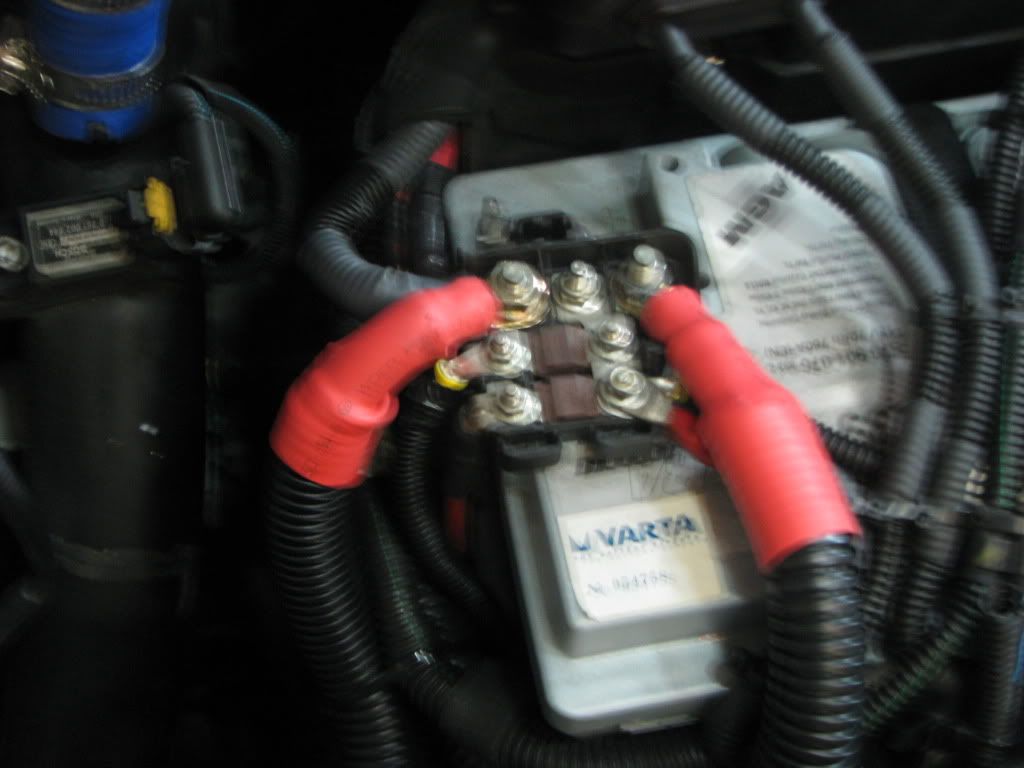

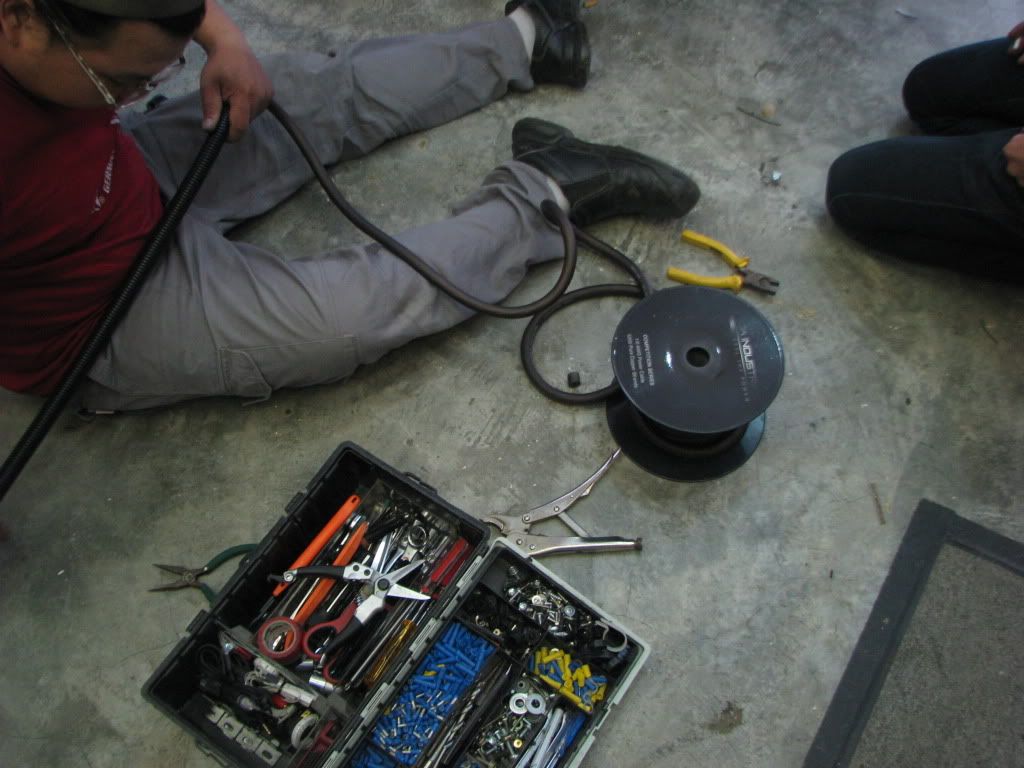

preparing the cable

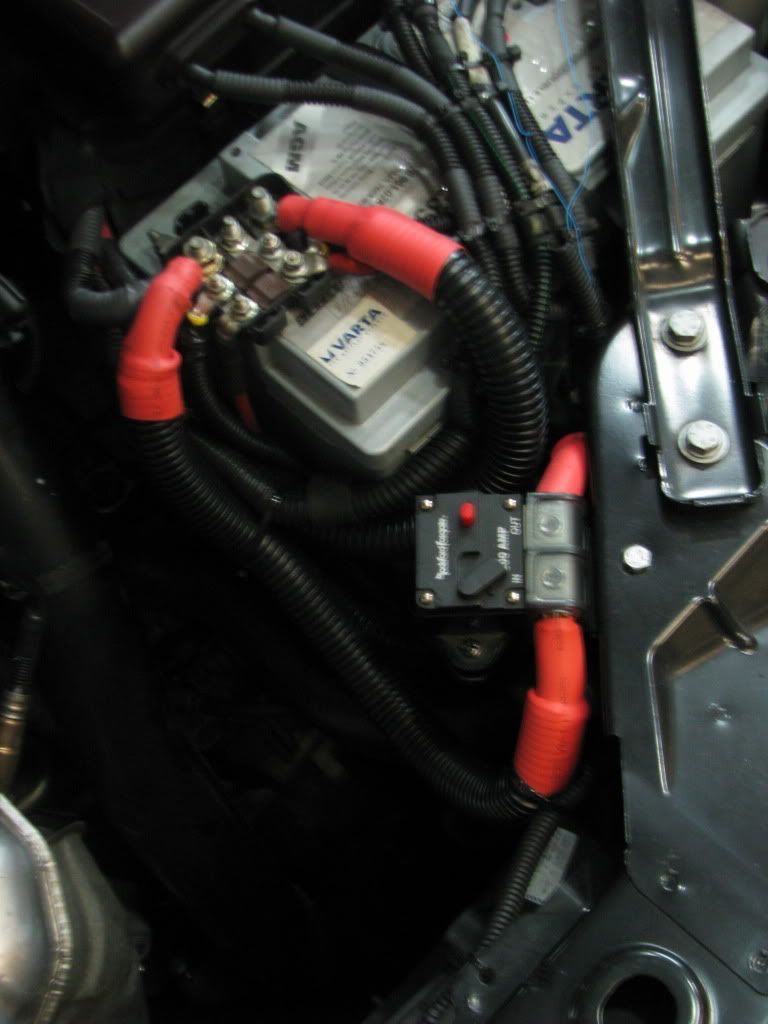

and there we go



[headshok 10+ year member]

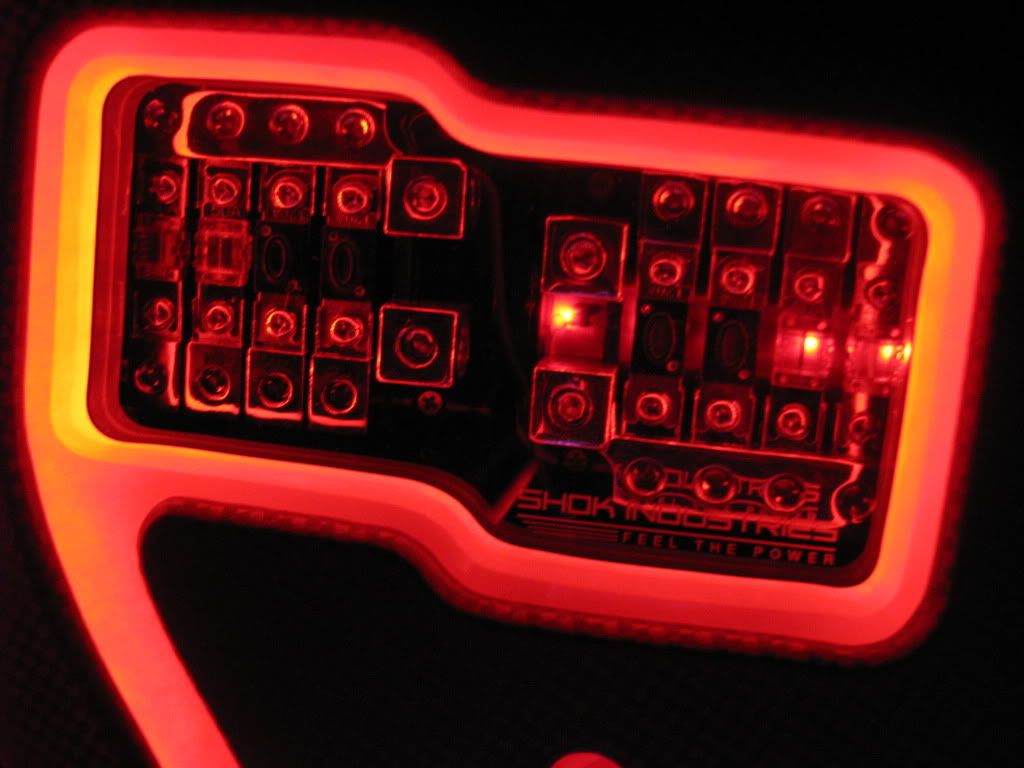

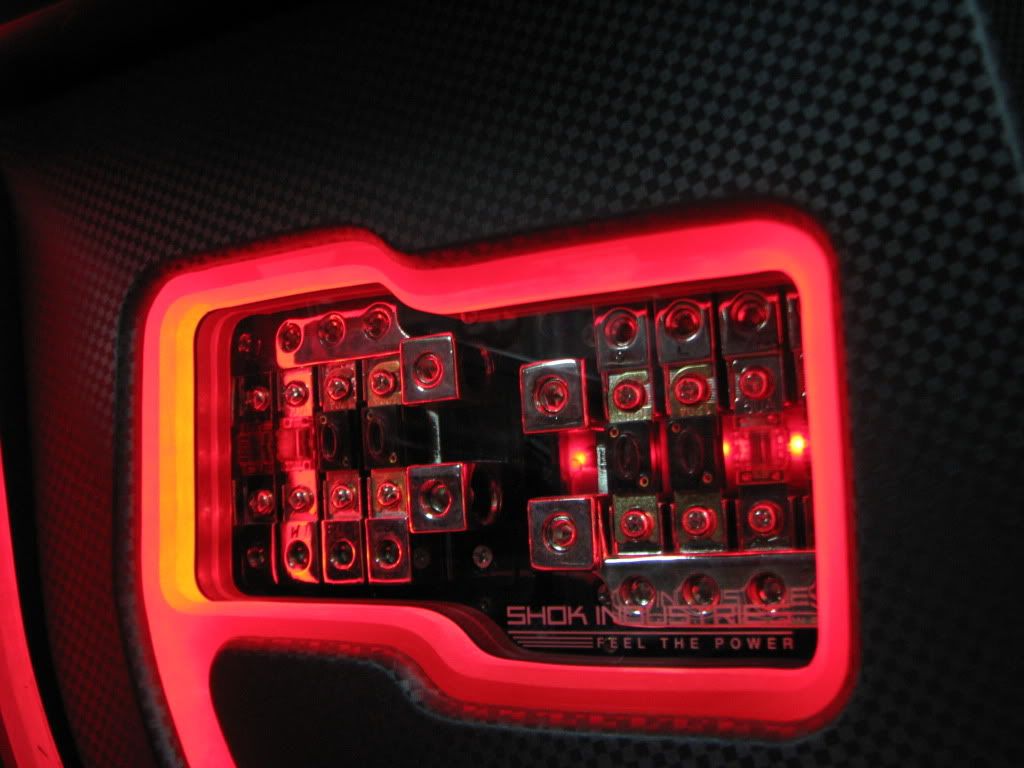

As you all know, we had some problems with the colours, well, here are some of the things we’ll be changing.

This has to go

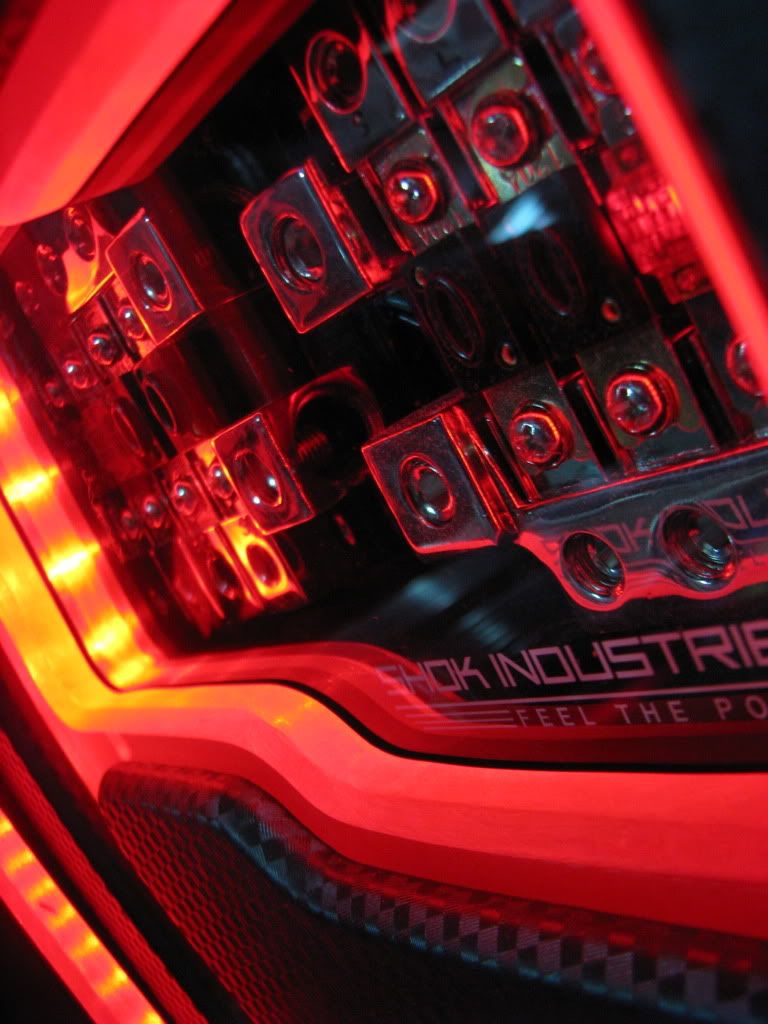

though the design is cool, think there’s too much red, we didn’t expect it to be too dam red!

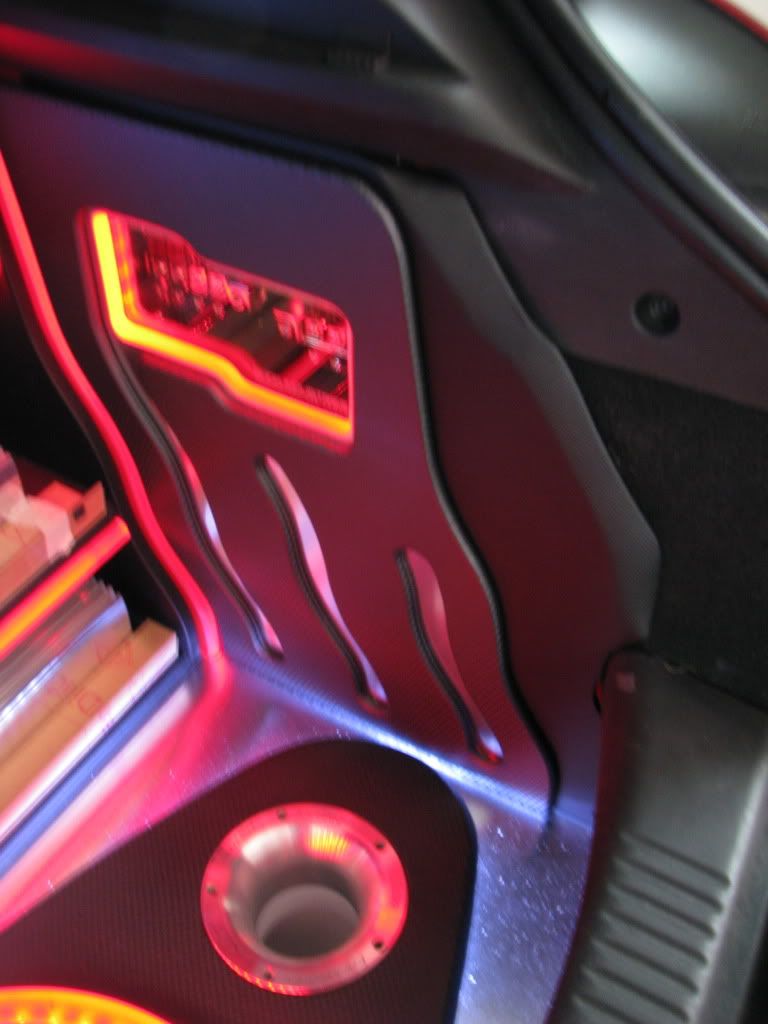

But I do like these pics..

hahahaa..

well. This will be the few red parts that will be staying

the woofer ring red will be GONE! Hahaha..

plus some things changed along the way.. so stay tuned!



[mmouse57 10+ year member]

the pillar build m8 in stunning

love the back and front molded together awsome!!!



[headshok 10+ year member]

Hi all,

For today, just some little cosmetics here and there.

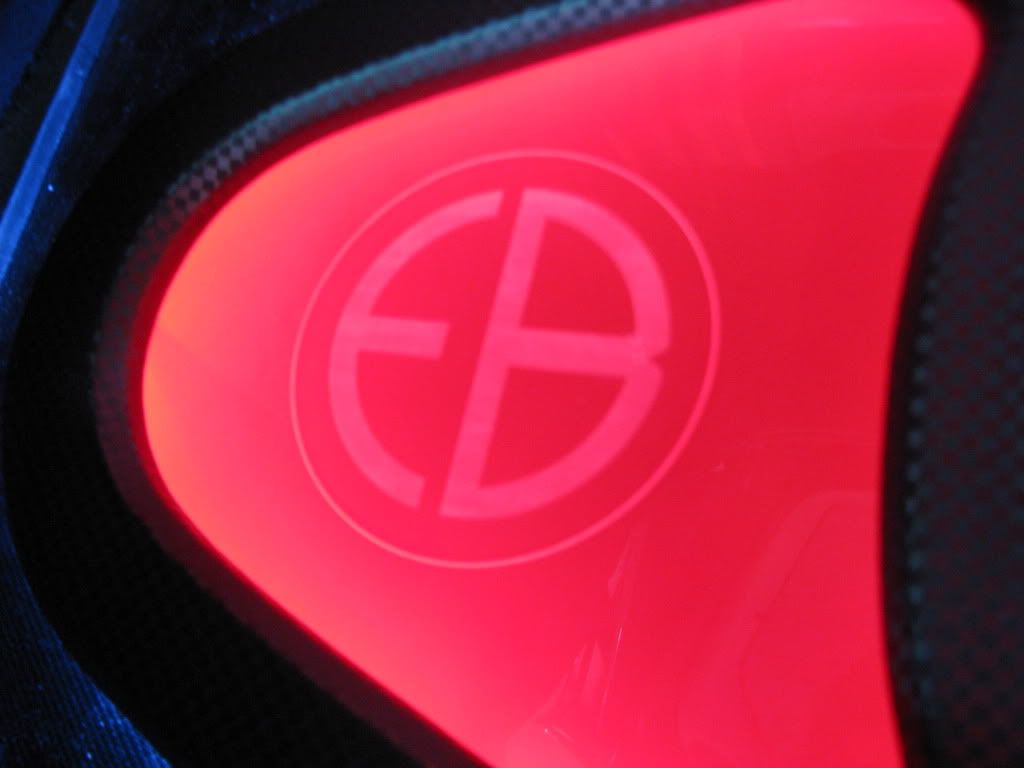

The new and improved EB Tec logo

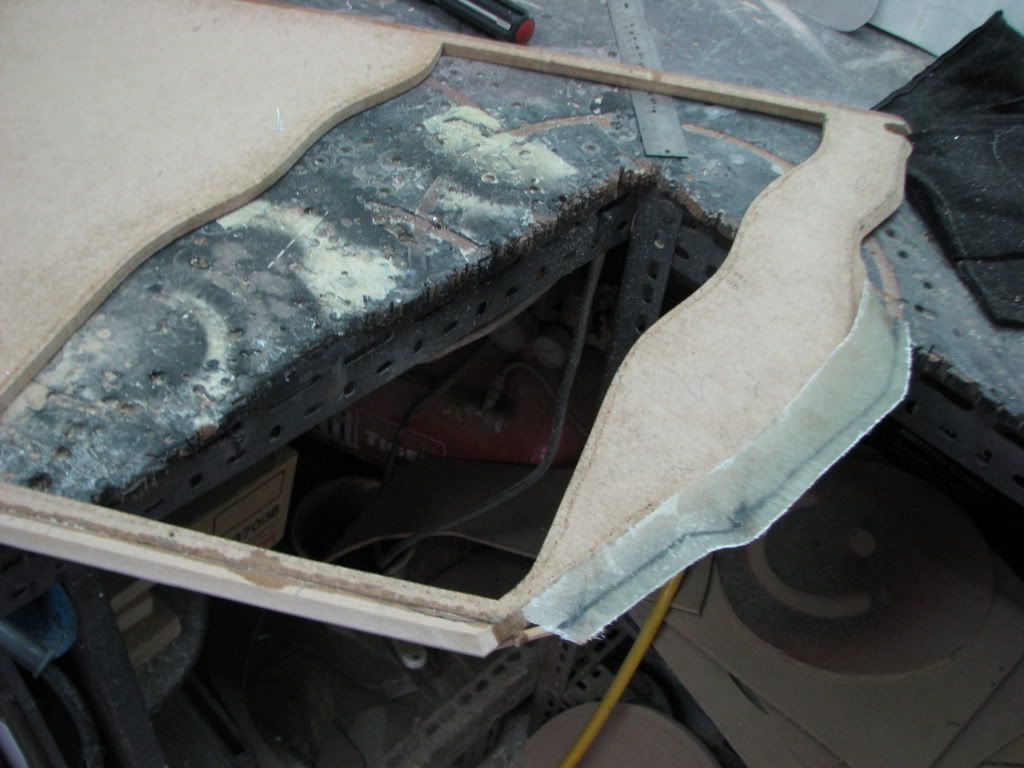

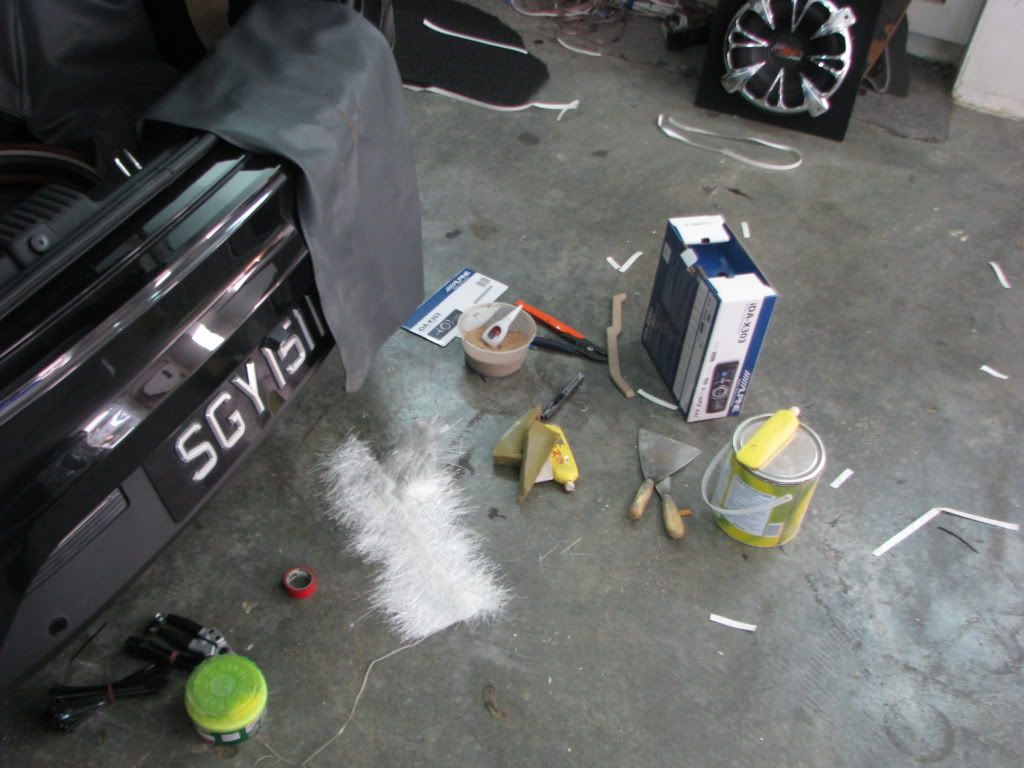

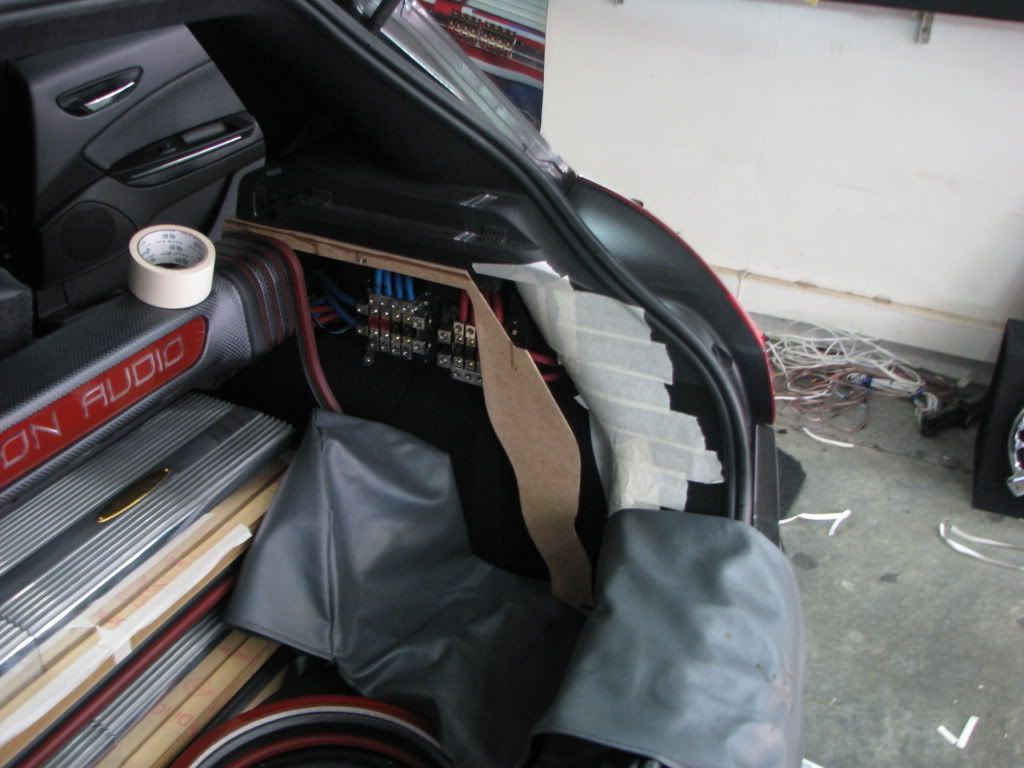

Some little attention to detail, had to flush the end of the side board to the edge of the boot.

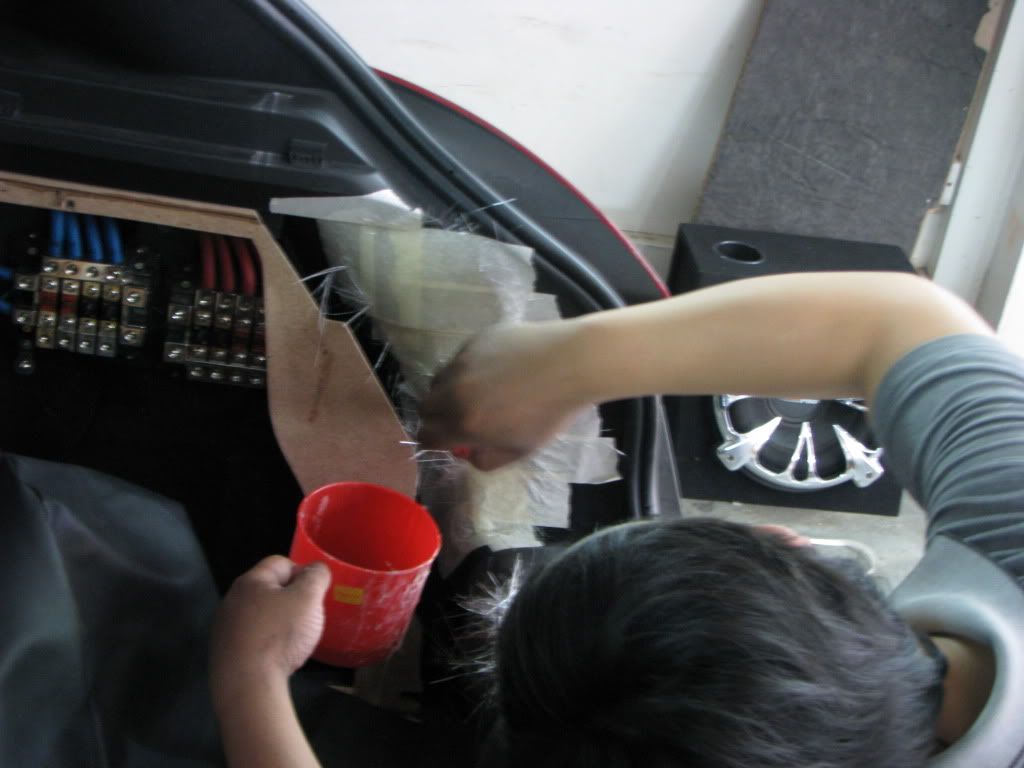

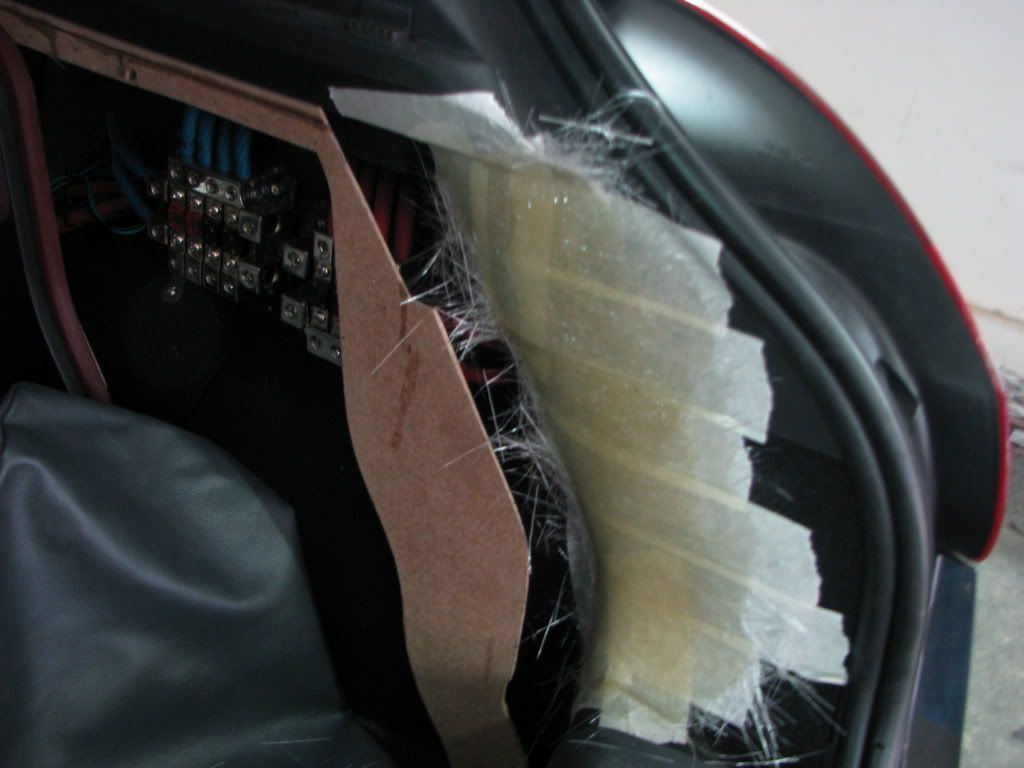

Preparing for fibreglassing

dum dee dumm

time for some sanding



[headshok 10+ year member]

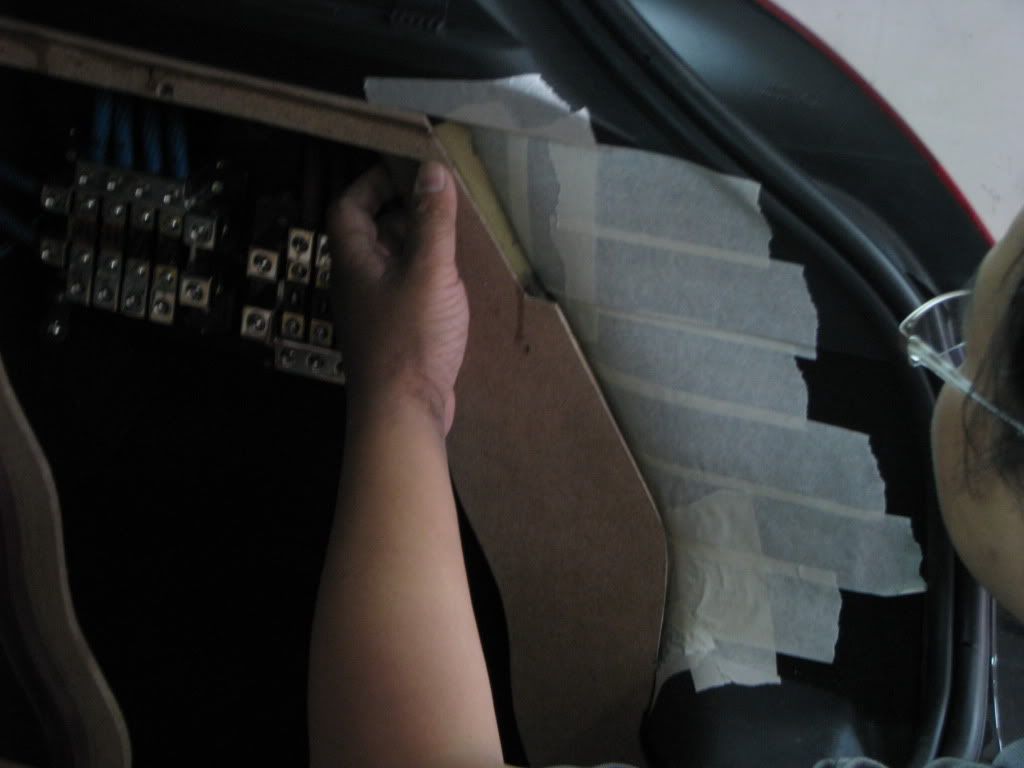

a little test fitting,

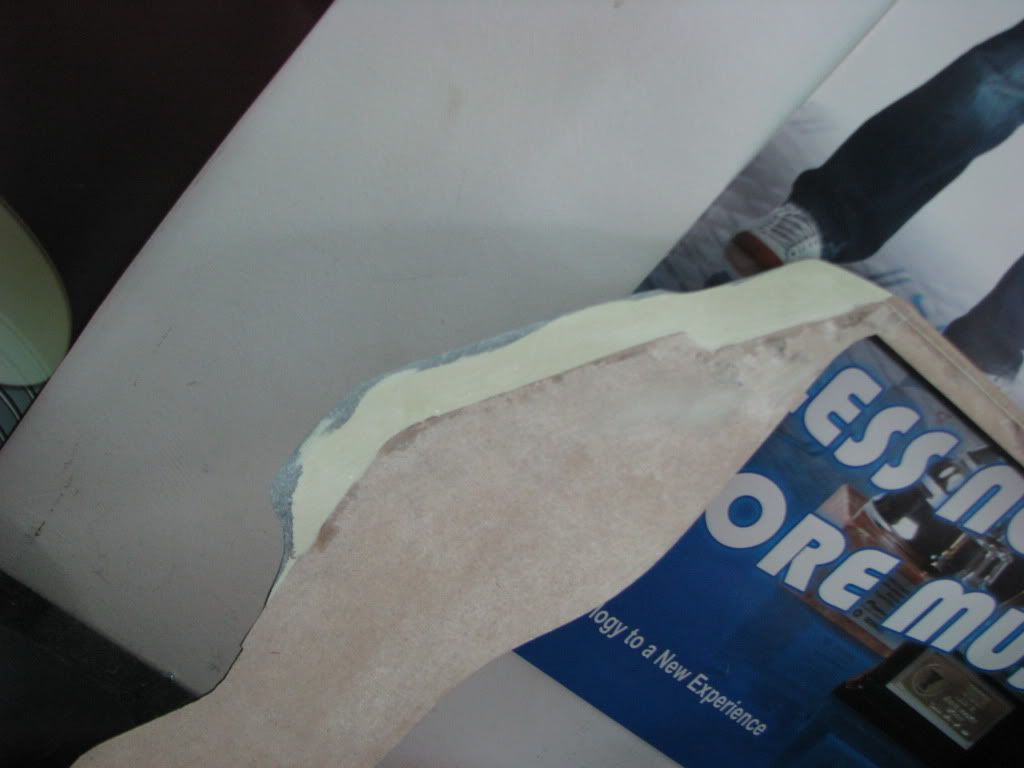

now time for some putty

and its done!

wrapped up and ready to go

cheers all!



[813thumper 10+ year member]

Wow this IS the best work that I have seen done. That looks amazing man! Keep up the good work.



[boom24 10+ year member]

wow ...iam at a loss for words....i have never seen such a clean install...absultly beautifual install



[creeps228 10+ year member]

beautiful build man...i wish i had some experience like that
