i finally started something on my build. (pics)

[audiobahnuser18 5,000+ posts]

Nice man sounds good man be sure to keep me update.



[LDW3RD 10+ year member]

That looks good man //content.invisioncic.com/y282845/emoticons/biggrin.gif.d71a5d36fcbab170f2364c9f2e3946cb.gif

That thing should puond quite nicely. In my 94 D G C I only had single 15" sub set ups except for 1 box I made which had 3 10" Diamond Audio C3's.

All my boxes fit behind the 3rd row seat. That way I could still have my 4 kids (2 car seats) in there and everyone still be comfortable.

For my 03' D G C (bye bye 3rd row seat) I'm planning only mutiple sub set ups only. I have 2 18" MT's, 2 18" JL W3's, 1 DD 9918(gonna get another1), 2 FI Audio 18" Q's I also have 3 ED SPv2's and a few other 12's that I wanna try out. Should be fun.

Only problem I for see is getting someone to help me take those heavy azz sub boxes in and out my van



[audiobahnuser18 5,000+ posts]

Nice Ld. ok guy's i have a update which i can't understand. Subs are getting no power. I have checked everything wiring is at 2ohms , fuses aren't blown at all , remote wire good because still turns on front stage amp , no fuses blown at all not even 300amp anl ones one for system one for 2nd batt there all good , ground wire is tight and good , no wire's grounding out , gains good , h.u. settings good. what else could it be????//content.invisioncic.com/y282845/emoticons/frown.gif.a3531fa0534503350665a1e957861287.gif



[themommyvan 10+ year member]

Amp turn on?



[jeeper07 5,000+ posts]

werent they playing before?



[audiobahnuser18 5,000+ posts]

mommyvan the amp does turn on & jeeper they were playing before i free aired them hooked them up the same exact way put em in the box now there not workn.



[audiobahnuser18 5,000+ posts]

Well guy's even though can't get to power the sub's right now. Im sure it's something simple such as me fckn up on the wiring or a wire fell off maybe. I thought i might post my progress of today.

Update: April 14th 2008.

I used dupli color truck bed liner came out really well i think. End wise i ended up with 3 coats of it.

1st coat.

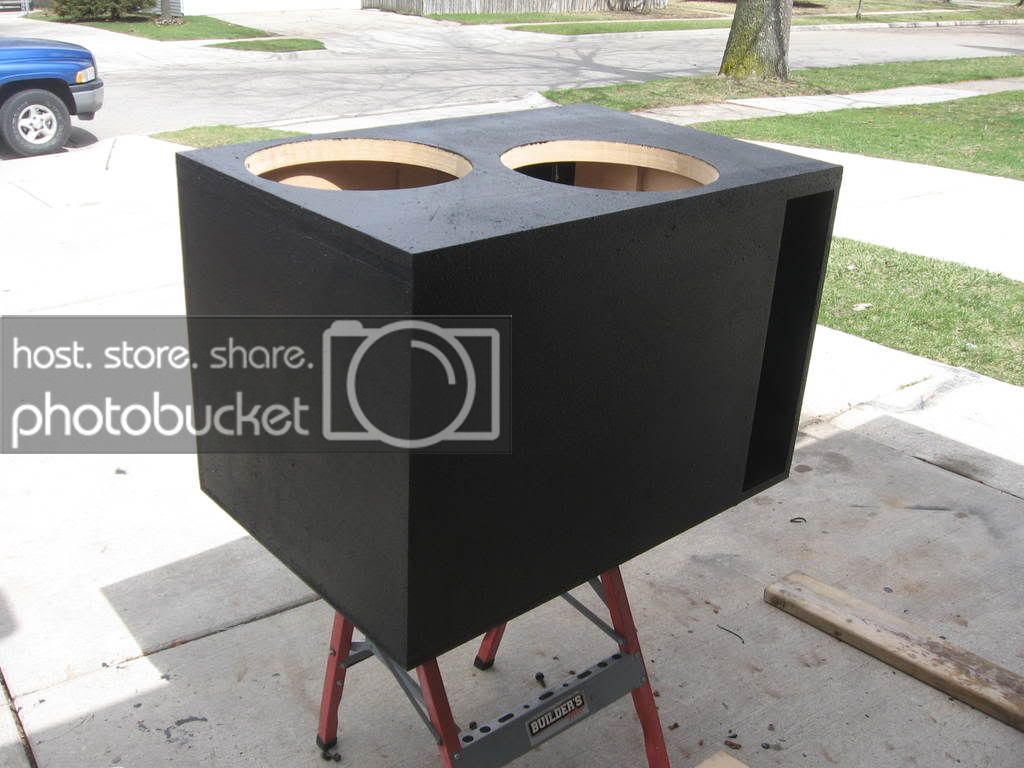

Starting towards 2nd coat.

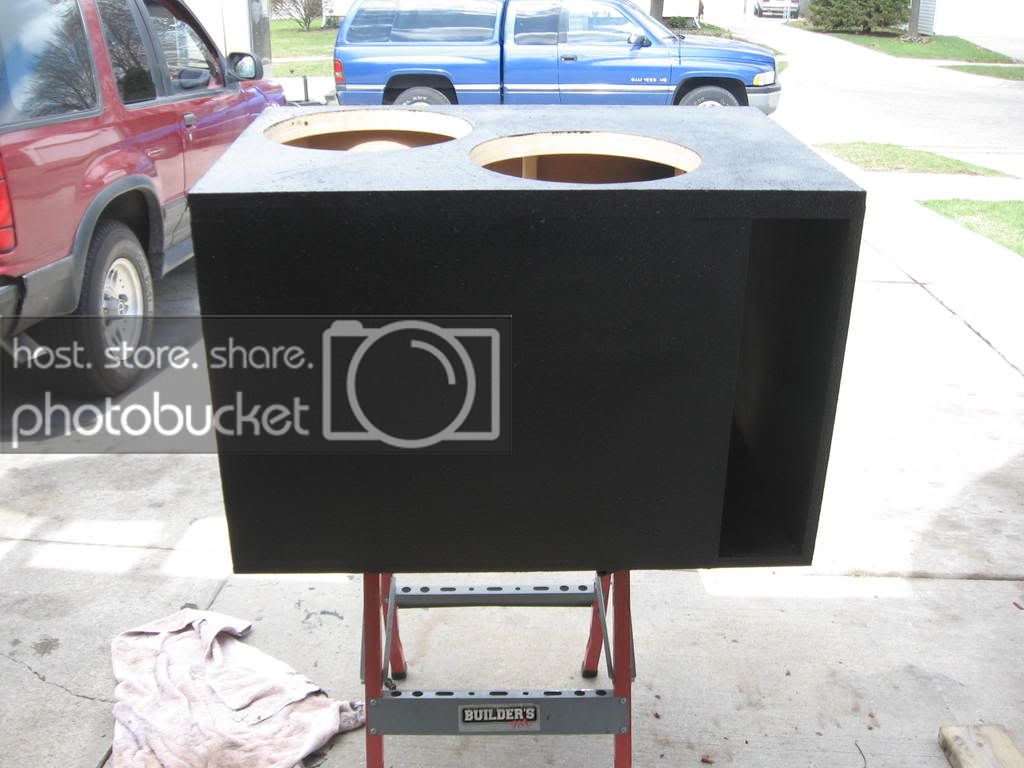

Front shot



[audiobahnuser18 5,000+ posts]

Still uploading many pics guys.



[audiobahnuser18 5,000+ posts]

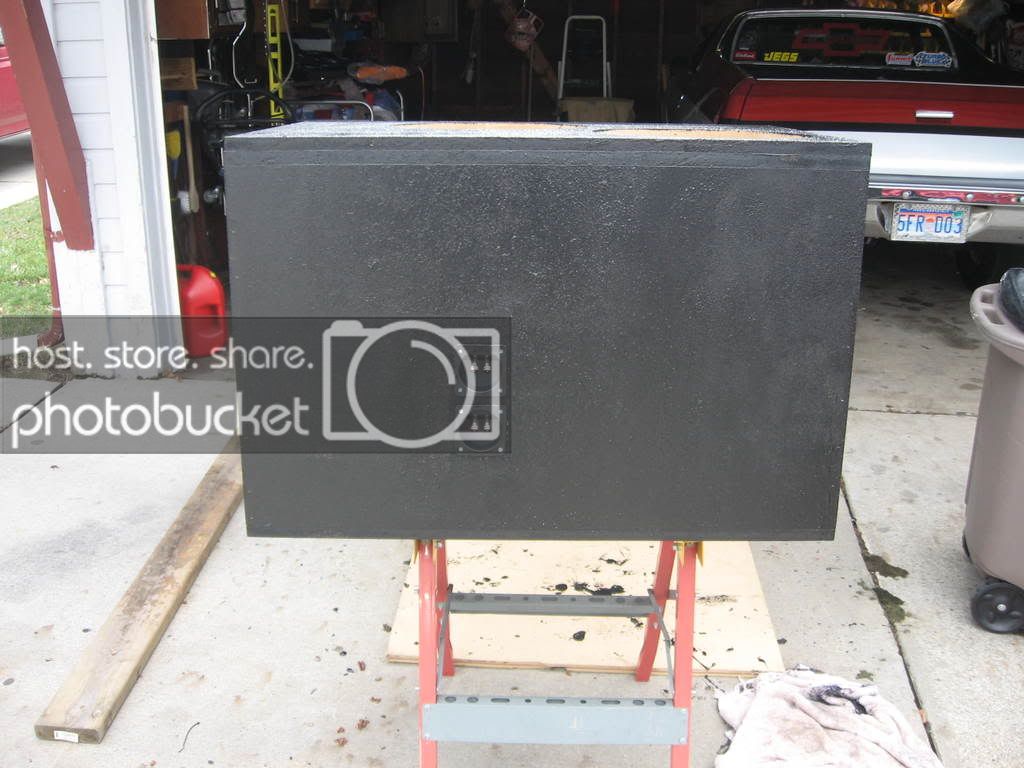

Back shot of box.

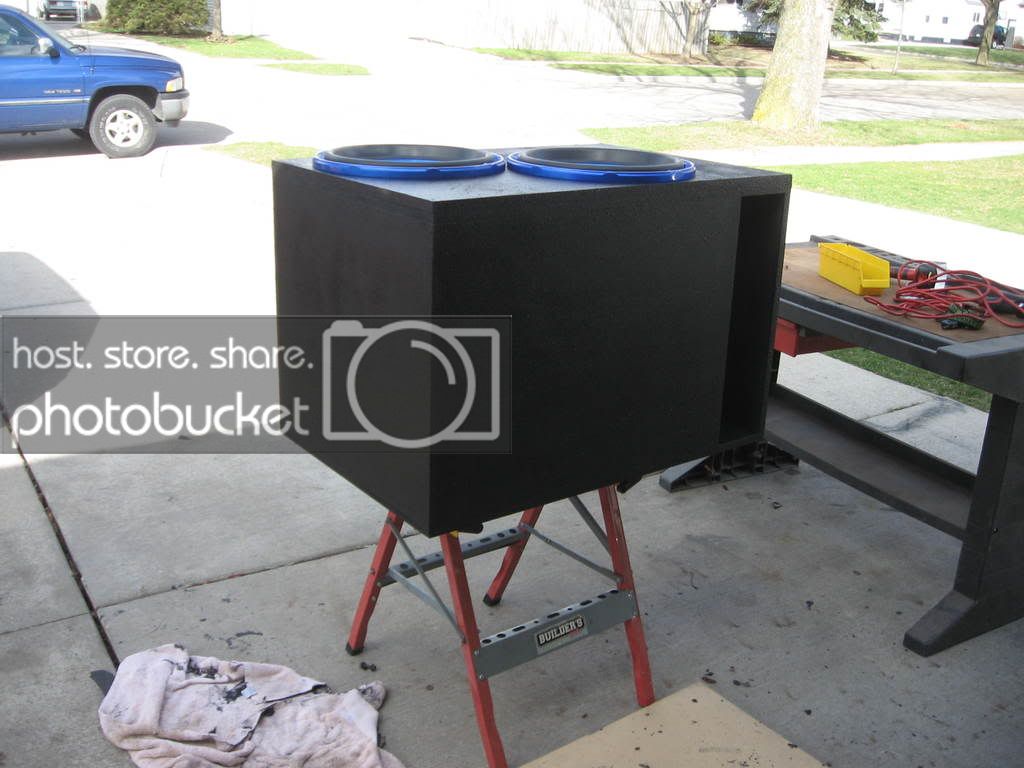

Shot of box done with 3 coat's and with AP 15s sitting in the beast.

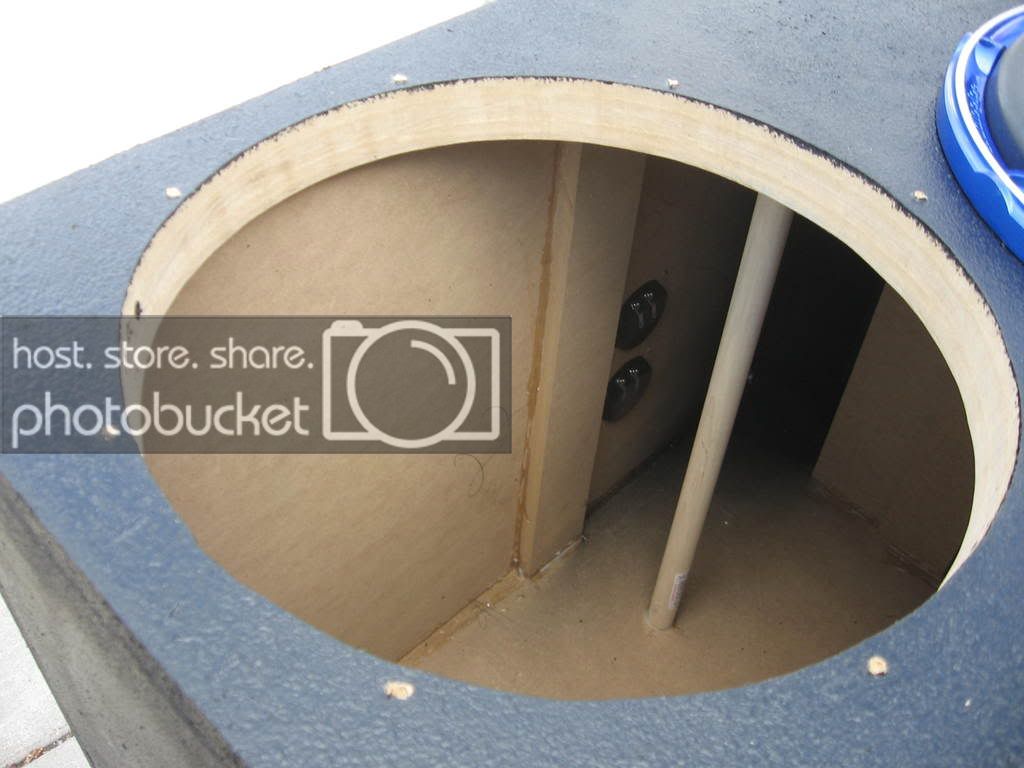

Pre drilled the holes for when screwing down the subs.

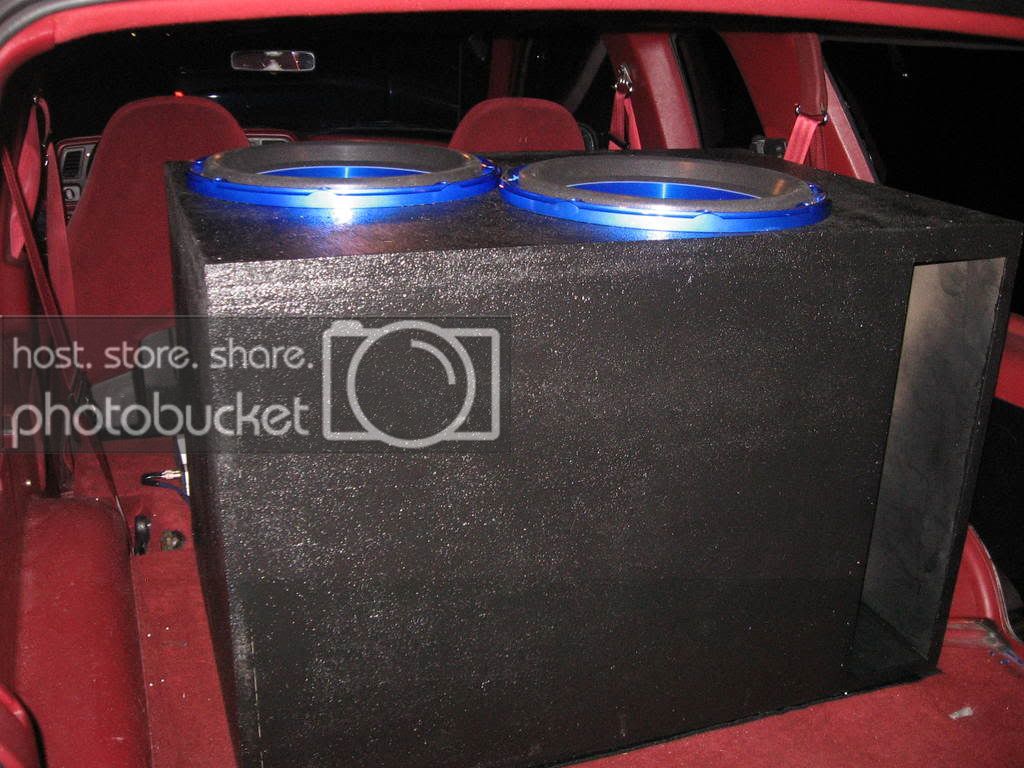

The beast and AP 15s in my ride (even though not bumpn yet but 2morro i plan to figure out this problem.)



[LDW3RD 10+ year member]

Make sure the sub output of the HU is on or turned up if it has that feature. If all is good there make sure the HU 's sub output is putting out a signal.

Good luck, and that box looks good.



[audiobahnuser18 5,000+ posts]

Ld checked all the h.u. setting's and there all good. Also thanks man appericate the comment i really do like the way this box came out.



[LDW3RD 10+ year member]

Cool.. And yeah the box looks fantastic...imho..

Did you check the sub outputs with a multimeter?



[audiobahnuser18 5,000+ posts]

yeah ld there good i think im gonna go to my friend's shop 2morro see if he can help me out. probably just something simple. well at least that i hope it is.



[WrenchGuy 10+ year member]

That was the finish I was gonna do. Looks good.



[audiobahnuser18 5,000+ posts]

Thanks wrenchguy. I did 3coat's of it that way didn't really get messed up just in case plus added weight to the box more that way didn't slide around even more. even though i put industrial velcro underneath the box to hold it down from sliding around even more.
