Help Please kenwood dmx2050dabs

mitch3496 Newbie
I have a seat Leon 2010 1.6tdi it’s fitted with a seat unit that won’t load sd card internal error so bought the above stereo to upgrade and a fitting kit(connects 2 patch) not as straightforward to me as I’m total newbie
I thought it’d be just plug and play the patch has a green wire orange wire and purple wire so snip the orange and green leaving purple for kenwood then on diagram says use key 1 to radio but where abouts on the head unit does key 1 go to??after a frustrating getting nothing off the internet starting to think a lot of £’s down first of all trying to save original seat head unit by trying different sd cards but to be honest don’t think it’s the right unit for the car then £’s out on the kenwood kinda frustrating easy fix for tech not for me it’s just for swc please help the 3.25 jack is for alpine only I think il forward the loom and diagram pics
On the back of the head unit is green wire I take that is for the brake then there’s different inputs for swc remote etc and reverse and ground cheers in advance
Maybe just give up and get a grammar phone in the boot
Many thanks in advance for any help it’s well appreciated

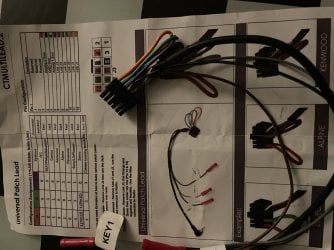

  • D41093B8-7EEF-4428-A5DC-721BBB72224C.jpeg
    3.2 MB · Views: 2
  • D130ABA4-0D19-45FA-87AB-8FA4EF7FAC73.jpeg
    3.6 MB · Views: 2
  • 7DF1132E-FF95-446E-9E95-5E1E454FF3C3.jpeg
    2.8 MB · Views: 2

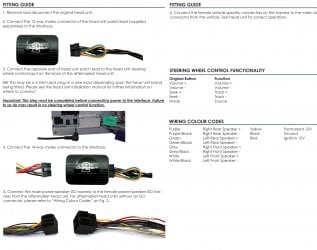

  • E47599EF-2963-41BF-AA24-1478AD927E70.jpeg
    567 KB · Views: 2

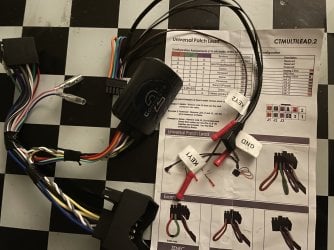

  • 015B0CDE-A88C-4EBB-A440-087A16693F27.jpeg
