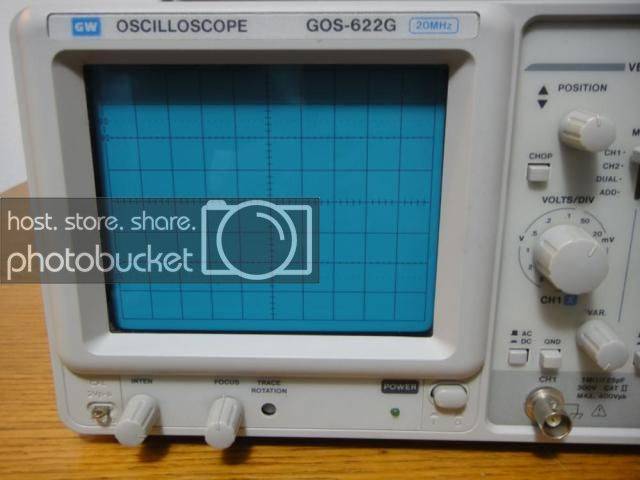

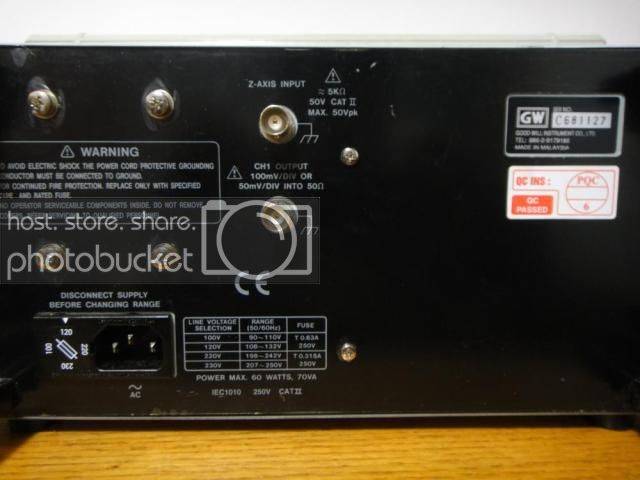

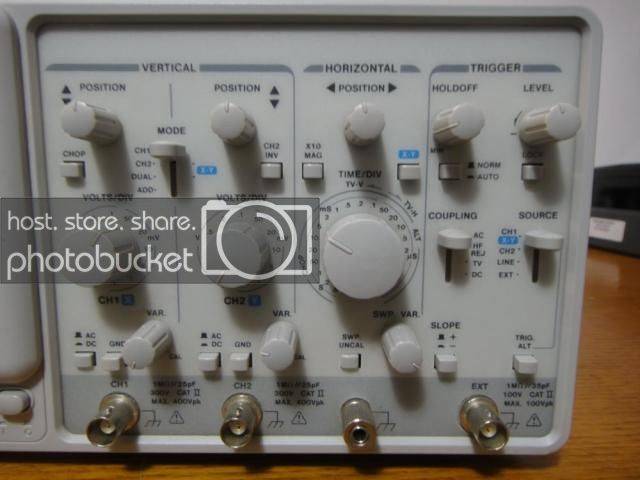

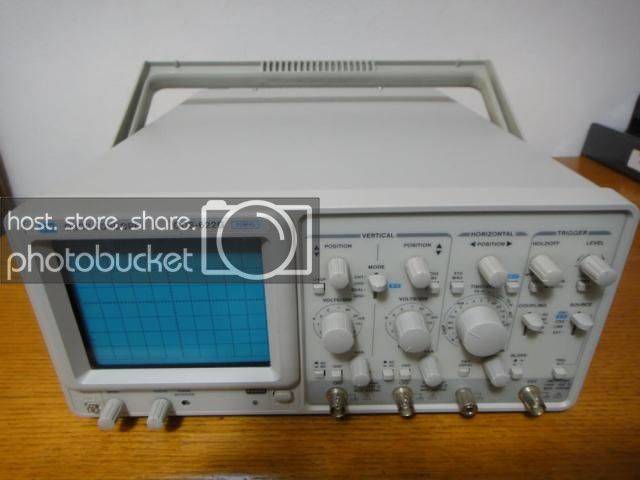

Selling my GW 622G 20MHZ dual channel scope that I used for my own personal vehicle. Everything works perfectly and it has nice features that help you get the maximum clean output from your amps. It is in prestine condition as well (See pics below)
Comes with AC Power Cord and a BNC Adapter that lets you hook up speaker wires.
Price lowered to $150 SHIPPED! I will also throw in free insurance //content.invisioncic.com/y282845/emoticons/smile.gif.1ebc41e1811405b213edfc4622c41e27.gif This unit sells for over $400 new.
Payment via Paypal. I only ship to a confirmed name and address on Paypal.
CRT
Type
6-inch rectangular type with internal graticule
8 x 10 div (1div=1cm)
Z-Axis Input
Input Impedance: Approx. 5kΩ
Sensitivity: Above 3Vp-p
Bandwidth: DC ~ 5MHz
VERTICAL SYSTEM
Sensitivity
5mV/div~5V/div±3%,1mV~2mV/div±5%
Bandwidth
DC ~ 20MHz(GOS-622G)
DC ~ 10MHz at 1~ 2mV/div
Rise Time
10ns (35ns at 1mV~2mV/div)for GOS-635G
17.5ns(35ns at 1mV~2mV/div)for GOS-622G
Input Impedance
Approx. 1MΩ
Input Coupling
AC, DC, GND
Vertical Mode
CH1, CH2, DUAL, ADD, CH2 INV
(Dual automatic switching ALT and CHOP)
HORIZONTAL SYSTEM
Sweep Time
0.1μs ~ 0.5s/div ±3%
100ns ~ 50ms/div ±5% (x 10 MAG)
10ns ~ 50ns ±8% (x 10 MAG)
TRIGGER
Trigger Mode
AUTO, NORM
Trigger Source
CH1, CH2, ALT, LINE, EXT
Trigger Coupling
AC, DC, HF REJ, TV
Trigger Slope
"+" or "-"
X - Y OPERATION
Sensitivity
5mV ~ 5V/div ±4%
X-axis Bandwidth
DC ~ 1MHz
Phase Error
3° or less from DC ~ 50kHz
OUTPUT SIGNAL
Ch1 Signal Output
Voltage: approx. 50mV/div into 50Ω
Calibrator Output
1kHz Square wave, 2Vpp ±2%
POWER SOURCE
AC 100V/ 120V/ 220V/ 230V ±10%, 50Hz/ 60Hz
DIMENSIONS & WEIGHT
310(W) x 150(H) x 455(D) mm; Approx. 8.2kg

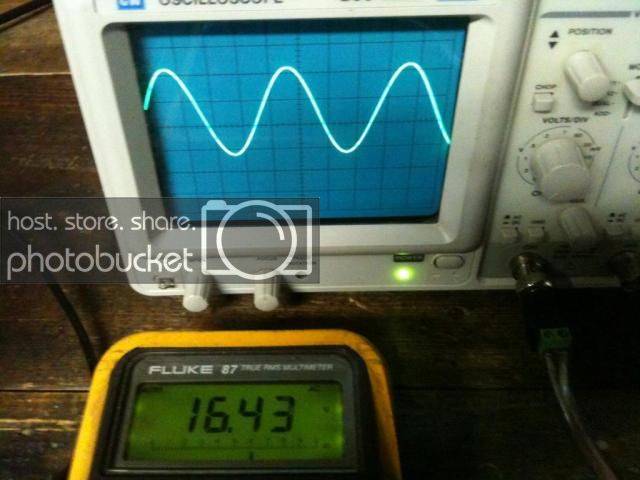

The waveform below is from bench testing an MB Quart amp. Note that its extremely hard to capture the fast moving waveform on Camera so thats why it looking a little fuzzy.
Comes with AC Power Cord and a BNC Adapter that lets you hook up speaker wires.
Price lowered to $150 SHIPPED! I will also throw in free insurance //content.invisioncic.com/y282845/emoticons/smile.gif.1ebc41e1811405b213edfc4622c41e27.gif This unit sells for over $400 new.
Payment via Paypal. I only ship to a confirmed name and address on Paypal.
CRT
Type
6-inch rectangular type with internal graticule
8 x 10 div (1div=1cm)
Z-Axis Input
Input Impedance: Approx. 5kΩ
Sensitivity: Above 3Vp-p
Bandwidth: DC ~ 5MHz
VERTICAL SYSTEM
Sensitivity
5mV/div~5V/div±3%,1mV~2mV/div±5%
Bandwidth
DC ~ 20MHz(GOS-622G)
DC ~ 10MHz at 1~ 2mV/div
Rise Time
10ns (35ns at 1mV~2mV/div)for GOS-635G
17.5ns(35ns at 1mV~2mV/div)for GOS-622G
Input Impedance
Approx. 1MΩ
Input Coupling
AC, DC, GND
Vertical Mode
CH1, CH2, DUAL, ADD, CH2 INV
(Dual automatic switching ALT and CHOP)
HORIZONTAL SYSTEM
Sweep Time
0.1μs ~ 0.5s/div ±3%
100ns ~ 50ms/div ±5% (x 10 MAG)
10ns ~ 50ns ±8% (x 10 MAG)
TRIGGER
Trigger Mode
AUTO, NORM
Trigger Source
CH1, CH2, ALT, LINE, EXT
Trigger Coupling
AC, DC, HF REJ, TV
Trigger Slope
"+" or "-"
X - Y OPERATION
Sensitivity
5mV ~ 5V/div ±4%
X-axis Bandwidth
DC ~ 1MHz
Phase Error
3° or less from DC ~ 50kHz
OUTPUT SIGNAL
Ch1 Signal Output
Voltage: approx. 50mV/div into 50Ω
Calibrator Output
1kHz Square wave, 2Vpp ±2%
POWER SOURCE
AC 100V/ 120V/ 220V/ 230V ±10%, 50Hz/ 60Hz
DIMENSIONS & WEIGHT
310(W) x 150(H) x 455(D) mm; Approx. 8.2kg
The waveform below is from bench testing an MB Quart amp. Note that its extremely hard to capture the fast moving waveform on Camera so thats why it looking a little fuzzy.
