1. Product:
TC Sounds 5200 18" Quad 1.5ohm Subwoofer
2. Specs:
Specifications
What makes the TC-5200 The New Standard ultra performing maximum output, minimum space super driver? See what's inside that makes it the best solution for those who are ready for bass beyond reason, and find out why 3" voice coils just don't cut it when maximum SPL is truly necessary!
Advanced FEA Motor System
- Triple stacked 3/4" tall ferrite magnets and long T-yoke
- Massive 390oz top grade 10.1" wide magnet super structure
- Large anti-flux modulation aluminum shorting ring to lower distortion
- Low carbon steel used for the gap plate and t-yoke
- Large pole vent for lower distortion and cooling capabilities
Advanced high excursion soft part system
- Dual stiff high excursion 10" linear roll poly-cotton spiders
- Extra thick integrated woven leads to prevent lead-slap
- Quad lead wires decreases lead wire resistance to improve heat dispersion
- 4" diameter, 8-layer flat aluminum wire voice coil with an aluminum former
- Extra spacing in-between spiders for lateral stability
- Quad 1.2ohm (1.5 ohm nominal) voice coil configuration
- Ultra strong, brushed and powder coated titanium cone (TC Sounds exclusive design)
- 1" wide long throw tall profile, highly durable NBR surround
- High quality thermal flexible epoxies to ensure longevity
Patented custom cast aluminum frame
- Extra clearance under the suspension for dynamic high excursions
- Wide spider landings for higher than average throw
- Patented tooless detachable method for easy and fast and recones or repairs
- Durable high gloss black powder coat and chrome vc mesh guards
Performance
- Effective motor force of a staggering 410 Newtons2 per watt (BL2/Re)
- 2000 watts continuous power (6000 watts peak)
- 30mm BL XMax (voice coil, one-way)
- 46mm XMech (mechanically limited, one-way)
18" TC-5200 QVC
Qts 0.151
Qes 0.155
Qms 6.2
Fs 18Hz
Res 4.52Ω
Ls 6.56mH
Lp 10.6mH
Rp 13.7Ω
Dia 390mm
Vas 230l
mms 545g
cms 135um/N
bl 43T*m
Spl 92.4dB
3. Description/Condition:

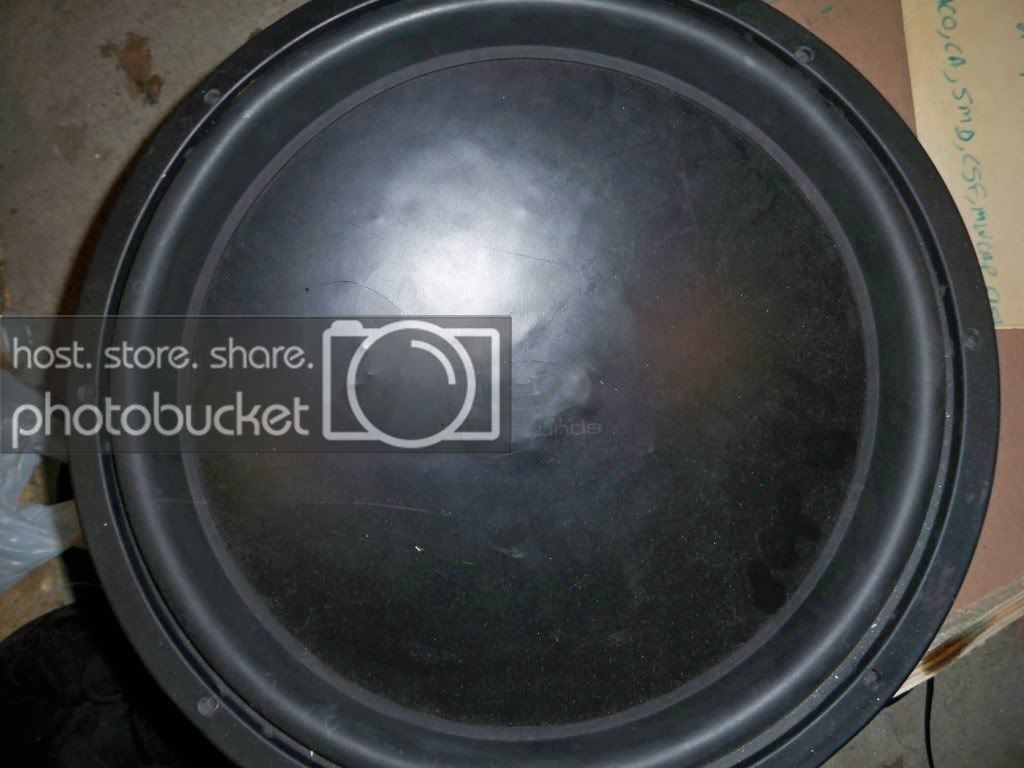

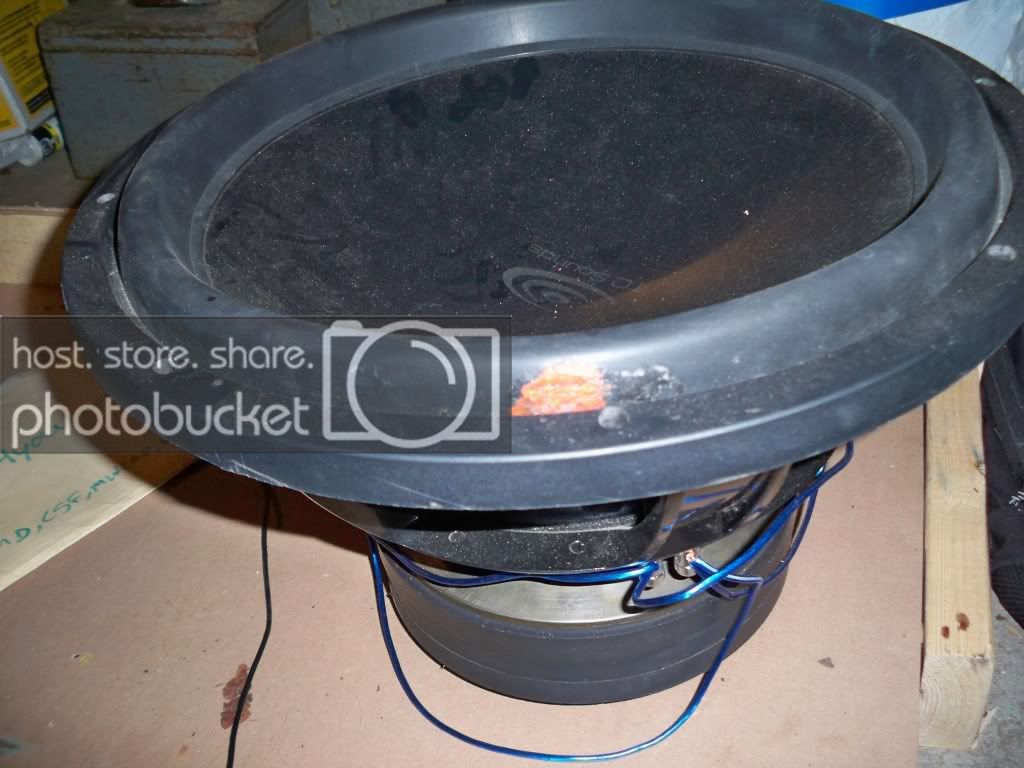

8.5/10 cosmetically. (half a inch size tear in the surround which is covered by silicone works perfect.)
Very small dents in the cone as well very minor
10/10 mechanically.
4. Price: :
$600+ shipping

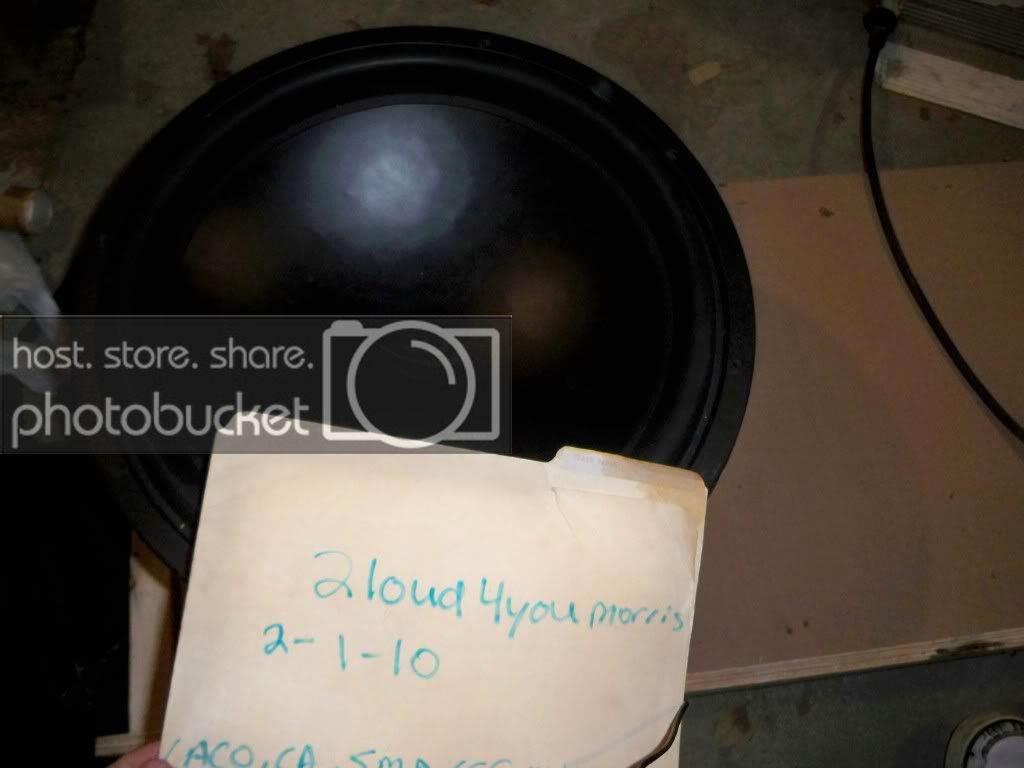

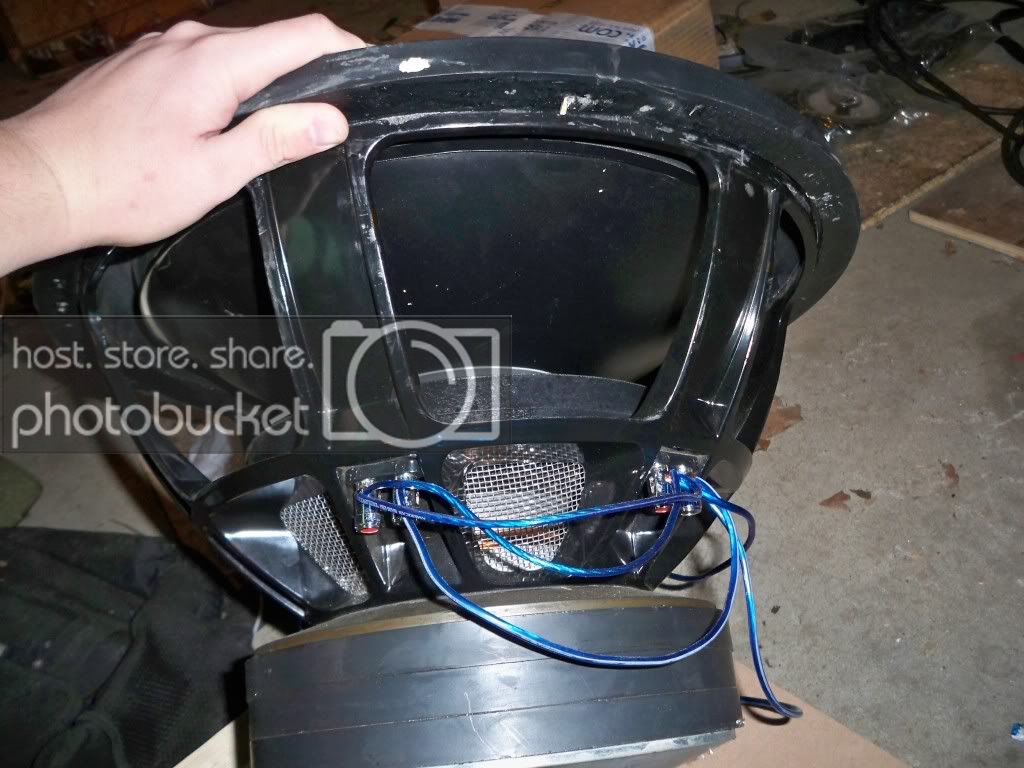

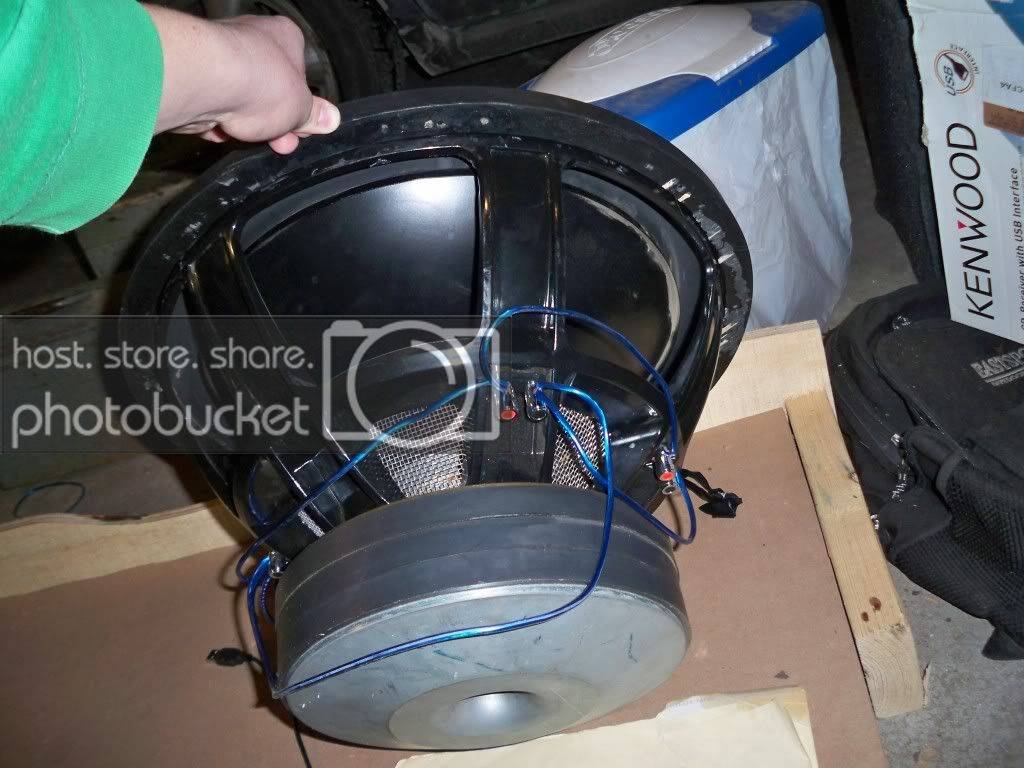

5. Pictures:
