Dual coil subwoofers that only have 1 set of input terminals?

[ckunke002 10+ year member]

I just received my Boston G3 12 inch dual coil subwoofer, and what I was expecting (because of what all the wiring diagrams show) was 2 sets of input terminals (+ and -, and another + and - on the other side.) What I found was that there is only 1 set. I bought myself an amp that can power it sufficiently at 2 ohms (since it's a dual coil 4 ohm sub), and now I have no idea how to wire it.

I was expecting and was ready for this: Subwoofer Wiring Diagrams, One 4 ohm Dual Voice Coil (DVC) Speaker

But I got a sub that looks like this: Subwoofer Wiring Diagrams, One 4 ohm Single Voice Coil (SVC) Speaker

If I simply wire it up pos to pos neg to neg from my amp that puts out the correct wattage at 2 ohms, will it all work out? Or is there some special wiring setup I need to use.

Any help is very appreciated! Please help me figure this out!

Click to read more...



[disturbed471985 5,000+ posts]

if the sub is a single 4ohm then thats ur only option is a 4ohm load



[ckunke002 10+ year member]

It's not a single coil 4 ohm, it's double (it even says double on the sub itself). It only has 1 + and 1 - though so that was my question



[winkychevelle 10+ year member]

does it have a fuse thing on it to were u can choose the ohm load on one side? most of bostons subs come prewired at the lowest impedence a d4 is wire to 2and a d2 is wire to 1 but they acn be changed by simply moving the fuse on the terminal. even rockford has went to this on the t series to clean up wiring on inverted installs



[disturbed471985 5,000+ posts]

1 pos terminal and 1 neg terminal means subs is a single voice coil idc what the box says. U sure there is no switch or some crap like that to change the indo? I have seen this on some subs.



[QuietEclipse29 10+ year member]

does it have a fuse thing on it to were u can choose the ohm load on one side? most of bostons subs come prewired at the lowest impedence a d4 is wire to 2and a d2 is wire to 1 but they acn be changed by simply moving the fuse on the terminal. even rockford has went to this on the t series to clean up wiring on inverted installs

THIS ^^ Should have fusing option next to the terminals.

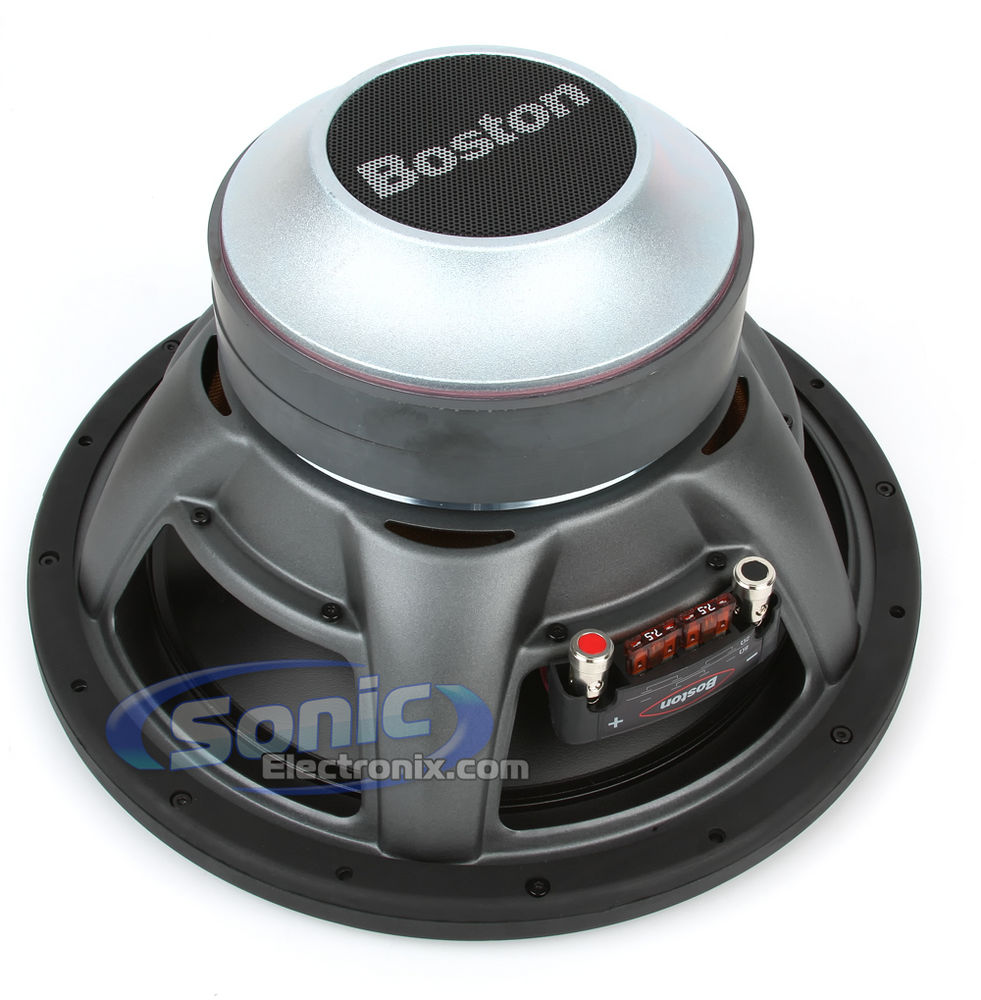

Picture 3 of 6 for Boston Acoustics G3-SPS1244 (SPS-G31244)



[ckunke002 10+ year member]

does it have a fuse thing on it to were u can choose the ohm load on one side? most of bostons subs come prewired at the lowest impedence a d4 is wire to 2and a d2 is wire to 1 but they acn be changed by simply moving the fuse on the terminal. even rockford has went to this on the t series to clean up wiring on inverted installs

You were exactly right, it's a dual 4 ohm coil sub and came set with it's fuses lined up for a 2-ohm operation.



[winkychevelle 10+ year member]

theres a fuse which u move to change the ohm load



[ckunke002 10+ year member]

Sorry for the post without properly reading the manual! (Do people really read subwoofer manuals?)



[winkychevelle 10+ year member]

Sorry for the post without properly reading the manual! (Do people really read subwoofer manuals?)

not normally but it is something that couldve been easily answered by the manual,though im not sure most of the brands people run on here even come with a manual.



[ckunke002 10+ year member]

So does anyone have an idea on how I would hook 2 of these up to a mono amp? Like maybe a 1 ohm amp load, I can either set the fuses to 2 ohms or 8 ohms for the individual subs, but if I'm wiring up a bunch together which do I need?



[winkychevelle 10+ year member]

set them both to two ohm then run both positive and both negative together to the amp. basically twist both positive together to make one and the same for the negative



[Imtjnotu 5,000+ posts]

1 pos terminal and 1 neg terminal means subs is a single voice coil idc what the box says. U sure there is no switch or some crap like that to change the indo? I have seen this on some subs.



[disturbed471985 5,000+ posts]

Did u not read the end of my post??



[QuietEclipse29 10+ year member]

Did u not read the end of my post??

after the edit? lol
