CDT Audio NOTICE New Products and CLEARANCE SALE

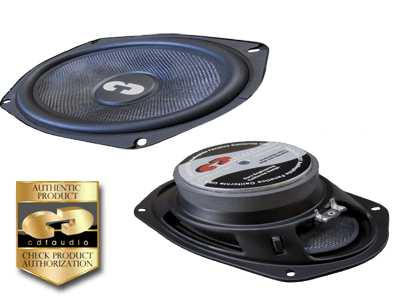

This is the first look at the new shallow 6x9 convertible woofer. We need these for vehicles with factory 6x9s but inadequate clearance to fit a standard 6x9 upgrade woofer. Our Toyota Tundra Perfect Fit speaker kits will be upgraded to this new woofer. Many other vehicles can start using this woofer right now.



Up next: QEX-1020

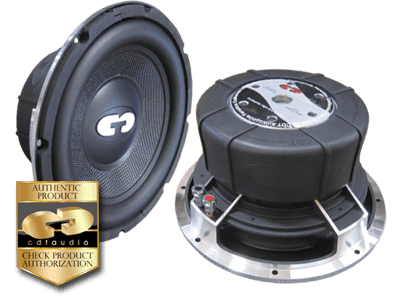

This is the new generation small box high excursion audiophile 10" subwoofer. Designed for extremely small sealed and ported enclosures. QEX-1220 is also available now for the 12".

Pricing and specifications TBA.


MX-69S Shallow 6x9 convertible midbass woofer



We have 2 pairs of these in stock. Introductory price on these is $149.99(subject to change once these 2 pairs are gone). Grilles are included.

QEX-1020 small box high excursion audiophile 10" subwoofer

$399



  • Diameter: 10” (250mm)
  • Sensitivity: 85.9dB
  • Power Handling: 500 WRMS
  • Power Handling: 1000 WRMS Peak
  • Frequency Response: 10 ~ 400 Hz
  • Nominal Impedance: 4 Ohms
  • Voice Coil Diameter: 2.6” (66mm)
  • Peak Xmax: 20mm
  • Magnet Weight: 140oz stacked
  • Surround: Rubber
  • Frame: Cast Aluminum
  • Cone: Fiberglass Cloth
  • Mounting depth: 5.71"


0.1 - 0.25 cu ft sealed

0.25 - 1.0 cu ft ported, 3" dia port ranging from 34.6" to 18.5" depending on tuning frequency and enclosure volume

QEX-1220 small box high excursion audiophile 12" subwoofer

$399

  • Diameter: 12” (300mm)
  • Sensitivity: 87.6 dB
  • Power Handling: 500 WRMS
  • Power Handling: 1000 WRMS Peak
  • Frequency Response: 10 ~ 400 Hz
  • Nominal Impedance: 4 Ohms
  • Voice Coil Diameter: 2.66” (66mm)
  • Peak Xmax: 20mm
  • Magnet Weight: 140oz stacked
  • Surround: Rubber
  • Frame: Cast Aluminum
  • Cone: Fiberglass Cloth
  • Mounting depth: 6.22"


0.2 - 0.4 cu ft sealed

0.5 - 1.5 cu ft ported, 3" dia port ranging from 16.3" to 11.6" depending on tuning frequency and enclosure volume


Teaser photos of 2 new products:

HD-6BE Bass Enhanced Mid-Woofer



HD-690CFS Shallow 6x9 Subwoofer




Last edited by a moderator:
Jeep Wrangler direct fit speakers: ES-6iM and DRT-26



"Are you ready, soon available the New 2015 Audiophile ES-03 3" mid-woofer.

Improved power handling, stronger motor and superior unmatched sound performance like you always expect from ES-Gold series. Also available bass enhanced as ES-03MB"



"CDT is happy to announce launch of the new Ultra High-End ES-610X component coaxial system for quick and easy stock installations. Contents:ES-6 woofer, ES-010 twtr, EX-430 xover"



"THE NEW 2015 SLIM 6X9" HD-Series Component coaxial speaker now available. Model:HD-690CFXS. Feature 1" swivel soft dome tweeter and the new HD-3500 crossover."






Woah, what's this!?

CDT is happy to announce our top of the line SLIM 1.89" mounting depth inverted magnet 6.7" mid-woofer is now released from re-engineering and in production.Pre-production orders are accepted at special discounts. ETA in April.



ES-1200iC

1.2” audiophile cloth soft dome tweeter

The ES-1200iC Tweeter is unique.

It’s a 27 mm (1.2) cloth dome extended range with a neodymium magnet and ferro fluid filled voice coil gap to give sound and power handling that typically requires a much larger speaker. ES-1200iC is the most advanced wide dispersion, wide range, transient perfect ferromagnetic oil-cooled tweeter driver in the market with clean, smooth and gentle response. A very pleasant sounding tweeter for use in any position where it fits. Its special designed front casing creates a wide dispersion pattern. Wider dispersion and wider range than any other tweeter driver of its kind. This unique enhanced wide dispersion tweeter driver is optimized for all automotive sound systems and of course integrates perfectly with other CDT components.

Technical specs and contents:

• 1 pair 1.2” cloth dome tweeter driver, neo charged magnet structure

• 1 pair flush mount housing w/hardware

• Frequency response 1,500 Hz - 22,000 Hz

• Power handling: 50W-100W RMS

• 400watt Short term max

• Nominal impedance 6 Ohm

• VC DC resistance: 4.6Ohm

• Sensitivity: 90.2 dB

• FS: 1500 Hz

• Magnet: Neo charged

• Flush mount hole 2”

• Depth: 0.935”in cup

$279.99

PM to order now


Clearance Goodies

CL69COM 2-way 6x9 components 1 set

CL69 6x9 woofers with grilles 1 set

HD-1200CFS 12" shallow carbon fiber cone subwoofer x 2

MXMA-1502 2-ch micro Class AB amplifier 100W x 2

MXMA-7504 4-ch micro Class AB amplifier 50W x 4

MXMA-3001 1-ch micro Class AB amplifier 300W x 1 @ 2 ohms

HD-6 6.7" reference midrange woofers 1 set

ES-03 3" midrange woofers open box 1 set

HD-1 pods silk dome wide dispersion tweeters 2 sets

HD-1/A pods aluminum dome wide dispersion tweeters 1 set

Used Goodies

ES-06 Ultra High End 6.7" midbass woofers 1 set

ES-04 Ultra High End 4" midrange woofers 1 set

EX-540 2-way crossovers with Image Tweeter terminals, 24 dB/octave at 4.8 kHz


Clearance GoodiesCL69COM 2-way 6x9 components 1 set

CL69 6x9 woofers with grilles 1 set

HD-1200CFS 12" shallow carbon fiber cone subwoofer x 2

MXMA-1502 2-ch micro Class AB amplifier 100W x 2

MXMA-7504 4-ch micro Class AB amplifier 50W x 4

MXMA-3001 1-ch micro Class AB amplifier 300W x 1 @ 2 ohms

HD-6 6.7" reference midrange woofers 1 set

ES-03 3" midrange woofers open box 1 set

HD-1 pods silk dome wide dispersion tweeters 2 sets

HD-1/A pods aluminum dome wide dispersion tweeters 1 set

Used Goodies

ES-06 Ultra High End 6.7" midbass woofers 1 set

ES-04 Ultra High End 4" midrange woofers 1 set

EX-540 2-way crossovers with Image Tweeter terminals, 24 dB/octave at 4.8 kHz
pm me a price for the hd-6 mids


Clearance GoodiesCL69COM 2-way 6x9 components 1 set

CL69 6x9 woofers with grilles 1 set

HD-1200CFS 12" shallow carbon fiber cone subwoofer x 2

MXMA-1502 2-ch micro Class AB amplifier 100W x 2

MXMA-7504 4-ch micro Class AB amplifier 50W x 4

MXMA-3001 1-ch micro Class AB amplifier 300W x 1 @ 2 ohms

HD-6 6.7" reference midrange woofers 1 set

ES-03 3" midrange woofers open box 1 set

HD-1 pods silk dome wide dispersion tweeters 2 sets

HD-1/A pods aluminum dome wide dispersion tweeters 1 set

Used Goodies

ES-06 Ultra High End 6.7" midbass woofers 1 set

ES-04 Ultra High End 4" midrange woofers 1 set

EX-540 2-way crossovers with Image Tweeter terminals, 24 dB/octave at 4.8 kHz
and by the way, that Pioneer sub i got from you sounds really nice. My nephew is loving it. We put it in 2cubes@35hz


Clearance GoodiesCL69COM 2-way 6x9 components 1 set

CL69 6x9 woofers with grilles 1 set

HD-1200CFS 12" shallow carbon fiber cone subwoofer x 2

MXMA-1502 2-ch micro Class AB amplifier 100W x 2

MXMA-7504 4-ch micro Class AB amplifier 50W x 4

MXMA-3001 1-ch micro Class AB amplifier 300W x 1 @ 2 ohms

HD-6 6.7" reference midrange woofers 1 set

ES-03 3" midrange woofers open box 1 set

HD-1 pods silk dome wide dispersion tweeters 2 sets

HD-1/A pods aluminum dome wide dispersion tweeters 1 set

Used Goodies

ES-06 Ultra High End 6.7" midbass woofers 1 set

ES-04 Ultra High End 4" midrange woofers 1 set

EX-540 2-way crossovers with Image Tweeter terminals, 24 dB/octave at 4.8 kHz
forgot these EX-550i 2-way crossovers with Image Tweeter terminals, switch to adjust for 4", 5.25" or 6.5" mid-woofers, 5-way image tweeter level switch 1 set
