trumpet 5,000+ posts
Barry Schanz
Item(s) for Sale:
HD-6 6.7" Midrange, 2 pairs
HD-M6 6.7" Midbass, 2 pairs
HD-6MDVC 6.7" Midbass/Subwoofer for Firebird, Camaro, and Trans Am, 2 pairs
Item(s) Description/Condition:
NIB
I have these at my store today, along with other CDT drivers and the new MX-1000SX crossovers to build 2-way or 3-way custom component sets. PM me to discuss.
HD-6 Description
This is the mid-woofer that helped bring CDT Audio to the attention of a lot of people, starting back in 1989-1990. It has since been revised several times, and what we have today is a highly refined speaker.
HD-M6 Description
Based on the HD-6 mid-woofer, this is the driver for you if you want a midbass emphasized woofer that works very well in a standard door location. It can be paired with a small tweeter, but for best sound quality and overall clarity I recommend using a 2" mid/tweeter or a 3" midrange with a 1" tweeter.
HD-6MDVC Description
Designed to fulfill a need for a direct fit subwoofer replacement for the 90s-'02 Camaro, Firebird and Trans Am, these will work with the factory Monsoon amplifier. It can also be sold as a single driver to be adapted to some factory subwoofer enclosures. Custom work required, check with your local installer.
Price:
HD-6 $169.99 for 1 pair including shipping to the Continental US
HD-M6 $199.99 for 1 pair including shipping to the Continental US
HD-6MDVC $199.99 for 1 pair including shipping to the Continental US
Shipping and Miscellaneous Item Information:
Please pay attention to this part.
I will pay shipping to the lower 48 states.
If your location is different than the Continental US I will get you a QUOTE.
Item Pictures:
(List pictures in this section, 1st picture should be your username/date if you have less than 10 positive feedbacks with the i-Trader system or less than 10 references that you have sold to in the past. (These must be listed in your signature, or a link provided to a feedback thread listing these references)).
My i-Trader feedback for caraudio.com - absolutely stellar record. Many buyers have not yet left feedback.
HD-6
HD-M6
HD-6MDVC
HD-6 6.7" Midrange, 2 pairs
HD-M6 6.7" Midbass, 2 pairs
HD-6MDVC 6.7" Midbass/Subwoofer for Firebird, Camaro, and Trans Am, 2 pairs
Item(s) Description/Condition:
NIB
I have these at my store today, along with other CDT drivers and the new MX-1000SX crossovers to build 2-way or 3-way custom component sets. PM me to discuss.
HD-6 Description
This is the mid-woofer that helped bring CDT Audio to the attention of a lot of people, starting back in 1989-1990. It has since been revised several times, and what we have today is a highly refined speaker.
- Frequency response 55Hz - 6,000 Hz
- Power handling: 100W RMS @ HPF 120Hz
- Sensitivity: 93.1dB
- Mounting depth: 2.75”
- Cut out diameter: 5.87”
- Cast frame: OD 6.75”
- Cone: Reinforced mix fabric carbon compound
- Magnet weight: 20 Oz
- Cone surround: Butyl rubber
- Impedance: 4 Ohm
- Voice coil: 1.5” (30mm)
- Fs: 78.5Hz
HD-M6 Description
Based on the HD-6 mid-woofer, this is the driver for you if you want a midbass emphasized woofer that works very well in a standard door location. It can be paired with a small tweeter, but for best sound quality and overall clarity I recommend using a 2" mid/tweeter or a 3" midrange with a 1" tweeter.
- 1 pair 6.7” Extended-mid bass woofer
- Frequency response: 10 Hz - 4,000 Hz
- Power handling: 150W RMS
- Impedance: 4 Ohm
- Sensitivity: 88.1 dB
- Mounting depth: 2.94”
- Cutout diameter: 5.87”
- Cast frame: OD 6.7”
- Cone: Mix of Kevlar/Fiberglass
- Magnet weight: 30 Oz
- Cone surround: Butyl rubber
- Fs: 52 Hz
HD-6MDVC Description
Designed to fulfill a need for a direct fit subwoofer replacement for the 90s-'02 Camaro, Firebird and Trans Am, these will work with the factory Monsoon amplifier. It can also be sold as a single driver to be adapted to some factory subwoofer enclosures. Custom work required, check with your local installer.
- 1 pair Cast Dual 4 Ohm 6.5" DVC subwoofer
- Frequency response 42 Hz - 4,000 Hz
- Power handling: 70-150W RMS
- Sensitivity: 79.74 dB
- Mounting depth: 2.75" (69.9mm)
- Diameter: 6.5" (170mm)
- Cone: Coated non woven carbon fiber
- Magnet weight: 24 Oz
- Cone surround: rubber
- Voice coil: 1.0" (26mm)
- FS: 42.39 Hz
Price:
HD-6 $169.99 for 1 pair including shipping to the Continental US
HD-M6 $199.99 for 1 pair including shipping to the Continental US
HD-6MDVC $199.99 for 1 pair including shipping to the Continental US
Shipping and Miscellaneous Item Information:
Please pay attention to this part.
I will pay shipping to the lower 48 states.
If your location is different than the Continental US I will get you a QUOTE.
Item Pictures:
(List pictures in this section, 1st picture should be your username/date if you have less than 10 positive feedbacks with the i-Trader system or less than 10 references that you have sold to in the past. (These must be listed in your signature, or a link provided to a feedback thread listing these references)).
My i-Trader feedback for caraudio.com - absolutely stellar record. Many buyers have not yet left feedback.

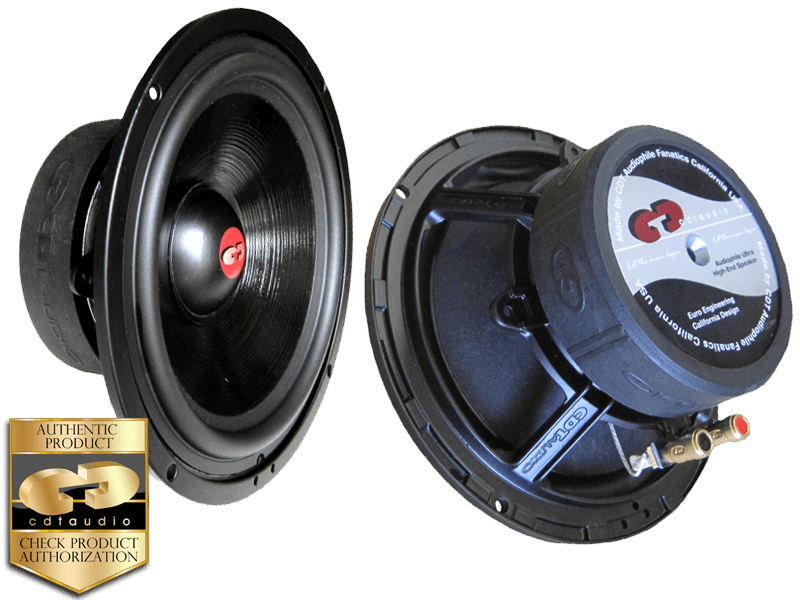

HD-6

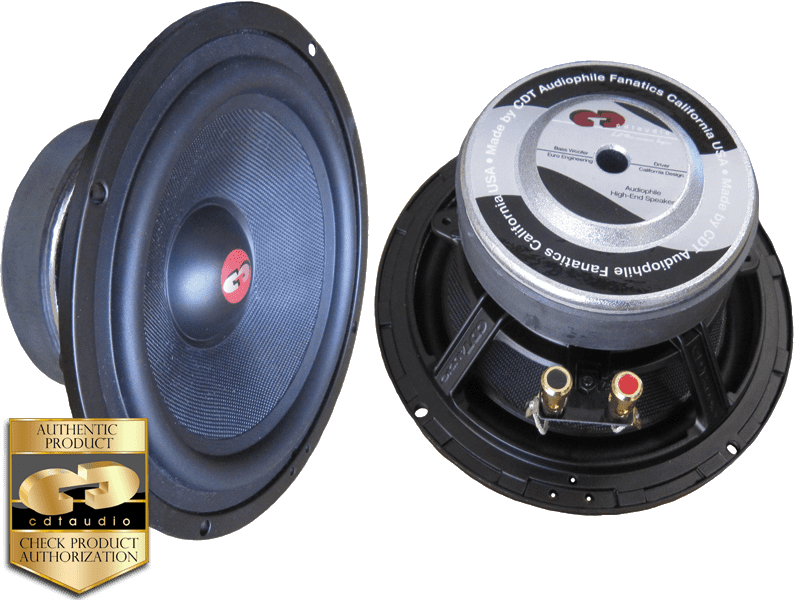

HD-M6

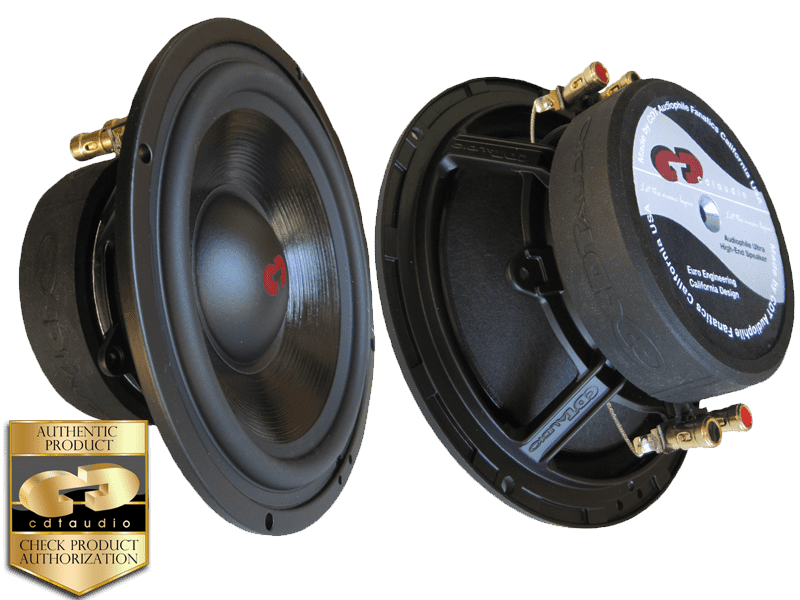

HD-6MDVC
