1. Product:
BNIB vifa DX25TG09-04 1" dome tweeters
2. Specs:
Vifa 1" fabric high dispersion dome tweeter
Low compression chamber design
Light weight voice coil
High power handling
High Sensitivity
Znom 4 ohm
Re 2.9 ohm
Le@1kHz 11.62uH
fs 680.7 Hz
Qms 2.74
Qes 0.68
Qts 0.54
Mms 0.42 g
Sd 7.0 cm2
VC Ø 25 mm
Sensitivity (2.83V / 1m) 96.5 dB
Magnet weight 240 g
Flange 104mm
Cut-out 75mm
Depth 26mm
3. Description/Condition:
BNIB just took out to take pix
4. Price: :
55 shipped for the pair

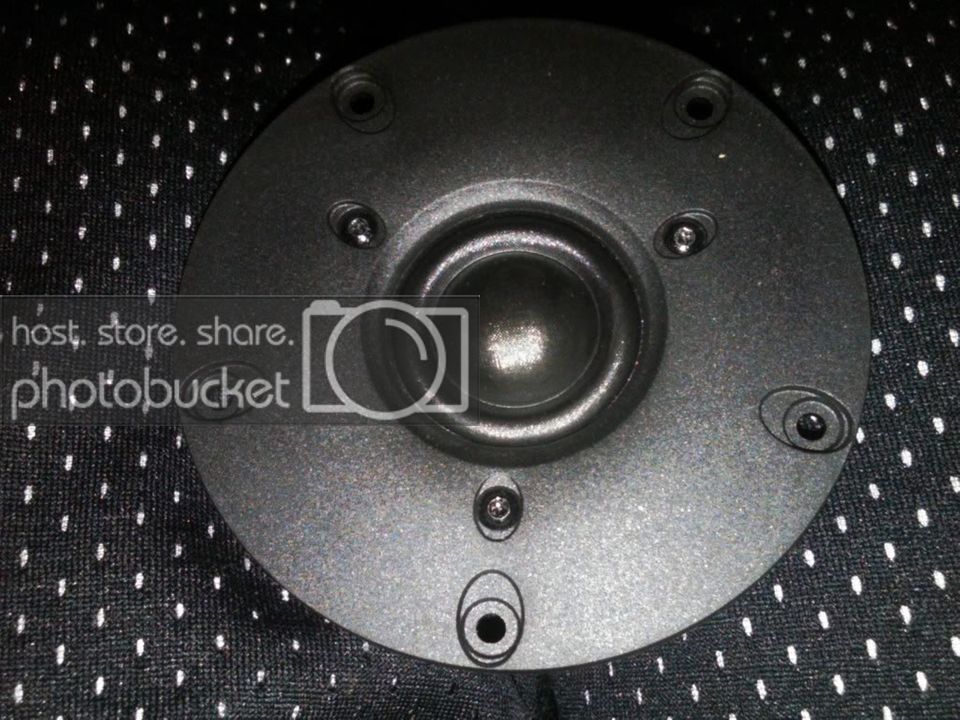

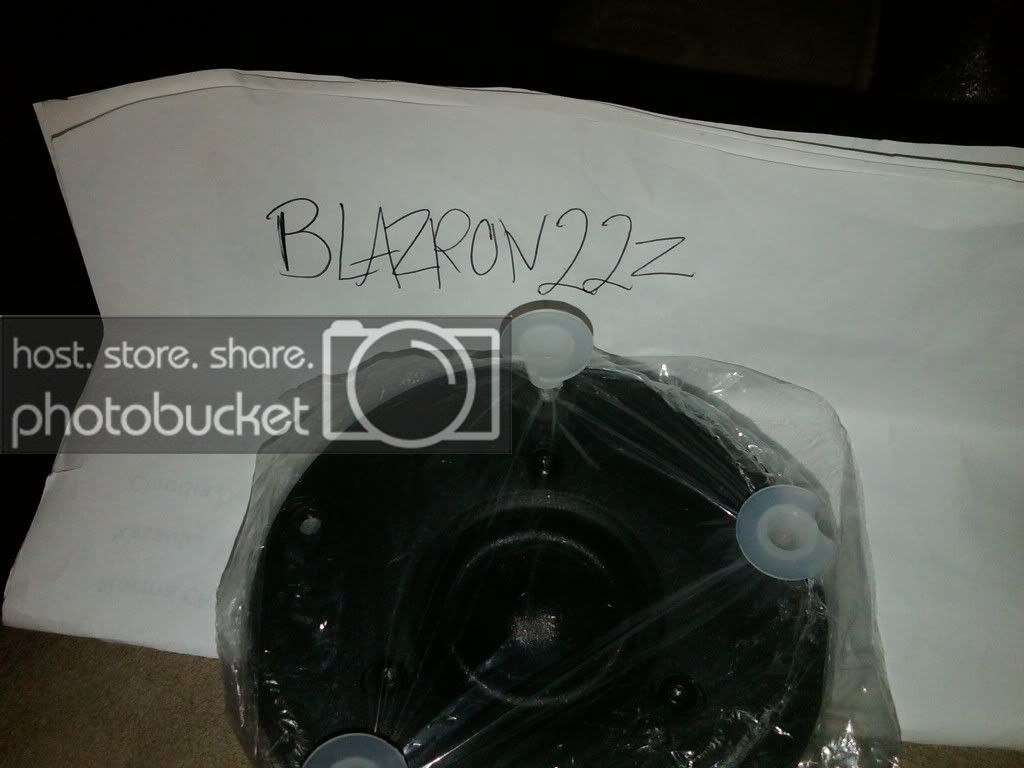

5. Pictures:
BNIB vifa DX25TG09-04 1" dome tweeters
2. Specs:
Vifa 1" fabric high dispersion dome tweeter
Low compression chamber design
Light weight voice coil
High power handling
High Sensitivity
Znom 4 ohm
Re 2.9 ohm
Le@1kHz 11.62uH
fs 680.7 Hz
Qms 2.74
Qes 0.68
Qts 0.54
Mms 0.42 g
Sd 7.0 cm2
VC Ø 25 mm
Sensitivity (2.83V / 1m) 96.5 dB
Magnet weight 240 g
Flange 104mm
Cut-out 75mm
Depth 26mm
3. Description/Condition:
BNIB just took out to take pix
4. Price: :
55 shipped for the pair
5. Pictures:
