Item(s) for Sale:
BNIB pair of Dayton Audio DS175-8 6-1/2" Designer Series Speakers
Item(s) Description/Condition:
Brand new in box. Just took out for photos.
The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies—without exceeding Xmax.
These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.
PRODUCT SPECIFICATIONSPower Handling (RMS) 70 Watts power Handling (max) 140 Watts Impedance 8 ohms Frequency Response 40 to 4,500 Hz Sensitivity 88.6 dB 1W/1m Voice Coil Diameter 1.40" Magnet Weight 33 oz.
THIELE-SMALL PARAMETERSResonant Frequency (Fs) 40.9 Hz DC Resistance (Re) 5.6 ohms Voice Coil Inductance (Le) 1.12 mH Mechanical Q (Qms) 1.82 Electromagnetic Q (Qes) 0.37 Total Q (Qts) 0.30 Compliance Equivalent Volume (Vas) 0.61 ft.³ Mechanical Compliance of Suspension (Cms) 0.74 mm/N BL Product (BL) 9 Tm Diaphragm Mass Inc. Airload (Mms) 20.5g Maximum Linear Excursion (Xmax) 5.25 mm Surface Area of Cone (Sd) 128.7 cm²
MATERIALS OF CONSTRUCTIONCone Material Coated Paper Surround Material Rubber Voice Coil wire Material Copper Voice Coil Former Aluminum Basket / Frame Material Steel Magnet Material Ferrite
MOUNTING INFORMATIONOverall Outside Diameter 6.91" Baffle Cutout Diameter 5.67" Depth 3.17" # Mounting Holes 5
Dayton Audio DS175-8 6-1/2" Designer Series Woofer
Price:
Partsexpress sells them for $35ea. I'll sell them for $55 shipped.
Shipping and Miscellaneous Item Information:

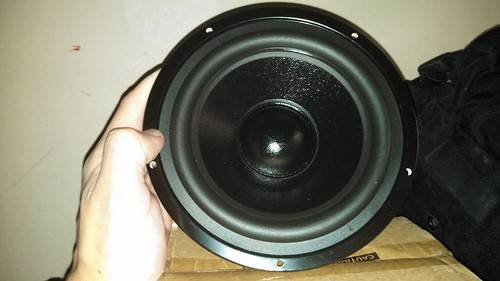

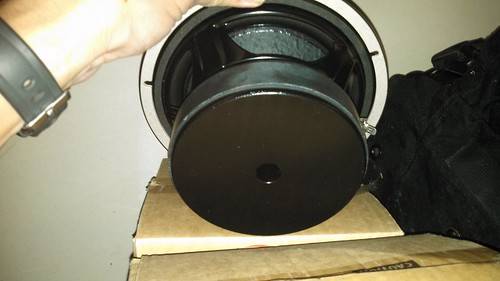

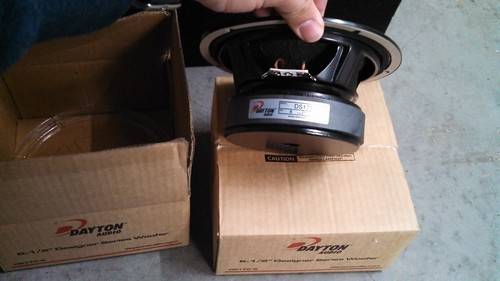

Untitled by Beerdrnkr, on Flickr
Untitled by Beerdrnkr, on Flickr
Untitled by Beerdrnkr, on Flickr
Untitled by Beerdrnkr, on Flickr
Item Pictures:
(List pictures in this section, 1st picture should be your username/date if you have less than 10 positive feedbacks with the i-Trader system or less than 10 references that you have sold to in the past. (These must be listed in your signature, or a link provided to a feedback thread listing these references)).
