Will this 200 MHz oscilloscope work for setting amp gains?

[jar1zx 10+ year member]

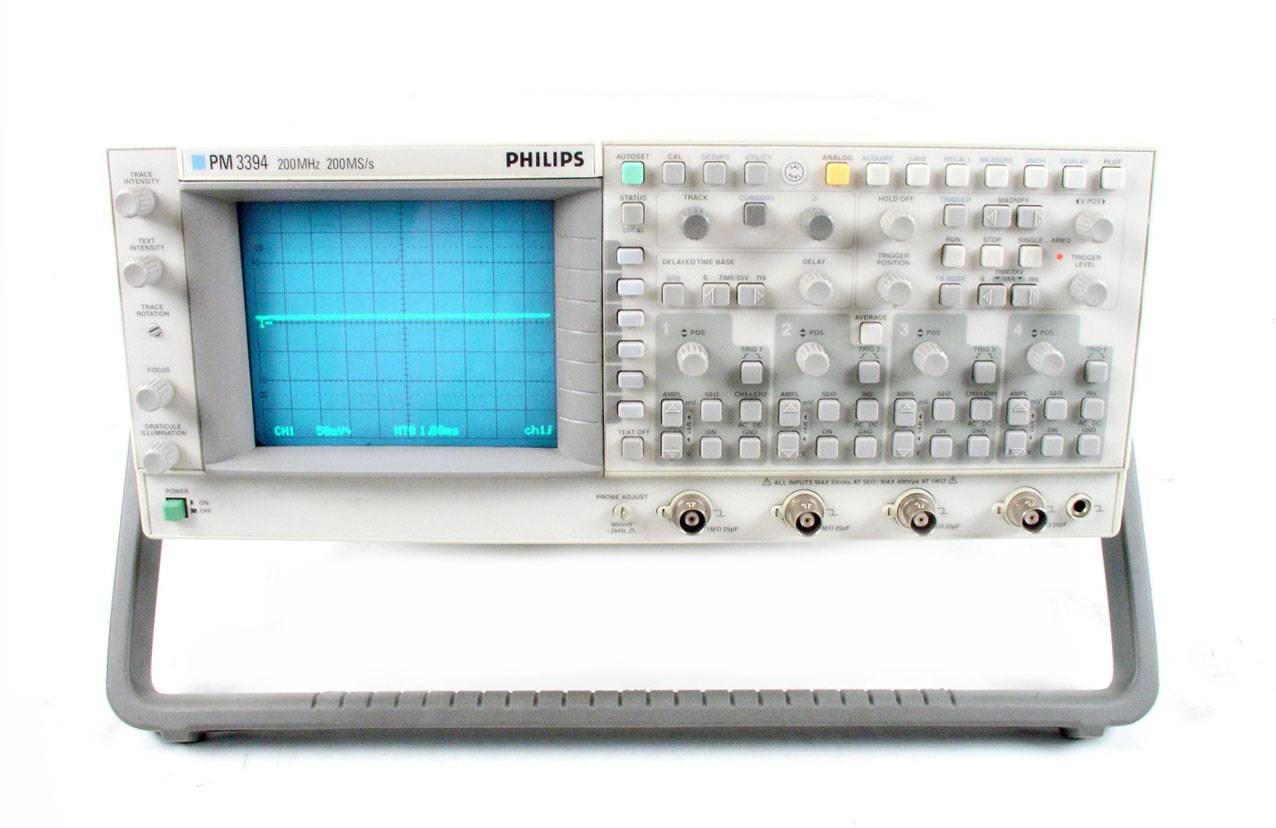

I found a Philips PM 3394 200mhz I can trade for

Will this work for setting amp gains and what's a good price for it?

Need someone who knows about oscilloscopes to chime in soon because I might get it tomorrow

Ty

Click to read more...



[keep_hope_alive Premium Member]

yep. it will be fine. you will want to pick up some oscilloscope probes, 1x and 10x.

remember that the ground lead goes to the amp chassis NOT the (-) terminal of the amp output.



[maylar 10+ year member]

It's actually a bit of overkill for car audio.. 4 channel digital. There's one on eBay for $675.

yep. it will be fine. you will want to pick up some oscilloscope probes, 1x and 10x.
remember that the ground lead goes to the amp chassis NOT the (-) terminal of the amp output.

Chassis? It's not connected to anything in modern amps except power ground. The car ground isn't earth ground (AC line ground) but I always use an AC ground isolator on the scope's power cord just because.



[jar1zx 10+ year member]

Thx guys



[jar1zx 10+ year member]

Just got back home with it and I have operating guide/manual it came with 2 pm9020 10:1 passive probes they have a manual too

Came with a VHS fluke video not sure how I can watch that my VCR player crapped out years ago



[jar1zx 10+ year member]

Reading operating guide went over my head fast. I'm sure I can pick ac or dc now I understand earth ground a lil bit I think

I was not able to find a working VCR in the house

I have the two pm 9020 probes found a 3rd probe not 100% where it goes maybe that hole bottom right in pic by last probe hook up

What more do I need to make this work for me? Besides not letting o-scope frame not touching a ground In my truck what other tips y'all got? And I got the hook ground to ground input on amp not sub or speaker output part. The probs do have a ground alligator clip coming out the side on them do I use that?

Crap that's a lot of Q's sry



[maylar 10+ year member]

Yes the alligator clips on the probes is the scope ground connection. You'll only need one channel, one probe.

Describing how to use a fancy multi channel digital scope is way beyond what we can do here. I suggest getting a VCR or maybe searching for utube videos.



[keep_hope_alive Premium Member]

the most important things to grasp are Volts/div, time/div, and tracking.

BCAE1.com is your friend:

Oscilloscope

Oscilloscope Basics for Repair

Setting Gains with an Oscilloscope (and a Spectrum Analyzer)

these links will give you the basics.

see if you can find the video online.



[jar1zx 10+ year member]

Thx again

I plan on learning at least enuff to set gains

This is one time overkill might be to much. Lol



[jar1zx 10+ year member]

I set my sub amp gain with it today but I had hard time with mid/ high amp

Was dark Ill give it a try again tomorrow when I can see

Showed the curve great on the sub amp tho



[jar1zx 10+ year member]

I might sale or trade this off and get a handheld oscope that's easyer to use

Not sure yet since I've only used it once so far
