** Thread of prototype development
As with any pre-order delivery times are an ETA (estimated time of arrival) and are not a guarantee of the delivery date. DO NOT ORDER if you are not okay with possible delays on the delivery.
That being said the ETA is middle of January 2013 on these.
----------
Pre-Order Price : $75.00
Regular Price : $95.00
Pricing is shipped in continental 48 states. Contact us for a SH quote to AK or HI. !!! THIS IS FOR USA ONLY !!!
To order get in touch with your favorite local or online dealer or send a Paypal in to us at sundownz@sundownaudio.com
YOU MUST INCLUDE YOUR NAME AND ADDRESS. If these are both not included your payment will be refunded.
----------
DEPTH = 130mm // 5.118"
Suggested Box = 0.5 to 0.75 ported tuned to 35 Hz
Power = 300 RMS
E8 v.3 D4:
Re: 6.29 ohms
Fs: 51.9 Hz
Qes: 0.61
Qms: 3.39
Qts: 0.52
Le: 3.88 mH
Vas: 5.11 L
BL: 18.47 NA
Mms: 102 g
Cms: 91.9 uM/N
Sens: 82.42 dB 1w/1m
Bl^2/Re: 54.25
Xmax : 12mm one-way 70% BL
E8 v.3 D2:
Re: 4.19 ohms
Fs: 52.7 Hz
Qes: 0.60
Qms: 3.39
Qts: 0.51
Le: 2.69 mH
Vas: 4.99 L
BL: 15.32 NA
Mms: 101.5 g
Cms: 89.76 uM/N
Sens: 82.6 dB 1w/1m
Bl^2/Re: 55.95
Xmax : 12mm one-way 70% BL

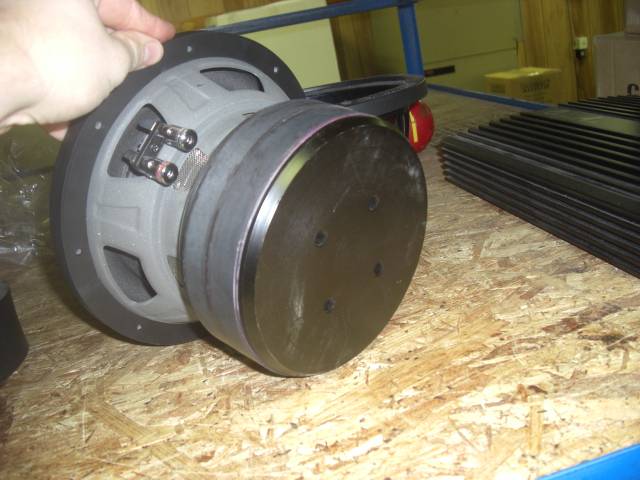

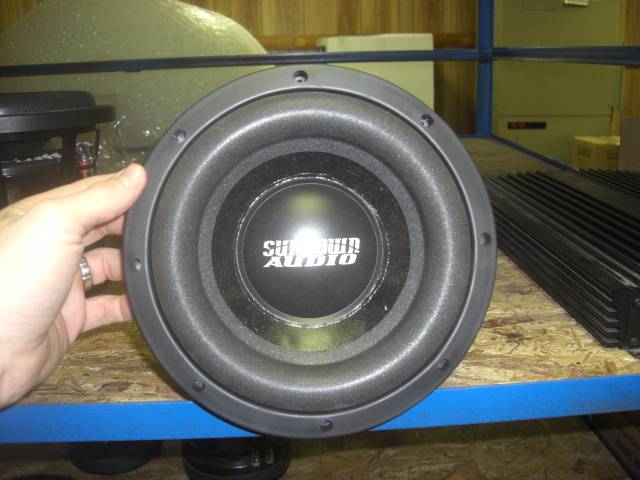

You can think of these as an SA-8 v.1/1.5 with a little less motor force, stamped frame, and shorter coil -- the soft parts are essentially identical to those models otherwise. So expect performance nearly up to par those models for less money.
----------
* Introduction Video

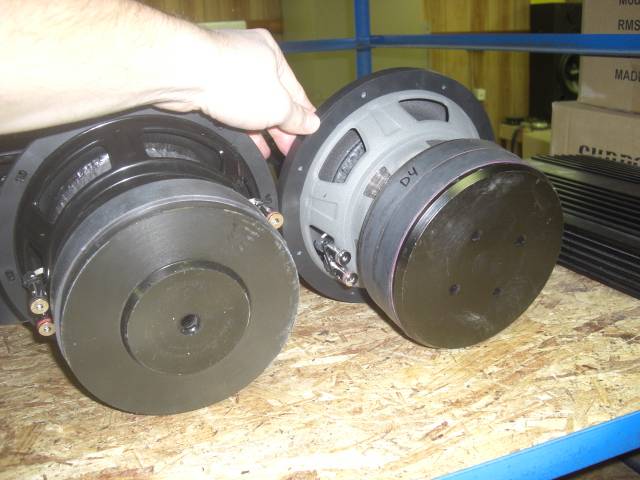

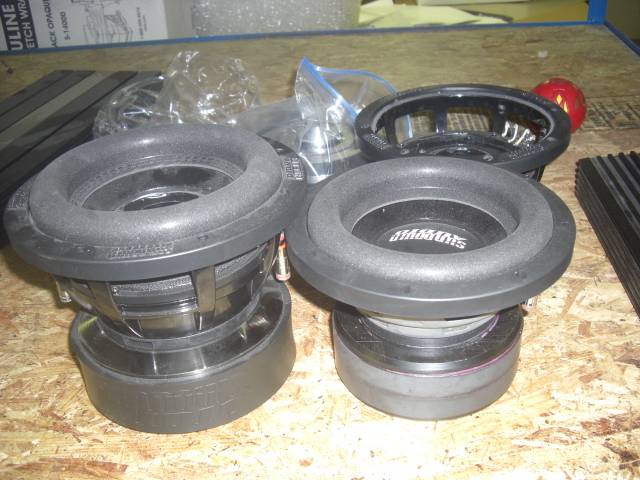

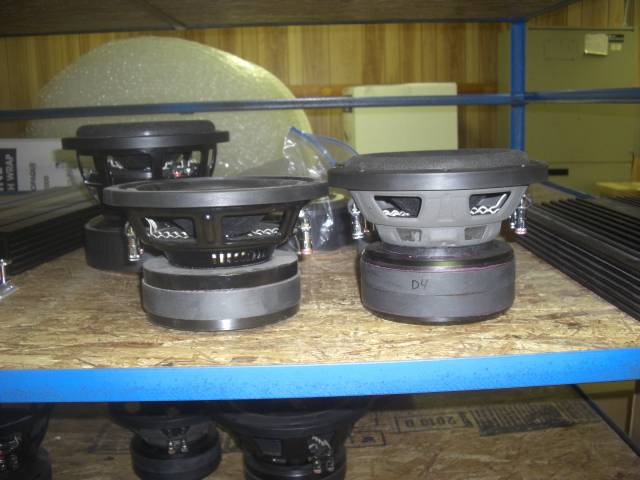

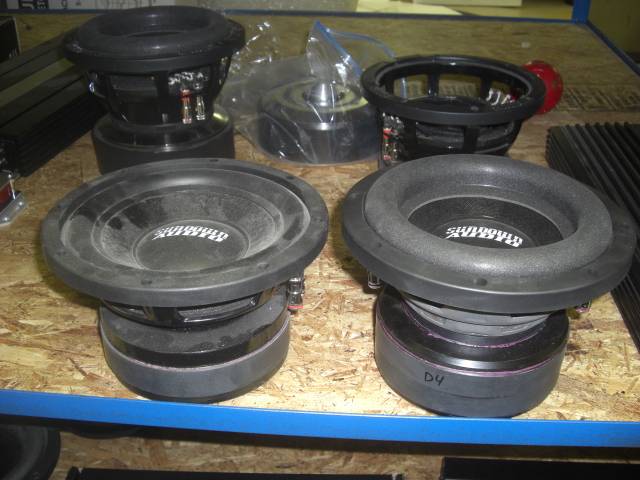

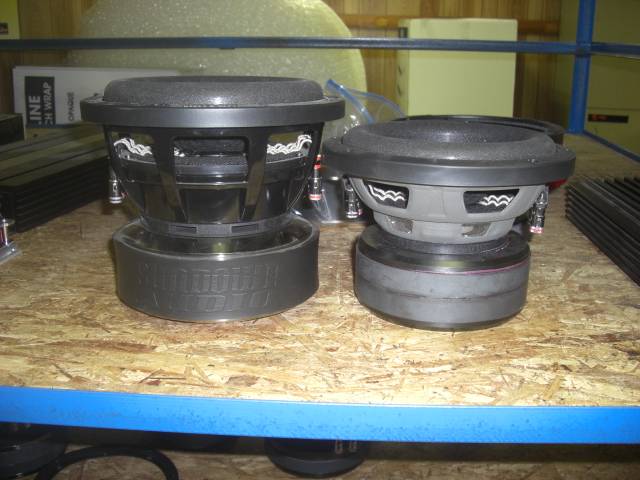

* Next to SA-8 v.2
* Next to E8v.2
** Thread of prototype development
As with any pre-order delivery times are an ETA (estimated time of arrival) and are not a guarantee of the delivery date. DO NOT ORDER if you are not okay with possible delays on the delivery.
That being said the ETA is middle of January 2013 on these.
----------
Pre-Order Price : $75.00
Regular Price : $95.00
Pricing is shipped in continental 48 states. Contact us for a SH quote to AK or HI. !!! THIS IS FOR USA ONLY !!!
To order get in touch with your favorite local or online dealer or send a Paypal in to us at sundownz@sundownaudio.com
YOU MUST INCLUDE YOUR NAME AND ADDRESS. If these are both not included your payment will be refunded.
----------
DEPTH = 130mm // 5.118"
Suggested Box = 0.5 to 0.75 ported tuned to 35 Hz
Power = 300 RMS
E8 v.3 D4:
Re: 6.29 ohms
Fs: 51.9 Hz
Qes: 0.61
Qms: 3.39
Qts: 0.52
Le: 3.88 mH
Vas: 5.11 L
BL: 18.47 NA
Mms: 102 g
Cms: 91.9 uM/N
Sens: 82.42 dB 1w/1m
Bl^2/Re: 54.25
Xmax : 12mm one-way 70% BL
E8 v.3 D2:
Re: 4.19 ohms
Fs: 52.7 Hz
Qes: 0.60
Qms: 3.39
Qts: 0.51
Le: 2.69 mH
Vas: 4.99 L
BL: 15.32 NA
Mms: 101.5 g
Cms: 89.76 uM/N
Sens: 82.6 dB 1w/1m
Bl^2/Re: 55.95
Xmax : 12mm one-way 70% BL
You can think of these as an SA-8 v.1/1.5 with a little less motor force, stamped frame, and shorter coil -- the soft parts are essentially identical to those models otherwise. So expect performance nearly up to par those models for less money.
----------
* Introduction Video
* Next to SA-8 v.2
* Next to E8v.2
