My modest, average joe, install (56K good luck).

[Alter Ego Trip 10+ year member]

To preface; I'm a huge HT buff, and have spent tens of thousands of dollars on equipment and room treatments. I've always been one to do things myself rather than pay someone else. You just gain a greater sense of satisfaction when it's done. Well due to all my funds being dumped into my HT, my truck's have always been neglected. Well lately I've been getting the itch to do more than the basic install so I decided to tackle the project. This is a daily driver, and not designed to ever be near a sound comp. I also want the install to retain all the stock aesthetics.

Equipment:

Amps-

sub: MTX TE1501D

mains: MTX TE1004

front stage: JBL 660gti

subs: two 12" RE SE's

deck: Alpine W404 multi media and Alpine 12 disc changer

EQ: Imprint

wiring: Knu Koncepts 1/0 gauge, 4 gauge, etc.

sound deadening: Raammat and ensolite

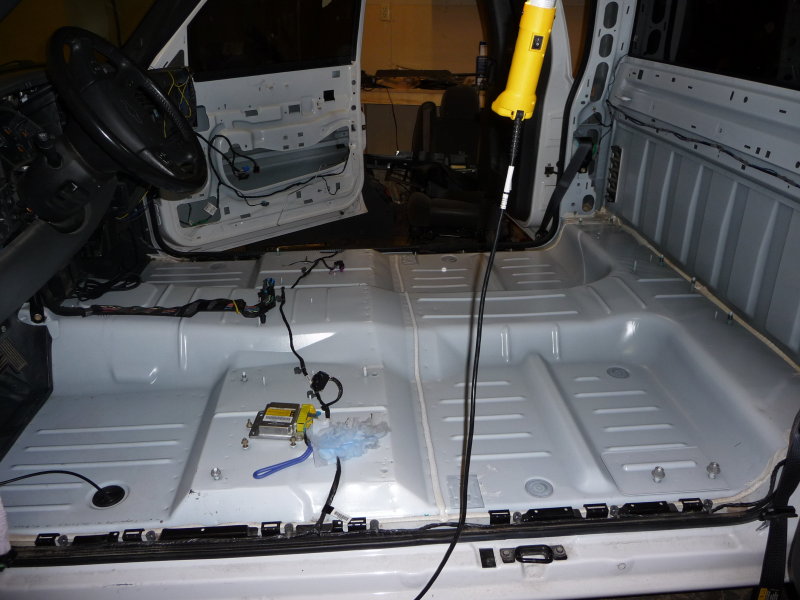

Interior Gutted, nice and shiny.

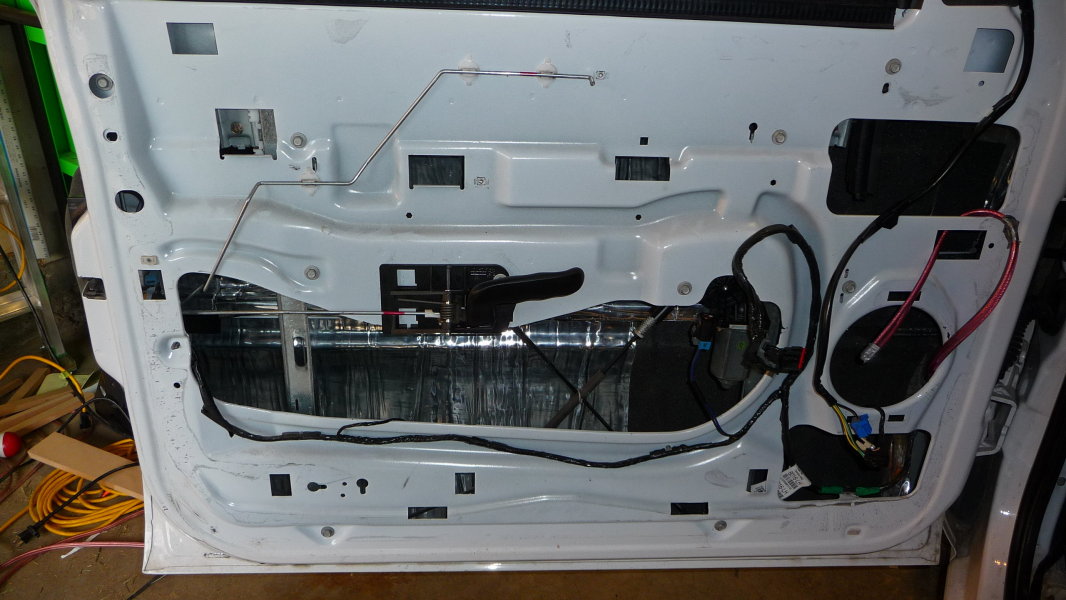

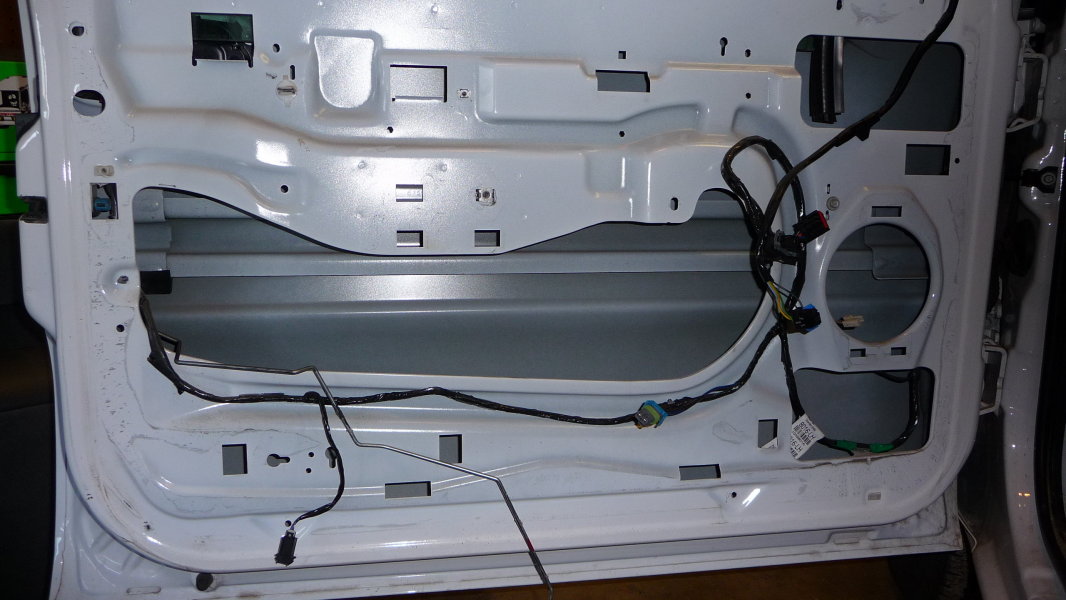

Doors are gutted as well. I chose to remove the window regulator's to make getting deadening inside the door a whole lot easier. Chevy really makes it nice for taking things apart. Half the truck was assembled with a 10mm socket. //content.invisioncic.com/y282845/emoticons/smile.gif.1ebc41e1811405b213edfc4622c41e27.gif

Don't forget to tape up the window before removing the reg though. Bad things will happen if you don't.

Even though it's a purty yellow, avoid messing with the box under the driver's side seat. This controls the airbag....nuff said.

First layer of mat is down. I used a combination of wiffle ball and golf ball to roll it around the curves. This took a lot longer than I originally figured.

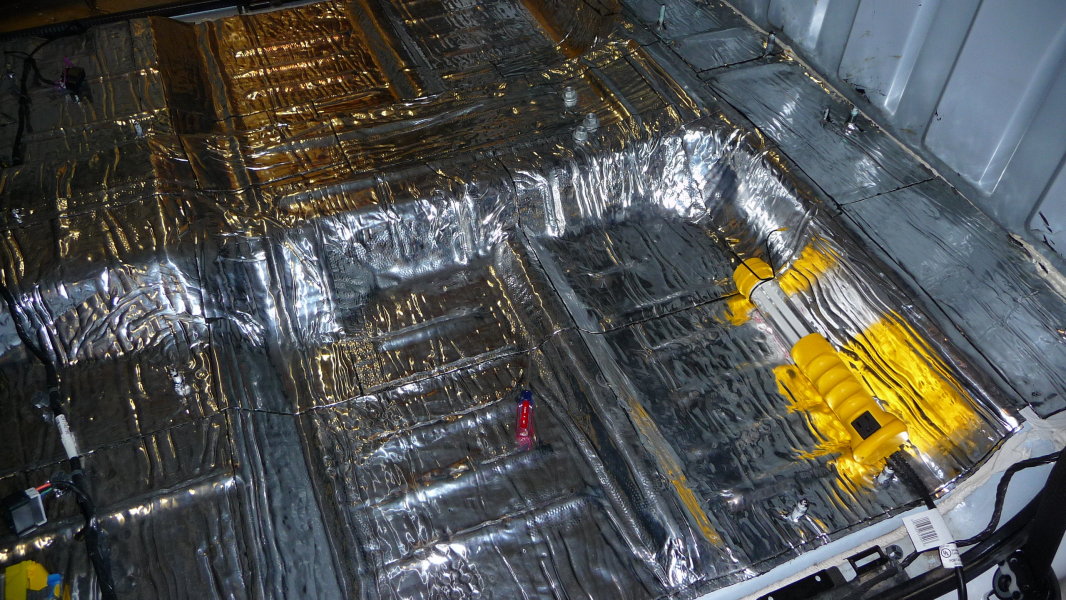

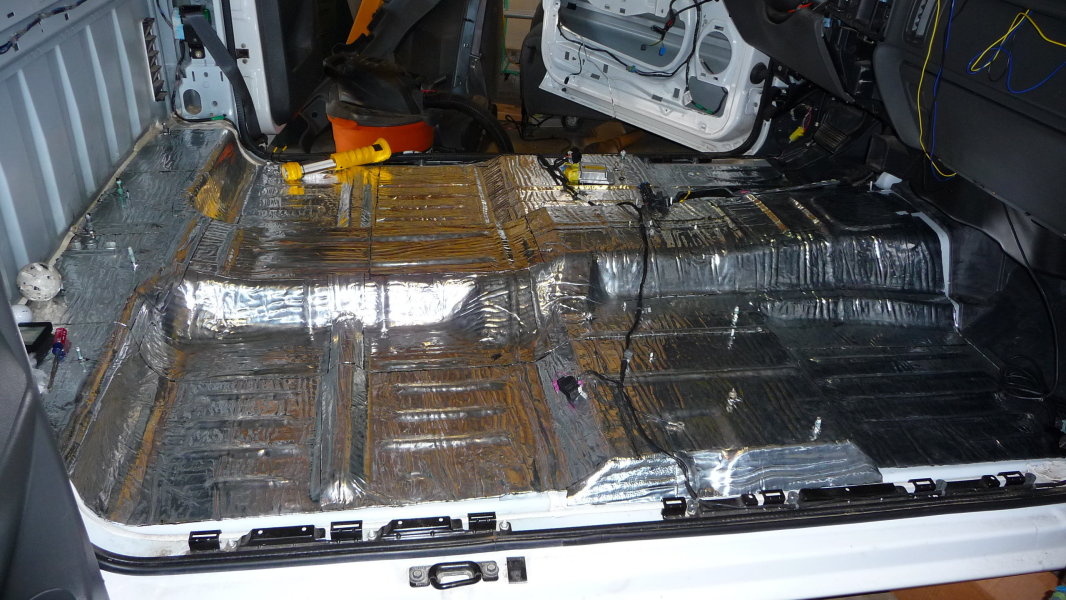

Second layer finished. Flat exhausted at this point. The only part that didn't get a full two layers we're directly above the front seats. I ran out and had to make do with what I had.

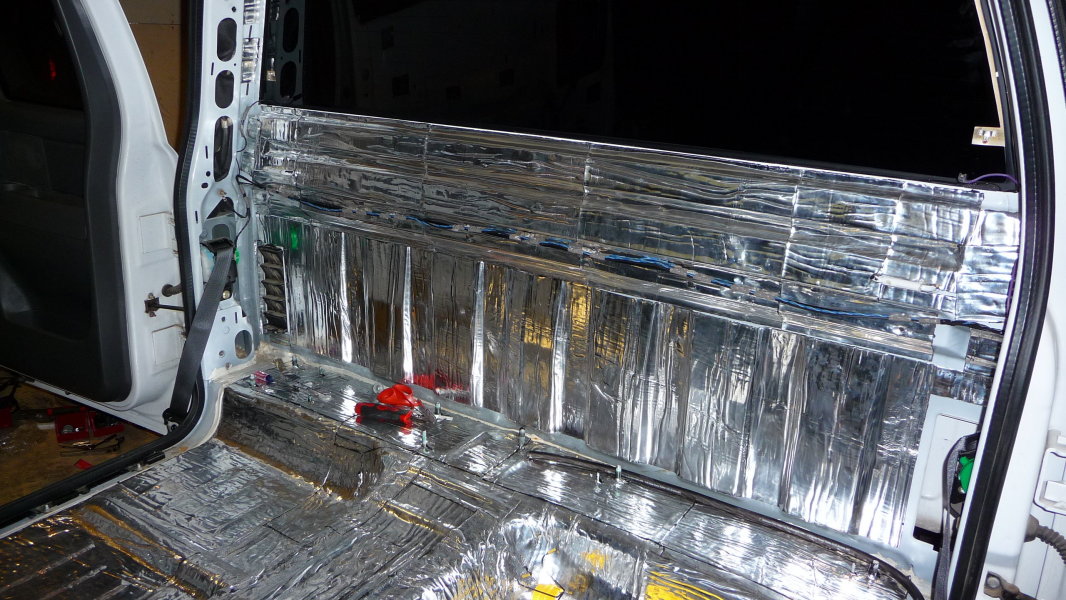

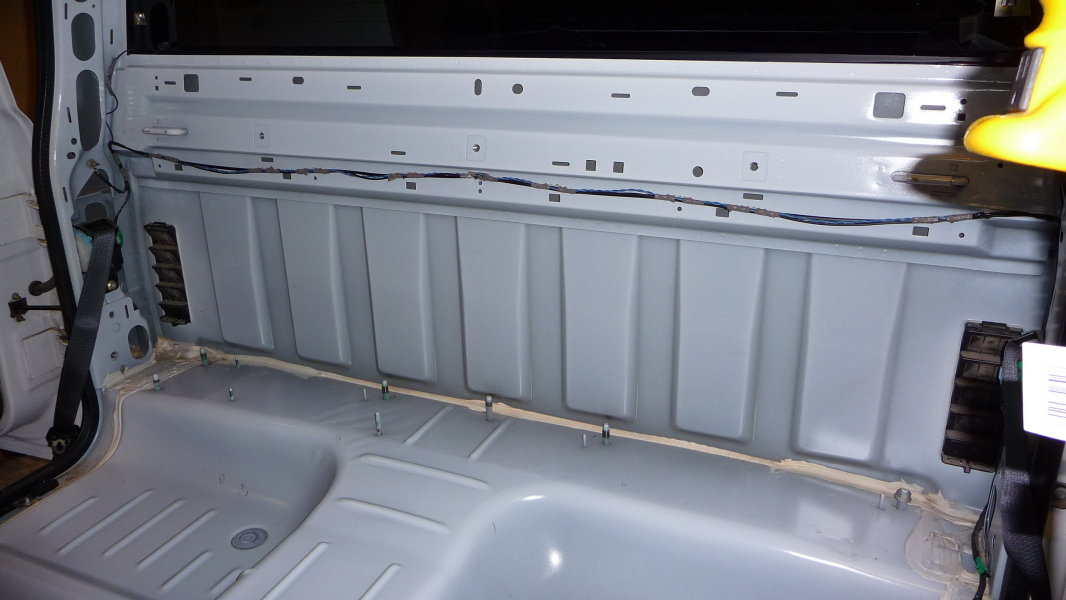

Back wall finished. This will only see a single layer as well.

Stopped for a few minutes to snap a few pic's of a T storm rolling through.

Click to read more...



[Alter Ego Trip 10+ year member]

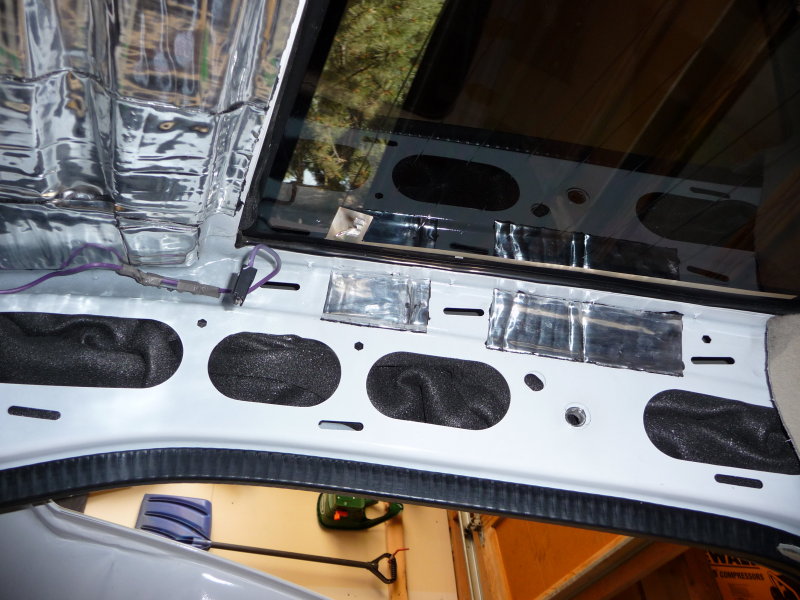

OK, enough screwing around, back to work. Stuffed a bunch of ensolite in the back quarters.

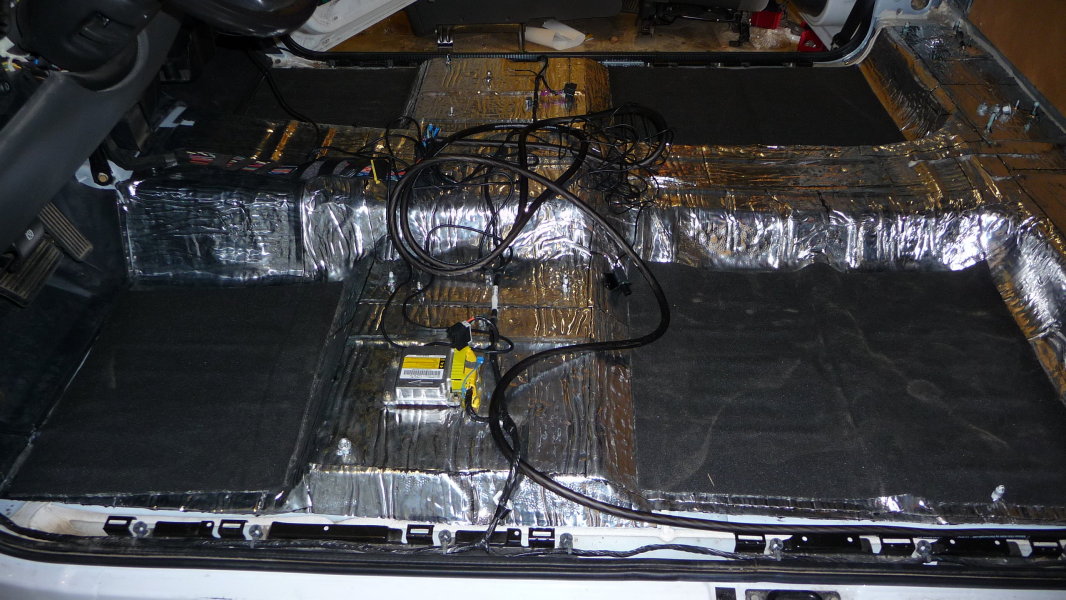

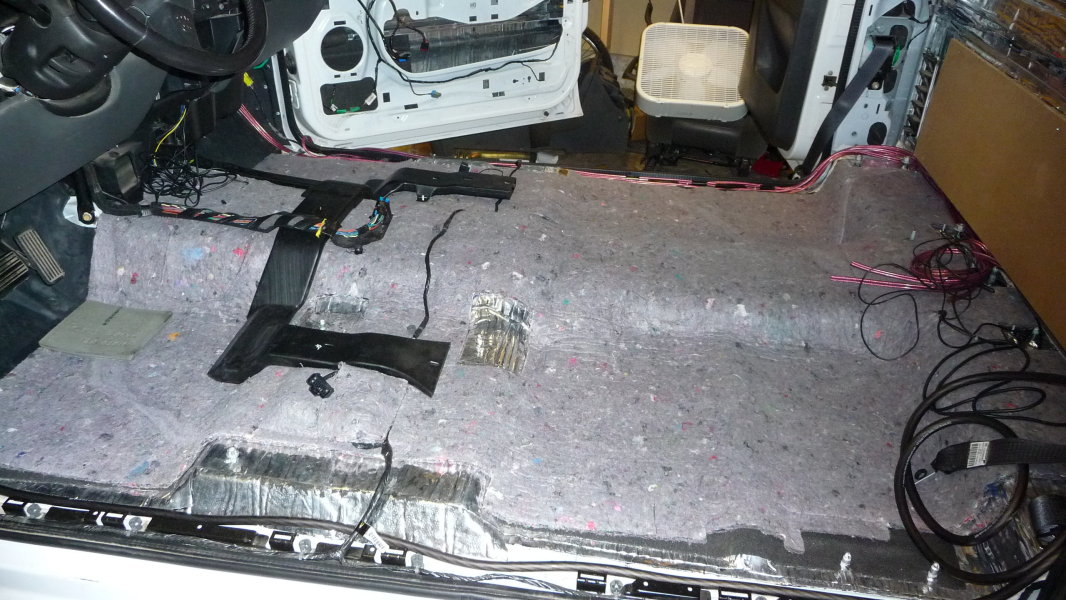

I doubt it will do much, but seeing as I had a bunch left over I decided to lay some on the floor pan.

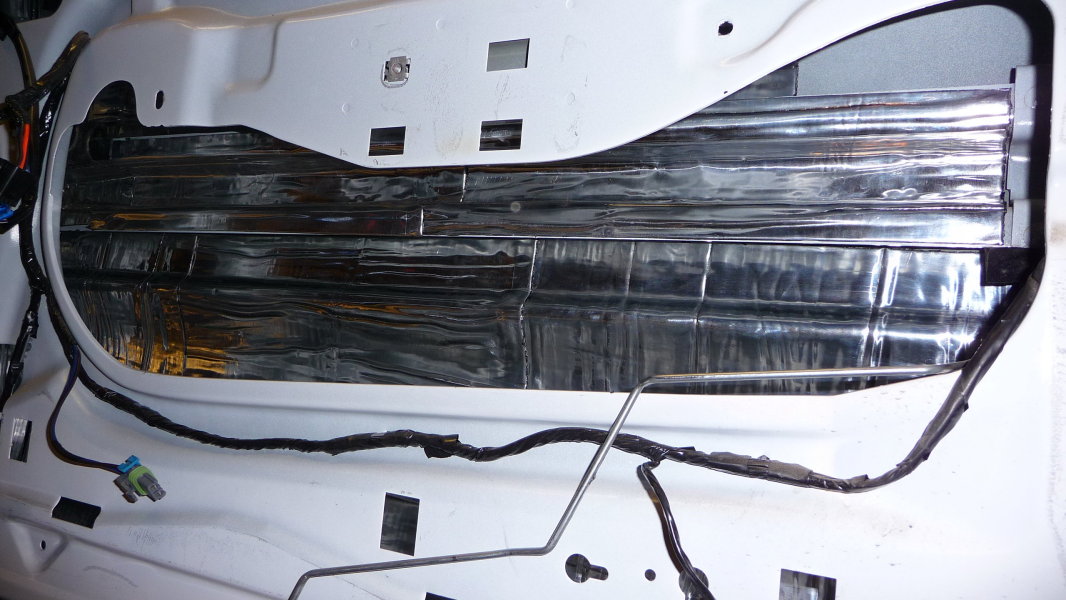

Dropped 2 layers on the outside inner panel, and also covered any piece of exposed metal (intrusion bar, etc). Definitely made a difference knocking on the door. There was also a surprising improvement between the first and second layer. Here's part way through.

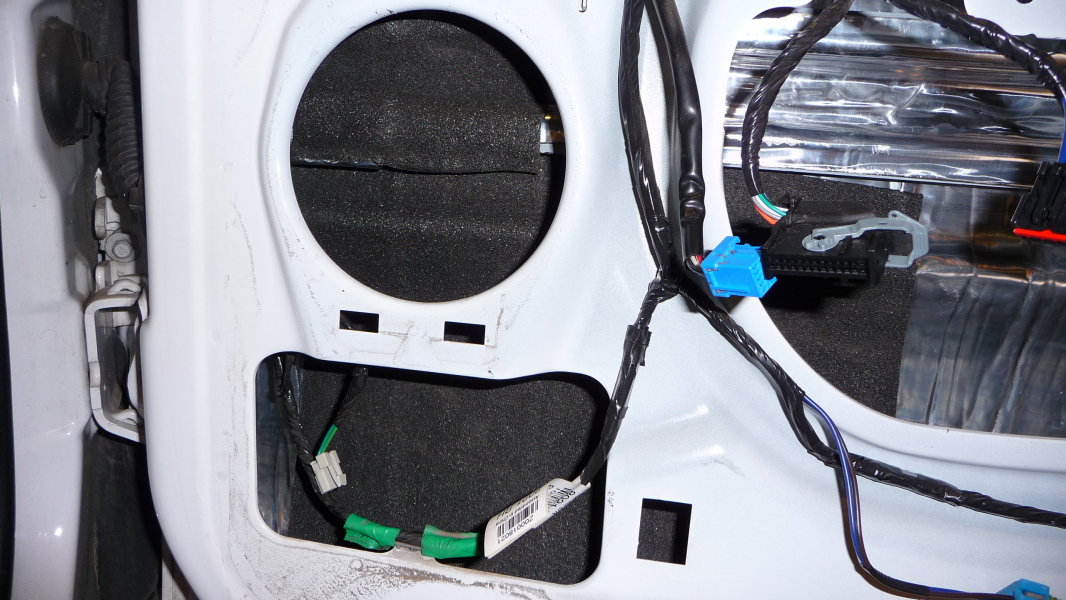

I also added some ensolite behind the speaker position to help with standing waves.

Seeing as I only had 2 days off work in a row, and this is my daily driver, I had to get cracking and at least get the truck back to driveable. You'd laugh if you saw me trying to remember how it all went back together. Lack of sleep doesn't help any.

Reg's back in the doors and ready for the outer skin. I'm in the process of building some MDF spacers for the door openings. This should create a little diffusion between the speaker and metal door. In trying to stick with the stock look, the JBL tweeters will be mounted above the woofer with the included waveguides. Thank goodness for Chevy's massive speaker grille's.



[Alter Ego Trip 10+ year member]

Cut out the MDF for the amp rack. Covered the back of it with ensolite to dampen it from the back wall. Yes I used screws to attach it to the back wall. I know some of you are adamant against this, but in case you haven't noticed, Chevy cut two huge holes for vents on each side of the cab. I doubt a tiny screw hole is going to matter much. Besides, I figure removal of amp rack is easier this way than using liquid nails. Screws are stainless to prevent any corrosion.

Mounted amps, distribution block, and Imprint. Ran all the speaker wire. I had 14 gauge left over from my theater install so I used that. Maybe a little bit of an overkill but it was free.

That's all for now, comment welcome. //content.invisioncic.com/y282845/emoticons/smile.gif.1ebc41e1811405b213edfc4622c41e27.gif



[Louisiana_CRX 5,000+ posts]

Is that a funnel cloud ?



[d-REW 10+ year member]

nice clean start i like it. more pics when you get em!



[tEh ShOcKeR]

Keep em coming.



[Alter Ego Trip 10+ year member]

Is that a funnel cloud ?

You know it sure looked like the start of one. I'm in western MT though, and Tornado's are really rare over here. We've had a couple touch down, but they are few and far between. This has been a killer year for T storms though. We've had more in the last month than I can remember in 10 years.



[Christo19 10+ year member]

thats looking really good so far



[Alter Ego Trip 10+ year member]

thats looking really good so far

Thanks. I could use a hand, you up for a road trip? //content.invisioncic.com/y282845/emoticons/biggrin.gif.d71a5d36fcbab170f2364c9f2e3946cb.gif



[Kyle! 10+ year member]

VERY nice looking so far. I love seeing some good truck installs



[Louisiana_CRX 5,000+ posts]

You know it sure looked like the start of one. I'm in western MT though, and Tornado's are really rare over here. We've had a couple touch down, but they are few and far between. This has been a killer year for T storms though. We've had more in the last month than I can remember in 10 years.

with global warming we will see a lot more bad weather than normal //content.invisioncic.com/y282845/emoticons/crap.gif.7f4dd41e3e9b23fbd170a1ee6f65cecc.gif

install looks good so far



[Loud3 10+ year member]

I enjoy this thread.



[blackbonnie 5,000+ posts]

your HT work has reallly helpe with this install....silverado?



[Alter Ego Trip 10+ year member]

your HT work has reallly helpe with this install....silverado?

You got it. My lease was up on my 07 so I purchased an 05 to play with. I'm in the process of building a 6.0 liter swap to replace the 5.3 when I get some time. Here's a couple quick pic's of some of my theater build.

07 Chevy.

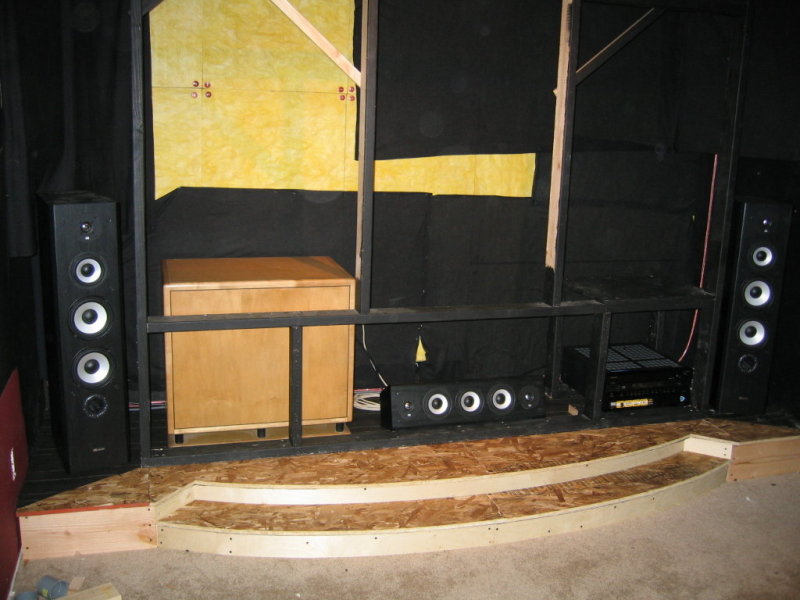

Custom stage I built. I pulled down some of the covering to get the camera to focus. The whole front wall is treated with 2" thick fiberglass paneling. Speakers and receiver were just positioned to eq before adding more acoustic treatments.

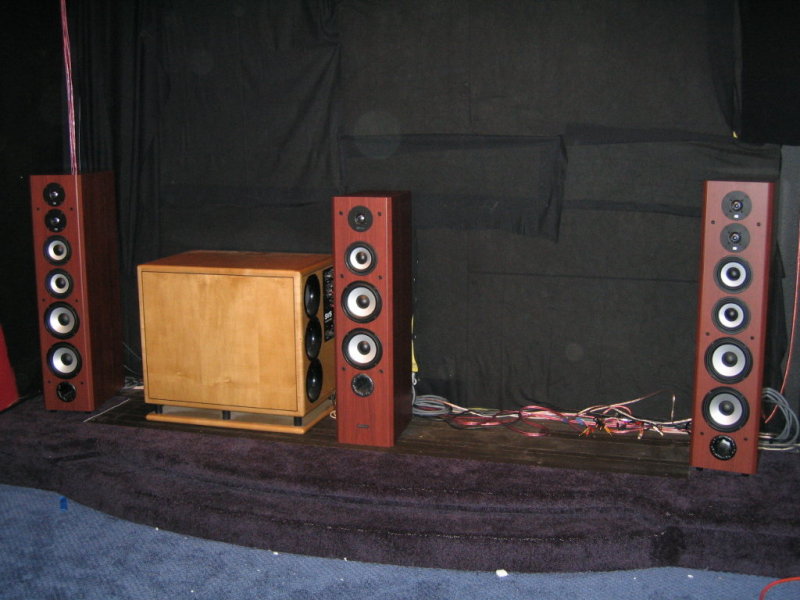

Changed out speakers for a better sound stage up front. These are powered by a Cinenova grand 300x5 amplifier. The rear surrounds are run off an Onkyo 906.
