Kenwood KAC-6201 Amplifier

[keep_hope_alive Premium Member]

Item(s) for Sale:

KAC-6201

2 channel amp for speakers

Item(s) Description/Condition:

60 watts RMS x 2 at 4 ohms

75 watts RMS x 2 at 2 ohms

150 watts RMS x 1 bridged output at 4 ohms

stereo or bridged mono output

4-ohm stable in bridged mode

Tri-way capable (Tri-Way crossover required)

MOSFET power supply

requires 10-gauge power and ground leads — wiring and hardware not included with amplifier

high-pass (150 Hz)/low-pass (80 Hz) crossovers, 12 dB/octave

9-7/8"W x 2-3/8"H x 9-13/16"D

Price:

$65 shipped to CONUS

Shipping and Miscellaneous Item Information:

KAC-6201 Features

Features

Ground Isolation Circuit: This circuit cancels noise from the input of the negative side of the RCA cable, preventing vehicle electrical noise from interfering with the music.

Quiet Turn-on: This feature allows the amplifier to power up over a period of several milliseconds instead of instantaneously, protecting your speakers from thumps and other sounds that could be damaging.

Internal Crossover: The internal crossover can be set for full-range, low-pass or high-pass operation. The low-pass frequency is fixed at 80Hz with a 12dB/octave slope. The high-pass frequency is fixed at 150Hz with a 12dB/octave slope.

Protection Circuitry: To keep the amplifier safely operating, the protection circuitry is triggered in the following situations:

When a speaker wire may be short-circuited

When a speaker output contacts ground

When the unit malfunctions and a DC signal is sent to the speaker output

When the internal temperature is too high for the unit to operate

When the head unit, or this unit, is not properly grounded

Inputs and Outputs Notes

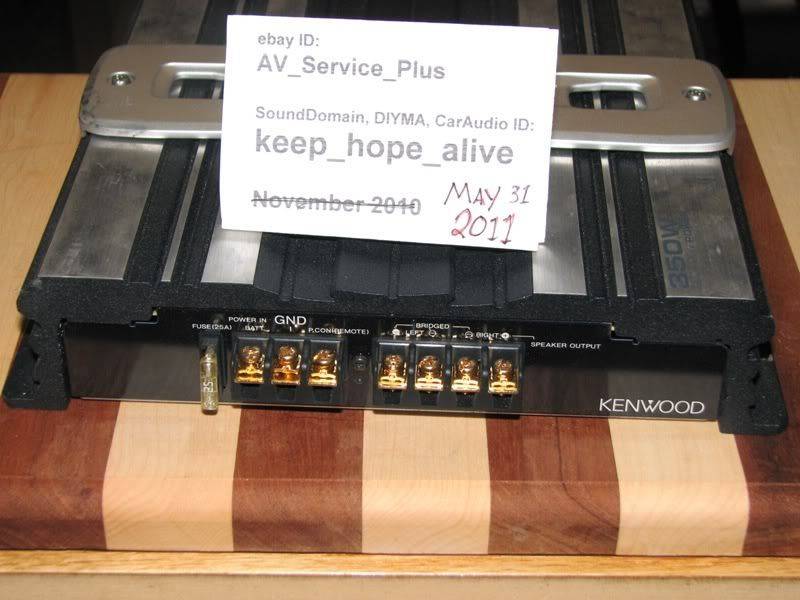

Left Side of Amplifier:

Battery, Remote Turn-on and Ground Connections: gold-plated screw terminals; each terminal is 0.345" wide

Speakers Outputs: gold-plated screw terminals; each terminal is 0.345" wide

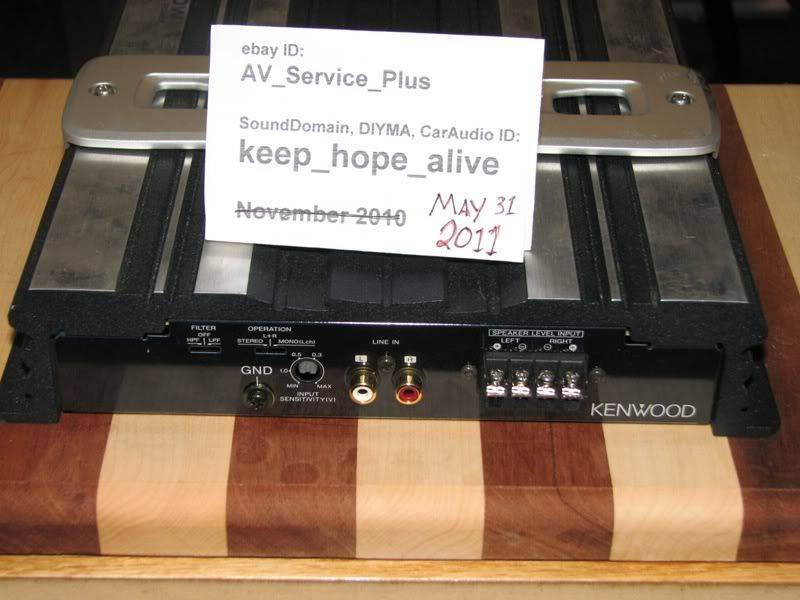

Right Side of Amplifier:

Speaker-level Inputs: screw terminals; each terminal is 0.257" wide

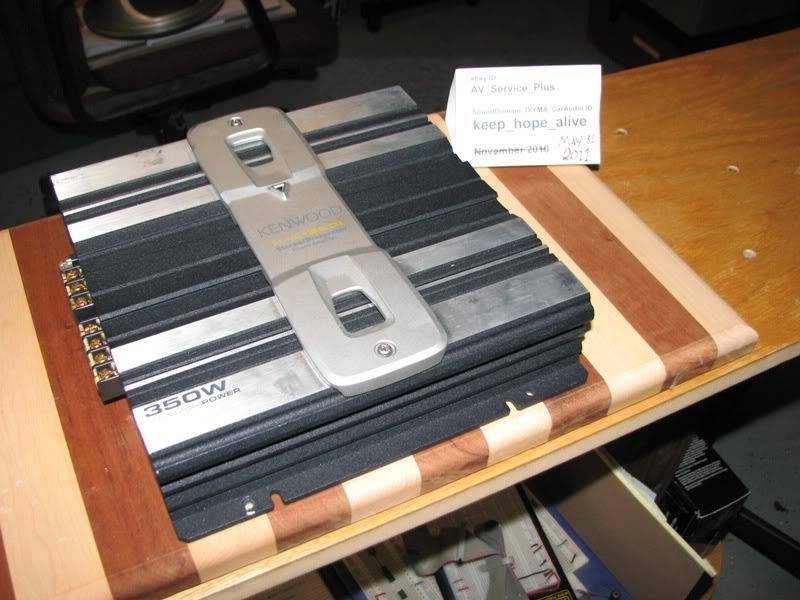

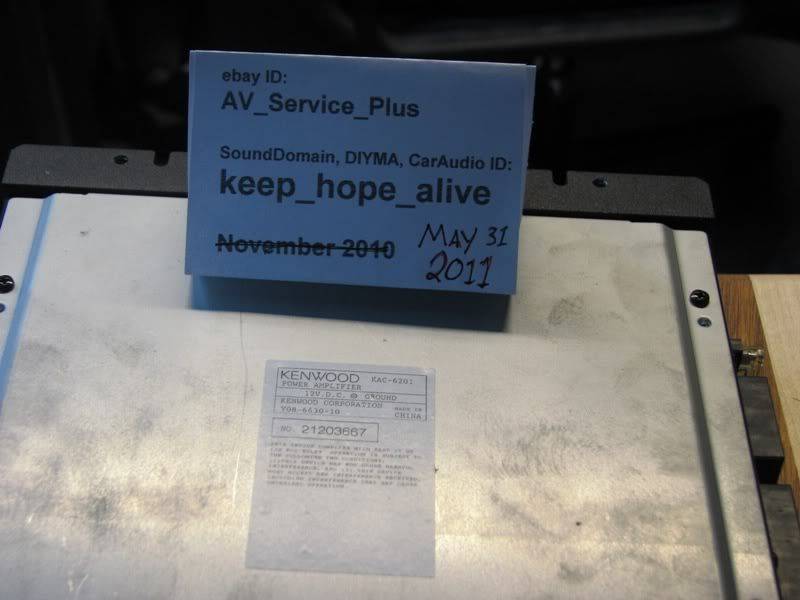

Item Pictures:



---------- Post added at 07:29 PM ---------- Previous post was at 07:29 PM ----------



tested, works great. PM if interested.

Click to read more...



[dlbenjamin]

Hello,

I'm interested in the Kenwood KaC 6201 you have for sell..Please contact me at 201 679 7508.

Debbie



[keep_hope_alive Premium Member]

contacted. i recommend you remove your phone number and only provide phone numbers in a PM.
